Product Type	Condenser Dryer (Electric)
Brand	Maytag
Model	W10869845
Drying Capacity	7 kg (15.4 lb)
Dimensions (H x W x D)	76 cm x 68 cm x 71 cm
Net Weight	45 kg
Power Supply	240 V, 30 A, 60 Hz
Drying Programs	Automatic, Timed, Normal, Delicate, Easy Iron, Bedding
Special Functions	Moisture Sensor, Refresh Steam, Anti-Crease, Delay Start
Drying System	Stainless Steel Drum, Reversible Rotation
Noise Level	Approx. 65 dB (A)
Maintenance	Clean lint filter after each cycle, regular pocket cleaning
Condenser Cleaning	Self-cleaning (depending on model) or manual every 10 uses
Safety	Child Lock, Auto Shut-off in case of overheating, Blockage Detection
Spare Parts	Lint Filter (W10869845-1), Belt (WPW10317758), Stacking Kit (W10869845-KIT)
Repairability	Repairability Index: 7.5/10 (estimated)
Mounting Options	Stackable with kit, pedestal installation or side-by-side
Energy Consumption	Approx. 590 kWh/year (standard cycle)

Frequently Asked Questions - W10869845 MAYTAG

How to clean the lint filter of the Maytag W10869845 dryer?

Remove the filter located at the top of the door or in the drum area. Open it and remove lint by hand or with a vacuum. Rinse with soapy water if necessary, dry completely before reinstalling. A clogged filter reduces efficiency and may cause overheating.

What to do if my dryer no longer heats?

First check the power supply (circuit breaker, outlet). Make sure the lint filter is clean. If the problem persists, the thermostat or heating element may be faulty. Consult the manual for continuity tests or contact a professional.

How to install the stacking kit for this model?

The stacking kit (ref. W10869845-KIT) allows placing the dryer on top of the washer. Follow the provided instructions: remove the dryer's feet, install the coupling brackets, secure the clamps and screws. Make sure the assembly is stable and level. See the 'INSTALLATION INSTRUCTIONS' section of the manual.

Why does the dryer stop before the end of the cycle?

Possible causes: overloaded laundry, clogged lint filter, blocked air exhaust, or moisture sensor issue. Reduce the load, clean the filter, check the exhaust duct. If the problem continues, an internal component may be faulty.

How to resolve error codes on the display?

Refer to the 'Troubleshooting' section of the manual. Common codes: PF (power failure) - reset the cycle; F1 or F2 (sensor problem) - unplug for 1 minute and plug back in; E1 (communication error) - check connections. If the code persists, contact technical support.

Can I use fabric softener sheets with this dryer?

Yes, you can use fabric softener sheets, but avoid using too many. Place one at the start of the cycle. Excess can clog the filter and reduce efficiency. For models with a moisture sensor, using sheets may affect drying accuracy.

How to level the dryer to avoid vibrations?

Place a bubble level on top of the dryer. Adjust the feet by turning clockwise to lower, counterclockwise to raise. Use a wrench for the front feet. Make sure the appliance does not rock. Improper leveling can cause noise and movement.

What are the main drying cycles available?

This model offers cycles: Automatic (sensor), Timed (adjustable temperature), Normal (cotton), Delicate (synthetics), Easy Iron (reduces wrinkles), Bedding, Steam (refreshes and dewrinkles). Check the control panel for options.

How to maintain the drum drive belt?

The belt does not require regular maintenance, but if the drum does not turn or makes a grinding noise, it may be loose or broken. Replace it with a new one (ref. WPW10317758). Unplug the appliance, remove the rear panel, remove the old belt and install the new one following the marks.

Where can I buy spare parts for this model?

Original Maytag parts are available from authorized dealers, online on the Maytag website or platforms like Parts Sears or Repair Clinic. Part numbers are listed in the manual. Always use original parts to ensure safety and performance.

USER MANUAL W10869845 MAYTAG

Location Requirements. 3

Uninstall Washer and Dryer 4

If Your Washer or Dryer

Is Still in Its Packaging. 4

INSTALLATION INSTRUCTIONS. 5

Complete Installation.. 6

Indices

SEGURIDAD DEL JUEGO

PARALAVADORAY

SECADA SUPERPUESTAS 7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

Tools needed:
2 Phillips screwdriver Adjustable wrench that opens to 2" (51 mm)

Pliers or slip-joint pliers (for drain and inlet hoses)

Level

Bucket

Tape measure

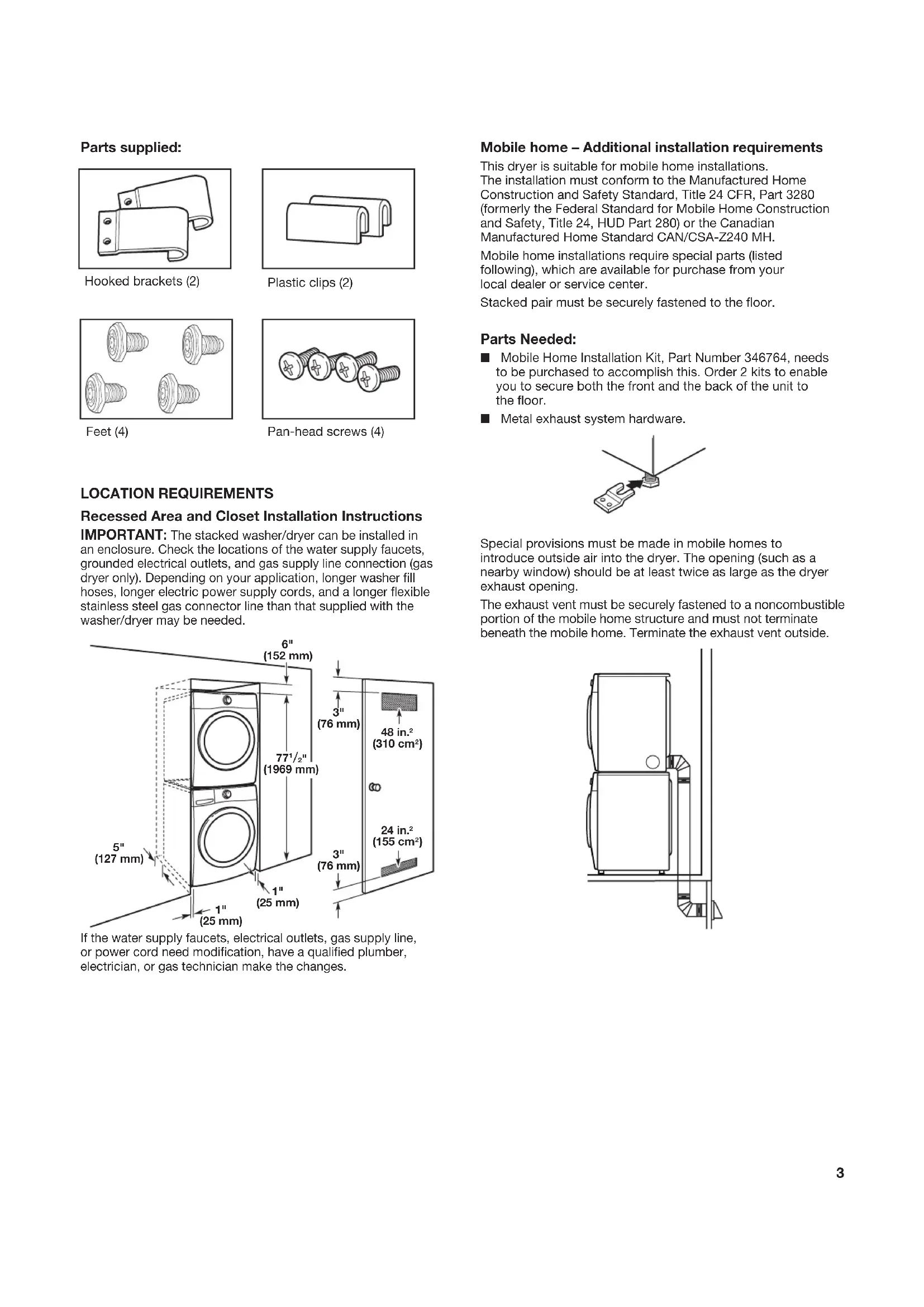

Parts supplied:

Hooked brackets (2)

Plastic clips (2)

Feet (4)

Pan-head screws (4)

LOCATION REQUIREMENTS

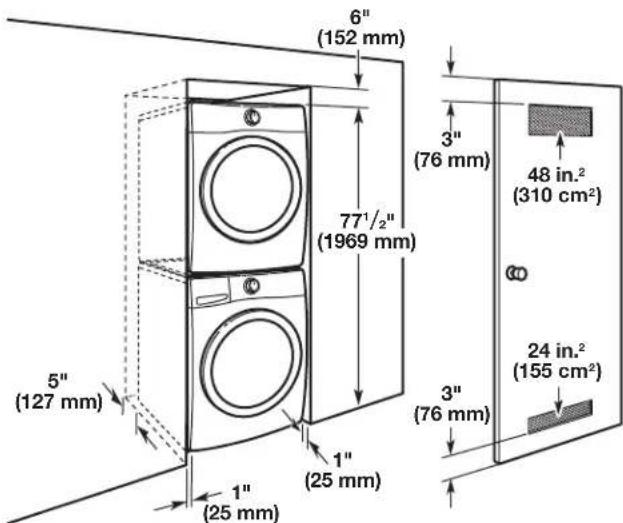

Recessed Area and Closet Installation Instructions

IMPORTANT: The stacked washer/dryer can be installed in an enclosure. Check the locations of the water supply faucets, grounded electrical outlets, and gas supply line connection (gas dryer only). Depending on your application, longer washer fill hoses, longer electric power supply cords, and a longer flexible stainless steel gas connector line than that supplied with the washer/dryer may be needed.

If the water supply faucets, electrical outlets, gas supply line, or power cord need modification, have a qualified plumber, electrician, or gas technician make the changes.

Mobile home - Additional installation requirements

This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280) or the Canadian Manufactured Home Standard CAN/CSA-Z240 MH.

Mobile home installations require special parts (listed following), which are available for purchase from your local dealer or service center.

Stacked pair must be securely fastened to the floor.

Parts Needed:

• Mobile Home Installation Kit, Part Number 346764, needs to be purchased to accomplish this. Order 2 kits to enable you to secure both the front and the back of the unit to the floor.
  Metal exhaust system hardware.

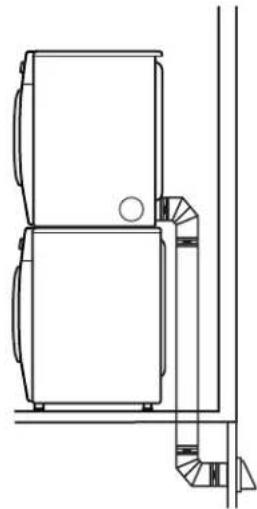

Special provisions must be made in mobile homes to introduce outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.

The exhaust vent must be securely fastened to a noncombustible portion of the mobile home structure and must not terminate beneath the mobile home. Terminate the exhaust vent outside.

UNINSTALL WASHER AND DRYER

IMPORTANT: If your washer and dryer are already installed, they must be uninstalled.

If you need to uninstall your washer or dryer, see the Installation Instructions that came with your model for tools required.

WARNING

Excessive Weight Hazard

Use two or more people to move washer or dryer.

Failure to do so can result in back or other injury.

Uninstalling Your Washer

1. Turn off the hot and cold water faucets.
2. Unplug the power supply cord.
3. Slowly loosen the fill hoses at the faucets to relieve the water pressure. Use a sponge or towel to absorb the released water.
4. Remove the "HOT" and "COLD" fill hoses from the back of the washer. Drain water in the hoses into a bucket.
5. Remove the drain hose from the wall drain pipe or utility sink and drain any water in the hose into a bucket.

Uninstalling Your Electric Dryer

1. Unplug the power supply cord.
2. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.

Steam Models Only:

1. Turn off water faucet.
2. Disconnect the water inlet hose from faucet, then drain the hose into a bucket.

Uninstalling Your Gas Dryer

1. Unplug the power supply cord.
2. Turn off the gas supply.
3. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
4. Disconnect the flexible gas supply line from the dryer. Put a piece of tape over the open ends of the gas line connection fittings.

Steam Models Only:
5. Turn off water faucet.
6. Disconnect the water inlet hose from faucet, then drain the hose into a bucket.

IF YOUR WASHER OR DRYER IS STILL IN ITS PACKAGING

WARNING

Excessive Weight Hazard

Use two or more people to move washer or dryer.

Failure to do so can result in back or other injury.

Position the packaged washer or dryer close to its final position. Cut the packaging as follows:

• Washer: Cut plastic film along dotted cut line around the base. Remove the packaging. Do not remove the shipping bolts.
  Dryer: Cut around top and down corners along dotted cut lines. Discard carton top, corner posts, and sides. Leave carton bottom underneath dryer.

INSTALLATION INSTRUCTIONS

WARNING

Excessive Weight Hazard

Use two or more people to move washer or dryer.

Failure to do so can result in back or other injury.

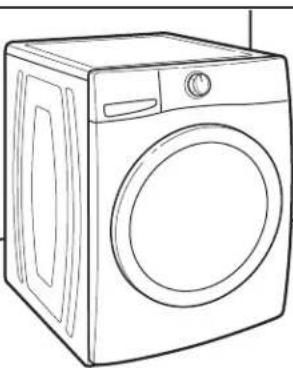

1. Move washer to its final location

Leave room to work behind washer. Do not remove the shipping bolts.

2. Check levelness of washer

Place a level on top edges of washer, checking each side and front. If not level, tip washer and adjust feet up or down as shown in Installation Instructions, repeating as necessary.

Not Level LEVEL Not Level

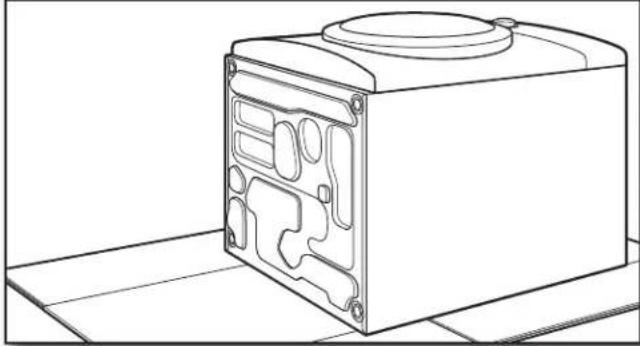

3. On covering, lay dryer on side or back

Place a covering, such as cardboard or a blanket, on the floor to avoid damage. Gently lay the dryer down with its side or back on the covering.

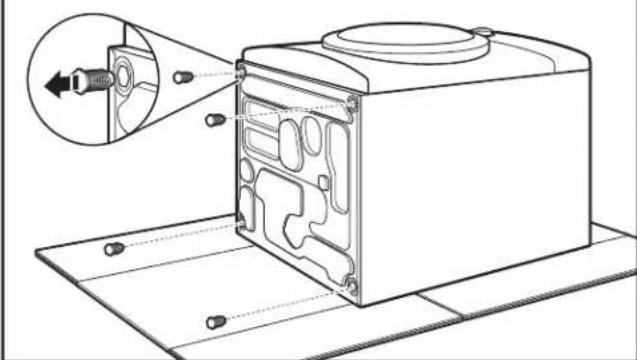

4. Remove existing feet, if present

Using a wrench or slip-joint pliers, remove the existing feet if present.

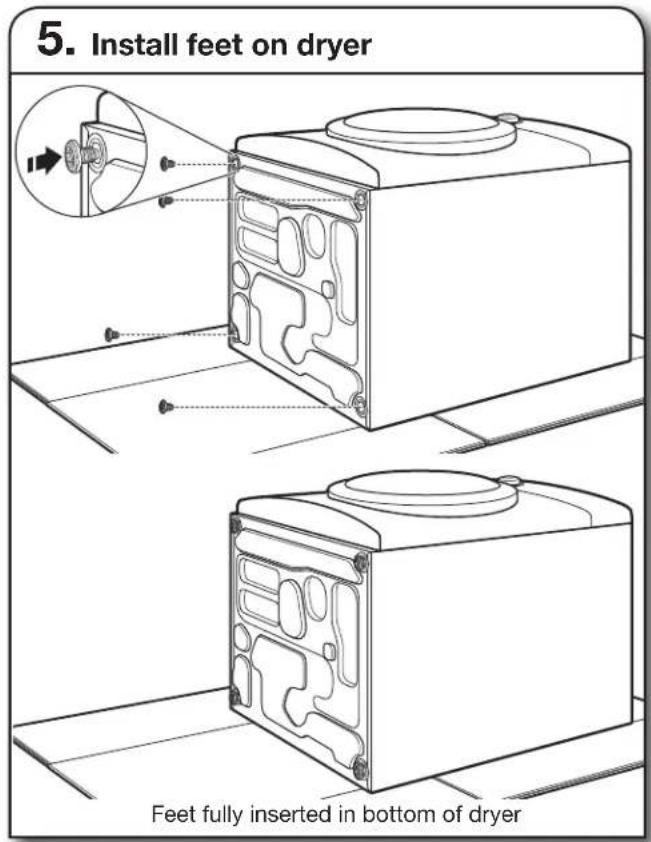

Using a wrench or slip-joint pliers, install the new feet, turning them fully into the bottom of the dryer.

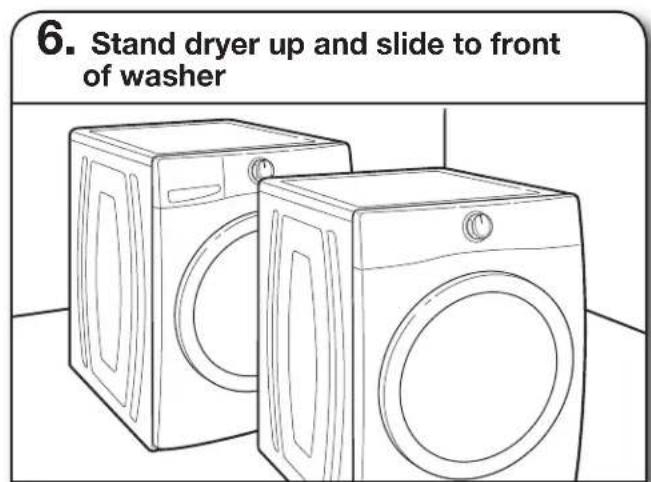

Lift the dryer back to an upright position, keeping it on the cardboard (or carton bottom). Use the cardboard to slide the dryer to the front of the washer to avoid damaging the rubber feet.

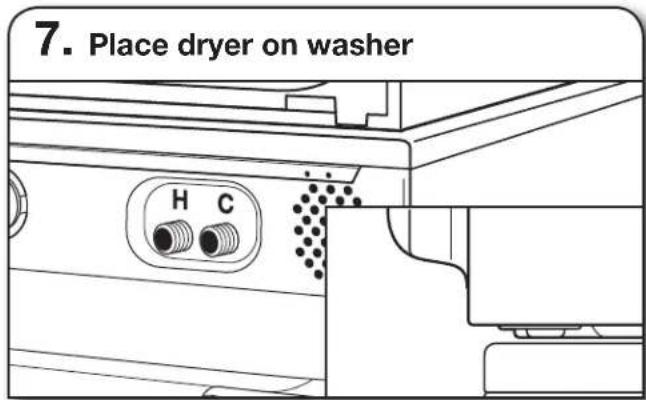

Lift the dryer up and set securely on top of washer. Position dryer to slightly overhang the back of the washer - too much overhang will allow the rear feet to slip off the back of the washer top.

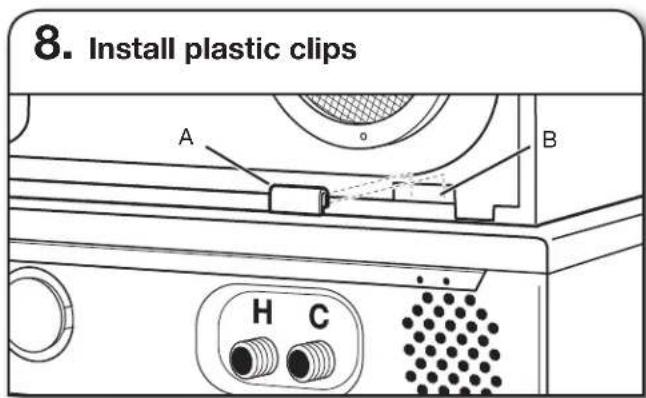

Remove the plastic clips (2), brackets (2), and pan-head screws (4) from the parts bag. Take a plastic clip (A) and, with the flat side facing out, push it down onto the lower edge of the slot (B) in the dryer back. A flat-blade screwdriver may help to open the plastic clip slightly. Repeat on other side.

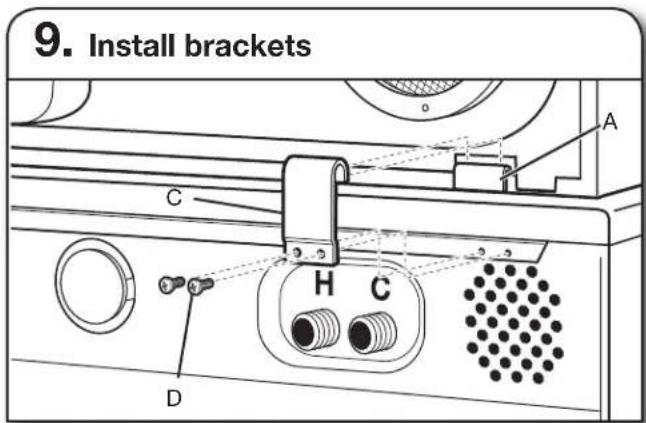

Push the hooked end of the bracket (C) down over the plastic clip (A). A flat-blade screwdriver may help to seat the bracket over the plastic clip. Slide the dryer forward as needed and attach bracket (C) to washer with pan-head screws (D). Tighten screws securely. Repeat on other side.

COMPLETE INSTALLATION

Follow the Installation Instructions that came with your washer and dryer to remove the shipping bolts and complete the installation.
