USER MANUAL UP810 H.KOENIG

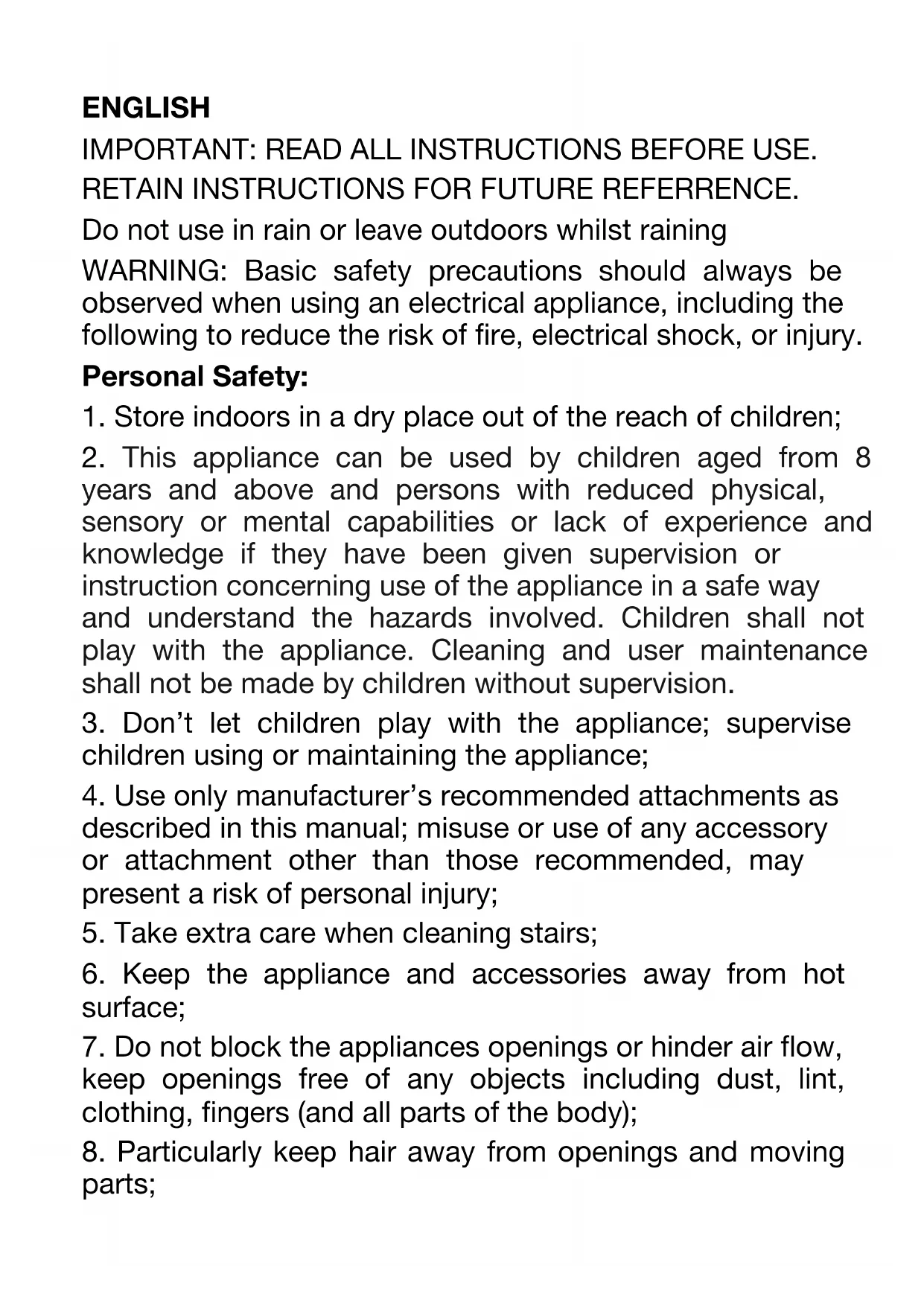

WARNING: Basic safety precautions should always be

observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury. Personal Safety:

1. Store indoors in a dry place out of the reach of children;

2. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Don’t let children play with the appliance; supervise

children using or maintaining the appliance;

4. Use only manufacturer’s recommended attachments as

described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury;

5. Take extra care when cleaning stairs;

6. Keep the appliance and accessories away from hot

7. Do not block the appliances openings or hinder air flow,

keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body);

8. Particularly keep hair away from openings and moving

parts;9. The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks. Electrical Safety:

1. Only use batteries and chargers supplied by the

3. The charger has been designed for a specific voltage.

Always check that the mains voltage is the same as that stated on the rating plate;

4. A charger that is suitable for one type of battery pack

may create a risk of fire when used with another battery pack;

5. Before use, check the charger cord for signs of damage

or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock;

6. Don not abuse the charger cord;

7. Never carry the charger by the cord;

8. Do not pull the cord to disconnect from a socket, grasp

the plug and pull to disconnect;

9. Don’t wrap the cod around the charger when storing;

10, Keep the charger cord away from hot surfaces and sharp edges;

11. The supply cord cannot be replaced. If the cord is

damaged the charger should be discarded and replaced. It must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

12. Do not handle the charger or the appliance with wet

13. Do not store or charge the appliance outdoors;

14. The charger must be removed from the socket beforeremoving the battery, cleaning or maintaining the

15. Cleaning and maintenance should not be carried

out by children unless they are at least 8 years of age and are supervised by an adult.

16. Keep the appliance and its power cord out of

reach of children under 8 years of age.

17. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

18. Make sure that the voltage rating on the

typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

19. Never leave the unit unattended while in operation.

20. Please keep this document at hand and give it to the

future owner in case of transfer of your device.

1. This appliance includes Li-ion batteries, do not

incinerate batteries or expose to high temperatures, as they may explode;

2. Liquid ejected from the battery may cause irritation or

3. in an emergency situation contact professional help

immediately;4. Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid that gets on skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations;

5. Shorting the battery terminals may cause burns or fire;

6. When the battery pack is not in use, keep it away from

paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.

7. When you dispose of the appliance remove the battery

and dispose of the battery safely in accordance with local regulations. Service:

1. Before using the appliance and after any impact, check

for signs of wear of damage and repair as necessary;

2. Do not use the appliance if any part is damaged or

3. Repairs should be carried out by a service agent or a

suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous;

4. Never modify the appliance in any way as this may

increase the risk of personal injury;

5. Only use replacement parts or accessories provided or

recommended by manufacturer. Intended use:1. This appliance has been designed for domestic dry vacuum cleaning only;

2. Do not pick up liquids or use on wet surfaces;

3. Do not pick up anything that is flammable, burning or

4. Use only as described in this manual;

1. Do not use water, solvents, or polishes to clean the

outside of the appliance; wipe clean with a dry cloth;

2. Never immerse the unit in water and do not clean in a

dish washer. Introduction of components:

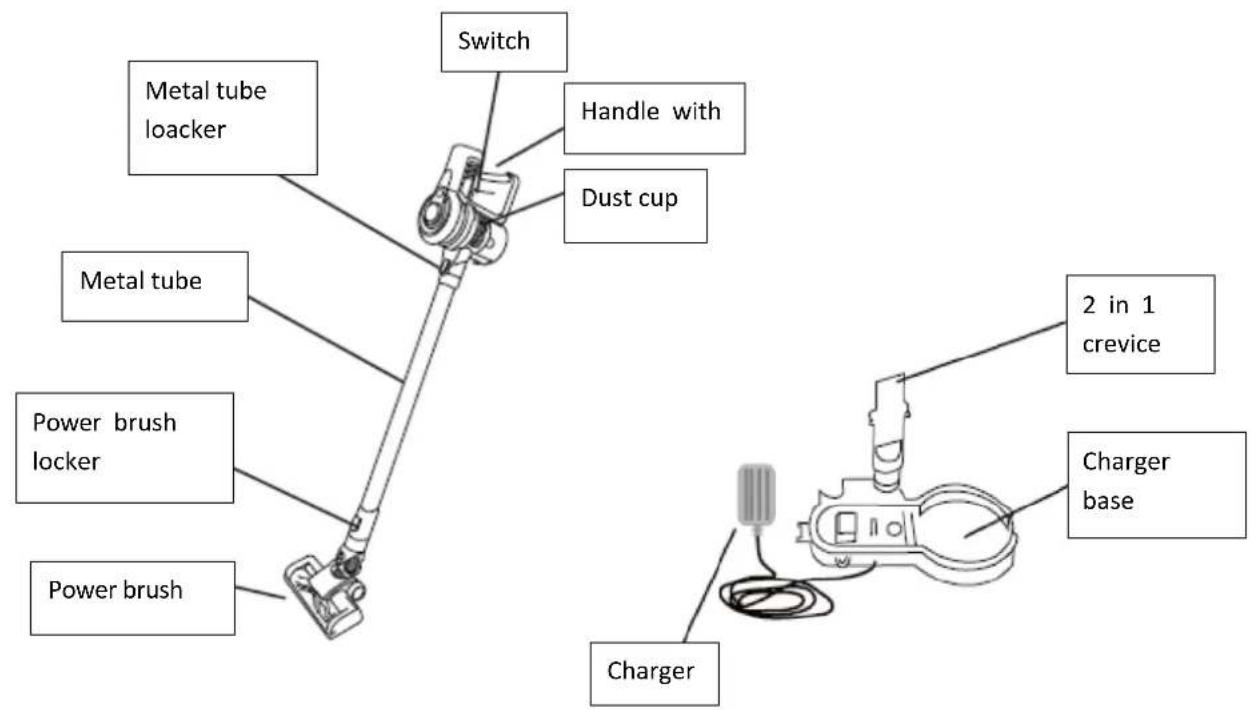

Metal tube loacker Metal tube Power brush locker Power brush Switch Handle with battery

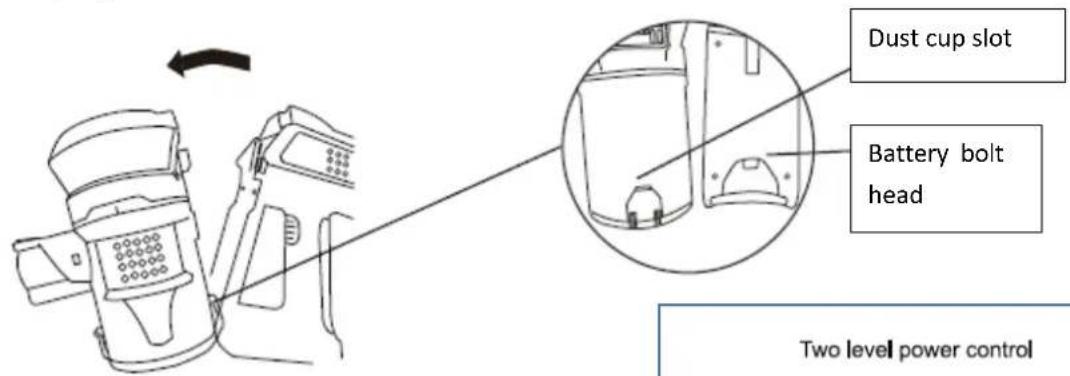

Dust cup Charger Charger base 2 in 1 creviceI Use as the stick vacuum cleaner a) Assemble the battery into the dust cup, make sure the battery bolt head insert the dust cup slot rightly as below b) Attached the metal tube to the body as below until hear click sound

c) Attached the brush to another head of metal tube as below showed

d) Press the switch to work

Dust cup slot Battery bolt head A Lower power It’s lower power when your press the switch button first time B high power Its high power when you press the switch button second time It will be power off when press third time, it’s kind of circle as below showedII How to use as handly Insert the accessory (2in 1 crevice or long crevice) to body as below showed

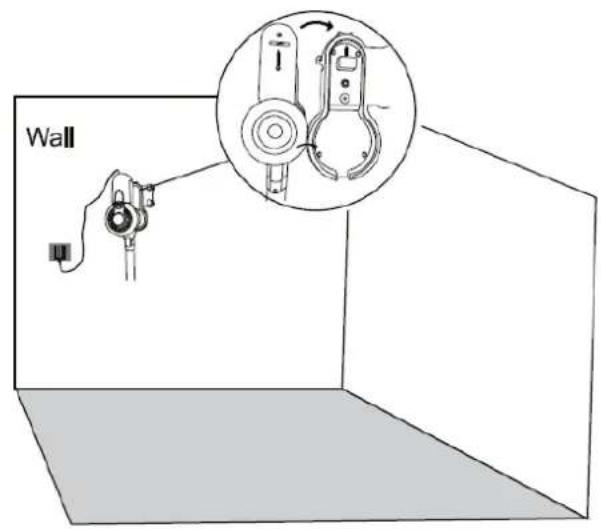

When the battery power indictor Is blinking, please power off then Put back to charge base for charging As left showed

tube locker then take out the metal

1. Press the battery locker

to unattached the battery from dust cup

2. Open the dust cup as

3. Take out the filter case,

then take out the filter

4. wash the filter case and

5. Please dry the HEPA filter

and filter case completely before assemble back

6. After drying, assemble

the filter to the case

7. put the filter case back to

8. assemble the dust cover

into the dust cup as below showedTROUBLESHOOTING: Not cleaning Well

1. Empty the dust bin

2. Check dust bin is correctly fitted

3. Check the filter is correctly fitted

2. Clear debris from brush bar

Battery will not charge

1. Check connections

TECHNICAL SPECIFICATION: Battery 22.2V/2200mA Charging period 4 hours Battery charger output 26V/500mA Net Weight 2.3kg Usage time 35min (low speed), 20min (high speed) Power 160W Airflo 30m3/s

WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.EXCLUSION OF WARRANTY - Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/. ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél: +33 1 64 67 00 05FRANÇAIS
