USER MANUAL XHP1000XW MAYTAG

PEDESTAL INSTALLATION INSTRUCTIONS

For use only with front load washers and dryers

INSTRUCTIONS D'INSTALLATION DU PIÉDESTAL

PEDESTAL SAFETY ....1

INSTALLATION REQUIREMENTS ......2

Location Requirements ....2

Tools and Parts 2

INSTALLATION INSTRUCTIONS ....3

Before Installing Pedestal ....3

INSTALLING THE PEDESTAL 4

COMPLETE THE INSTALLATION. 5

WARRANTY 7

SÉCURITÉ DU PIÉDESTAL ....9

EXIGENCES D'INSTALLATION ....9

Exigences d'emplacement ....9

Date of purchase: ____

Date of installation: ____

Installer:

Model number: ____

Serial number: ____

NOTES CONCERNANT L'INSTALLATION

Date d'achat : ____

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION REQUIREMENTS

LOCATION REQUIREMENTS

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Place dryer at least 18 inches (460 mm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

NOTE: If the washer/dryer and pedestal assembly are located in a garage, 8" (203 mm) must be added under the pedestal so that the washer/dryer is 18" (458 mm) above the garage floor.

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

Tools needed:

Line drawing of a flat tool with a handle and blade (no text or symbols)

Line drawing of a standard mechanical wrench (no text or symbols)

Utility knife 1/4" hex-head ratchet or

open-end wrench

Simple diagram with three circular symbols inside a rectangular frame (no text or labels)

Level

Line drawing of a standard mechanical wrench (no text or symbols)

9/16" open-end wrench

Line drawing of a pair of pliers (no text or symbols)

Pliers or slip-joint pliers

Simple line drawing of a bucket with handle (no text or symbols)

Bucket

Additional items needed:

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Towel

Illustration of a rectangular block with a textured surface and circular patterns on its top (no text or symbols)

Sponge

Parts supplied:

Illustration of four hexagonal bolts arranged in a row (no text or symbols)

Four #12 x 5/8" hex-head sheet metal screws (in parts bag)

Simple line drawing of a rectangular box with a square cutout on top (no text or symbols)

Two retainer clips (in parts bag)

INSTALLATION INSTRUCTIONS

BEFORE INSTALLING PEDESTAL

IMPORTANT: If your washer and dryer are already installed, they must be uninstalled.

Uninstalling your washer

To avoid possible damage to the washer, the transport bolts on the back of the washer must be in place before installing the pedestal. For more information on transport bolts, see "Remove Transport System" in washer Use and Care Guide.

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall washer.

Failure to do so can result in back or other injury.

NOTE: If the washer is to be transported, call your local service center. To avoid suspension and structural damage, your washer must be properly set up for relocation by a certified technician.

1. Turn off the hot and cold water faucets.
2. Unplug the power supply cord.
3. Slowly loosen the fill hoses at the faucets to relieve the water pressure. Use a sponge or towel to absorb the released water.
4. Remove the "HOT" and "COLD" fill hoses from the back of the washer. Drain the water from the hoses into a bucket.
5. Remove the drain hose from the standpipe or laundry tub and drain any water remaining in the hose into a bucket.
6. Pull the washer away from the wall so it can be tipped on its back.
7. To avoid floor damage and ease installation and handling, unfold the empty pedestal box flat and place it next to the washer. Lay the washer on its back (make sure that the power supply cord is not under the washer) so that the cardboard is under the entire lower back edge of the washer.
8. An additional small amount of water will drain out of the washer when it is tipped back. Go to "Installing the Pedestal".

Uninstalling your electric dryer

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall dryer.

Failure to do so can result in back or other injury.

1. Unplug the power supply cord.
2. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
3. Pull the dryer away from the wall so that it can be tipped on its back.
4. To avoid floor damage and ease installation and handling, unfold the empty pedestal box flat and place it next to the dryer. Lay the dryer on its back (make sure that the power supply cord is not under the dryer) so that the cardboard is under the entire lower back edge of the dryer. Go to "Installing the Pedestal".

Uninstalling your gas dryer

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall dryer.

Failure to do so can result in back or other injury.

1. Unplug the power supply cord.
2. Turn off the gas supply.
3. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
4. Disconnect the flexible gas supply line from the dryer. Put a piece of tape over the open ends of the gas line connection fittings.

5. Pull the dryer away from the wall so that it can be tipped on its back.

6. To avoid floor damage and ease installation and handling, unfold the empty pedestal box flat and place it next to the dryer. Lay the dryer on its back (make sure that the power supply cord is not under the dryer) so that the cardboard is under the entire lower back edge of the dryer. Go to "Installing the Pedestal".

Installation of new washer/dryer

WARNING

Excessive Weight Hazard

Use two or more people to move and install washer/dryer.

Failure to do so can result in back or other injury.

If your washer/dryer is still in the packaging:

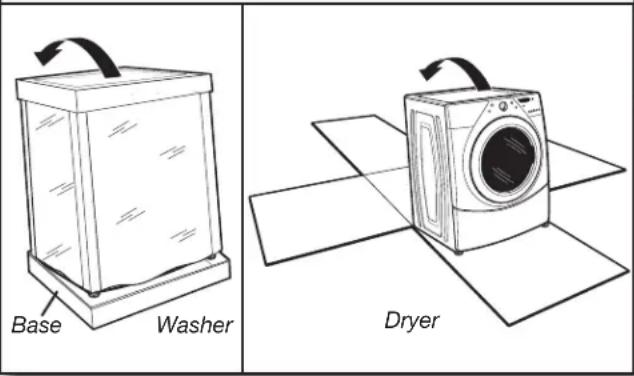

1. Unpacking Washer/Dryer


Base Washer Dryer

Washer: Cut plastic film along dotted cut line around the base. Do not remove the packaging.

Dryer: Cut carton around top and down corners along dotted cut lines. Lay all four carton sides on floor. Discard carton top and corner posts.

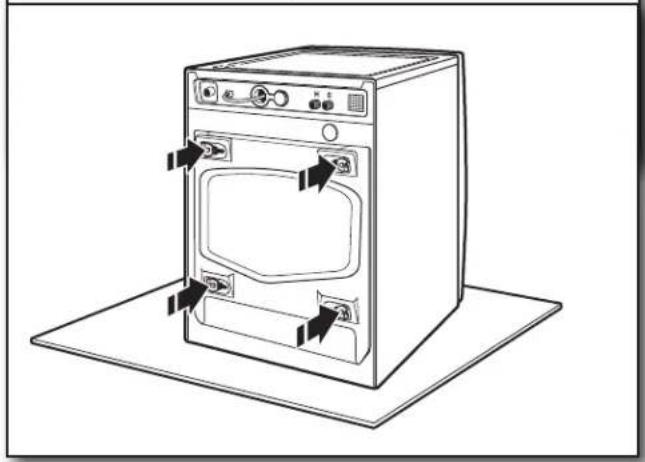

1. Washer transport bolts


Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Locate the transport bolts on rear of washer. Transport bolts must remain in washer while pedestal is installed. When laying the washer on its back, hold the base down on the floor. Do not remove the plastic film, corner posts, or top cap.

INSTALLING THE PEDESTAL

WARNING

Excessive Weight Hazard

Use two or more people to move and install pedestal.

Failure to do so can result in back or other injury.

Follow these instructions to install the pedestal on a washer or dryer.

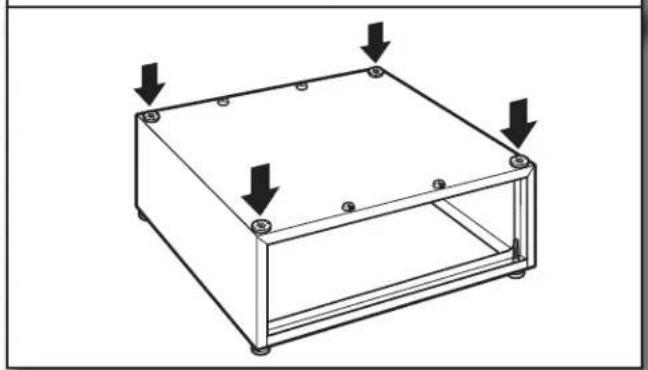

1. Locate spacer pads


Technical line drawing of a rectangular metal enclosure with mounting holes and three downward arrows indicating force or adjustment (no text or symbols)

Make sure that all four spacer pads are in place on the top of the pedestal. Spacer pads reduce vibration between the pedestal and the washer/dryer.

NOTE: If your washer/dryer has feet installed, remove them.

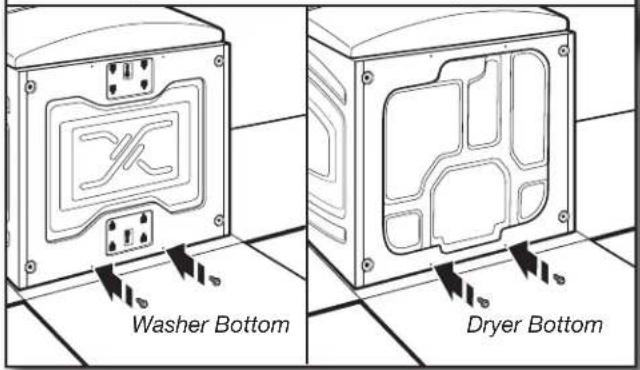

1. Prepare the washer/dryer


Washer Bottom Dryer Bottom

Partially install two of the #12 x 5/8" hex-head sheet metal screws in the lower holes. Leave a space of about 3/8" (10 mm) between the screw head and the bottom of the washer/dryer.

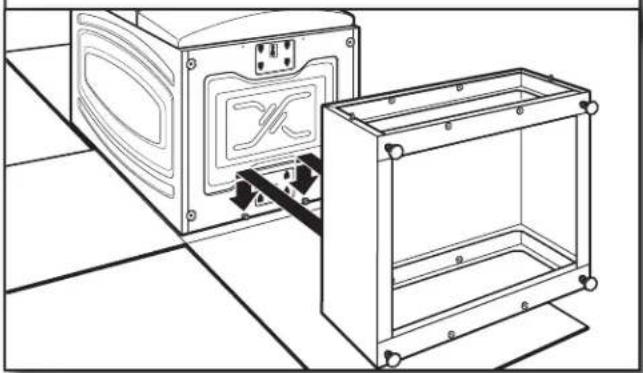

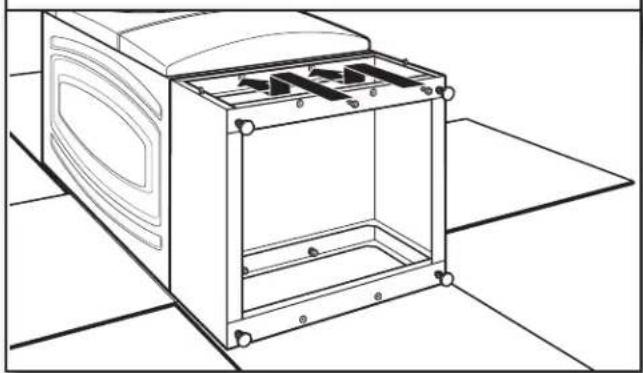

1. Attach the pedestal


Line drawing of a microwave oven and its internal frame assembly (no text or symbols)

Move the pedestal against the washer/dryer bottom. Slide the pedestal's keyhole slots over the lower two partially installed screws.

1. Secure the pedestal


Line drawing of a microwave oven with internal compartments and mounting holes (no text or symbols)

Position the pedestal toward the front of the washer/dryer and install the two remaining hex-head sheet metal screws. Do not tighten completely.

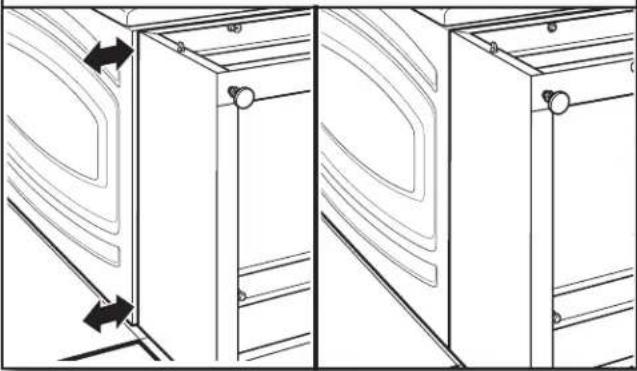

1. Align sides of pedestal


Line drawing of three window doors with arrows indicating movement or change, no text or symbols present

Align the sides of the pedestal so that they are even with the sides of the washer/dryer. Reach inside the pedestal opening and securely tighten all four pedestal screws.

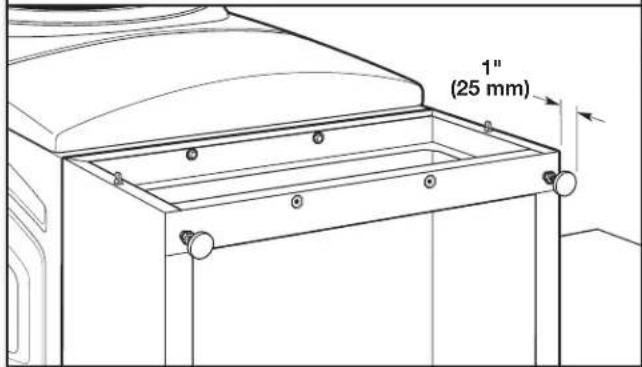

1. Prepare pedestal feet


1" (25 mm)

The pedestal arrives with the feet tight against the bottom of the unit. Using a 1/4" hex-head ratchet or open-end wrench, lower the feet approximately 1" (25 mm) away from the bottom of the pedestal.

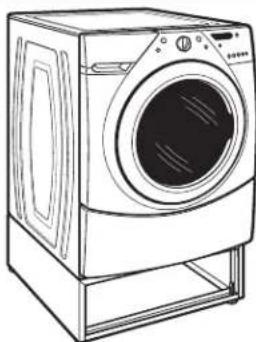

1. Stand the washer/dryer upright


Line drawing of a front-loading washing machine with lid, door, and frontrest (no text or symbols)

Tip the washer/dryer back to its upright position. Remove and discard any remaining packaging material.

COMPLETE THE INSTALLATION

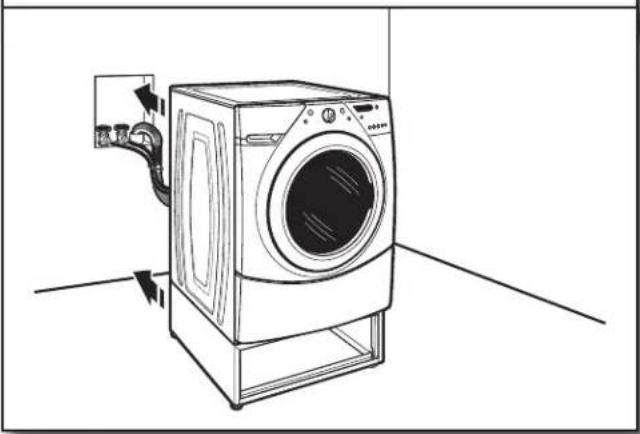

1. Move close to final location


Line drawing of a front-loading washing machine with attached piping and ventilation system (no text or symbols)

Follow the installation instructions that came with your model to finish installing or reinstalling your washer/dryer (i.e., hoses, vents, etc.).

NOTE: Be sure to remove the transport bolts from the back of the washer.

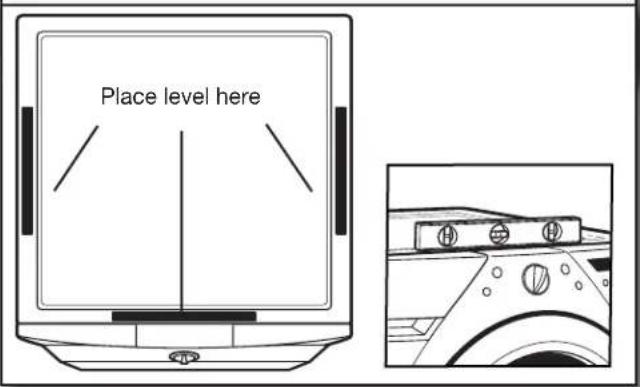

1. Check levelness of washer/dryer


Place level here

Place a level on top edges of washer/dryer, checking each side and front. Rock washer/dryer back and forth to make sure all four feet make solid contact with floor.

Not Level

LEVEL

Not Level

If not level, adjust pedestal feet up or down, repeating as necessary.

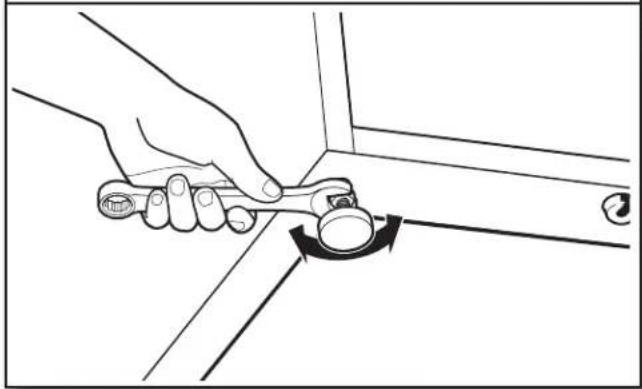

1. Adjust pedestal feet


Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Locate the 1/4" hex-head screws on the top of each pedestal foot. Reach inside the pedestal and use a 1/4" hex-head ratchet or open-end wrench to adjust the feet up or down as needed to level the washer/dryer.

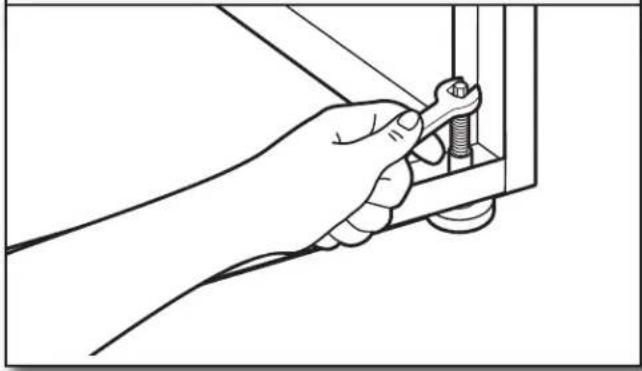

1. Securely tighten jam nuts


Line drawing of a hand using a wrench to adjust a mechanical component (no text or symbols)

When the washer/dryer is level, use a 9/16" open-end wrench to securely tighten all four jam nuts against the pedestal.

IMPORTANT: The jam nuts must be tightened to avoid vibration.

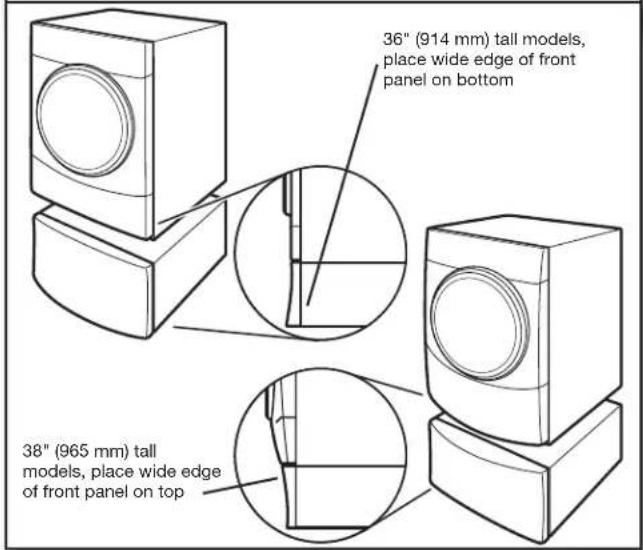

1. Install pedestal front panel


36" (914 mm) tall models, place wide edge of front panel on bottom 38" (965 mm) tall models, place wide edge of front panel on top

Align the front panel with the pedestal and snap in place.

NOTE: Follow the "Showroom Display Kit Installation Instructions" if you wish to use the two retainer clips included in the parts bag. Discard the retainer clips if not used.

Before you call for Service

ThispedestalmustbeinstalledonlywiththeappropriateWhirlpool orMaytag front-loadwasherordryer. Thispedestalmustbe operated according to the instructions provided with your Whirlpool or Maytag front-load washer or dryer's Owner's manual or Use and Care Guide. Before you call for service, please locate your model and serial number for both the pedestal and the corresponding WhirlpoolorMaytagfront-loadwasherordryer.

For any pedestal purchased for use with a Whirlpool or May tag front-load washer or Warranty applies.

dryer, the Whirlpool Corporation Pedestal

WHIRLPOOL CORPORATION PEDESTAL WARRANTY

ONE-YEAR LIMITED WARRANTY

For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product and is used with the appropriate Whirlpool Corporation front-load washer or dryer, Whirlpool or Whirlpool Canada(hereafter"Whirlpool")willpayforfactoryspecifiedreplacementpartsandrepairlabortocorrectdefectsinm aterialsor workmanship.ServicemustbeprovidedbyaWhirlpooldesignatedservicecompany.

ITEMS WHIRLPOOL WILL NOT PAY FOR

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair house fuses ortocorrecthousewiringorplumbing.
2. Repairs when your appliance is used for other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, actsofGod, improperinstallation, installationnotin accordance with the electrical or plumbing codes, or use of products not approved by Whirlpool.
4. Replacement parts or repair labor costs for units operated outside the United States or Canada.
5. Pickup and delivery. This appliance is designed to be repaired in the home.
6. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
7. Expenses for travel and transportation for product service in remote locations.
8. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

DISCLAIMEROFIMPLIEDWARRANTIES;LIMITATIONOFREMEDIES CUSTOMER'SSOLEANDEXCLUSIVEREMEDYUNDERTHISLIMITEDWARRANTYSHALLBEPRODUCTREPAIRAS PROVIDEDHEREIN.IMPLIEDWARRANTIES,INCLUDINGWARRAN TIESOFMERCHANTABILITYORFITNESSFORA PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.THISWARRANTYGIVESYOUSPECIF ICLEGALRIGHTSANDYOUMAYALSOHAVEOTHERRIGHTS,WHICHVARY FROMSTATETOSTATEORPROVINCETOPROVINCE.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service, in the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. 4/06

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Writedownthefollowinginformationaboutyourmajorappliance tobetterhelpyouobtainassistanceorserviceifyoueverneed it.Youwillneedtoknowyourcompletemodelnumberandserial number.Youcanfindthisinformationonthemodelandserial numberlabellocatedontheproduct.

Dealername
Address
Phonenumber
Modelnumber
Serialnumber
Purchasedate ____

LAUNDRY PRODUCT WARRANTY

Before you call for Service

If this laundry product was purchased at Sears, the Kenmore ^® Laundry Product Warranty" applies (see following).

If this laundry product was purchased elsewhere, the “Whirlpool Corporation Laundry Product Warranty” applies (see following). Please have your sales receipt available when you call Whirlpool Corporation for service under the “Whirlpool Corporation Laundry Product Warranty.”

KENMORE LAUNDRY PRODUCT WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all instructions supplied with the product, if this laundry product fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME to arrange for free repair. If this laundry product is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP. SEARS WILL NOT PAY FOR:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability of fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this laundry product is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

PRODUCT RECORD

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label located on the product.

Have this information available to help you obtain assistance or service more quickly whenever you contact Sears concerning your laundry product.

Model number

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

SÉCURITÉ DU PIÉDESTAL

Line drawing of a flat tool with a handle and grip (no text or symbols)

Simple line drawing of a wrench (no text or symbols)

Simple line drawing of a rectangular object with three circular symbols on its top (no text or labels)

Niveau

Line drawing of a standard mechanical wrench (no text or symbols)

Clé plate 9/16"

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a bucket with handle (no text or symbols)

Seau

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Serviette

Illustration of a rectangular block with granular texture, no text or symbols present

Éponge

Pièces fournies :

Illustration of four hexagonal bolts arranged in a row (no text or symbols)

Simple line drawing of a rectangular box with a square cutout on top (no text or symbols)

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

Technical line drawing of a rectangular enclosure with mounting holes and downward arrows indicating force or movement (no text or symbols)

Line drawing of a microwave oven mounted on a rectangular frame, showing internal components and mounting points (no text or symbols)

Line drawing of three cabinet doors with door handles and doorwork patterns, showing structural details (no text or symbols)

Line drawing of a microwave oven with internal compartments and mounting holes (no text or symbols)

1" (25 mm)

Line drawing of a front-loading washing machine with lid and frontrest (no text or symbols)

Line drawing of a washing machine with attached piping and ventilation duct (no text or symbols)

Technical line drawing of a washing machine component with no visible text or symbols

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a hand using a wrench to adjust a mechanical component (no text or symbols)

GARANTIEDUPIÉDESTALWHIRLPOOLCORPORATION

GARANTIELIMITÉEDEUNAN

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

ENREGISTREMENT DU PRODUIT
