USER MANUAL SF400S11 ELRO

Home is not a place, it's a feeling

EXPLANATION

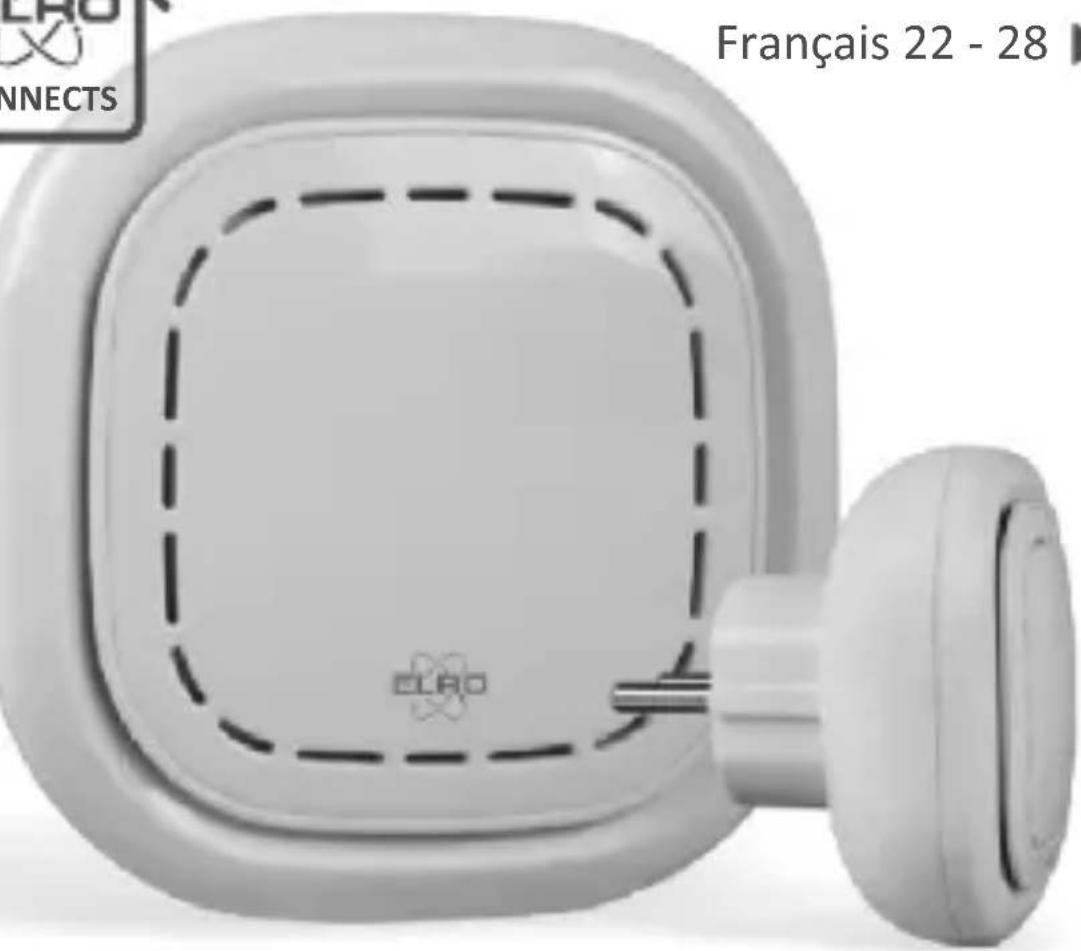

The ELRO K1 Connector is the centre of your ELRO Connects system. It connects all your ELRO Connects products to the free ELRO Connects App. With the ELRO Connects App you get full control of your home, making it a more comfortable and safe environment for you and your family. ELRO Connects is a plug & play system, developed for anyone to use and enjoy.

3 step installation

1. Download the ELRO Connects App

Download the "ELRO Connects" app from the Apple App Store or Google Play Store. To enjoy all the functions of the ELRO Connects system, make sure to allow the app to send push notifications and use your current location.

2. Register an Account

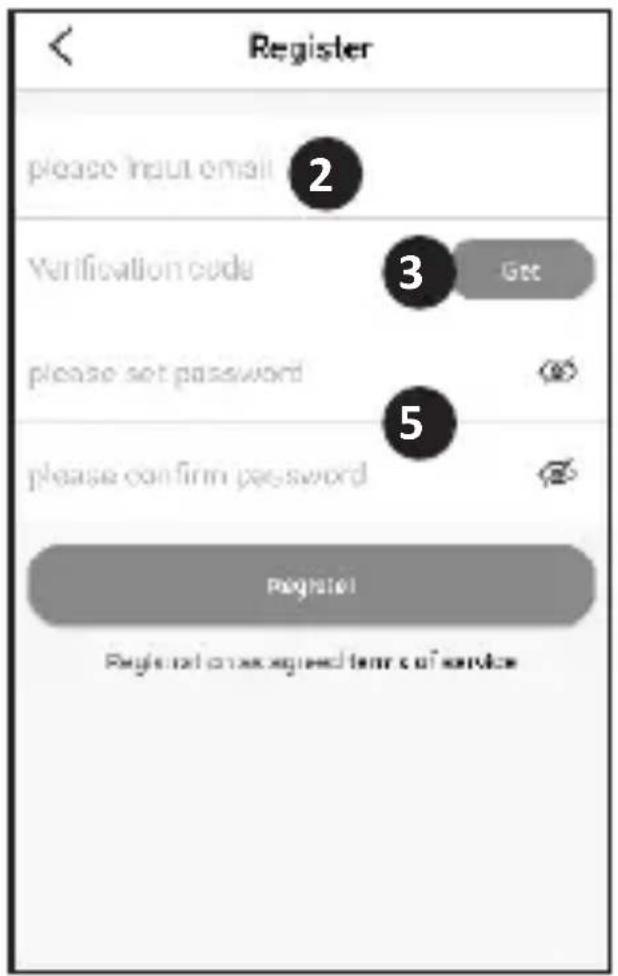

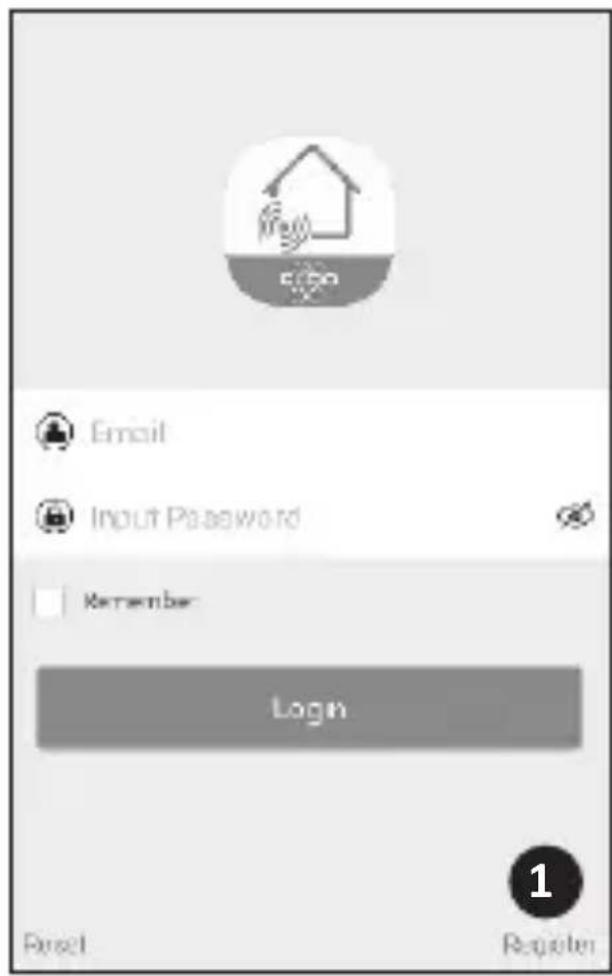

When opening the app for the first time, the login screen will pop-up. Please click the "Register" button (1) on the bottom right corner of the app. In the new screen, type in your e-mail address (2).

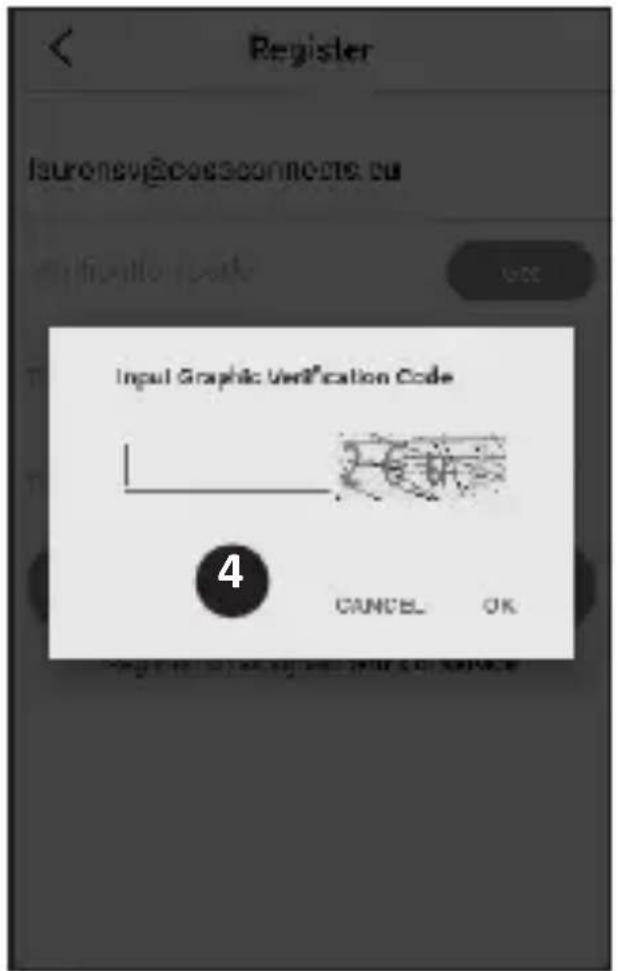

To verify your e-mail address, please tap the "Get" button (3). Now a pop-up will appear in which you need to fill in the displayed graphic verification code (4). (Be aware of Capital and Lower case!)

After you've entered the graphic's verification code, you'll receive an e-mail from the ELRO Connects App.

If you check the email on your phone you will have to re-open the ELRO Connects App again, fill in your e-mail address again and. the verification code you received in your e-mail needs to be filled in in the app left from the "Get" button (3).

-English 2-

Next, type in the password (5) you want to use (at least 8 digits, a mix of upper/ lower case letters and numbers and/or special characters). Re-enter the password in the field underneath and tap the "Register" button. You can check the password by pressing on the eye! Confirm by pressing registration. The login screen will appear. Now you can login to the app using the information the e-mail address and password you just provided.

3. Connect the K1 Connector to the app

Now you'll be taken to the "Add Gateway" screen. Plugin the K1 Connector into a wall socket, wait for the LED indicator to turn green.

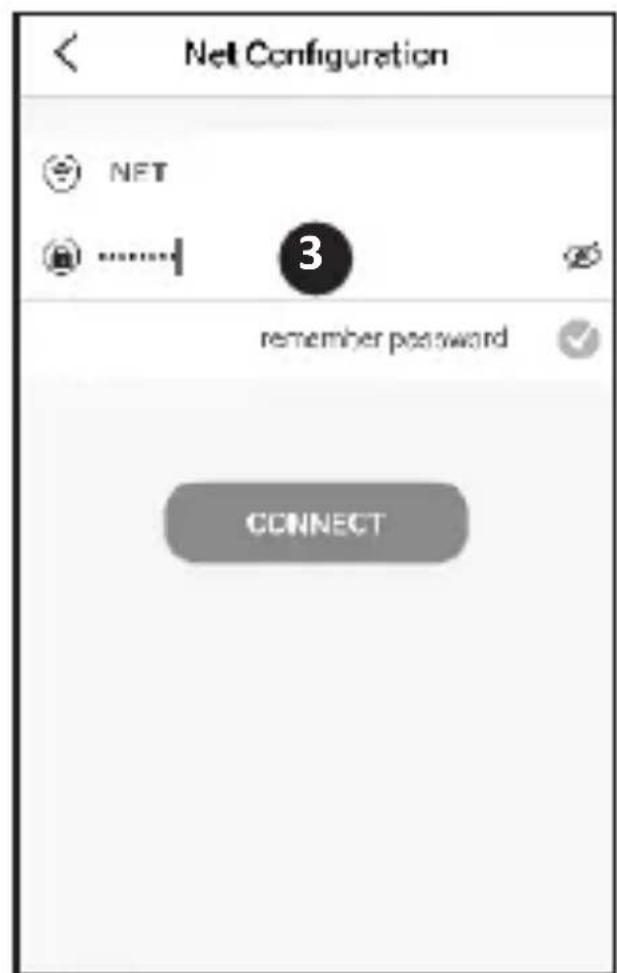

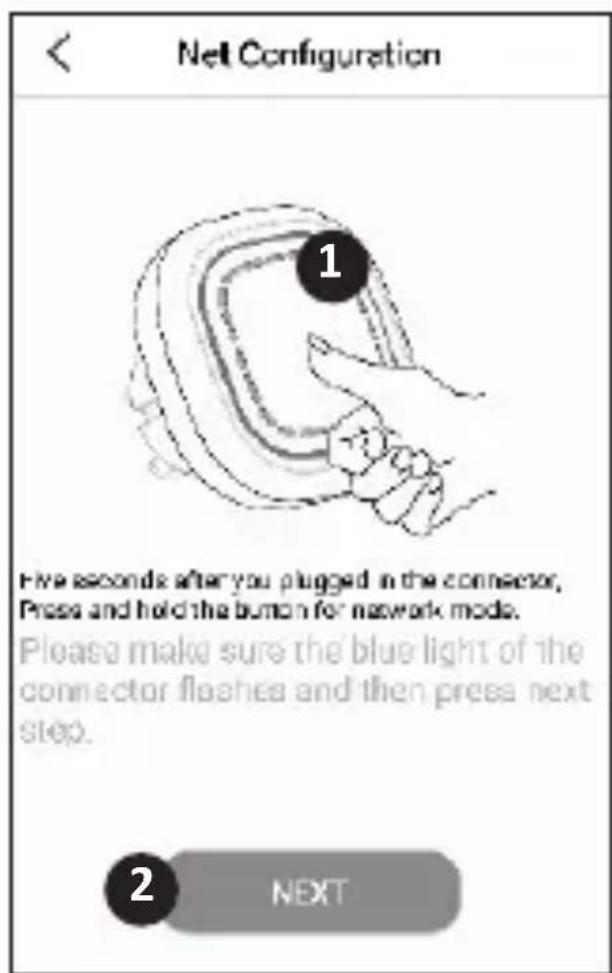

Next, press the K1 Connector's button (1) for min. 3 seconds until the blue LED light flashes slowly. Then, tap the "NEXT" button (2). In the next screen, type in your Wifi network password (3) and tap "CONNECT". Now the app will search your network for the K1 Connector and connect it to the app. This will take approximately 1 minute. Afterwards you'll be informed that the connection was a success.

Connect ELRO Connects products to the app

Connecting the different ELRO Connects products to your app is very easy and will take you very little time.

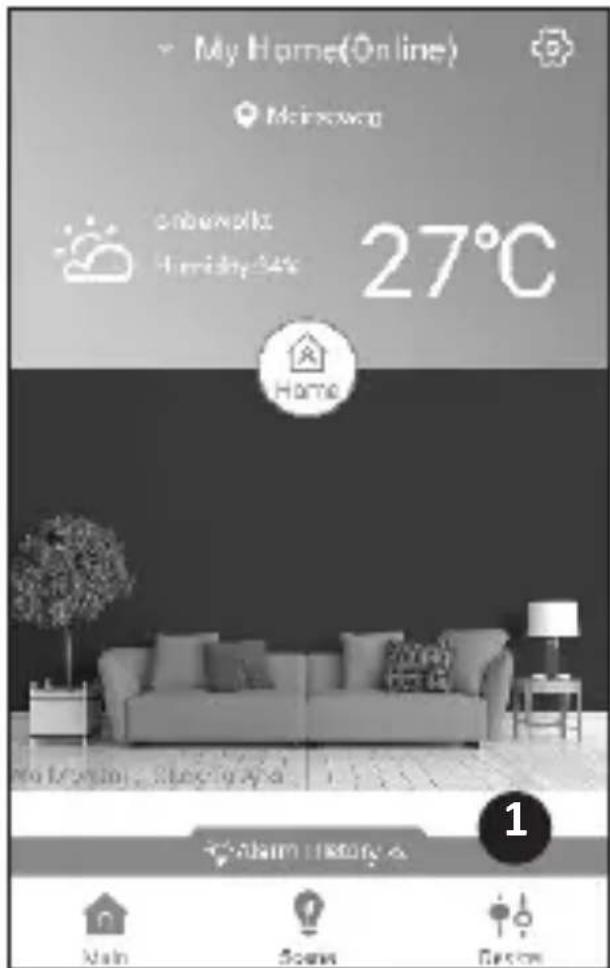

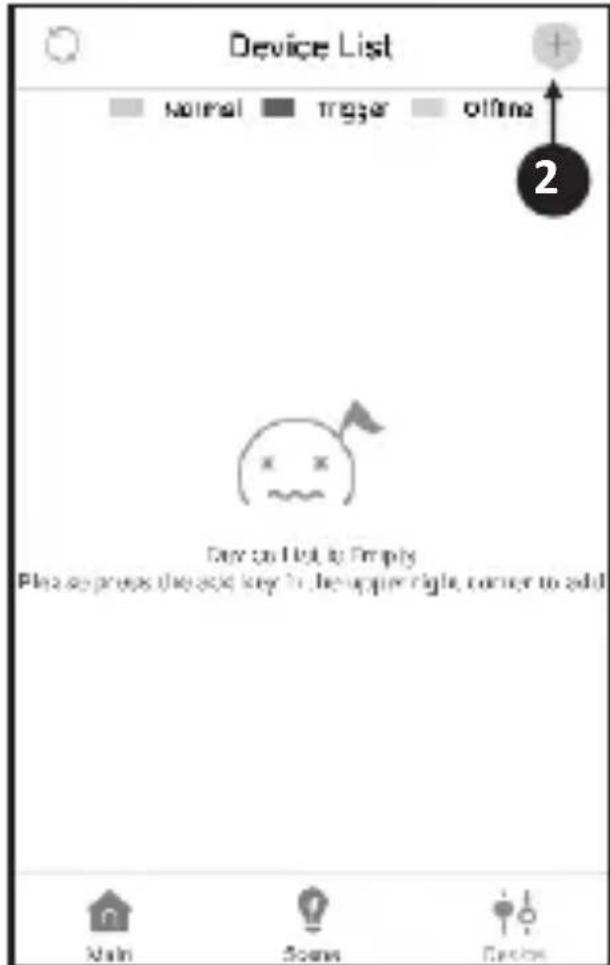

First, go to the Device List by tapping the "Device" button (1) at the bottom right corner of your Home screen. Next, tap the "+" on the upper right corner (2).

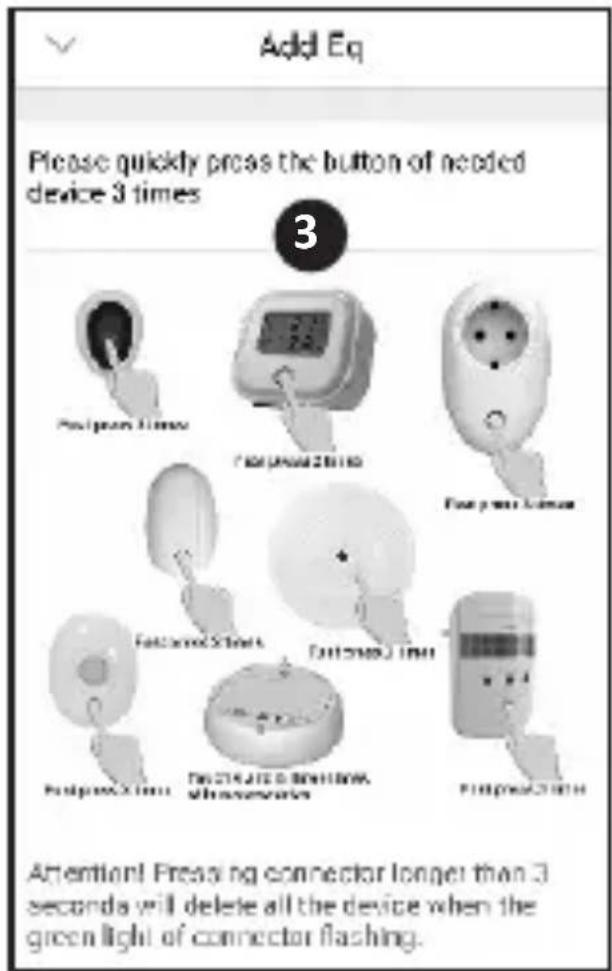

Now quickly press the button on your ELRO Connects device 3 times (3). When the connection with the ELRO Connects device is successful the LED of the K1 Connector will quickly blink 10 times and you'll receive a notice in the app.

Please note

The ELRO Connects Water Detector (FW3801R) doesn't have a button. Use a screwdriver to touch both sensors 3 times in the connection process.

Congratulations!

You successfully connected an ELRO Connects product to your app. You can now name the product and use it in your app to control with your smartphone, use in scenes etc.

If you have any questions or when you require more information on the ELRO Connects system and/or ELRO Connects products, please visit our website at www.elro.eu.

Operation Modes

Your ELRO Connects app has 3 pre-installed operation modes "Home, "Away" and "Sleep". You can switch between these operation modes by tapping the button in the middle of your Home screen and select the desired mode.

Scenes

On the Home screen, please tap the "Scene" button at bottom of this screen. Here you can set up different scenes for your ELRO Connects system. When making a scene you can make certain sensors or conditions trigger actions from connected products. For example, you can make a motion sensor turn on a light connected to your plugin unit. To create a scene, simply tap the "+" in the "automating list". Here a screen pops up in which you can add conditions and link them to an action that you want to follow from it.

Timers

On the Home screen, please tap the "Scene" button at bottom of this screen. To set a timer, tap the "Timer" button on the top left corner of your screen. Here you can set a time at which an operation mode automatically starts. For example, you can set the "Sleep" mode to be activated each day at 23:00.

For more information regarding Scenes, Timers, Modes and the latest updates, please visit our website at www.elro.eu.

Disposal of the device The adjacent symbol of a crossed-out wheelie bin means that this device is subject to Directive

2012/19/EU. This directive states that this device may not be disposed of in normal household waste at the end of its usable life, but must be handed over to specially set-up collection locations, recycling depots or disposal companies. This disposal is free of charge for the user. Protect the environment and dispose of this device properly. You can obtain further information from your local disposal company or the city or local authority.

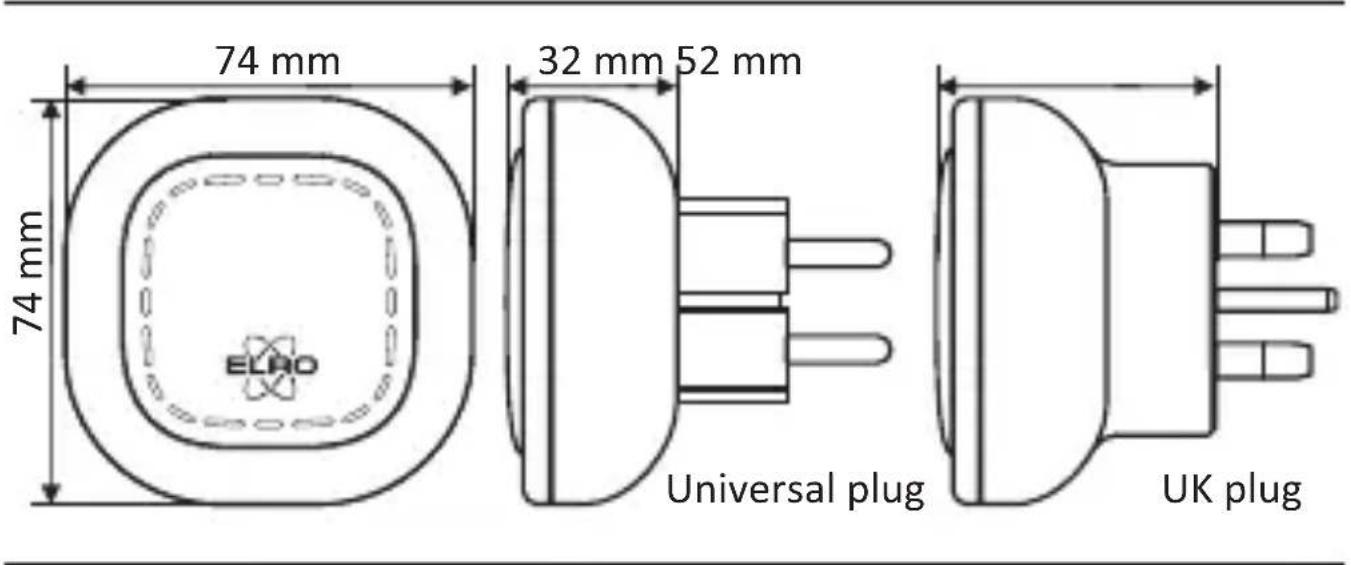

SF40GA11 K1 Connector

Power Input : AC 240V, 50/60Hz

Power consumption : ≤ 1W (Standby)

Networking : WiFi | 802.11n/g/b, WPA/WPA2

: RF | 868MHz

Wireless distance : WiFi | Refer to Router for instructions

: RF | ≥ 100 m

Environment : -10°C ~ +50°C <95% RH (Non-condensate)

ELRO Europe | www.elro.eu

Postbus 9607 - Box E800

1006 GC Amsterdam - The Netherlands

GUARANTEE

Deutsch 08 - 14

Nederlands 15 - 21

Français 22 - 28

K1 CONNECTOR

ELRO CONNECTS

ERKLÄRUNG

SF40GA11 K1 Connector

SF40GA11 Home is not a place, it's a feeling

UITLEG

SF40GA11 Home is not a place, it's a feeling

EXPLICATION

EN 2 years, replaceable (included)

EN Operating temperature

EN Leisure accommodation vehicle

NL Verblifsrecreate voertui

FR Campling car

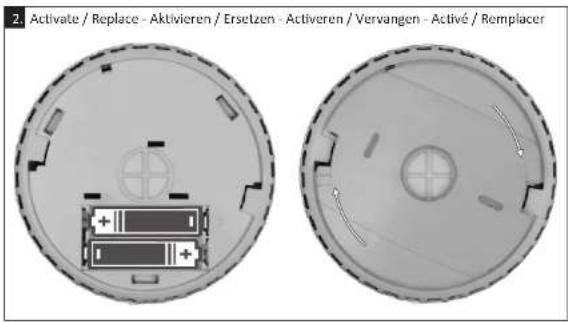

REPLACE BATTERIE

DE Montageart Decke

EN Mounting type ceiling

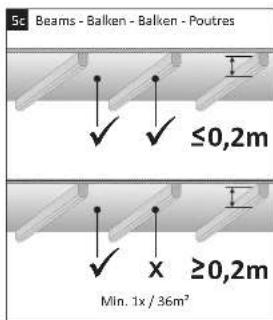

EN - Symbols: Recycling and disposal: The WEeB symbol [a] means that this product and batteries must be disposed separately from other household waste. When it reaches its end of life, fate II is a designated waste collection point in your area to guarantee a safe disposal or recycling. Protect the environment, human health and natural resources! Read the manual [b] before use and store it in a safe place for future use and maintenance. Download [c] Declaration of Performance (DP) at www.eric.aq.ca. Warning: To prevent injury, this apparatus must be securely attached to the ceiling in accordance with the installation instructions. Batteries shall not be exposed to excessive heat such as sunscreens and fire. Battery lifetime shortens without monthly test. Keep away from all conditioning ventilation. Do not paint or cover alarm. Consent is required for installation. Troubleshooting: Fuse alarm is often caused by dust or steam. An oven can cool. Leave the building and take additional Additional mounting instructions: Corridor max width 3m . Max 15m between 2 alarms. Max 7m from front side and alarms at step/step crossings of corridors. Length: Width × length × and >16m . Additional alarms below ceiling. Partial roof slopes. Flaccating at 1m wide, consider as roof/slope. Flat eating >1m slope, consider as flat ceiling.
