Product type	Kitchen faucet
Brand	Concept
Model	BDG4327BE
Surface material	Chrome-plated stainless steel or granite (depending on finish)
Faucet body	High-quality ceramic cartridge
Rotation	360°
Control type	Single-lever mixer
Supply	Hot and cold water under mains pressure
Connection	Flexible hoses 3/8" (reducer provided if necessary)
Installation	Installation by a qualified specialist recommended
Cleaning	Neutral, non-abrasive agents, soapy solution, vinegar for limescale
Regular maintenance	Drying after use, polishing for chrome surfaces, specific polish for granite
Precautions	Avoid chlorinated products, alcohol, sharp objects; do not use tools to tighten connections
Spare parts available	Aerator, ceramic cartridge, handle, flexible hoses, mounting parts
Repairability	Replaceable ceramic cartridge
Warranty	Manufacturer's warranty on manufacturing defects and materials
Documents provided	User manual (PDF) in multiple languages
Country of origin	Not specified

Frequently Asked Questions - BDG4327BE Concept

How to clean the Concept BDG4327BE faucet correctly?

Use a soft cloth soaked in soapy water (mild soap without abrasives). Rinse with clean water and dry. For limescale deposits, apply a white vinegar solution or a vinegar-based cleaner. Avoid any product containing chlorine or alcohol.

What is the installation procedure for the faucet?

Turn off the hot and cold water supply. Unscrew the aerator. Fix the faucet body to the sink using the provided accessories. Connect the flexible hoses to the water supply lines by hand tightening (without tools). Turn on the water and check for leaks. Screw the aerator back on after bleeding the air. Installation by a professional is recommended.

How to maintain the chrome surface?

Polish the chrome surface regularly with a special stainless steel or chrome product to remove stains and restore shine. Systematic drying after each use prevents limescale marks.

What to do in case of a leak at the connections?

First check that the nuts are hand-tightened. If the leak persists, turn off the water, disassemble the connection, apply Teflon tape or a suitable sealing gasket, then retighten. Do not force with tools to avoid damaging the threads.

Can I use abrasive or acidic products to clean the faucet?

No, never use products containing chlorine, alcohol, or abrasive particles. They may damage the surface finish. Prefer a diluted vinegar solution or a mild cleaner.

How to descale the faucet effectively?

Apply a cloth soaked in white vinegar or a special limescale remover to the scaled areas (spout, aerator). Let it sit for a few minutes, then gently rub. Rinse thoroughly and dry. For the aerator, unscrew it and soak it in vinegar.

Can I install the faucet myself?

Yes, if you have plumbing skills. However, the manual states that installation must be carried out by a qualified specialist to ensure proper operation and preserve the warranty. Installation errors void the warranty.

Which cartridge is used in this faucet?

The faucet is equipped with a high-quality ceramic cartridge. It ensures smooth operation and long life. In case of malfunction, it can be replaced separately.

How to replace the aerator?

Unscrew the aerator by hand (at the spout outlet). If it is clogged, clean it in vinegar or replace it with a new one. Make sure to screw it back on properly to avoid leaks.

What is the warranty period and what does it cover?

The manufacturer's warranty covers defects in workmanship and materials for the period indicated on the packaging. Keep the receipt. Defects due to incorrect installation or maintenance are not covered.

USER MANUAL BDG4327BE Concept

Line drawing of a simple kitchen faucet with handle and base (no text or symbols)

Dřezová baterie / Drezová batéria Bateria kuchenna / Sink faucet / Küchenarmatur / Grifo de fregadero / Robinet d'évier / Mosogató csaptelep / Batteria per lavello da cucina

PODĚKOVÁNÍ

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Číslo Položka

1 Perlátor

2 Hlava výpustu

3 Spojovacie diely

4 Výpust

5 Spojovacie diely

6 Te o batérie

7 Podstavec

8 Kartuša

9 Matica

10 Skrutkovací uzáver

11 Držadlo

12 Upevňovacie diely

13 Hadica

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
  • Technical specifications
• Cleaning and maintenance
• Faucet installation
• Warranty

IMPORTANT SAFETY INFORMATION

When maintaining the faucet, take into account its surface finish and use cleaning agents which are suitable for the surface. Never use cleaning agents containing chlorine or alcohol and if you work with such agents close to the faucet, avoid contact.

Although the surface of the faucets is durable, avoid mechanical damage by sharp objects such as scratches with a kitchen knife.

TECHNICAL SPECIFICATIONS

Minimum water pressure: (0.5 bar)

Maximum water pressure: (10 bar)

Maximum hot water temperature: 80 °C

Recommended hot water temperature: 70 °C

CLEANING AND MAINTENANCE

Concept sink faucets combine practical and high-quality design. Inside each faucet, there is a high-quality ceramic cartridge that forms the main body of the faucet. The surface of the faucet is coated with scratch-resistant technology. At the same time, it was developed to perfectly match the design of Concept granite sinks.

Clean the faucet regularly with neutral detergents that do not contain abrasive particles; soap solution is sufficient. After cleaning, rinse the surface with water and dry. Remove larger dirt and scale deposits with vinegar solution, or with detergent containing vinegar. After use, dry the faucet surface with a soft cloth. Regular drying protects the faucet from unwanted scale deposits.

EN

Polish faucets with chrome finish from time to time with a special agent for stainless steel or chrome finish. That will remove stains and restore the chrome surface gloss.

Treat faucets with granite surface once in a while with water and milk for granite sinks. Rinse the surface with warm water and dry with a soft cloth. Remove lime deposits around the strainer with vinegar solution or acetic cleaner.

Daily and regular care extends their lifespan.

FAUCET INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a professional qualified to install faucets.

Thanks to the fact that each faucet body can be rotated 360 °, you can install the handle on both the right and left side.

Installation

• Shut off the hot and cold water supply.
• Unscrew the aerator to prevent it from clogging the first time you use the faucet.
• Position the faucet body on the sink with the fixing parts. Connect the water hoses and tighten by hand. Do not tighten with tools or brute force, the threads on valves or hoses could be damaged.
• If necessary, screw a 3/8" threaded adapter onto both hoses.
• Screw the hoses to the water supply and open the water supply. Leave the faucet in a closed position where no water flows and check all connections for leaks. If you need to make additional tightening of joints, be sure to close the water supply.
• If all joints are tight, let hot and cold water run, first for a shorter period of time. Then install the aerator that you first dismantled and put the faucet back into operation.

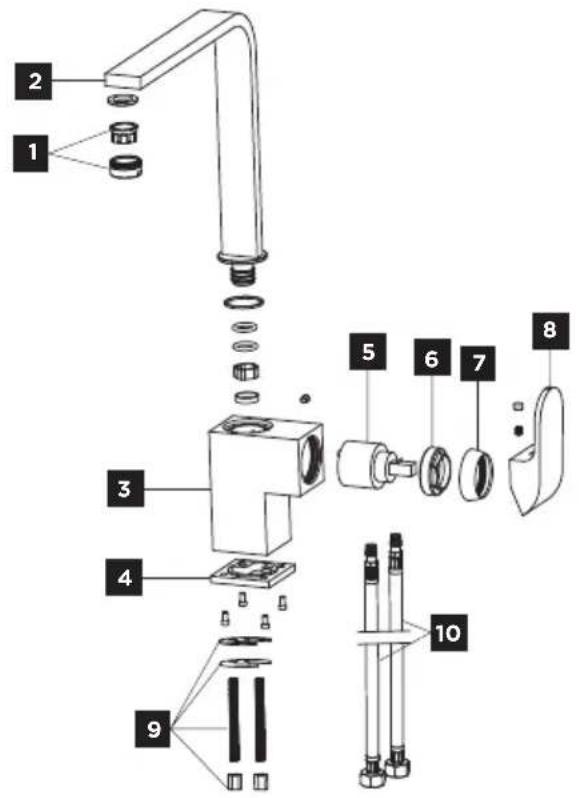

Description of individual parts of the product BDC6529, BDG6529BC

Number Item

1 Aerator

2 Spout

3 Body

4 Base

5 Cartridge

6 Connect nut

7 Cap

8 Handle

9 Fixing parts

10 Inlet hose

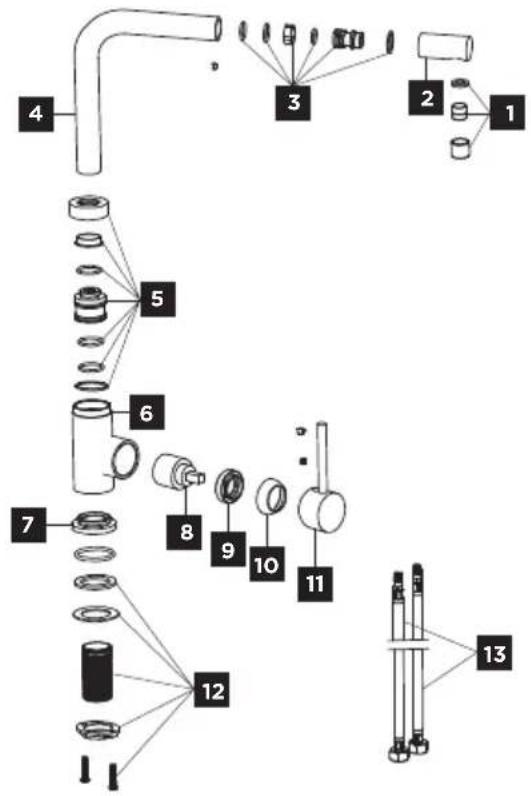

Description of individual parts of the product

BDC4327, BDG4327BC, BDG4327BE, BDG4327WH, BDG4327DS

Number Item

1 Aerator

2 Spout head

3 Connecting parts

4 Spout

5 Connecting parts

6 Body

7 Base

8 Cartridge

9 Connect nut

10 Cap

11 Handle

12 Fixing parts

13 Inlet hose

EN

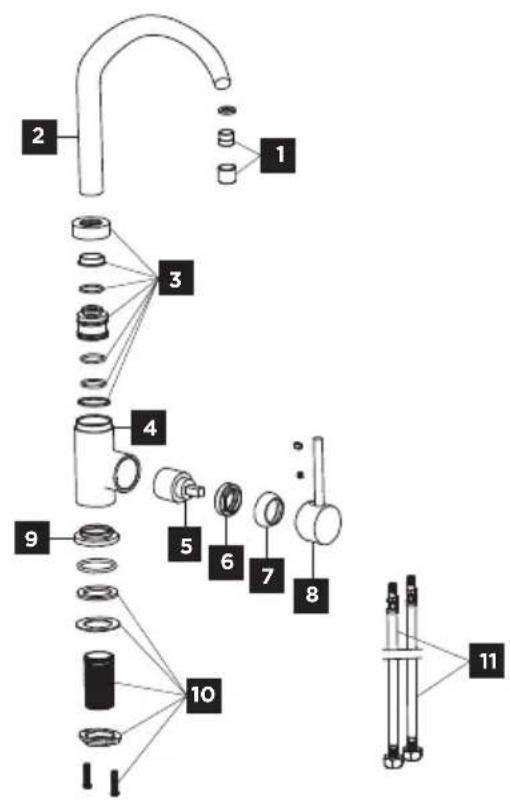

Description of individual parts of the product BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Number Item

1 Aerator

2 Spout

3 Connecting parts

4 Body

5 Cartridge

6 Connect nut

7 Cap

8 Handle

9 Base

10 Fixing parts

11 Inlet hose

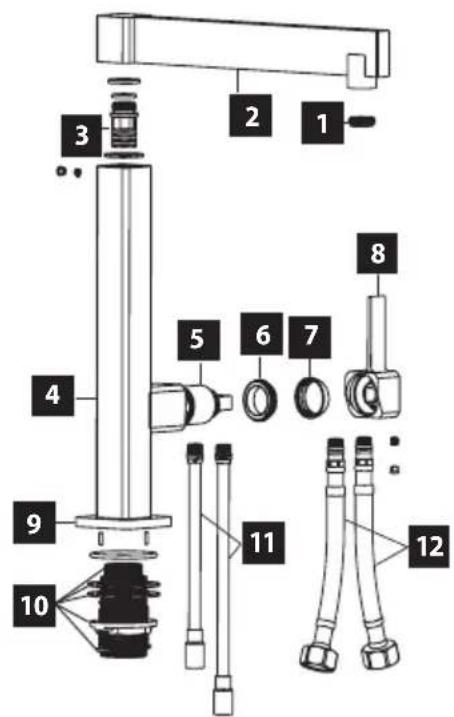

Description of individual parts of the product BDC5327, BDC5327BC

Number Item

1 Aerator

2 Spout

3 Connecting parts

4 Body

5 Cap

6 Bonnect nut

7 Cap

8 Handle

9 Base

10 to Fixing part

11 Inlet hose

12 Inlet tube

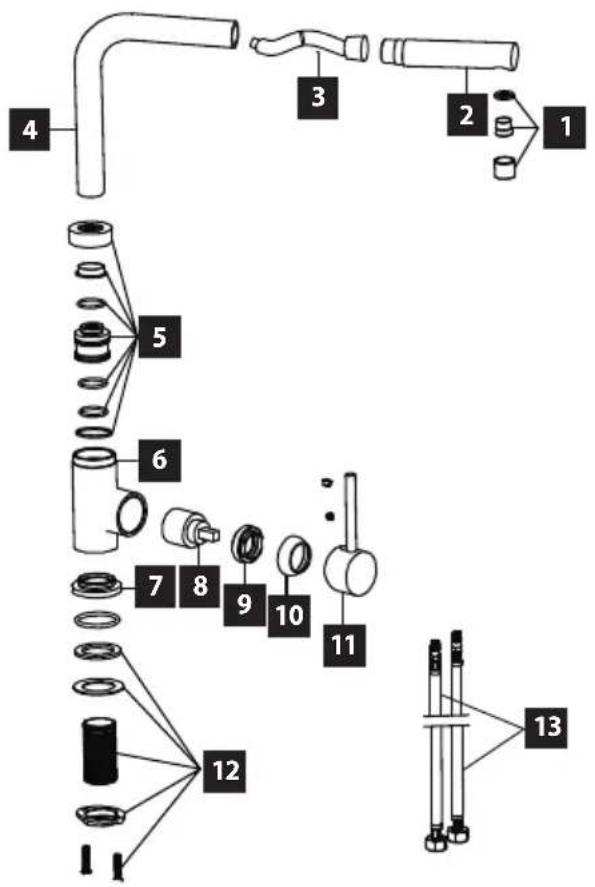

Description of individual parts of the product

BDC4527, BDG4527BC, BDG4527BE, BDG4527WH, BDG4527DG

Number Item

1 Aerator

2 Shower head

3 Hose

4 Spout

5 Connecting parts

6 Body

7 Button

8 Cartidge

9 Bonnect nut

10 Cap

11 Handle

12 Fixing parts

13 Inlet hose

EN

Description of individual parts of the product BDC7547

Number Item
1 Aerator shell
2 Aerator
3 Pull out head
4 Hose connector
5 Silicone hose
6 Connecting hose
7	Pull out head holder
8 Conector
9 Body cap
10 Body
11 Cartridge
12 Bonnet nut
13 Cap
14 Handle
15 Button
16 Inlet tube
17 Fixing part
18 Inlet hoses

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Numéro Article
