Product Type	Kitchen Faucet
Brand	Concept
Model	BDC3334
Body Material	Brass with Chrome Finish
Cartridge	High-quality ceramic cartridge
Rotation	360°
Compatibility	Concept granite sinks
Supply	Hot and cold water
Connection Type	Flexible hoses, 3/8\" thread (reducer included if needed)
Cleaning	Neutral agents, soapy solution, vinegar for limescale
Maintenance	Regular drying, occasional polishing for chrome surface
Installation	By a qualified specialist
Warranty	Manufacturing and material defects (duration not specified)
Country of Origin	Not specified

Frequently Asked Questions - BDC3334 Concept

How to install the BDC3334 faucet?

Turn off hot and cold water supply. Unscrew the aerator. Attach the faucet body to the sink using the provided accessories. Connect the water hoses by hand, without forcing. Turn on the water and check for leaks. If necessary, use a 3/8" thread reducer. Refer to the manual for more details.

How to clean the chrome-finished faucet?

Use neutral agents without abrasive particles; a soapy solution is sufficient. Rinse with water and dry with a soft cloth. For limescale deposits, use a vinegar solution. Occasionally polish with a special product for stainless steel or chrome.

What to do if the cartridge is leaking?

The ceramic cartridge is the heart of the faucet. If it leaks, it is recommended to call a professional. First check that all connections are tight. If the leak persists, the cartridge must be replaced. Refer to the manual for spare part references.

Can the faucet rotate 360°?

Yes, the BDC3334 faucet body can rotate 360°, allowing you to install the handle on the right or left as needed.

How to descale the aerator?

Unscrew the aerator from the spout. Soak it in white vinegar solution or a special descaling agent. Gently brush off residues, rinse, and screw back on. Run water to check the flow.

Which cleaning products to avoid?

Avoid products containing chlorine or alcohol, as well as abrasive cleaners. They can damage the chrome or granite surface. Use only recommended mild products.

Is the faucet compatible with all sinks?

The BDC3334 faucet is specially designed for Concept granite sinks. It can be installed on other sinks, but check dimensions and mounting. Installation must be done by a specialist.

How to maintain the granite faucet (if applicable)?

For the granite faucet, clean with water and a special granite milk. Rinse with warm water and dry with a soft cloth. Remove limescale deposits with a vinegar solution. Regular maintenance extends its lifespan.

What to do if the faucet drips after installation?

Check that all connections are hand-tight (do not use tools). Ensure seals are in place. If the leak persists, turn off the water and contact a professional.

Does the warranty cover installation defects?

No, the warranty only covers manufacturing and material defects. Defects caused by incorrect installation or improper maintenance are not covered. Follow the instructions in the manual.

USER MANUAL BDC3334 Concept

Line drawing of a standard bathroom faucet with handle and base (no text or symbols)

Dřezová baterie / Drezová batéria Bateria kuchenna / Sink faucet / Küchenarmatur / Grifo de fregadero / Robinet d'évier / Mosogató csaptelep / Batteria per lavello da cucina

PODĚKOVÁNÍ

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Číslo Položka

1 Perlátor

2 Hlava výpustu

3 Spojovacie diely

4 Výpust

5 Spojovacie diely

6 Te o batérie

7 Podstavec

8 Kartuša

9 Matica

10 Skrutkovací uzáver

11 Držadlo

12 Upevňovacie diely

13 Hadica

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
  • Technical specifications
• Cleaning and maintenance
• Faucet installation
• Warranty

IMPORTANT SAFETY INFORMATION

When maintaining the faucet, take into account its surface finish and use cleaning agents which are suitable for the surface. Never use cleaning agents containing chlorine or alcohol and if you work with such agents close to the faucet, avoid contact.

Although the surface of the faucets is durable, avoid mechanical damage by sharp objects such as scratches with a kitchen knife.

TECHNICAL SPECIFICATIONS

Minimum water pressure: (0.5 bar)

Maximum water pressure: (10 bar)

Maximum hot water temperature: 80 °C

Recommended hot water temperature: 70 °C

CLEANING AND MAINTENANCE

Concept sink faucets combine practical and high-quality design. Inside each faucet, there is a high-quality ceramic cartridge that forms the main body of the faucet. The surface of the faucet is coated with scratch-resistant technology. At the same time, it was developed to perfectly match the design of Concept granite sinks.

Clean the faucet regularly with neutral detergents that do not contain abrasive particles; soap solution is sufficient. After cleaning, rinse the surface with water and dry. Remove larger dirt and scale deposits with vinegar solution, or with detergent containing vinegar. After use, dry the faucet surface with a soft cloth. Regular drying protects the faucet from unwanted scale deposits.

EN

Polish faucets with chrome finish from time to time with a special agent for stainless steel or chrome finish. That will remove stains and restore the chrome surface gloss.

Treat faucets with granite surface once in a while with water and milk for granite sinks. Rinse the surface with warm water and dry with a soft cloth. Remove lime deposits around the strainer with vinegar solution or acetic cleaner.

Daily and regular care extends their lifespan.

FAUCET INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a professional qualified to install faucets.

Thanks to the fact that each faucet body can be rotated 360 °, you can install the handle on both the right and left side.

Installation

• Shut off the hot and cold water supply.
• Unscrew the aerator to prevent it from clogging the first time you use the faucet.
• Position the faucet body on the sink with the fixing parts. Connect the water hoses and tighten by hand. Do not tighten with tools or brute force, the threads on valves or hoses could be damaged.
• If necessary, screw a 3/8" threaded adapter onto both hoses.
• Screw the hoses to the water supply and open the water supply. Leave the faucet in a closed position where no water flows and check all connections for leaks. If you need to make additional tightening of joints, be sure to close the water supply.
• If all joints are tight, let hot and cold water run, first for a shorter period of time. Then install the aerator that you first dismantled and put the faucet back into operation.

Description of individual parts of the product BDC6529, BDG6529BC

Number Item

1 Aerator

2 Spout

3 Body

4 Base

5 Cartridge

6 Connect nut

7 Cap

8 Handle

9 Fixing parts

10 Inlet hose

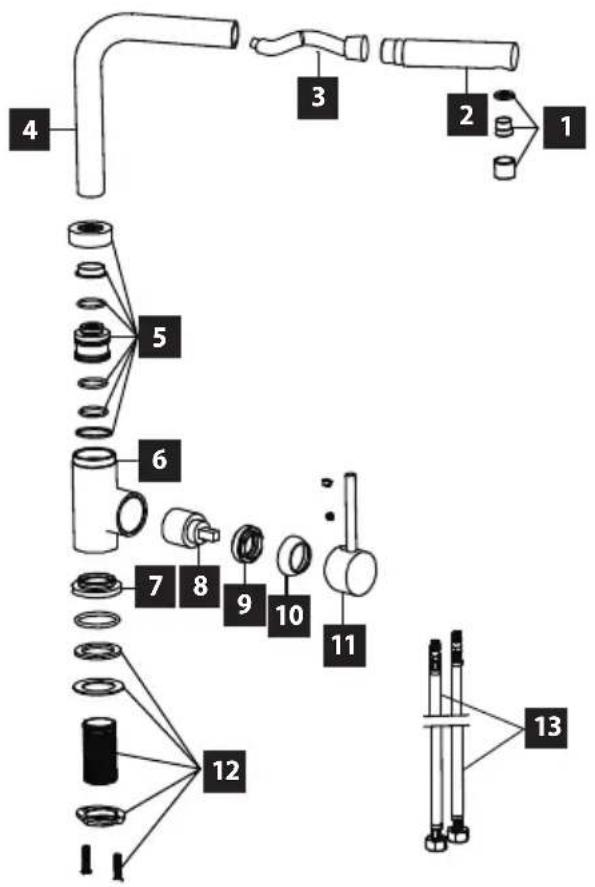

Description of individual parts of the product

BDC4327, BDG4327BC, BDG4327BE, BDG4327WH, BDG4327DS

Number Item

1 Aerator

2 Spout head

3 Connecting parts

4 Spout

5 Connecting parts

6 Body

7 Base

8 Cartridge

9 Connect nut

10 Cap

11 Handle

12 Fixing parts

13 Inlet hose

EN

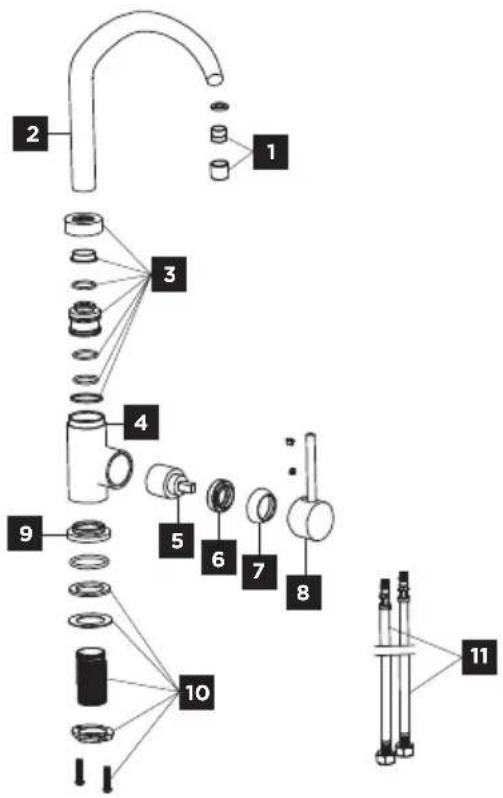

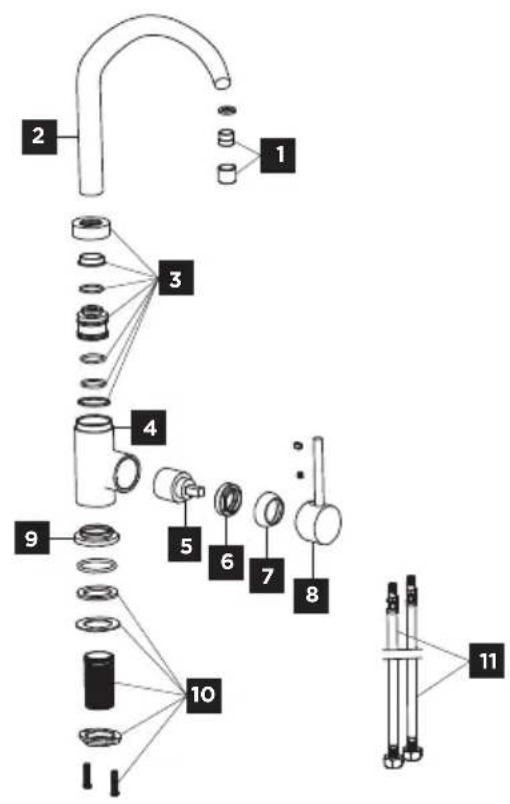

Description of individual parts of the product BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Number Item

1 Aerator

2 Spout

3 Connecting parts

4 Body

5 Cartridge

6 Connect nut

7 Cap

8 Handle

9 Base

10 Fixing parts

11 Inlet hose

Description of individual parts of the product BDC5327, BDC5327BC

Number Item

1 Aerator

2 Spout

3 Connecting parts

4 Body

5 Cap

6 Bonnect nut

7 Cap

8 Handle

9 Base

10 to Fixing part

11 Inlet hose

12 Inlet tube

Description of individual parts of the product

BDC4527, BDG4527BC, BDG4527BE, BDG4527WH, BDG4527DG

Number Item

1 Aerator

2 Shower head

3 Hose

4 Spout

5 Connecting parts

6 Body

7 Button

8 Cartidge

9 Bonnect nut

10 Cap

11 Handle

12 Fixing parts

13 Inlet hose

EN

Description of individual parts of the product BDC7547

Number Item
1 Aerator shell
2 Aerator
3 Pull out head
4 Hose connector
5 Silicone hose
6 Connecting hose
7	Pull out head holder
8 Conector
9 Body cap
10 Body
11 Cartridge
12 Bonnet nut
13 Cap
14 Handle
15 Button
16 Inlet tube
17 Fixing part
18 Inlet hoses

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.
