Product type	Granite sink
Brand	Concept
Model	DG05C45BC
Material	Composite granite (more than 80% crushed stone, 15-20% binder)
Surface	Non-porous and smooth, easy to clean
Heat resistance	Up to 280°C
Installation type	Built-in into a worktop, cutout required
Included accessories	Cutout template, sink brackets, gaskets (1 mm and 2 mm), stainless steel drain grid
Daily maintenance	Clean with water and non-abrasive liquid detergent, dry after each use
Deep cleaning	Use non-abrasive granite polish, rinse with warm water
Usage precautions	Avoid placing hot dishes on wet surface; do not leave aggressive foods (salt, vinegar) for too long
Warranty	Covers manufacturing and material defects. Incorrect installation not covered.
Customer service	Concept, Jindřich Valenta, Vysokomýtská 1800, 565 01 Choceň, Czech Republic
Repairability	Spare parts available (gaskets, grid). Repair by a professional recommended.

Frequently Asked Questions - DG05C45BC Concept

How to install the DG05C45BC sink?

Follow the provided template to cut a hole in the worktop. Apply sanitary silicone, place the sink, and tighten the brackets by hand. Refer to the manual for detailed steps.

What detergents should I use to clean the sink?

Use non-abrasive liquid detergents. Avoid rough sponges. For stubborn stains, a vinegar solution or vinegar-based cleaner is recommended.

Is the sink heat resistant?

Yes, the surface withstands up to 280°C. However, avoid placing hot dishes on a wet surface to prevent damage.

What to do in case of stubborn stains?

Use a non-abrasive special granite polish, rinse with warm water, and dry with a soft cloth.

Can I place hot pans directly in the sink?

It is recommended to place hot dishes on the provided mats. Utensils can heat beyond 280°C and a wet surface increases the risk of damage.

What accessories are included with the sink?

The kit includes a cutout template, sink brackets, two gaskets (1 mm and 2 mm), and a stainless steel drain grid.

How to maintain the sink daily?

Rinse with water after each use and dry with a soft cloth. Regular drying protects against limescale deposits.

Does the warranty cover self-installation?

The warranty does not cover defects caused by incorrect installation. Follow the instructions strictly or call a professional.

Where can I find spare parts?

Contact Concept customer service or the retailer. Gaskets and the drain grid are available as spare parts.

Is the sink compatible with all worktops?

It is designed to be built into a horizontal worktop. Ensure the surface is flat and sturdy to support the weight.

USER MANUAL DG05C45BC Concept

Line drawing of a simple safe with a circular dial and horizontal bars, no text or symbols present.

Zlew kuchenny / Kitchen sink /

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

CZ

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Po okrajoch otvoru aplikujte sanitárny silikón.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

PL

GWARANCJA

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

EN

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

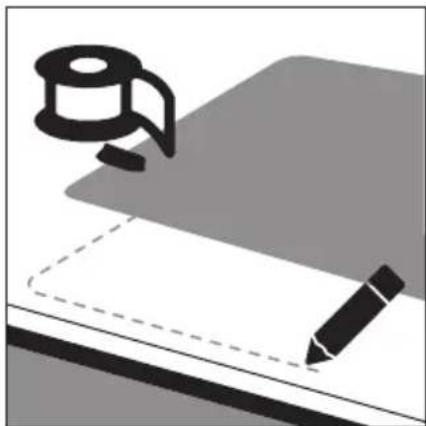

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

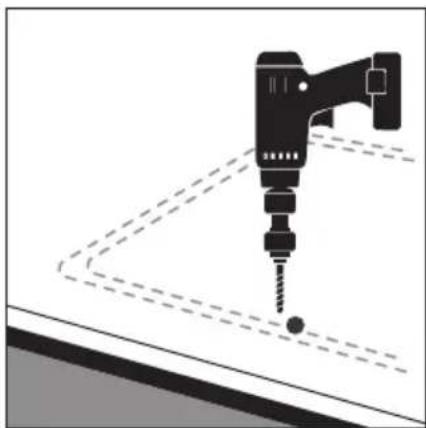

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

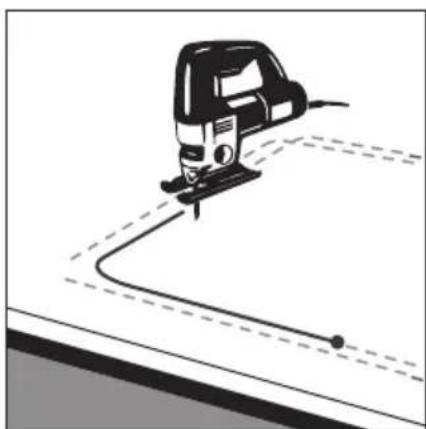

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

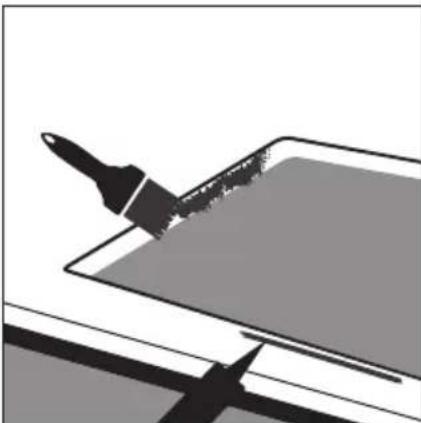

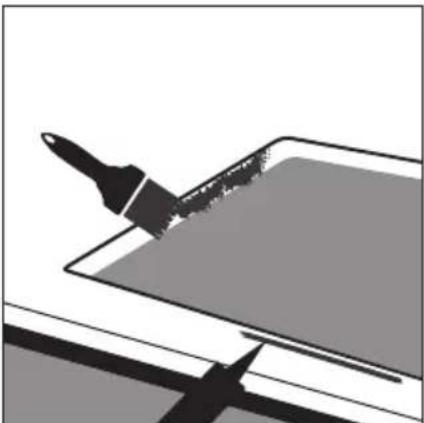

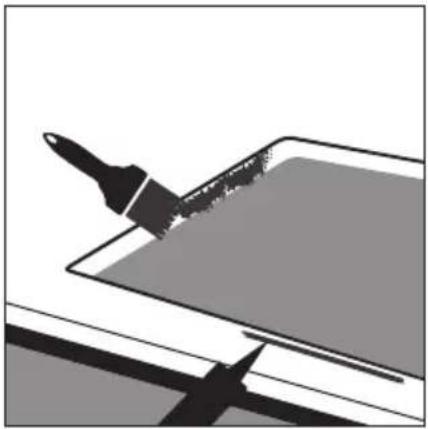

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

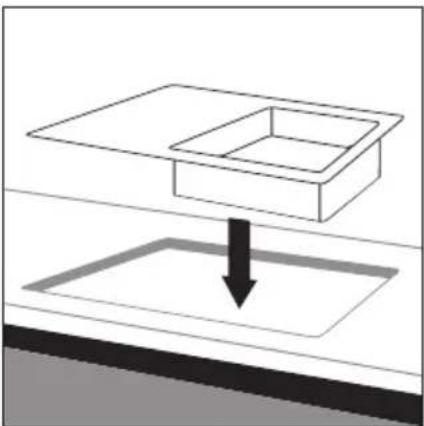

Place the sink in the hole. Check that the sink is positioned correctly.

6.

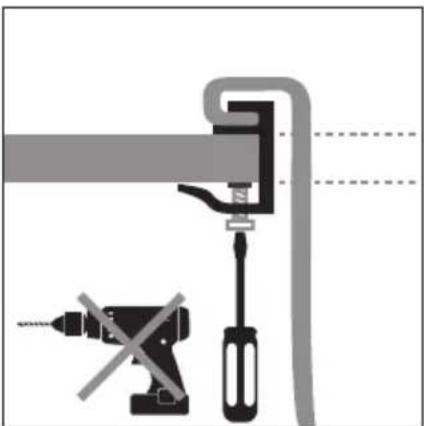

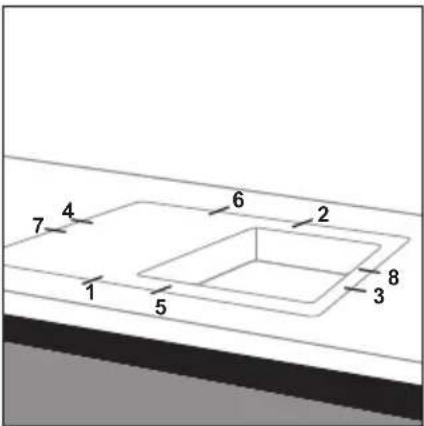

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

EN

INSTALLATION OF DRAIN PIPES

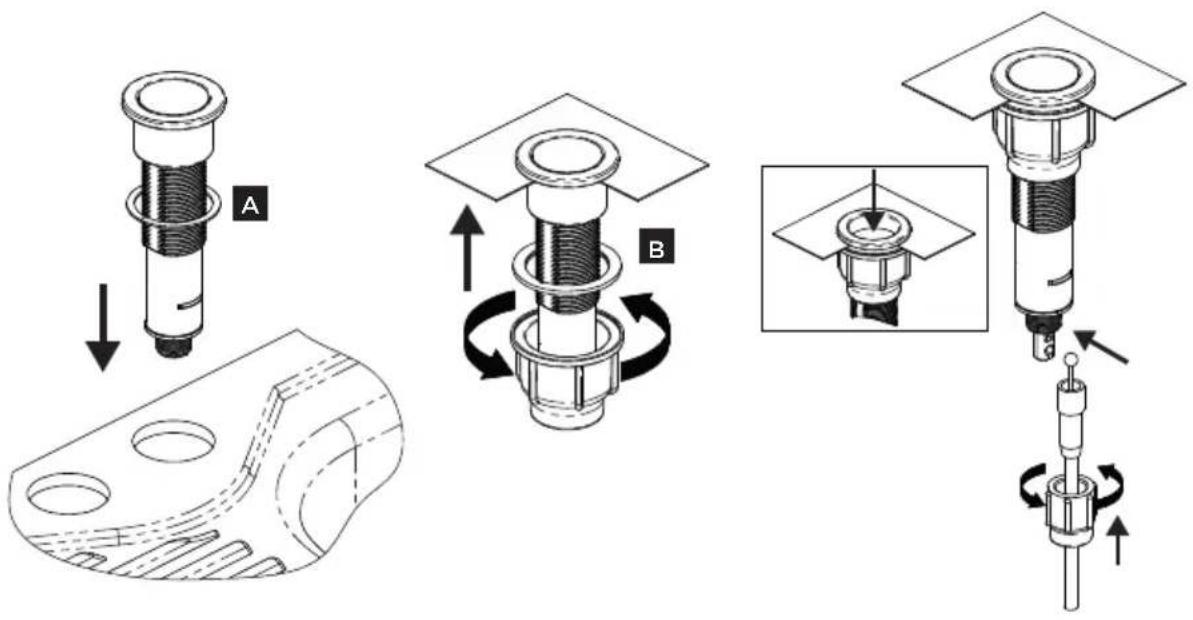

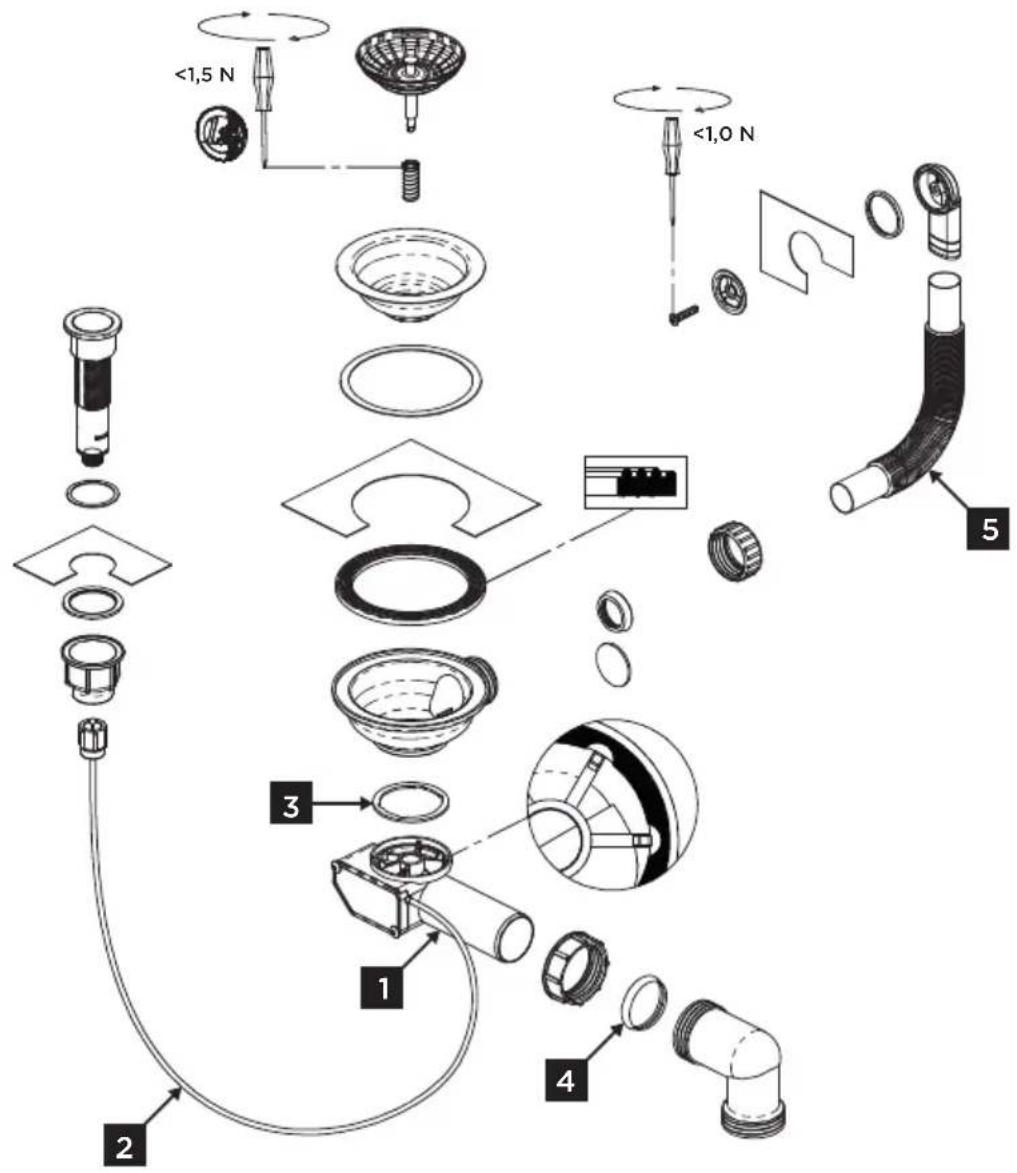

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

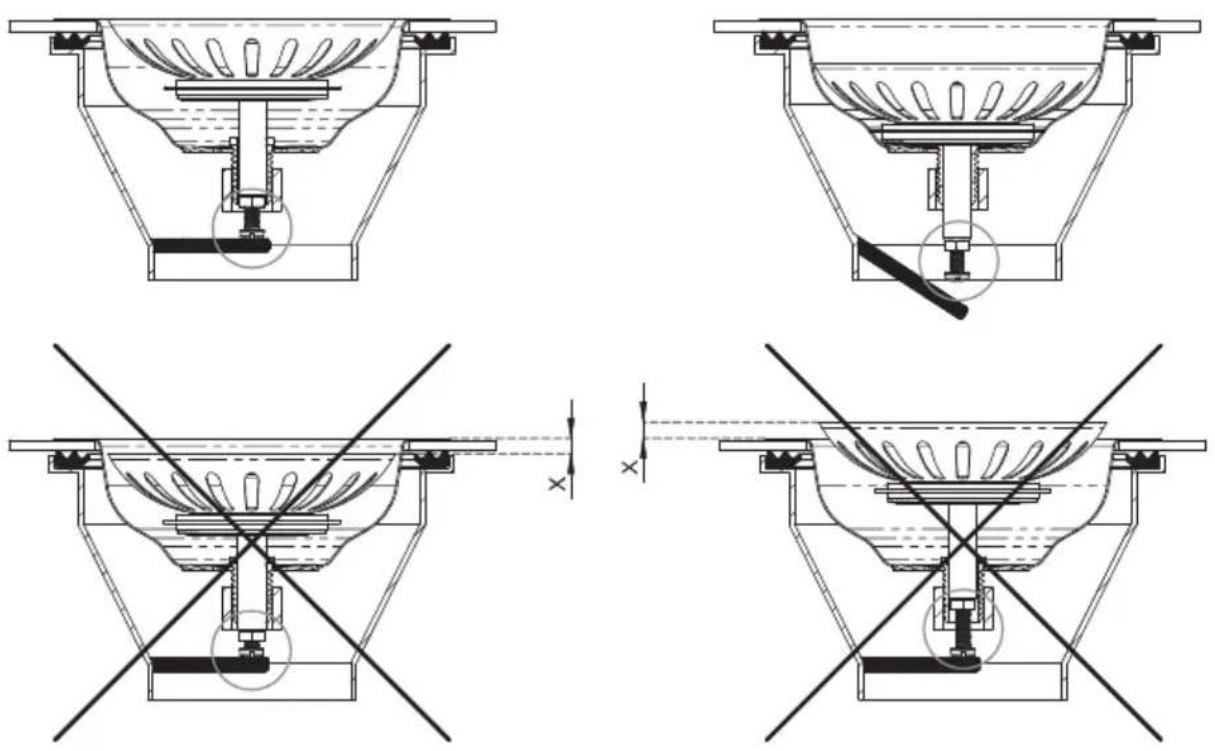

Adjust the stainless steel drain to the optimum position by the screw.

EN

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

ACKNOWLEDGMENT

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C , remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

HU

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Place the sink in the hole. Check that the sink is positioned correctly.

6.

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

INSTALLATION OF DRAIN PIPES

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

Adjust the stainless steel drain to the optimum position by the screw.

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

Illustration of a hand tool cutting through a curved ramp with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or tool assembly with no visible text or symbols

7.

GARANTIE

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container with a downward arrow inside a rectangular basin, no text or symbols present

5.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

GARANTÍA

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw and base, shown in black and white (no text or symbols)

3.

Illustration of a hand tool cutting through a curved ramp with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

IT

GARANZIA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or tool assembly with no visible text or symbols

7.

FR

GARANTIE
