Product type	Composite granite kitchen sink
Brand	Concept
Model	DG10C45WH
Main material	Composite granite (80% crushed stone, 15-20% binder)
Surface finish	Non-porous, smooth, easy to clean
Heat resistance	Up to 280°C (caution with hotter utensils)
Approximate dimensions (L x W x H)	45 cm x 40 cm x 20 cm (estimate)
Approximate weight	12 kg (estimate)
Electrical supply	None (non-electric sink)
Main functions	Drop-in sink, impact resistant, smooth antibacterial surface
Daily maintenance	Clean with water and non-abrasive liquid detergent, rinse and dry
Stubborn stain cleaning	Use a vinegar solution or vinegar cleaner, then rinse
Periodic cleaning	Apply a special granite polish, rinse with warm water, dry
Recommended drying	Dry with a soft cloth after each use to prevent limescale
Usage precautions	Do not place very hot utensils on a wet surface
Products to avoid	Abrasive products, sharp metal pots/pans, acidic foods left for a long time
Included spare parts	Stainless steel drain grid, sealing gaskets (type A 1mm, type B 2mm), sink supports
Installation	Cut the worktop, apply silicone, place the sink and tighten the supports manually
Warranty	Warranty on manufacturing defects and materials, to be presented with invoice
Manufacturer	Jindřich Valenta—Concept, Vysokomýtská 1800, 565 01 Choceň, Czech Republic

Frequently Asked Questions - DG10C45WH Concept

How to clean the granite sink?

After each use, clean with water and a non-abrasive liquid detergent. Rinse with water and dry with a soft cloth. For stubborn stains, use a vinegar solution.

How to install the sink?

Place the template on the worktop, trace the outline, drill 10 mm holes at the corners, cut with a saw, apply sanitary silicone, insert the sink and tighten the supports by hand (no electric drill).

Can I put hot pans directly in the sink?

No, although the sink withstands up to 280°C, utensils can reach higher temperatures. Use the provided mats to avoid damaging the surface, especially if it is wet.

What to do if stubborn stains appear?

Apply a vinegar solution or vinegar cleaner to the stains, let it sit, then rinse with warm water and dry. Avoid leaving acidic foods like vinegar or mustard for too long.

Which cleaning products are prohibited?

Never use abrasive products, scouring pads, or cleaners containing particles that scratch the surface. Use mild liquid detergents.

What is the composition of the sink?

The sink is composed of at least 80% crushed stone and 15-20% binder. This technology gives a very resistant, non-porous and smooth surface.

How to maintain the surface to avoid limescale?

Regularly dry the surface with a soft cloth after each use. Regular drying prevents the formation of limescale deposits and prolongs the life of the sink.

What to do in case of damage during installation?

Defects caused by incorrect installation are not covered by the warranty. Make sure to follow the instructions in the manual and call a professional if necessary.

How long does the warranty last?

The warranty duration is not specified in this notice. Keep your invoice and product documents to benefit from the warranty on manufacturing defects and materials.

Can I use abrasive cleaners?

No, abrasive cleaners scratch the surface and damage the granite. Use only non-abrasive liquid detergents and mild vinegar solutions.

USER MANUAL DG10C45WH Concept

Line drawing of a simple safe with a circular dial and horizontal bars, no text or symbols present.

Zlew kuchenny / Kitchen sink /

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in perspective view against a plain background (no text or symbols)

3.

Illustration of a hand tool cutting through a curved ramp with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

CZ

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Illustration of a paintbrush touching a flat surface with a pen resting on it (no text or symbols)

4.

Po okrajoch otvoru aplikujte sanitárny silikón.

Diagram showing a container with a downward arrow inside a rectangular basin, no text or symbols present

5.

Diagram of a mechanical assembly with a tool, screwdriver, and pipe connection (no text or symbols)

7.

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

PL

GWARANCJA

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

EN

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

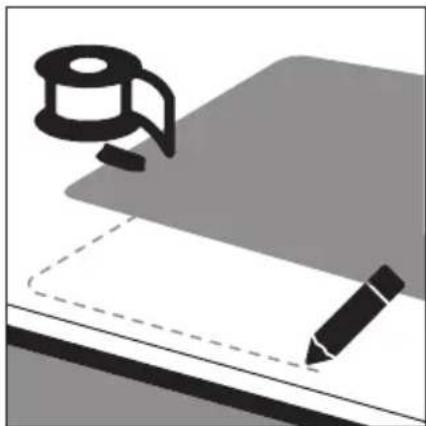

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

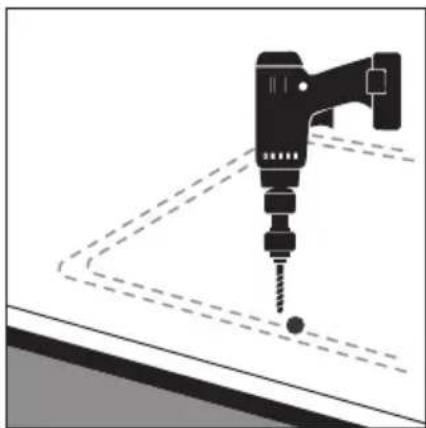

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

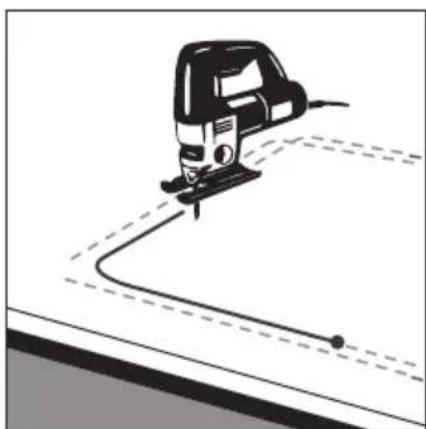

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

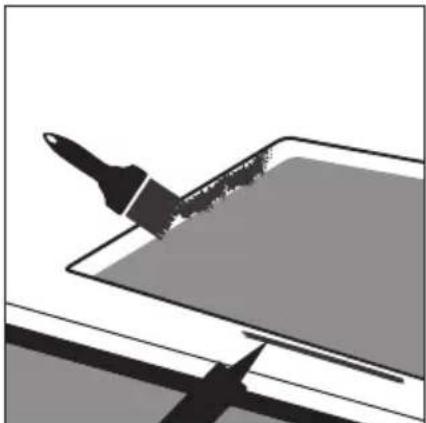

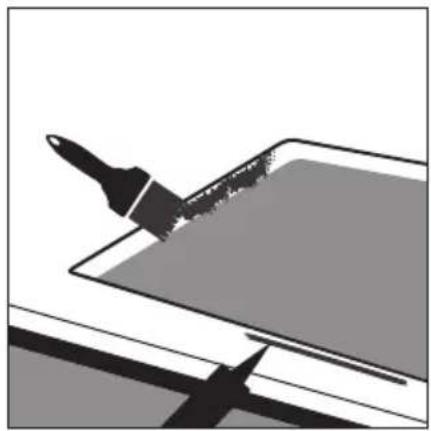

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

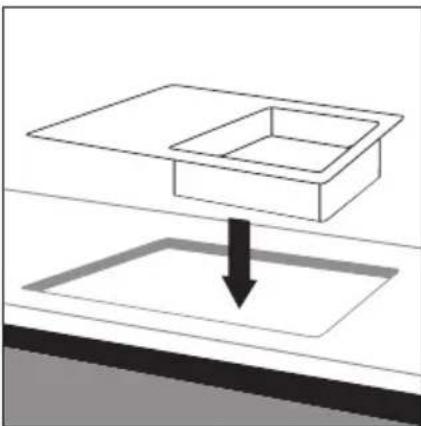

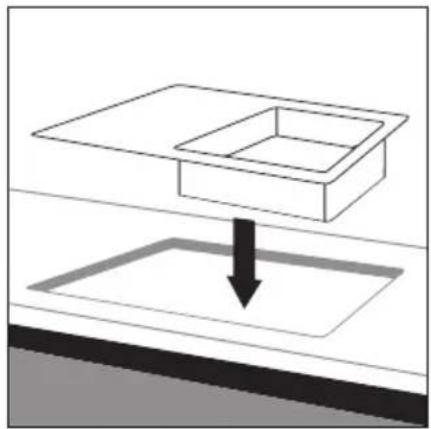

Place the sink in the hole. Check that the sink is positioned correctly.

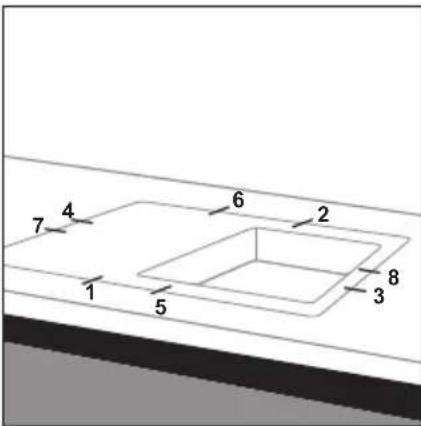

6.

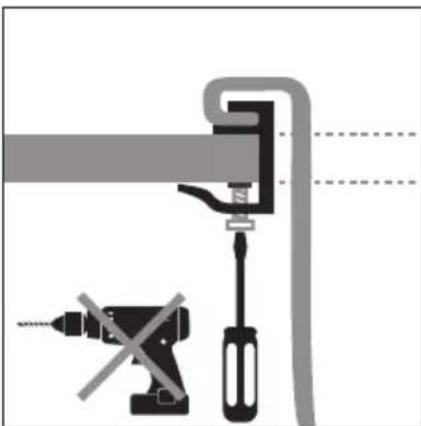

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

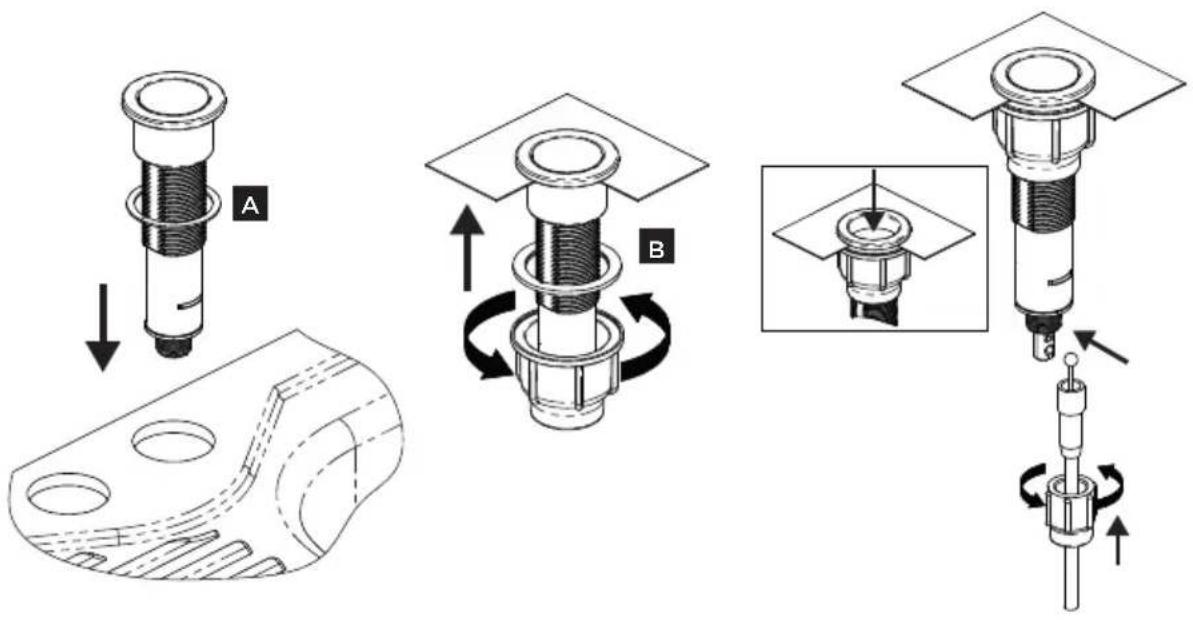

INSTALLATION OF DRAIN PIPES

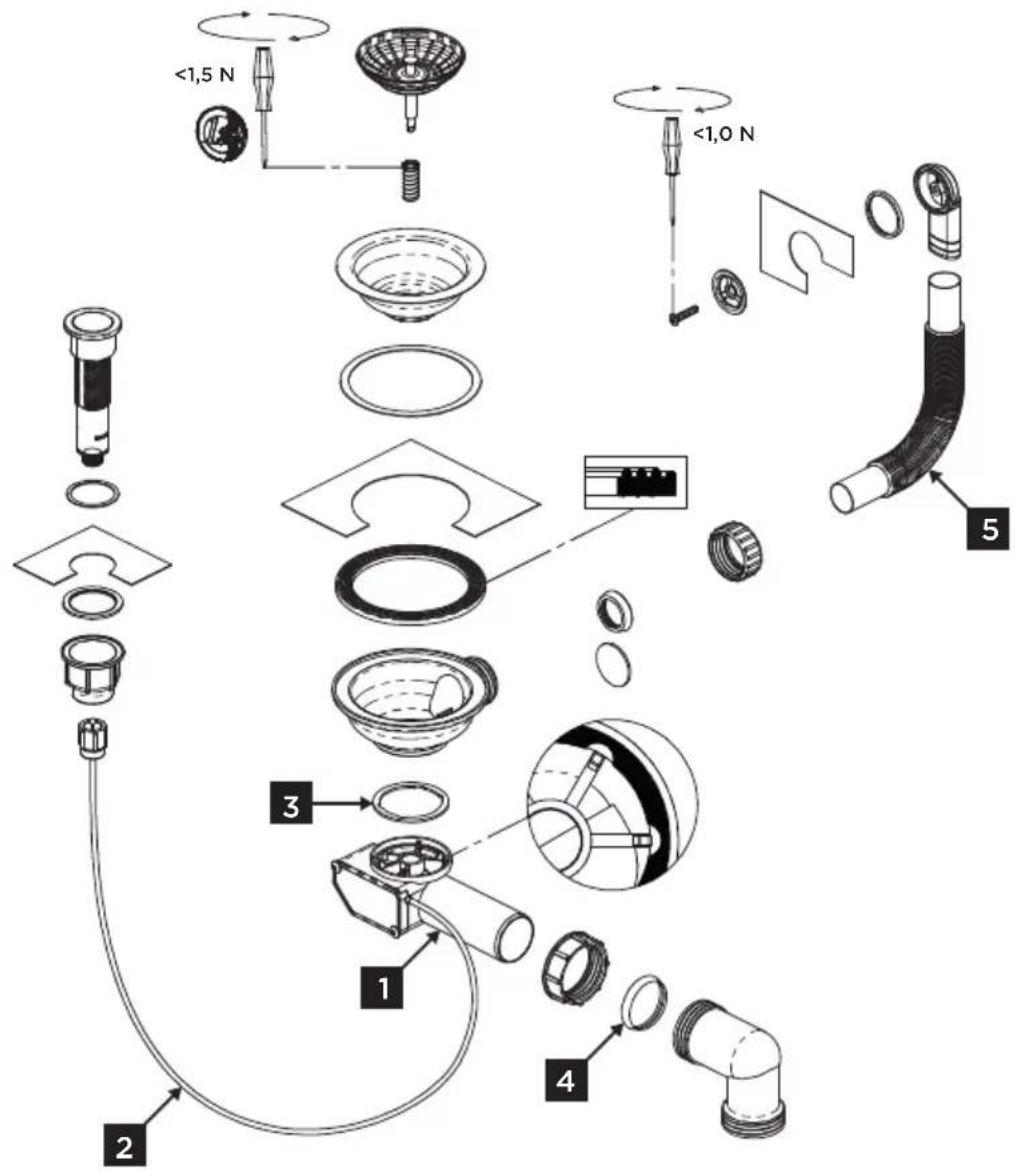

Detailed drawing of all parts of the drain pipe.

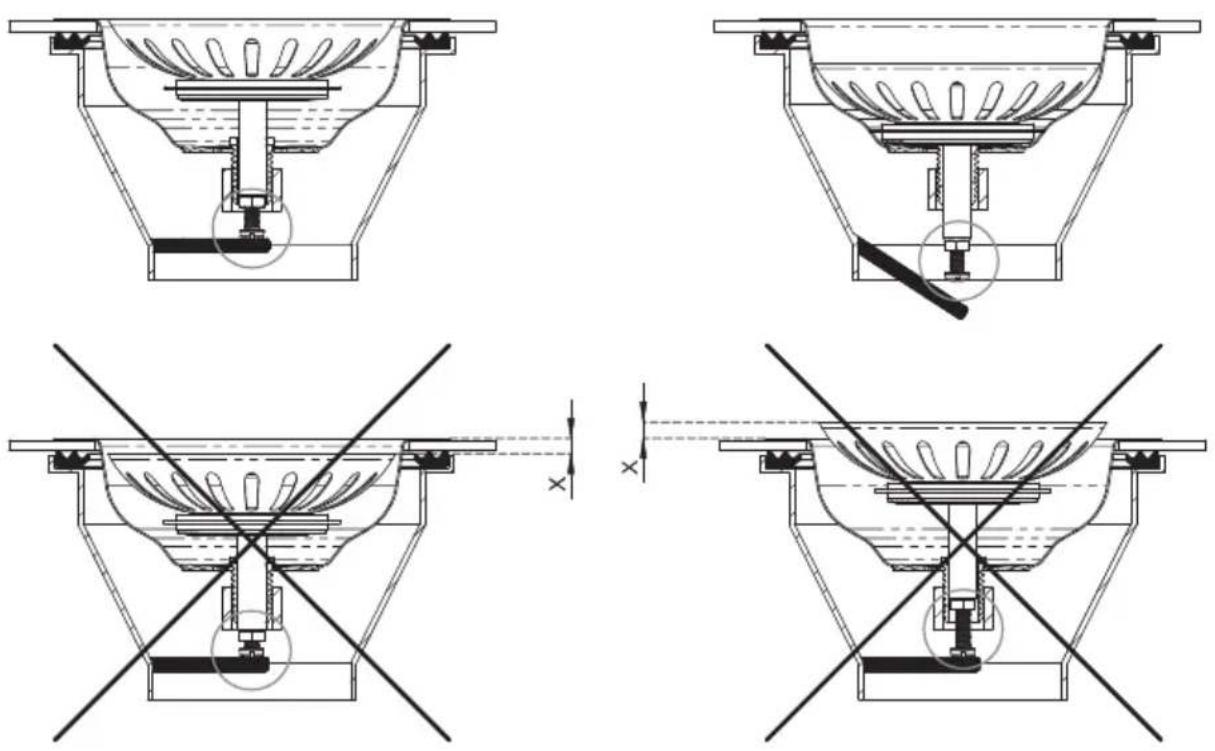

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

Adjust the stainless steel drain to the optimum position by the screw.

EN

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

ACKNOWLEDGMENT

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C , remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

HU

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Place the sink in the hole. Check that the sink is positioned correctly.

6.

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

INSTALLATION OF DRAIN PIPES

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

Adjust the stainless steel drain to the optimum position by the screw.

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

Illustration of a hand tool cutting through a curved ramp with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Diagram showing a container with a downward arrow inside a rectangular basin, no text or symbols present

5.

Diagram of a mechanical clamp or tool assembly with no visible text or symbols

7.

GARANTIE

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a surface with a brush tip, no text or symbols present

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool and screwdriver assembly with no visible text or symbols

7.

GARANTÍA

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw and base, shown in black and white (no text or symbols)

3.

Illustration of a hand tool cutting through a curved path with dashed lines (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

IT

GARANZIA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical assembly with a tool, screwdriver, and pipe connection (no text or symbols)

7.

FR

GARANTIE
