Product type	Undermount kitchen sink
Brand	Concept
Model	DG05L60DG
Material	Composite granite (more than 80% crushed stone)
Thermal resistance	Up to 280°C
Surface	Non-porous and smooth, anti-scale if dried regularly
Cleaning	Water and non-abrasive liquid detergents; vinegar for deposits; specific granite cleaner occasionally
Maintenance	Regular drying with a soft cloth
Installation	By a qualified specialist; template provided; fixing with brackets and sanitary silicone
Drainage	Drain pipe with gaskets A (1 mm) and B (2 mm)
Warranty	Manufacturer's warranty on manufacturing and material defects; keep the invoice
Precautions	Do not place very hot pots on a wet surface; use the provided mats
Resistance to aggressive foods	Avoid prolonged contact with salt, vinegar, mustard, red wine, black tea; rinse immediately
Dimensions (estimate)	Standard 1-bowl sink, dimensions not provided

Frequently Asked Questions - DG05L60DG Concept

How to clean the Concept DG05L60DG sink?

Use water and a non-abrasive liquid detergent. Rinse with clear water and dry with a soft cloth. For limescale deposits, a vinegar solution is suitable. Avoid abrasive products.

Can I place hot pots directly on the sink?

The sink resists up to 280°C, but utensils can get hotter. It is recommended to use the provided mats to avoid damage, especially if the surface is wet.

How to install the Concept DG05L60DG sink?

Installation must be done by a specialist. Use the template to mark the location, cut the countertop, apply sanitary silicone, place the sink and tighten the brackets manually. Do not use power tools without a torque limiter.

What type of gaskets to use for the drain?

The kit contains two gaskets: gasket A (1 mm) to install on the sink, gasket B (2 mm) underneath the sink. Adjust the grid with the provided screw.

What to do in case of stubborn stains on the sink?

Apply a vinegar solution or a non-abrasive special granite cleaner. Let it sit for a few minutes, then rinse with warm water and dry.

Is the sink scratch resistant?

The composite granite surface is hard and resistant, but avoid dropping sharp metal objects or heavy pans that could scratch or damage the surface.

Does the warranty cover improper installation?

No, the warranty only covers manufacturing and material defects. Incorrect installation or failure to follow recommendations voids the warranty.

Can I use abrasive products to clean the sink?

No, only use non-abrasive liquid detergents and mild granite-specific cleaners. Abrasives scratch the surface and damage the coating.

How to prevent limescale on the sink?

Regularly dry the surface with a soft cloth after each use. Frequent drying prevents the formation of limescale deposits.

What to do if red wine or black tea spills on the sink?

Rinse immediately with warm water to avoid stains. Do not leave these aggressive substances in prolonged contact with the surface.

USER MANUAL DG05L60DG Concept

Line drawing of a simple safe with a circular dial and horizontal bars, no text or symbols present.

Zlew kuchenny / Kitchen sink /

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

CZ

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Po okrajoch otvoru aplikujte sanitárny silikón.

Simple line drawing of a container with an arrow pointing downward into a rectangular basin (no text or symbols)

5.

Diagram of a mechanical assembly with a tool, screwdriver, and pipe connection (no text or symbols)

7.

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

PL

GWARANCJA

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

EN

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

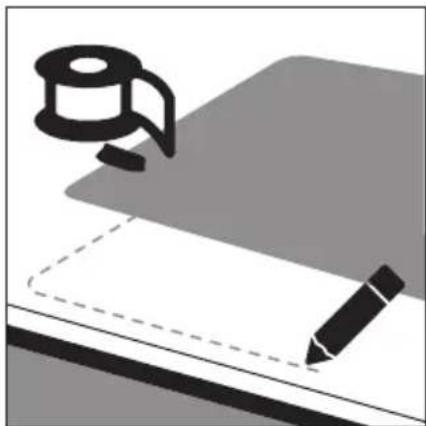

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

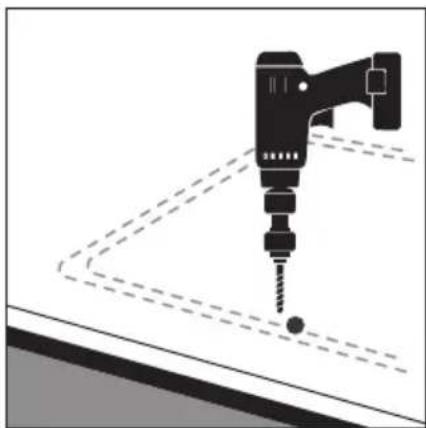

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

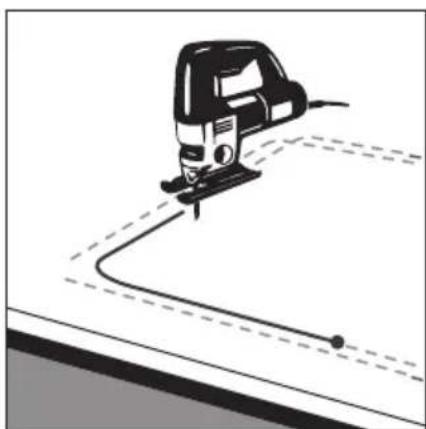

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

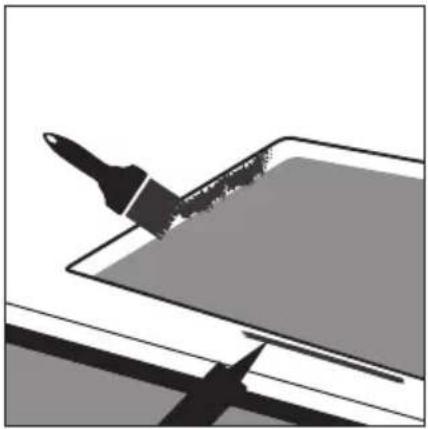

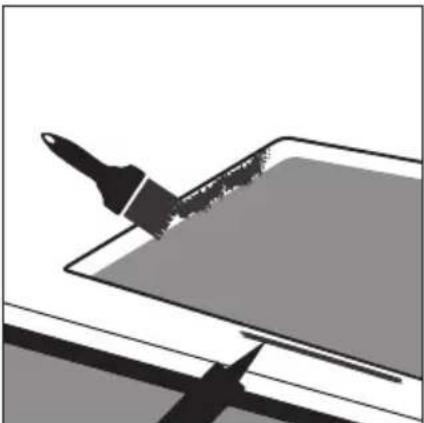

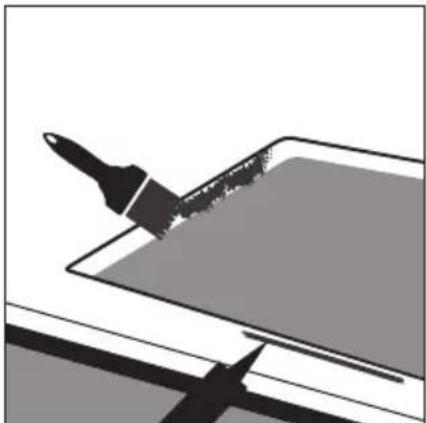

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

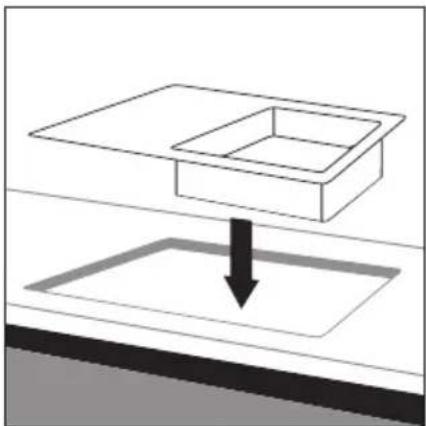

Place the sink in the hole. Check that the sink is positioned correctly.

6.

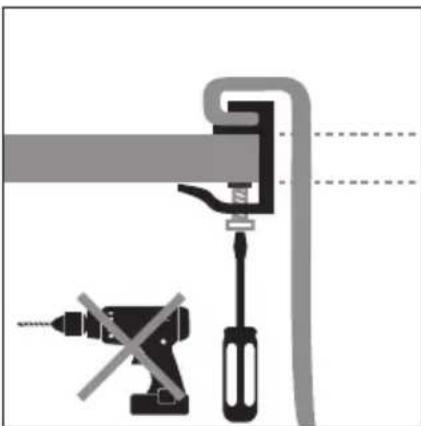

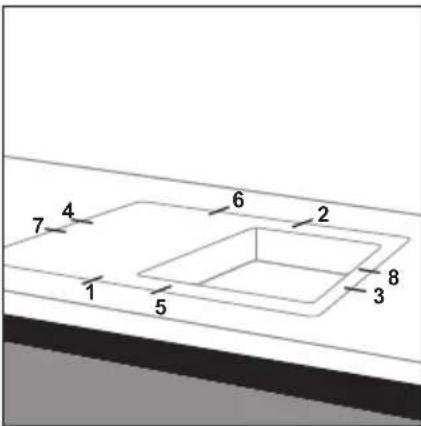

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

EN

INSTALLATION OF DRAIN PIPES

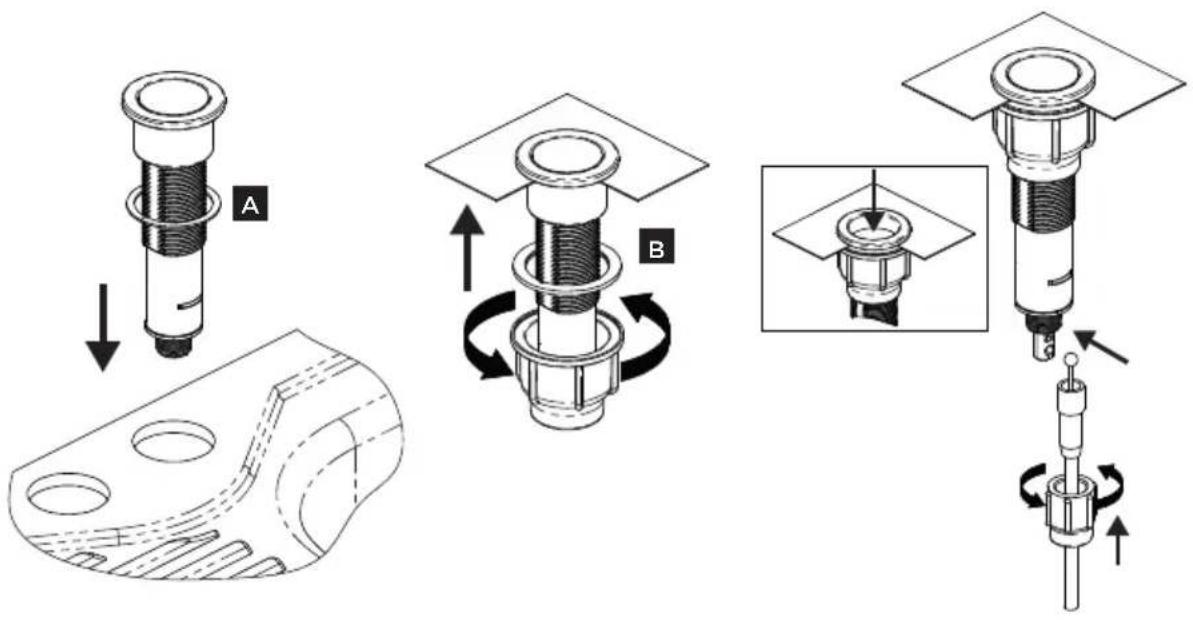

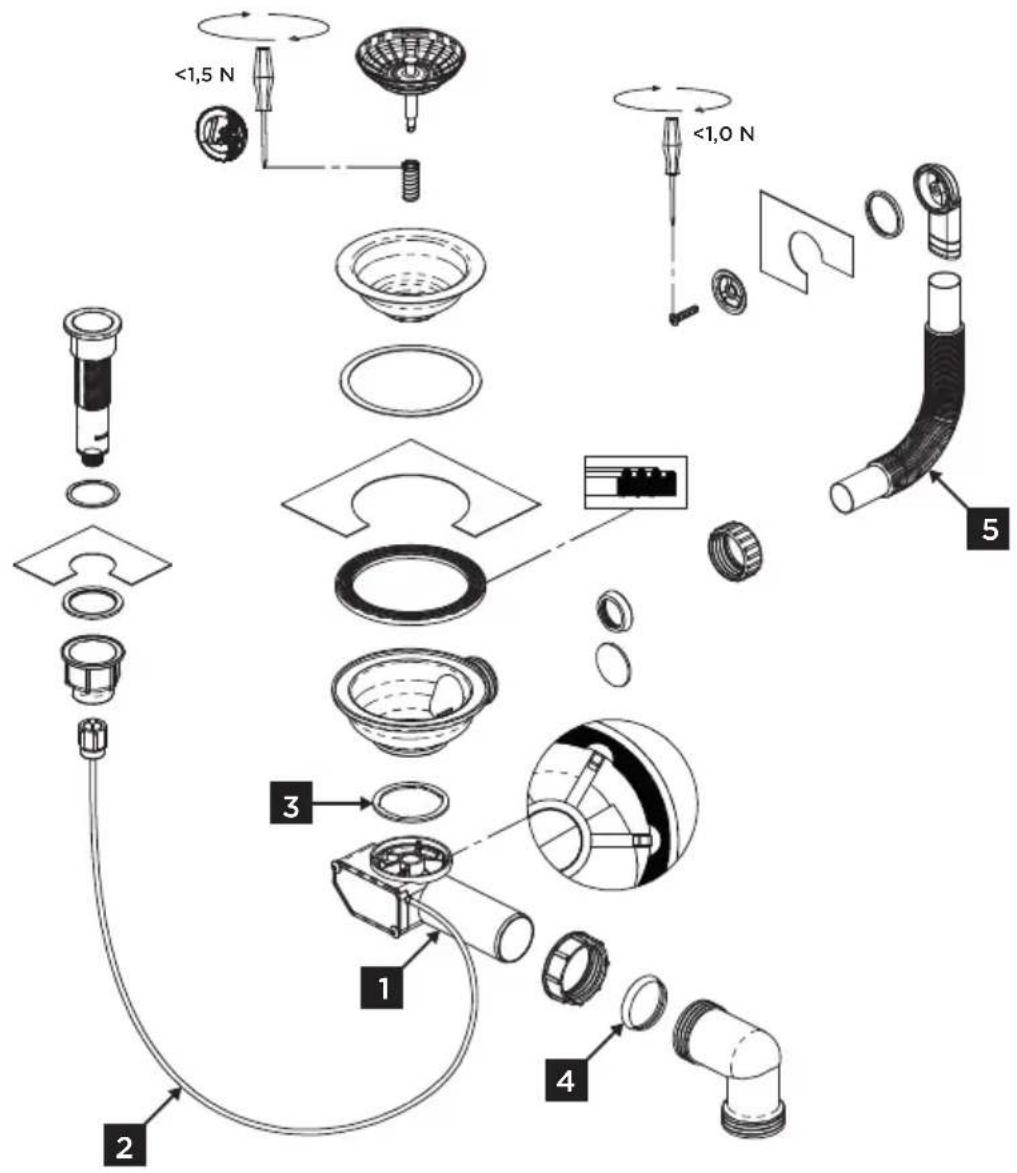

Detailed drawing of all parts of the drain pipe.

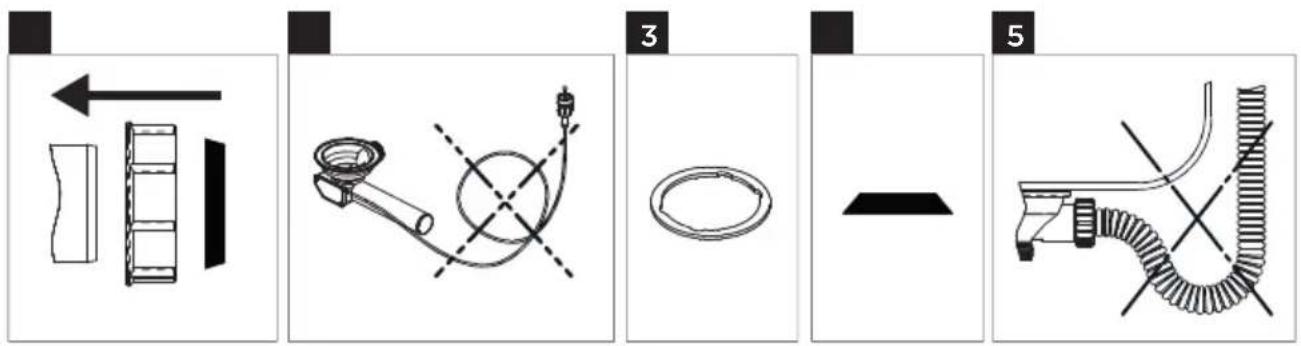

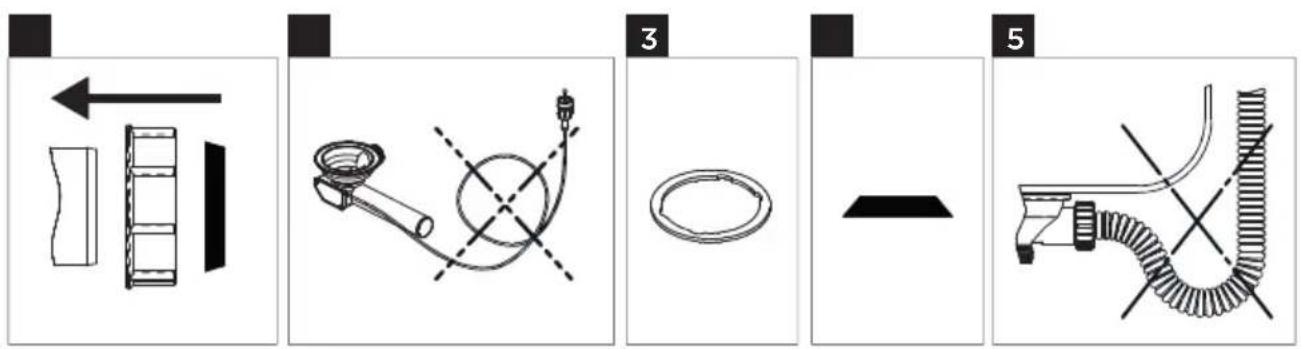

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

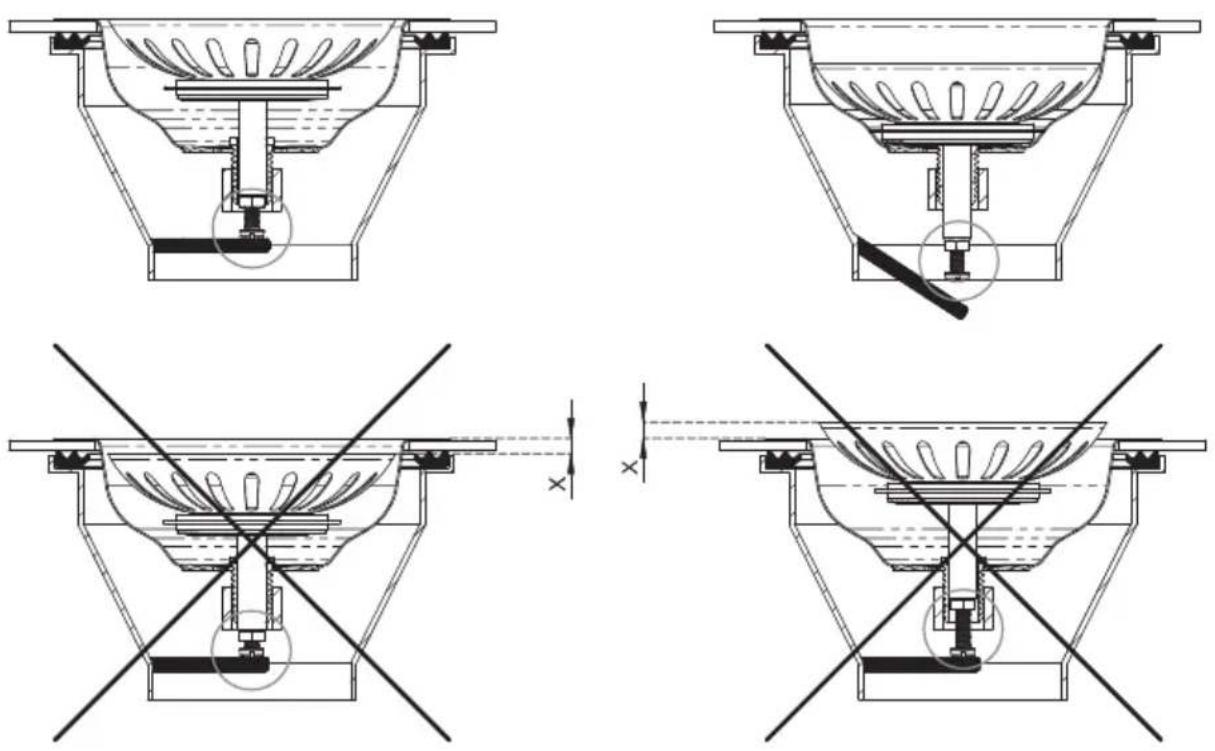

Adjust the stainless steel drain to the optimum position by the screw.
