DG05C45BE - Sink Concept - Free user manual and instructions

Product type	Drop-in kitchen sink
Brand	Concept
Model	DG05C45BE
Material	Composite granite (over 80% crushed stone)
Temperature resistance	Up to 280 °C
Installation type	Cut-out in countertop
Accessories included	Cutting template, sink supports, seals (1 mm and 2 mm), stainless steel strainer, protective mat
Recommended maintenance	Clean with non-abrasive liquid detergents, rinse with warm water, dry with a soft cloth
Recommended stain cleaner	Vinegar solution or vinegar cleaner
Specific cleaner	Non-abrasive milk for granite sinks
Usage precautions	Do not place hot pans on a wet surface; avoid prolonged contact with salt, vinegar, mustard, red wine, black tea
Drainage	Drain pipe kit included
Warranty	Against manufacturing and material defects
Recommended installation	By a qualified specialist
Manufacturer after-sales service	Jindřich Valenta—Concept, Vysokomýtská 1800, 565 01 Choceň, Czech Republic

Frequently Asked Questions - DG05C45BE Concept

How to install the sink?

Follow the provided template to cut the countertop. Apply sanitary silicone around the hole, place the sink and tighten the supports manually. Be careful not to use an electric drill.

What cleaning products to use?

Use non-abrasive liquid detergents. For stains, a vinegar solution or vinegar cleaner. Occasionally, use a special granite milk.

My sink has stubborn stains, what to do?

Apply a vinegar cleaner or vinegar solution and rinse thoroughly with warm water. Avoid abrasive products.

Can I put hot pans directly in the sink?

Do not place hot utensils on a wet surface, as this could damage the sink. Use the provided protective mats.

How to clean the sink drain?

Unscrew the stainless steel strainer to access the drain. Clean with a soft brush and soapy water. Rinse and reassemble.

What to do if the sink is damaged?

Check if the damage is covered by the warranty (manufacturing defects). If not, contact Concept customer service for spare parts.

Does the warranty cover scratches?

No, the warranty only covers manufacturing and material defects. Scratches or damage due to incorrect installation or maintenance are not covered.

Can I use an abrasive cleaner?

No, abrasive cleaners can scratch the granite surface. Use only non-abrasive products.

How to dry the sink after use?

Wipe the surface with a soft cloth to prevent limescale deposits. Regular drying extends the sink's lifespan.

Where to find spare parts?

Contact the retailer where you purchased the sink or directly contact the manufacturer Concept using the contact details provided in the manual.

USER MANUAL DG05C45BE Concept

Line drawing of a simple safe with a circular dial and horizontal bars, no text or symbols present

Zlew kuchenny / Kitchen sink /

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

CZ

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Po okrajoch otvoru aplikujte sanitárny silikón.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

PL

GWARANCJA

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

EN

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

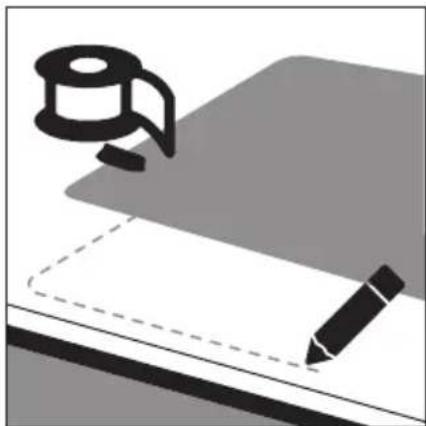

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

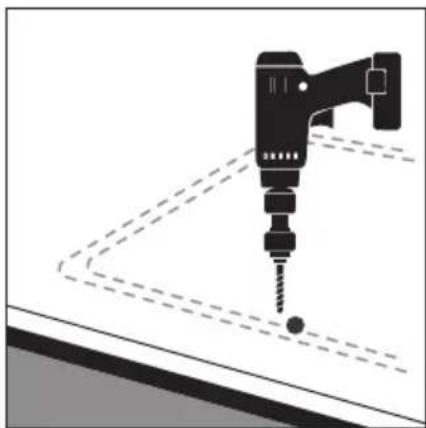

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

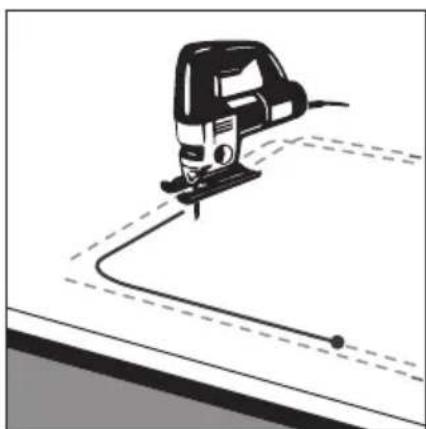

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

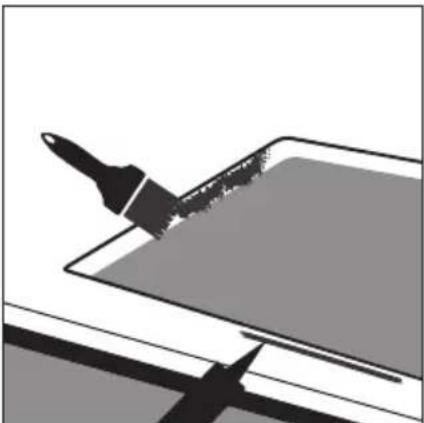

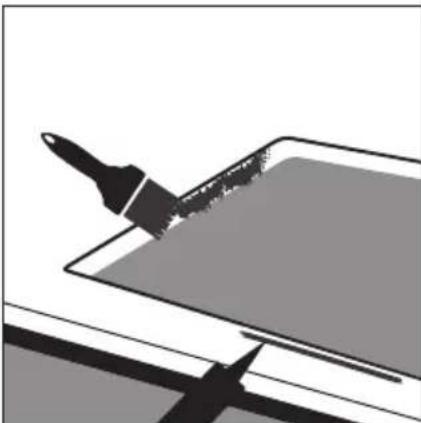

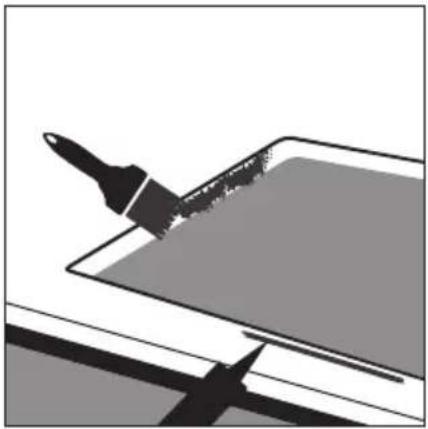

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

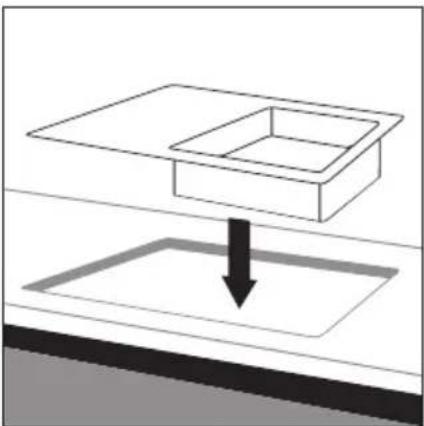

Place the sink in the hole. Check that the sink is positioned correctly.

6.

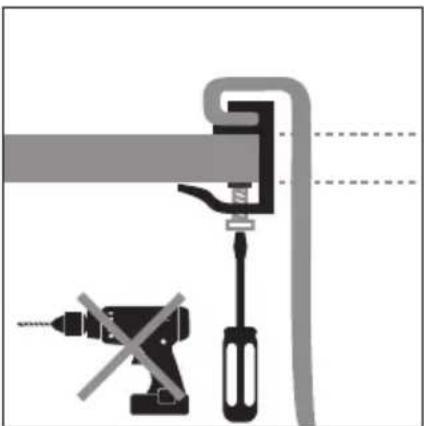

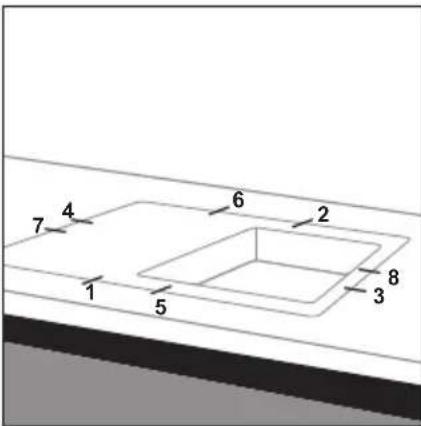

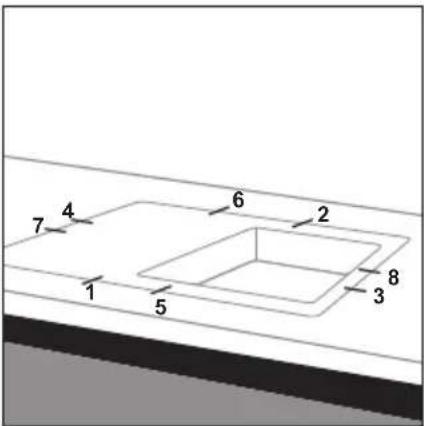

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

INSTALLATION OF DRAIN PIPES

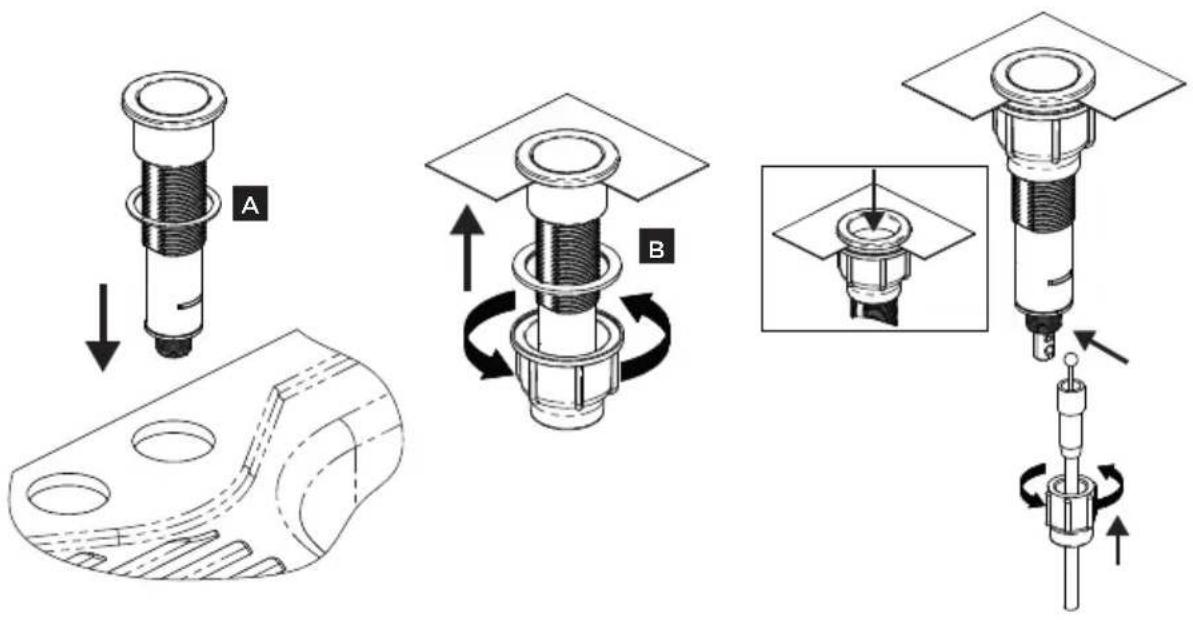

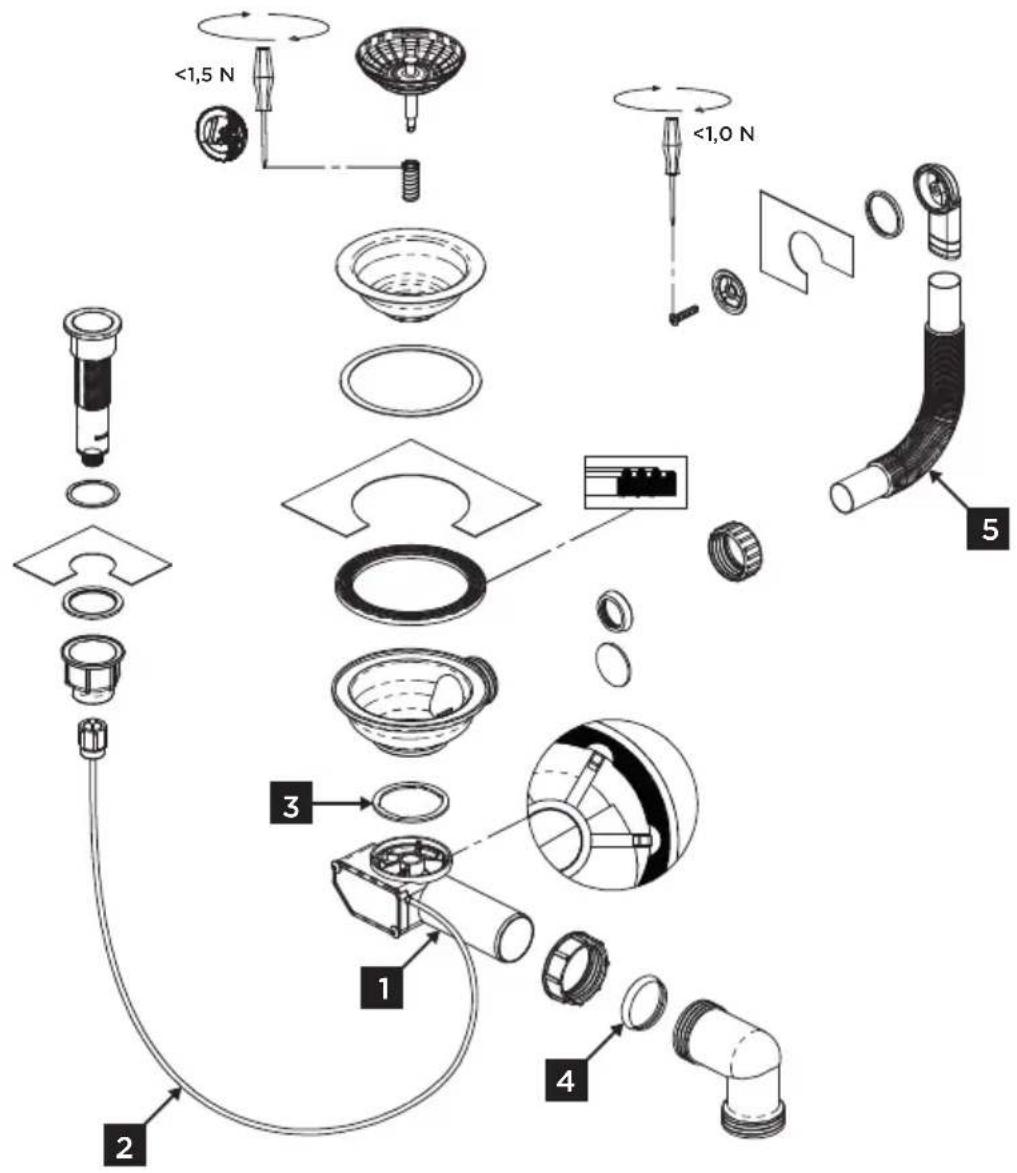

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

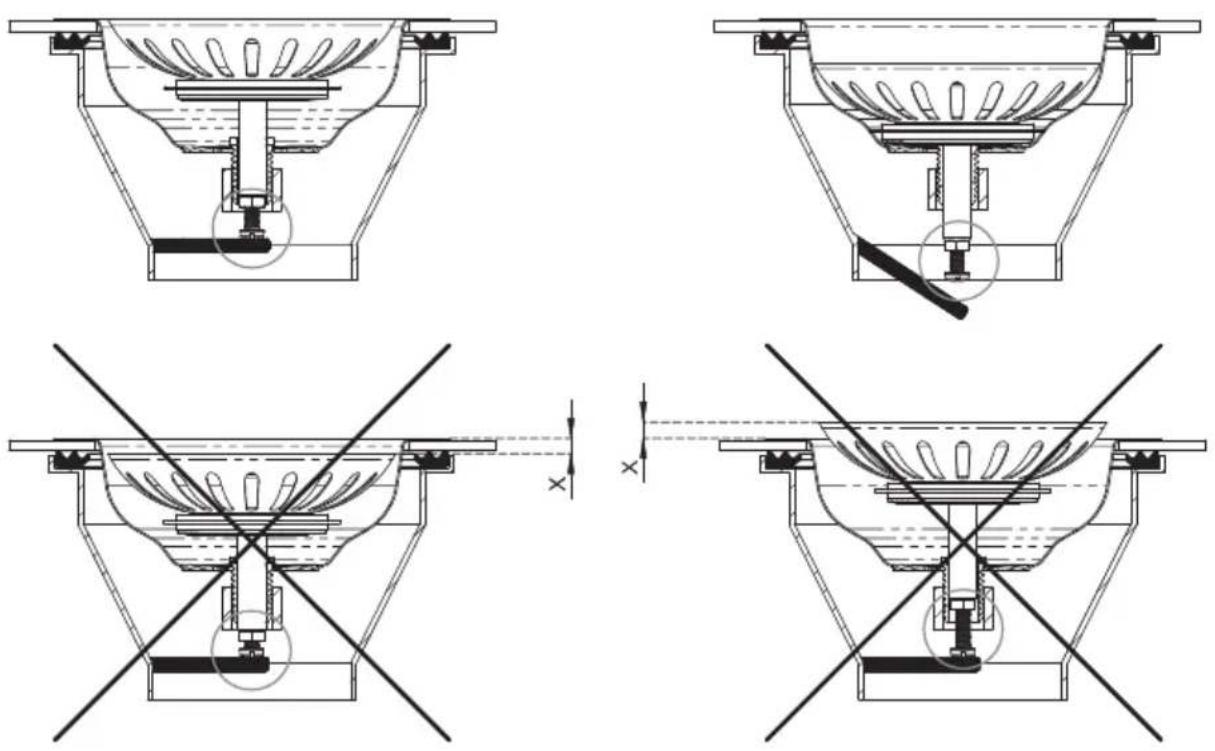

Adjust the stainless steel drain to the optimum position by the screw.

EN

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

ACKNOWLEDGMENT

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

HU

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen with a brush tip (no text or symbols)

4.

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Place the sink in the hole. Check that the sink is positioned correctly.

6.

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

INSTALLATION OF DRAIN PIPES

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

Adjust the stainless steel drain to the optimum position by the screw.

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

Silhouette of a drill bit with a screw, shown against a plain background (no text or symbols)

Illustration of a hand tool cutting through a curved ramp with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a surface with a brush tip, no text or symbols present

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

GARANTIE

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool and screwdriver assembly with no visible text or symbols

7.

GARANTÍA

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw and base, shown in black and white (no text or symbols)

3.

Illustration of a hand tool cutting through a curved path with dashed lines (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

IT

GARANZIA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Diagram showing a container with a downward arrow inside a rectangular basin, no text or symbols present

5.

Diagram of a mechanical clamp or tool assembly with no visible text or symbols

7.

FR

GARANTIE

W: www.my-concept.pl

Jindřich Valenta—Concept

Vysokomýtská 1800,

565 01 Choceň, Czech Republic

T: [phone]

E: [e-mail]

W: www.my-concept.cz
