USER MANUAL DG15L60DG Concept
Zlew kuchenny / Kitchen sink /
Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.
TABLE OF CONTENTS
- Important safety information
- Cleaning and maintenance
- Sink installation
- Installation of drain pipes
Warranty
CLEANING AND MAINTENANCE
Concept granite sinks contain more than 80% crushed stone and 15 - 20% binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.
After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.
From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.
Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.
IMPORTANT SAFETY INFORMATION
Although the surface of the sink is heat resistant up to 280^ , remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.
Do not throw pots, pans or sharp metal products into the sink.
Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.
EN
SINK INSTALLATION
Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.
These instructions are for installation of sinks that are placed on the kitchen counter top only.
Before product installation, make sure it is not damaged in any way.
The product should be installed by a qualified professional.
1.

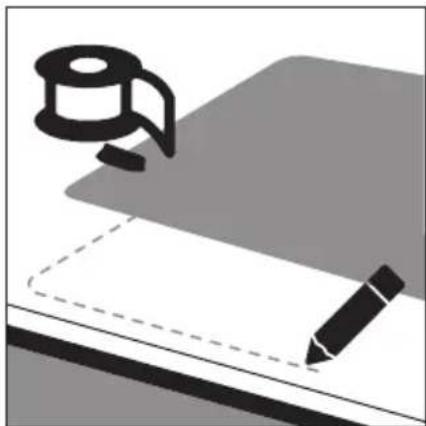

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.
2.

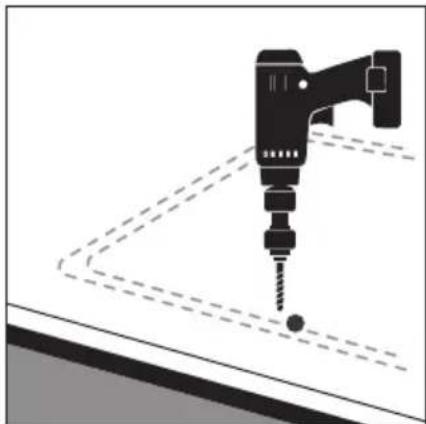

In each corner, drill a hole of 10mm
3.

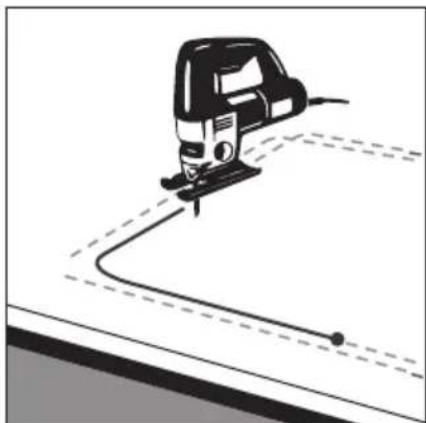

Using a reciprocating saw, cut the sink hole.
4.

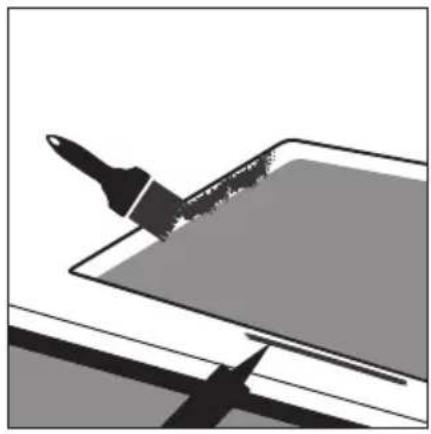

Apply sanitary silicone along the edge of the hole.
5.

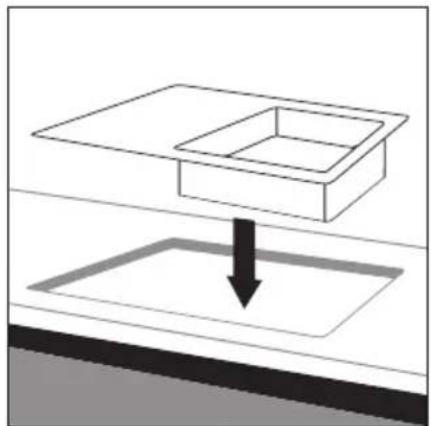

Place the sink in the hole. Check that the sink is positioned correctly.
6.

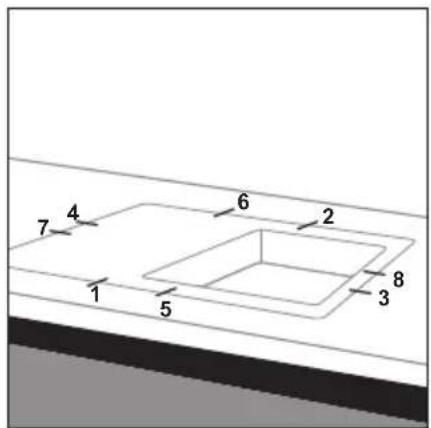

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.
7.

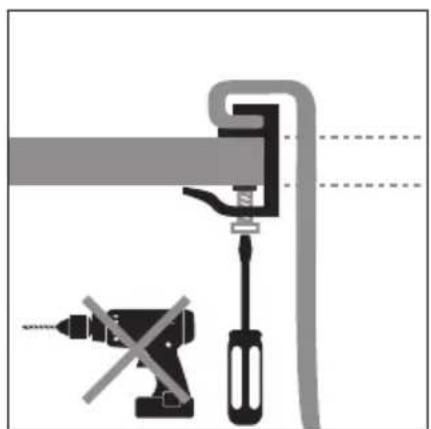

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

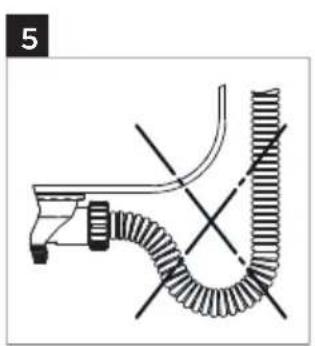

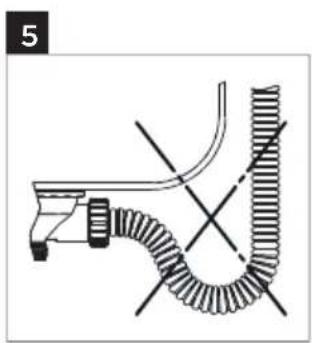

INSTALLATION OF DRAIN PIPES

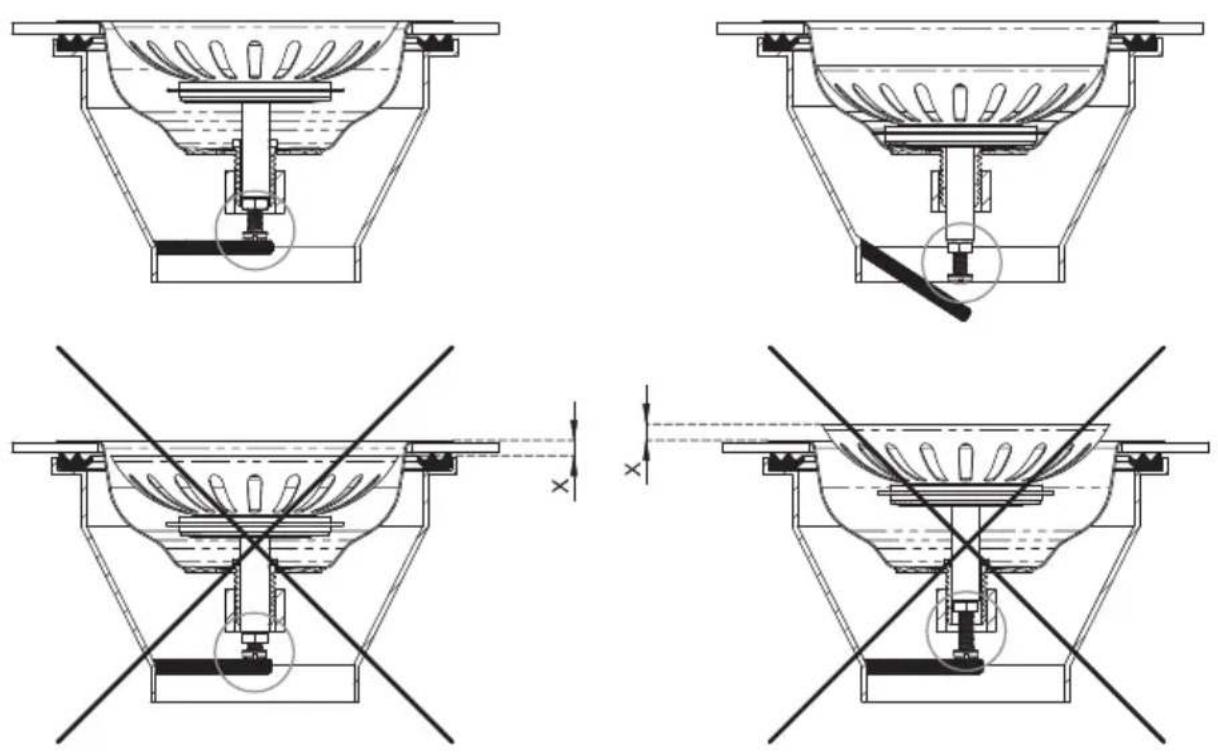

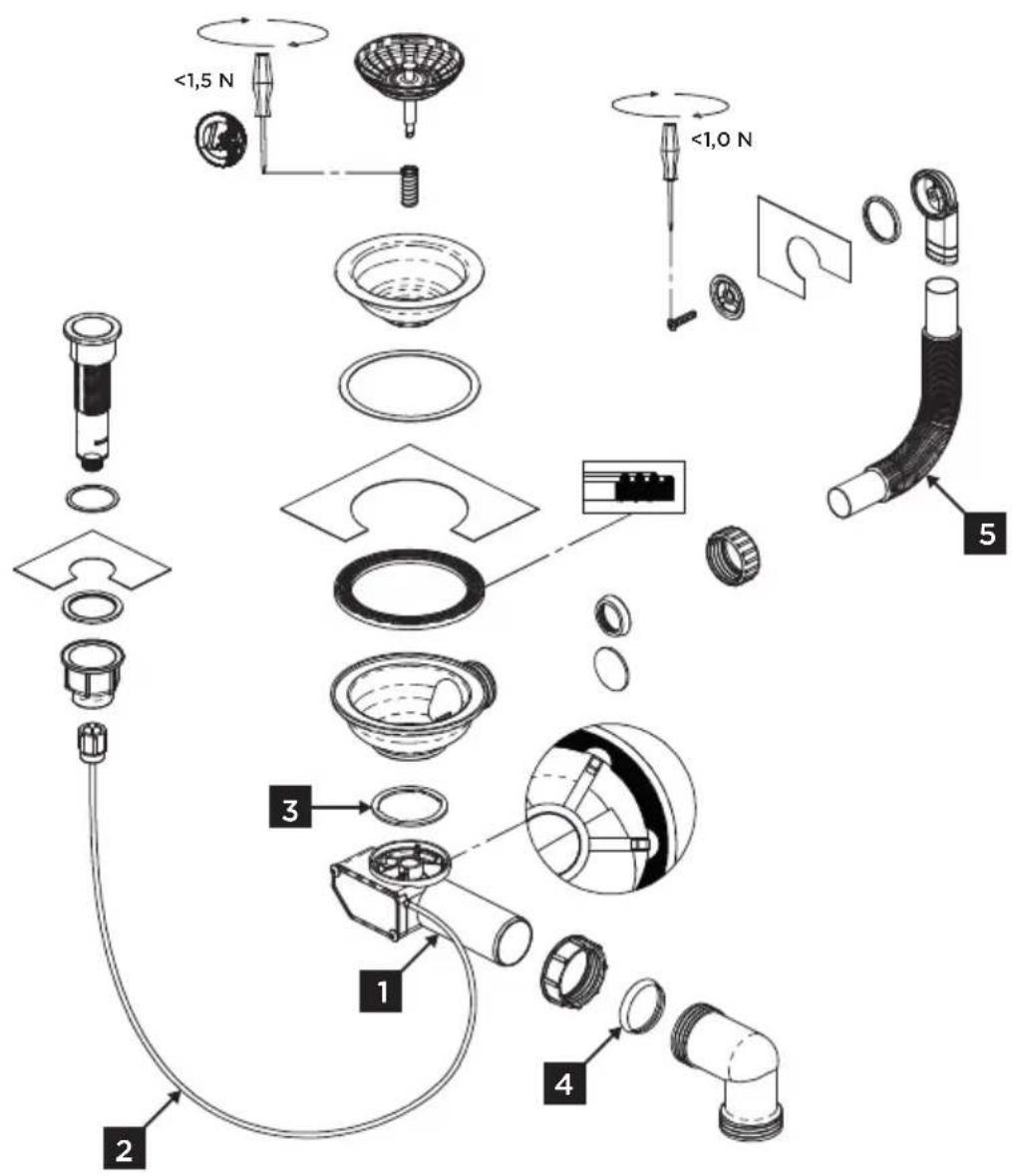

Detailed drawing of all parts of the drain pipe.

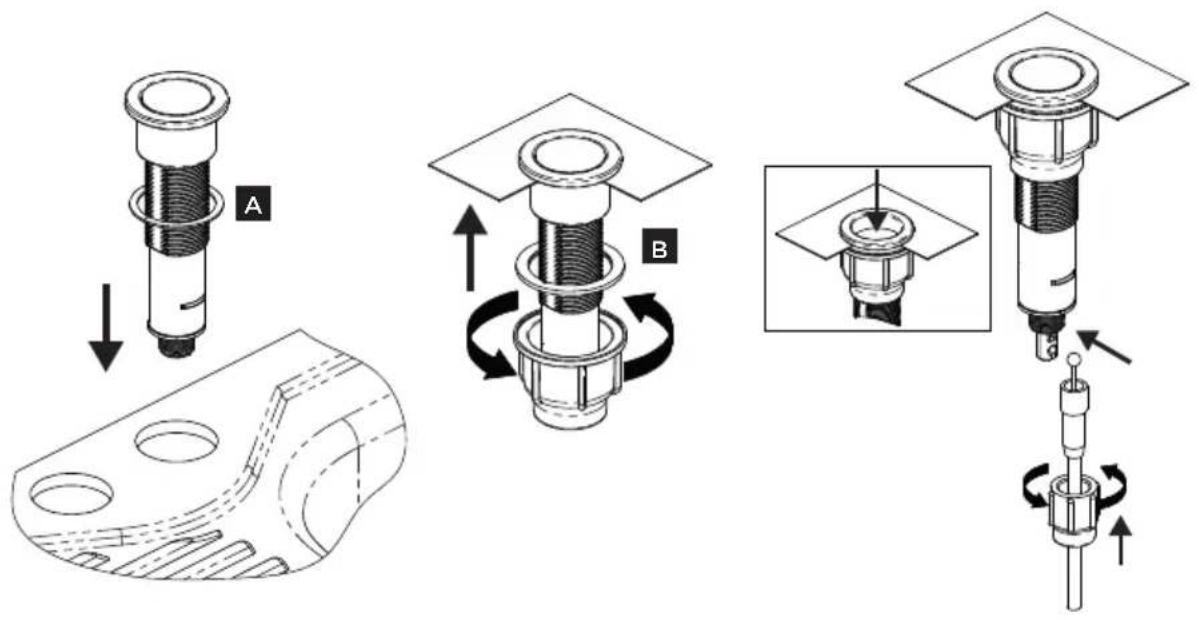

The package contains two types of gasket.
Gasket A - 1 mm, sink upper installation and gasket B - 2mm, sink lower installation.
Adjust the stainless steel drain to the optimum position by the screw.
EN
WARRANTY
The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.
The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.
ACKNOWLEDGMENT
Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.
TABLE OF CONTENTS
- Important safety information
- Cleaning and maintenance
- Sink installation
- Installation of drain pipes
Warranty
CLEANING AND MAINTENANCE
Concept granite sinks contain more than 80% crushed stone and 15 - 20% binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.
After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.
From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.
Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.
IMPORTANT SAFETY INFORMATION
Although the surface of the sink is heat resistant up to 280^ , remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.
Do not throw pots, pans or sharp metal products into the sink.
Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.
HU
SINK INSTALLATION
Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.
These instructions are for installation of sinks that are placed on the kitchen counter top only.
Before product installation, make sure it is not damaged in any way.
The product should be installed by a qualified professional.
1.
Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.
2.
In each corner, drill a hole of 10mm
3.
Using a reciprocating saw, cut the sink hole.
4.
Apply sanitary silicone along the edge of the hole.
5.
Place the sink in the hole. Check that the sink is positioned correctly.
6.
Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.
7.
Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.
INSTALLATION OF DRAIN PIPES

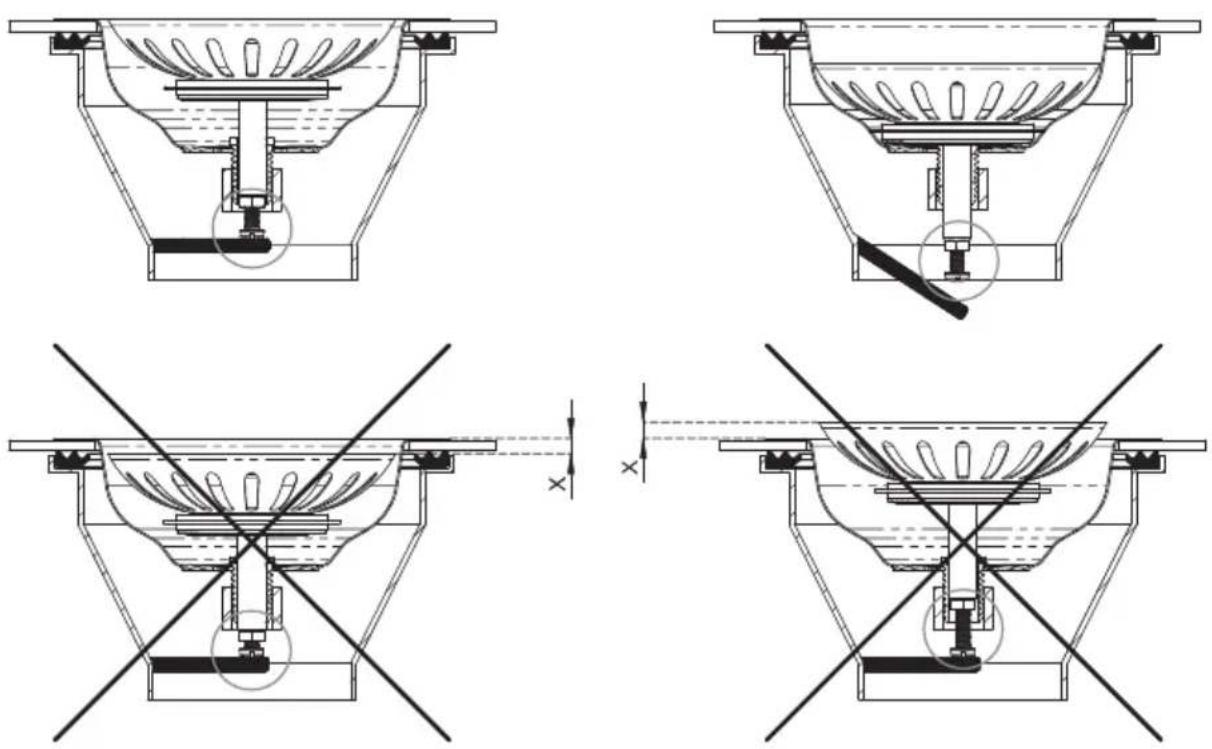

Detailed drawing of all parts of the drain pipe.
The package contains two types of gasket.
Gasket A - 1 mm, sink upper installation and gasket B - 2mm, sink lower installation.
Adjust the stainless steel drain to the optimum position by the screw.
WARRANTY
The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.
The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.
