Product Type	Kitchen Sink
Material	Granite composite (over 80% crushed stone, 15-20% binder)
Installation Style	Undermount
Number of Bowls	1
Dimensions (L x W x H)	78 x 48 x 20 cm (approx)
Weight	Approximately 15 kg (approx)
Thermal Resistance	Up to 280°C
Surface	Non-porous, smooth
Daily Maintenance	Clean with water and non-abrasive liquid detergent, dry with a soft cloth
Descaling	Vinegar solution or vinegar cleaner
Deep Cleaning	Non-abrasive cream cleaner suitable for granite sinks, rinse with warm water
Included Accessories	Stainless steel drain basket, sink supports, gaskets (1 mm and 2 mm), mounting template
Warranty	Manufacturer's warranty against manufacturing and material defects
Repairability	Spare parts available from the manufacturer

Frequently Asked Questions - DG205C60BE Concept

How to clean the granite sink?

Use water and a non-abrasive liquid detergent. After cleaning, rinse and dry with a soft cloth. For limescale deposits, apply a vinegar solution or vinegar cleaner.

Can I pour boiling water into the sink?

The sink is resistant to temperatures up to 280°C, but avoid placing hot pans directly on a wet surface. Use the provided mats to protect the sink.

How to install the sink?

Installation must be carried out by a qualified professional. Use the provided template to mark the location, cut the worktop, apply sanitary silicone and tighten the supports by hand (no power tools).

What if the sink is scratched?

The granite surface is very resistant to scratches, but avoid throwing pots or sharp metal objects. If a scratch appears, it is usually superficial and can be mitigated with a non-abrasive cleaner.

Does the warranty cover damage from improper installation?

No, the warranty only covers manufacturing and material defects. Defects caused by incorrect installation or inappropriate maintenance are not covered.

What cleaning products are recommended?

Use non-abrasive liquid detergents. For stubborn stains, a vinegar solution is effective. Avoid abrasive sponges, scouring powder, and aggressive acidic cleaners.

How to attach the sink supports?

Place the supports in the order shown in the diagram and tighten them manually until the sink is firmly anchored. Do not use a power drill or tool without a torque regulator.

Is the sink stain resistant?

Yes, the surface is non-porous and smooth. However, immediately clean aggressive foods like salt, vinegar, mustard, red wine, or black tea to avoid stains.

Can I use abrasive sponges?

No, abrasive sponges can damage the surface. Use a soft cloth or a non-abrasive sponge.

Where can I find the full manual?

You can download the PDF manual for free at notice-facile.com. The manual is available in several languages.

USER MANUAL DG205C60BE Concept

Line drawing of a simple safe with a circular dial and horizontal bars, no text or symbols present

Zlew kuchenny / Kitchen sink /

Illustration of a coffee cup and pencil on a desk with a dashed line indicating writing or drawing (no text or symbols present)

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

CZ

ZÁRUKA

Illustration of a coffee cup and pencil on a desk with a dashed line indicating writing or drawing (no text or symbols present)

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Po okrajoch otvoru aplikujte sanitárny silikón.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

ZÁRUKA

Illustration of a coffee cup and pencil on a desk with a dashed line indicating writing or drawing (no text or symbols present)

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

PL

GWARANCJA

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

EN

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

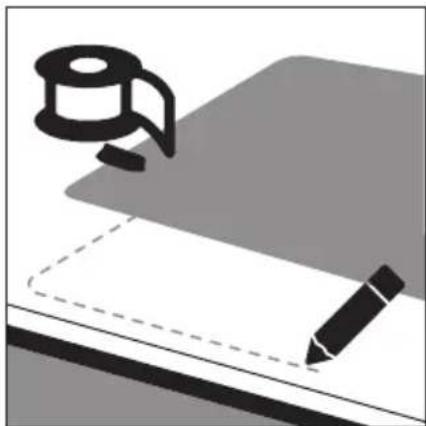

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee mug and pencil on a desk with a dashed line indicating writing or drawing (no text or symbols present)

2.

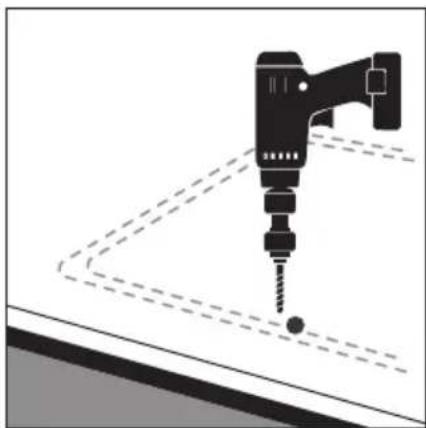

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

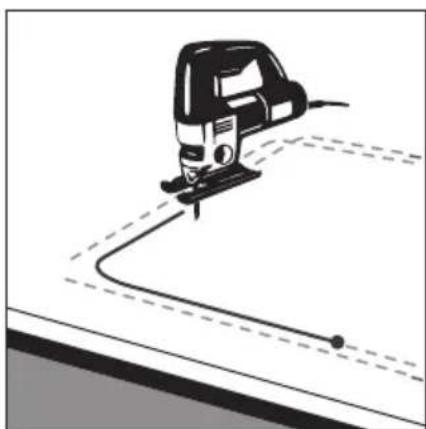

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

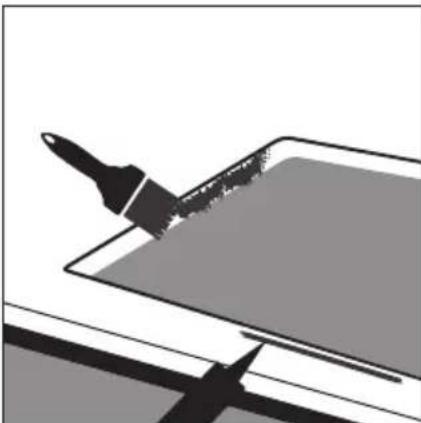

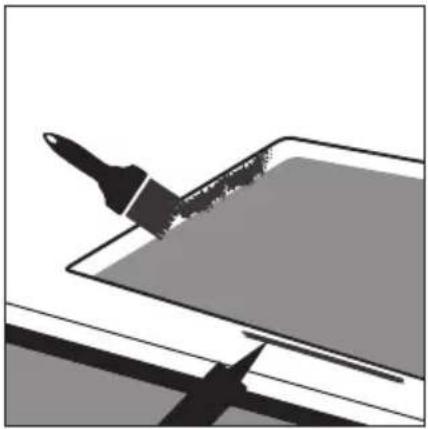

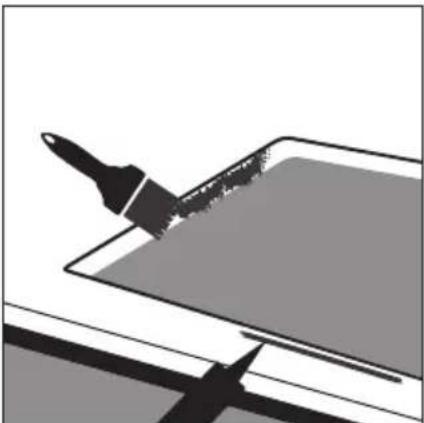

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

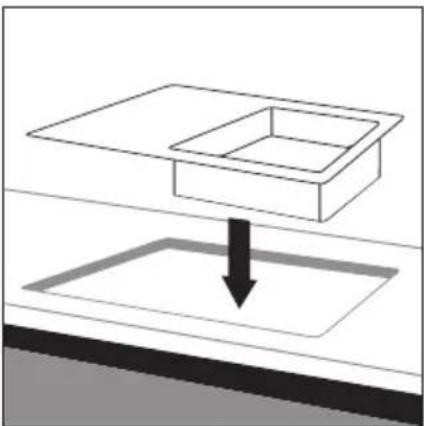

Place the sink in the hole. Check that the sink is positioned correctly.

6.

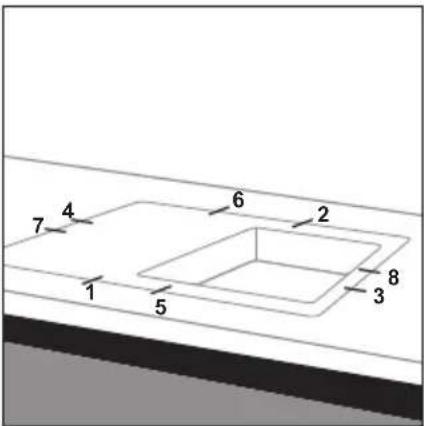

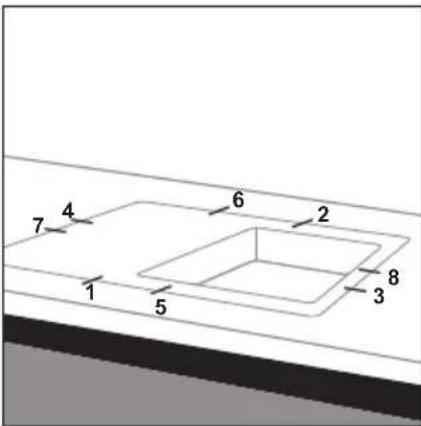

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

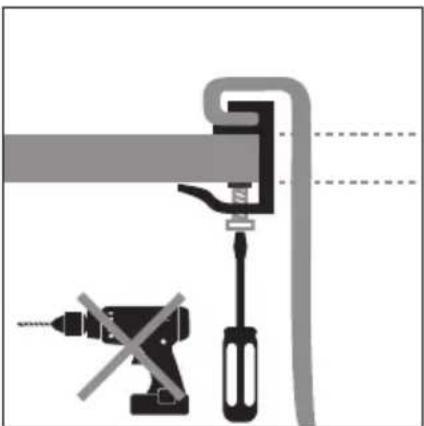

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

EN

INSTALLATION OF DRAIN PIPES

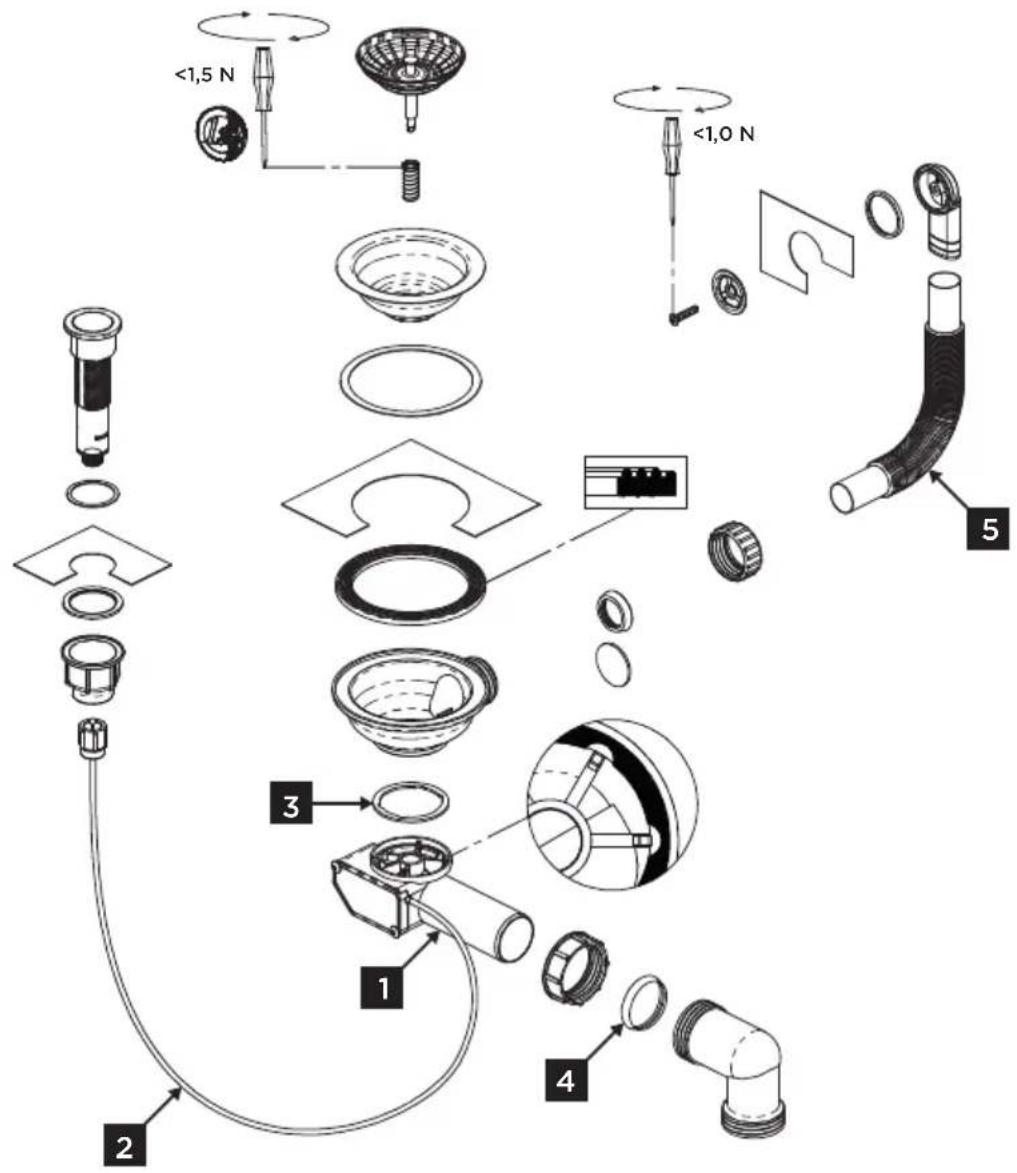

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

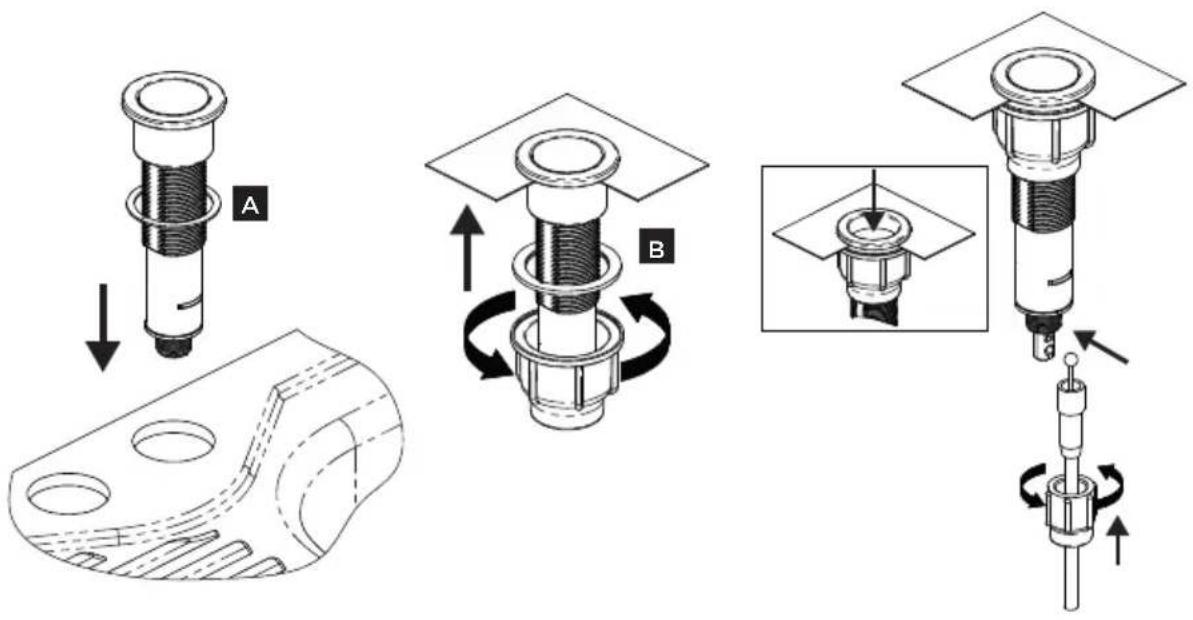

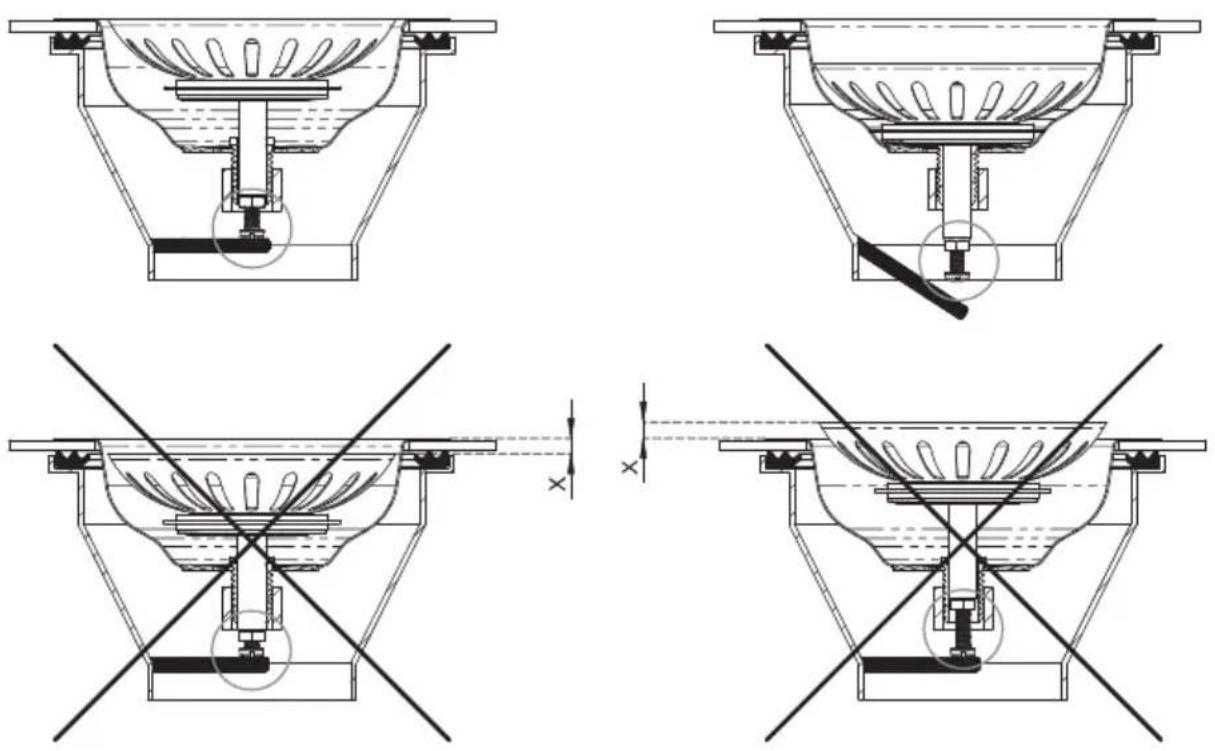

Adjust the stainless steel drain to the optimum position by the screw.

EN

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

ACKNOWLEDGMENT

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

HU

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee cup and pencil on a desk with a dashed line indicating writing or drawing (no text or symbols present)

2.

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Place the sink in the hole. Check that the sink is positioned correctly.

6.

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram showing a tool and screwdriver assembly with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

INSTALLATION OF DRAIN PIPES

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

Adjust the stainless steel drain to the optimum position by the screw.

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

Silhouette of a drill bit with a screw, shown against a plain background (no text or symbols)

Illustration of a hand tool cutting through a curved ramp with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a surface with a brush tip, no text or symbols present.

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical assembly with a tool, screwdriver, and tool holder (no text or symbols)

7.

GARANTIE

Illustration of a coffee cup and pencil on a desk with a dashed line indicating writing or drawing (no text or symbols present)

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a surface with a brush tip, no text or symbols present

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool and screwdriver assembly with no visible text or symbols

7.

GARANTÍA

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw and base, shown in black and white (no text or symbols)

3.

Illustration of a hand tool cutting through a curved path with dashed lines (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

IT

GARANZIA

Illustration of a coffee cup and pencil on a desk with a dashed line indicating writing or drawing (no text or symbols present)

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

FR

GARANTIE
