IAN 272429 - Beach chair CRIVIT - Free user manual and instructions

Product type	Inflatable beach chair
Brand	Crivit
Model	IAN 272429
Dimensions (mattress)	approx. 170 x 80 cm (L x W)
Dimensions (chair)	approx. 80 x 80 x 85 cm (W x H x D)
Maximum load	80 kg
Number of air chambers	4
Use	On water and as beach seat
Target audience	Only for persons who can swim
Age restriction	Not suitable for children from 0 to 14 years
Material	PVC (assumed)
Valve type	Safety valve with cap
Delivery contents	1 chair, 2 self-adhesive patches, instruction manual
Maintenance	Clean with water or soapy water, store dry and deflated
Repair	With supplied self-adhesive patches (do not inflate for 20 min after)
Inflation temperature	Above 15 °C
Safety distance	50 m from shore
Service country	Belgium
Customer service	Delta-Sport: 070 270 171 (€0.15/min)
IAN code	272429

Frequently Asked Questions - IAN 272429 CRIVIT

How to inflate the beach chair?

Use a foot pump or double-action pump. Inflate the chambers in order: headrest, head, middle chamber, foot. Close the valves tightly after inflation. Avoid using compressors.

How to use it in sitting position?

Inflate the headrest, head and foot, but leave the middle chamber deflated. Fold the item as shown in the manual (fig. B).

What is the maximum load?

The maximum authorized load is 80 kg. Do not exceed it to avoid any risk of damage or tipping.

Can I use it in a pool?

Yes, it is designed for use on water. Make sure to follow safety instructions: do not use in strong wind or current, stay within 50 m of the shore.

How to repair a leak?

Use the supplied self-adhesive patches. Deflate completely, clean and dry the area around the leak, apply the patch pressing firmly. Wait 20 minutes before reinflating.

How to clean and maintain the chair?

Clean it with water or soapy water. Do not use harsh chemicals. Store it dry, clean and deflated in a temperate room, with valves closed.

Is it suitable for children?

No, this item is not suitable for children from 0 to 14 years. It is not a swimming aid. Use only by persons who can swim.

Why not over-inflate?

Over-inflation can damage the seams and cause the air chambers to burst. Inflate until the chambers are slightly rounded, without excess.

How to release air?

Pull out the valve, then slightly compress the valve stem (2) to let the air escape. Close the valve tightly after deflation.

Where to find spare parts?

Visit the website www.delta-sport.com, section Service - Lidl Spare Parts Service. For Belgium, call 070 270 171 (€0.15/min).

USER MANUAL IAN 272429 CRIVIT

www.lidl-service.com PDF online

INFLATABLE BEACH CHAIR

GB IE

INFLATABLE BEACH CHAIR

Instructions for use

FR BE

FAUTEUIL DE PLAGE

Line drawing of a hand holding a coiled device with a curved handle, showing motion and assembly (no text or symbols)

GB IE

Scope of delivery 4

Technical data 4

Intended use 4

Used symbols 4

Safety instructions 5

Inflating 5

Use 6

Deflating the article 6

Repair 6

Care, storage 6

Disposal 6

Service 6

FR BE

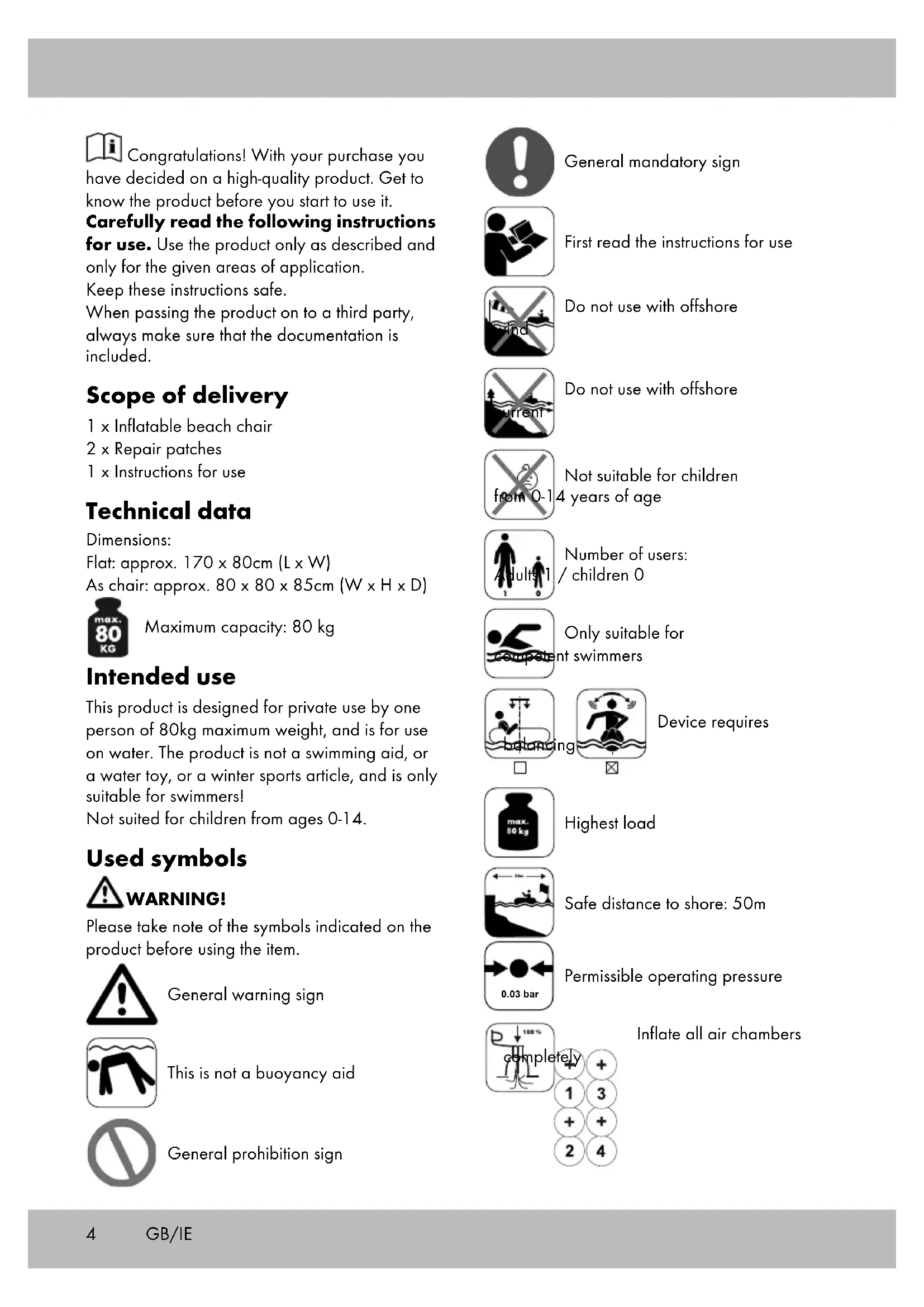

Congratulations! With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use. Use the product only as described and only for the given areas of application.

Keep these instructions safe.

When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery

1 x Inflatable beach chair

2 x Repair patches

1 x Instructions for use

Technical data

Dimensions:

Flat: approx. 170 x 80cm (L x W)

As chair: approx. 80 x 80 x 85cm (W x H x D)

Maximum capacity: 80 kg

Intended use

This product is designed for private use by one person of 80kg maximum weight, and is for use on water. The product is not a swimming aid, or a water toy, or a winter sports article, and is only suitable for swimmers!

Not suited for children from ages 0-14.

Used symbols

WARNING!

Please take note of the symbols indicated on the product before using the item.

General warning sign

This is not a buoyancy aid

General prohibition sign

General mandatory sign

First read the instructions for use

Do not use with offshore

Do not use with offshore

Not suitable for children 4 years of age

Number of users: / children 0

Only suitable for at swimmers

Device requires

Highest load

Safe distance to shore: 50m

Permissible operating pressure

Inflate all air chambers

Safety instructions

CAUTION!

There is a risk of tipping, drifting or drowning if these instructions are not followed. Uneven distribution of load on the article will cause tipping.

WARNING!

Risk of suffocation for children! Do not allow children to play with the packaging material or the product without supervision.

WARNING! MORTAL DANGER!

Will not protect against drowning!

For swimmers only!

CAUTION!

The air chambers can be pushed below the water surface during ascending.

Due to this reason and as well as due to single-sided loading the product can tilt.

Risk of injury!

• Use the device only for its intended purpose.
• The product may only be used by persons who are familiar with the safety information.
• Please take note of the maximum highest load. Exceeding the weight limit can lead to product damages as well as influence the functions negatively.
• Check the product for damages or wear before each use. The product may only be used while in good order and condition! Do not use the product if visual damages can be seen or are suspected.
• Do not use the product anymore if it can no longer constrain air.

Avoiding damage to the product!

• All inflatable products are sensitive to the cold. The product should thus never be unfolded and inflated at temperatures below 15^ CI

• If air pressure increases in direct sunlight, it should be adjusted correspondingly by releasing some of the air.

• Please ensure that the product – particularly when it is inflated – is not brought into contact with stones, gravel or sharp objects and that it does not chafe or rub against anything, as damages to the foil could otherwise occur.

• Only insert suitable pump adapters into the safety valves. Otherwise the valves could become damaged.
• Do not inflate too strongly, as this could cause the welded seams to burst open. Seal the valves tightly after inflating.
• Avoid contact with sharp, hot, pointed or dangerous objects.

Inflating

ATTENTION!

• All air chambers must always be completely inflated!
• Avoid excessively inflating the air chambers as this could cause the welded seams to overstretch or even burst open.
• Use standard foot pumps or double-action hand pumps with the correct adapters to inflate the product.
• Do not inflate the product with compressors or compressed air bottles. This could damage the product.
  • Make sure that the chambers are equally filled with air one after the other.
• Only inflate the chambers enough such that they are still slightly wavy on the inside after being inflated.

Inflate the air chambers in the following order (figure A):

1 - Headrest
2 - Head section
3 - Central air chamber
4 - Foot section

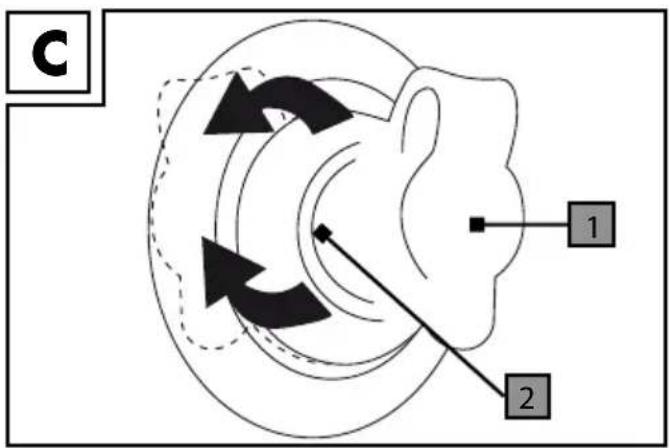

1. Open the valve cap (1) (figure C).
2. Inflate the air chambers.
3. Close the valve cap and push in the valve using slight pressure.

Use

The article has four air chambers and can be used in two different functions.

Use on water

Inflate all four air chambers.

Use as a seat

1. Inflate the air chambers in the headrest, head section, and foot section. The central air chamber must remain deflated (figure B)!
2. Fold the article as illustrated (figure B).

Deflating the article

1. Pull the valve out.
2. Pinch the valve shaft (2) (figure C) together slightly so that the air can escape.

Repair

Small leaks or holes can be repaired using the included repair patch.

Important! Do not inflate the article for 20 minutes after the repair. Do not use the patch on the seam.

1. Allow all the air to escape from the article.
2. Clean the area around the leak thoroughly. The area must be dry and free of grease.
3. Cut a piece of repair material large enough to cover approximately 1.3 cm beyond the damaged area.
4. Peel the patch off the paper, place it on the damaged area, and press it down firmly.

Care, storage

Always store this product in a dry, clean and deflated state at room temperature. The valves should always be closed when this product is being stored. Only clean using water or soap water; never use any aggressive cleaning agents. When putting this product away for winter storage, do not place any sharp objects on top of it and do not apply talcum powder.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

IAN: 272429

GB Service Great Britain
Tel.: [phone]
(£ 0.10/Min.)
E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service
