USER MANUAL HP24ILTX1 Fisher & Paykel

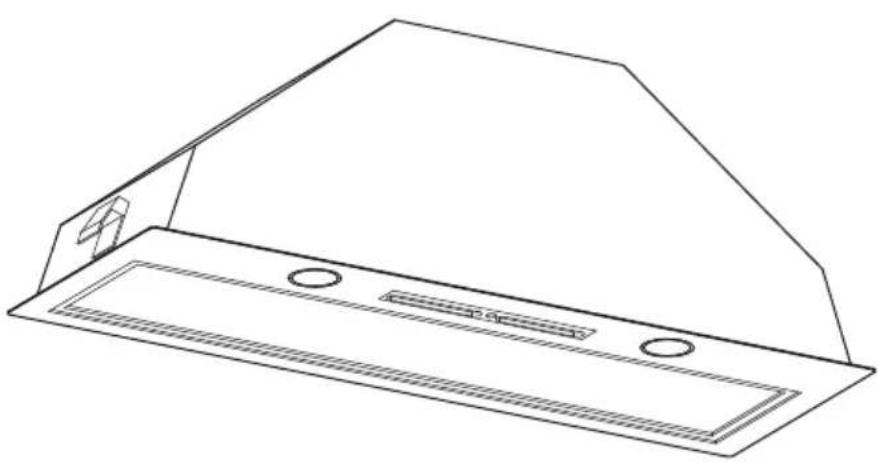

HP24ILTX1 and HP36ILTX1 models

HOTTE DE VENTILATION PÉRIMÉTRIQUE ENCASTRABLE

ModélspHP24ILTX1etHP36ILTX1

INSTALLATION GUIDE/USERGUIDEGuide D'INSTALLATION/GUIDED UTILISATION

USCA

English Page 1 - 22

Français

Page 25 - 46

Introduction

Safety and warnings 4

Installation instructions 7

Operating instructions 16

Cleaning and maintenance 17

Parts and accessories 19

Limited Warranty 20

3

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

Registration

Register your product with us so we can provide you with the best service possible.

To register your product visit our website: www.fisherpaykel.com

Thank you for purchasing a Fisher & Paykel product.

Thousands of hours go into the design, engineering, testing and perfecting of each Fisher & Paykel appliance. The care and attention given to creating these beautiful products doesn't stop once it has found its home with you.

This use and care manual will answer most of your questions about the set-up, use and on-going maintenance of your Fisher & Paykel product; however if you require further information about your product and its use please consult our website for solutions and further contact information to discuss with a service representative.

To ensure you receive all relevant product updates and the best service possible, please register your Fisher & Paykel products through our website.

WARNING!

18lb (8.2kg)

HP24)

25lb (11.5kg)

(HP36)

Weight Hazard

The ventilation hood is heavy. Please ensure adequate care is taken when installing the ventilation hood to prevent personal injury.

The ventilation hood must be installed onto a solid wall, stud, beam or truss.

Weight of the products are 18lb (8.2kg) HP24 / 25lb (11.5kg) HP36.

WARNING!

Electric Shock Hazard

Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs.

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

Failure to do so can result in death, electric shock, fire or injury to persons.

IMPORTANT SAFETY INSTRUCTIONS

READ THE ENTIRE SET OF INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE. Manuals can also be found on our website www.fisherpaykel.com.

• CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
  WARNING! To reduce the risk of fire, electric shock, or injury to persons, observe the following:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. For residential use only.

• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.

• This unit must be grounded.

• CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
  WARNING: To reduce the risk of fire, use only metal ductwork.
  WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
  WARNING: To reduce the risk of a range top grease fire:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

• Always turn hood ON when cooking at high heat or when flambéing food (ie Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé)
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

• Use proper pan size. Always use cookware appropriate for the size of the surface element.

• WARNING: To reduce the risk of injury to persons in the event of a range top grease fire, observe the following*:

• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

• NEVER PICK UP A FLAMING PAN - You may be burned.
• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

• Use an extinguisher ONLY if:

• You know you have a Class ABC extinguisher, and you already know how to operate it.

• The fire is small and contained in the area where it started.
• The fire department is being called.

• You can fight the fire with your back to an exit.

• WARNING: Unplug or disconnect the appliance from the power supply before servicing or cleaning.

READ AND SAVE THESE INSTRUCTIONS

Contents of packaging

Ventilation hood (1)

Installation instructions User guide manual (1)

Power connection box (1)

6" (152mm) diameter Ducting adapter with back draft damper (1)

3/8" (10mm) Self tapping screw (4)

Product and cabinetry cutout dimensions

HP24 HP36

PRODUCT DIMENSIONS		inches (mm)	inches (mm)
A	Overall height of product 13 3/4" (350)	13 3/4" (350)
B	Overall height of product (with power connection box)	18 1/4" (463)	18 1/4" (463)
C	Overall width of product 20 7/8" (530)	32 11/16" (830)
D	Overall depth of product 11" (280)	(280)
E	Thickness of flange 1/16" (2)	(2) 1/16" (2)
F	Width of chassis 19 3/8" (492)	31 3/16" (792)
G	Depth of chassis	10 1/16" (255)	10 1/16" (255)
H	Height of side of chassis	7 11/16" (195)	7 11/16" (195)
I	Width of top surface of chassis	11 3/4" (298)	11 3/4" (298)
J	Length of angled surface of chassis	6 7/8" (175)	11" (280)
K	Distance from center of ducting outlet to back of chassis	3 1/8" (80)	3 1/8" (80)
L	Distance from center of ducting outlet to side of chassis	9 5/8" (245)	15 9/16" (395)
M	Diameter of ducting outlet	6" (152)	6" (152)

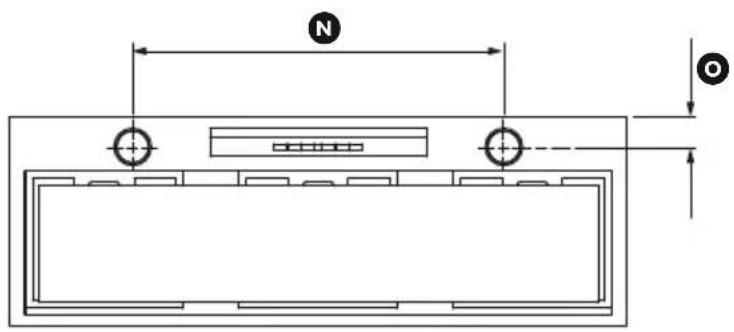

N	Distance between center of lights	14 3/4" (375)	26 9/16" (675)
O	Distance from center of light to front of product	1 9/16" (40)	1 9/16" (40)
CABINETRY CUTOUT DIMENSIONS
Overall width of cutout		19 11/16" (500)	31 1/2" (800)
Overall depth of cutout		10 1/4" (260)	10 1/4" (260)
P	Base of brackets/clips to bottom of chassis	min. 9/16" - max. 1 9/16" (min. 15 - max. 40)	min. 9/16" - max. 1 9/16" (min. 15 - max. 40)

IMPORTANT!

Actual product dimensions may vary by ± 1 / 16 (2mm).

Please read the entire instructions before installing the ventilation hood.

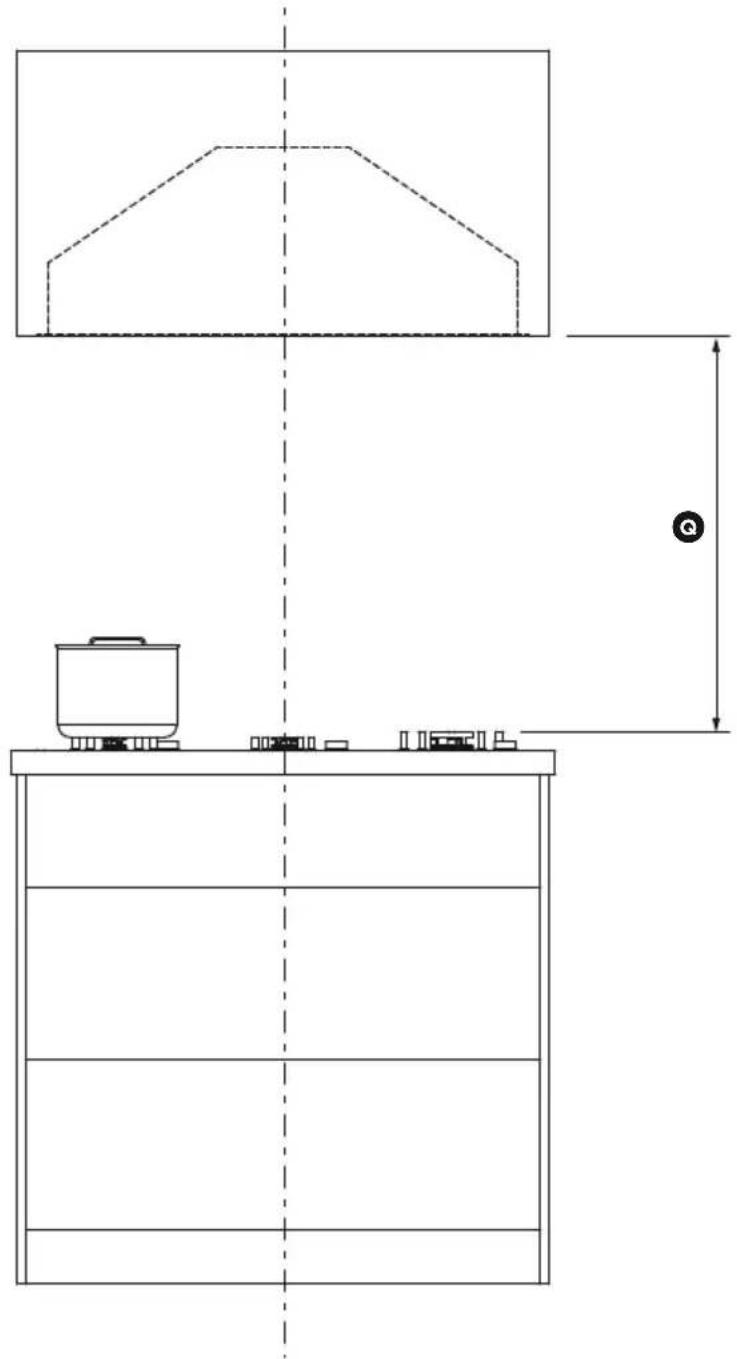

Height of ventilation hood

MINIMUM CLEARANCES inches (mm)

Height top of cooktop to base of product

min. 26" - max. 30" (min 660 - max. 762)

This ventilation hood must be installed no lower than the minimum height indicated in the table above. Minimum installation height may be greater if required by the cooktop manufacturer or safety and warning section of this user guide. Installation at the minimum height will improve the efficiency of capturing cooking odors, grease and smoke. Installation at the maximum height improves user ergonomics by offering increased head room.

WARNING!

To reduce the risk of fire, use only metal ductwork. Do not use flexible plastic ducting

CAUTION!

To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings or intoAttics, crawl spaces, or garages.

Venting options

Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled.

The ventilation hood can be installed to operate with the exhaust air ducted externally from the kitchen.

Ducted

For ducted installation it is recommended that 6" (152mm) diameter, rigid or semi-rigid ducting is used. This will require a 6 5/16" (160mm) (min) round hole in the ceiling or wall. Care should be taken to position the hole correctly.

For optimal efficiency use the shortest and straightest duct route possible and use rigid or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting should only be used as a last resort (ie in difficult installations) and if used ensure that it is straight and smooth and extended as much as possible.

WARNING!

This appliance is heavy and requires two persons for unpacking and installation
- Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards.
- Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

IMPORTANT!

Wear gloves to protect against sharp edges.

The manufacturer is not liable for any damage caused by not following these instructions.

Installation

① Prepare for installation.

Before installing your ventilation hood:

• Please read the instructions carefully.
• Unpack the ventilation hood and check that all functions are working.
• Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate match the voltage and frequency at the installation site.
• The stainless steel surfaces of the ventilation hood are very easily damaged during installation if grazed or knocked by tools. Please take care to protect the surfaces during installation.
• Protect the cooktop surface below with cardboard, or the like, to prevent damage occurring whilst the ventilation hood is being installed above.

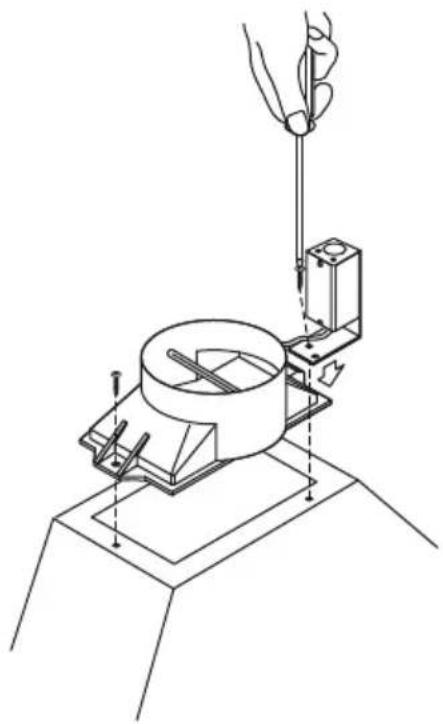

② Attach ducting adapter and power connection box to the ventilation hood

• Place the ducting adapter onto the ventilation hood and screw it in place using 3/8 (10mm) screws.
• Place the power connection box onto the ventilation hood and screw it in place using 3/8 (10mm) screws.
• Follow wiring instructions described in the 'Electrical connection' section page 15.

③ Provide an opening on the underside of the cupboard (see product and cabinetry cutout dimensions).

It is also recommended that the cupboard has a door or service panel that can be easily opened to access the power connection box

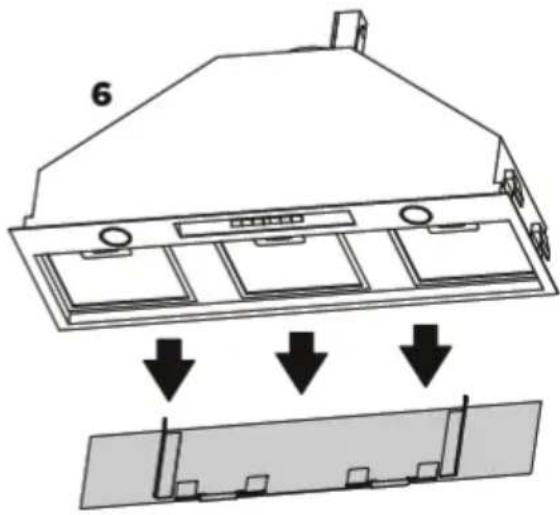

④ Remove the filters and face plate of the ventilation hood.

INSTALLATION INSTRUCTIONS

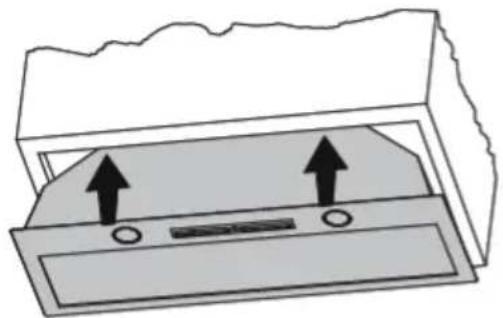

⑤ Lift the ventilation hood and fit through the opening of the cupboard till the spring loaded brackets/clips hold the product in place.

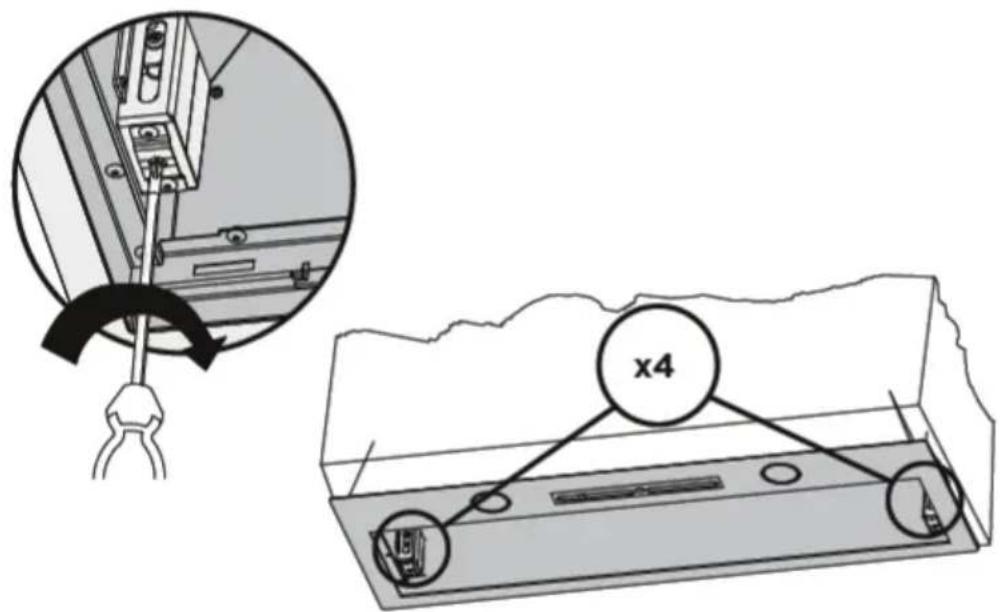

⑥ Secure ventilation hood while tightening the 4 brackets/clips.

WARNING!

Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards and the unit must be grounded.

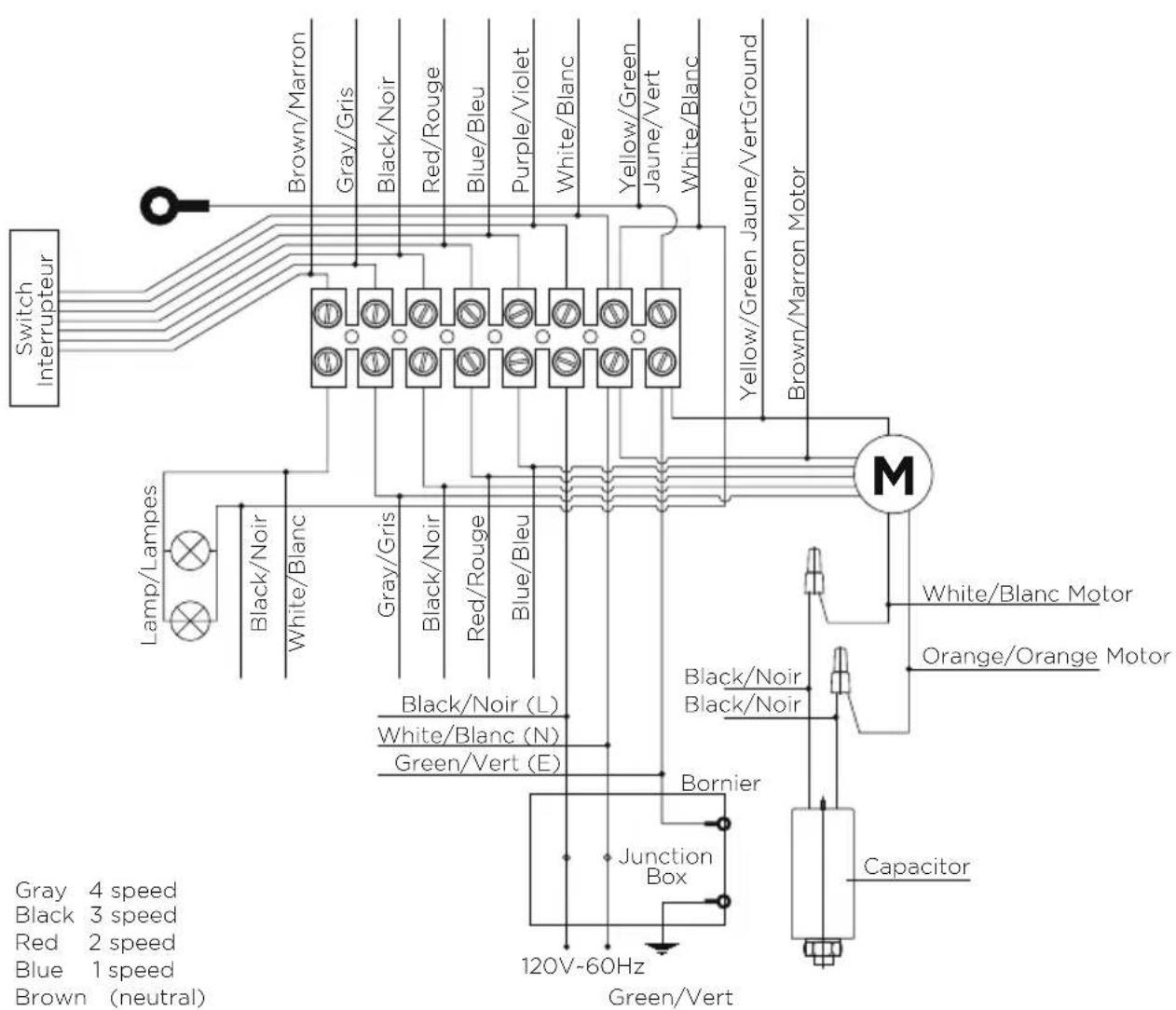

⑦ Electrical connection

• Run three wires, two for the power supply and one for the ground wire, from the power connection box on the ventilation hood to a power connection point near the installation.
• Open the power connection box on the ventilation hood and secure the power conductor with a cULus listed strain relief (not included).
• Connect the power conductors to the conductors for the ventilation hood, black to black and white to white.
• Connect the grounding wire (green or bare) to the ground conductor (green) of the ventilation hood power connection box.
• Secure all the connections with cULus listed wire nuts.
• Replace the power connection box cover.

Gray 4 speed
Black 3 speed
Red 2 speed
Blue 1 speed
Brown (neutral)

Touch control panel

①

-

己

+

∅

①

CONTROL PANEL FEATURES
	Light	Turn the lights on or off.
1	Power ON/OFF	Turn the ventilation hood on or off. The fan automatically turns on to operate at level 1.
-	Reduce fan speed	Adjust the fan speed levels from 1 - 4 with 1 being the lowest.
2	Fan speed indicator	The fan speed level icon illuminates red with the current fan speed.
+	Increase fan speed	Adjust the fan speed levels from 1 - 4 with 4 being the highest.
	Max	Turn the fan on directly onto maximum fan speed.
L	Timer	Turn the timer on. The fan speed light blinks and the fan will operate for 5 minutes at the current speed and each decreasing speed before turning off (the fan will stop and the light will go out). To cancel the timer press the timer button once.

Note: for optimal performance it is recommended that the ventilation hood is turned on before cooking is started.

IMPORTANT!

The ventilation hood may stop working during an electrostatic discharge (eg lightning). Switch off the electricity supply to the ventilation hood and reconnect after one minute.

WARNING!

• Unplug or disconnect the appliance from the power supply before servicing or cleaning.
• When replacing the bulb, let the bulb cool, and assure that power to the ventilation hood has been turned off. Use new bulbs according to that indicated on the ventilation hood nameplate.

IMPORTANT!

• Never use abrasive or oil based cleaners
• Wear gloves to protect against sharp edges

Maintenance

The ventilation hood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals, abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are corrosive which can cause damage to your ventilation hood.

Note: in areas of high humidity or coastal environments, cleaning should be carried out more frequently.

Aluminium filters

Depending on use, and at least once a month, the aluminium grease filters should be removed and cleaned with hot soapy water or in a dishwasher.
If washed in a dishwasher, the filters should be placed in an upright position to prevent food from falling on them.
After rinsing and drying, replace the filters.

Note: some discoloration of the frames may occur.

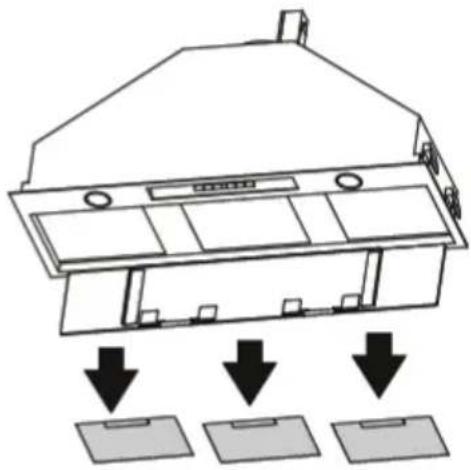

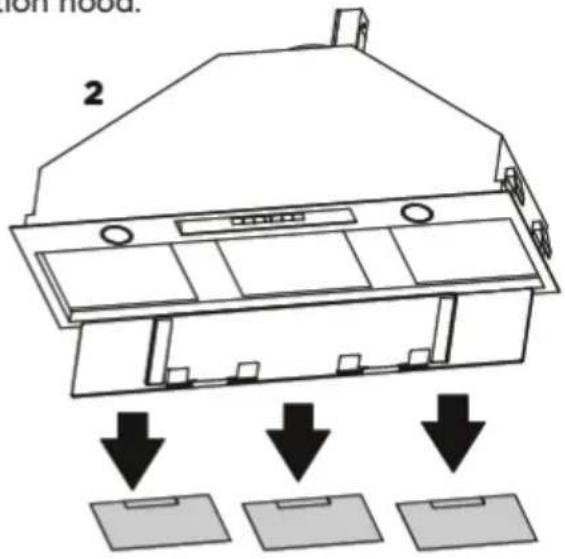

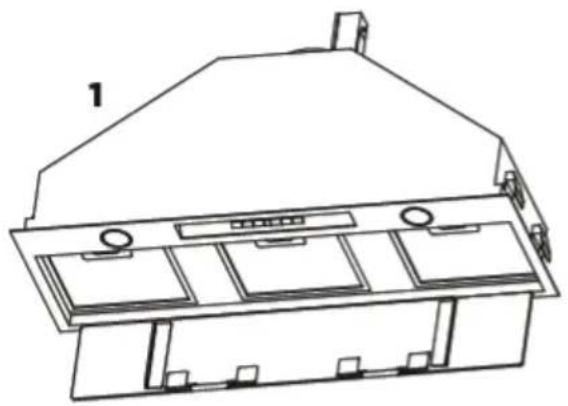

Removing the aluminium filters:

① Open the stainless steel panel.

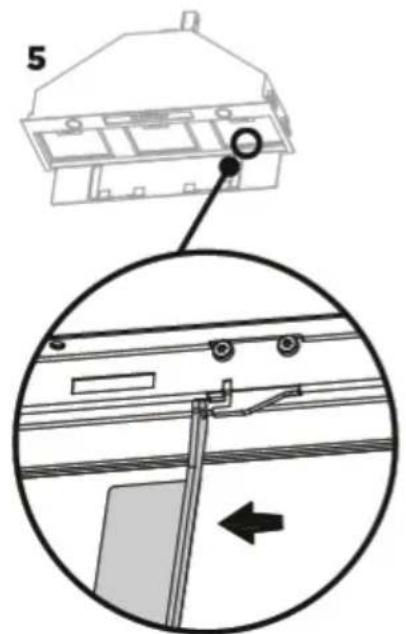

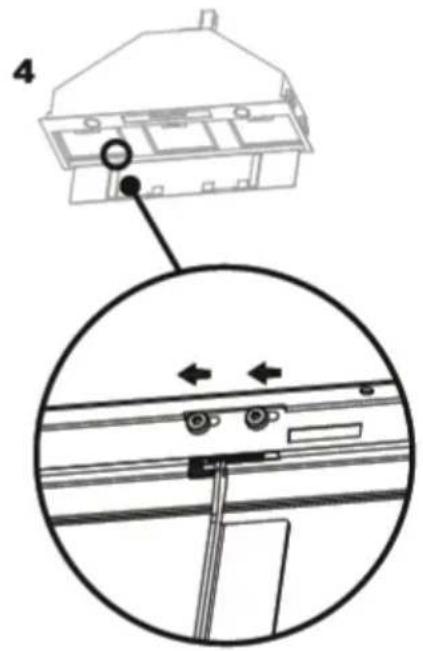

(2) Pull the relative filter catch, tilting it downwards until it disengages from the supports.
(3) Reverse these instructions when refitting the filters.

WARNING!

When replacing the bulb, let the bulb cool, and assure that power to the ventilation hood has been turned off. Use new bulbs according to that indicated on the ventilation hood nameplate.

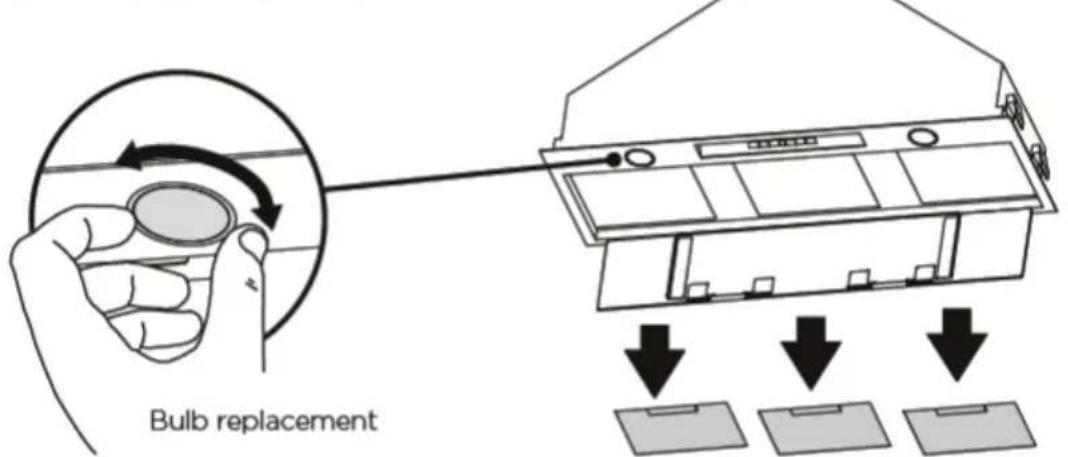

Light bulb replacement

Note: replacement bulbs are not covered by warranty.

① Open the stainless steel panel.
② Remove the aluminum filters.
③ Unscrew the light bulb.
④ Insert the replacement bulb into the lamp socket.
Replace the aluminium filters.
Close the stainless steel panel.

ITEM REFERENCE NUMBER

Halogen bulb 791961

Aluminum filter 792429

When you purchase any new Fisher & Paykel ventilation hood for personal or consumer use you automatically receive a two year limited warranty covering parts and labor for servicing within the 48 mainland United States, Hawaii, Washington DC and Canada. In Alaska the limited warranty is the same except that you must pay to ship the product to the service shop or the service technician's travel to your home. Products for use in Canada must be purchased through the Canadian distribution channel to ensure regulatory compliance.

If the product is installed in a motor vehicle, boat or similar mobile facility, you receive the same two year limited warranty, but you must bring the vehicle, boat or mobile facility containing the product to the service shop at your expense or pay the service technician's travel to the location of the product.

There is no warranty for commercial purchase or use.

Fisher & Paykel undertakes to:

Repair without cost, with limited exceptions described herein, to the owner either for material or labor any part of the product, the serial number of which appears on the product, which is found to be defective. In Alaska, you must pay to ship the product to the service shop or for the service technician's travel to your home. If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring it to the service shop at your expense or pay for the service technician's travel to the location of the product. If we are unable to repair a defective part of the product after a reasonable number of attempts, at our option we may replace the part or the product, or we may provide you a full refund of the purchase price of the product (not including installation or other charges).

This warranty extends to the original purchaser and any succeeding owner of the product during the term of the warranty for products purchased for ordinary single-family home use.

All service under this limited warranty shall be provided by Fisher & Paykel or its Authorized Service Agent during normal business hours.

How long does this limited warranty last?

Our liability under this limited warranty expires TWO YEARS from the date of purchase of the product by the first consumer.

Our liability under any implied warranties, including the implied warranty of merchantability (an unwritten warranty that the product is fit for ordinary use) expires TWO YEARS (or such longer period as required by applicable law) from the date of purchase of the product by the first consumer. Some States do not allow limitations on how long an implied warranty lasts, so this limit on implied warranties may not apply to you. Fisher & Paykel will honor any warranty required by the law of the particular country or state in which the product is sold.

This limited warranty does not cover:

Service calls that are not related to any defect in the product. The cost of a service call will be charged if the problem is not found to be a defect of the product. For example:

① Correcting faulty installation of the product.
② Instructing you how to use the product.
③ Replacing house fuses, resetting circuit breakers, correcting house wiring or plumbing, or replacing light bulbs.
④ Correcting fault(s) caused by the user.
(5) Changing the set-up of the product.
(6) Unauthorized modifications of the product.
⑦ Noise or vibration that is considered normal, for example, fan sounds/noises or user warning beeps.
⑧ Correcting damage caused by pests, for example, rats, cockroaches, etc
Replacement light bulbs.

Defects caused by factors other than:

(1) Normal domestic use; or
② Use in accordance with the product's user guide.

Defects to the product caused by accident, neglect, misuse, fire, flood or 'act of God'.
The cost of repairs carried out by non-authorized repairers or the cost of correcting such unauthorized repairs.
⑥ Travel fees and associated charges incurred when the product is installed in a location with limited or restricted access (eg airplane flights, ferry charges, isolated geographic areas).
Normal recommended maintenance as set out in the product's user guide.
Filter replacement except in the case of faulty parts or materials within the filter cartridge.
Damage (including water damage) caused by faulty installation, plumbing or wiring.

This product has been designed for use in a normal domestic (residential) environment. This product is not designed for commercial use (whatsoever). Any commercial use by a customer will terminate this product's limited warranty.

If you have an installation problem contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connection facilities.

Fisher & Paykel will not be responsible for consequential or incidental damages (including, without limitation, the cost of repairing or replacing other property damaged if the product is defective or any of your expenses caused if the product is defective). Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

How to get service

Please read your user guide. If you then have any questions about operating the product, need the name of your local Fisher & Paykel Authorized Service Agent, or believe the product is defective and wish service under this limited warranty, please contact your dealer or call us at:

USA and Canada

TOLL FREE 1.888.9.FNP.USA (1.888.936.7872)

or use the link at: www.fisherpaykel.com/locator/servicer/

You may be required to provide reasonable proof of the date of purchase of the product before the product will be serviced under this limited warranty.

No other warranties

This limited warranty is the complete and exclusive agreement between you and Fisher & Paykel regarding any defect in the product and no other express warranty has been made or will be made on behalf of Fisher & Paykel. None of our employees (or our Authorized Service Agents) are authorized to make any addition or modification to this limited warranty.

Warrantor: Fisher & Paykel Appliances, Inc.

If you need further help concerning this limited warranty, or need to make a claim under this warranty, please call us at the above number, or write to:

Fisher & Paykel Appliances, Inc.

695 Town Center Drive, Suite 180

Costa Mesa

CA 92626

This limited warranty gives you specific legal rights, and you may also have other rights which vary from country to country and from state to state.

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer

City

State

Zip

Country

Introduction

27

Fisher & Paykel Appliances, Inc.

695 Town Center Drive, Suite 180

Costa Mesa

CA 92626

Fisher & Paykel Appliances 2017. All rights reserved.

The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
