USER MANUAL HC24DTXB2_N Fisher & Paykel

HC24DTXB2, HC30DTXB2 & HC36DTXB2 models

HOTTE DE VENTILATION MURALE DÉCORATIVE

Modèles HC24DTXB2, HC30DTXB2 & HC36DTXB2

INSTALLATION GUIDE/USERGUIDEGuide D'INSTALLATION/GUIDED UTILISATION

US CA

English Page 1 - 22

Français

Page 25 - 46

Introduction

Safety and warnings 4

Installation instructions 6

Operating instructions 18

Cleaning and maintenance 19

Parts and accessories 21

Service and Warranty 22

3

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, go to our website fisherpaykel.com or contact your local Fisher & Paykel dealer.

Registration

Register your product with us so we can provide you with the best service possible.

To register your product visit our website: fisherpaykel.com

Thank you for purchasing a Fisher & Paykel product.

Thousands of hours go into the design, engineering, testing and perfecting of each Fisher & Paykel appliance. The care and attention given to creating these beautiful products doesn't stop once it has found its home with you.

This use and care manual will answer most of your questions about the set-up, use and on-going maintenance of your Fisher & Paykel product; however if you require further information about your product and its use please consult our website for solutions and further contact information to discuss with a service representative.

To ensure you receive all relevant product updates and the best service possible, register your Fisher & Paykel products through our website.

WARNING!

33 lb (15 kg) (HC24)
35 lb (16 kg) (HC30)
37 lb (17 kg) (HC36)

Weight Hazard

The ventilation hood is heavy. Please ensure adequate care is taken when installing the ventilation hood to prevent personal injury.

The ventilation hood must be installed onto a solid wall, stud, beam or truss.

Weight of the products are 33 lb (15 kg) HC24 / 35 lb (16 kg) HC30 / 37 lb (17 kg) HC36.

WARNING!

Electric Shock Hazard

Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs.

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

Failure to do so can result in death, electric shock, fire or injury to persons.

IMPORTANT SAFETY INSTRUCTIONS

READ THE ENTIRE SET OF INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE. Manuals can also be found on our website fisherpaykel.com.

• CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
  WARNING! To reduce the risk of fire, electric shock, or injury to persons, observe the following:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. For residential use only.

• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

• Ducted fans must always be vented to the outdoors.

• This unit must be grounded.

• CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside—Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
  WARNING: To reduce the risk of fire, use only metal ductwork.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
  WARNING: To reduce the risk of a range top grease fire:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

• Always turn hood ON when cooking at high heat or when flambéing food (ie Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé)
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
• Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: To reduce the risk of injury to persons in the event of a range top grease fire, observe the following*:

• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN—You may be burned.
• DO NOT USE WATER, including wet dishcloths or towels—a violent steam explosion will result.

• Use an extinguisher ONLY if:

• You know you have a Class ABC extinguisher, and you already know how to operate it.

• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

WARNING: Unplug or disconnect the appliance from the power supply before servicing or cleaning.
- CAUTION: To reduce the risk of fire and electric shock when product is used in recirculation mode, use only conversion kit model 792580 Recirculation Diverter and 791772 Recirculation Carbon Filter x2.

READ AND SAVE THESE INSTRUCTIONS

Contents of packaging

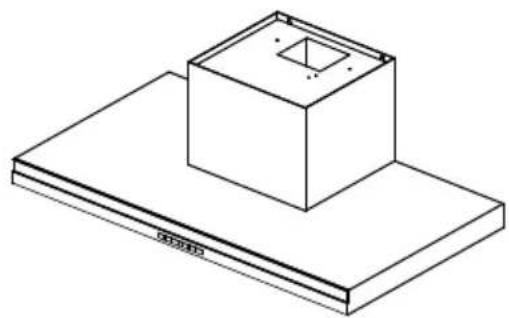

Ventilation hood (1)

Installation instructions User guide manual (1)

Chimney (1)

Upper chimney (1)

Upper chimney bracket (1)

Chimney bracket (1)

Power connection box (1)

6" (152 mm) diameter Ducting adapter with back draft damper (1)

1316 (30 mm) Expansion plug (10)

1^3 / 16 (30 mm)

Self tapping screw (10)

3% (10 mm)

Self tapping screw (4)

3% (10 mm)

Screw (2)

134 (44 mm)

Drywall expansion plug (8)

INSTALLATION INSTRUCTIONS

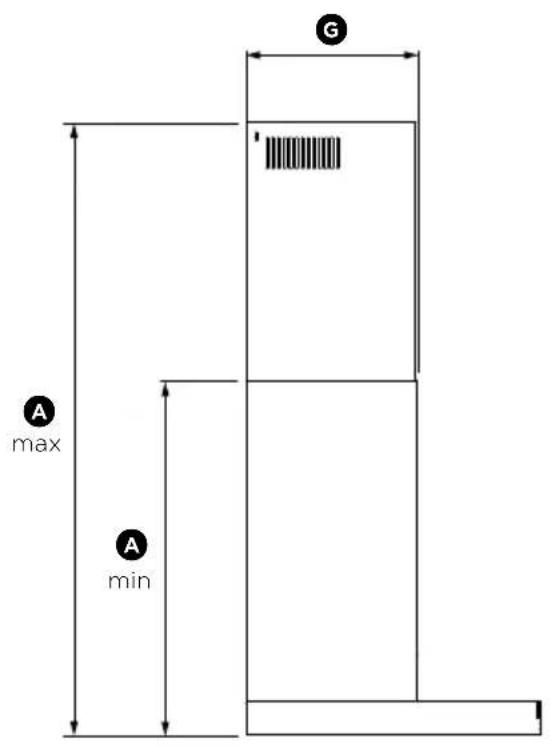

Product dimensions

Please read the entire instructions before installing the ventilation hood.

HC24DTXB2 HC30DTXB2 HC36DTXB2

PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm)
A	Min overall height of product 23¾” (603) 23¾” (603) 23¾” (603)
A	Max overall height of product 41½” (1043) 41½” (1043) 41½” (1043)
B	Overall width of product 23¾” (598) 29¾” (755) 35¾” (898)
C	Overall depth of product 19½” (500) 19½” (500) 19½” (500)
D	Height of product 2¾” (65) 2½” (65) 2½” (65)
E	Height of stainless steel face panel 1½” (36)		1½” (36)	1½” (36)
F	Width of chimney 12¾” (320)		12¾” (320)	12¾” (320)
G	Depth of chimney 11½” (290)		11½” (290)	11½” (290)
H	Distance from center of ducting outlet to back of product 3¾” (85)		3¾” (85)	3¾” (85)
I	Distance from center of ducting outlet to side of chimney 6½” (160)		6½” (160)	6½” (160)
J	Diameter of ducting outlet 6” (152)		6” (152)	6” (152)

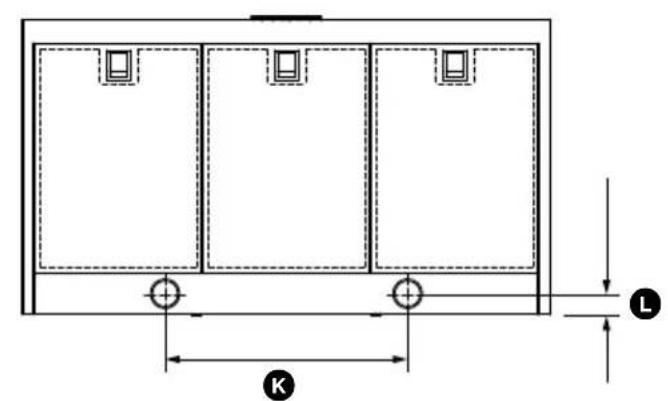

K	Distance between center of lights 9½” (244)		9½” (244)	9½” (244)
L	Distance between center of lights and back of product 1¾” (35)		1¾” (35)	1¾” (35)

IMPORTANT!

Actual product dimensions may vary by ± 116 (2 mm).

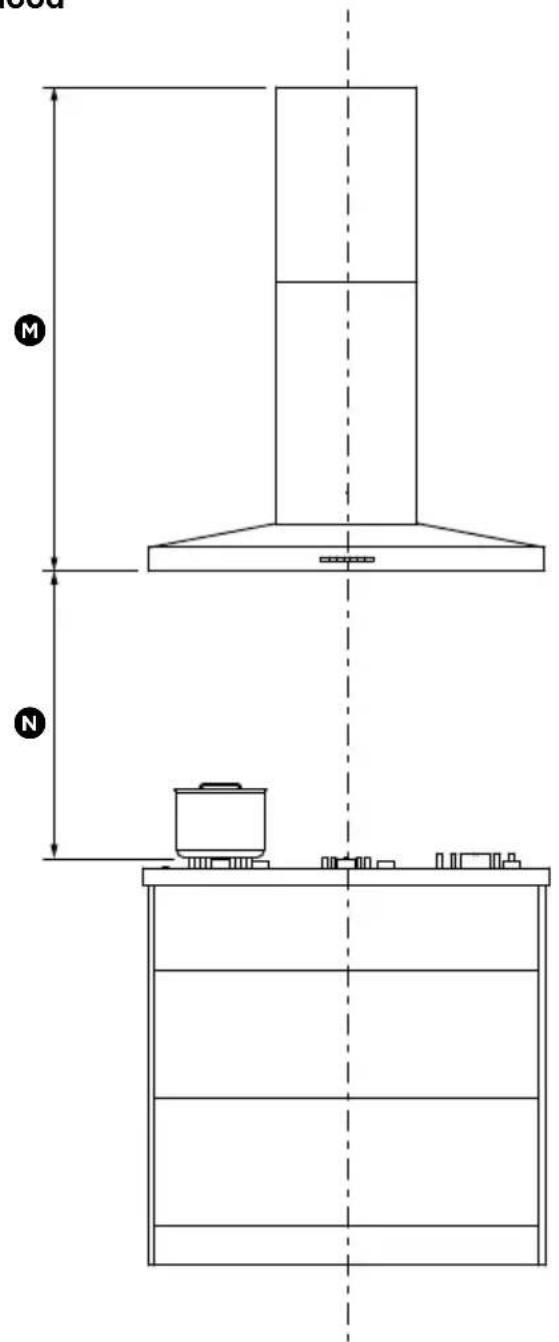

Height of ventilation hood

INSTALLATION DIMENSIONS inches (mm)
M Installation heightDuctedRecirculation	min. 24 1/6" (627) - max. 43 1/6" (1034)min. 26 1/8" (682) - max. 43 1/6" (1034)
N Height top of cooking surfaceto base of product	min. 26" (660) - max. recommended 36" (915)

This ventilation hood must be installed no lower than the minimum height indicated in the table above. Minimum installation height may be greater if required by the cooktop manufacturer or safety and warning section of this user guide. Installation at the minimum height will improve the efficiency of capturing cooking odors, grease and smoke. Installation at the maximum height improves user ergonomics by offering increased head room.

WARNING!

To reduce the risk of fire, use only metal ductwork. Do not use flexible plastic ducting

CAUTION!

To reduce risk of fire and to properly exhaust air, be sure to duct air outside—do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

Venting options

Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled.

The ventilation hood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.

Ducted

For ducted installation it is recommended that 6'' (152 mm) diameter, rigid or semi-rigid ducting is used. This will require a 6516 (160 mm) (min) round hole in the ceiling or wall. Care should be taken to position the hole correctly.

For optimal efficiency use the shortest and straightest duct route possible and use rigid or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting should only be used as a last resort (ie in difficult installations) and if used ensure that it is straight and smooth and extended as much as possible.

Recirculating

To enable the product to operate with the air recirculating, purchase a recirculation diverter and carbon filters or recirculation kit (refer to the 'Parts and accessories' section). This recirculation diverter is required to channel the air out the side vents at the top of the chimney and the carbon filters are required to remove odors.

Note: a ducting hole is not required in the wall or ceiling if the ventilation hood is installed to operate with exhaust air recirculating.

WARNING!

This product is heavy and requires two persons for installation.
- Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards.

IMPORTANT!

Wear gloves to protect against sharp edges.

The manufacturer is not liable for any damage caused by not following these instructions.

Installation

① Preparing for installation:

Before installing your ventilation hood:

• Read the instructions carefully.
• Unpack the ventilation hood.
• Ensure the voltage (V) and the frequency (Hz) indicated on the serial plate match the voltage and frequency of the installation site.
• Check that the area behind the installation surface to be drilled is clear of any electrical cables or pipes etc
• The ventilation hood surfaces can be damaged during installation if grazed or knocked by tools. Please take care to protect the surfaces during installation.
• Protect the cooktop surface with cardboard, or the like, to prevent damage occurring whilst the ventilation hood is being installed above.
• Temporarily mark the height of the bottom of the ventilation hood and the center of the cooktop on the wall according to the information given in the 'Installation instructions - Height of ventilation hood' section.
• The wall used for mounting the ventilation hood should have sufficient strength and a flat surface.

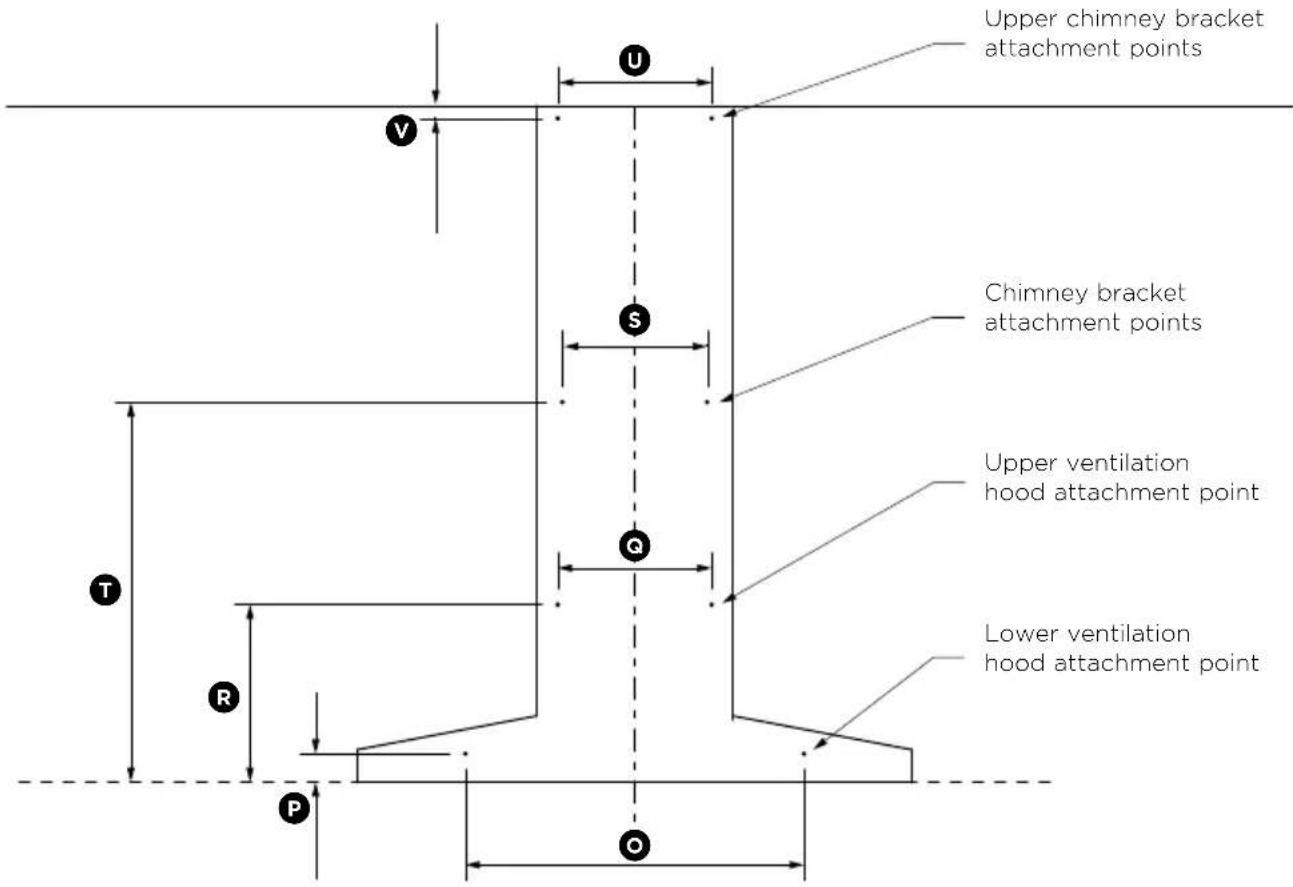

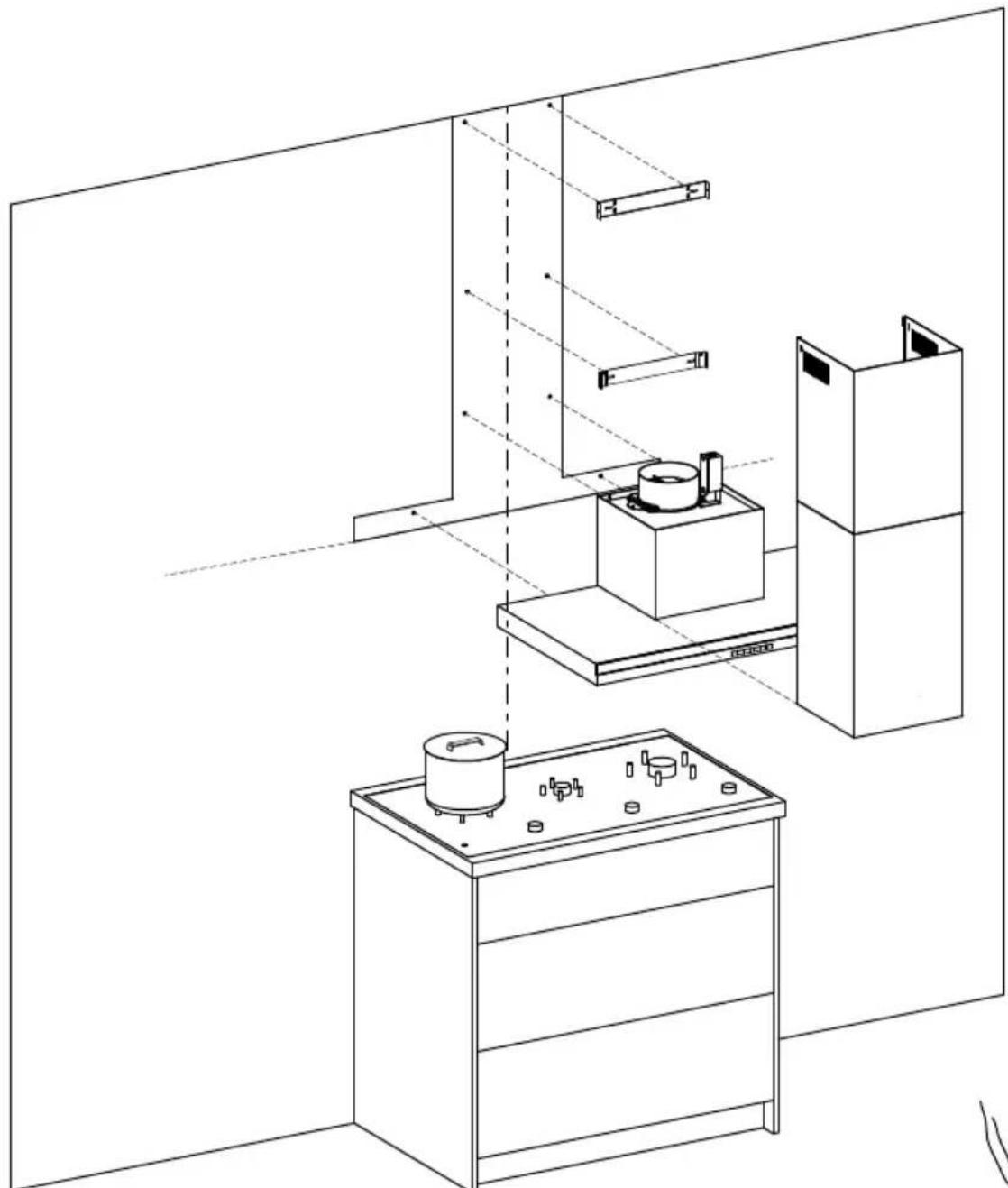

② Attach chimney brackets and ventilation hood mounting screws to the wall

• Attach the chimney bracket and upper chimney bracket (if using the upper chimney) in the locations shown in Fig.2 (refer to page 13) and Fig.3 (refer to page 14). Use the 1 316 " (30 mm) screws (and expansion plugs if attaching to masonry).

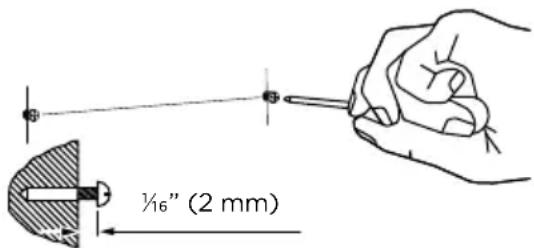

• Attach the upper ventilation hood mounting screws in the locations shown in Fig.2 (refer to page 13) and Fig.3 (refer to page 14). Using the 1316 (30 mm) screws (and expansion plugs if attaching to masonry). Ensure that there is a 116 (2 mm) gap between the screw head and the wall (Fig.1).

Fig.1

Fig.2

PRODUCT DIMENSIONS	inches (mm)
○ Lower ventilation hood attachment point width 20" (508)
P Lower ventilation hood attachment point height 11½" (43)
Q Upper ventilation hood attachment point width 9½" (250)
R Upper ventilation hood attachment point height 11½" (288)
S Chimney bracket attachment point width 9½" (235)
T Chimney bracket attachment point height 22½" (566)
U Upper chimney bracket attachment point width 9½" (250)
V Upper chimney bracket attachment point height 1" (25)

Fig.3

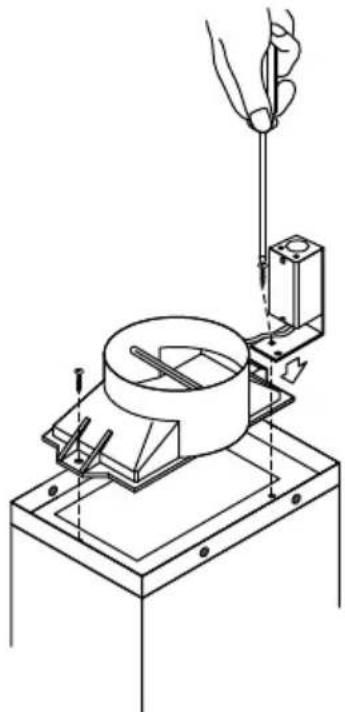

③ Attach ducting adapter and power connection box to the ventilation hood

• Place the ducting adapter onto the ventilation hood and screw it in place using 38 (10 mm) screws.
• Place the power connection box onto the ventilation hood and screw it in place using 38 (10 mm) screws.
• Follow wiring instructions described in the 'Electrical connection' section page 16.

④ Wall mounting

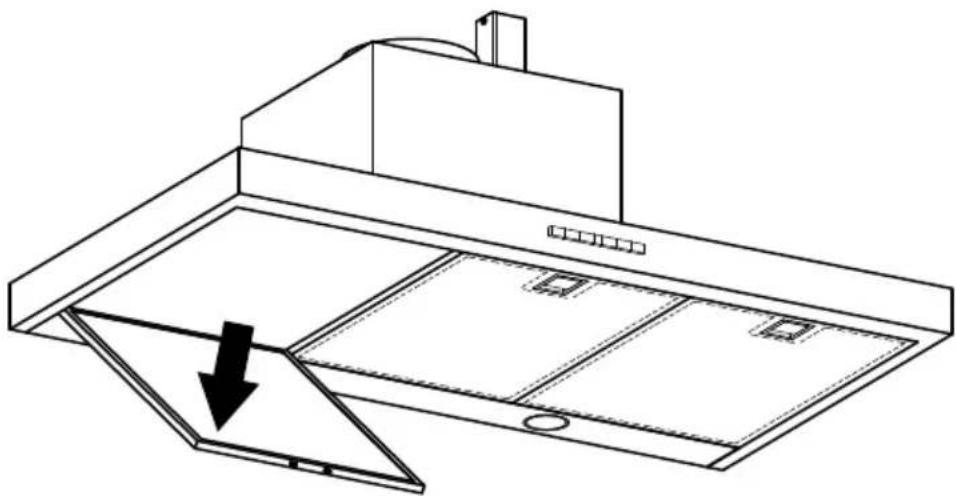

• Remove the filters—pull the relative catch and tilt the filter downwards until it disengages from the supports.

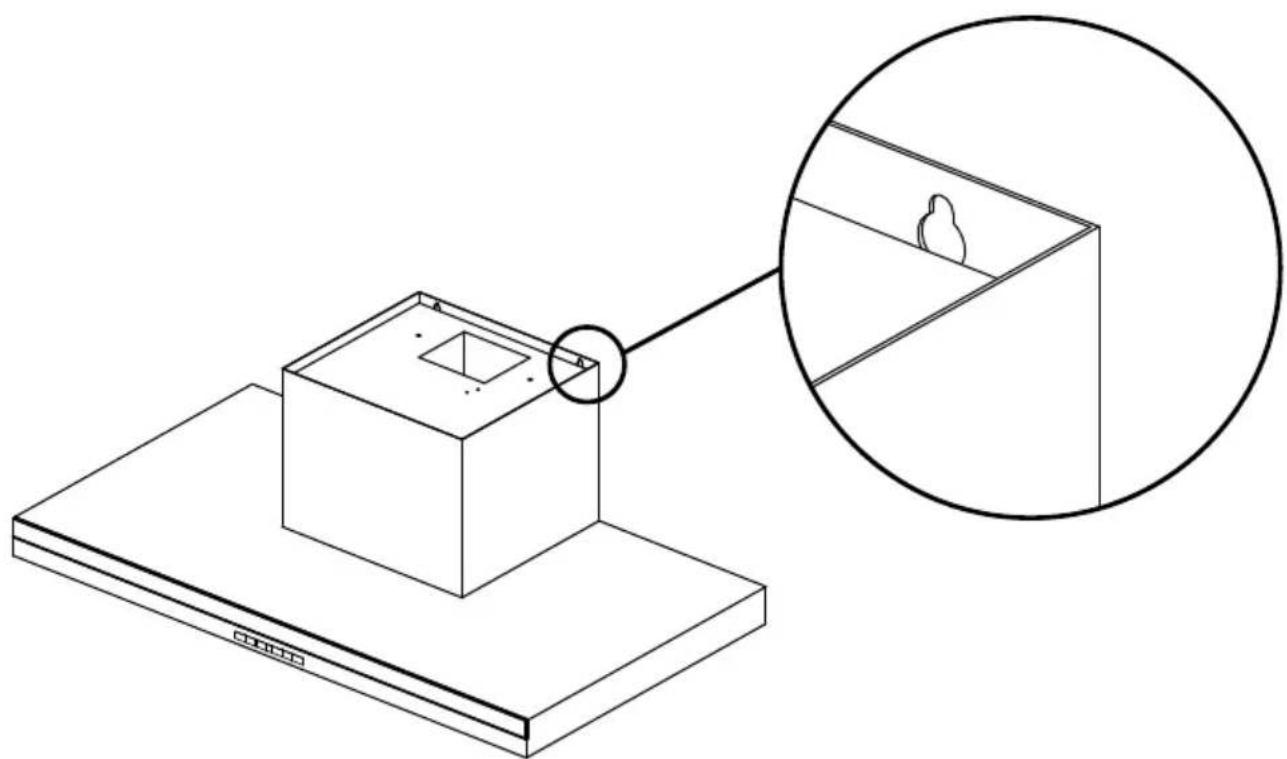

• Hang the ventilation hood off the upper ventilation hood mounting screws with 116 (2 mm) gap. Hang off the keyhole attachment points on the back of the ventilation hood then tighten the screws.

• Attach the lower ventilation hood mounting screws to fix the ventilation hood to the wall.
• Refit the filters.

WARNING!

Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards and the unit must be grounded.

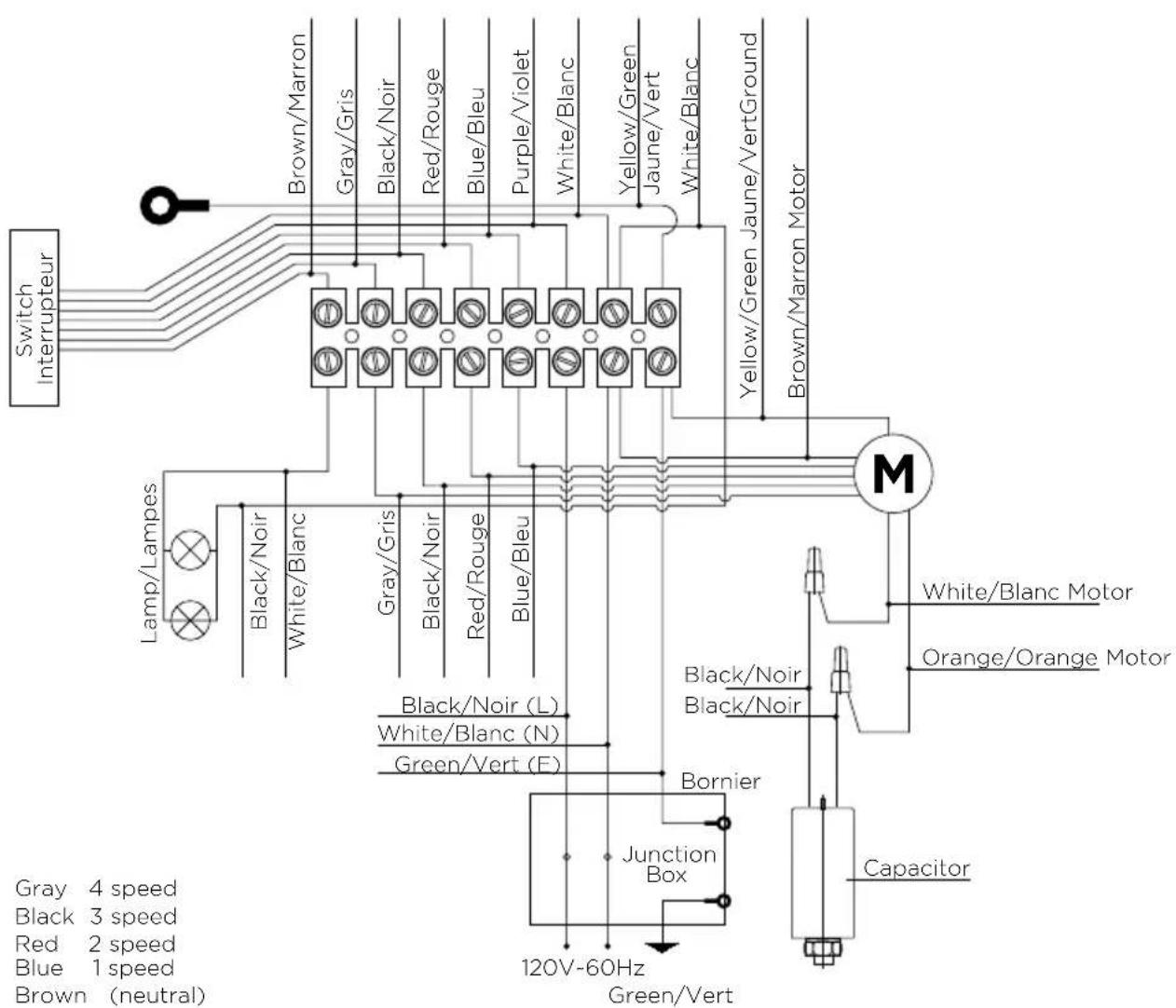

⑤ Electrical connection

• Run three wires, two for the power supply and one for the ground wire, from the power connection box on the ventilation hood to a power connection point near the installation.
• Open the power connection box on the ventilation hood and secure the power conductor with a cULus listed strain relief (not included).
• Connect the power conductors to the conductors for the ventilation hood, black to black and white to white.
• Connect the grounding wire (green or bare) to the ground conductor (green) of the ventilation hood power connection box.
• Secure all the connections with cULus listed wire nuts.
• Replace the power connection box cover.

⑥ Attach the ducting

• Attach ducting to the ducting adapter using aluminum duct tape and vent outside.

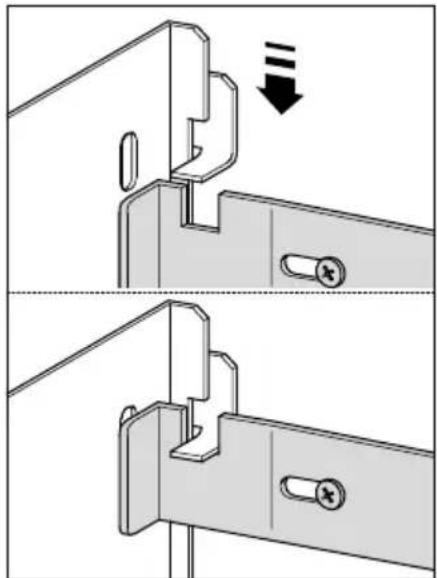

⑦ Attach chimney

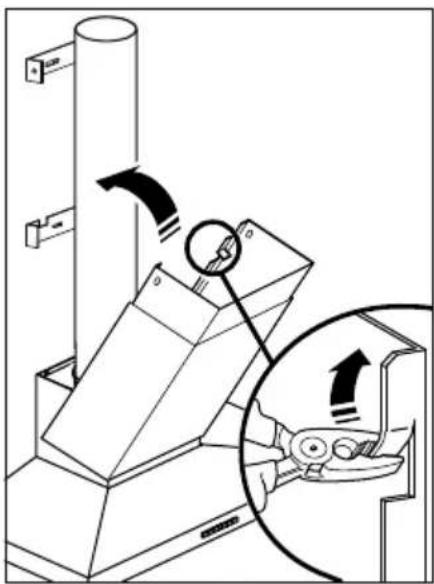

• Bend the tabs on the chimney (A).
• Place chimney around the ventilation hood chassis and hang off the chimney bracket (B).

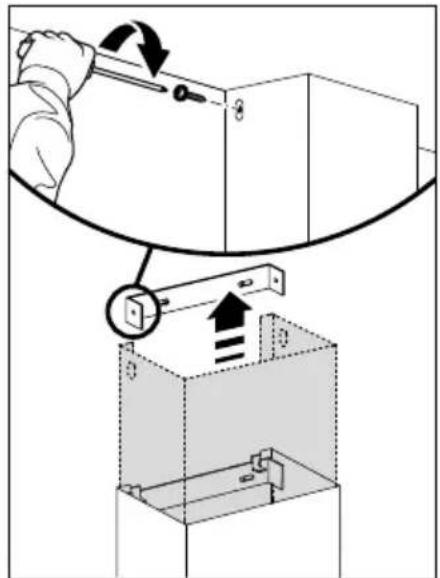

• Extend the upper chimney and attach to the upper chimney bracket with 116 (10 mm) screws (C).

ABC

Remove packaging

• Remove all packaging and protective wrappings.

Touch control panel

①

-

己

+

∅

①

CONTROL PANEL FEATURES

Light Turn the lights on or off.
①	Power ON/OFF Turn the ventilation hood on or off. The fan automatically turns on to operate at level 1.
-	Reduce fan speed Adjust the fan speed levels from 1 - 4 with 1 being the lowest.
己	Fan speed indicator The fan speed level icon illuminates red with the current fan speed.
+	Increase fan speed Adjust the fan speed levels from 1 - 4 with 4 being the highest.
◎	Max Turn the fan on directly onto maximum fan speed.
①	Timer Turn the timer on. The fan speed light blinks and the fan will operate for 5 minutes at the current speed and each decreasing speed before turning off (the fan will stop and the light will go out). To cancel the timer press the timer button once.

Note: for optimal performance it is recommended that the ventilation hood is turned on before cooking is started.

IMPORTANT!

The ventilation hood may stop working during an electrostatic discharge (eg lightning). Switch off the electricity supply to the ventilation hood and reconnect after one minute.

WARNING!

Unplug or disconnect the appliance from the power supply before servicing or cleaning.

IMPORTANT!

• Never use abrasive or oil based cleaners.
• Wear gloves to protect against sharp edges.

Maintenance

The ventilation hood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals, abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are corrosive which can cause damage to your ventilation hood.

Note: in areas of high humidity or coastal environments, cleaning should be carried out more frequently.

Aluminum filters

• Depending on use, and at least once a month, the aluminum filters should be removed and cleaned with hot soapy water or in a dishwasher.
• If washed in a dishwasher, the filter should be placed in an upright position to prevent food from falling on them.
  After rinsing and drying, refit the filters.

Note: some discoloration of the frames may occur.

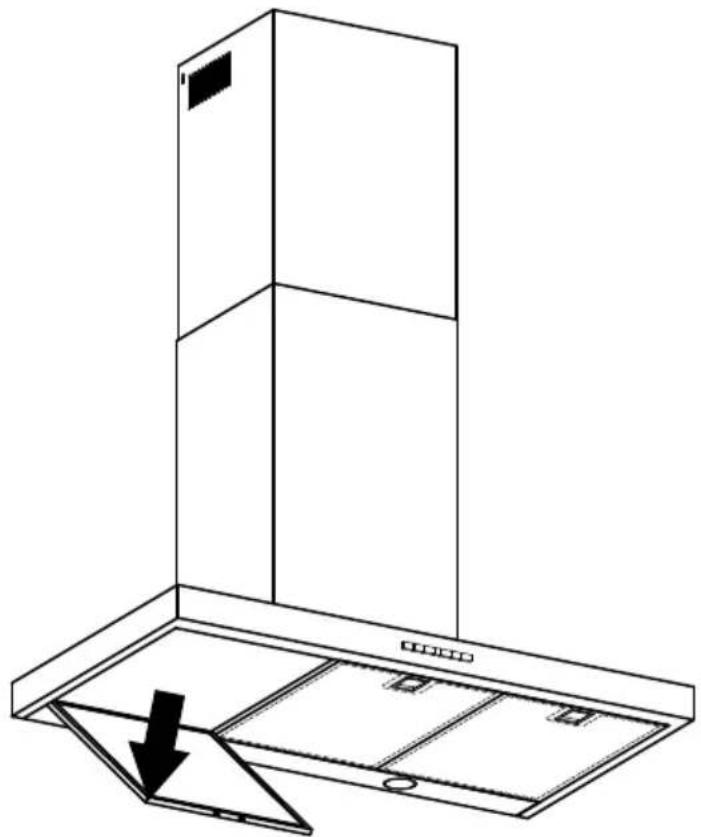

Removing the aluminum filters:

① Pull the relative catch, tilting the filter downwards until it disengages from the supports.
② Reverse these instructions when refitting the filters.

WARNING!

When replacing the bulb, let the bulb cool, and assure that power to the ventilation hood has been turned off. Use new bulbs according to that indicated on the ventilation hood nameplate.

Carbon filters-for use in recirculation mode

Active carbon filters are disposable items designed to remove grease and odors from cooking vapors before the air is channeled back into the kitchen. The active carbon filters must be replaced periodically to work properly, at least once every three months, depending on the frequency with which the ventilation hood is used.

Note: fully saturated carbon filters can become a barrier to air movement therefore limiting ventilation hood performance. In the event of fire, grease laden filters could be flammable and therefore regular replacement is recommended.

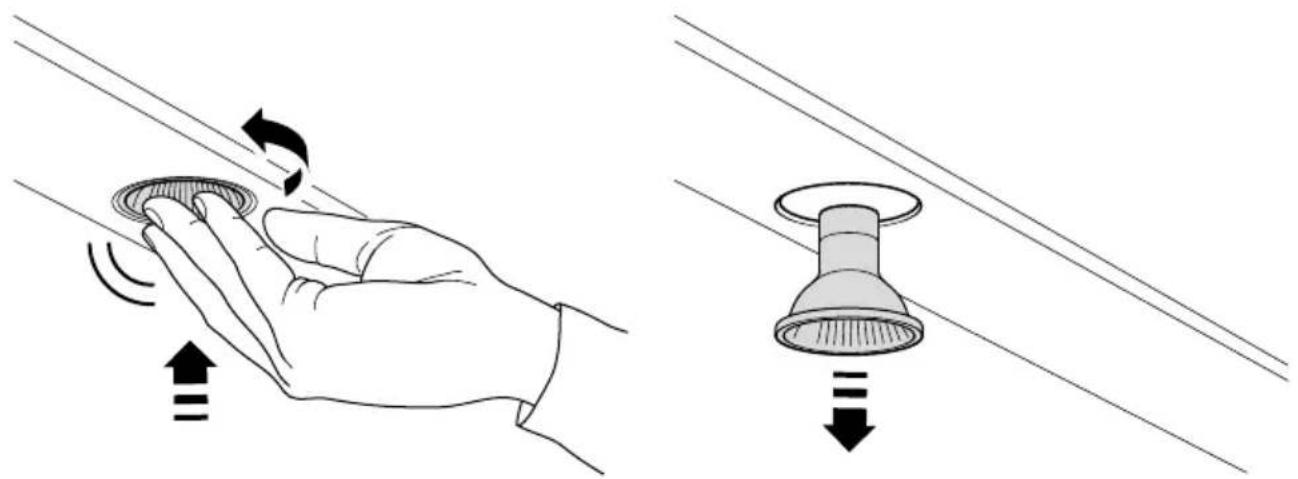

Replacing the light bulb

Note: replacement bulbs are not covered by warranty.

① Remove the aluminum filters.
② Lightly push the light bulb up and rotate anti-clockwise to remove.
③ Replace light bulb with a light bulb no more powerful than that specified.
④ Refit the aluminum filters.

ITEM REFERENCE NUMBER

LED bulb 792579

Aluminum filter 792558

Recirculation carbon filter x2 791772

Recirculation diverter 792580

For details of your manufacturer's warranty and contacts for servicing, please refer to your separate service and warranty book provided with your range hood.

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer

City

State

Zip

Country

Introduction

27

HC24DTXB2 HC30DTXB2 HC36DTXB2

Fisher & Paykel Appliances 2018. All rights reserved.

The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
