USER MANUAL HC30PCB1 Fisher & Paykel

HC36PCB1, HC36PCR1 & HC36PCW1

USER GUIDE

US CA

Safety and warnings 5

Control panel 8

Care and cleaning 9

Parts and accessories 12

Warranty and service 13

Registration

To register your product visit our website: fisherpaykel.com/register

WARNING!

Electric Shock Hazard

Failure to follow this advice may result in electric shock or death.

- Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs. Failure to do so can result in death, electric shock, fire or injury to persons.

- Do not immerse cord or plugs in water or other liquid.

! WARNING!

Weight Hazard

Failure to follow this advice may result in personal injury

- The appliance is heavy. Please ensure adequate care is taken when installing the appliance to prevent personal injury. The appliance must be installed onto a solid wall, stud, beam or truss.

- Product weight: HC24 42 lb (19 kg), HC30 35 lb (21.5 kg), HC36 37 lb (23.8 kg).

READ AND SAVE THESE INSTRUCTIONS

WARNING!

When using this appliance always exercise basic safety precautions including the following:

General

• CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never use the range hood without the filters in place.
• CAUTION: accessible parts may become hot when used with cooking appliances.
• Remove all packaging, including protective wrappings, before use.
• The range hood may stop working during an electrostatic discharge (eg lightning). Switch off the electricity supply to the range hood and reconnect after one minute.

Cleaning

• There is a fire risk if cleaning is not carried out in accordance with the instructions.
- Unplug or disconnect the appliance from the power supply before servicing or cleaning.
- Never use abrasive or oil based cleaners.
- Wear gloves to protect against sharp edges.

• When replacing the bulb, let the bulb cool, and ensure that power to the range hood has been turned off.
• Use new bulbs according to that indicated on the range hood nameplate.

Fire

WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. For residential use only.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
  • This unit must be grounded.
• Never leave frying food unattended since grease can overheat and catch fire. The risk of fire is even greater in the case of used oil.
• Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN - You may be burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.

• Use an extinguisher ONLY if:

• You know you have a Class ABC extinguisher, and you already know how to operate it.

• The fire is small and contained in the area where it started.
  • The fire department is being called.
• You can fight the fire with your back to an exit.

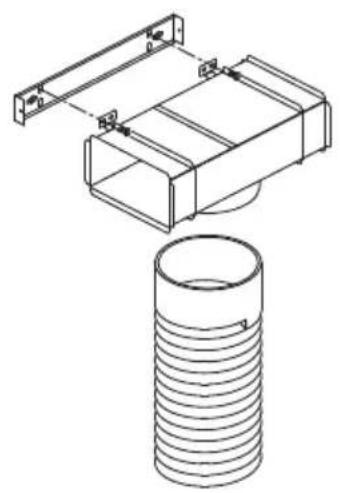

- When product is used in recirculation mode, use only conversion kit number 792162 Recirculation diverter and 792163 Recirculation carbon filter.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
• Always turn hood ON when cooking at high heat or when flambéing food (ie Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé)
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
• Use proper pan size. Always use cookware appropriate for the size of the surface element.

Control panel

① ② ③ ④

CONTROL PANEL FEATURES

① Light
② Fan speed 1
③ Fan speed 2
④ Fan speed 3

This range hood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals, abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are corrosive which can cause damage.

In areas of high humidity or coastal environments, cleaning should be carried out more frequently. Disconnect the product from the power source before undergoing any cleaning.

Do not operate the hood without filters in place.

Aluminum filters

• Clean the filters at least once a month. Filters may need to be cleaned more frequently depending on the cooking methods used and frequency of use.
• Aluminum filters should be removed and cleaned with hot soapy water or in a dishwasher.
• If washed in a dishwasher, the filter should be placed in an upright position to prevent food from falling on them.
  • After rinsing and drying, refit the filters.

Carbon filters - for use in recirculation mode

Active carbon filters are disposable items designed to remove grease and odors from cooking vapors before the air is channeled back into the kitchen. The active carbon filters must be replaced periodically to work properly, at least once every six months, depending on the frequency with which the ventilation hood is used.

Fully saturated carbon filters can become a barrier to air movement therefore limiting ventilation hood performance. In the event of fire, grease laden filters could be flammable and therefore regular replacement is recommended.

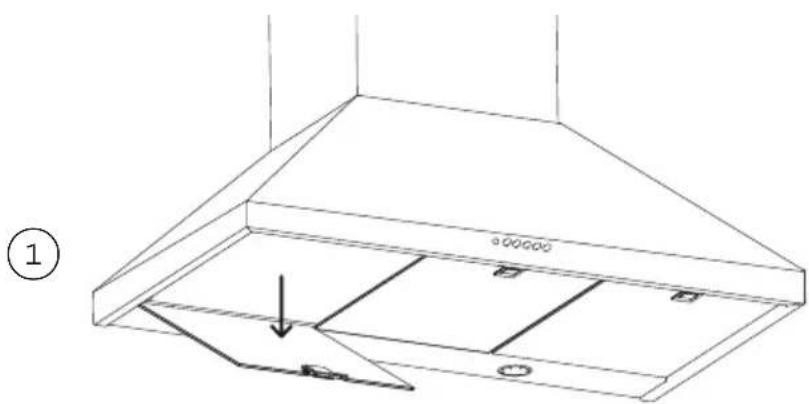

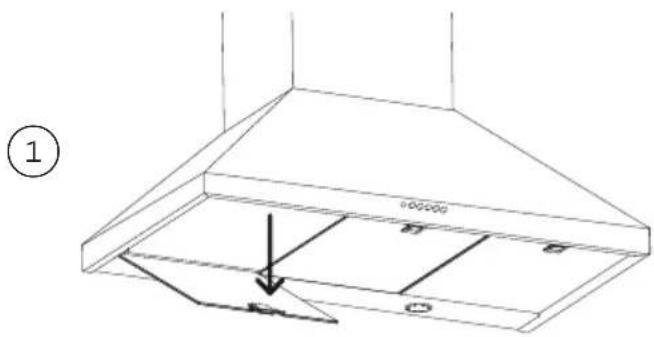

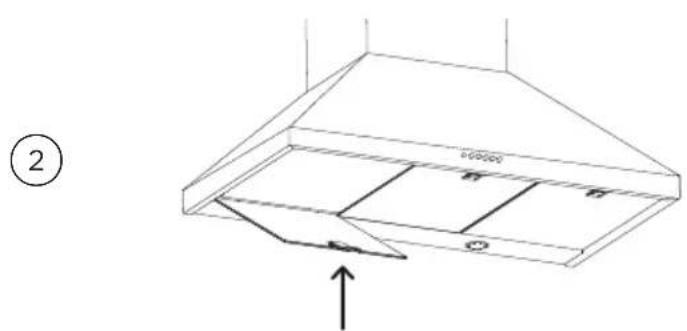

Removing the aluminium filters

①

Pull the catch and tilt the filter downwards until it disengages from the supports.

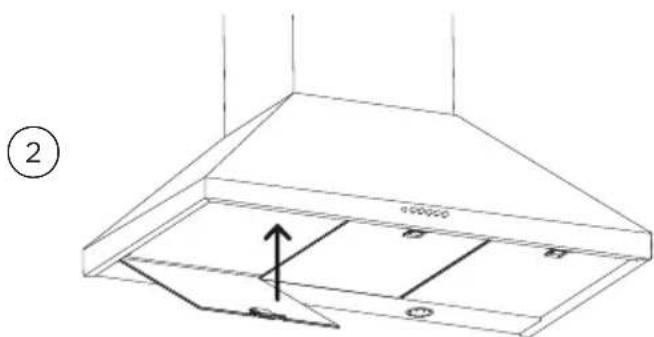

Replacing the aluminium filters

Technical line drawing of a ceiling structure with ventilation duct and mounting points (no text or symbols)

Place the filter into the support at the rear of the range hood. Push the filter back into place.

Replacing the light bulb

①

Line drawing of a ceiling structure with ventilation duct and ventilation grilles (no text or symbols)

Remove the aluminum filters.

②

Hand holding a circular object with an arrow indicating rotation (no text or symbols)

Lightly push the light bulb up and rotate anti-clockwise to remove.

③

Simple line drawing of a ceiling lamp with a conical shade and downward arrow, no text or symbols present.

Replace light bulb with a light bulb no more powerful.

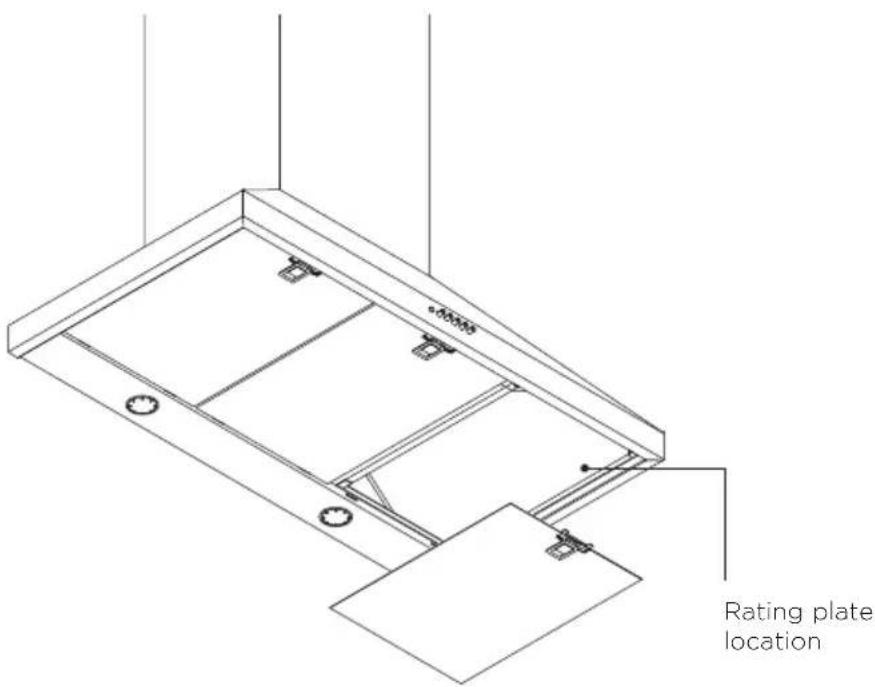

Refer to range hood rating plate for detail.

④

10000 A B C

Refit the aluminum filters.

ITEM REFERENCE NUMBER
LED bulb 792579
Recirculation carbon filter 793162
Recirculation diverter 793163
OPTIONAL ACCESSORIES REFERENCE NUMBER
Coverduct extension black 793223
Coverduct extension white 793224
Coverduct extension red 793225
Coverduct stainless 791774

Before you call for service or assistance

Check the things you can do yourself. Refer to the installation guide and user guide and check that:

• Your product is correctly installed.
• You are familiar with its normal operation.

If after checking these points you still need assistance or parts, please refer to the Service & Warranty book for warranty details and your nearest Service Center, Customer Care, or contact us through our website www.fisherpaykel.com

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer

City

State

Zip

Country

FISHER & PAYKEL

WALL RANGE HOOD, CHIMNEY PYRAMID

CLASSIC

HC24PCX1, HC30PCX1, HC30PCB1, HC30PCR1, HC30PCW1, HC36PCX1,

HC36PCB1, HC36PCR1 & HC36PCW1

INSTALLATION GUIDE

US CA

Safety and warnings 4

Components list 6

Prior to installation 7

Product dimensions-24" models 8

Product dimensions - 30" models 10

Product dimensions - 36" models 12

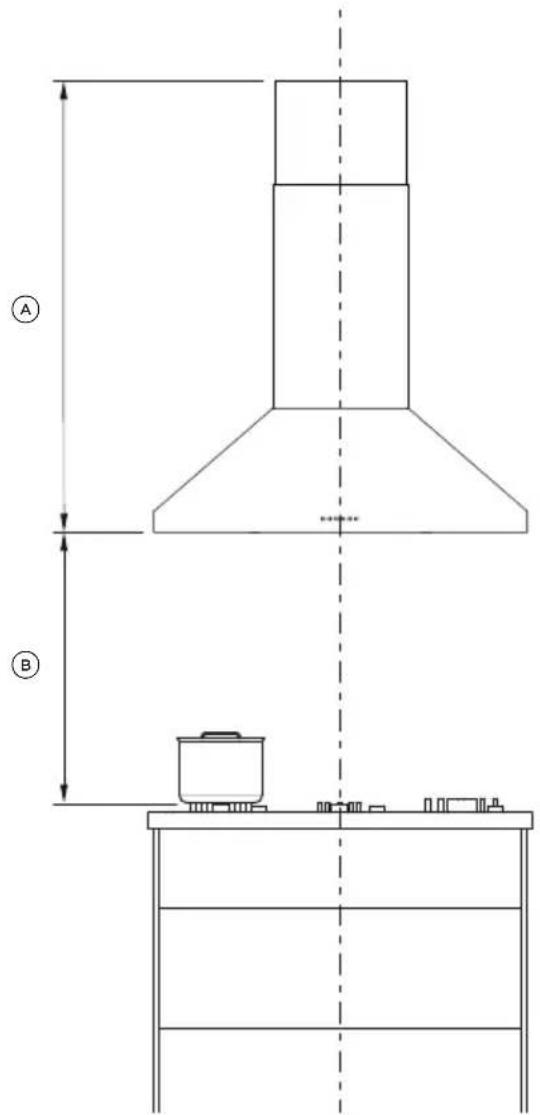

Installation height 14

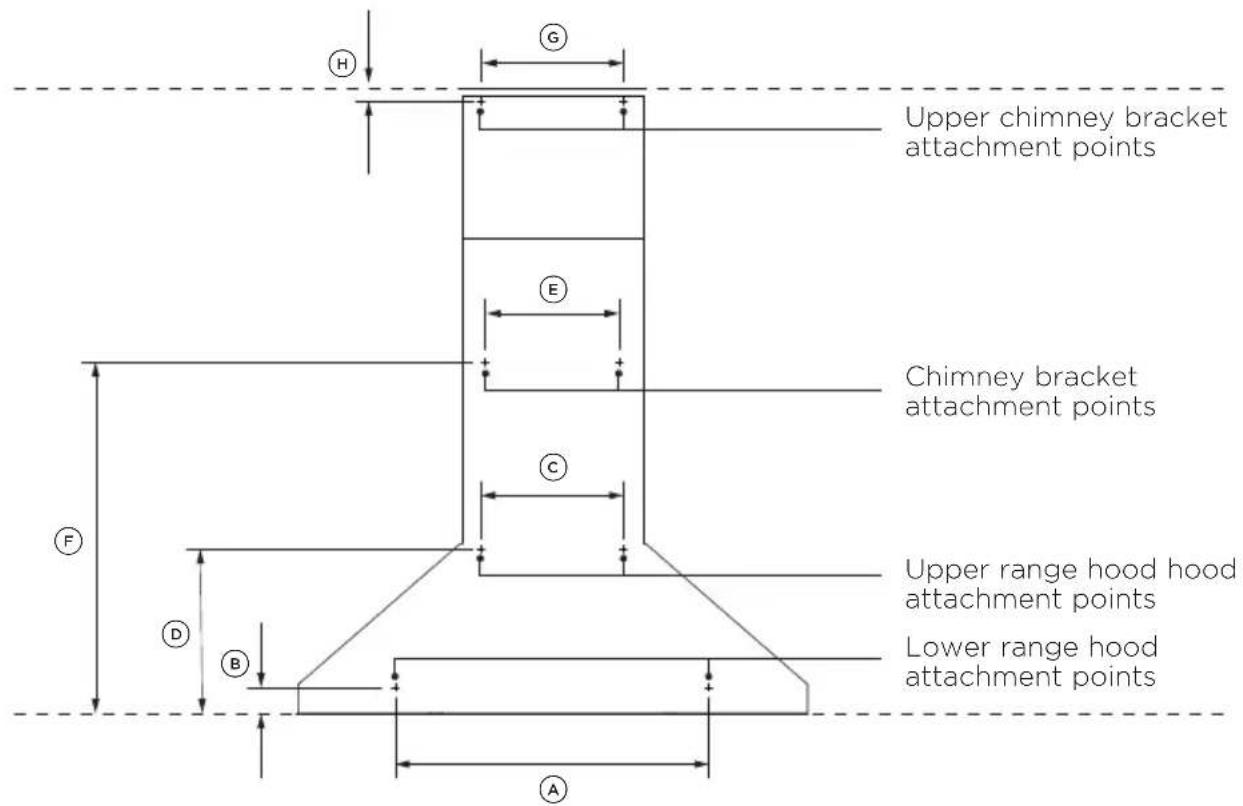

Attachment dimensions 15

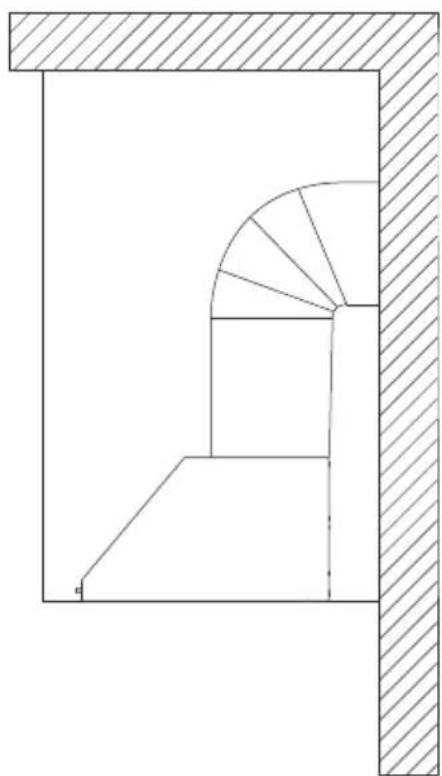

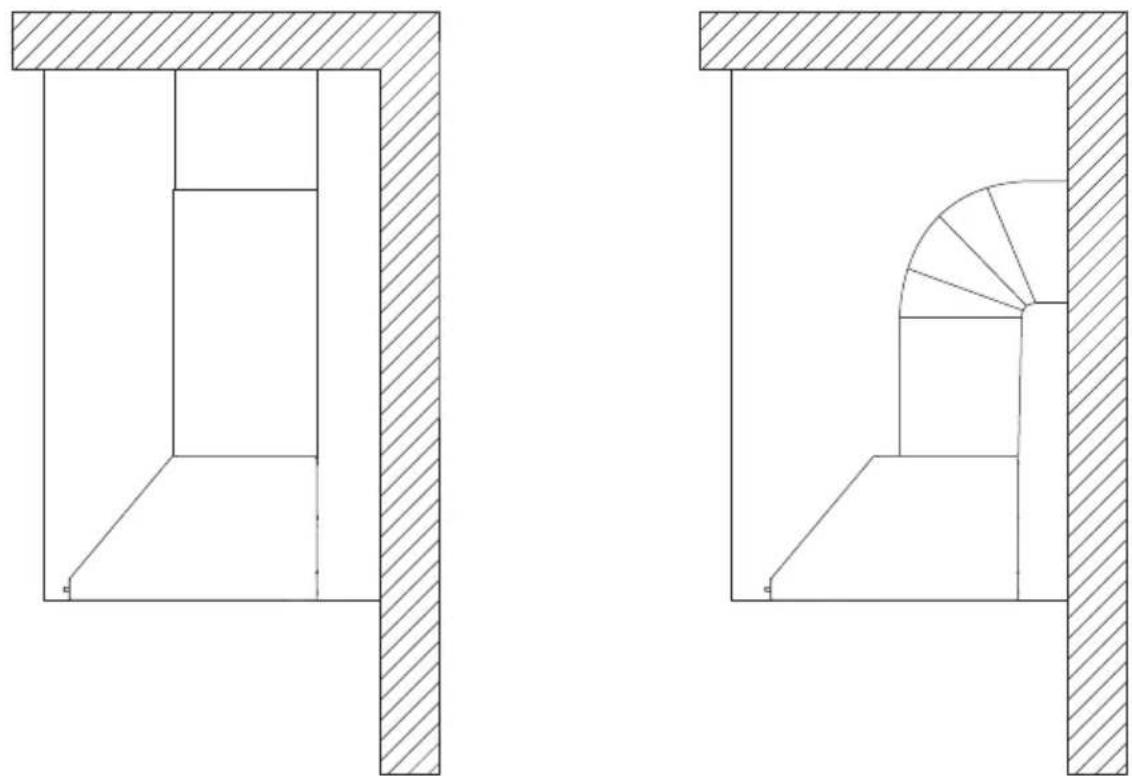

Venting options 16

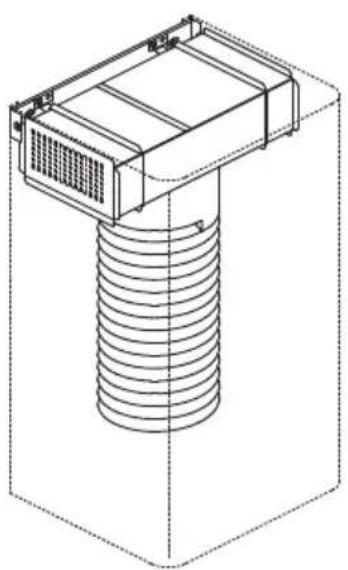

Recirculation installation 17

Chimney extension 18

Electrical requirements 19

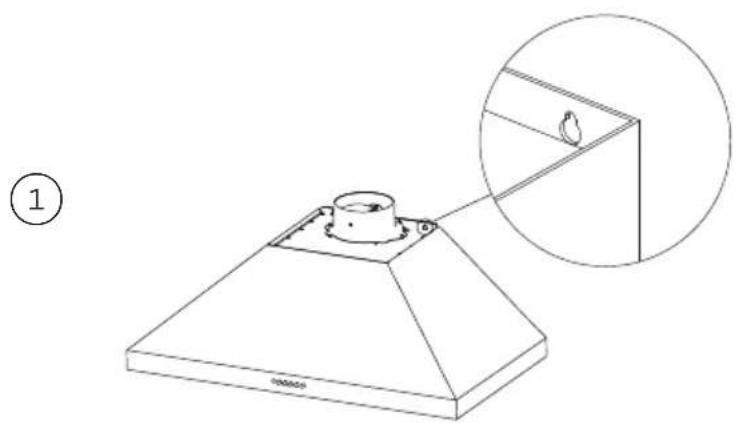

Prepare range hood 20

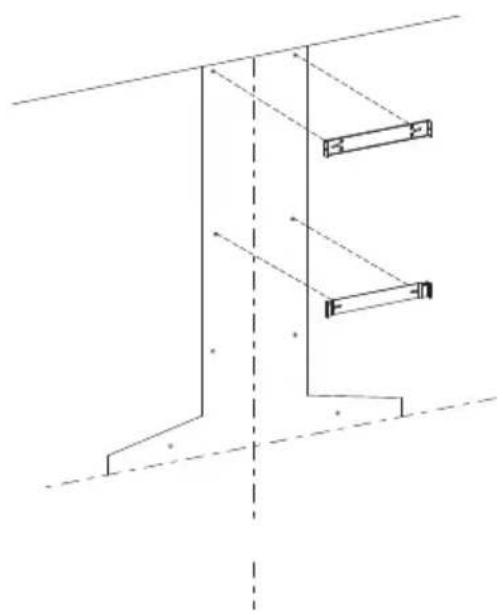

Attach brackets and mounting screws 21

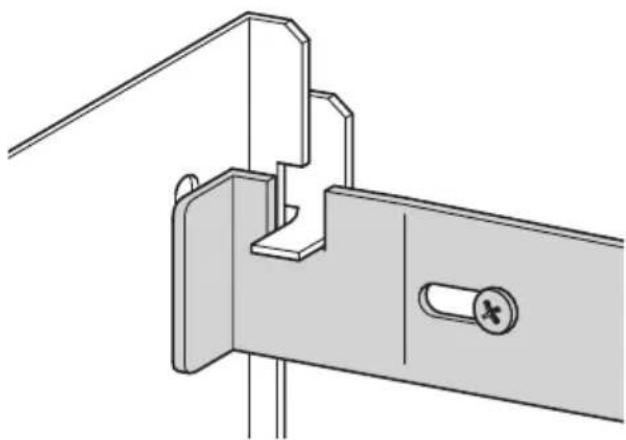

Hang range hood 22

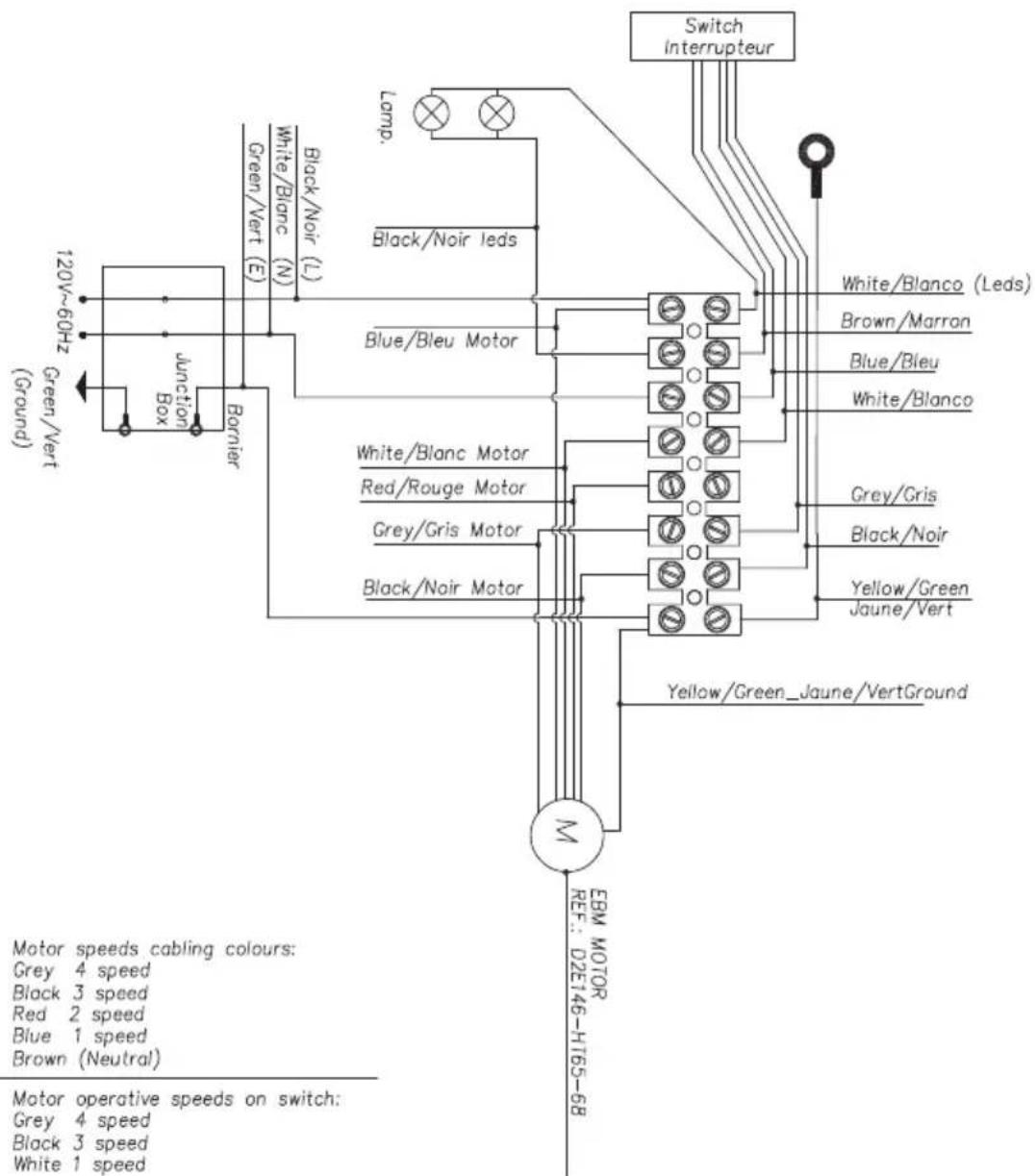

Electrical connection 23

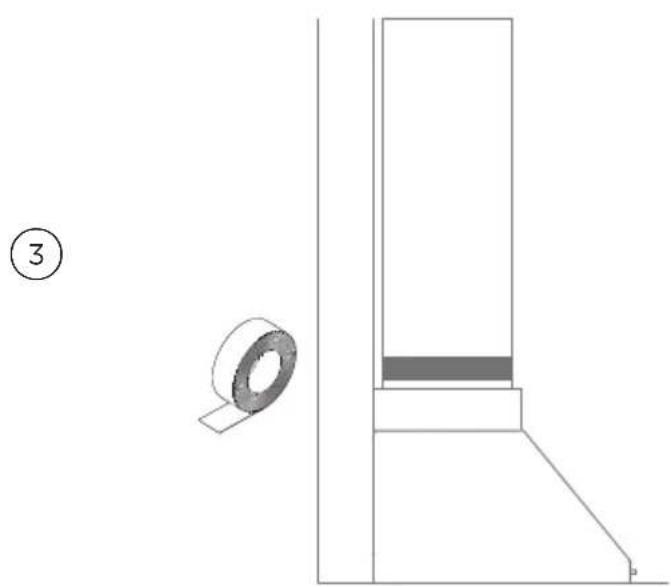

Attach chimney 24

Final checklist 25

Registration

To register your product visit our website: fisherpaykel.com/register

WARNING!

Electric Shock Hazard

Failure to follow this advice may result in electric shock or death.

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

WARNING!

Weight Hazard

Failure to follow this advice may result in personal injury

• The appliance is heavy. Please ensure adequate care is taken when installing the appliance to prevent personal injury. The appliance must be installed onto a solid wall, stud, beam or truss.
• Product weight: HC24 42 lb (19 kg), HC30 35 lb (21.5 kg), HC36 37 lb (23.8 kg).

READ AND SAVE THESE INSTRUCTIONS

WARNING!

When using this appliance always exercise basic safety precautions including the following:

General

• Please read the entire set of instructions before installing or using this appliance.
• Please make this information available to the person installing the appliance.
  • Always switch the power off prior to installation, servicing or cleaning of the appliance.
• The room must have adequate ventilation when the range hood is used at the same time as appliances burning gas or other fuels.
• Stainless steel or powdercoat is very easily damaged during installation if abraded or knocked by tools. It is recommended to protect the top of the appliance with cardboard or polystyrene during the installation to minimise the risk of damage occurring.
• To reduce the risk of damage occurring to the cooktop, it is recommended that the surface of the cooktop is protected with cardboard or a similar object during installation of the range hood.
• Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled.
• Before connecting any pipes, consult municipal ordinances to ensure that any applicable regulations concerning the discharge of exhaust air are adhered to and request permission from the person in charge of the building.
• Exhaust air must not be discharged into an existing flue that is used for exhausting fumes from appliances burning gas or other fuels.

WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.

Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
  • This unit must be grounded.
• Wear gloves to protect against sharp edges.

Electrical

• This appliance must be installed and connected to the mains power supply only by a qualified person according to these installation instructions and in compliance with any applicable local building and electricity regulations. Failure to install the appliance correctly could invalidate any warranty or liability claims.
• To comply with electrical safety regulations, the appliance must be plugged into a socket near the appliance. The socket must be accessible, or have an accessible isolating switch, to enable the end user to isolate the appliance from the power for the purpose of internal cleaning or maintenance.
• A power outlet should be within 750mm of the motor assembly and can either be on the wall, behind the chimney or in the ceiling.
• If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• Ducting accessories are not supplied. All ducting must comply with local requirements and building codes.
• Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards and the unit must be grounded.
  • Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

Fire

• WARNING: To reduce the risk of fire, use only metal ductwork. Do not use flexible plastic ducting.
• CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside – do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
• To reduce the risk of fire and electric shock, install this range hood only with the integral blowers supplied with this range hood.
• The 8' metal duct adapter supplied with this rangehood must be used for connecting any ducting to this rangehood. Ducting should not be fitted onto the plastic blower outlet.

Isometric line drawing of a metal frame with no text or symbols

Range hood (1)

FISHER & PAYCEL WALL RANGE HOODO, CHIPM&T PYRANID —— 1997 BEEFRED HOSPITAL CABBAGE & CHEESE & CHEESE & CHEESE 2004 BEEFRED HOSPITAL CABBAGE & CHEESE & CHEESE & CHEESE 2014

Installation guide (1)

Simple line drawing of a 3D rectangular box with a vertical line inside, no text or symbols present.

Chimney (1)

Simple line drawing of a 3D box with two side panels (no text or symbols)

Upper chimney (1)

Line drawing of a vertical rectangular device with a circular top and mounting base (no text or symbols)

Power connection box (1)

3/8" (10 mm) Self tapping screw (4)

Isometric line drawing of a rectangular metal beam with two recessed holes (no text or symbols)

Upper chimney bracket (1)

Simple line drawing of a metal bracket with two notches (no text or symbols)

Chimney bracket (1)

1 3/16" (30 mm) Self tapping screw (10)

1 3/16" (30 mm) Expansion plug (10)

1 3/4"(44 mm) Drywall expansion plug (8)

Simple line drawing of a rectangular box with two side tabs (no text or symbols)

Coverduct extension

Optional accessory- not included with the appliance and must be purchased separately

The manufacturer is not liable for any damage caused by not following these instructions.

• Unpack the range hood.
• Ensure the voltage (V) and the frequency (Hz) indicated on the rating plate match the voltage and frequency of the installation site.
• Check that the area behind the installation surface to be drilled is clear of any electrical cables or pipes etc.
• The range hood surfaces can be damaged during installation if grazed or knocked by tools. Please take care to protect the surfaces during installation.
• Protect the cooktop surface with cardboard, or the like, to prevent damage occurring whilst the range hood is being installed above.
• The wall used for mounting the range hood should have sufficient strength and a flat surface.

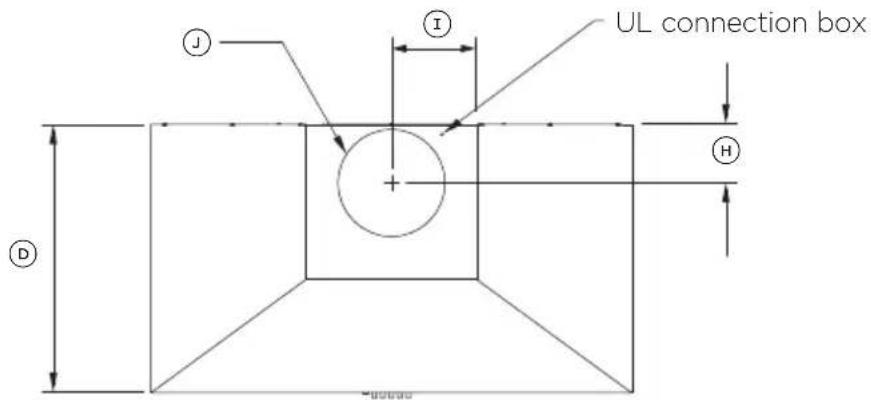

UL connection box J I H D

PLAN

G B A

F E C

FRONTPROFILE

censor K L

BOTTOM

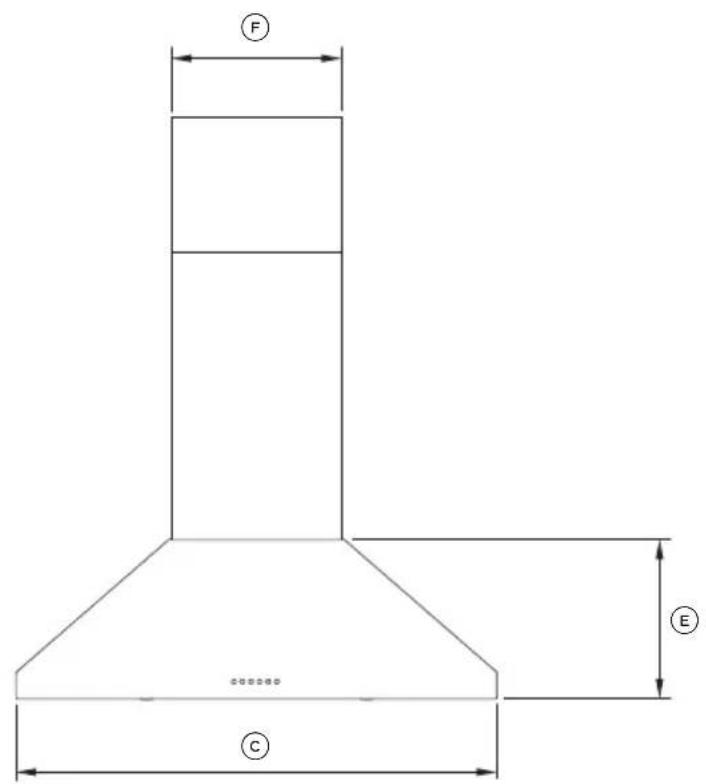

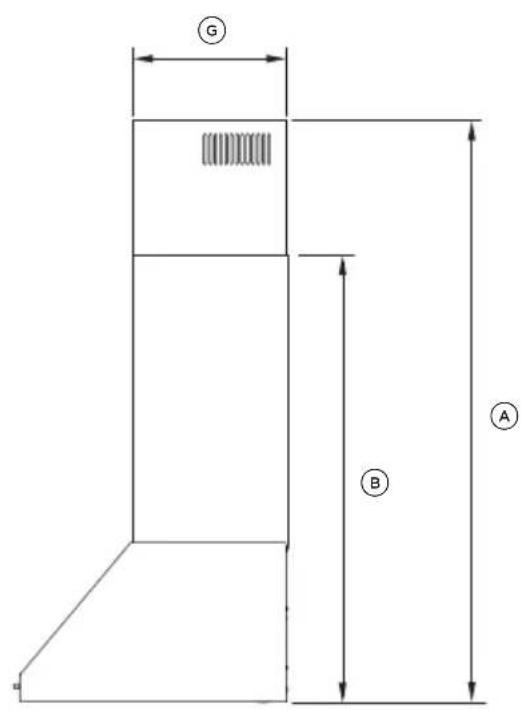

PRODUCT DIMENSIONS	HC24
	IN	MM

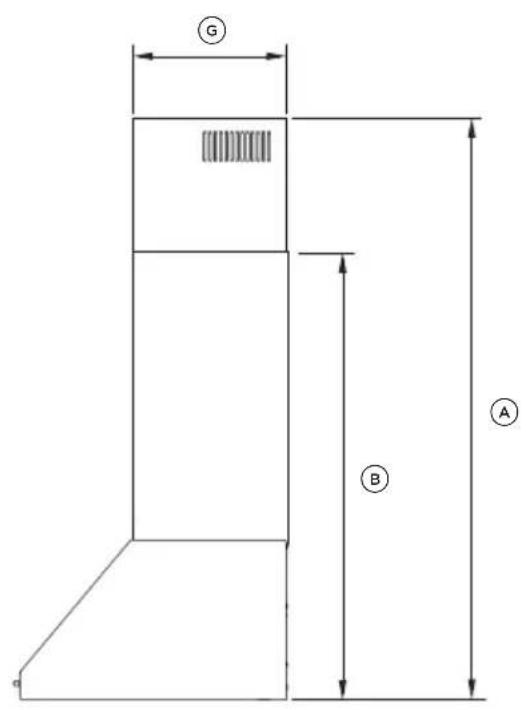

A Maximum overall height of product	38 3/8	975
B Minimum overall height of product 25 1/16 636

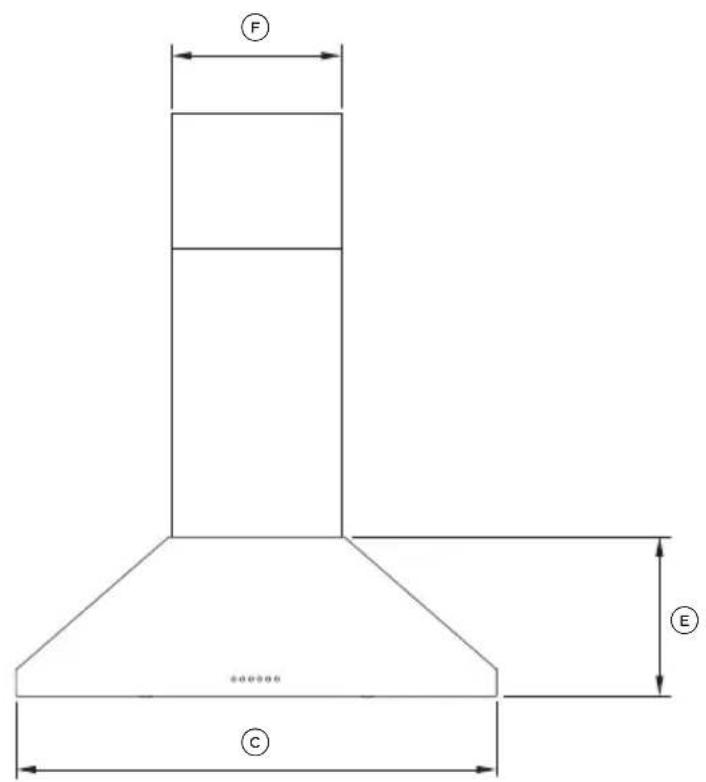

C Overall width of product	23 9/16	598
D Overall depth of product 19 11/16 500
E Height of product 11 3/4 298
F Width of chimney 12 5/8 320
G Depth of chimney 11 7/16 290
H Distance from center of ducting outlet to back of product	4 5/16	110
I Distance from center of ducting outlet to side of chimney	6 5/16	160
J Diameter of ducting outlet	7 7/8	200

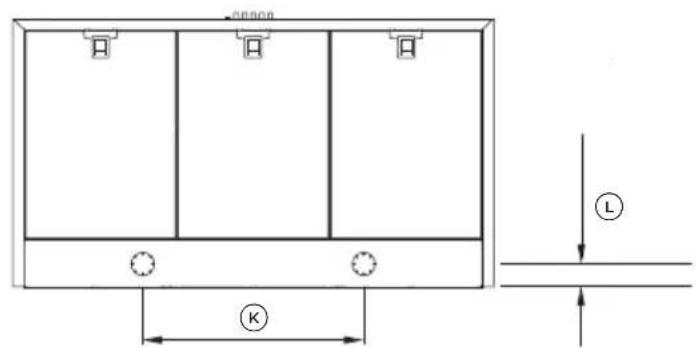

K Distance between center of lights	16 1/4	413
L Distance between center of lights and back of product	1 5/8	42

Actual product dimensions may vary by ± 1/16' (2 mm).
*Maximum overall height of product with chimney extension= 57" 1450mm.

UL connection box J I H D

PLAN

G B A

F E C

FRONTPROFILE

censor K L

BOTTOM

PRODUCT DIMENSIONS	HC30
	IN	MM
A Maximum overall height of product	38 3/8	975
B Minimum overall height of product 25 1/16 636
C Overall width of product 29 3/4 755
D Overall depth of product 19 11/16 500
E Height of product 11 3/4 298
F Width of chimney 12 5/8 320
G Depth of chimney	11 7/16	290
H Distance from center of ducting outlet to back of product	4 5/16	110
I Distance from center of ducting outlet to side of chimney	6 5/16	160
J Diameter of ducting outlet	7 7/8	200
K Distance between center of lights	16 1/4	413
L Distance between center of lights and back of product	1 5/8	42

Actual product dimensions may vary by ± 1/16' (2 mm).
*Maximum overall height of product with chimney extension= 57" 1450mm.

UL connection box J I H D

PLAN

G B A

F E C

FRONTPROFILE

censor K L

BOTTOM

PRODUCT DIMENSIONS	HC36
	IN	MM
A Maximum overall height of product	38 3/8	975
B Minimum overall height of product 25 1/16 636
C Overall width of product	35 3/8	898
D Overall depth of product 19 11/16 500
E Height of product 11 3/4 298
F Width of chimney 12 5/8 320
G Depth of chimney	11 7/16	290
H Distance from center of ducting outlet to back of product	4 5/16	110
I Distance from center of ducting outlet to side of chimney	6 5/16	160
J Diameter of ducting outlet	7 7/8	200
K Distance between center of lights	16 1/4	413
L Distance between center of lights and back of product	1 5/8	42

Actual product dimensions may vary by ± 1/16' (2 mm).
*Maximum overall height of product with chimney extension= 57" 1450mm.

A B

HEIGHT DIMENSIONS IN MM
A Ducted installation
• Minimum height	25 1/16	636
• Maximum hieght	38 3/8	975
Recirculation
• Minimum height	26 5/8	676
• Maximum hieght	38 3/8	975
B Height top of cooktop to base of product	26-30	660-762

*Maximum height can be extended with the optional chimney extension

This range hood must be installed no lower than the minimum height indicated in the table above. Minimum installation height may be greater if required by the cooktop, refer to your cooktop installation instructions.

Installation at the minimum height will improve the efficiency of capturing cooking odours, grease and smoke. Installation above the minimum height is the users preference, it is not recommended to install above the maximum height indicated in the table above.

Upper chimney bracket attachment points Chimney bracket attachment points Upper range hood hood attachment points Lower range hood attachment points

ATTACHMENT DIMENSIONS IN MM
A	Lower range hood attachment point width 20 508
B	Lower range hood attachment point height	1 3/4	45
C	Upper range hood attachment point width	9 7/8	250
D	Upper range hood attachment point height	11 1/4	286
E	Chimney bracket attachment point width	9 7/8	250
F	Chimney bracket attachment point height	31 1/4	794
G	Upper chimney bracket attachment point width	9 7/8	250
H	Upper chimney bracket attachment point height	1	25

Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled.

Ducted

It is recommended that 8" (203mm) diameter, rigid or semi-rigid ducting is used. This will require a 8 1/4" (210mm) (min) round hole in the ceiling or wall. Care should be taken to position the hole correctly.

For optimal efficiency use the shortest and straightest duct route possible and use rigid or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting should only be used as a last resort (ie in difficult installations) and if used ensure that it is straight, smooth and extended as much as possible.

Technical drawing showing two mechanical assembly views with hatched sections and internal components (no text or symbols)

Recirculating

To enable the product to operate with the air recirculating, purchase a recirculation diverter and carbon filters (refer to the “Parts and accessories” section). This recirculation diverter is required to channel the air out the side vents at the top of the chimney and the carbon filters are required to remove odors.

A ducting hole is not required in the wall or ceiling if the ventilation hood is installed to operate with exhaust air recirculating.

①

Technical line drawing of a mechanical assembly with a cylindrical component (no text or symbols)

Centre and secure the chimney brackets using two 30mm self tapping screws per bracket.

②

Technical line drawing of a mechanical component with coiled spring and housing (no text or symbols)

Align recirculation adapter to the upper bracket. Fit using 30mm Phillips screws.

For installation of the remaining chimney duct and hood refer to “Attach brackets and mounting screws” and “Attach chimney” sections for instructions.

Simple line drawing of a rectangular box with two side tabs (no text or symbols)

The 33 1/2" (850mm) chimney extension is an optional extra used when extra height is required in high ceiling situations. Suits models HC24PCX, HC30PCB1, HC30PCR1, HC30PCX1, HC30PCW1, HC36PCB1, HC36PCR1, HC36PCX1, HC36PCW1. Coverduct extensions are available depending on the color of rangehood (refer to the "Parts and accessories" section).

The extension replaces the existing upper cover that is supplied with the rangehood. Coverduct extension is to be installed following the same steps as the upper cover extension (refer to “Attach brackets and mounting screws” and “Attach chimney” sections for installation instructions)

ANSYS Rating plate location

Before connecting the range hood to the power supply, ensure the voltage and frequency indicated on the rating plate match that of the installation location.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in an electrical hazards.

Technical line drawing of a ceiling structure with ventilation duct and mounting holes (no text or symbols)

Remove the filters -pull the catch and tilt the filter downwards until it disengages from the supports.

1

Pure geometric line drawing of a structural L-shape with dashed symmetry lines (no text or symbols)

Temporarily mark the height of the bottom of the range hood and the centre of the cooktop on the wall according to the information provided in "Installation height".

②

Pure architectural line drawing of a staircase with no text, numbers, or symbols

Attach the chimney bracket and upper chimney bracket (if using the upper chimney). Use the 1 3/16" (30mm) screws and expansion plugs if attaching to masonry.

③

1/16" (2 mm)

Attach the upper hood mounting screws. Use the 1 3/16" (30mm) screws and expansion plugs if attaching to masonry.

Ensure that there is a 1/16" (2mm) gap between the screw head and the wall.

Technical line drawing of a conical lamp or fixture with a base, showing a close-up inset detail (no text or symbols)

Hang the range hood off the upper range hood mounting screws with 1/16" (2mm) gap. Hang off the keyhole attachment points on the back of the range hood then tighten the screws.

Technical line drawing of a ceiling structure with ventilation duct and mounting points (no text or symbols)

Attach the lower range hood mounting screws to fix the range hood to the wall. Refit the filters.

Technical line drawing of a mechanical assembly with a circular component and a rectangular block (no text or symbols)

Attach ducting to the ducting adapter using aluminium duct tape.

Technical line drawing of a conical mechanical component with a mounting bracket and circular cutout (no text or symbols)

① Run three wires from the power connection box on the rangehood to the power point.
② Two wires for the power supply and one for the ground wire.

Open the power connection box on the range hood and secure the power conductor with a strain relief (not included).

③ Connect the power conductors to the conductors for the range hood, black to black and white to white.
④ Connect the grounding wire (green or bare) to the ground conductor (green) of the range hood power connection box.

Secure all the connections with wire nuts.

Replace the power connection box cover.

Switch Interrupteur Lamp. Black/Noir leds White/Blanco (Leds) Brown/Marran Blue/Bleu White/Blanco Blue/Bleu Motor Grey/Gris Blue/Noir Yellow/Green Jaune/Vert Green/Vert (Ground) 120V~60Hz junction Box Barnier M EBM MOTOR REF.: D2E146-HT65-68 Yellow/Green_Jaune/VertGround Motor speeds cabling colours: Grey 4 speed Black 3 speed Red 2 speed Blue 1 speed Brown (Neutral) Motor operative speeds on switch: Grey 4 speed Black 3 speed White 1 speed

①

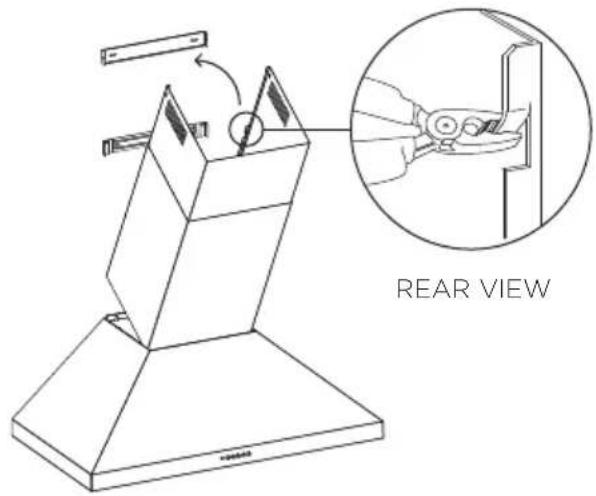

REAR VIEW

Bend the tabs on the chimney.

②

Technical line drawing of a mechanical bracket or latch mechanism (no text or symbols)

Place chimney around the range hood chassis and hang off the chimney bracket.

③

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a component detail.

Extend the upper chimney and attach to the upper chimney bracket with 10mm screws.

TO BE COMPLETED BY THE INSTALLER

Range hood is correctly installed and all connections are secure.
Connections have not pierced any electrical or water lines within the wall.
Ducting has not been crushed or bent in any area's.
Flexible ducting has been pulled taut and any excess removed (if required).
Power mains switch is accessible to the customer and switched on.
Operation of the product has been tested, refer to user guide.

Complete and keep for safe reference:

Model

Serial no.

Purchase date

Purchaser

Dealer address

Installer's name

Installer's signature

Installation company

Installation date

FISHERPAYKEL.COM

© Fisher & Paykel Appliances 2024. All rights reserved.

The models shown in this guide may not be available in all markets and are subject to change at any time.

The product specifications in this guide apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.

For current details about model and specification availability in your country, please go to our website or contact your local Fisher & Paykel dealer.

FISHER & PAYKEL

HOTTE CHEMINÉE MURALE DE FORME PYRAMIDALE

CLASSIQUE

HC24PCX1, HC30PCX1, HC30PCB1, HC30PCR1, HC30PCW1, HC36PCX1, HC36PCB1, HC36PCR1 & HC36PCW1

GUIDE D'UTILISATION

US CA

Line drawing of a ceiling structure with ventilation duct and ventilation grilles (no text or symbols)

Retirez les filtres en aluminium.

②

Hand holding a circular object with an arrow indicating rotation (no text or symbols)

Simple line drawing of a ceiling lamp with a conical shade and downward arrow, no text or symbols present.

Line drawing of a ceiling structure with ventilation duct and door (no text or symbols)

Isometric line drawing of a metal HVAC chimney (no text or symbols)

Hotte (1)

PIRES & PATIEL HOTTE CHEMINE MURALE DES FORNE SYTRAPHALE —— JULIOR HOTTER CHINA SCIENCE AND TECHNOLOGY HOTTER SCIENCE AND TECHNOLOGY ELECTRONICS

Simple line drawing of a 3D rectangular box with a vertical slot on top (no text or symbols)

Cheminée (1)

Simple line drawing of a 3D box with two side compartments (no text or symbols)

Technical line drawing of a mechanical component with mounting base (no text or symbols)

Isometric line drawing of a rectangular metal bracket with cutouts and mounting holes (no text or symbols)

Simple line drawing of a metal bracket with two side slots (no text or symbols)

Simple line drawing of a rectangular box with two side slots (no text or symbols)

Boîtier de raccordement UL J I H D

EN PLAN

G A B

F E C

AVANTPROFIL

C2008 K L

DESSOUS

Boîtier de raccordement UL J I H D

EN PLAN

G B A

F E C

AVANTPROFIL

censor L K

DESSOUS

Boîtier de raccordement UL J I H D

EN PLAN

G B A

F E C

AVANTPROFIL

censor L K

DESSOUS

Pure technical line drawing of a mechanical part with hatched sections and dimension lines (no text or symbols)

Pure architectural or mechanical diagram showing a stepped structure with hatched walls and a curved top section (no text or symbols)

Avec recirculation

Technical line drawing of a mechanical assembly with a cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with threaded spring and housing (no text or symbols)

Isometric line drawing of a rectangular box with two side tabs (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of a ceiling structure with mounting holes and a downward arrow indicating a component (no text or symbols present)

Pure geometric line drawing of a structural L-shape with dashed symmetry lines (no text or symbols)

Pure architectural line drawing of a staircase with no text, numbers, or symbols

Technical line drawing of a conical lamp or fixture with a base, showing a close-up inset detail (no text or symbols)

Technical line drawing of a ceiling structure with ventilation ducts and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and a rectangular block (no text or symbols)

Isometric technical drawing of a conical-shaped mechanical component with a mounting bracket and circular cutout (no text or symbols)

Technical line drawing of a mechanical bracket or latch mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a tool interacting with a component (no text or symbols present)
