IAN 271528 - Bike helmet CRIVIT - Free user manual and instructions

Product type	Skate, roller skate and inline skate helmet
Brand	Crivit
Model	IAN 271528
Shell material	Polycarbonate
Ventilation	Ventilation openings
Adjustment system	Tightening wheel with adjustable headband
Strap system	Adjustable chin strap with closure clip
Safety standard	EN 1078, certified by TÜV Rheinland
Intended use	Skateboarding, roller skating, inline skating and similar activities
Recommended age	Children (kids model)
Weight	Approximately 350 g (estimate)
Head circumference	Adjustable via wheel, adapted to child's size
Textile technology	HeiQ® Pure dynamiq: cooling and odor reduction
Maintenance	pH-neutral cleaner and clear water, hand wash padding at 30 °C
Service life	5 years after manufacturing date (02/2016)
Warranty	3 years
Spare parts	Available at www.delta-sport.com
Customer service	0842 665566 (CH), [e-mail]

Frequently Asked Questions - IAN 271528 CRIVIT

How do I adjust the helmet to my head?

Use the wheel at the back of the helmet: turn right to tighten, left to loosen. The helmet should be firm and not move.

How do I adjust the chin strap?

The chin strap is adjusted via the strap and strap clip. It must be tight, but allow comfortable breathing and swallowing. The straps should not cover the ears.

What is the safety standard of this helmet?

The helmet is certified according to standard EN 1078, approved by TÜV Rheinland. It complies with European directive 89/686/EEC.

Can I use this helmet for cycling?

Yes, it is suitable for cycling as well as skateboarding, roller skating and inline skating. However, it is not suitable for motorcycling or climbing.

How do I clean the helmet?

Use a pH-neutral cleaner diluted in clear water with a soft cloth. The inner padding can be hand washed at a maximum of 30 °C. Air dry.

What to do after an impact or fall?

The helmet must be immediately replaced after an impact, even without visible damage. It no longer provides effective protection.

What is the service life of the helmet?

The helmet must be replaced no later than 5 years after the manufacturing date (indicated on the label). Keep it away from heat.

Can I paint or stick stickers on the helmet?

No, paints, stickers and solvents can damage the protection of the helmet. Use it as is.

How do I choose the right size?

Measure the head circumference with a tape measure. The helmet should be firm without being too tight. If it moves or presses, choose another size.

Where can I find spare parts?

Spare parts are available at www.delta-sport.com, section Service - Lidl spare parts service. Contact customer service at 0842 665566 (CH).

USER MANUAL IAN 271528 CRIVIT

Instructions for use

DE AT CH

Before reading, fold out the illustration page and get to know all of the functions of your unit.

IAN 271528

1 □

IAN 271528

DE AT CH

FR IT GB

A 1 2 3 4 5 6 7

B × ✓

Illustration of a wrist buckle with a double-headed arrow indicating vertical compression (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

DE AT CH

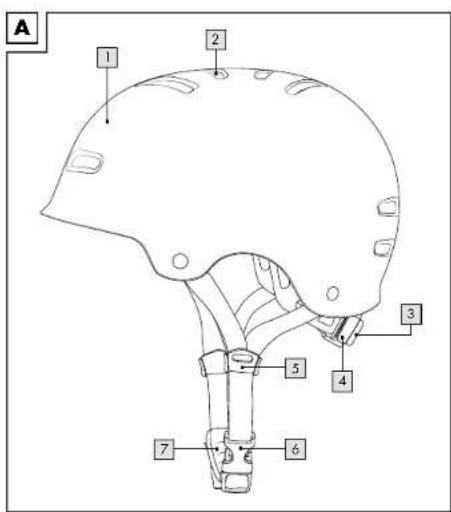

Teilebezeichnung

1. PC helmet shell
2. Ventilation holes
3. Rotary knob
4. Size adjustment system
5. Strap divider
6. Clip closure
7. Chin strap

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application.

Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Important information

Please read the following instructions and information carefully before using your new helmet for the first time. This helmet was developed for use with skateboards, inline skates, roller skates and similar groups, and manufactured according to state of the art. Despite maximum safety standards, serious accidents may result in injuries. In some cases, the impact may be so strong the helmet does not effectively protect the rider from head injuries.

Compliance with the requirements according to Annex II of European Directive 89/686/EEC (and subsequent amendments) as well as those of harmonizing technical standard EN 1078 was certified by the issuing authority TÜV Rheinland LGA Products GmbH, Tillystr. 2, D-90431 Nürnberg, Germany, Notified Body No 0197.

Intended use

This product was manufactured for skateboarding, inline skating, roller skating and similar groups. It is not suitable for other sports or motorcycling.

Safety notices

• Do not allow children to wear this helmet while climbing or playing as this carries a risk of strangulation.
• The helmet must be firmly seated and the chin strap closed tightly.
• Do not shift the helmet toward the neck, as this will leave your forehead unprotected.
• Do not wear headgear under the helmet.
• Be sure not to restrict air circulation.
• Never modify the helmet, its structure or the individual components.
• Never paint the helmet and/or apply decals or labels.
• The impacts of paint, decals, cleaning liquids or other solvents can seriously impair the protection of the helmet.
• The helmet is intended to protect the head in the event of an impact. This protection is no longer warranted after just one (even minor) impact. The helmet must therefore immediately be replaced following an accident, even without visible damage.
• Never use solvents or abrasive cleaners containing petroleum to clean the helmet, neither inside nor outside. Always use a pH-neutral detergent diluted in clear water; carefully rub with a soft cloth. Then dry with a lint-free cloth. The padding may be cleaned with a little soap, using a soft brush.
• Only use OEM replacement parts for your helmet.
• The life of this product varies by use. However, the product must be replaced no later than five years from the date of manufacture (Version: 02/2016).

HeiQ® Pure dynamiq

PURE Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day lang.

ADAPTIVE Thermal control

Feel good all over. The textile will cool you down when you're hot, and keep you dry longer in cold weather. Cools and minimises perspiration.

Helmet sizing

• Measure the circumference of the head and select the helmet size accordingly. Try several helmets before deciding. Ideally, the skin over your temples moves along when wearing the helmet.
• Verify the helmet does not move much on your head even with chin strap loose.
• The chin strap must be closed firmly for a secure seat. It is fitted correctly when it is difficult to slide your fingers under the chin straps. However, you must still be able to comfortably breathe, swallow and turn your head.
• The helmet is seated correctly if it is tight, yet comfortable on your head (Fig. B).
• If the helmet is too large (wiggles, cannot be adjusted tightly enough) or too small (pinches, forehead exposed), please select the next larger or smaller size.
• Never use the helmet if it cannot be adjusted correctly.

Adjusting the chin strap (Fig. C)

The general length of the chin strap can be adjusted with the loop. You may also use the strap divider clip to adjust the length of the chin strap. Please ensure that the strap divider does not bother you, the straps do not cover your ears, and the fastener does not rest on your chin.

Headband width adjustment (Fig. D)

Use the wheel for variable adjustment to your head size to ensure the helmet is seated optimally. Turn the wheel clockwise to tighten the headband and counter-clockwise to loosen the headband.

Maintenance and care

Regular maintenance and care contributes to ensuring the safety and preservation of the helmet.

• Always use a pH-neutral detergent diluted in clear water; carefully rub with a soft cloth. Then dry with a lint-free cloth.
- The padding may be cleaned with a little soap, using a soft brush.

Inner pads

- Hand wash below 30 °C.

30 °C/86 °F

- Allow to dry at room temperature.

Storage

Store the helmet in a dry, well ventilated location at room temperature when not in use. Avoid heat sources.

Disposal instructions

Please dispose of packaging and product in an environmentally friendly manner! Dispose of product through an approved disposal facility or through your local council. Please note the recycling regulations in your area.

3 years warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 271528

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts Service
