USER MANUAL CE2646B BRANDT

BRANDT FRANCE – SAS au capital de 1.000.000 euros 89/91 Boulevard Franklin Roosevelt – 92500 Rueil-Malmaison (France)28 Dear Customer, Thank you for buying a BRANDT product and for your confidence in our company. This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years. So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information. BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarise yourself with how it operates quickly.29 CONTENTS

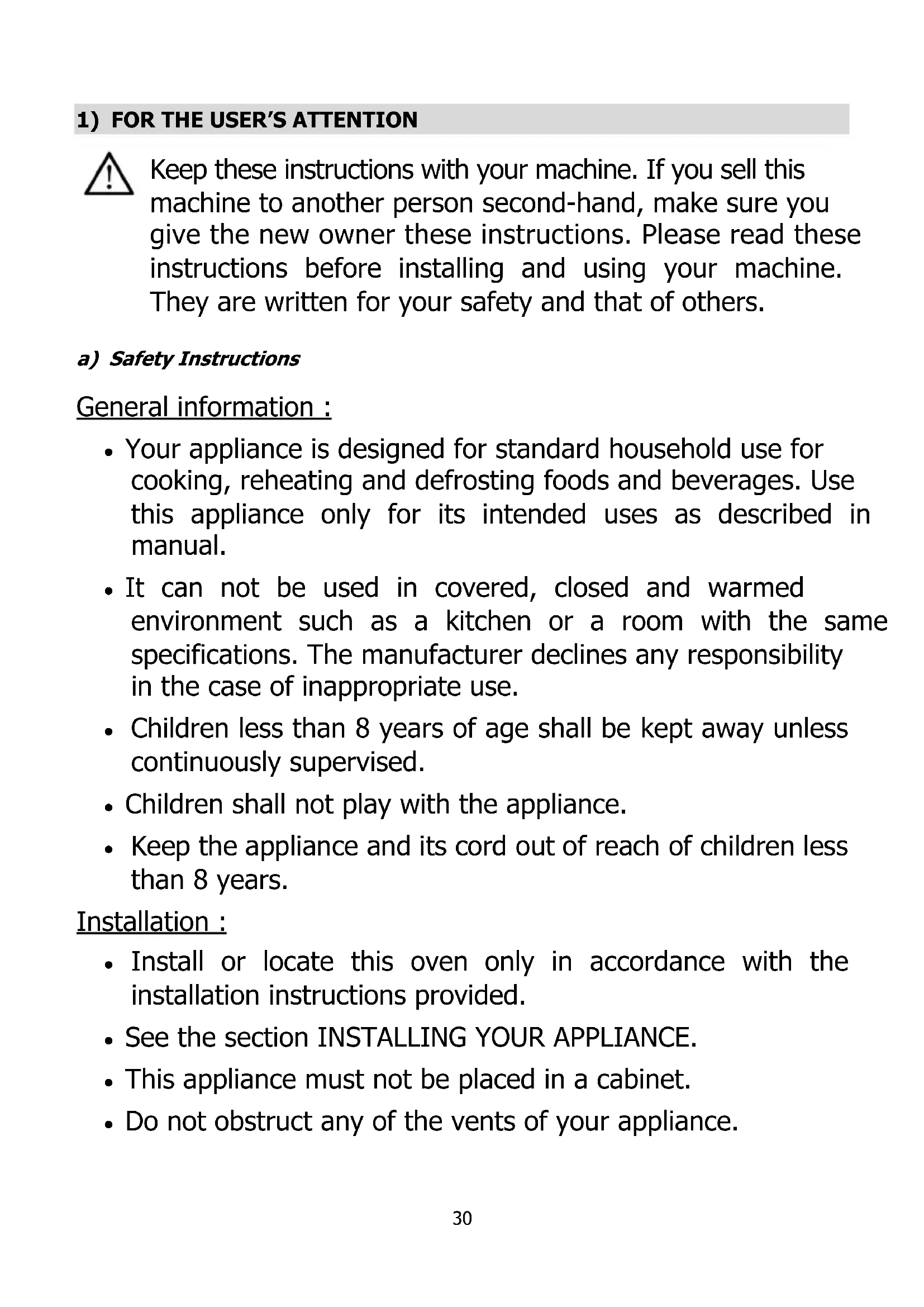

Keep these instructions with your machine. If you sell this machine to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine. They are written for your safety and that of others. a) Safety Instructions General information : Your appliance is designed for standard household use for cooking, reheating and defrosting foods and beverages. Use this appliance only for its intended uses as described in manual. It can not be used in covered, closed and warmed environment such as a kitchen or a room with the same specifications. The manufacturer declines any responsibility in the case of inappropriate use. Children less than 8 years of age shall be kept away unless continuously supervised. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children less than 8 years. Installation : Install or locate this oven only in accordance with the installation instructions provided. See the section INSTALLING YOUR APPLIANCE. This appliance must not be placed in a cabinet. Do not obstruct any of the vents of your appliance.31 If this equipment is covered or touching flammable material, including curtains, drapes items with a similar nature there is a risk of fire during the use. Keep cord away from heated surface, and do not cover any events on the oven. The appliance is not intended to be operated by means of an external timer or separate remote- control system. Use: The appliance and its accessible parts become hot during use. Liquids and other foods should not be heated in sealed containers because they may explode. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. The appliance and its accessible parts become hot during use. Children less than 8 years of age shall be kept away unless continuously supervised. Do not place anything on the appliance during operation. Ensure that the cookware is suitable for use in a microwave oven. Always use oven mitts to remove dishes from the oven. Some dishes absorb the heat of foods and, therefore, are very hot.32 For the microwave and microwave + circular heating functions, the use of metallic cookware is not recommended Remove wire twist- ties and metal handles from paper or plastic containers/bags before placing them in the oven. To avoid damaging your appliance, never operate it while empty or without the turn-table. In the case of small quantities (a sausage, a croissant, etc.) place a glass of water next to the food. Heating beverages in the microwave oven can cause sudden and/or delayed splattering of boiling liquid, so precautions must be taken when handling their containers. The contents of baby bottles and baby food jars should be shaken or stirred and their temperature checked before consumption to avoid burns. Never heat a baby bottle with the nipple on (risk of explosion It is recommended that you avoid heating eggs in their shells and whole hard-boiled eggs in the microwave oven because they run the risk of explosion, even after cooking is complete. Do not use aluminium cooking foil to cover food. Do not cover part of the oven with aluminium foil. While heating food items in plastic or paper containers, monitor the microwave's contents for there is a risk of spontaneous combustion. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. The cookware not recommended by the manufacturer may result in hazardous situations and injuries.33 Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven Cleaning : Failure to maintain the oven in a clean condition could lead to deterioration of the surface, that could adversely affect the life of the appliance and possibly result in a hazardous.

urn the oven off and remove the power plug from the wall socket before cleaning.

his appliance generates microwave energy and is equipped with a high voltage circuit, do not remove the cover. It is hazardous for anyone other than a competent person to remove a cover. Remove the protective cover of the device may result in exposure to microwave energy. Remove the protective cover of the device, even if it is disconnected, may cause an electric shock on contact with the high-voltage circuit. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. This appliance should be cleaned regularly and any food deposits removed. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Steam cleaner is not to be used. The seal and frame of the door must be regularly examined to ensure that they have not deteriorated. If these areas are34 damaged, discontinue use of the appliance and have a specialised technician check it. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced When unplugging the power cord, do not pull on the cord itself but pull on the plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Improper use : The manufacturer assumes no liability for improper use. Use this appliances only for the uses described in this manual. Observe general instructions and safety listed in this chapter. This device is intended for home use in private homes. Its use in common areas such as local professionals or pause office or This microwave oven is not intended for drying food or clothes. Similarly, it is not intended for heating slippers, heating pads, sponges, damp cloth and other similar items. It is not intended either to sterilization. These uses can destroy your appliance and lead to a dangerous situation, workshop, local camping, hotel, etc. does not respond to an intended use as defined by the manufacturer.35 b) Specifications Model CE2646B / CE2646S / CE2646W Rated Voltage 230V ~ 50 Hz Rated Input Power(Microwave) 1 450 W Rated Output Power(Microwave) 900 W Rated Input Power(Grill) 1 100 W Rated Input Power(Convection) 2 500 W Turntable Diameter 31.5 cm External Dimensions(LxWxH) 513 x 496 x 307 mm Net Weight 18.1 kg c) Operating principle The micro-waves used for cooking are electro-magnetic waves. They are commonly found in our environment in the form of radio-electric waves, light or infrared rays. Their frequency is in the 2450 MHz range. Their behaviour:

• They are reflected by metals.

• They travel through all other materials.

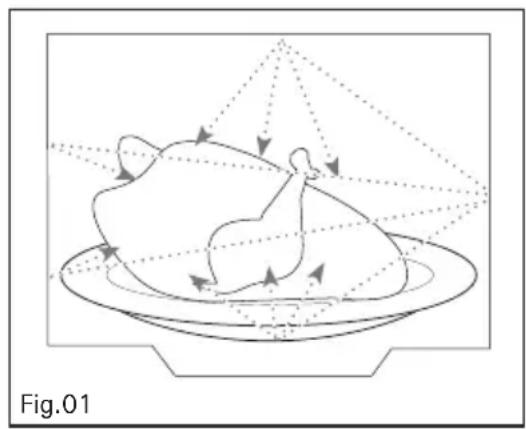

• They are absorbed by water, fat and sugar molecules. When food is exposed to micro-waves, its molecules begin moving rapidly, which causes heating. The penetration depth of waves into the food is approximately 2.5 cm; if the food is thicker, the core of the food will be cooked by conduction, as in traditional cooking.

Fig.0136 d) Protecting the environment It is valuable to note that the micro-waves trigger within the food a simple thermal phenomenon and that they are not harmful to one's health.

At the end of its life this product must not be discarded with household waste. It must be taken to a recycling centre or to your dealer. This makes it possible to avoid consequences resulting from inappropriate disposal that are harmful to health and the environment, and to recycle materials to save energy and significant resources. A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product. Your appliance also contains various recyclable materials. Thus it is stamped with this logo to indicate to you that used appliances should be mixed with other waste. The recycling of appliances organised by your manufacturer will take place under the best conditions, in compliance with European directive 2002/96/CE concerning electrical and electronic equipment waste. Consult your city hall or your retailer to find the drop-off points for used appliances that is nearest to your home. We thank you for your help in protecting the environment.

2) INSTALLING YOUR APPLIANCE

a) Utensils See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Caution Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.37 Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Wax paper Use as a cover to prevent splattering and retain moisture. Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack.38 b) Description of your appliance Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Grill rack (Only for Grill series)

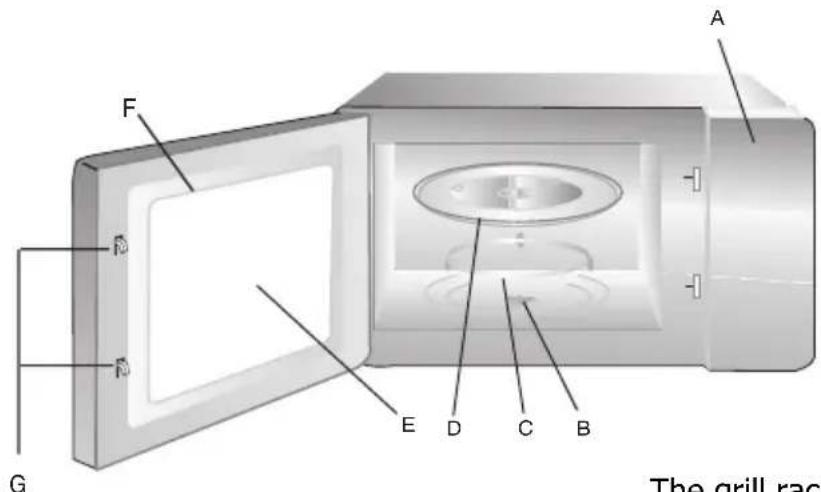

The grill rack may be used in low position (to cook the cakes) or in high position to be closer to the grill.

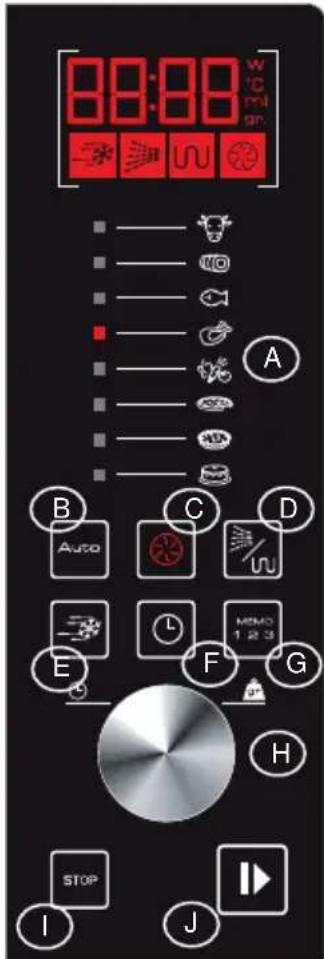

D39 c) The control panel A Displays : to simplify programming, the display indicates : the time of day, the types of food and functions, the minutes /seconds or Weight programmed. B « Autoprogramme » key automatically sets the correct programme time according to a specified food type and weight. C Convection key : to select convection function D Microwave/grill key: to set the microwaves or grill's power level. E Defrost key: to defrost according to the weight of food F Clock key : to set the clock G Memory 1 2 3 key: to reach quickly 3 preset operations H Rotating knob: to choose the time or the weight. I STOP / Cancel key: to interrupt or to erase a current program J Start key: to launch the cooking d) Turntable installation

G40 a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. e) Countertop installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached on the right side to the oven cavity to protect the magnetron. f) Installation

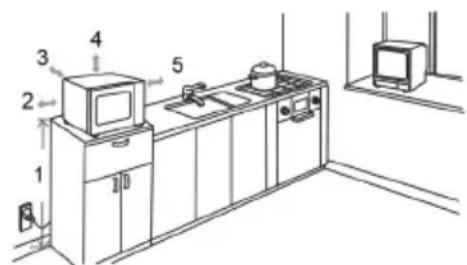

1. Select a level surface that provide enough open space for the intake and/or outlet

vents (no built in). The minimum installation height is 85cm. A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. The right side must be open. The rear surface of appliances shall be placed against a wall. (1) Leave a minimum clearance of 12 inches (30cm) above the oven. (2) Do not remove the legs from the bottom of the oven. (3) Blocking the intake and/or outlet openings can damage the oven.

2. Electrical connection

• Your installation must be protected by a 16 Amp thermal fuse.

• It is mandatory to use a power point with a ground terminal, connected in accordance with current safety regulations.

• In your electrical installation, provide a device that is accessible to the installer, capable of separating the appliance from the mains power and whose contact opening is at least 3 mm at all of the poles.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.41

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If

installed near or over a heat source, the oven could be damaged and the warranty would be void. The accessible surface may be hot during operation.

3) USING YOUR APPLIANCE

a) Operation instruction When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. Clock Setting Display Press the key , the hour figures will flash. Turn the function selector to adjust the hour figures, the input time should be within 0--23.

Press the key , the minute figures will flash. Turn the function selector to adjust the minute figures, the input time should be within 0--59.

Press the key to finish clock setting. will flash, and the time will light.

Turn the function selector to adjust the cooking time.

Press the Depart key to start cooking. Example: If you want to use 700W power to cook for 20 minutes, you can operate the oven as the following steps. Press the MO/gril key once, the oven will display "900". Press the MO/gril key once again to choose 700W, the oven will display "700".

Turn the function selector to adjust the cooking time until the oven display"20:00" (The maximum cooking time is 95 minutes.)

Press the Depart key to start cooking.

Grill & Grill+ Microwave Cooking Grill/Microwave+Grill Power Chart Function Microwave Power Grill Power G-1 0% 100% G-2 20% 80% G-3 40% 60% Display Press the MO/gril key several times until "G-1", "G-2" or "G- 3" displays.

urn the function selector to adjust the cooking time. (The maximum cooking time is 95 minutes.) Example : 8 minutes 30 seconds.

Press the Depart key to start cooking.

Note: Halfway through the grilling time the oven will beep twice. This indicates that the food should be turned over. Convection Cooking function Microwave Power Convection Power C-1 0% 100% C-2 20% 80% C-3 40% 60%44 Convection Cooking (With preheating function) The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven. When the oven reaches the required temperature, it will maintain at the requested temperature for five minutes. Programming the FAN HEAT function (With pre-heating function) Display Press the Chaleur tournante key once, the oven will display "C-1".

Turn the function selector to select the convection temperature. Choose the convection temperature by keeping turning it.

Press the Depart key to confirm the temperature.

Press the Depart key to start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.

Put the food into the oven and close the door. Turn the function selector to adjust the cooking time. (The maximum setting time is 95 minutes.)

Press the Depart key to start cooking.

Note: The temperature can be chosen from 150 degrees to 240 degrees. Never preheat your oven in the Circulating Heat + Microwave mode because this could damage the appliance. When using the oven in the combined circulating heat + microwave mode, do not use metal cookware.45 Convection/Convection+ microwave cooking (without pre-heating function) Display Press the Chaleur tournante key once, twice or three times, the oven will display "C-1","C-2"or "C-3".

Turn the function selector to select the convection temperature.

Press the Depart key to confirm, the LED will display temperature.

Turn the function selector to adjust the cooking time. (The maximum setting time is 95 minutes.) Example : 45 minutes.

Press the Depart key to start cooking.

Note: the temperature can be chosen from 150 degrees to 240 degrees.

Warning: when using the oven in the combined circulating heat + microwave mode, do not use

Make the cooking programme of your choice. Confirm the programme by pressing the MEMO 123 button. A bip will confirm the setting and the time is set.

Note: Auto menu cooking cannot be set as memory procedure. For example : to set the program as memory 2: cook the food with 700W power for 3 minutes and 20 seconds. Display In waiting state, press the MEMO 123 key twice, LED displays "2".

Press the MO/gril key once, "900" displays.

Keep pressing the MO/gril key until "700" displays.

Turn the function selector to select 3 minutes and 20 seconds. "3:20" displays.

Press the MEMO 123 key to save the setting.

Or you can press the Depart key to start cooking and save the setting at the same time.46 For the next time, in waiting state, select Memory 2

and then push the Depart key to launch cooking.

Speedy Cooking Display In waiting state, press the Depart key to start cooking with 100% microwave power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes.

In microwave, grill and convection cooking states, each press of the Depart key can increase 30 seconds.

During auto menu and weight defrost cooking, time cannot be increased by pressing the Depart key.

Speed Defrost Display Press the key pad once, the oven will display "100", "gr." will lights.

Turn the function selector to select the weight of food.

At the same time, "microwave" and "defrost" indicators will light. The weight should be 100-2000g.

Press the Depart key to start defrosting.

Auto Menu Display Keep pressing the Auto key to choose the menu from "A1 ","A2"..."A8".

Turn the function selector to choose the default weight as indicated in the menu chart. Excepted for pies A7 which indicates to you a fixed temperature.

Press the Depart key to start cooking. After cooking finished, buzzer will sound two times.

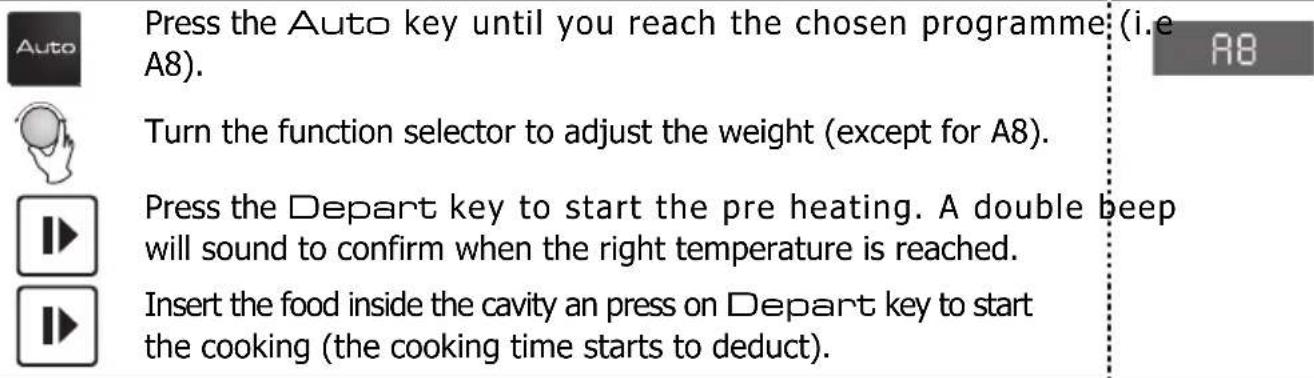

Recommendation: The Auto programmes A6, A7 and A8 need a preheat phase.47 Display Press the Auto key until you reach the chosen programme (i.e A8).

Turn the function selector to adjust the weight (except for A8).

Press the Depart key to start the pre heating. A double beep will sound to confirm when the right temperature is reached.

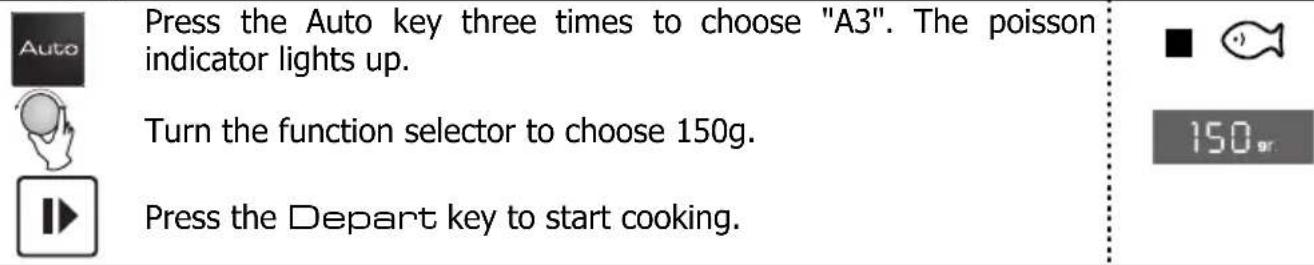

Insert the food inside the cavity an press on Depart key to start the cooking (the cooking time starts to deduct). Example : If you want to use auto menu to cook 150g of fish. Display Press the Auto key three times to choose "A3". The poisson indicator lights up. Turn the function selector to choose 150g.

Press the Depart key to start cooking. Please kindly refers to the next page for menu chart. Comments: During microwave, grill, convection and combination cooking, press or to check the current power. The power will be displayed for 3 seconds.48 b) Menu chart for automatic programs

A1 RED MEAT (microwave + convection) Use a dish adapted to microwaves and to high temperatures. Take out the meat from refrigerator 1 hour before cooking. Dish on rotating tray. After cooking, out of the oven, let rest the meat 10 min packed in an aluminium foil. 400 g 600 g 800 g 1000 g 1200 g 18 min 22 min 26 min 30 min 35 min A 2 WHITE MEAT (microwave + convection) (pork, veal turkey poultry) Use an adapted dish to the micro waves and high temperatures. See advices “red meats”. 400 g 600 g 800 g 1000 g 1200 g 25 min 30 min 35 min 40 min 45 min A3 FISHES (microwave) Use a dish adapted to microwave, add from 2 to 3 spoon of water, of lemon juice or of white wine. Cover it with an adequate lid or a plastic wrap and lay it on the rotating tray. 150 g 250 g 300 g 400 g 600 g 2 min 30 4 min 4 min 35 5 min 48 7 min 48 A 4 POULTRY (microwave + convection) (Whole chicken or pieces) Prick the skin to avoid the projections. At the end of cooking, let rest the poultry 5 min in the oven. 500 g 750 g 1000 g 1200 g 1500 g 25 min 30 min 50 min 60 min 70 min A 5 VEGETABLES (microwave) To cook fresh vegetables, add in the adequate dish : - 2 tablespoonful of water for 200 grams - ½ dl beyond. 200 g 300 g 400 g 500 g 600 g 6 min 7 min 35 8 min 50 10 min 12 min 25 A 6 PIZZA (Convection) To warm, cook or gild deep-frozen pizzas. Program with a preheating function, put the pizza after the beep 200 g 300 g 400 g 500 g 600 g 16 min 18 min 20 min 22 min 24 min A 7 PIES (Convection) Function with preheating. Put the pie, cake pan laid on a fixed grill, low position, after the beep. fix 40 min A 8 CAKES (Convection) Function with preheating. Lay the mould on the grill in low position, after the beep. Have an eye on the burning colour. 400 g 500 g 600 g 700 g 800 g 40 min 45 min 50 min 60 min 65 min49 Lock-out Function for Children Display Lock: In waiting state, press the STOP key for 3 seconds, there will be a beep denoting entering the children-lock state. The oven will display "SECU".

Lock quitting: In locked state, press the STOP key for 3 seconds, there will be a long "beep" denoting that the lock is released. Silent mode It is possible to put the microwave into silent mode. Press for 3 seconds to turn the sound off. The beep will sound once and the screen will display “Off” for 1 second. Press for 3 seconds to turn the sound back on. The beep will sound once and the screen will display “On” for 1 second.

Notes: In defrosting and grill mode halfway through cooking the oven will sound two beeps to inform you that the food should be turned if necessary. Buzzer will sound two times when cooking finished. During cooking, if the door is opened and after closing the door, the DEPART key must be pressed to continue cooking. Once the cooking program has been set, if DEPART key is not pressed in five minutes, the setting will be cancelled.

4) CARING FOR AND CLEANING YOUR APPLIANCE

It is recommended that you regularly clean your oven and remove any food build-up on the inside and outside of the appliance. Use a damp, soapy sponge. If the appliance is not cleaned regularly, its surface could become damaged, permanently affecting the appliance's lifespan and possibly causing a safety hazard. If the door or door hinge are damaged, the oven should not be used until it has been repaired by an authorised person. Do not clean the appliance with a steam cleaner. The use of abrasive products, alcohol or thinner is not recommended; they may damage the appliance. In the event of odour or caked-on dirt, boil water with lemon juice and vinegar in a cup for two minutes and clean the insides with a bit of dishwashing liquid. The table can be removed to facilitate cleaning. To do this, handle it by the access zones provided for this purpose. If you remove the turning gear, do not let water penetrate into the motor axle hole. Don't forget to return the turning gear, wheel guide and turntable. To preserve your appliance, we recommend that you use Clearit cleaning products. Professional expertise serving individuals.50 Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens. They are on sale at your regular retailer, along with a complete line of accessories and consumable products.

If you have doubts about the proper functioning of your appliance, this does not necessarily mean it is broken. In any event, check the following items: You observe that... What should you do? The appliance does not start. Check the electrical connection of your appliance. Ensure that your oven's door is fully closed. Ensure that the child safety feature is not activated. The appliance is noisy. The turntable does not rotate properly. Clean the wheels and the rolling area under the turntable. Ensure that the wheels are properly positioned. You see steam on the window. Wipe the condensation away with a cloth. Food is not heated during a microwave programme. Ensure that the cookware is suitable for microwave ovens and that the power level is appropriate. The appliance is creating sparks. Thoroughly clean the appliance: remove grease, cooking particles, etc. Remove any metal items from the walls of the oven. Never use metal items with the grid. The bulb doesn't work. Call the brand's authorized technician to replace the bulb.

Be careful, this appliance is equipped with a high tension circuit. Do not make yourself any repairing inside the oven.51
