IAN 275723 - Personal protective equipment POWERFIX - Free user manual and instructions

Product type	Individual knee protection
Brand	Powerfix
Model	IAN 275723
Intended use	Work in kneeling position on flat surfaces
Certification standard	EN 14404:2004 + A1:2010
Type according to EN 14404	Type 1 (independent knee protection)
Protection level	Level 1
Perforation resistance	100 N (±5 N)
Materials	PVC, polyester, SBR, PE foam
Closure	Hook and loop straps
Water resistance	Not waterproof
Maximum service life	5 years after manufacturing date (version 12/2016)
Maximum thigh circumference	100 cm
Care	Hand wash in lukewarm water with mild detergent; do not machine wash, do not tumble dry, do not iron
Storage and transport	Do not expose to sunlight or heat source; do not place heavy objects on it
Warranty	3 years
Spare parts	Available during the warranty period via delta-sport.com
Customer service (Switzerland)	Phone [phone] (0.08 CHF/min), email: [e-mail]

Frequently Asked Questions - IAN 275723 POWERFIX

How to install the knee pad?

Attach the knee pad to the leg using the hook and loop straps so that it covers the kneecap. The upper edge should protrude 2 cm from the bent knee. Do not tighten too much to avoid restricting blood circulation.

What is the protection level of this knee pad?

It is certified EN 14404 Type 1 with a performance level 1, offering a perforation resistance of 100 N (±5 N). Suitable for smooth and non-smooth surfaces.

Is it suitable for uneven surfaces?

No, it is designed for flat surfaces. Uneven ground (stones, gravel) can damage the knee pad and reduce protection.

Is the knee pad waterproof?

No, it is not waterproof. Avoid prolonged exposure to moisture.

How to clean the knee pad?

Brush off superficial dirt. For deep cleaning, hand wash in lukewarm water with mild detergent, rinse with clean water. Do not machine wash, do not tumble dry, do not iron.

What is the service life of the knee pad?

It must be replaced at the latest 5 years after its manufacturing date (version 12/2016). Intensive use can reduce this period.

What should I do if the knee pad is damaged?

Check before each use. In case of tears, cuts, or breaks, do not use it: it no longer provides the required protection.

Can I use it with other protective equipment?

Yes, for hazardous work, wear safety glasses or a helmet if necessary.

How to dispose of the knee pad at end of life?

The packaging and the article must be recycled. Dispose of them at a recycling center or with an approved recycling company.

What is the warranty of this product?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Keep the receipt.

USER MANUAL IAN 275723 POWERFIX

Instructions for use 21 - 25

Image displaying five symbolic icons: crown, triangle, crossed-out square, crossed-out cross, and crossed-out circle.

Image displaying five symbolic icons: a hand holding a crown, an asterisk, a crossed-out square, and an 'X' symbol.

Image displaying five symbolic icons: a hand holding a cup, an open triangle, an open square, and an open cross.

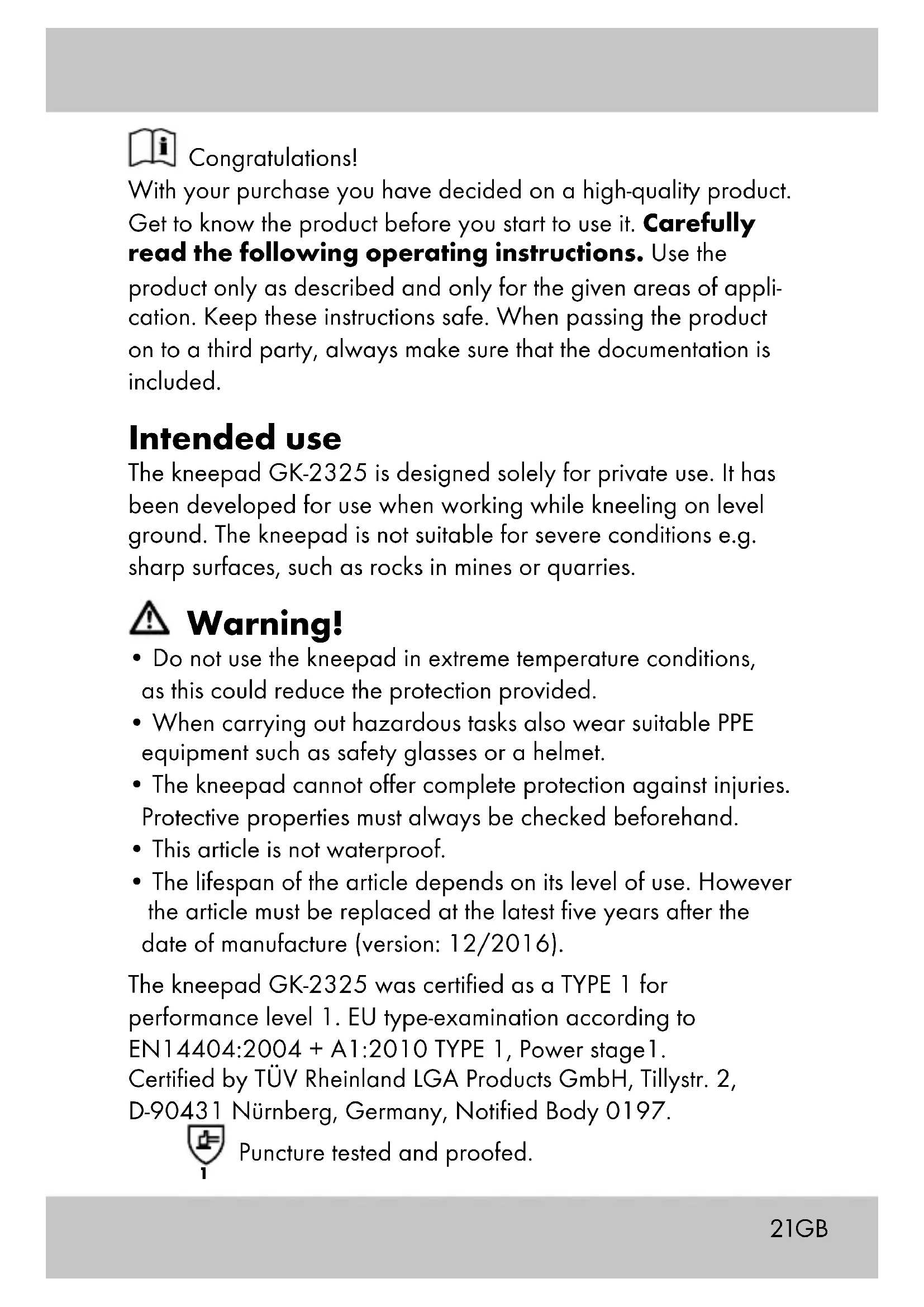

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the

product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Intended use

The kneepad GK-2325 is designed solely for private use. It has been developed for use when working while kneeling on level ground. The kneepad is not suitable for severe conditions e.g. sharp surfaces, such as rocks in mines or quarries.

Warning!

• Do not use the kneepad in extreme temperature conditions, as this could reduce the protection provided.
• When carrying out hazardous tasks also wear suitable PPE equipment such as safety glasses or a helmet.
• The kneepad cannot offer complete protection against injuries. Protective properties must always be checked beforehand.
  • This article is not waterproof.
• The lifespan of the article depends on its level of use. However the article must be replaced at the latest five years after the date of manufacture (version: 12/2016).

The kneepad GK-2325 was certified as a TYPE 1 for performance level 1. EU type-examination according to EN14404:2004 + A1:2010 TYPE 1, Power stage 1. Certified by TÜV Rheinland LGA Products GmbH, Tillystr. 2, D-90431 Nürnberg, Germany, Notified Body 0197.

Puncture tested and proofed.

DIN EN 14404:2004 + A1: 2010 DEFINES 4 TYPES AND 3 PERFORMANCE LEVELS OF KNEE PROTECTORS

Types

Type 1: Kneepad independent of other clothing which is fastened to the knee.
Type 2: Kneepad which is e.g. attached in pockets in the trouser leg.
Type 3: Equipment which is not attached to the body.
Type 4: Kneepad which is part of equipment with additional functions such as a frame as support when standing up.

Performance levels

There are 3 different performance levels:

Stage 0 is knee protection suitable for flat surfaces and does not offer any protection against puncturing.

Stage 1 is knee protection suitable for either flat or uneven surfaces. This offers protection against puncturing to a power of (100±5) N.

Stage 2 is knee protection suitable for either flat or uneven surfaces in difficult conditions, offering protection against puncturing up to a power of (250±10) N.

Attaching the kneepad

The kneepad is attached to the knee using hook and loop fasteners so that the kneeling area is covered. The top edge of the kneepad should protrude past the bent knee by 2cm.

The kneepad can be worn over clothes or be attached directly over skin.

Attention!

Ensure the hook and loop fasteners are not too tight. Do not allow the hook and loop fasteners to cross the hollow of the knee. This could impair blood circulation.

Suitable for persons with a waist measurement up to 100cm! Finally, check that the kneepad is comfortably positioned and sufficiently tightened for the work to be carried out.

Maintenance and care

General

Inspect the kneepads for damage prior to every use. If the kneepads are damaged, for example torn, broken or parts are partially loosened, they are no longer usable and should not be worn. Do not tamper with this product, as the protective properties can no longer be guaranteed. Severe soiling, alterations or improper use may impair the performance of these knee protectors in a hazardous way.

The kneepads mainly consist of PVC, polyester, SBR and PE foam.

Cleaning

Rough dirt can be removed from your kneepads by brushing. Stubborn dirt can be removed by hand washing in lukewarm water or with a neutral detergent solution. Rinse with clean water. Never wash the kneepads with solvent-based or harsh cleaning agents. Never machine wash, tumble dry or iron.

Image displaying five symbolic icons: a hand holding a cup, an open triangle, an open square, and an open cross.

Storage and transport

This article should not be exposed to direct sunlight or raised temperatures whilst in storage or when being transported. Do not place heavy loads upon the article. This could cause cracking or decomposition, something which can drastically shorten the protector's life span and limit its usability. Only knee pads in perfect condition can offer protection concurrent with the purpose for which they are intended.

Hints for disposal

Decontaminate the product and its adherent components via an authorised disposal company or via your municipal disposal service. Follow the regulations which apply. In case of doubt, enquire at your local disposal service regarding an appropriate environmentally friendly disposal method.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 275723

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts Service
