Product Type	Portable battery (portable power station)
Brand	Westinghouse
Model	iGen160s
Battery Capacity	155 Wh / 14 Ah (11.1 V) (equivalent 42000 mAh at 3.7 V)
Battery Type	Integrated lithium-ion, non-removable
Dimensions (L x W x H)	20.7 x 9.6 x 17.8 cm
Weight	1.7 kg (3.75 lb)
Charge Input	AC adapter: DC 15 V/2 A; Solar panel: 13-25 V/2 A max.
Full Charge Time	Approximately 6 hours (via 15 V/2 A adapter)
USB Outputs	2 x USB 5 V/2.1 A (total 3.5 A max); 1 x USB (QC 3.0) 5-9 V/2 A; 1 x USB-C (QC 3.0) 5-9 V/2 A
DC Output (12 V)	3 x 5.5 mm jacks: 9-12.6 V / 10 A (15 A max total)
AC Output	120 V AC ±10%; 50/60 Hz; modified sine wave; 100 W continuous / 150 W peak
Built-in Protections	Short circuit, overcharge, deep discharge, temperature
Display	LED battery level indicator
Built-in Lighting	Ultra bright LED flashlight and adjustable LED light panel
Operating Temperature	-10 °C to 40 °C
Battery Cycle Life	> 500 cycles
Package Contents	Power station, 15 V/2 A AC adapter, car charger, cigarette lighter adapter, user manual
Warranty	24 months (original buyer)
Recycling	Return to dedicated collection points for electronic equipment and batteries
Maintenance	Do not disassemble, avoid water and high temperatures, charge every 3 to 6 months if unused

Frequently Asked Questions - iGen160s WESTINGHOUSE

How to charge the iGen160s power station?

Use the supplied AC adapter (15 V/2 A) by plugging the DC plug into the input located under the flashlight, then plug the adapter into a wall outlet. You can also charge it via a 12 V car charger (cigarette lighter) or a solar panel (13-25 V/2 A max). The blue LED indicators flash during charging and stay solid when fully charged.

What is the maximum AC output power?

The AC output provides 100 watts continuous and up to 150 watts peak (for a few seconds). Devices exceeding 150 W may cause an overload and shutdown of the unit.

Can I power a refrigerator or microwave?

No, these appliances typically require a startup power greater than 150 W and a pure sine wave. The iGen160s delivers a modified sine wave and is limited to 100 W continuous. It is not suitable for devices with AC motors.

How long does it take to recharge the battery?

With the 15 V/2 A AC adapter, the full charge time is approximately 6 hours. Charging via car or solar panel may vary depending on the source.

What to do if the power station goes into protection?

In case of short circuit or overload (exceeding 150 W), the power station shuts down automatically. Reduce the load (disconnect the overpowering device) and restart the power station by pressing the power button. Recharge if necessary.

Can I use the power station in cold weather?

Yes, the operating temperature is -10 °C to 40 °C. However, temperatures below 0 °C may reduce battery capacity. It is recommended to keep the unit in an insulated cooler connected to a power source (solar panels) to maintain performance.

How to use the flashlight and LED light panel?

Press the button next to the flashlight to turn it on/off. For the LED light panel, press once to turn on, a second press adjusts brightness, and a third turns off. Never shine the light directly into eyes.

What types of devices can I plug into the USB ports?

The USB ports are designed for smartphones, tablets, Bluetooth headphones, etc. The USB-A 5 V/2.1 A ports are standard, while the USB and USB-C ports support Qualcomm Quick Charge 3.0 fast charging (5-9 V/2 A). Some very low current devices (<150 mA) may not be detected; in that case, activate the AC output to maintain USB power.

How to maintain the battery to prolong its lifespan?

To maximize battery life (over 500 cycles), it is recommended to charge the battery every 3 months and at least once every 6 months if not used. Avoid complete discharges and store in a cool, dry place.

How to recycle the power station at end of life?

Do not throw the device in the trash. The lithium-ion battery and electronic components must be recycled at dedicated collection points (recycling center, electronics store). This helps protect the environment.

USER MANUAL iGen160s WESTINGHOUSE

Portable Power Station 100 Running Watts | 150 Peak Watts Thank you for choosing Westinghouse! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your Westinghouse purchase, call us at 855-944-3571 to speak with a service representative.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

TABLE OF CONTENTS

ABOUT THE POWER STATION 3
GENERAL SAFETY RULES 3
PRODUCT APPLICATION 4
BATTERY INFORMATION 5
MODIFIED SINE WAVE OUTPUT 5
SPECIFICATIONS 5
REGISTERING YOUR PRODUCT 6
PRODUCT DESCRIPTION 7
PROVIDING POWER FOR DC 12V APPLIANCES. 8
PROVIDING POWER FOR AC APPLIANCES 9
PROVIDING POWER FOR USB APPLIANCES 10
RECHARGING THE POWER STATION 11
COLD WEATHER USE 12
RECYCLE 12
STATEMENT 13
WARRANTY 14
ESPANOL 17
FRANÇAIS 32

ABOUT THE POWER STATION

Thank you for purchasing the IGen160s Portable Power Station. With this device, you may charge your electrical or digital devices at home or on the go. This generator offers outputs for USB, DC and AC appliances. Before using this generator, please read the user manual carefully and properly. Keep it for reference

ATTENTION: This manual is to help you use the product correctly. Pictures and figures used in this manual are for reference only.

!	CHARGE FIRST! Before reading through the manual, you can begin to charge up this device by connecting it to the power supply provided and plugging into a wall socket
!	WARNING: Lithium-ion batteries and products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

GENERAL SAFETY RULES

CAUTION

• Do not short-circuit the generator. To avoid short-circuiting, keep the generator away from all metal objects (e.g. coins, hair-pins, keys, etc.) and water.
• Do not heat the generator, or dispose of it in fire, water or other liquids. Keep away from high temperatures. Do not expose the generator to direct sunlight.
• Keep away from high humidity and dust.

• Do not disassemble or reassemble this generator.

• Do not drop, place heavy objects on, or allow strong impacts to this generator.

• Not intended for use by children without proper supervision.
• Do not cover the device with towels, clothing or other items.
• The generator may become hot when charging. This is normal. Use caution when handling.
• Do not charge the generator over the required time.
• Disconnect the generator when fully charged.
• Use the generator properly to avoid electronic shock
• DO NOT DISPOSE. Improper disposal may cause environmental harm or explosion
• The product is only to be used for temporary power needs; it cannot replace the standard DC or AC power of household appliances or digital products.

PRODUCT APPLICATION

• This product features a built-in high quality lithium-ion battery. It has no memory loss effect and features a high-capacity. However, we still recommend that you operate in the range of 50^ - 86^ in order to obtain the optimal charging capacity.
• When charging, in order to avoid interference, please stay away from TV, radio and other equipment.
• If the device has not been used for a long time, please disconnect the cable and store properly.
• In order to extend the life of product (lithium-ion battery), it is best to charge within 3 months, and charge at least once within 6 months.

BATTERY INFORMATION

Your device has an internal, non-removable, rechargeable battery. Do not attempt to remove the battery, as you may damage the device. The battery can be charged and used over 500 times, but it will eventually wear out.

MODIFIED SINE WAVE OUTPUT

The generator provides Modified Sine Wave output, and is compatible with AC electronic appliances that require less than 100W to power. Appliances like refrigerators, microwaves, fans, or appliances that use spinning AC motors requiring large wattage outputs may not run properly with this generator.

SPECIFICATIONS

Capacity 155Wh,14Ah/	1.1V (equivalent 42000mAh,3.7V)
Dimensions (LxWxH) 8	14 x 3.77 x 7.00 In.
Weight 3.75 Lbs.
Built-in Battery High Quality Lithium-Ion
Input Recharging Adapter: DC 15V/2ASolar Panel Charging: DC 13V-25V/2AMax
Fully Charged Time DC	15V/2A: 6 hours
USB Output 2 x USB 5V	-2.1A Total: 3.5A Max1 x USB 5-9V/2A Qualcomm Quick Charge3.01 x USB-C 5-9V/2A Qualcomm QuickCharge 3.0
DC Output 3 x 5.5mm	DC Output: 9-12.6V/10A (15Amax total)
AC Output Modified Sine	Wave Output AC Voltage: 120V AC ± 10% Output Frequency: 50/60Hz ± 10%
AC Power AC Continuo	us Output: 100W/150W max
Bulb Type 1 x Ultra bright	LED Flashlight 1 x LED Light Panel
Power Indicator Led Display
Operation temperature -10°C – 40°C
Life cycle >500 Charges
Package includes 1 x Portable Power Station 1 x 15V/2A power adapter 1 x car charger 1 x cigarette lighter adapter 1 x user manual

REGISTERING YOUR PRODUCT

Register your product online at wpowereq.com/register. To register your power station you will need to locate the serial number on a decal on the bottom of the power station..

PROTECTION MODE

Short-circuit/Overload Protection: If the generator output is short-circuited or the appliance load exceeds 150W or 100W for an extended period of time, the generator will automatically shut down to protect itself. If this happens, reduce the load and restart the generator. Recharge if necessary.

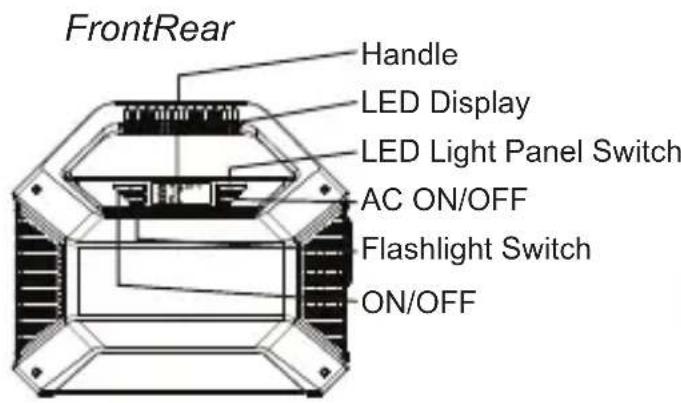

PRODUCT DESCRIPTION

LeftRight

Ultra Bright LED Flashlight

5.5MM/2.1mm DC Input

Cooling vents

2x USB 5V/2.1A

Total 3.5A Max

AC Outlet

USB-C 5V/5-9V/2A

Qualcomm Quick Charge 3.0

USB 5~9V/2A

Qualcomm Quick Charge 3.0

5.5mm DC Output

Total (9V~12.6V)/10A/15A max

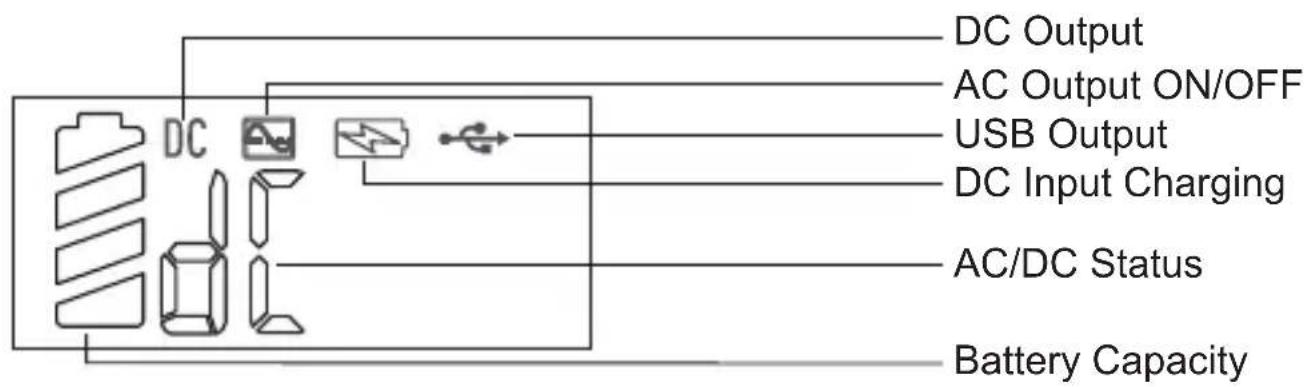

LED DISPLAY

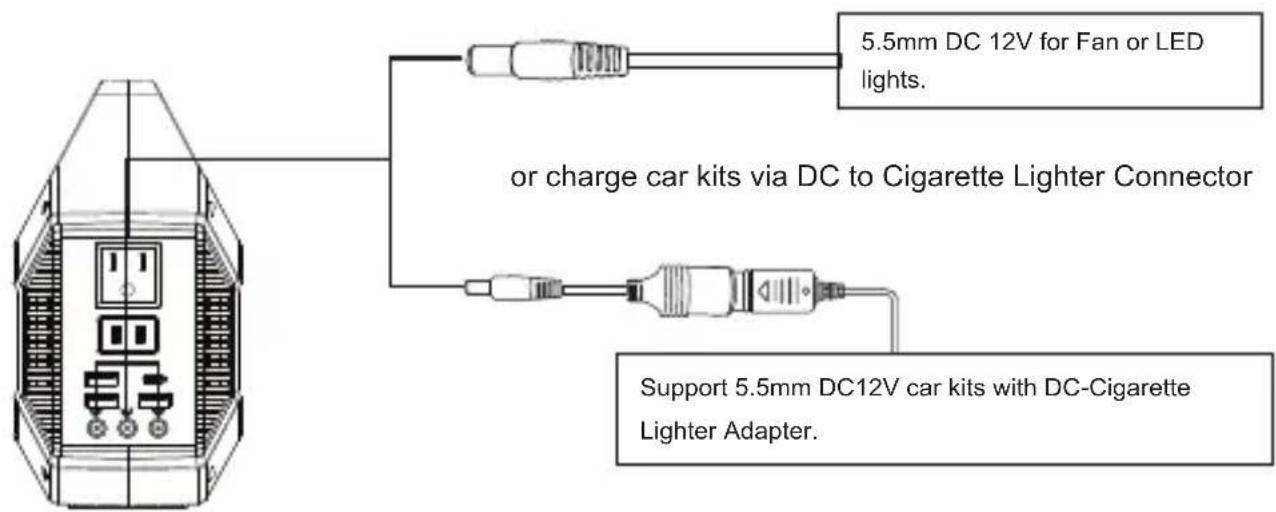

PROVIDING POWER FOR DC 12V APPLIANCES

The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to power them. DC output rated current: 10A, Max output current < 15A .

Notice: Please confirm whether your DC 12V appliance supports charging with a 5.5mm DC plug (The diameter of the DC port of the product is 5.5mm ), otherwise it is unable to connect with the DC output. You can consult the electrical manufacturer or purchase a corresponding adapter.

Note: The 12V DC output voltage ranges between 9V-12.6V, with a maximum output current of < 15A . DC output voltage will drop at low battery. Your appliance may shutdown when input voltage is too low. Please unplug your appliance from the power station and begin recharging.

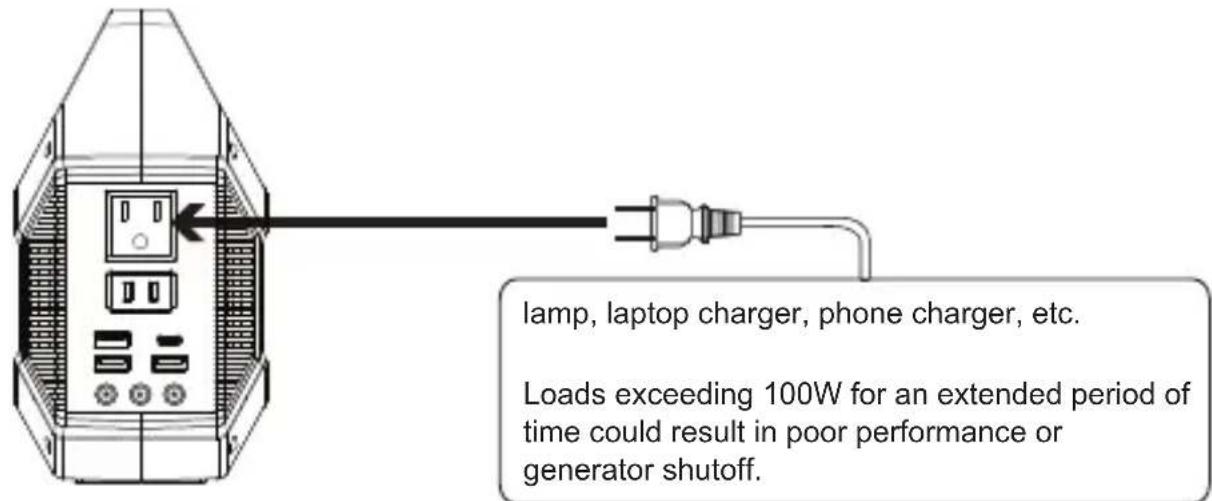

PROVIDING POWER FOR AC APPLIANCES

Connect the power cable plug of the electrical appliance to the AC outlet of the power station and press the power button.

Some devices, such as a refrigerator, ice maker, TV or a microwave may require a surge of power to start up, this surge power could exceed 150W or higher, which could cause the power station to overload and shut off. Please refrain from using high-wattage appliances that could exceed the maximum output.

CANNOT SUPPORT DEVICES MORE THAN 150W

Hair Dryer Induction Cooker Heater

Rice Cooker Electric Drill Electric Kettle

Microwave Oven Toaster Blender

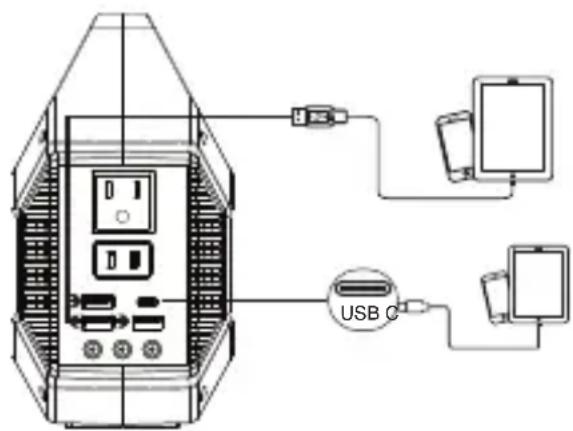

PROVIDING POWER FOR USB APPLIANCES

Connect the USB cable of the appliance to the USB power output on the power station, press the power button “ ” to turn on the USB outputs.

Notice: Some smart devices, such as Bluetooth headphones and LED lights require very small input current to charge, which could be less than 150mA . The generator may fail to charge these kind of smart devices due to power limitation by the USB output ports. On this occasion, press the AC button "D" to keep the USB port output running. Please turn off AC output when the smart devices are fully charged to save power.

QUICK CHARGE OUTPUT

This product features Qualcomm Quick Charge 3.0 output through 5V-9V/2A USB and USB-C ports for smart devices. The actual output voltage and current depends on the device. Obtain this information by consulting the manufacturer.

USING THE LED FLASHLIGHT

This generator features a built-in ultra bright LED flashlight.

Press the button to switch on the flashlight. Press the button again to switch off.

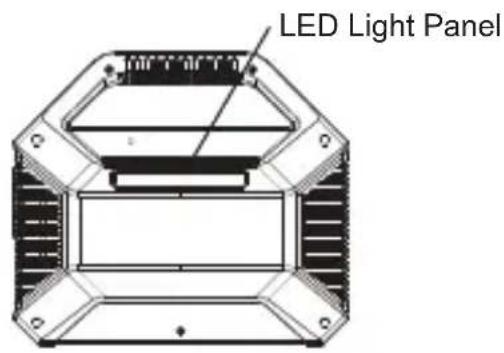

This generator also features a built-in LED light panel. Press the button to switch on the light panel and press the button again to adjust brightness. Press the button again to switch off.

WARNING: Do not point flashlight or LED light panel directly at the eyes.

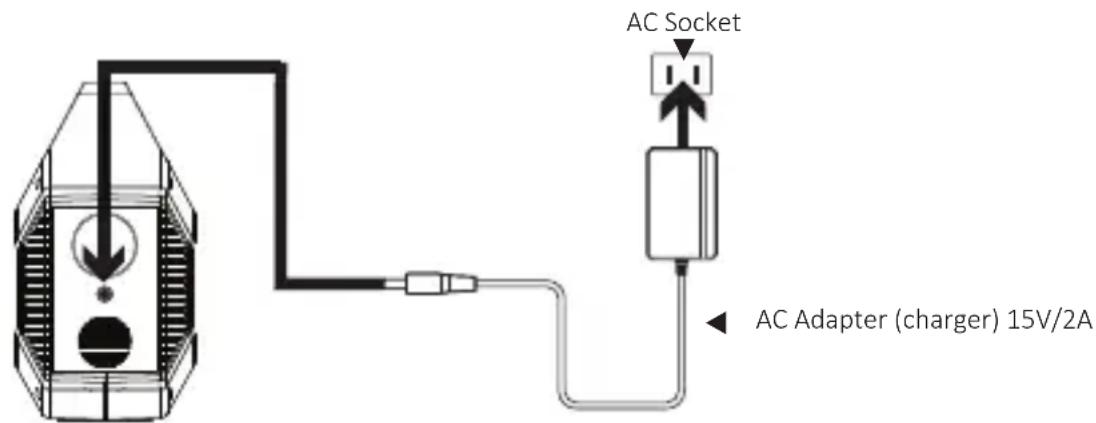

Using the included AC Wall Charger, plug DC end of the charger in the power station. The input is located under the flashlight. Plug the AC end into any household wall outlet. You will know the generator is charging when the blue LED battery indicators are blinking. The generator is fully charged when all battery indicators stop blinking and remain solid. After the generator is fully charged, unplug the charger from the power station.

RECHARGING WITH 12V CAR CHARGER

Using the included car charger, plug the generator into a 12V cigarette lighter (car port) in your vehicle. You will know the generator is charging when the blue LED Battery Indicator lights blink. The generator is fully charged when all battery indicators stop blinking and remain solid. The vehicle must be running in order to charge the power station.

Note: Since the output voltage from 12V car port will vary, charging speed and time will depend on your specific vehicle.

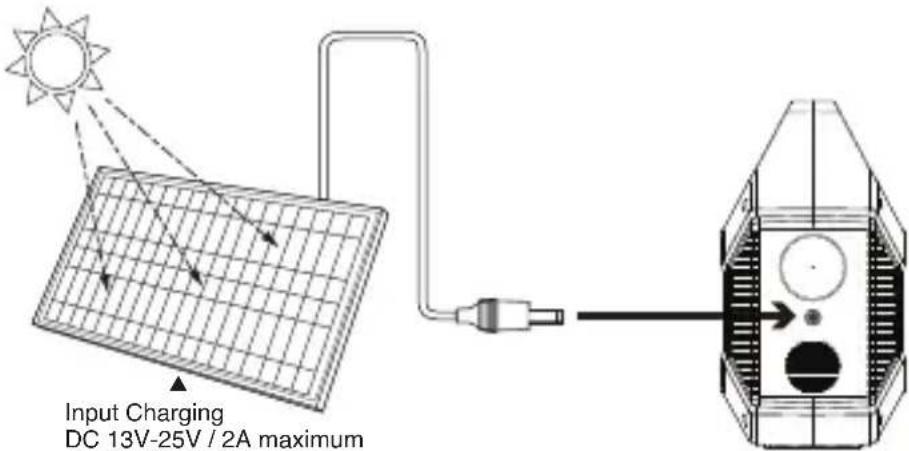

RECHARGING WITH SOLAR PANELS

1. Place your solar panel where it will get as much direct sunlight as possible.

2. Plug the output of the solar panel into the charging input of the Power Station to begin charging. You will know the generator is charging when the blue LED battery indicator lights blink. The generator is fully charged when all battery indicators stop blinking and remain solid.

COLD WEATHER USE

Cold temperatures (below freezing) can affect the unit's battery capacity due to chemical characteristics of the battery. If you'll be living off-grid in sub-zero conditions, we recommend you keep your unit in an insulated cooler, and connected to a power source (solar panels). The natural heat generated by the unit contained in an insulated cooler will keep battery capacity at its highest.

RECYCLE

Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials.

STATEMENT

All rights reserved. Reproduction of this manual in whole or in part without written permission is prohibited. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice.

WARRANTY

RESPONSIBILITY OF THE PARTIES

WESTINGHOUSE OUTDOOR POWER EQUIPMENT LLC'S RESPONSIBILITY

Westinghouse Outdoor Power Equipment LLC (hereinafter "Westinghouse") warrants to the original purchaser that its Westinghouse line of portable solar generators will be free from defects in material and workmanship. Subject to normal use and maintenance from the date of purchase, Westinghouse agrees to repair or replace at Westinghouse's sole discretion, any defective product free of charge at any authorized Westinghouse Service Dealer within the below listed applications, time periods, limitations, and exclusions.

CONSUMER'S RESPONSIBILITY

To ensure trouble free warranty coverage it is important that you register your Westinghouse portable solar generator. You may register on-line at www.westinghouseoutdoorpower.com/register-your-product/, or by automated phone at 1-855-944-3571. Registering your product confirms your warranty coverage and provides a direct link between you and Westinghouse if we find it necessary to contact you regarding your portable solar generator. Transportation charges on a product submitted for repair or replacement under this warranty are the sole responsibility of the purchaser.

Your receipt for purchase including date of purchase, model purchased, and product serial number must be maintained and presented to a Westinghouse

Authorized Service Dealer for warranty service. You must demonstrate reasonable care and use and follow suggested maintenance guidelines as prescribed in the operator's manual for your Westinghouse portable solar generator. Proof of purchase rests solely with you, the original purchaser.

PRODUCT WARRANTY PERIOD

The warranty period for your Westinghouse portable solar generator is 24 months. In each case, the warranty period is measured starting on the date of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, model, and serial number are required in order to establish the start date for the warranty period.

REMEDY

Westinghouse will repair or replace (at Westinghouse's sole option and expense) any Westinghouse portable solar generator product that fails to operate during the applicable warranty period due to defect in workmanship or material. If a valid claim is made during the applicable period, Westinghouse, at its option, will either (1) repair the product, or (2) exchange the product with a product that is of equal value. A replacement product assumes the remaining warranty of the original product or ninety (90) days from the date of replacement, whichever is greater. The customer is fully responsible for the return shipping costs.

The customer is fully responsible for any and all associated ship cost of replacement plastic parts. For questions regarding coverage, please contact [e-mail] or 1-855-944-3571.

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on Westinghouse's portable solar generators are limited to the original consumer purchaser and are not transferable to any subsequent owner.

EXCLUSIONS

Westinghouse portable solar generator warranty does not apply to any of the following:

• Cosmetic defects such as paint, decals, etc.
• Costs of normal maintenance and adjustments.
• Repairs or diagnostics performed by individuals other than a Westinghouse Authorized Service Dealer (unless approved by Westinghouse)
• Failures due to normal wear and tear, accident, misuse, abuse, negligence or improper use.
• Failures caused by any external cause or act of God, including but not limited to, collision, theft, vandalism, riot, war, fire, freezing, lightning, earth-quake, windstorm, hail, water, flood, tornado, or hurricane.
• Damage related to rodent and/or insect infestation.
• Products that are modified or altered in a manner not authorized in writing by Westinghouse.
• Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).
• Failure due to misapplication.
• Telephone, cellular phone, facsimile, Internet access, or other communication expenses.

• Expenses related to "customer instruction" or troubleshooting where no manufacturing defect is found.
  Overnight freight or special shipping costs for replacement part(s).

• Overtime, holiday or emergency labor.

NON-WARRANTABLE APPLICATIONS

Westinghouse portable solar generators are expressly not recommended nor warranted for the following applications:

• Primary Power - power used in place of utility power where utility power service is present or where utility power service does not normally exist.

HOW TO RECEIVE SERVICE

Should you require assistance or have questions about warranty service, please email our customer service and support team at [e-mail] or call 1-855-944-3571.

For the Westinghouse Authorized Service Dealer nearest to you, call Westinghouse's customer service and support team at 1-855-944-3571 or you may locate a Westinghouse Authorized Service Dealer at www. WestinghousePortablePower.com.

TERMS

COMPLETE TERMS OF AGREEMENT

This warranty and returns policy constitutes the full and final agreement of the parties. Any communication, promises, or decisions made before the existence of this agreement are null unless specifically included in this document. Likewise, this warranty supersedes all previous warranty policies.

DISCLAIMER OF IMPLIED WARRANTYES

This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of fitness for a particular purpose or use and any implied warranty of merchantability otherwise applicable to Westinghouse portable solar generators. Westinghouse and its affiliated companies shall not be liable for any special, incidental or consequential damages, including lost profits. There are no warranties extended other than as provided herein.

This limited warranty may be modified only by Westinghouse Outdoor Power Equipment LLC. Any implied warranties allowed by law shall be limited in duration to the terms of the express warranty provided herein. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights. You also have other rights from state to state.

Westinghouse Outdoor Power Equipment LLC's only liability shall be the repair or replacement as stated above. In no event shall Westinghouse Outdoor Power Equipment LLC be liable for any incidental or consequential damages, even if such damages are a direct result of Westinghouse Outdoor Power Equipment LLC's negligence. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights from state to state.

GOVERNING LAW AND FORUM SELECTION

These Terms shall be construed and controlled by the laws of the State of Ohio. The consumer consents to exclusive jurisdiction and venue in the federal and state courts located or nearest to Franklin County, Ohio. The consumer waives all defenses of lack of personal jurisdiction and Forum non Conveniens.

SEVERABILITY

If, but only to the extent that, any provision of this Warranty and Returns Agreement is found to be illegal, unenforceable, or void, both Westinghouse and the consumer shall be relieved of all obligations arising under such provision, it being the intent and agreement of the Parties that this Agreement shall be deemed amended by modifying such provision to the extent necessary to make it legal and enforceable while preserving its original intent. If such amendment is impossible, another provision that is legal and enforceable and achieves the same objective shall be substituted.

, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Outdoor Power Equipment. All Rights Reserved.

Westinghouse Outdoor Power Equipment, LLC

777 Manor Park Drive

Columbus, OH 43228

1-855-944-3571
