Product Type	Side-by-side refrigerator with water and ice dispenser
Brand	GE
Model	GSS20IETBB
Refrigerator Capacity	Approximately 13 cubic feet (estimated)
Freezer Capacity	Approximately 7 cubic feet (estimated)
Dimensions (H x W x D)	Height: approx. 168 cm (66 inches), Width: approx. 91 cm (36 inches), Depth: approx. 81 cm (32 inches)
Weight	Approximately 95 kg (210 lb)
Power Supply	120 V, 60 Hz, 15 A (dedicated circuit)
Refrigerant Type	R-134a (estimated)
Ice Maker	Automatic, produces 7 ice cubes per cycle (approx. 100-130 cubes/24h)
Cold Water Dispenser	Built-in, with water filter
Water Filter	Compatible GE SmartWater MWF cartridge, replacement every 6 months or as indicated
Interior Lighting	Standard bulb, max 6 watts (for dispenser)
Levelers	Adjustable leveling rollers for stability and door alignment
Vegetable Bins	Adjustable humidity bins (High for vegetables, Low for fruits)
Convertible Meat Bin	With adjustable cold air flow for meat or vegetables
Shelves	Spill-proof glass shelves (some models)
Maintenance and Cleaning	Interior cleaning with baking soda, exterior cleaning with mild detergent
Safety	Grounded outlet, do not use extension cord, dispenser lock
Warranty	1 year parts and labor, compressor 5-10 years depending on model

Frequently Asked Questions - GSS20IETBB GE

What to do if the refrigerator is not cooling?

Check that the temperature controls are not set to 0 (off). Make sure the appliance is plugged in and the circuit breaker has not tripped. Wait 24 hours after installation for the temperature to stabilize.

Why is there frost in the freezer?

The door may have been left open or a package may be preventing closure. Check the door gaskets. Avoid opening too often or for too long.

How to replace the water filter?

Turn the old cartridge to the left to remove it. Insert the new one aligning the arrows, turn it to the right until it stops. Run 6 liters of water to purge the system. Reset the indicator by pressing RESET WATER FILTER for 3 seconds.

What to do if the water dispenser is not working?

Check that the water supply is turned on and the filter is not clogged. Purge air by pressing the dispenser arm for 2 minutes. Make sure the dispenser is not locked (press Lock for 3 seconds).

Why is my ice maker not producing ice?

Check that the ice maker switch is ON. Ensure the water line is connected and the freezer is cold enough. Wait 12 to 24 hours after installation. Discard the first batches of ice.

How to adjust the refrigerator and freezer temperatures?

Use the touch controls: press Warmer or Colder. The recommended setting is 37 °F (3 °C) for the refrigerator and 0 °F (-18 °C) for the freezer. Wait 24 hours after each change.

The refrigerator is making a vibration or clicking noise. Is it normal?

Yes, some noises are normal: compressor hum, register clicks, cracking during defrost. Ensure the appliance is level by adjusting the leveling rollers.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a solution of warm water and baking soda (15 ml per liter). Rinse and wipe. Do not use abrasive cleaners. Also clean the freezer drain hole once a year.

What to do if the interior lighting is not working?

Check the fuse or circuit breaker. If the bulb is burned out, replace it with a bulb of the same wattage (max 6 watts for the dispenser). Unplug the appliance before replacing the bulb.

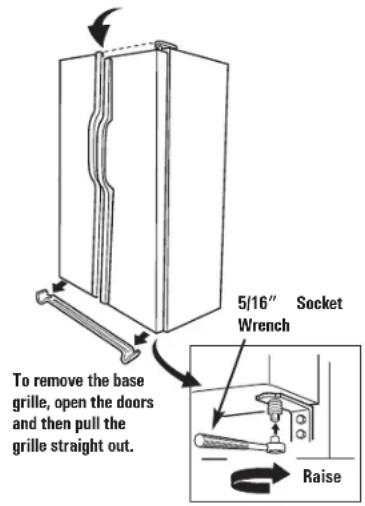

How to align the doors if they do not close properly?

Adjust the leveling rollers by turning the adjustment screws (clockwise to raise, counterclockwise to lower). To align the doors, use a 5/16 inch wrench to turn the refrigerator door adjustment screw.

USER MANUAL GSS20IETBB GE

Owner's Manual and Installation Instructions

Models 20, 22, 25

Safety Information

Connect Electricity 3
Extension Cords 2
Proper Disposal 2
Safety Precautions 2

Operating Instructions

Automatic Icemaker 78
Controls 6
Crispcrs and Pans. 5
How to Install Features 4

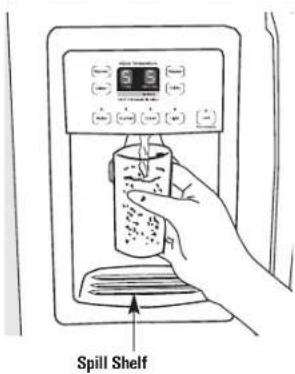

Ice and Water Dispenser .8
Shclvcs and Bins 4
Water Filter Cartridge 7

Care and Cleaning

Clcaning 9
Light Bulbs 9

Installation Instructions

Preparing to Install 10

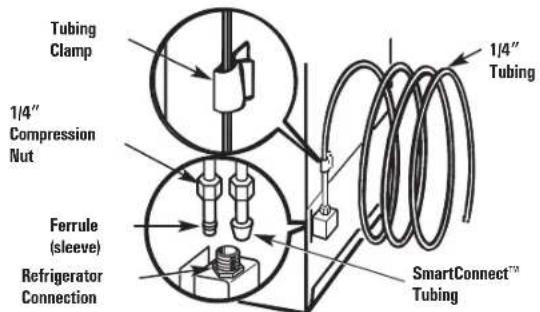

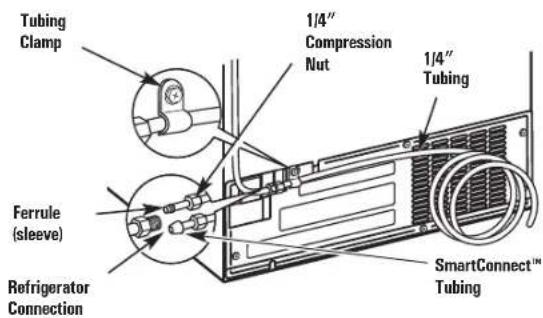

Water Line Installation 11-13

Troubleshooting Tips

Before You Call
For Service 14 16
Normal Operating Sounds 14

Consumer Support

Consumer Support . . .Back Cover
Performance Data Sheet 19
Ownership Registration
(Canadian) 21, 22
State of California Water
Treatment Device Certificate 20
Warranty (Canadian) 17
Warranty (U.S.) 18

Write your model and serial numbers here:

Model#

Serial#

Find these numbers on a label inside the refrigerator compartment at the top on the right side behind the controls.

Côtc à côte

Réfrigérateurs

Use this appliance only for its intended purpose as described in this Owner's Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.
Do not allow children to climb, stand or hang on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
Do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick to thescx extremely cold surfaccs.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

NOTE: Turning the refrigerator off via the controls on the touch panel does not shut off electrical power to the refrigerator.

Do not refreeze frozen foods which have thawed completely.
In refrigerators with automatic icemakers,

avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

• Keep fingers out of the "pinch point" areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
  Unplug the refrigerator before cleaning and making repairs.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

DANGER! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangrous...cvn if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

Tak off the doors.
Leave the shelves in place so that children may not easily climb inside.

Refrigerants

All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely unnecessary that it be a UL-listed (in the United States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

WARNING!

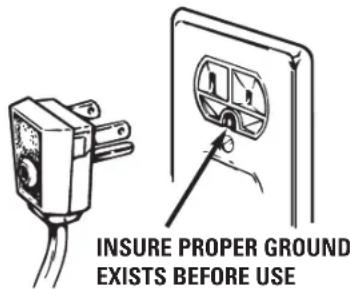

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
If the outlet is a standard 2-prong outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
- Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

Read and follow this Safety Information carefully.

SAVE THESE INSTRUCTIONS

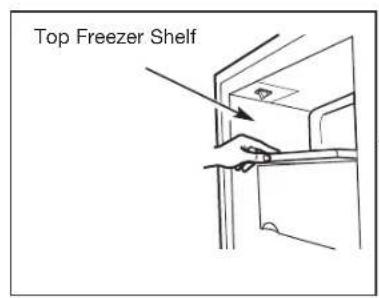

TOP FREEZER SHELF Make sure the shelf front locks into position.

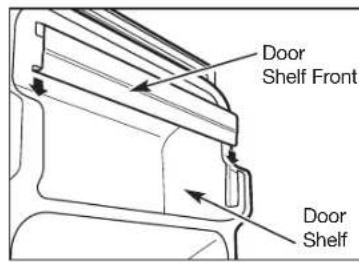

⑦ FREEZER DOOR SHELF FRONTS Make sure that the shelf front locks into position.

NOTE: On dispenser models, the longer shelf fronts go in the top two positions.

To remove: Lift the shelf extender straight up, then pull out.

To replace: Engage the shelf extender in the molded supports of the door and push in. It will lock in place.

② FILTER CARTRIDGE

Make sure the bin fronts lock into position.

③ DAIRY COVER

④ BOTTLE RETAINER

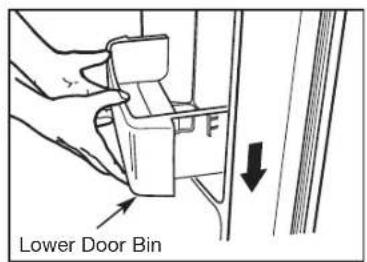

ADJUSTABLE DOOR BINS DOOR BIN SNUGGERS

To remove: Lift the front of the bin up, then pull out.

To replace or relocate: Engage the bin in the molded supports of the door, and push in. Bin will lock in place.

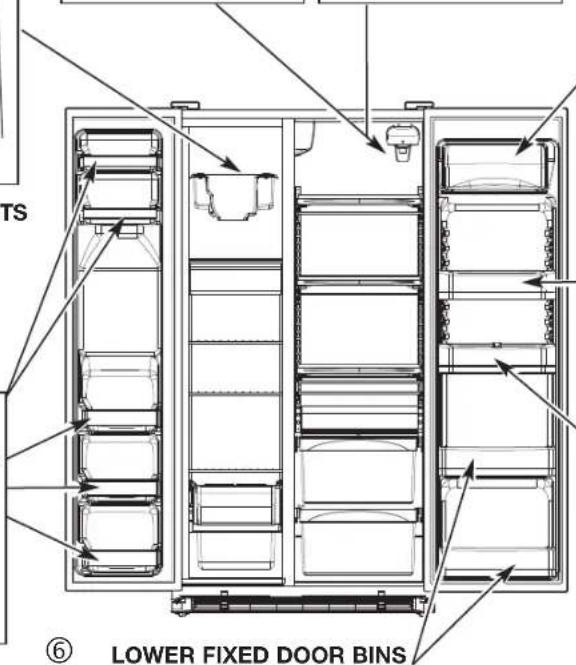

About the shelves and bins (Not all features are on all models.)

Rearranging the Shelves

Refrigerator Shelves:

To Remove

To Replace

Freezer Pan:
To Remove

Freezer Shelves:
To Remove

Remove the pan by pulling it forward, lifting up the front and sliding it past the stop location.

Slide-Out Spillproof Shelf (on some models)

The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.

NOTE: Make sure you push the shelves all the way back in before you close the door.

Spillproof Shelves (on some models)

Spillproof shelves have special edges to help prevent spills from dripping to lower shelves.

About the crispers and pansNot all features are on all models.)

Adjustable Humidity Crispers and Snack Pan (on some models)

Slide the control all the way to the High setting to provide high humidity recommended for most vegetables.

Slide the control all the way to the Low setting to provide lower humidity levels recommended for most fruits.

Convertible Meat Pan (on some models)

The convertible meat pan has its own cold air duct to allow a stream of cold air from the freezer compartment to flow around the pan.

The variable temperature control regulates the air flow from the freezer compartment.

Set control lever up to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. Cold air duct is turned off. Variable settings between these extremes can be selected.

Set control lever down to the coldest setting to store fresh meats. If lever is left in meat position for a long period of time, some frost may form on the inside of the pan.

Crisper Removal

Crispers can easily be removed by tilting up slightly and pulling past stoplocation.

If the door prevents you from taking out the crispers, the refrigerator will need to be rolled forward until the door opens enough to slide the crispers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left as you roll it out.

When replacing the crisers, make sure you slide them through the criser guides.

About the controls on the refrigerator.

Your controls will look like one of the following:

0 IS OFF 9 IS COLDEST

Startup Steps for Proper Temperature Control

STEP1 Set Fresh Food Control on "5."

STEP 2—Set Freczcr Control on "5."

STEP 3- WAIT 12 HOURS for temperature to stabilize.

STEP 4—If a change is needed, move the control one number at a time and allow 12 hours for temperature to stabilize.

NOTE:Turning the refrigerator to the O (off) setting via the controls does not shut off electrical power to the refrigerator.

Control settings will vary based on personal preferences, usage and operating conditions and may require more than one adjustment.

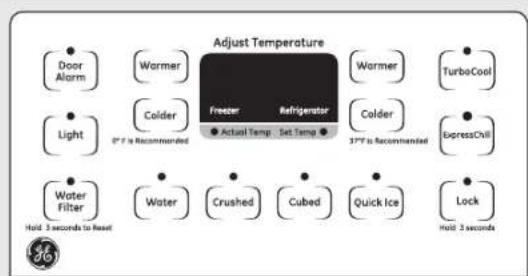

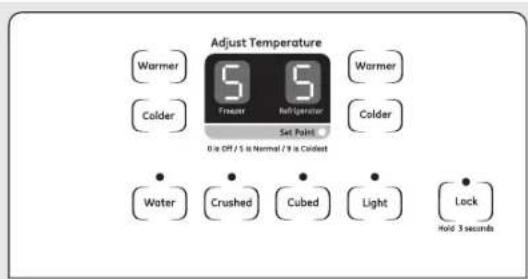

To Change Temperature Control Setting with Touch Pads:

• Frecczcr setting is on the left side of the display.
• Refrigerator setting is on the right side of the display.

Press the Warmer or Colder pad for compartment and direction desired.

Present control setting number will illuminate.

Each time the pad is touched, compartment setting changes one number.

display of 1 is warmest and 9 is the coldest setting.

To Turn Cooling Off:

To stop cooling in the refrigerator and freezer compartments, first repeatedly press the Warmer pad for the freezer until its display continuously flashes "1". Then, using the refrigerator control, repeatedly press Warmer until both displays flash "0", "0" in both displays turns off the cooling system. On some models, it may be necessary to set only one control to 0 to turn off cooling in both compartments.

NOTE:Turning the refrigerator to the O (off)setting via the controls does not shut off electrical power to the refrigerator.

Control settings will vary based on personal preferences, usage and operating conditions and may require more than one adjustment.

The temperature controls are preset in the factory at 37^ for the refrigerator compartment and 0^ for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.

The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.

Setting either or both controls to OFFstops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now.

Water Filter Cartridge

The water filter cartridge is located in the back upper right corner of the refrigerator compartment.

When to Replace the Filter on Models With a Replacement Indicator Light

There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon.

The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.

When to Replace the Filter on Models Without a Replacement Indicator Light

The filter cartridge should be replaced every six months or earlier if the flow of water to the water dispenser or icemaker decreases.

Removing the Filter Cartridge

If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do not pull down on the cartridge. A small amount of water may drip down.

Installing the Filter Cartridge

If you are replacing a SmartWater cartridge with an adapter, it must be removed before installing the cartridge. To remove the adapter, turn it to the left about 1/4 turn.

If you are replacing a Water by Culligan cartridge leave the adapter in place. This adapter will stay in the future cartridges.

With adapter Without adapter (appearance may vary)

On models without a replacement indicator light, apply the month and year sticker to the new cartridge to remind you to replace the filter in six months.

Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation.

About the automatic icemaker.

Line up the arrow on the cartridge and the cartridge holder. Place the top of the new cartridge up inside the holder. Do not push it up into the holder.
Slowly turn it to the right until the filter cartridge stops. DO NOT OVERLIGHTEN. As you turn the cartridge, it will automatically raise itself into position. The cartridge will move about 1/2 turn.
Run water from the dispensscr for 1-1/2 gallons (about three minutes) to clear the system and prevent sputtering.
Press and hold the RESET WATER FILTER pad (on some models) on the dispenser for three seconds.

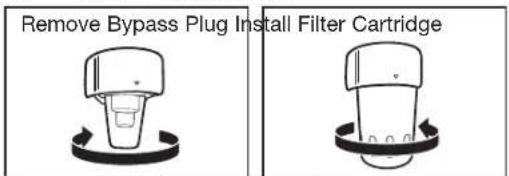

Filter Bypass Plug

You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.

SmartWater

Water by Culligan

To use the filter bypass plug on Water by Culligan models, you must first remove the filter adapter from the cartridge holder by turning it to the left.

For the maximum benefit of your filtration system, GE recommends the use of GE branded SmartWater filters only. Using GE branded filters in GE and Hotpoint refrigerators provides optimal performance and reliability. GE branded SmartWater filters are always the right choice because they are patented and designed specifically for GE products. GE SmartWater filters meet rigorous industry NSF standards for safety and quality that are important for products that are filtering your water. GE has not qualified non-GE branded filters for use in GE and Hotpoint refrigerators and there is no assurance that non-GE branded filters meet GE's standards for quality, performance and reliability.

If you have questions—visit our Wcbsite at GEAppliances.com, or call 1.800.GE.CARES (1.800.432.2737).

Replacement filters:

To order additional filter cartridges in the United States, visit our Website at GEAppliances.com, or call GE Parts and Accessories. 800.626.2002.

Filter Model MWF

Customers in Canada should consult the yellow pages for the nearest Mabe Service Center.

Customers outside of the United States or Canada should contact the local distributor.

A newly-installed refrigerator may take 12-24 hours to begin making ice.

Automatic Icemaker(on some models)

When the refrigerator has been connected to the water supply, slide the power switch to the ON position.

The icemaker will fill with water when it cools to 15^ . When the bin fills to the level of the fcclr arm, the icemaker will stop producing ice.

Be sure nothing interferes with the sweep of the focicr arm.

Throw away the first few batches of ice to allow the water line to clear.

The icemaker will produce seven cubes per cycle approximately 100 130 cubes in a 24-hour period, depending on frcczcr compartment temperature, room temperature, number of door openings and other use conditions.

You will hear a buzzing sound each time the iccmaker fills with water.

It is normal for several cubes to be joined together. If ice is not used frequently, old ice cubes will become cloudy, taste stale, and shrink.

Icemaker Accessory Kit

If your refrigerator did not come already equipped with an automatic icemaker, an icemaker accessory kit is available at extra cost. Check the back of the refrigerator for the specific icemaker kit needed for your model.

About the ice and water dispenser on some models.)

To Use the Dispenser

Select WaterCrushed or Cubed Press the glass gently against the top of the dispenser cradle.

The spill shelf is not self-draining. To reduce water spotting, the shelf and its grille should be cleaned regularly.

Locking the Dispenser (some models)

Press the Lock pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds.

If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water.

CAUTION: Never put fingers or any other objects into the ice crusher discharge opening.

Dispenser Light

This pad turns the night light the dispenser on and off. The light also comes on when the dispenser cradle is pressed. If this light burns out, it should be replaced with a 6 watt maximum, 12 volt DC bulb.

Ice Storage Printer on Dispenser Models

To remove: Slide the icemaker power switch to the OFF position. Pull the drawer straight out and then lift past the stop position.

To replace: When replacing the drawer, make sure to push it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the drawer back again.

Important Facts About Your Dispenser

Do not add ice from trays or bags to the storage bin. It may not crush or dispense well.
Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon.
Beverages and foods should not be quick-chilled in the ice storage bin. Cans, bottles or food packages in the storage bin may cause the icemaker or auger to jam.
To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening.

Some crushed ice may be dispensed even though you selected Cubed. This happens occasionally when a few cubes have been left in the crusher.
After crushed ice is dispensed, some water may drip from the chute.
Sometimes a small mound of snow will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.
The first glass of water dispensed may be warmer than the following ones. This is normal.
Dispensed water is not ice cold. For colder water, simply add crushed ice or cubes before dispensing water.

Cleaning the Outside

The dispenser drip area, on some models) beneath the grille, should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.

The dispenser cradlen some models).Bfore
cleaning,lock the dispenser by pressing and holding
the Lock pad for 3 seconds. Clean with warm water
and baking soda solution--about
a tablespoon (15ml) of baking soda to a quart (1 l)
of water.Rinsc thoroughly and wipe dry.
The door handles and trinClean with a cloth
dampened with soapy water.Dry with a soft cloth.
Keep the outside cleanWipe with a clean cloth
lightly dampened with kitchen appliance wax or
mild liquid dish detergent.Dry and polish with a
clean,soft cloth.

The stainless steel door panels and handles.

The stainless steel panels can be cleaned with a commercially available stainless steel cleaner or a similar product using a clean, soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on stainless steel doors and handles.

For best results, GE recommends using stainless steel cleaner PM10X311 with the WX10X307 polishing cloth, or for convenience the SS cleaning wipes, part number WX10X10001.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Cleaning the Inside

To help prevent odors leave an open box of baking soda in the refrigerator and freezer compartments. Unplug the refrigerator before cleaning, this is not practical, wing excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Usc warm water and baking soda solution about a tablespoon (15ml) of baking soda to a quart (1 l) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape.

Drain opening in freezer compartment during yearly cleaning, remove bottom freezer pan and flush a solution of baking soda—1 teaspoon (5 ml) and 2 cups (500 ml) of hot (not boiling) water through the drain line with the help of a meat baster. This will help eliminate odor and reduce the likelihood of a clogged drain line. If drain becomes clogged, use a meat baster and baking soda solution to force the clog through the drain line.

Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter. Do not shy any plastic refrigerator parts in the dishwasher.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

When pushing the refrigerator back, make sure you don't roll over the power cord or icemaker supply line (on some models).

Preparing for Vacation

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15ml) of baking soda to one quart (1l) of water. Leave the doors open.

Slide the icemaker power switch to the OFF position and shut off the water supply to the refrigerator.

Preparing to Move

Secure all loose items such as grille, shelves and drawers by taping them securely in place to prevent damage.

Be sure the refrigerator stays in an upright position during moving.

Replacing the Light Bulbs

NOTE:Turning the refrigerator to the 0(off) setting via the controls does not shut off electrical power to the refrigerator.

Unplug the refrigerator.

Replace with an appliance bulb of the same or lower wattage.

2 Remove the shelf just below the light shield.

4 Reinstall the shelf and plug the refrigerator back in.

Installation Instructions

Models 20, 22, 25

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and ordinances.
  Note to Installer - Bc sure to leave these instructions with the Consumer.
  Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical skills.
• Completion time - Refrigerator Installation 15 minutes
• Proper installation is the responsibility of installer.
• Product failure due to improper installation is not covered under the Warranty.

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 60^ (16^) because it will not run often enough to maintain proper temperatures.
• Install it on a floor strong enough to support it fully loadcd.

ROLLERS

The rollers have 3 purposes:

Rollers adjust so the door closes easily when opened about halfway.
Rollers adjust so the refrigerator is firmly positioned on the floor and does not wobble.
Rollers allow you to move the refrigerator away from the wall for cleaning.

To adjust the rollers to remove the base grille by pulling it out at the bottom.

Turn the roller adjusting screws clockwise to raisethe refrigerator, counterclockwise to lowct. Usc an adjustable wrench (3 / 8^ hex head bolt) or piers.

To replace base grille up the clips on back of grille between the bar and the bottom of the cabinet. Push forward until grille snaps into place.

WATER SUPPLY TO THE ICEMAKER (on some models)

If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE water supply kit is available at extra cost from your dealer, by visiting our Website at GEAppliances.com (in Canada, at www.GEApliances.ca), or from Parts and Accessories, 800.626.2002.

CLEARANCES

Allow the following clearances for case of installation, proper air circulation and plumbing and electrical connections.

• Sides 1 / 8'' (4 mm) Top 1'' (25 mm) - Back 1'' (25 mm)

A door clearance of 3 / 4^ (19 mm) is needed for a 90^ door opening which provides better access to food storage area.

DOOR ALIGNMENT

After leveling, make sure that doors are even at the top.

To make the doors even adjust the refrigerator door.

Using a 5 / 16^ socket wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it. (A nylon plug, embedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)
After one or two turns of the wrench, open and close the refrigerator compartment door and check the alignment at the top of the doors.

INSTALLING THE WATER LINE

BEFORE YOU BEGIN

Rccommended copper water supply kits arc WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines arc GE SmartConnct™ Rcfrigcrator Tubing (WX08X10002, WX08X10006, WX08X10015 and WX08X10025).

When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer's recommendations.

If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator's filter bypass plug. Using the refrigerator's water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes and slower water flow from the water dispenser.

This water line installation is not warranted by the refrigerator or iccmaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the OFF position. Do not install the icemaker tubing in areas where temperatures fall below freezing.

All installations must be in accordance with local plumbing code requirements.

WARNING supply only.

Connect to potable water

WHAT YOU WILL NEED

Copper or GE SmartConnect Refrigerator Tubing kit, 1 / 4^ outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

GE SmartConnect Refrigerator Tubing Kits are available in the following lengths:

2^(0.6m) - WX08X10002

6^(1.8m) - WX08X10006

15^(4.6m) -WX08X10015

25^(7.6m) WX08X10025

WHAT YOU WILL NEED (CONT.)

NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002.
• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4-8.2 bar) on models without a water filter and between 40 and 120 p.s.i. (2.8-8.2 bar) on models with a water filter.
• Power drill.
  1 / 2^ or adjustable wrench.
• Straight and Phillips blade screwdriver.

• Two 1/4'' outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

OR

If you are using a GE SmartConnectTM Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnectTM Refrigerator tubing.

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32'' at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Install the shutoff valve on the nearest frequently used drinking water line.

1 SHUT OFF MAIN WATER SUPPLY

2 DRILL THE HOLE FOR THE VALVE

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

Drill a 1/4'' hole in the water pipe (even if using a self-piercing valve) using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4'' hole may result in reduced ice production or smaller cubes.

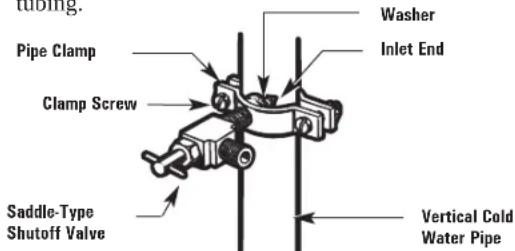

3 FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten or you may crush the tubing. ___ Washer

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

4 ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

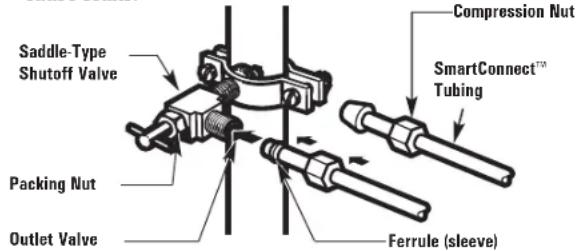

5 CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.

Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

For plastic tubing from a GE SmartConnectTM Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

6 FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

7 CONNECT THE TUBING TO THE REFRIGERATOR

NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.
• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator's water valve. Install it in the water line near the refrigerator. If using a GE SmartConnect™ Refrigerator Tubing kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

7 CONNECT THE TUBING TO THE REFRIGERATOR(CONT.)

Some models have the refrigerator connection at the end of tubing located outside the compressor compartment access cover. On other models, the compressor compartment access cover must be removed in order to access the refrigerator connection at the water valve.

On models using the refrigeration connection at the water valve, remove the plastic flexible cap.

Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown. On a GE SmartConnect Refrigerator Tubing kit, the nuts are already assembled to the tubing.

Insert the end of the tubing into the refrigerator connection as far as possible. While holding the tubing, tighten the fitting.

For plastic tubing from a GE SmartConnect Refrigerator Tubing kit, insert the molded end of the tubing into the refrigerator connection and tighten the compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

Fasten the tubing into the clamp provided as shown to keep it in position. You may need to pry open the clamp.

One of the illustrations below will look like the connection on your refrigerator.

7 CONNECT THE TUBING TO THE REFRIGERATOR (CONT.)

8TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

Reattach the access cover.

9 PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

10 START THE ICEMAKER

Slide the icemaker power switch to the ON position. The icemaker will not begin to operate until it reaches its operating temperature of 15^(-9^) or below. It will then begin operation automatically if the icemaker power switch is in the ON position.

Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology.

Do you hear what I hear? These sounds are normal.

HUMMM... WHOOSH...

The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.
Sometimes the refrigerator runs for an extended period, especially when the doors are opened frequently. This means that the Frost Guard™ feature is working to prevent freezer burn and improve food preservation.
You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator.

CLICKS,POPS, CRACKS and CHIRPS

You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.
Electronic dampers click open and closed to provide optimal cooling and energy savings.
The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).
The electronic control board may cause a clicking sound when relays activate to control refrigerator components.
Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.
On models with an icemaker, after an icemaking cycle, you may hear the icc cubes dropping into the icc bucket.

• You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.
  If either door is open for over 3 minutes, you may hear the fans come on in order to cool the light bulbs.
  The fans change speeds in order to provide optimal cooling and energy savings.

WATERSOUNDS

The flow of refrigerant through the freezer cooling coils may make a gurgling noise like boiling water.
Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.
A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.
Closing the door may cause a gurgling sound due to pressure equalization.

Before you call for service...

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Refrigerator does not Refrigerator in defrost cycle.	Wait about 30 minutes for defrost cycle to end.
Freezer controlin 0 (off)position.	Move the freezer control to a lower temperature setting.
Refrigerator is unplugged.	Push the plug completely into the outlet.
The fuse is blown/circuitbreaker is tripped.	Replace fuse or reset the breaker.
Refrigerator or freezer Temperature control not setcompartment too warm cold enough.	Scc About the controls.
Warm weather or frequentdoor openings.	Set the temperature control one step colder.See About the controls.
Door left open.	Check to see if package is holding door open.
Problem Possible Causes What To Do
Vibration or rattling Front rollers need adjusting. • See Rollers. Slight vibration is normal.
Motor operates for Normal when refrigerator long periods or cycles is first plugged in.	Wait 24 hours for the refrigerator to completely cool down.
Often occurs when large amounts of food are placed in refrigerator.	This is normal.
Door left open.	Check to see if package is holding door open.
Hot weather or frequent door openings.	This is normal.
Temperature controls set at the coldest setting.	See About the controls.
Frost or ice crystals Door left open.	Check to see if package is holding door open.
Too frequent or too long door openings.
Divider between Automatic energy saver refrigerator and freezer system circulates warm compartments liquid around front edge feels warm of frezer compartment.	This helps prevent condensation on the outside.
Automatic icemaker Icemaker power switch is in the OFF position.	Slide the power switch to the ON position.
Water supply turned off or not connected.	See installing the water line.
Freezer compartment too warm.	Wait 24 hours for the refrigerator to completely cool down.
Piled up cubes in the storage bin cause icemaker to shut off.	Level cubes by hand.
Ice cubes stuck in icemaker.	Turn off the icemaker, remove cubes and turn the icemaker back on.
Ice cubes have odor/taste	Empty and wash bin. Discard old cubes.
Food transmitting odor/taste to ice cubes.	Wrap foods well.
Interior of refrigerator needs cleaning.	See Care and cleaning.
Small or hollow cubes	Replace filter cartridge with new cartridge or with plug.
Slow ice cube freezing	Check to see if package is holding door open.
Temperature control not set cold enough.	See About the controls.
Door not closing properly	Apply petroleum jelly on face of gasket.
Orange glow in freezer	This is normal.
Cube dispenser does not work (on some models)	Turn on icemaker or water supply turned off.
Ice cubes are frozen to icemaker feeler arm.	Remove cubes.
Irregular ice clumps in storage container.	Break up with fingertip pressure and discard remaining clumps. Freeze may be too warm. Adjust the freezer control to a colder setting, one position at a time, until clumps do not form.
Dispenser is LOCKED.	Press and hold the Lockpad for 3 seconds.

Problem Possible Causes What To Do
Water has poor taste/odor Water dispenser has not been (on some models) used for a long time.		·Dispense water until all water in system is replenished.
Water in first glass is Normal when refrigerator warm (on some models) is first installed.		·Wait 24 hours for the refrigerator to completely cool down.
		·Dispense water until all water in system is replenished.
		·Allow several hours for replenished supply to chill.
Water dispenser does Water supply line turned not work (on some models) off or not connected.		·Scc installing the water line.
		·Replace filter cartridge or remove filter and install plug.
		·Press the dispenser arm for at least two minutes.
		·Press and hold the Lockpad for 3 seconds.
Water spurting from Newly-installed filter cartridge.		·Run water from the dispenser for 3 minutes (about 1½ gallons).
Water is not dispensed Water in reservoir is frozen.		·Call for service.
No water or ice cube production	Supply line or shutoff valve is clogged.	·Call a plumber.
	Water filter clogged.	·Replace filter cartridge or remove filter and install plug.
	Dispenser is LOCKED.	·Press and hold the Lockpad for 3 seconds.
Refrigerator has odor	Foods transmitting odor to refrigerator.	·Foods with strong odors should be tightly wrapped. ·Keep an open box of baking soda in the refrigerator; replace every three months.
	Interior needs cleaning.	·See Care and cleaning.
	Defrost water drainage system needs cleaning.	·Scc Care and cleaning.
Moisture forms on outside of refrigerator	Not unusual during periods of high humidity.	·Wipe surface dry.
Moisture collects inside Too frequent or too long door openings.
Interior light does not work	No power at outlet.	·Replace fuse or reset the breaker.
	Light bulb burned out.	·See Replacing the light bulbs.
Water on kitchen floor or on bottom of freezer	Drain in the bottom of the freezer clogged.	·Scc Care and cleaning.
	Cubes jammed in chute.	·Poke ice through with a wooden spoon.
Hot air from bottom Normal air flow cooling motor. of refrigerator	In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures.
Cubed ice was selected but Crushed ice was dispensed (in some models)	Last setting was Crushed ice.	·A few cubes were left in the crusher from the previous setting. This is normal.
Frequent “buzzing” sound	Icemaker power switch is in the ON position but the water supply to the refrigerator has not been connected.	·Slide the power switch to the OFF position. Keeping it in the ON position will damage the water valve.

CUSTOMER WARRANTY

(for customers in Canada)

Your refrigerator is warranted to be free of defects in material and workmanship.

What is covered How Long Warranted Parts Labour (From Date of Sale) Repair or Replace at Mabe's Option
Compressor GE Profile: Ten (10) Years GE Profile: Ten (10) GE and All Other GE and All Other GE and All Other Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year
Sealed System (including evaporator, condenser tubing and refrigerant)	GE Profile: Five (5) Years GE and All Other Brands: One (1) Year Brands: One (1) Year	GE Profile: Five (5) Years GE and All Other Brands: One (1) Year Brands: One	GE Profile: Five (5) Years GE and All Other (1) Year
All Other Parts	One (1) Year	One (1) Year One (1)	Year

TERMS AND CONDITIONS:

This warranty applies only for single family domestic use in Canada when the Refrigerator has been properly installed according to the instructions supplied by Mabe and is connected to an adequate and proper utility service.

Damage due to abuse, accident, commercial use, and alteration or defacing of the serial plate cancels all obligations of this warranty.

Service during this warranty period must be performed by an Authorized Mabe Service Agent.

Neither Mabe nor the Dealer is liable for any claims or damages resulting from failure of the Refrigerator or from service delays beyond their reasonable control.

To obtain warranty service, purchaser must present the original Bill of Sale. Components repaired or replaced are warranted through the remainder of the original warranty period only.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

This warranty is in addition to any statutory warranty.

WHAT IS NOT COVERED:

• Owner is responsible to pay for service calls related to product installation and/or teaching how to use the product.
• Damage to finish must be reported within 48 hours following the delivery of the appliance.
• Damage to finish after delivery.
• Improper installation—proper installation includes adequate air circulation to the refrigeration system, adequate electrical, plumbing and other connecting facilities.
• Replacement of house fuses or resetting of circuit breakers.
• Replacement of light bulbs.
• Damage to product caused by accident, fire, floods or acts of God.
• Loss of food due to spoilage.
• Proper use and care of product as listed in the owner's manual, proper setting of controls.
  Product not accessible to provide required service.
• Damage caused by a non-GE brand water filter.
• WARRANTY OR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

EXCLUSION OF IMPLIED WARRANTYES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

IMPORTANT

Keep this warranty and your bill of sale as proof of original purchase and purchase date. Please have serial number and model number available when calling for service.

Mabe Service is available coast to coast. If further help is needed concerning this warranty, contact:

Manager, Consumer Relations

Mabe Canada Inc., Consumer Service

1 Factory Lane, Suite 310

Moncton, New Brunswick E1C 9M3

1.800.561.3344

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

Refrigerator Warranty For customers in the United States)

All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service, on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

GE and GE PROFILE MODELS:

One Year Any part

of the refrigerator which fails due to a defect in materials or workmanship.

From the date of the During this

limited one-year warrantyGE will also provide, free of charge, all labor and

original purchase related service to replace the defective part.

Thirty Days Any part

of the water filter cartridge which fails due to a defect in materials or workmanship.

(Water filter, if included) During this limited thirty-day warrantyE will also provide free of chargea replacement water

From the original filter cartridge.

purchase date of

the refrigerator

GE PROFILE MODELS ONLY:

Five Years Any part of the sealed refrigerating system

(the compressor, condenser, evaporator

(GE Profile models only)

and all connecting tubing) which fails due to a defect in materials or workmanship.

From the date of the During this limited five-year sealed refrigerating system warrantyE will also provide,

original purchase

free of charge, all labor and related service to replace the defective part in the sealed

refrigerating system.

What GE Will Not Cover:

Service trips to your home to teach you how to use the product.

Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.

Improper installation, delivery or maintenance.

Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.

• Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above.

Loss of food due to spoilage.

Damage to the product caused by accident, fire, floods or acts of God.

Replacement of house fuses or resetting of circuit breakers.

Damage caused after delivery.

• Incidental or consequential damage caused by possible defects with this appliance.

Product not accessible to provide required service.

Damage caused by a non-GE brand water filter.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Performance Data Sheet SmartWater Filtration System-GE® MWF Cartridge

This system has been tested and certified in filter model GE MWF according to NSF/ANSI Standards 42 and 53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.* (Safety factors built in for unmetered usage)

Standard No. 42: Aesthetic effects

Substance Reduction Average Influent		NSF Specified Challenge Concentration	Average % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements	NSF Test Report
Chlorine Taste & Odor	2.0 mg/L 2.0mg/L	±10% 97.5% 0.05 mg/L N/A	≥50% J-00077703
Nominal Particulate Class I, ≥0.5 to <1.0 μm	7,833,333 pts/mL	At least 10,000 particles/mL	99.7%	18,617 pts/mL	N/A	≥85%	J-00077704

Standard No. 53: Health effects

Substance Reduction Average Influent		NSF Specified Challenge Concentration	Average % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements	NSF Test Report
Cyst*	147,5000 cysts/L	Minimum 50,000 cysts/L	99.99%	1 cyst/L	N/A	≥99.95%	J-0007721
Asbestos	47 MF/L	10to 10 fibers/L; fibers greater than 10 μm in length	>99% <1 MF/L	N/A ≥99%	J-00077707
Atrazine	0.009 mg/L	0.009 mg/L ± 10%	94.5%	0.0005 mg/L	0.003 mg/L	N/A	J-00077708
Benzene	0.016 mg/L	0.015 mg/L ± 10%	96.7%	0.0005 mg/L	0.005 mg/L	N/A	J-00077717
Carbofuran	0.08 mg/L	0.08 mg/L ± 10%	98.7%	0.001 mg/L	0.04 mg/L	N/A	J-00077718
Endrin	0.006 mg/L	0.006 mg/L ± 10%	95.6%	0.0003 mg/L	0.002 mg/L	N/A	J-00082185
Lead @ pH 6.5	0.152 mg/L	0.15 mg/L ± 10%	99.3%	0.001 mg/L	0.010 mg/L	N/A	J-00077722
Lead @ pH 8.5	0.148 mg/L	0.15 mg/L ± 10%	99.3%	0.001 mg/L	0.010 mg/L	N/A	J-00077723
Lindane	0.002 mg/L	0.002 mg/L ± 10%	99%	0.00002 mg/L	0.0002 mg/L	N/A	J-00077726
Mercury @ pH 6.5	0.0058 mg/L	0.006 mg/L ± 10%	93.2%	0.0004 mg/L	0.002 mg/L	N/A	J-00077727
Mercury @ pH 8.5	0.0061 mg/L	0.006 mg/L ± 10%	93.2%	0.0004 mg/L	0.002 mg/L	N/A	J-00077728
P-Dichlorobenzene	0.222 mg/L	0.225 mg/L ± 10%	99.7%	0.005 mg/L	0.075 mg/L	N/A	J-00077729
Tetrachloroethylene	0.015 mg/L	0.015 mg/L ± 10%	96.6%	0.0005 mg/L	0.005 mg/L	N/A	J-00082184
Toxaphene	0.015 mg/L	0.015 mg/L ± 10%	93.2%	0.001 mg/L	0.003 mg/L	N/A	J-00077730
2,4-D	0.218 mg/L	0.210 mg/L ± 10%	99.5%	0.0009 mg/L	0.07 mg/L	N/A	J-00077705

*Based on the use of Cryptosporidium parvum oocysts
Capacity 300 gallons (1,135 liters). Contaminant reduction determined by NSF testing.

Application Guidelines/Water Supply Parameters

Service Flow	0.5 gpm (1.9 lpm)
Water Supply	Potable Water
	40-120 psi (2.8-8.2 bar)
	33°F-100°F (0.6°C-38°C)

It is essential that the manufacturer's recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information.

Operating Specifications

Pressure requirement: 40-120 psi (2.8-8.2 bar), non-shock
Temperature: 33-100°F (0.6-38°C)
Flow rate: 0.5 gpm (1.9 lpm)

General Installation/Operation/Maintenance Requirements

• Flush new cartridge at full flow for 1-1/2 gallons (about three minutes) to purge trapped air.
• Replace cartridge when flow becomes too slow.
• Protect from freezing by removing filter cartridge when temperatures are expected to drop below 33^ (1°C). Do not install systems in areas where ambient temperatures may go above 100^ or below 40^ . Do not install on a hot water supply.

Special Notices

• Installation instructions are included with the product when shipped.
  This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter cartridges.

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

• The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.

• Check for compliance with the applicable state and local laws and regulations.
  Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Systems must be installed and operated in accordance with manufacturer's recommended procedures and guidelines.
• Installation and use MUST comply with all state and local plumbing codes. Do not install if water pressure exceeds 120 psi. If your water pressure exceeds 80 psi (552 kPa), you should install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.
• Where a backflow prevention device is installed on a water system, a device for controlling pressure due to thermal expansion must be installed.

Tested and Certified by NSF International against ANSI/NSF Standards 42 and 53 in model GE MWF for the reduction of:

Standard No. 42: Aesthetic Effects

Chemical -Chlorine Taste and Odor

Mechanical Filtration Particulate Reduction, Class I

Standard No. 53: Health Effects

Chemical Reduction Atrazine Reduction Endrin Reduction Benzene and Carbo 1,4 Dichlorobenzer 2,4-D Reduction

Lead and Lindane Reduction Mercury and Toxaphene Reduction Mechanical Filtration Cyst and Asbestos Reduction

GE

Appliances

Appliance Park

Louisville, KY 40225

geapplianceparts.com

19

© 2010 GE Company

PC61278B

State of California

Department of Public Health

Water Treatment Device

Certificate Number

-169805

Date Issued: February 2, 2010

Trademark/Model Designation

GE MWF

Replacement Elements

MWF

Manufacturer: General Electric Company

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:

Microbiological Contaminants and Turbidity

Cysts Asbestos

Inorganic/Radiological Contaminants

Lead

Mercury

Organic Contaminants

Atrazine

Benzene

Carbofuran

Endrin

Lindane

Tetrachloroethylene

Toxaphene

1,4-dichlorobenzene

2,4-D

Rated Service Capacity: 300 gal

Rated Service Flow: 0.5gpm

Conditions of Certification:

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

For Canadian Customers

CUT ALONG THIS LINE AND RETURN CARD—THANKS

OWNERSHIP REGISTRATION CERTIFICATE - FICHE D'INSCRIPION DU PROPRIÉTAIRE
Please register your product to enable us to contact you in the remote event a safety notice is issued for this product and to allow for efficient communication under the terms of your warranty, should the need arise.			Veuillage enregistrer votre produit afin de nous permettre de communiquer avec vous si jamais un avis de sécurité concernant ce produit était émis et de communiquer facilement avec vous en vertu de votre garantie, sile besoin s'en fait partager.
REGISTER ON-LINE: www.geappliances.ca ENREGISTREMENT SUR INTERNETÀ: www.electromenagersge.ca MAIL TO: P.O. BOX 1780, MISSISSAUGA POSTER À: ONTARIO, L4Y 4G1 ENREGISTREMENT SUR INTERNETÀ: www.electromenagersge.ca
□ MR./M □ MRS./MME. □ MISS/MLLE. □ MS.	FIRST NAME /PRÉNOM		LAST NAME/NOM
STREET NO/N° RUE	STREET NAME/RUE				APT. NO/APP./RR#
CITY/VILLE				PROVINCE	POSTAL CODE/POSTAL
AREA CODE/IND.RÉG.	TELEPHONE	E-MAIL
DID YOU PURCHASE A SERVICE CONTRACT FOR THIS APPLIANCE? AVEZ-VOUS ACHETÉ UN CONTRAT DE SERVICE POUR CET APPAREIL?			YES/oui ☐ IF YES/SI OUI: EXPIRATION Y/A M D/J NO/NON ☐
NAME OF SELLING DEALER/NOM DU MARCHAND				MODEL/MODELE
INSTALLATION DATE/DATE D'INSTALLATION Y/A M D/J		CORRESPONDENCE ☐ ENGLISH CORRESPONDANCE ☐ FRANÇAIS		SERIAL/SÉRIE
□ I do not wish to receive any promotional offers regarding this product. □ Je ne désirsé pas recevoir d'affres promotionnelles concernant ce produit.

Cut here

Please place in envelope and mail to:

Clayette coulissante anti-deversement (sur certains modeles)

3 FIXEZ LE ROBINET D'ARRET

-Reduction des particules, Class I

Louisville, KY 40225

geapplianceparts.com

© 2010 GE Company PC612788

Site Web apparcils electromenagers GE

www.electromenagersge.ca

5 CONECTE LA TUBERIA A LA VALVULA

Louisville, KY 40225

geapplienceparts.com

DE REEMPLAZO

Pagina Web de GE

GEAppliances.com

General Manager, Customer Relations

GE, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Website 24 hours a day, any day of the year! You can also shop for more great GE products and take advantage of all our on-line support services designed for your convenience. In Canada: www.GEAppliances.ca

Schedule Service

In the U.S.: GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 1.800.561.3344

Real Life Design Studio

In the U.S.: GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories

In the U.S.: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

Contact Us

In the U.S.: GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE, Appliance Park

Louisville, KY 40225

In Canada: www.GEAplianccs.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Register Your Appliance

In the U.S.: GEAppliances.com

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise.

You may also mail in the pre-printed registration card included in the packing material, or detach and use the form in this Owner's Manual. In Canada: www.GEApliances.ca
