CEMF36R - Electric oven CONTINENTAL EDISON - Free user manual and instructions

Product type	Electric oven
Brand	Continental Edison
Model	CEMF36R
Reference	KR-F36RCL-E1Dkh
Capacity	36 L
Voltage	230 V ~
Frequency	50-60 Hz
Rated power	1500 W
Temperature range	100 °C – 220 °C
Timer	Mechanical, up to 60 minutes
Thermostat	Adjustable
Heating indicator	Yes
Cooking functions	Traditional, Convection, Grill + convection, Traditional rotisserie, Turbo rotisserie
Provided accessories	Grid, drip tray, rotisserie with handle
Estimated dimensions (W x D x H)	48 x 38 x 32 cm
Estimated net weight	12 kg
Door material	Glass
Cleaning and maintenance	Manual cleaning with soft cloth and dish liquid; do not immerse; do not use abrasive products
Safety	Manual shut-off via timer; do not use external timer; hot surfaces
Power cord length	Approximately 0.8 m
Energy class	Not specified (estimated: A)
Energy consumption	Not specified (estimated: 0.75 kWh/cycle)
Repairability	Spare parts available via after-sales service
Warranty	Manufacturer warranty (contact retailer)
Origin	Imported by A.M.C.

Frequently Asked Questions - CEMF36R CONTINENTAL EDISON

Why is there smoke and a smell during the first use?

This is normal. The first use may emit a slight odor and some smoke due to the burning of manufacturing residues. Run the oven empty (without food) at 220°C for 15 minutes in a well-ventilated room.

How to set the timer?

Turn the timer knob fully clockwise, then turn back to the desired time. The oven will stop automatically at the end of the set time.

Can I leave the oven unattended while cooking?

It is recommended to monitor the oven, especially when cooking fatty foods. Always unplug the appliance after use or during prolonged absence.

How to clean the inside of the oven?

Let the oven cool completely, then clean the interior walls with a damp sponge and mild dish liquid. Never use abrasive products or sharp objects. Do not let water enter the ventilation openings.

How to use the rotisserie?

Thread the meat onto the spit, secure it with the forks. Place the drip tray below, insert the spit into the drive mechanism, close the door leaving it ajar. Select the rotisserie function and set the temperature and timer. Use the handle to remove the hot rotisserie.

What to do if the heating indicator does not light up?

Check that the oven is plugged in and the outlet works. Ensure the function selector and thermostat are set. If the indicator remains off, contact after-sales service.

Can I use aluminum foil in the oven?

Yes, for fatty foods, place a sheet on the drip tray and another on the food to prevent oil splashes. Ensure not to block the ventilation openings.

Does the oven heat properly?

For optimal cooking, always preheat the oven to the desired temperature. Convection ensures even heat distribution. If cooking is slow, check that the ventilation openings are not blocked.

How to clean the accessories (grid, drip tray)?

Wash them by hand with a soft cloth and dish liquid, then dry completely. Do not use abrasive products or metal scrapers.

What types of dishes can I use in this oven?

Use oven-safe dishes made of metal, glass, or heat-resistant ceramic. Do not place plastic or wooden containers. The grid is suitable for dry foods, the drip tray for gratins and meats.

USER MANUAL CEMF36R CONTINENTAL EDISON

Abstract geometric shapes resembling partial arcs or crescent, rendered in dark gray with no text or symbols.

Continental Edison

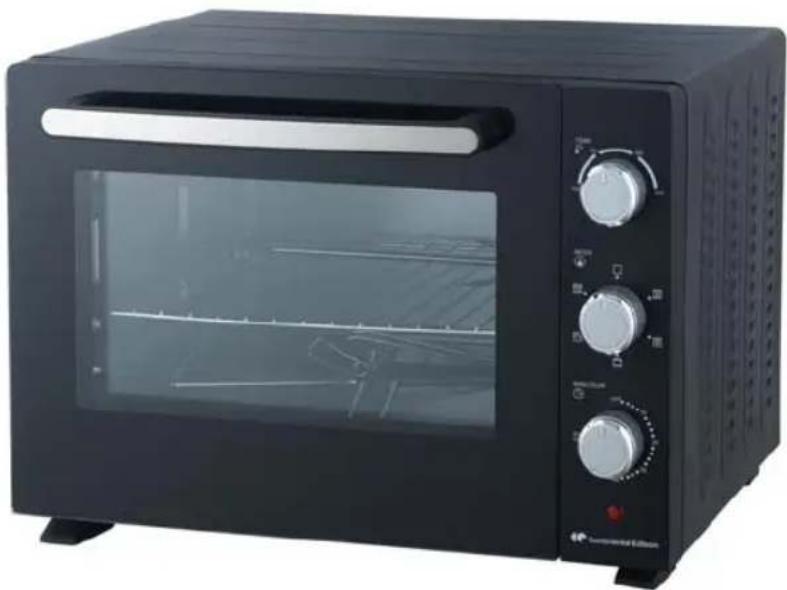

Black portable microwave oven with open glass door and control knobs (no visible text or symbols)

CEMF35B3 CEMF36W CEMF36R

Labeled diagram of a microwave oven with numbered parts for identification and assembly reference.

Diagram illustrating the preparation process of a chicken, showing whole and cross-sections with food items.

CONSEILS D'UTILISATION

Follow basic safety precautions, including:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical shock, do not immerse cord, plugs or cooking unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. The appliance is not intended for use by young children or infirm persons without supervision.
6. Young children should be supervised to ensure that they do not play with the appliance.
7. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
8. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliances to the nearest authorized service facility for examination, repair, electrical or mechanical adjustment.
9. The use of accessory attachments, not recommended or sold by the appliance manufacturer, may cause hazards.
10. Do not use outdoors.
11. Do not allow the cord to hang over the edge of a table or counter, or touch hot surfaces.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Extreme caution must be used when moving an appliance containing hot oil or other hot substances.
14. To disconnect, remove plug from wall outlet.

15. Do not use appliance other than for its intended use.

16. If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacture or his service agent or a similar qualified person in order to avoid a hazard.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
18. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
19. This appliance is for household use only.
20. No user-serviceable parts inside. Refer servicing to qualified service personnel.
21. A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a long cord. An extension cord may be used with care, however, the marked electrical rating should be at least as great as the electrical rating of this appliance. The extension cord should not be allowed to drape over the counter or tabletop where it can be pulled by children or tripped over.
22. This appliance can be used by children aged from 8 year and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. This appliance and its cord must be kept out of reach of children less than 8 years.

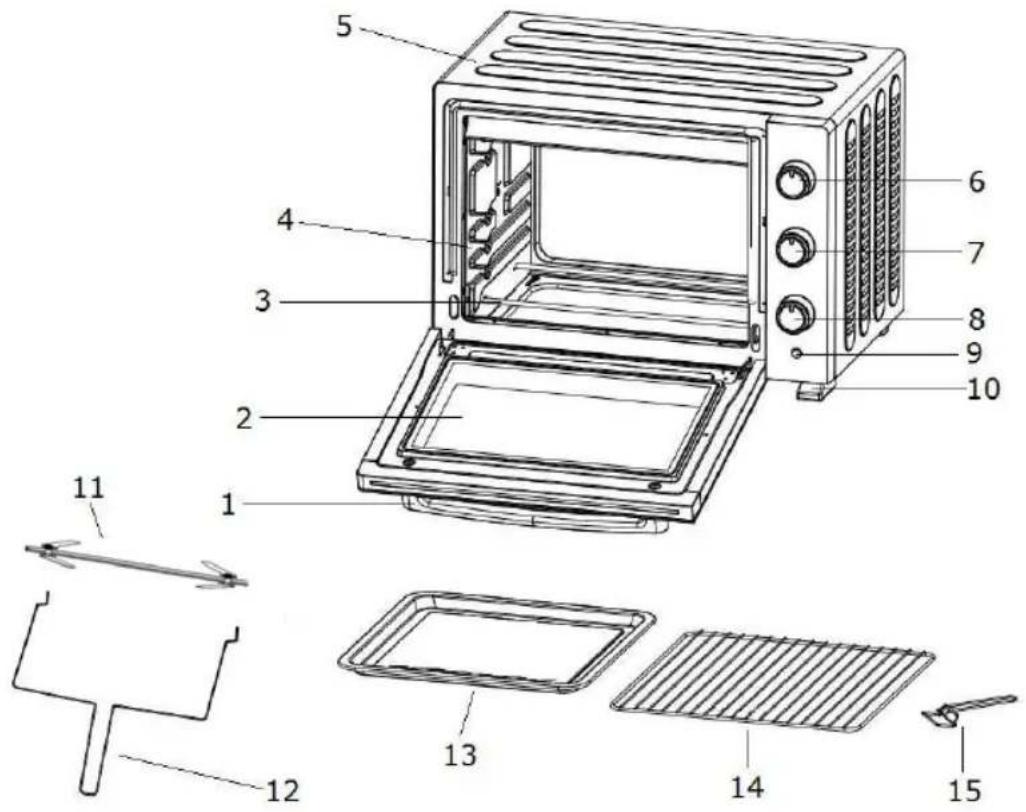

PARTS IDENTIFICATION

Labeled diagram of a microwave oven with numbered parts for identification

1. Door handle
2. Glass door
   3.Heating element
   4.cavity
   5.Housing
3. Thermostat knob

4. Select knob
   8.Time knob

5. Indicator light
   10.Oven feet

6. Rotisserie forks & shaft
   12.Rotisserie handle
   13.Bake tray
   14.Wire rack
7. Tray handle

PARAMETER DATA

Ref.	CEMF35B3, CEMF36W, CEMF36R
Model No.	KR-F36RCL-E1Dkh
Power supply	230V~ 50-60Hz
Power consume	1500W

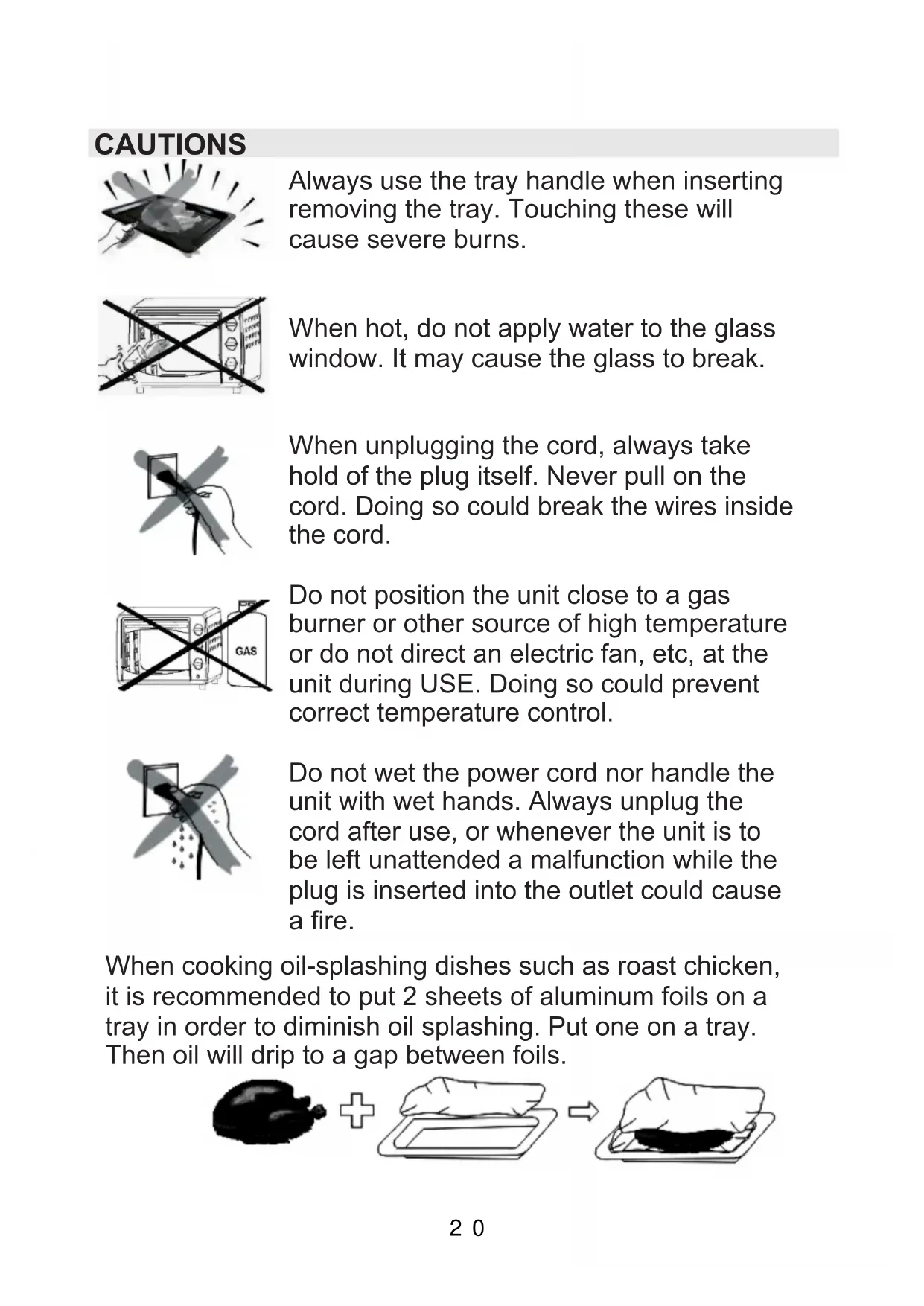

CAUTIONS

Illustration of a device with glowing rays and a central screen (no text or symbols)

Always use the tray handle when inserting removing the tray. Touching these will cause severe burns.

Illustration of a microwave oven with a hand using a tool crossed out by a diagonal line (no text or symbols)

When hot, do not apply water to the glass window. It may cause the glass to break.

Hand holding a pen or stylus with a black ink mark, no text or symbols visible

When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

GAS

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.

Illustration of a hand holding a spray gun with droplets and spray particles (no text or symbols)

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended a malfunction while the plug is inserted into the outlet could cause a fire.

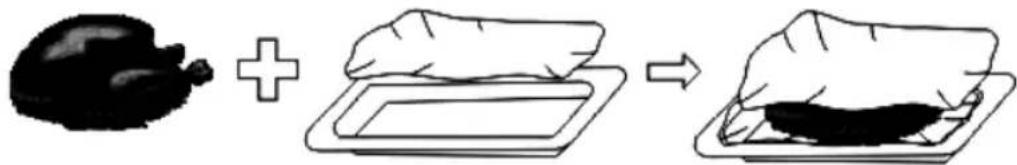

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray. Then oil will drip to a gap between foils.

Diagram illustrating the preparation process of a chicken, showing whole and cross-sections with a final shape.

USE INDICATION

Special indication: the parts and accessory varies from different models. Please refer the image to the real item you buy.

Bake Tray and Wire Rack

Bake Tray	Food (For Ref. only)	How to use Tray Handle
	Roast Chicken Wings, Hamburg steak, Gratin, Cake, almost all other oven-cooked foods
Wire Rack	Baked potatoes,Dry food
Bake Tray and Wire Rack	For food which will drip, e.g. boiled fish, etc.

The trays are not perfectly square.

Note:

Be careful when removing pudding and other hot liquids.

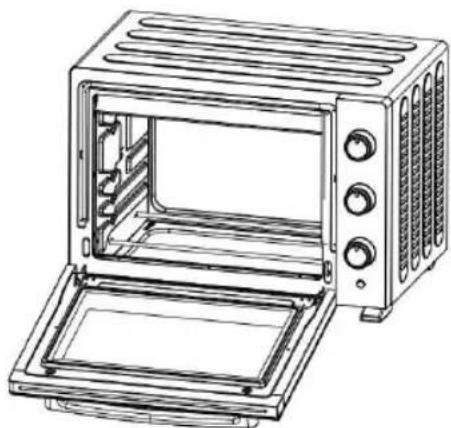

Rack Support

You can adjust the tray at different positions according to the dishes you want to cook. For instance, when making macaroni gratin and you want to have the top part cooked the most, use the top or the second rack support. For roasting a chicken, use the bottom rack support.

Line drawing of a microwave oven with open lid and multiple outlets (no text or symbols)

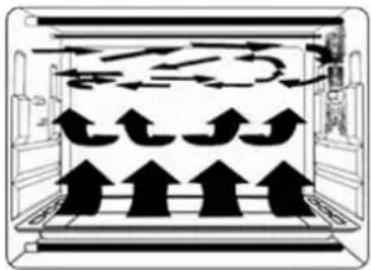

Convection Function

Diagram of airflow patterns inside a storage unit with multiple directional arrows indicating movement (no text or labels)

Featured with a special convection function, strong and absolute cycling airflow by making the heating more complete. Original flavor can be kept.

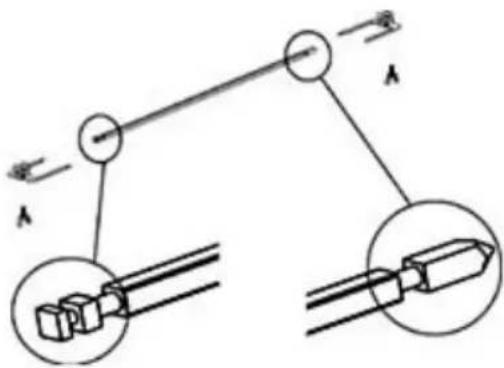

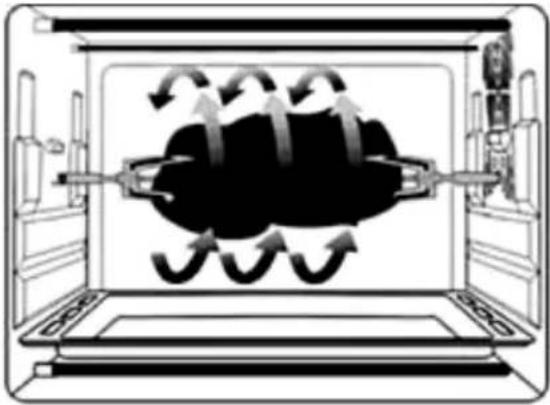

Rotisserie Function
Use with Rotisserie Forks	Install Rotisserie Forks
With this function, even baking will be provided.Rotisserie forks can carry food under 3 kilograms.	Left Right

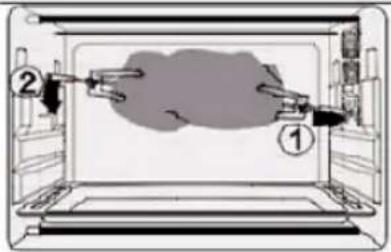

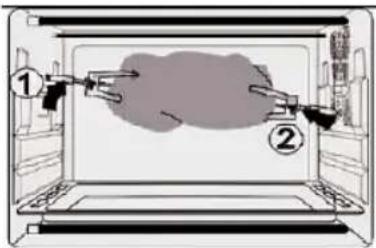

Install Rotisserie Forks	Remove Rotisserie Forks	Rotisserie Handle
Install the Rotisserie Forks to the rotisserie hole, and then put it to the rotisserie tray.	Use Rotisserie Handle to take out the Rotisserie Forks from the rotisserie tray, and then remove it from the rotisserie hole.CAUTION: Beware of HOT dripping oil!	Please always use Rotisserie Handle to take out the Rotisserie Forks.

Functional Control

Set the "Temperature Control" by turning clockwise to select the suitable temperature according to the dishes you are going to cook. (Temperature Control ranging from 100°C to 220°C)

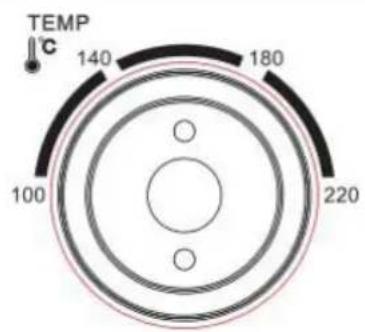

Temperature Control

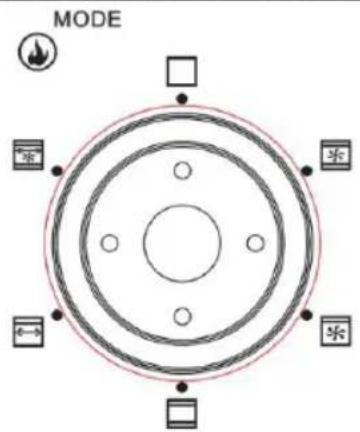

MODE ■ ■ ■ ■

Function Control Select the suitable heating element according to the dishes you are going to cook.

To stop the oven (STOP / OFF)

Upper & Lower Heating + Convection Function

Upper Heating + Convection Function

Upper & Lower Heating

Upper Heating + Rotisserie Function

Upper & Lower Heating + Convection Function + Rotisserie Function

Timer*You can observe whether the oven is switched on or not by observing the front Indicator light.
	1. Set the arrow on the “Timer” to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.
	2. Set the “Timer” by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring. When setting the Timer to less than 5 mins, turn it to more than 6 mins. and then back to the selected time.
	3. The oven can be turned off manually during cooking by turning the “Timer” anti-clockwise to the "OFF" position.

METHOD OF CLEANING

Line drawing of a microwave oven with a hand holding a spoon above it (no text or symbols)

Take off the plug and cool down before cleaning.

When cleaning, wash the interior and exterior surface, bake tray, wire rack and tray handle with soft cotton (or sponge) with neutral cleaner. Then wash with clean and warm water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protector of the bake tray, the wire rack and the tray handle.

Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.

BAKING REFERENCE OF COMMON FOOD

Type of food	Number or thickness	Temperature(°C)	Timer«(min.)
Sandwich	2-3 pcs	200	2-3
Toast	2-4 pcs	220	2-5
Hamburger	2-3 pcs	200	3-5
Fish	/	200	7-10
Ham	2 cm	200	7-12
Sausage	3-4 pcs	200-220	8-10
Cake	/	150	20-30
Steak	1-2 cm	220	10-15
Chicken	Half chicken	175-200	30-40

OPERATING INSTRUCTIONS

Before using the unit for the first time: Heat the empty oven.

(1) Insert the bake tray and wire rack.
(2) Set the heater operating switch to "UPPER & LOWER", set the temperature control dial to "220°C" and heat the empty oven for about 10 minutes. Note: There may be some smoke and a burning smell at first, but this is not a malfunction.

Temperature control dial

Set the Temperature Control Dial for the dishes which you are going to cook

Heat Operating

Select the cooking setting according to the dishes you are going to cook. You can observe whether the oven switched on or not by observing the front Indicator light.

CAUTIONS

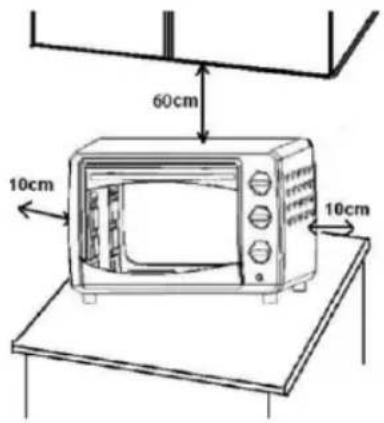

60cm 10cm 10cm

If the oven is positioned to close to a wall, the wall will be burned or stained. Be sure the curtain, etc. Are not in contact with the body. Do not put anything between the bottom of the body and the surface on which it is set, an object so placed could be burned.

Diagram showing a toaster with crossed-out kitchen panes and a cooking pot above, indicating no cooking allowed.

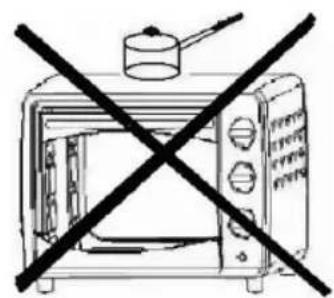

Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

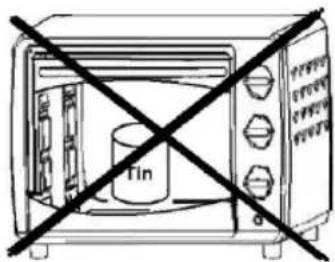

Tin

Any bottled or tinned food can not be heated directly as prevent the bottle or tin would be broken out and scald the person.

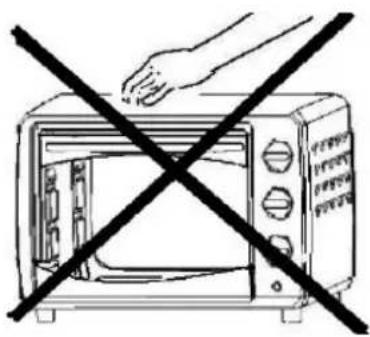

Simple line drawing of a microwave oven with a hand holding the lid and crossed out by a diagonal line (no text or symbols)

Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

Pure electrical circuit lines without any symbols

AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet.

WARNING:

If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard must replace it.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Continental Edison

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

IMPORT BY:

A.M.C.
