USER MANUAL CEMF36W CONTINENTAL EDISON

Follow basic safety precautions, including:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical shock, do not immerse cord, plugs or cooking unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. The appliance is not intended for use by young children or infirm persons without supervision.
6. Young children should be supervised to ensure that they do not play with the appliance.
7. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
8. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliances to the nearest authorized service facility for examination, repair, electrical or mechanical adjustment.
9. The use of accessory attachments, not recommended or sold by the appliance manufacturer, may cause hazards.
10. Do not use outdoors.
11. Do not allow the cord to hang over the edge of a table or counter, or touch hot surfaces.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Extreme caution must be used when moving an appliance containing hot oil or other hot substances.
14. To disconnect, remove plug from wall outlet.

15. Do not use appliance other than for its intended use.

16. If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacture or his service agent or a similar qualified person in order to avoid a hazard.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
18. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
19. This appliance is for household use only.
20. No user-serviceable parts inside. Refer servicing to qualified service personnel.
21. A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a long cord. An extension cord may be used with care, however, the marked electrical rating should be at least as great as the electrical rating of this appliance. The extension cord should not be allowed to drape over the counter or tabletop where it can be pulled by children or tripped over.
22. This appliance can be used by children aged from 8 year and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. This appliance and its cord must be kept out of reach of children less than 8 years.

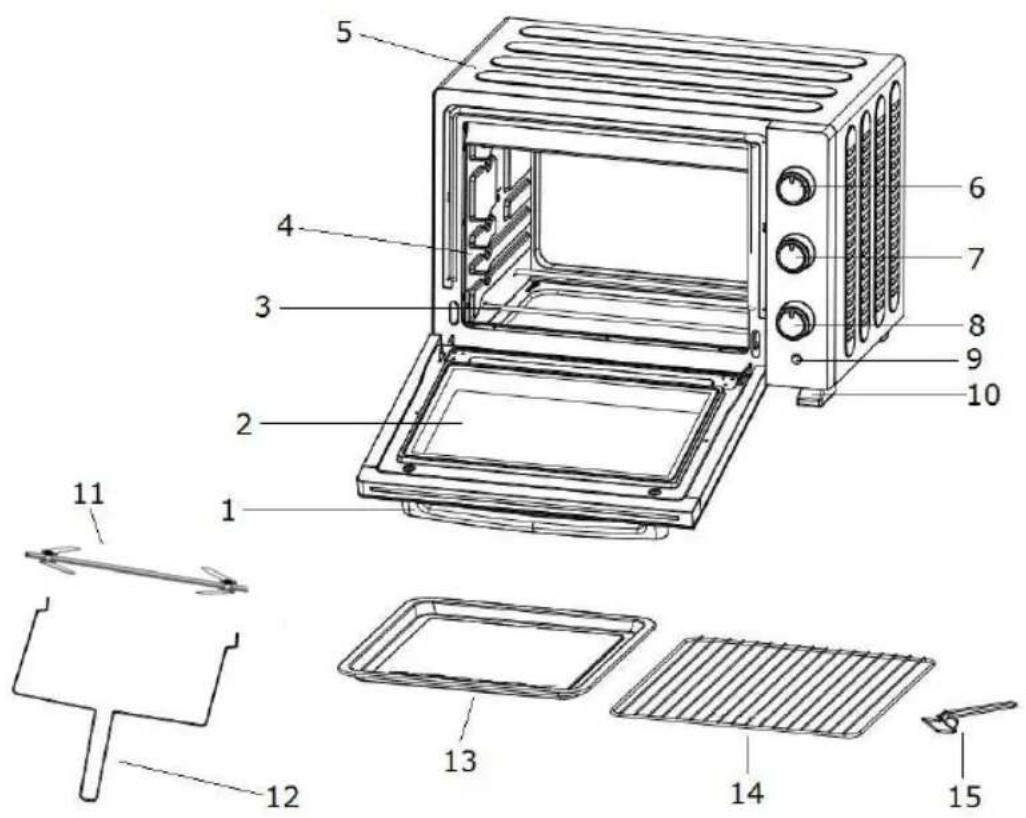

PARTS IDENTIFICATION

1. Door handle
   2.Glass door
   3.Heating element
   4.cavity
   5.Housing
   6.Thermostat knob
2. Select knob
   8.Time knob

9.Indicator light
10.Oven feet
11.Rotisserie forks & shaft
12.Rotisserie handle
13.Bake tray
14.Wire rack
15.Tray handle

PARAMETER DATA

Ref.	CEMF35B3, CEMF36W, CEMF36R
Model No.	KR-F36RCL-E1Dkh
Power supply	230V~ 50-60Hz
Power consume	1500W

CAUTIONS

Always use the tray handle when inserting removing the tray. Touching these will cause severe burns.

When hot, do not apply water to the glass window. It may cause the glass to break.

When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended a malfunction while the plug is inserted into the outlet could cause a fire.

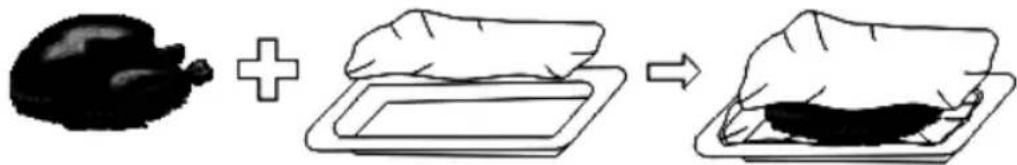

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray. Then oil will drip to a gap between foils.

USE INDICATION

Special indication: the parts and accessory varies from different models. Please refer the image to the real item you buy.

Bake Tray and Wire Rack

Bake Tray	Food (For Ref. only)	How to use Tray Handle
	Roast Chicken Wings, Hamburg steak, Gratin, Cake, almost all other oven-cooked foods
Wire Rack	Baked potatoes,Dry food
Bake Tray and Wire Rack	For food which will drip, e.g. boiled fish, etc.

The trays are not perfectly square.

Note:

Be careful when removing pudding and other hot liquids.

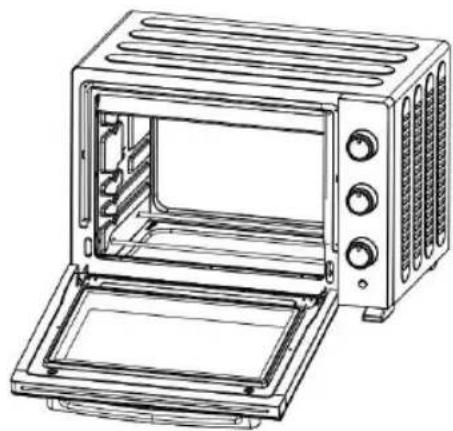

Rack Support

You can adjust the tray at different positions according to the dishes you want to cook. For instance, when making macaroni gratin and you want to have the top part cooked the most, use the top or the second rack support. For roasting a chicken, use the bottom rack support.

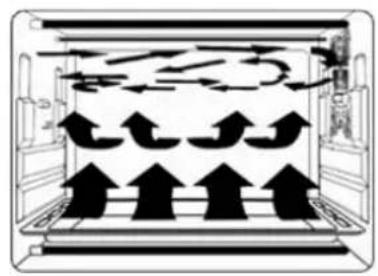

Convection Function

Featured with a special convection function, strong and absolute cycling airflow by making the heating more complete. Original flavor can be kept.

Rotisserie Function
Use with Rotisserie Forks	Install Rotisserie Forks
With this function, even baking will be provided. Rotisserie forks can carry food under 3 kilograms.	Left	Right
Install Rotisserie Forks	Remove Rotisserie Forks	Rotisserie Handle
Install the Rotisserie Forks to the rotisserie hole, and then put it to the rotisserie tray.	Use Rotisserie Handle to take out the Rotisserie Forks from the rotisserie tray, and then remove it from the rotisserie hole. CAUTION: Beware of HOT dripping oil!	Please always use Rotisserie Handle to take out the Rotisserie Forks.

Functional Control

Temp 140 180 100 220 Temperature Control
MODE		To stop the oven (STOP / OFF)
Function Control Select the suitable heating element according to the dishes you are going to cook.		Upper & Lower Heating + Convection Function
		Upper Heating + Convection Function
		Upper & Lower Heating
		Upper Heating + Rotisserie Function
		Upper & Lower Heating + Convection Function + Rotisserie Function
MINUTEUR OFF 10 60 50 40 Timer *You can observe whether the oven is switched on or not by observing the front Indicator light.
	1. Set the arrow on the "Timer" to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.
	2. Set the "Timer" by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring. When setting the Timer to less than 5 mins, turn it to more than 6 mins. and then back to the selected time.
	3. The oven can be turned off manually during cooking by turning the "Timer" anti-clockwise to the "OFF" position.

METHOD OF CLEANING

Take off the plug and cool down before cleaning.

When cleaning, wash the interior and exterior surface, bake tray, wire rack and tray handle with soft cotton (or sponge) with neutral cleaner. Then wash with clean and warm water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protector of the bake tray, the wire rack and the tray handle.

Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.

BAKING REFERENCE OF COMMON FOOD

Type of food	Number or thickness	Temperature(℃)	Timer(′)(min.)
Sandwich	2-3 pcs	200	2-3
Toast	2-4 pcs	220	2-5
Hamburger	2-3 pcs	200	3-5
Fish	/	200	7-10
Ham	2 cm	200	7-12
Sausage	3-4 pcs	200-220	8-10
Cake	/	150	20-30
Steak	1-2 cm	220	10-15
Chicken	Half chicken	175-200	30-40

OPERATING INSTRUCTIONS

Before using the unit for the first time: Heat the empty oven.

(1) Insert the bake tray and wire rack.
(2)Set the heater operating switch to "UPPER & LOWER", set the temperature control dial to "220°C" and heat the empty oven for about 10 minutes. Note:There may be some smoke and a burning smell at first, but this is not a malfunction.

Temperature control dial

Set the Temperature Control Dial for the dishes which you are going to cook

Heat Operating

Select the cooking setting according to the dishes you are going to cook. You can observe whether the oven switched on or not by observing the front Indicator light.

CAUTIONS

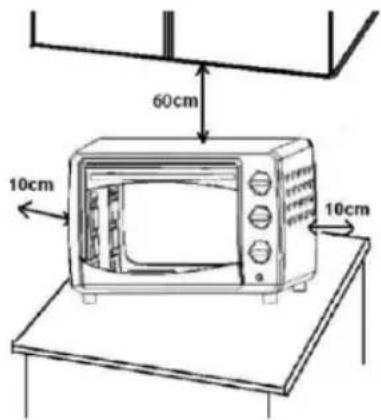

If the oven is positioned to close to a wall, the wall will be burned or stained. Be sure the curtain, etc. Are not in contact with the body. Do not put anything between the bottom of the body and the surface on which it is set, an object so placed could be burned.

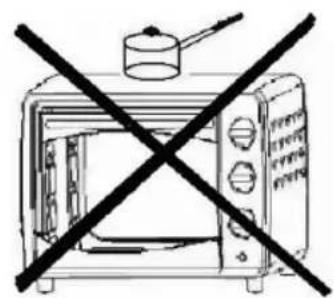

Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

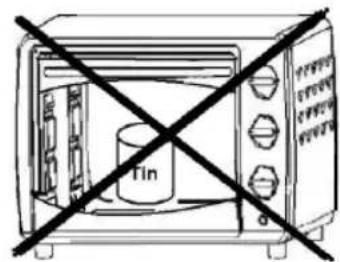

Any bottled or tinned food can not be heated directly as prevent the bottle or tin would be broken out and scald the person.

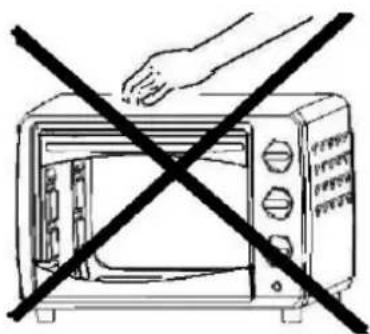

Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet.

WARNING:

If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard must replace it.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Continental Edison

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

IMPORT BY:

A.M.C.
