USER MANUAL UAMM 12 B1 ULTIMATE SPEED

COUVRE-SIÈGE MASSANT

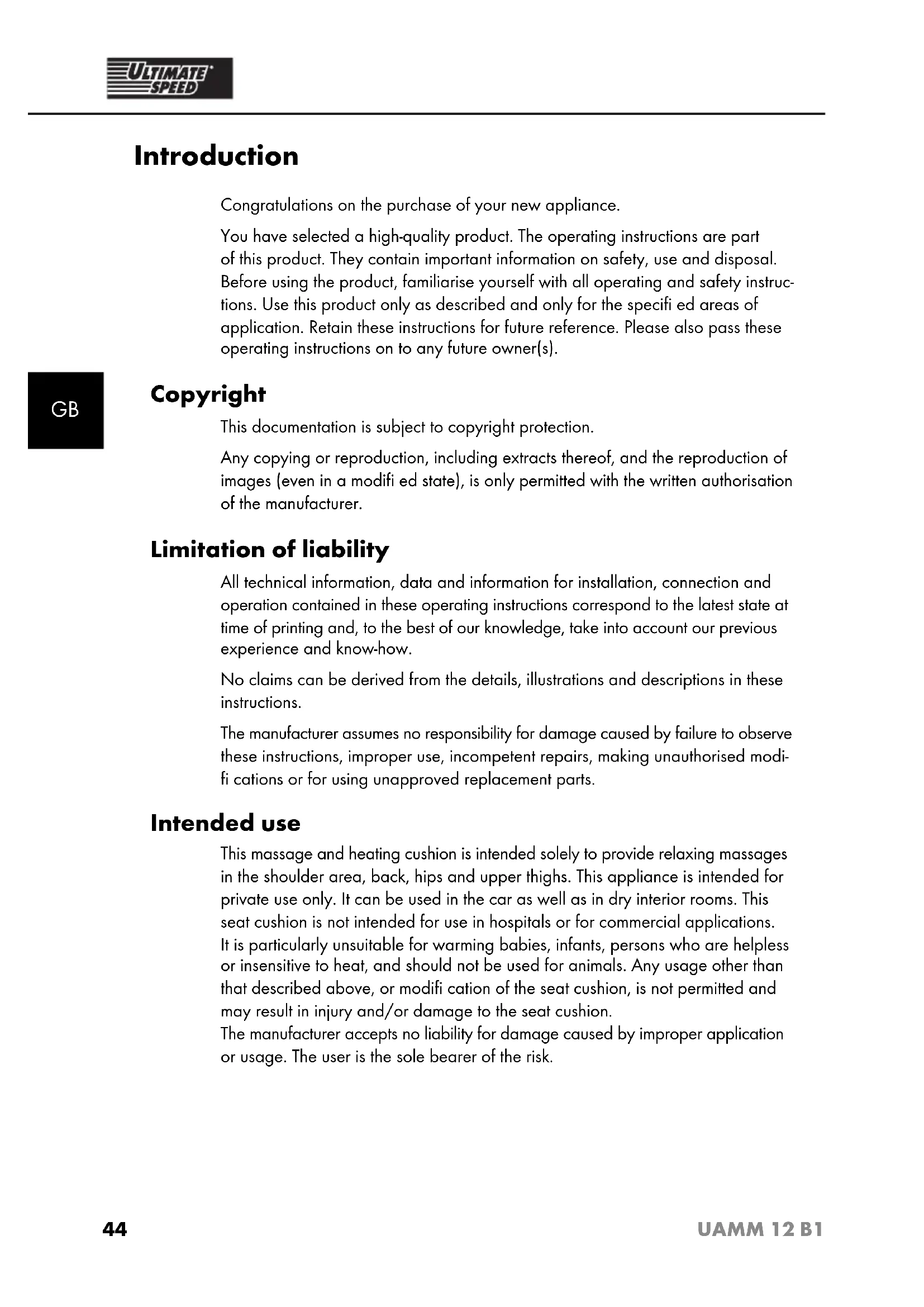

Introduction Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instruc- tions. Use this product only as described and only for the specifi ed areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s). Copyright This documentation is subject to copyright protection. Any copying or reproduction, including extracts thereof, and the reproduction of images (even in a modifi ed state), is only permitted with the written authorisation of the manufacturer. Limitation of liability All technical information, data and information for installation, connection and operation contained in these operating instructions correspond to the latest state at time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modi- fi cations or for using unapproved replacement parts. Intended use This massage and heating cushion is intended solely to provide relaxing massages in the shoulder area, back, hips and upper thighs. This appliance is intended for private use only. It can be used in the car as well as in dry interior rooms. This seat cushion is not intended for use in hospitals or for commercial applications. It is particularly unsuitable for warming babies, infants, persons who are helpless or insensitive to heat, and should not be used for animals. Any usage other than that described above, or modifi cation of the seat cushion, is not permitted and may result in injury and/or damage to the seat cushion. The manufacturer accepts no liability for damage caused by improper application or usage. The user is the sole bearer of the risk. IB_90543_UAMM12B1_LB1.indb 44IB_90543_UAMM12B1_LB1.indb 44 05.09.13 13:0905.09.13 13:0945 UAMM 12 B1

Warnings used The following warnings are used in these operating instructions: DANGER A warning at this risk level indicates an imminently hazardous situation. If the hazardous situation is not avoided, it could lead to death or serious physical injury. ► Follow the instructions in this warning to avoid a fatality or serious personal injury. CAUTION A warning of this risk level indicates potential damage to property. Failure to avoid this situation could result in damage to property. ► Follow the instructions in this warning to prevent damage to property. NOTE ► A note indicates additional information that will assist you in handling the appliance. IB_90543_UAMM12B1_LB1.indb 45IB_90543_UAMM12B1_LB1.indb 45 05.09.13 13:0905.09.13 13:0946 UAMM 12 B1

REFERENCE! This section provides you with important safety information regarding handling of the appliance. Incorrect usage can lead to personal injury and property damage. Basic safety instructions For safe handling of the appliance, follow the safety informa- tion below: ■ Read the instructions! Before using the product, familiarise yourself with all operating and safety instructions. ■ Before use, check the appliance for visible external damage. Do not use an appliance that has been damaged or dropped. ■ To avoid possible risks, arrange for damaged cables or con- nectors to be exchanged by an authorised specialist or the Customer Service Department. ■ This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised. ■ Operate the appliance only with the supplied mains adapter or a 12 V car adapter. IB_90543_UAMM12B1_LB1.indb 46IB_90543_UAMM12B1_LB1.indb 46 05.09.13 13:0905.09.13 13:0947 UAMM 12 B1

■ Do not use the seat cushion for helpless persons, babies or persons who are insensitive to heat (e.g. people with diabetes, people with illness-related skin changes or scarred areas of skin in the usage area, or after ingesting pain-relieving drugs or alcohol). ■ Do not operate the seat cushion unsupervised. ■ All repairs must be carried out by authorised specialist compa- nies or the Customer Service department. Improper repairs can pose signifi cant risks to the user. Warranty claims also become void. ■ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used. ■ Protect the seat cushion from moisture and liquid penetration. Never submerge the appliance in water and do not place objects fi lled with liquids (such as fl ower vases) on the appli- ance. ■ Do not insert needles or other sharp pointed objects into the seat cushion. ■ To avoid overheating, the appliance must not be used in the vicinity of heat sources, naked fl ames (e.g. candles) or in direct sunlight. ■ When the appliance is being used in vehicles, it must be ensured that safety equipment is not adversely aff ected, particularly the side airbags. Please refer to the operating instructions for your vehicle or ask your workshop if you have any questions regarding airbags. ■ The appliance has hot surfaces. Persons who are insensitive to heat must take care when using the appliance. ■ Please ensure that you do not fall asleep when using the seat cushion. Using the appliance for too long can cause burns. IB_90543_UAMM12B1_LB1.indb 47IB_90543_UAMM12B1_LB1.indb 47 05.09.13 13:0905.09.13 13:0948 UAMM 12 B1

■ Do not use the seat cushion on areas of the body that are infl amed, injured or swollen. If in doubt, obtain medical advice before using the appliance. Otherwise the infl ammation, injury or swelling may be aggravated. ■ During operation, always ensure that the 12 V car adapter is fi rmly plugged into the 12 V connection and the socket is free of dirt. If there is insuffi cient contact between the connector and the socket, vehicle vibration may cause the power supply to switch on and off at short intervals. This can result in overheating. ■ Please ensure that you: - only connect the seat cushion to the voltage specifi ed in the technical information, - do not switch the seat cushion on when it is folded or pushed together, - do not kink the seat cushion sharply, - do not place any objects such as cases or washing baskets on the seat cushion whilst it is switched on. Otherwise the seat cushion could become damaged. IB_90543_UAMM12B1_LB1.indb 48IB_90543_UAMM12B1_LB1.indb 48 05.09.13 13:0905.09.13 13:0949 UAMM 12 B1

Initial operation Items supplied and transport inspection This appliance is supplied with the following components as standard: ▯ Car massage mat ▯ 12 V car adapter ▯ Power supply unit ▯ This operating manual NOTE

Check the delivery for completeness and for signs of visible damage. ► If the delivery is incomplete, or is damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service). Disposal of packaging The packaging protects the appliance from transport damage. The packaging materials have been selected in accordance with their environmental friendliness and disposal attributes, and are therefore recyclable. Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging material that is no longer needed in accordance with applicable local regulations. Before initial use ■ Remove all packaging materials and all transport securing appliances from the appliance. DANGER Risk of suff ocation! ► Packaging material must not be used as a plaything since there is a risk of suff ocation. Appliance description Seat cushion

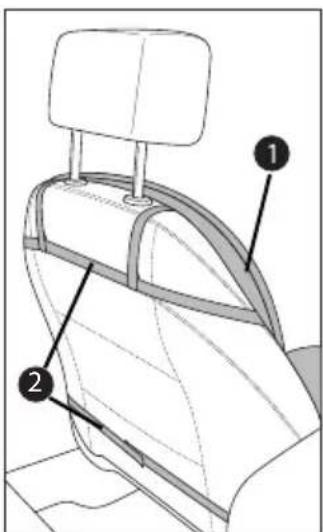

Handling and use This section provides you with important information on handling and using the appliance. Using the seat cushion in the car ♦ Place the seat cushion on the car seat. ♦ Pull the upper seat cushion securing strap

over the head restraint of the car seat. ♦ Secure the seat cushion carefully using the securing straps

It is not always necessary to use every strap

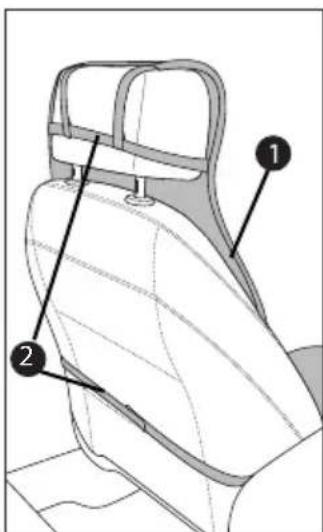

Work out the best way of securing the seat cushion to your seat. Use the following illustrations for assistance. ► If the backrest is extremely high or wide, secure the seat cushion as shown in fi gure 2. ► If the backrest is extremely low, secure the seat cushion as shown in fi gure 3.

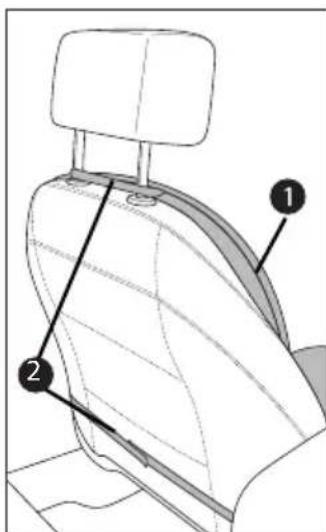

If your vehicle is equipped with side airbags, please ensure that the upper securing strap

is only folded over the head restraint supports and not over the top part of the car seat when securing the seat cushion (see Fig. 2). Otherwise the side airbag may be aff ected! ♦ Connect the low voltage plug of the 12 V car adapter

into the connection socket

of the seat cushion . ♦ Plug the 12 V car adapter

Using the seat cushion at home ♦ Place the seat cushion on a suitable stool or armchair. ♦ Secure the seat cushion carefully using the securing straps

♦ Connect the low voltage plug of the mains adapter

into the connection socket

of the seat cushion . ♦ Insert the plug of the mains adapter

into a mains power socket. Switching the seat cushion on/off NOTE ► The remote control

features back lighting. If the back lighting does not illuminate, it will light up on the fi rst press of the

button. The buttons will not function until they light up. After approx. 5 seconds the back lighting will switch off . ► If you press the OFF

button, the appliance will switch off immediately. ♦ Press the ON

As soon as the appliance is switched on, the timer automatically starts counting down from 30 minutes. The remaining time (TIME) appears on the display

► To protect the appliance from accidental continuous operation, it switches itself off automatically after 30 minutes. ♦ Before the 30 minutes have elapsed, you can press the OFF

button to switch off the seat cushion . Select massage programme There are a total of 8 programmes (MODE 1 - 8) available. The programmes vary in their intensity, the areas massaged and also the rhythm used. ♦ Press the MODE

Switching the heat function on/off ♦ Press the ON

button to switch on the heating function. The display

shows the symbol for the heating function

♦ Before the 30 minutes have elapsed, you can press

, to switch off the heating function. Replacing the fuse There is a fuse in the 12 V car adapter

for protecting the vehicle's on-board power supply. If the appliance no longer works, check the fuse and replace if necessary. ♦ Open the 12 V car adapter

by turning the screw attachment

gently anticlockwise (using pliers if necessary) and remove it along with the plug tip

from the 12 V car adapter

♦ Insert a new fuse (type 3A 250 V) into the 12 V car adapter

. Screw the screw attachment

together with the plug tip

back onto the 12 V car adapter

If the appliance still does not function, or the fuse blows again immediately, there is a defect. Please then contact the Service Hotline (see chapter Service).

Cleaning CAUTION Possible damage to appliance! ► Always disconnect the power supply before cleaning. ► Protect the seat cushion from moisture and liquid penetration. ► To avoid irreparable damage to the appliance, never submerge the seat cushion in water. ► Do not use chemical cleaners or scouring agents to clean the seat cushion . ► Do not hang up the seat cushion to dry using clothes pegs or similar. ► Do not re-connect the seat cushion to the power supply until it is com- pletely dry. ■ Clean the seat cushion with a lightly moistened cloth and a mild detergent. Storage ■ Store the remote control

provided on the side of the seat cushion

■ If the seat cushion is not going to be used for a long period, keep in the original packaging in a dry place without anything placed on top. ■ Do not place any objects on top the seat cushion during storage in order to prevent the seat cushion from being sharply kinked. Disposal Disposal of the appliance Never dispose of the appliance in the normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU-WEEE (Waste Electrical and Electronic Equipment). Dispose of the appliance through an approved disposal centre or at your com- munity waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre if you are in any doubt. IB_90543_UAMM12B1_LB1.indb 53IB_90543_UAMM12B1_LB1.indb 53 05.09.13 13:0905.09.13 13:0954 UAMM 12 B1

Appendix Technical details Seat cushion Input voltage 12 V Current consumption max. 1 A Power consumption approx. 12 W Mains adapter type IVP 1200 - 1000 G Input voltage 100–240 V, 50/60 Hz Current consumption 0.5 A Output voltage 12 V Output current 1 A Protection class II / Car adapter Input voltage 12 V Output voltage 12 V Output current max. 1 A Notes on the Declaration of Conformity With regard to conformity with the basic requirements and other relevant provisions, this appliance complies with the Electromagnetic Compatibility Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC. The full original Declaration of Conformity is available from the importer. IB_90543_UAMM12B1_LB1.indb 54IB_90543_UAMM12B1_LB1.indb 54 05.09.13 13:0905.09.13 13:0955 UAMM 12 B1

Warranty The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured. NOTICE

The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts. Damages and defects extant at the time of purchase must be reported immedi- ately after unpacking, resp. no later than two days after the date of purchase. Repairs made after the lapse of the warranty period are subject to charge. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 90543 Hotline availability: Monday to Friday 08:00 - 20:00 (CET) Importer
