USER MANUAL Profile Arctica CustomStyle PSI23NGMWW GE

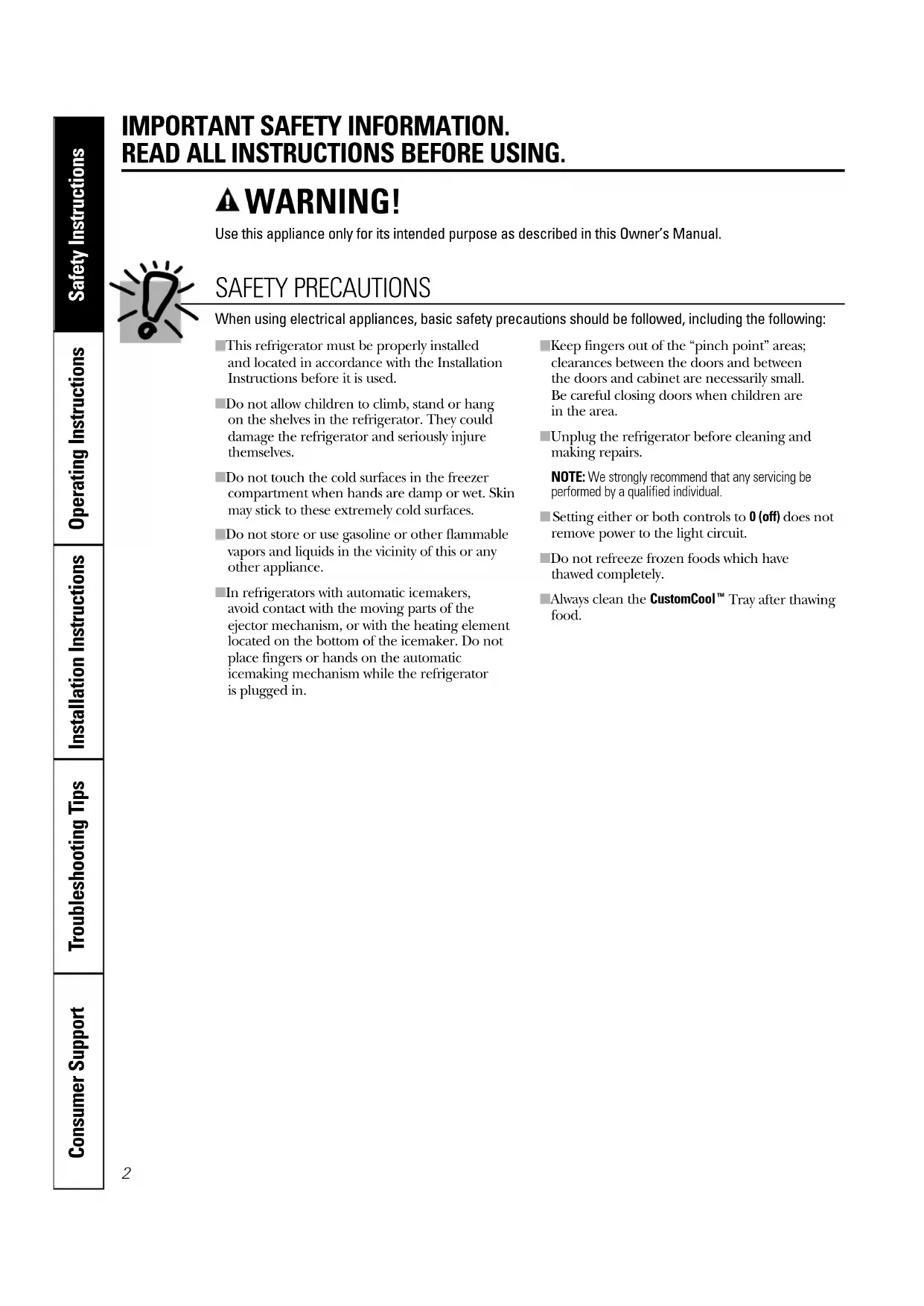

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! Use this appliance only for its intended purpose as described in this Owner’s Manual. SAFETY PRECAUTIONS When using electrical appliances, basic safety precautions should be followed, including the following:

■ This refrigerator must be properly installed and located in accordance with the InstallationInstructions before it is used. ■ Do not allow children to climb, stand or hang on the shelves in the refrigerator. They coulddamage the refrigerator and seriously injurethemselves. ■ Do not touch the cold surfaces in the freezercompartment when hands are damp or wet. Skinmay stick to these extremely cold surfaces. ■ Do not store or use gasoline or other flammablevapors and liquids in the vicinity of this or anyother appliance. ■ In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating elementlocated on the bottom of the icemaker. Do notplace fingers or hands on the automaticicemaking mechanism while the refrigerator is plugged in. ■ Keep fingers out of the “pinch point” areas;clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area. ■ Unplug the refrigerator before cleaning andmaking repairs.NOTE: We strongly recommend that any servicing beperformed by a qualified individual.

■ Setting either or both controls to 0 (off) does not remove power to the light circuit. ■ Do not refreeze frozen foods which have thawed completely. ■ Always clean the CustomCool Tray after thawingfood.Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions GEAppliances.com

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not problemsof the past. Junked or abandoned refrigerators arestill dangerous…even if they will sit for “just a fewdays.” If you are getting rid of your old refrigerator,please follow the instructions below to help preventaccidents. Before You Throw Away Your Old Refrigerator or Freezer: ■ Take off the doors.■ Leave the shelves in place so that children maynot easily climb inside. Refrigerants All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with thecompany handling the disposal about what to do.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the UnitedStates) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a groundingtype plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazardfrom this appliance.Have the wall outlet and circuit checked by aqualified electrician to make sure the outlet isproperly grounded.If the outlet is a standard 2-prong outlet, it is yourpersonal responsibility and obligation to have itreplaced with a properly grounded 3-prong walloutlet.The refrigerator should always be plugged into itsown individual electrical outlet which has a voltagerating that matches the rating plate.This provides the best performance and alsoprevents overloading house wiring circuits whichcould cause a fire hazard from overheated wires.Never unplug your refrigerator by pulling on thepower cord. Always grip plug firmly and pull straightout from the outlet.Repair or replace immediately all power cords thathave become frayed or otherwise damaged. Do notuse a cord that shows cracks or abrasion damagealong its length or at either end.When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. USE OF ADAPTER PLUGS (Adapter plugs not permitted in Canada) Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug. However, if you must use an adapter, where localcodes permit, a temporary connection may be madeto a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most localhardware stores.The larger slot in the adapter must be aligned withthe larger slot in the wall outlet to provide properpolarity in the connection of the power cord.When disconnecting the power cord from theadapter, always hold the adapter in place with onehand while pulling the power cord plug with theother hand. If this is not done, the adapter groundterminal is very likely to break with repeated use.If the adapter ground terminal breaks, DO NOT USE the refrigerator until a proper ground has been established.Attaching the adapter ground terminal to a wall outletcover screw does not ground the appliance unless thecover screw is metal, and not insulated, and the walloutlet is grounded through the house wiring. You shouldhave the circuit checked by a qualified electrician to makesure the outlet is properly grounded. READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY. SAVE THESE INSTRUCTIONSConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions About the temperature controls. GEAppliances.com The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings. The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment. Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator. NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now. The Performance Air-Flow System is designed to maximize temperature control in the refrigerator and freezer compartments. This unique special feature consists of the Air Tower along the back wall of the refrigerator and the Air Tunnel on the bottom portion of the freezer rear wall. Placing food in front of the louvers on these components will not affect performance. Although the Air Tower and the Air Tunnel can be removed, doing so will affect temperature performance. (For removal instructions, on-line, 24 hours a day, contact us at GEAppliances.com or call 800.GE.CARES. In Canada, contact us at geappliances.ca or call

Performance Air Flow System To change the temperature, press and release the WARMER or COLDER pad. The SET light will come on and the display will show the set temperature. To change the temperature, tap either the WARMER or COLDER pad until the desired temperature is displayed. Refrigerator temperatures can be adjusted between 34°F and 44°F and the freezer temperatures can be adjusted between –6°F and +6°F. Once the desired temperature has been set, the temperature display will return to the actual refrigerator and freezer temperatures after 5 seconds. Several adjustments may be required. Each time you adjust controls, allow 24 hours for the refrigerator to reach the temperature you have set. To turn the cooling system off, tap the WARMER pad for either the refrigerator or the freezer until the display shows OFF. To turn the unit back on, press the COLDER pad for either the refrigerator or freezer. The SET light will illuminate on the side you selected. Then press the COLDER pad again (on the side where the SET light is illuminated) and it will go to the preset points of 0°F for the freezer and 37°F for the refrigerator. Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

How it Works TurboCool

rapidly cools the refrigerator compartment in order to more quickly cool foods. Use TurboCool when adding a large amount of food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature or when putting away warm leftovers. It can also be used if the refrigerator has been without power for an extended period. Once activated, the compressor will turn on immediately and the fans will cycle on and off at high speed as needed for eight hours. The compressor will continue to run until the refrigerator compartment cools to approximately 34°F (1°C), then it will cycle on and off to maintain this setting. After 8 hours, or if TurboCool is pressed again, the refrigerator compartment will return to the original setting. How to Use Press TurboCool. The refrigerator temperature display will show TC. After TurboCool is complete, the refrigerator compartment will return to the original setting. NOTES: The refrigerator temperature cannot be changed during TurboCool. The freezer temperature is not affected during TurboCool. When opening the refrigerator door during TurboCool, the fans will continue to run if they have cycled on. Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions About ClimateKeeper2.

How it Works The new ClimateKeeper2

is the industry’s most advanced refrigeration system, delivering optimum temperature and humidity performance to keep food fresh longer and reduce freezer burn, while maintaining E star-level efficiency. The new ClimateKeeper2 system features two evaporators—one for the refrigerator and one for the freezer. This provides two separate cooling systems for the entire unit, and separates the airflow between the fresh food and freezer sections during normal cooling operations.* This ensures that the humidity levels in the fresh food section are significantly higher than in a conventional system,** allowing fresh produce and other unsealed foods to retain their moisture content and freshness longer. Moisture sensitive foods such as fresh fruit, salads, rice, etc., can now be stored on open shelves without excessive moisture loss. The separate airflow system minimizes the mixing of air between the two compartments, which reduces odor transfer, resulting in improved taste of ice. The ClimateKeeper2 system also reduces the number of defrosting cycles in the freezer evaporator, thereby improving the temperature maintained in the freezer and reducing freezer burn. *Freezer air is used in the CustomCool feature. **Testing shows a higher level of humidity in the Fresh Food section in ClimateKeeper2 refrigerators versus conventional units.7 Empty the pan. Place the Chill/Thaw tray in the pan. Place the items on the tray and close the pan completely. Select the ExpressThaw,

pad. The display and SET light will come on. Tap the pad until the light appears next to the desired setting. Use the chart to determine the best setting to use. ■ To stop a feature before it is finished, tap that feature’s pad until no options are selected and the display is off. ■ During ExpressThaw and ExpressChill, the display on the controls will count down the time in the cycle. ■ After the ExpressThaw cycle is complete, the pan will reset to the MEAT setting (32°F) to help preserve thawed items until they are used. ■ The displayed actual temperature of the CustomCool pan may vary slightly from the SET temperature based on usage and operating environment. NOTE: For food safety reasons, it is recommended that foods be wrapped in plastic wrap when using ExpressThaw. This will help contain meat juices and improve thawing performance. About CustomCool

feature is a system of dampers, a fan, a temperature thermistor and a heater. Depending on the function selected, a combination of these will be used to quickly chill items, thaw items or hold the pan at a specific temperature. The pan is tightly sealed to prevent the pan’s temperature from causing temperature fluctuations in the rest of the refrigerator. Some CustomCool models feature a beverage center. It is designed to store beverages at colder temperatures. Select the Beverage Center pad if you like to keep extra-chilled refreshments on hand. The controls for this pan are located at the top of the refrigerator with the temperature controls. How to Use How it Works ExpressThaw

To remove: Pull the drawer out to the stop position. Rotate all four swing locks to the unlock position. Lift the front of the drawer up and out. To replace: Make sure all four swing locks are in the unlock position. Place the sides of the drawer into the drawer supports, making sure the swing locks fit on the drawer slots. Lock all four swing locks by rotating them to the lock position. How to Remove and Replace the Drawer ExpressChill

Chart NOTE: Results may vary depending on packaging, starting temperature and other food traits.

■ Hamburger Patties (0.5 lb) ■ Individually Wrapped Filet Mignon (0.5 lb)

■ Chicken Breasts (2.0 lbs) ■ Ground Beef (2.0 lbs) ■ Steak (2.0 lbs)

■ Chicken Breasts (3.0 lbs) ■ Ground Beef (3.0 lbs) ■ Steak (3.0 lbs) 15 Minutes ■ 1 Beverage Can (12 oz) ■ 2 Small Juice Boxes (6–8 oz each) 30 Minutes ■ 2 to 6 Beverage Cans (12 oz each) ■ 2 Plastic 20 oz Bottles of Beverage ■ 4 to 6 Small Juice Boxes (6–8 oz each) ■ 3 Foil Juice Packets ■ Wine (750 ml bottle) 45 Minutes ■ 2 Liter of Beverage ■ 1/2 Gallon of Juice ■ Gelatin–1 package Citrus Setting (43°F) ■ Oranges, Lemons, Limes, Pineapple, Cantaloupe ■ Beans, Cucumbers, Tomatoes, Peppers, Eggplant, Squash Produce Setting (35°F) ■ Strawberries, Raspberries, Kiwifruit, Pears, Cherries, Blackberries, Grapes, Plums, Nectarines, Apples ■ Asparagus, Broccoli, Corn, Mushrooms, Spinach, Cauliflower, Kale, Green Onion, Beets, Onions Meat Setting (32°F) ■ Raw Meat, Fish and Poultry Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Select the Beverage Center pad. The set light will come on and the feature will operate as required. To turn off the feature, press Beverage Center pad and set light will turn off. NOTE: Unless turned off as above, feature will remain active for six months. Press the Beverage Center pad to restart. How to Use To remove: Remove dairy bin first. Holding the bottom of the dairy bin, lift the front straight up, then lift up and out. Holding left and right side of beverage center, lift straight up and out. Leave adapter in place. To replace: Engage backside of beverage center in molded supports on adapter. Then push down on the sides of the beverage center. The beverage center will lock into place. Replace dairy bin. How to Remove and Replace the Beverage Center Dairy BinAdapterBeverageCenterAbout the water filter. (on some models) GEAppliances.com

Water Filter Cartridge The water filter cartridge is located in the back upper right corner of the refrigerator compartment. When to Replace the Filter There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon. The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases. Installing the Filter Cartridge If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do not pull down on the cartridge. A small amount of water may drip down. Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation. Lining up the arrow on the cartridge and the cartridge holder, place the top of the new cartridge up inside the holder. Do not push it up into the holder. Slowly turn it to the right until the filter cartridge stops. DO NOT OVERTIGHTEN. As you turn the cartridge, it will automatically raise itself into position. Cartridge will rotate about 1/4 turn. Run water from the dispenser for 3 minutes (about 1

⁄2 gallons) to clear the system and prevent sputtering. Press and hold the RESET WATER FILTER pad on the dispenser for 3 seconds. NOTE: A newly-installed water filter cartridge may cause water to spurt from the dispenser. Filter Bypass Plug You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug. Replacement Filters: To order additional filter cartridges in the United States, visit our Website, GEAppliances.com, or call GE Parts and Accessories, 800.626.2002. GWF Suggested Retail $34.95 USD Customers in Canada should consult the yellow pages for the nearest Camco Service Center. Place the top of the cartridge upinside the cartridge holder andslowly turn it to the right.Filter Bypass PlugCartridgeHolder Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation InstructionsConsumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

About the shelves and bins. Refrigerator Door Bins and Freezer Door Tilt-Out Bins Large Bins The larger refrigerator door bins and freezer tilt-out door bins are adjustable. To remove: Lift the front of the bin straight up, then lift up and out. To replace or relocate: Engage the back side of the bin in the molded supports on the door. Then push down on the front of the bin. Bin will lock in place. Small Bins To remove: Lift the front of the bin straight up then out. To replace: Position the bin above the rectangular molded supports on the door. Then slide the bin down onto the support to lock it in place. The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Place a finger on either side of the snugger near the rear and move it back and forth to fit your needs. Not all features are on all models. Refrigerator binFreezer tilt-out binSnugger QuickSpace

Shelf This shelf splits in half and slides under itself for storage of tall items on the shelf below. This shelf can be removed and replaced or relocated just like Slide-Out Spillproof Shelves. On some models, this shelf cannot be used in the lowest position. Slide-Out Spillproof Shelf The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves. To remove: Slide the shelf out until it reaches the stop, then press down on the tab and slide the shelf straight out. To replace or relocate: Line the shelf up with the supports and slide it into place. The shelf can be repositioned when the door is at 90° or more. To reposition the shelf, slide the shelf past the stops and angle downward. Slide shelf down to the desired position, line up with the supports and slide into place. Make sure you push the shelves all the way back in before you close the door. Press tab and pull shelf forwardto removeTop freezer binDo not block CAUTION: Be careful when placing items in the top bin. Make sure that items do not block or fall into the ice chute. Top freezer bin (on some models)Do not block CAUTION: Part must be in place as shown for proper ice dispensing. Food cannot be stored in this location.GEAppliances.com Not all features are on all models. Slide-Out Freezer Shelves To remove, slide out to the stop position, lift the front past the stop position and slide out. Make sure you push the shelves all the way back in before you close the door. Freezer Baskets To remove, push the basket all the way to the back of the freezer. Lift up until the back pins are disengaged. Lift the entire basket up and pull out. Make sure you push the baskets all the way back in before you close the door. Fixed Freezer Shelves There are two types of fixed freezer shelves. To remove this type of shelf: Lift the shelf up at the left side. Bring the shelf out. To remove this type of shelf: Lift up the left side of the shelf and slide it left into the center of the shelf supports. Rotate the right side of the shelf up and out of the shelf supports. NOTE FOR DISPENSER MODELS: In order to take full advantage of the tilt-out ice bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin. Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Door Wine/Beverage Rack (on some models) This rack holds up to 5 cans, one bottle of wine or one 2-liter bottle of soda. The rack hangs from the sides of the dairy bin. To remove: Empty the wine/beverage rack. Holding the bottom of the dairy bin, lift the front straight up, then lift up and out. To detach the rack from the dairy bin, pull the rack’s side wires out of the holes on each side of the dairy bin. To replace: Reattach the rack to the sides of the bin. Engage the back side of the bin in the molded supports on the door. Then push down on the front of the bin. The bin will lock into place. 11Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

About the refrigerator doors. Refrigerator Doors The refrigerator doors may feel different than the ones you are used to. The special door opening/closing feature makes sure the doors close all the way and are securely sealed. When opening and closing the door you will notice a stop position. If the door is opened past this stop point, the door will remain open to allow you to load and unload food more easily. When the door is only partially open, it will automatically close. The resistance you feel at the stop position will be reduced as the door is loaded with food. When the door is only partially open, it will automatically close. Beyond this stop the door will stay open. Door Alignment If doors are uneven, adjust the refrigerator door. Using a 7/16″ wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it. (A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.) After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors. 7/16″ Wrench RaiseAbout the crispers and pans. GEAppliances.com

About crisper removal. Not all features are on all models. Crisper Removal Crispers can easily be removed by pulling the drawer straight out and lifting the drawer up and over the stop location. If the door prevents you from taking out the drawers, first try to remove the door bins. If this does not offer enough clearance, the refrigerator will need to be rolled forward until the door opens enough to slide the drawers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left or right as you roll it out. Not all features are on all models. Fruit and Vegetable Crispers Excess water that may accumulate in the bottom of the drawers should be wiped dry. On some models, the bottom drawer has full extension slides that allow full access to the drawer. Adjustable Humidity Crispers Slide the control all the way to the HI setting to provide high humidity recommended for most vegetables. Slide the control all the way to the LO setting to provide lower humidity levels recommended for most fruits. HI LO Convertible Deli Pan The convertible deli pan has its own cold air duct to allow a stream of cold air from the freezer compartment or fresh food compartment to flow to the pan. The variable temperature control regulates the air flow from the Climate Keeper. Set the control to the coldest setting to store fresh meats. Set the control to cold to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. The cold air duct is turned off. Variable settings between these extremes can be selected.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation InstructionsAbout the automatic icemaker. Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Automatic Icemaker The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions. If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the O (off) position. When the refrigerator has been connected to the water supply, set the power switch to the l (on) position. The icemaker will fill with water when it cools to 15°F (–10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes. You will hear a buzzing sound each time the icemaker fills with water. Throw away the first few batches of ice to allow the water line to clear. Be sure nothing interferes with the sweep of the feeler arm. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together. If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. Special note about dispenser models: ■ Dispenser models have a tilt-out ice bin. The bin can be tilted out as shown in the illustrations, and it will hold itself up while you take ice out or turn the icemaker power switch on and off. Be sure to put the bin back in place before closing the door. ■ To restore your ice level from an empty bucket stage, the following steps are recommended: 12 hours after the first batch of ice has fallen into the bin, dispense 3 to 4 cubes. After an additional 6 hours, dispense 3 to 4 cubes again. These steps will restore your ice level in the shortest amount of time. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice. A newly installed refrigerator may take 12 to 24 hours to begin making ice. Lift the bin, then pull it forward until the bin stops. Removing Ice Bin (dispenser models) CAUTION: The ice bin is heavy when full. Set the power switch to the O (off) position before removing the bin. When replacing the bin, be sure to press it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the bin back again. IcemakerFeeler ArmPowerSwitchGreenPower LightLower the bin to access ice or reach the power switch.NOTE: In order to take full advantageof the tilt-out ice bin, only store itemson the shelf below the ice bin thatare no taller than the lowest point on the bin. On dispenser models, to access ice or reach the power switch: Lift the bin, then pull it forward until the bin stops.Lift and pull forward again to remove the bin.RotateDriveMechanismDispenser Models onlyImportant Facts About Your Dispenser ■ Do not add ice from trays or bags to the storage drawer. It may not crush or dispense well. ■ Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon. ■ Beverages and foods should not be quick-chilled in the ice storage drawer. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam. ■ To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening. ■ Some crushed ice may be dispensed even though you selected CUBED ICE. This happens occasionally when a few cubes accidentally get directed to the crusher. ■ After crushed ice is dispensed, some water may drip from the chute. ■ Sometimes a small mound of snow will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.

About the ice and water dispenser. (on some models) GEAppliances.com To Use the Dispenser Select CUBED ICE , CRUSHED ICE or WATER . Press the glass gently against the top of the dispenser cradle. The spill shelf is not self-draining. To reduce water spotting, the shelf and its grille should be cleaned regularly. If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water. CAUTION: Never put fingers or any other objects into the ice crusher discharge opening. Locking the Dispenser Press the LOCK CONTROL pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds. Dispenser Light This pad turns the night light in the dispenser on and off. The light also comes on when the dispenser cradle is pressed. On some models, if this light burns out, it should be replaced with a 6 watt 12V maximum bulb. Quick Ice When you need ice in a hurry, press this pad to speed up ice production. This will increase ice production for the following 48 hours or until you press the pad again. Door Alarm To set the alarm, press this pad until the indicator light comes on. This alarm will sound if either door is open for more than 3 minutes. The light goes out and the beeping stops when you close the door. Spill Shelf Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation InstructionsConsumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Cleaning the Outside The dispenser drip area, beneath the grille, should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away. The dispenser cradle. Before cleaning, lock the dispenser by pressing and holding the LOCK CONTROL pad for 3 seconds. Clean with warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. Rinse thoroughly and wipe dry. The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth. The stainless steel panels and door handles (on some models) can be cleaned with a commercially available stainless steel cleaner. A spray-on stainless steel cleaner works best. Do not use appliance wax or polish on the stainless steel. Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth. Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish. Cleaning the Inside To help prevent odors, leave an open box of baking soda in the fresh food and freezer compartments. Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls. Use warm water and baking soda solution— about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry. Use of any cleaning solution other than that which is recommended, especially those that contain petroleum distillates, can crack or damage the interior of the refrigerator. Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter. Do not wash any plastic refrigerator parts in the dishwasher. The chill/thaw tray is dishwasher safe. Dispenser drip area. Care and cleaning of the refrigerator.17 For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open. Set the icemaker power switch to the O (off) position and shut off the water supply to the refrigerator. If the temperature can drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding. GEAppliances.com Behind the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator. When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line. Preparing for Vacation Preparing to Move Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage. When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator. Be sure the refrigerator stays in an upright position during moving. Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation InstructionsConsumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Replacing the light bulbs. Setting the controls to OFF does not remove power to the light circuit. Refrigerator Compartment—Upper Light Unplug the refrigerator. The bulbs are located at the top of the compartment, inside the light shield. On some models, a screw at the front of the light shield will have to be removed. To remove the light shield, on some models, press in on the tabs on the sides of the shield and slide forward and out. On other models, just slide forward and out. After replacing the bulb with an appliance bulb of the same or lower wattage, replace the light shield and screws (on some models). When replacing the light shield, make sure that the tabs at the back of the shield fit into the slots at the back of the light shield housing. Plug the refrigerator back in. Refrigerator Compartment—Lower Light This light is located above the top drawer. Unplug the refrigerator. Remove the convertible meat drawer control knob by pulling straight out. Lift the light shield up and pull it out. After replacing the bulb with an appliance bulb of the same or lower wattage, replace the shield and the knob. Plug the refrigerator back in. Freezer Compartment Unplug the refrigerator. Remove the shelf just above the light shield. (The shelf will be easier to remove if it is emptied first.) On some models, a screw at the top of the light shield will need to be removed. To remove the light shield, press in on the sides, and lift up and out. Replace the bulb with an appliance bulb of the same or lower wattage, and reinstall the light shield. When reinstalling the light shield, make sure the top tabs snap securely into place. Replace the screw (on some models). Reinstall the shelf and plug the refrigerator back in.

Dispenser (on some models) Unplug the refrigerator. The bulb is located on the dispenser under the control panel. Remove the light bulb by turning it counterclockwise. Replace the bulb with a bulb of the same size and wattage. Plug the refrigerator back in. Tabs19 Trim kits and decorator panels. Read these instructions completely and carefully. Before You Begin Some models are equipped with trim kits that allow you to install door panels. You can order pre-cut black, white, bisque or stainless steel decorator panels from GE Parts and Accessories,

800.626.2002, or you can add wood panels to match your kitchen cabinets.

Panels less than 1/4″ (6 mm) thick When installing wood panels less than 1/4″ (6 mm) thick, you need to create a filler panel, such as 1/8″ cardboard, that will fit between the face of the door and the wood panel. If you are installing the pre-cutdecorator panels, pre-cut filler panels are included in the kit. The combined thickness of the decorator or wood panel and the filler panel should be 1/4″ (6 mm). For CustomStyle

models 3/4″ (19 mm) or Raised Panel A raised panel design screwed or glued to a 1/4″ (6 mm) thick backing, or a 3/4″ (19 mm) routed board can be used. The raised portion of the panel must be fabricated to permit clearances of at least 2″ (5.1 cm) from the handle side for fingertip clearance. Panels thicker than 1/4″ (6 mm), up to 3/4″ (19 mm) max, will require that the outer 5/16″ (8 mm) of panel perimeter be no thicker than 1/4″ (6 mm).Weight limitations for custom panels:Fresh Food 38 lbs. (17 kg) max.Freezer Door 28 lbs. (13 kg) max.2″ (5.1 cm)ClearanceHandle SideAppearancePanelRefrigerator Door 1/4″ (6 mm)Thick Backing3/4″(19 mm)Panels 1/4″ thick or lessPanels thicker than 1/4″ (6 mm)1/4″ max1/4″ (6 mm) max3/4″ (19 mm)5/16″ (8 mm) Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation InstructionsConsumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Trim kits and decorator panels. Freezer Panel Without Dispenser Freezer Panel With Dispenser Fresh Food Panel Cutout 5/16″ (8 mm)

⁄32″ (49.5 cm) FRONT 23‘ Dimensions for Custom Wood Panels The areas at the top of the panels need to be cut out of the panels. 25‘ CustomStyle

Dimensions for Custom Wood Panels The areas at the top of the panels need to be cut out of the panels. Cutout 1/8″ (3 mm) Cutout 1/8″ (3 mm) 5/16″ (8 mm) 5/16″ (8 mm) Freezer Panel Without Dispenser Freezer Panel With Dispenser Fresh Food Panel Cutout 5/16″ (8 mm)

⁄32″ (49.5 cm) FRONT Cutout 1/8″ (3 mm) Cutout 1/8″ (3 mm) 5/16″ (8 mm) 5/16″ (8 mm)21 Inserting the door panels. Attach the Top Trim on the Freezer and Fresh Food Doors. The Top Trim can be found inside the refrigerator compartment. With a T-20 Torxdriver, attach the Top Trim, using two screws on each Top Trim piece, to the top of each door. Hand tighten only. Make sure that the top of each panel fits snugly behind the lip of the Top Trim. Insert the Freezer Panel and Fresh Food Panel. Carefully push the freezer panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel. Repeat for fresh food panel. If your model has a dispenser, this step only applies to the fresh food panel and top freezer panel. Insert the Bottom Freezer Panel (on dispenser models). Carefully push the panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel. Cut-OutCut-OutTop Trim Screws Top FreezerPanelBottomFreezerPanelSide TrimSide TrimFresh Food Panel Read these instructions completely and carefully. Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Top Trim Screws22 Install the Side Trim. These pieces are tucked inside the refrigerator door handle. Do not remove the protective film on the outside of the Side Trim until the Side Trim is installed. Fit the bottom of the Side Trim under the Bottom Trim as illustrated. Hold the Side Trim against the front face of the decorator panels and fit the Side Trim under the Top Trim. Make sure the magnetically attached Side Trim is fitted correctly and that you are satisfied with the appearance of all the parts. Side Trim Side Trim Bottom Trim Top Trim Inserting the door panels. Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsBEFORE YOU BEGIN Read these instructions completely and carefully.

IMPORTANT — Save these instructions for local inspector’s use.

IMPORTANT — Observe all governing codes and ordinances.• Note to Installer – Be sure to leave theseinstructions with the Consumer.• Note to Consumer – Keep theseinstructions for future reference.• Skill level – Installation of this appliancerequires basic mechanical skills.• Completion time – Refrigerator Installation30 minutesWater Line Installation30 minutes• Proper installation is the responsibility ofthe installer. • Product failure due to improper installationis not covered under the Warranty.If the refrigerator has already been installed,remove the base grille (see Step 2 in Movingthe Refrigerator), then skip to Step 5 inInstalling the Refrigerator.Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.comIn Canada, call 1.800.361.3400 or Visit our Website at: geappliances.ca Installation Refrigerator Instructions Models 23, 25, 26, 27 & 29 If the refrigerator has an icemaker, it will haveto be connected to a cold water line. A GEwater supply kit (containing tubing, shutoffvalve, fittings and instructions) is available atextra cost from your dealer, by visiting ourWebsite at GEAppliances.com (in Canada at geappliances.ca) or from Parts andAccessories, 800.626.2002 (in Canada1.888.261.3055). PREPARATION

Leave all tape and door pads on doors until the refrigerator is in its final location. To move the refrigerator, use a padded hand truck. Center the refrigerator on the hand truck and secure the strap around the refrigerator. DO NOT OVERTIGHTEN THE STRAP.

Remove the grille by removing the two Phillips head screws.

If the refrigerator must go through any entrance that is less than 38″ wide, the doors must be removed. Proceed to Step 3. DO NOT remove the handles. If all entrances are more than 38″ wide, skip to Installing the Refrigerator.

DISCONNECT THE WATER

COUPLING (on some models) If the refrigerator has a water dispenser, there is a water line from the cabinet into the bottom hinge on the freezer door that must be disconnected. To disconnect, push in on the white collar of the coupling and pull out the tubing.

Installation Instructions

DISCONNECT THE POWER

COUPLING (on some models) If the refrigerator has a water dispenser, there is a power line (harness) from the cabinet into the bottom hinge on the freezer door that must be disconnected. To disconnect, pull apart at the coupling.

CONNECTORS (on some models) If the refrigerator has a refreshment center, there are electrical connectors (harnesses) from the cabinet into the bottom hinge on the refrigerator door that must be disconnected. To disconnect, pull apart each connector.

Remove the freezer door top hinge cover (if equipped) by either squeezing it and pulling it up or by prying it off with a plastic putty knife. Remove the two 5/16″ or 1/8″ hex head screws, then lift the hinge straight up to free the hinge pin. Open the freezer door to 90.°

(cont.) As one person slowly lifts the freezer door up and off the bottom hinge, the second person should carefully guide the water line and power line (harness) through the bottom hinge. Set the door on a non-scratching surface with the inside up.

DOOR Remove the refrigerator door top hinge cover (if equipped) by either squeezing it and pulling it up or by prying it off with a plastic putty knife.

5/16″ or 1/8″ hex head 90°27 Installation Instructions REMOVE THE REFRIGERATOR DOOR (cont.) Lift the refrigerator door up and off the bottom hinge. If the refrigerator has a refreshment center, one person should slowly lift the door up and off the bottom hinge and the second person should carefully guide the electrical lines (harnesses) through the bottom hinge. Set the door on a non-scratching surface with the inside up.

To replace the doors, simply reverse steps 3 through 8. However, please note the following:

• When lowering the doors onto the bottom hinges, make sure the second person carefully guides the tube and harnesses through the holes in the hinges.

• When connecting the water line, make sure you insert the tubing all the way to the mark.

• Do not pinch the tubing and harnesses when placing the doors on the bottom hinges.

• When connecting the power line and the electrical lines (refreshment center models only), be sure that the connectors are seated together fully.

Mark Refreshment Center Models OnlyDIMENSIONS AND SPECIFICATIONS (for 23‘ CustomStyle

Installation Instructions

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.

• Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly.

• Install it on a floor strong enough to support it fully loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections: 23‘(33”wide), 23‘/25‘ CustomStyle

(for 25‘ CustomStyle

/4″ (183.5 cm) required for full adjustment of mobility wheels. If cabinets installed above refrigerator have doors that are flush to the top of the opening for the refrigerator, then an additional 1/8″ may be required to provide clearance for cabinet doors to open freely. 36″(91.4 cm)24″ (61 cm)

⁄4″ (183.5 cm)*29 Installation Instructions

(icemaker and dispenser models) A cold water supply is required for automatic icemaker and dispenser operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section. NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using GE SmartConnect

Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter. If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply. If you are using the GE SmartConnect

tubing, the nuts are already assembled to the tubing. If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting. If you are using GE SmartConnect

tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Overtightening may cause leaks.

Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp. 1/4″ Tubing Tubing Clamp 1/4″ Compression Nut Ferrule (sleeve) SmartConnect

TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

Before plugging in the refrigerator, make sure the icemaker power switch is set to the O (off) position. See the grounding information attached to the power cord.

models: Turn the front roller adjusting screws clockwise to raise the refrigerator, counterclockwise to lower it. Use a 3/8″ hex wrench with extension, or an adjustable wrench. These models also have rear adjustable rollers so you can align the refrigerator with your kitchen cabinets. Use a 3/8″ hex wrench with extension to turn the screws for the rear rollers—clockwise to raise the refrigerator, counterclockwise to lower it.

IN PLACE Move the refrigerator to its final location.

The refrigerator can be leveled by adjusting the rollers located near the bottom hinges. Rollers have three purposes:

• Rollers adjust so the door closes easily when opened about halfway. (Raise the front about 5/8″ [16 mm] from the floor.)

• Rollers adjust so the refrigerator is firmly positioned on the floor and does not wobble.

• Rollers allow you to move the refrigerator away from the wall for cleaning. To adjust the rollers on 23‘ (33” wide), 25‘, 26‘, 27‘ and 29‘ models:

• Turn the roller adjusting screws clockwise to raise the refrigerator, counterclockwise to lower it. Use a 3/8″ hex socket or wrench, or an adjustable wrench.

RollersRoller adjusting screwRoller adjusting screws

Adjust the refrigerator door to make the doors even at the top. To align: Using a 7/16″ wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it. NOTE: A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used. After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.

Doors should be even at topRaise7/16″ wrenchRaise31 Installation Instructions

REPLACE THE BASE GRILLE

Replace the grille by installing the two Phillips head screws.

Set the controls to the recommended setting.

Set the icemaker power switch to the I (on) position. The icemaker will not begin to operate until it reaches its operating temperature of 15°F (–9°C) or below. It will then begin operation automatically. It will take 2–3 days to fill the ice bin. NOTE: In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker.

Power switchINSTALLING THE WATER LINE (ICEMAKER & DISPENSER MODELS) Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect

Refrigerator Tubing (WX08X10002, WX08X10006, WX08X10015 and WX08X10025). When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer’s recommendations. If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator’s filter bypass plug. Using the refrigerator’s water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes and slower water flow from the water dispenser. This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position. Do not install the icemaker tubing in areas where temperatures fall below freezing. When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered. All installations must be in accordance with local plumbing code requirements.

Installation Instructions

Refrigerator Tubing kit, 1/4″ outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add 8′ (2.4 m). Be sure there is sufficient extra tubing (about 8′ [2.4 m] coiled into 3 turns of about 10″ [25 cm] diameter) to allow the refrigerator to move out from the wall after installation. GE SmartConnect

Refrigerator Tubing Kits are available in the following lengths: 2′ (0.6 m) – WX08X10002 6′ (1.8 m) – WX08X10006 15′ (4.6 m) – WX08X10015 25′ (7.6 m) – WX08X10025 Be sure that the kit you select allows at least 8′ (2.4 m) as described above. 32NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect

Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002 (in Canada 1.888.261.3055).

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

• 1/2″ or adjustable wrench.

• Straight and Phillips blade screwdriver.

• Two 1/4 ″ outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

• If you are using a GE SmartConnect

Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32″ at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. WHAT YOU WILL NEED (CONT.) Installation Instructions

SHUT OFF THE MAIN WATER

SUPPLY Turn on the nearest faucet long enough to clear the line of water. Install the shutoff valve on the nearest frequently used drinking water line.

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

Drill a 1/4″ hole in the water pipe (even if using a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4″ hole may result in reduced ice production or smaller cubes.Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. For plastic tubing from a GE SmartConnect

Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Saddle-Type Shutoff Valve Compression Nut Packing Nut Outlet Valve Ferrule (sleeve) Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing.

Fasten the shutoff valve to the cold water pipe with the pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Tighten the clamp screws until the sealing washer begins to swell. NOTE: Do not overtighten or you may crush the tubing.

Pipe Clamp Vertical Cold Water Pipe Saddle-Type Shutoff Valve Washer Inlet End Pipe Clamp Clamp Screw Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible. NOTE: Be sure there is sufficient extra tubing (about 8

[2.4 m] coiled into 3 turns of about 10″ [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

To complete the installation of the refrigerator, go back to Step 1 in Installing the Refrigerator.Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Normal operating sounds. GEAppliances.com Newer refrigerators sound different from older refrigerators.Modern refrigerators have more features and use newertechnology. HUMMM... WHOOSH...

The new high efficiency compressor may run fasterand longer than your old refrigerator and you mayhear a high-pitched hum or pulsating sound while it is operating. Sometimes the refrigerator runs for an extended period,especially when the doors are opened frequently. Thismeans that the Frost Guard feature is working toprevent freezer burn and improve food preservation. You may hear a whooshing sound when the doors close.This is due to pressure equalizing within the refrigerator. You may hear the fans spinning at high speeds. This happens when the refrigerator is first pluggedin, when the doors are opened frequently or when a large amount of food is added to the refrigeratoror freezer compartments. The fans are helping tomaintain the correct temperatures. If either door is open for over 3 minutes, you mayhear the fans come on in order to cool the lightbulbs. The fans change speeds in order to provide optimalcooling and energy savings. You may hear the fans running after selecting one ofthe CustomCool settings. CLICKS, POPS, CRACKS and CHIRPS

You may hear cracking or popping sounds when therefrigerator is first plugged in. This happens as therefrigerator cools to the correct temperature. Electronic dampers click open and closed to provideoptimal cooling and energy savings. The compressor may cause a clicking or chirpingsound when attempting to restart (this could take up to 5 minutes). The electronic control board may cause a clickingsound when relays activate to control refrigeratorcomponents. Expansion and contraction of cooling coils duringand after defrost can cause a cracking or poppingsound. On models with an icemaker, after an icemakingcycle, you may hear the ice cubes dropping into the ice bucket. WATER SOUNDS

The flow of refrigerant through the freezer coolingcoils may make a gurgling noise like boiling water. Water dropping on the defrost heater can cause asizzling, popping or buzzing sound during thedefrost cycle. A water dripping noise may occur during the defrostcycle as ice melts from the evaporator and flows intothe drain pan. Closing the door may cause a gurgling sound due topressure equalization. Do you hear what I hear? These sounds are normal. For additional information on normalicemaker and dispenser operating sounds,see the About the automatic icemakerand About the ice and water dispensersections.Before you call for service… Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Causes What To Do Refrigerator does not Refrigerator in defrost cycle. • Wait about 30 minutes for defrost cycle to end. operate Either or both controls set to OFF. • Set the controls to a temperature setting. Refrigerator is unplugged. • Push the plug completely into the outlet. The fuse is blown/circuit • Replace fuse or reset the breaker. breaker is tripped. The refrigerator is in • Unplug the refrigerator and plug it back in. showroom mode. Vibration or rattling Rollers need adjusting. • See Rollers. (slight vibration is normal) Motor operates for long Normal when refrigerator • Wait 24 hours for the refrigerator to completely periods or cycles on and is first plugged in. cool down. off frequently. (Modern Often occurs when large • This is normal. refrigerators with more amounts of food are storage space and placed in refrigerator. a larger freezer require Door left open. • Check to see if package is holding door open. more operating time. Hot weather or frequent • This is normal. They start and stop door openings. often to maintain even Temperature controls set • See About the controls. temperatures.) at the coldest setting. Refrigerator or freezer Temperature control not set • See About the controls. compartment too warm cold enough. Warm weather or frequent • Set the temperature control one step colder. door openings. See About the controls. Door left open. • Check to see if package is holding door open. Frost or ice crystals Door left open. • Check to see if package is holding door open. on frozen food Too frequent or too long (frost within package door openings. is normal) Divider between Automatic energy saver • This helps prevent condensation on the outside. refrigerator and freezer system circulates warm compartments liquid around front edge feels warm of freezer compartment. Automatic icemaker Icemaker power switch • Set the power switch to the on position. does not work is in the off position. Water supply turned off or • See Installing the water line. not connected. Freezer compartment • Wait 24 hours for the refrigerator to completely too warm. cool down. Piled up cubes in the storage • Level cubes by hand. bin cause the icemaker to shut off. Ice cubes stuck in icemaker. • Turn off the icemaker, remove cubes and turn the (Green power light on icemaker back on. icemaker blinking).

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsGEAppliances.com Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Problem Possible Causes What To Do Frequent “buzzing” sound Icemaker power switch is in the • Set the power switch to the O (off) position. Keeping it in the I (on) position, but the water supply I (on) position will damage the water valve. to the refrigerator has not been connected. Ice cubes have odor/taste Ice storage bin needs cleaning. • Empty and wash bin. Discard old cubes. Food transmitting odor/taste • Wrap foods well. to ice cubes. Interior of refrigerator • See Care and cleaning. needs cleaning. Small or hollow cubes Water filter clogged. • Replace filter cartridge with new cartridge or with plug. Slow ice cube freezing Door left open. • Check to see if package is holding door open. Temperature control not set • See About the controls. cold enough. Cube dispenser Icemaker turned off or • Turn on icemaker or water supply. does not work water supply turned off. An item is blocking or has fallen • Remove any item that might be blocking, or has fallen into into the ice chute inside the the chute. top door bin of the freezer. Ice cubes are frozen to • Remove cubes. icemaker feeler arm. Irregular ice clumps in

• Break up with fingertip pressure and discard remaining clumps. storage container.

• Freezer may be too warm. Adjust the freezer control to a colder setting, one position at a time, until clumps do not form. Dispenser is LOCKED. • Press and hold the LOCK CONTROL pad for 3 seconds. Water has poor taste/odor Water dispenser has not been • Dispense water until all water in system is replenished. used for a long time. Water in first glass is warm Normal when refrigerator • Wait 24 hours for the refrigerator to completely cool down. is first installed. Water dispenser has not been • Dispense water until all water in system is replenished. used for a long time. Water system has been drained. • Allow several hours for replenished supply to chill. Water dispenser Water supply line turned • See Installing the water line. does not work off or not connected. Water filter clogged. • Replace filter cartridge or remove filter and install plug. Air may be trapped in the water system.

• Press the dispenser arm for at least two minutes. Dispenser is LOCKED. • Press and hold the LOCK CONTROL pad for 3 seconds. Water spurting from Newly-installed filter cartridge. • Run water from the dispenser for 3 minutes (about dispenser one and a half gallons). Water is not dispensed Water in reservoir is • Call for service. but icemaker is working frozen. Refrigerator control setting • Set to a warmer setting. is too cold. No water or ice cube Supply line or shutoff valve is clogged.

• Call a plumber. production Water filter clogged. • Replace filter cartridge or remove filter and install plug. Dispenser is LOCKED. • Press and hold the LOCK CONTROL pad for 3 seconds. CUBED ICE was selected but Last setting was CRUSHED ICE. • A few cubes were left in the crusher from the previous CRUSHED ICE was dispensed setting. This is normal. 37Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Before you call for service… Problem Possible Causes What To Do Orange glow in Defrost heater is on. •This is normal. the freezer Refrigerator has odor Foods transmitting odor •Foods with strong odors should be tightly wrapped. to refrigerator.

• Keep an open box of baking soda in the refrigerator; replace every three months. Interior needs cleaning. • See Care and cleaning. Door not closing properly Door gasket on hinge side •Apply paraffin wax to the face of the gasket. sticking or folding over. A door bin is hitting a shelf • Move the door bin up one position. inside the refrigerator. Moisture forms on Not unusual during periods •Wipe surface dry. outside of refrigerator of high humidity. Moisture collects inside Too frequent or too long •This is normal for the beverage center. (in humid weather, air door openings. carries moisture into refrigerator when doors are opened) Interior light does No power at outlet. • Replace fuse or reset the breaker. not work Light bulb burned out. •See Replacing the light bulbs. Water on kitchen floor or Cubes jammed in chute. • Poke ice through with a wooden spoon. on bottom of freezer Hot air from bottom Normal air flow cooling motor. of refrigerator In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures. Refrigerator never Adaptive defrost keeps • This is normal. The refrigerator will cycle off after the shuts off but the compressor running during door remains closed for 2 hours. temperatures are OK door openings. Refrigerator beeping Door open. • Close door. Food isn’t thawing/chilling Packaging. • Increase time or re-package in plastic. Wrong weight selected. • Select a larger weight. Item with high fat content. • Select a larger weight. Not using Chill/Thaw tray. • Place items on tray and allow space in between items for better airflow. Actual temperature not Unit just plugged in. •Allow 24 hours for system to stabilize. equal to Set temperature Door open for too long. • Allow 24 hours for system to stabilize. Warm food added to refrigerator. • Allow 24 hours for system to stabilize. Defrost cycle is in process. • Allow 24 hours for system to stabilize. Select Temp or Beverage Refrigerator compartment • This is normal. In order to minimize energy usage, the Center feature is not temperature control is set Select Temp and Beverage Center features are disabled working at warmest setting. when the refrigerator temperature control is set at the warmest setting. Beverage Center feature • Press Beverage Center pad to restart. turns off after six months of continuous operation.

TERMS AND CONDITIONS: This warranty applies only for single family domestic use in Canada when the Refrigerator has been properly installed according to the instructions supplied by Camco and is connected to an adequate and proper utility service. Damage due to abuse, accident, commercial use, and alteration or defacing of the serial plate cancels all obligations of this warranty. Service during this warranty must be performed by an Authorized Camco Service Agent. Neither Camco nor the Dealer is liable for any claims or damages resulting from any failure of the Refrigerator or from service delays beyond their reasonable control. To obtain warranty service, purchaser must present the original bill of sale. Components repaired or replaced are warranted through the remainder of the original warranty period only. This warranty is in addition to any statutory warranty. WHAT IS NOT COVERED:

• Owner is responsible to pay for service calls related to product installation and/or teaching how to use the product.

• Damage to finish must be reported within 48 hours following the delivery of the appliance.

• Service trips to your home to teach you how to use the product.

• Damage to finish after delivery.

• Improper installation–proper installation includes adequate air circulation to the refrigeration system, adequate electrical, plumbing and other connecting facilities.

• Replacement of house fuses or resetting of circuit breakers.

• Replacement of light bulbs.

• Damage to product caused by accident, fire, floods or acts of God.

• Loss of food due to spoilage.

• Proper use and care of product as listed in the owner’s manual, proper setting of controls.

• WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES. IMPORTANT Keep this warranty and your bill of sale as proof of original purchase and purchase date. Camco Service is available coast to coast. If further help is needed concerning this warranty, contact: Manager, Consumer Relations, Camco Inc., Suite 310, 1 Factory Lane, Moncton, N.B. E1C 9M3 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. CONSUMER WARRANTY (for customers in Canada) Your refrigerator is warranted to be free of defects in material and workmanship. What is covered How Long Warranted Parts Labour(From Date of Sale) Repair or Replaceat Camco’s OptionCompressor Ten (10) Years Ten (10) Years Five (5) YearsSealed System (including Five (5) Years Five (5) Years Five (5) Yearsevaporator, condensertubing and refrigerant)All Other Parts One (1) Year One (1) Year One (1) Year40 Consumer Support Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions Refrigerator Warranty. (For customers in the United States) All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). For The Period Of: GE Will Replace: One Year Any part of the refrigerator which fails due to a defect in materials or workmanship. From the date of the During this full one-year warranty, GE will also provide, free of charge, all labor and in-home original purchase service to replace the defective part. Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator From the date of the and all connecting tubing) which fails due to a defect in materials or workmanship. original purchase During this full five-year sealed refrigerating system warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part in the sealed refrigerating system. Lifetime of Product The full extension slides, if they should fail due to a defect in materials or workmanship. From the date of the During this product lifetime limited warranty, you will be responsible for any labor or related original purchase service costs. Thirty Days Any part of the water filter cartridge which fails due to a defect in materials or workmanship. From the original During this limited thirty-day warranty, GE will also provide, free of charge, a replacement water purchase date of the filter cartridge. refrigerator ■ Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Loss of food due to spoilage. ■ Replacement of house fuses or resetting of circuit breakers. ■ Damage caused after delivery. ■ Replacement of the water filter cartridge due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. ■ Replacement of the light bulbs or water filter cartridge other than as noted above. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Incidental or consequential damage caused by possible defects with this appliance. What GE Will Not Cover: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.41 Manufactured for: General Electric Company, Louisville, KY 40225 Performance Data Sheet SmartWater Filtration System GWF / HWF Cartridge This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.* (100% safety factors built in for unmetered usage) Standard No. 42: Aesthetic Effects Parameter USEPA Influent Effluent % Reduction Min. Required MCL Challenge Concentration Average Maximum Average Minimum Reduction Chlorine — 2.0 mg/L + 10% 0.02 ppm 0.05 ppm 98.90% 97.37% > 50% T & O — — — — — — — Particulate** — at least 10,000 particles/mL 3,978 7,800 98.00% 96.10% > 85% Standard No. 53: Health Effects Parameter USEPA Influent Effluent % Reduction Min. Required MCL Challenge Concentration Average Maximum Average Minimum Reduction Turbidity 1 NTU*** 11 + 1 NTU*** 0.07 NTU 0.1 NTU 99.71% 99.59% 0.5 NTU Cysts 99.95% Reduction Minimum 50,000 L 26 55 99.97% 99.95% > 99.95% Lead at pH 6.5 15 ppb 0.15 mg/L + 10% 1 ppb 1 ppb 99.37% 99.37% 0.010 mg/L Lead at pH 8.5 15 ppb 0.15 mg/L + 10% 1.8 ppb 4.3 ppb 98.8% 97.13% 0.010 mg/L Lindane 0.0002 ppm

fibers/L; 0.32 MFL/ml 1.2 MFL/ml 99.95% 99.82% 99% fibers greater than 10 micrometers in length

• Tested using a flow rate of 0.5 gpm; pressure of 60 psig; pH of 7.5 ± 0.5; temp. of 20° ± 2.5°C ** Measurement in Particles/ml. Particles used were 0.5-1 microns *** NTU=Nephelometric Turbidity units Operating Specifications Capacity: certified for up to 300 gallons (1135 l); up to six months for models without a replacement filter indicator light; up to one year for models with a replacement filter indicator light Pressure requirement: 40–120 psi (2.8–8.2 bar), non-shock Temperature: 33–100ºF (0.6–38ºC) Flow rate: 0.5 gpm (1.9 lpm) General Installation/Operation/Maintenance Requirements Flush new cartridge at full flow for 3 minutes to purge out trapped air. Replace cartridge when flow becomes too slow. Special Notices Installation instructions, parts and service availability, and standard warranty are included with the product when shipped. This drinking water system must be maintained according to manufacturer’s instructions, including replacement of filter cartridges. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water. Check for compliance with the state and local laws and regulations. Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Systems must be installed and operated in accordance with manufacturer’s recommended procedures and guidelines. NSF

System Tested and Certified by NSF International against ANSI/NSF Standard 42 & 53 for the reduction of: Standard No. 42: Aesthetic Effects Chemical Unit Taste and Odor Reduction Chlorine Reduction Mechanical Filtration Unit Particulate Reduction, Class I Standard No. 53: Health Effects Chemical Reduction Unit Lead and Atrazine Reduction Lindane and 2,4-D Reduction Mechanical Filtration Unit Turbidity Reduction Cyst and Asbestos Reduction42 State of California Department of Health Services Water Treatment Device Certificate Number Date Issued: May 30, 2000 Date Revised: February 9, 2001

GE Smart Water Filtration Systems - GWF06 GWF06 GE Smart Water Filtration Systems - GWF GWF Hotpoint Refrigerator Systems - HWF HWF General Electric Appliances Cysts (protozoan) Turbidity Asbestos Lead Atrazine Lindane 2,4-D 300 gallons* 0.5 gpm For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years. BUYER: SELLER: Name Name Address Address City State Zip City State Zip Signature Date Signature Date43 General Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150 GE Service Protection Plus

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus –comprehensive protection on all your appliances–No Matter What Brand!Benefits Include:• Backed by GE• All brands covered• Unlimited service calls• All parts and labor costs included• No out-of-pocket expenses• No hidden deductibles• One 800 number to callYou will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple. Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more–any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemakercoverage and food spoilage protection is offered. You can rest easy, knowing that all your valuablehousehold products are protected against expensive repairs.Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224for more information.*All brands covered, up to 20 years old, in the continental U.S. We’ll Cover Any Appliance. Anywhere. Anytime.* Please place in envelope and mail to:

Consumer Product Ownership Registration Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer! Follow these three steps to protect your new appliance investment: Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.

Cut here Complete and mail your Consumer Product Ownership Registration today. Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification. After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800.GE.CARES (800.432.2737). Read your Owner’s Manual carefully. It will help you operate your new appliance properly. Model Number Serial Number E-mail Address*

Refrigerator Tubing.

⁄4″ (92,0 cm) FRENTE

REEMPLACE LA PARRILLA

” your questions, and so much more... In Canada: geappliances.ca Schedule Service In the U.S.: GEAppliances.com Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.361.3400 Real Life Design Studio In the U.S.: GEAppliances.com GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). In Canada, contact: Manager, Consumer Relations, Camco, Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Extended Warranties In the U.S.: GEAppliances.com Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133 Parts and Accessories In the U.S.: GEAppliances.com Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Camco service center, or call 1.888.261.3055. Contact Us In the U.S.: GEAppliances.com If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225 In Canada: geappliances.ca, or write to: Director, Consumer Relations, Camco, Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Register Your Appliance In the U.S.: GEAppliances.com Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: geappliances.ca Printed in Mexico
