USER MANUAL CEF2D240W1 CONTINENTAL EDISON

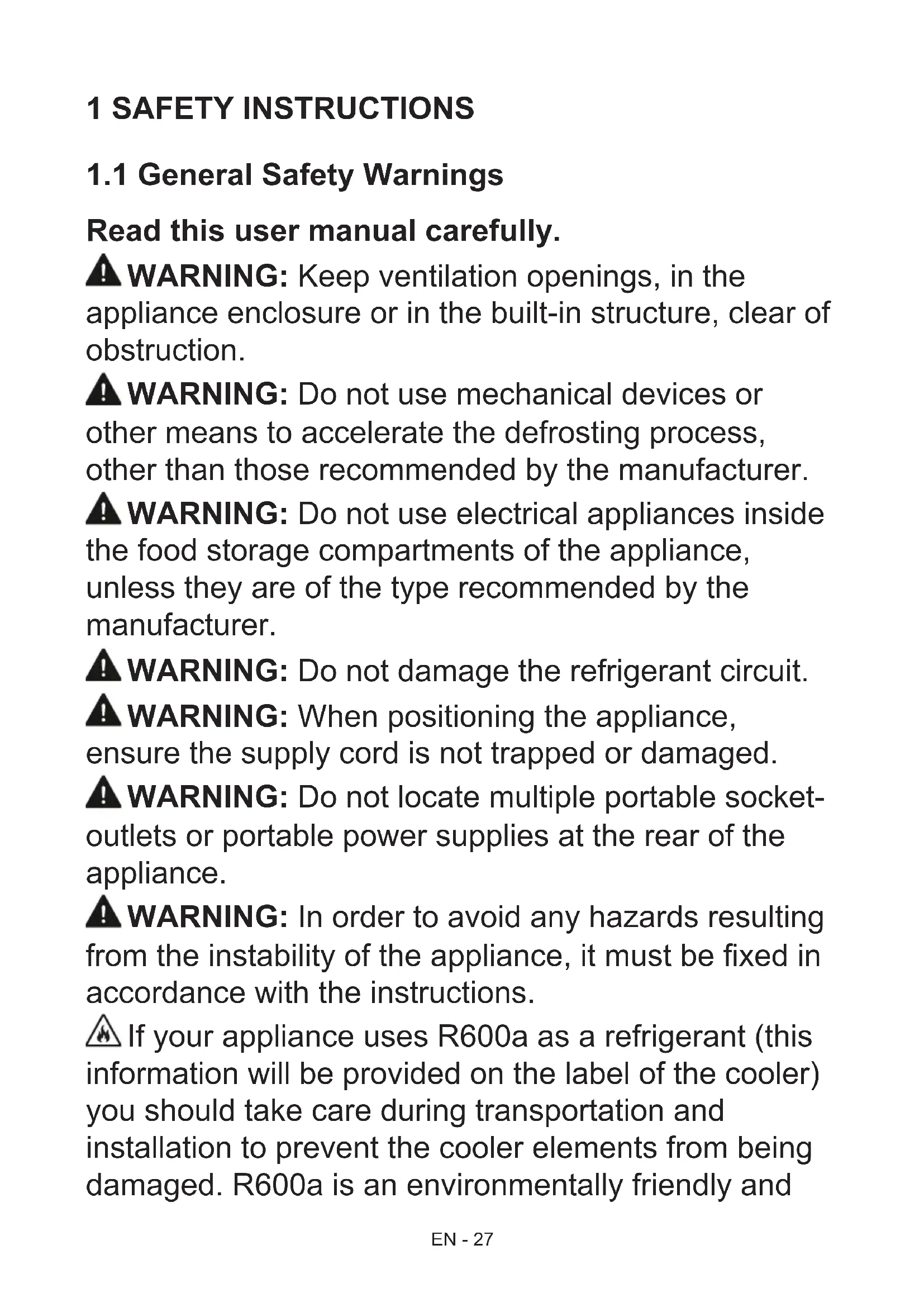

1.1 General Safety Warnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting

from the instability of the appliance, it must be xed in accordance with the instructions. If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly andEN - 28 natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open ames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as: – staff kitchen areas in shops, ofces and other working environments. – farm houses and by clients in hotels, motels and other residential type environments. – bed and breakfast type environments; – catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.EN - 29

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualied persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN - 30 To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems

• Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.EN - 31

1.2 Installation warnings

Before using your fridge freezer for the rst time, please pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge freezer may have an odour when it is operated for the rst time. This is normal and the odour will fade when your fridge freezer starts to cool.

• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualied electrician.

• Insert the plug into a socket with an efcient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualied electrician for assistance.

• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge freezer where it will not be exposed to direct sunlight.

• Your fridge freezer must never be used outdoors or exposed to rain.

• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.

• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.

• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

• Install the two plastic distance guides (the parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the gure) to prevent the condenser from touching the wall.

• The distance between the appliance and back wall must be a maximum of 75 mm.

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• Do not use plug adapter.

• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.

• Do not place explosive or ammable material in your fridge. Place drinks withEN - 32 high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning. Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old appliance The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce, your household waste disposal service or the shop where you purchased the product. Packaging and the Environment Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.EN - 33

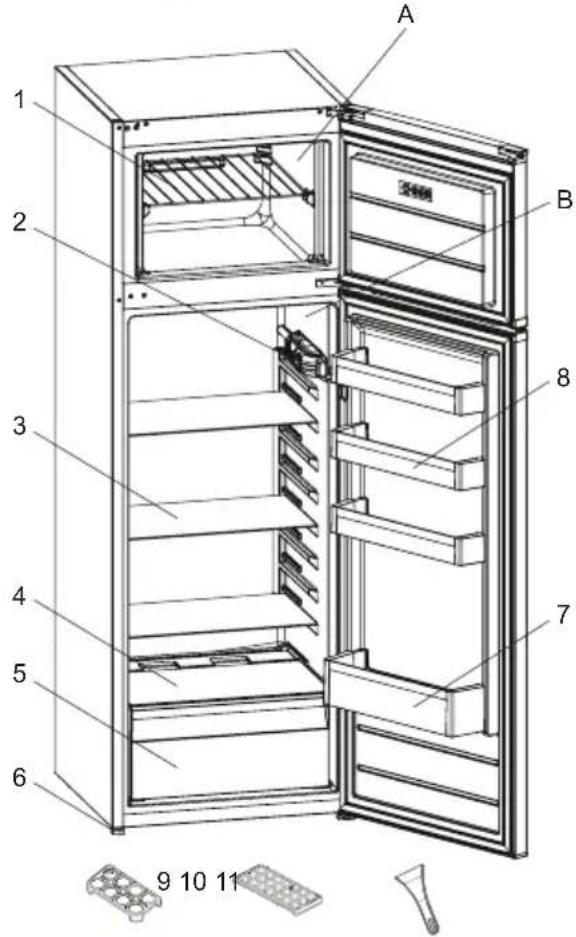

2 DESCRIPTION OF THE

APPLIANCE This appliance is not intended to be used as a built-in appliance.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A) Freezer compartment B) Refrigerator compartment

11) Plastic ice scraper *

• In some models General notes: Fresh Food Compartment (Fridge): Most efcient use of energy is ensured in the conguration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption. Freezer Compartment (Freezer): Most Efcient use of energy is ensured in the conguration with the drawers and bins are on stock position.EN - 34

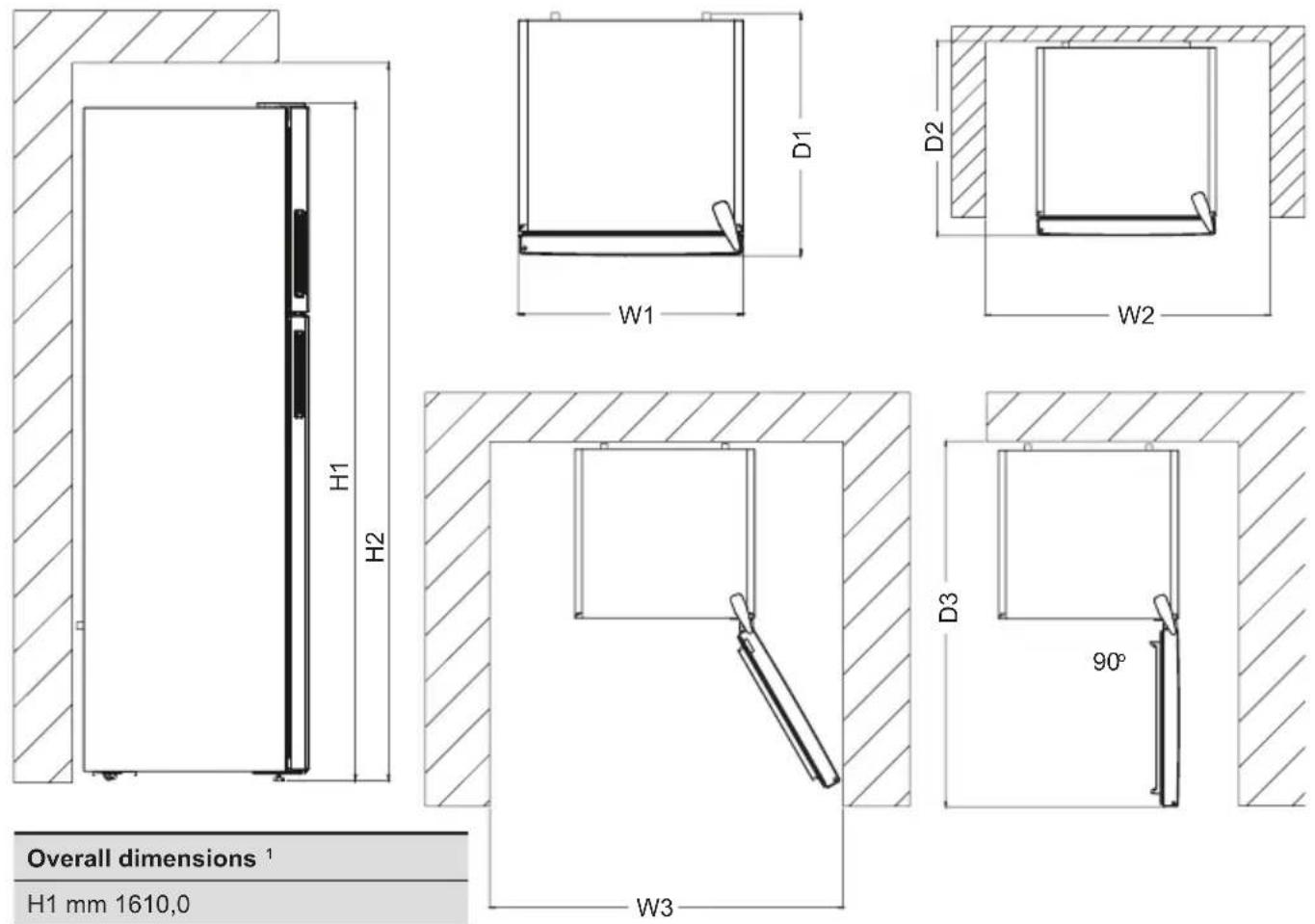

Space required in use

the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air. Overall space required in use

the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment. Overall dimensions

the height, width and depth of the appliance without the handle.

3 USING THE APPLIANCE

3.1 Information on Less Frost

Technology Thanks to the wrap around evaporator, Less Frost technology offers more efcient cooling, less manual defrost requirement, and more exible storage room.

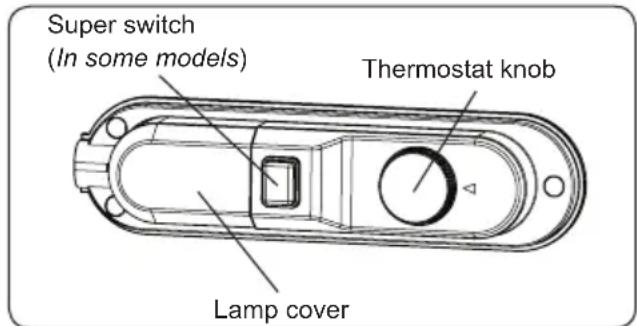

3.2 Thermostat Setting

The thermostat automatically regulates the temperature inside the refrigerator and freezer compartments. Cooler temperatures can be obtained by rotating the knob to higher numbers, 1 to 5. Important note: Do not try to rotate the knob beyond position 1, it will stop your appliance from working. Super switch (In some models) Thermostat knob Lamp cover Thermostat Settings

• Set the knob to a low/medium position, up to 3, for short-term storage of food in the appliance.

• Set the knob to a medium position, 3 or 4, for long-term storage of food in the appliance.

• Set the knob to 5 position for freezing the fresh food. The appliance will run for colder temperatures. Super freezing: This switch shall be used as superfreeze switch. For maximum freezing capacity, please turn on this switch before 24 hours placing fresh food. After placing fresh food in the freezer, 24 hours ON position is generally sufcient. In order to save energy, please turn off this switch after 24 hours from placingfresh food. Winter Switch: If ambiant temperature is below 16

C, this switch shall be used as winter switch and it keeps your fridge above 0

C while freezer is below -18

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the refrigerator compartment. If required, change the temperature setting.

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efciency.

• When setting the thermostat, take into consideration how often the appliance doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

• When the appliance is rst switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.

• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.

• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efciency of the appliance.

• Your appliance is designed to operate in the ambient temperature (ST/N = 16°C - 38°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.EN - 36 Climate class and meaning: T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C. ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C. N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C. SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

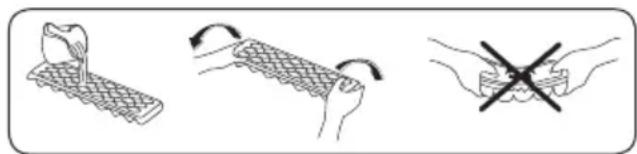

• Fill the ice tray with water and place in the freezer compartment.

• After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

3.4.2 The Plastic Scraper

After some time, frost will build up in certain areas of the freezer. The frost accumulated in the freezer should be removed regularly. Use the plastic scraper provided, if necessary. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit.

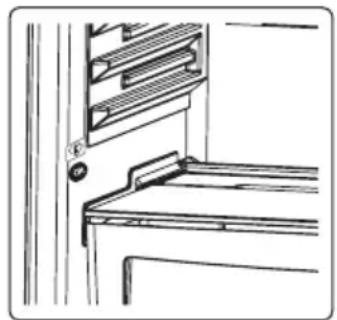

3.5 Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly It may be difcult to see the indicator, make sure it is properly lit.Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. Store food in the coldest area of the refrigerator. Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. OKEN - 37 The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area. 4 FOOD STORAGE

4.1 Refrigerator Compartment

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.

• We recommend that meat and clean sh are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

• Store loose fruit and vegetable items in the crisper containers.

• Store loose fruit and vegetables in the crisper.

• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene- releaser fruits (banana, peach, apricot, g etc.).

• Do not put wet vegetables into the refrigerator.

• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meatEN - 38 products and clean any leakages on the shelves.

• Do not put food in front of the air ow passage.

• Consume packaged foods before the recommended expiry date. NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

• For normal working conditions, it will be sufcient to adjust the temperature setting of your refrigerator to +4 °C.

• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.

• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

• Meat, sh, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)

• To prevent cross contamination, meat products and fruit vegetables are not stored together.

• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors. The table below is a quick guide to show you the most efcient way to store the major food groups in your refrigerator compartment. Food Maximum storage time How and where to store Vegetables and fruits 1 week Vegetable bin Meat and

Wrap in plastic foil, bags, or in a meat container and store on the glass shelf Fresh cheese

On the designated door shelf Butter and margarine 1 week On the designated door shelf Food Maximum storage time How and where to store Bottled products e.g. milk and yoghurt Until the expiry date recommended by the producer On the designated door shelf Eggs 1 month On the designated egg shelf Cooked food 2 days All shelves

4.2 Freezer Compartment

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.

• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn’t leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.

• Do not store fresh food next to frozen food as it can thaw the frozen food.

• Before freezing fresh food, divide it into portions that can be consumed in one sitting.

• Consume thawed frozen food within a short period of time after defrosting

• Never place warm food in the freezer compartment as it will thaw the frozen food.

• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.

• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.

• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.

• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitableEN - 39 temperature and that the contents have deteriorated.

• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

• To freeze fresh food, ensure that as much of the surface of the food as possible is in contact with the cooling surface. NOTE: If you attempt to open the freezer door immediately after closing it, you will nd that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. Important note:

• Never refreeze thawed frozen food.

• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.

• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.

• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.EN - 40 The table below is a quick guide to show you the most efcient way to store the major food groups in your freezer compartment. Meat and sh Preparation Maximum storage time (months) Steak Wrap in foil 6 - 8 Lamb meat Wrap in foil 6 - 8 Veal roast Wrap in foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat In packaging without using spices 1 - 3 Giblets (pieces) In pieces 1 - 3 Bologna sausage/salami Should be kept packaged even if it has a membrane Chicken and turkey Wrap in foil 4 - 6 Goose and duck Wrap in foil 4 - 6 Deer, rabbit, wild boar In 2.5 kg portions or as llets 6 - 8 Freshwater sh (Salmon, Carp, Crane, Catsh) After cleaning the bowels and scales of the sh, wash and dry it. If necessary, remove the tail and head.

Lean sh (Bass, Turbot, Flounder)

Fatty shes (Tuna, Mackerel, Bluesh, Anchovy)

Shellsh Clean and in a bag 4 - 6 Caviar In its packaging, or in an aluminium or plastic container

Snails In salty water, or in an aluminium or plastic container 3 NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Vegetables and Fruits Preparation Maximum storage time (months) String beans and beans Wash, cut into small pieces and boil in water 10 - 13 Beans Hull, wash and boil in water 12 Cabbage Clean and boil in water 6 - 8 Carrot Clean, cut into slices and boil in water 12 Pepper Cut the stem, cut into two pieces, remove the core and boil in water

Spinach Wash and boil in water 6 - 9 Cauliower Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while

Eggplant Cut into pieces of 2cm after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn 12 Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone 4 - 6EN - 41 Vegetables and Fruits Preparation Maximum storage time (months) Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Add 10 % of sugar to the container 12 Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum storage time (months) Thawing time at room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C) Pizza 2 - 3 2 - 4 15-20 (200 °C) Dairy products Preparation Maximum storage time (months) Storage conditions Packet (Homogenized) Milk In its own packet 2 - 3 Pure Milk – in its own packet Cheese - excluding white cheese In slices 6 - 8 Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods. Butter, margarine In its packaging 6 5 CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity. The power supply must be disconnected during cleaning.EN - 42

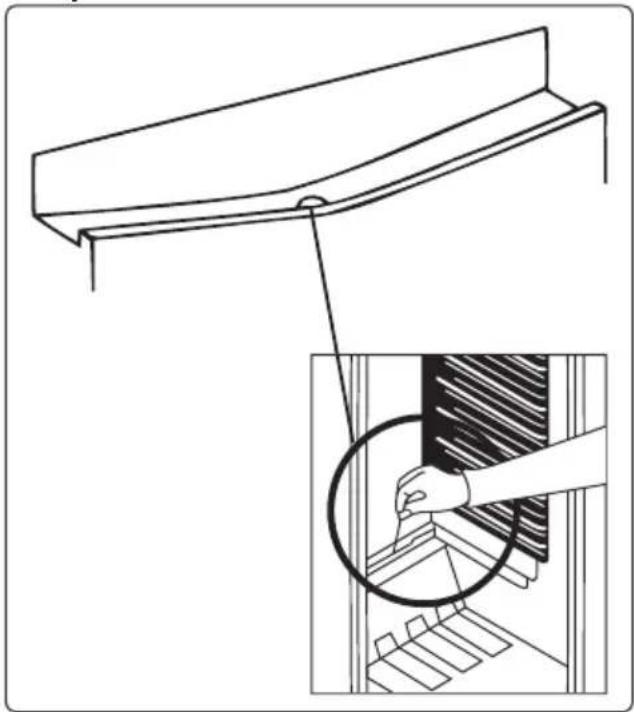

Defrosting the Refrigerator Compartment

• Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically.

• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of owing out.

• You can also clean the drain hole by pouring half a glass of water down it. Defrosting the Freezer Compartment Frost accumulated in the freezer compartment should be removed regularly (using the plastic scraper provided). The freezer compartment should be cleaned in the same way as the refrigerator compartment, with the defrost function, at least twice a year. For this:

• The day before you defrost, set the thermostat dial to position “5” to freeze food completely.

• During defrosting, frozen food should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten its storage life. Remember to use this food within a relatively short period of time.

• Set the thermostat knob to position “•” and disconnect the appliance from the mains. Leave the door open until the unit is completely defrosted.

• To accelerate the defrosting process, place one or more bowls of warm water in the freezer compartment.

• Dry the inside of the unit carefully and set the thermostat knob to the MAX position. Replacing LED Lighting If your appliance has LED lighting contact the help desk as this should be changed by authorized personnel only.EN - 43 6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing

• The original packaging and foam may be kept for re-transportation (optional).

• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.

• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or x them into the appliance against shocks using bands when re-positioning or transporting. Always carry your appliance in the upright position.

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.

• It is possible to change the opening direction of the door on models without handles.

• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

7 BEFORE CALLING AFTER-

SALES SERVICE If your refrigerator is not working properly, there may be a minor problem. Check the following. The appliance does not operate Check if:

• The mains is connected

• The thermostat setting is on the “•” position

• The socket is defective. To check this, plug another working appliance into the same socket. The appliance performs poorly Check if:

• The appliance is overloaded

• The doors are closed properly

• There is any dust on the condenser

• There is enough space near the rear and side walls. The appliance is noisy The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is normal. If you hear a different sound, check whether:

• The appliance is level

• Anything is touching the rear of the appliance

• Objects in the appliance are vibrating. Your refrigerator is operating noisily The following noises can be heard during normal operation of the appliance. Cracking (ice cracking) noise occurs:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Clicking noise occurs: When the thermostat switches the compressor on/ off. Motor noise: Indicates the compressor is operating normally. The compressorEN - 44 may cause more noise for a short time when it is rst activated. Bubbling noise and splashing occurs: Due to the ow of the refrigerant in the tubes of the system. Water owing noise occurs: Due to water owing to the evaporation container. This noise is normal during defrosting. There is water in the lower part of the refrigerator Check if: The drain hole for the water is not clogged (use defrost drain plug to clean the drain hole). Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.

• The cooling unit of your refrigerator is located at the rear of the appliance. Therefore, water droplets or ice may form on the rear surface of your fridge due to the operation of the compressor at specied intervals. This is normal, there is no need to perform a defrosting operation unless there is excessive ice.

• If you do not intend to use your fridge for a long period of time (such as during the summer holidays), set the thermostat to “•” position, defrost and clean your fridge, leaving the door open to prevent the formation of mildew and odour.

• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.

• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-

ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.

2. Allow warm food and drinks to cool

before placing them inside the appliance.

3. Place thawing food in the refrigerator

compartment. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.

4. Drinks or other liquids should be

covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.

5. Avoid keeping the doors open for long

periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.

6. Keep the covers of the different

temperature compartments (such as the crisper and chiller) closed.

7. The door gasket must be clean and

pliable. In case of wear, replace the gasket.

8. It is possible to store more food

by removing freezer shelf. Energy consumption is declared with maximum load and without freezer shelf.EN - 45 9 TECHNICAL DATA The technical information is situated in the rating plate on the internal side of the appliance and on the energy label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to nd the same information in EPREL using the link https:// eprel.ec.europa.eu and the model name and product number that you nd on the rating plate of the appliance. See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST

INSTITUTES Appliance for any EcoDesign verication shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at

Chapter 2. Please contact the manufacturer

for any other further information, including loading plans.EN - 46
