USER MANUAL CEBL800B CONTINENTAL EDISON

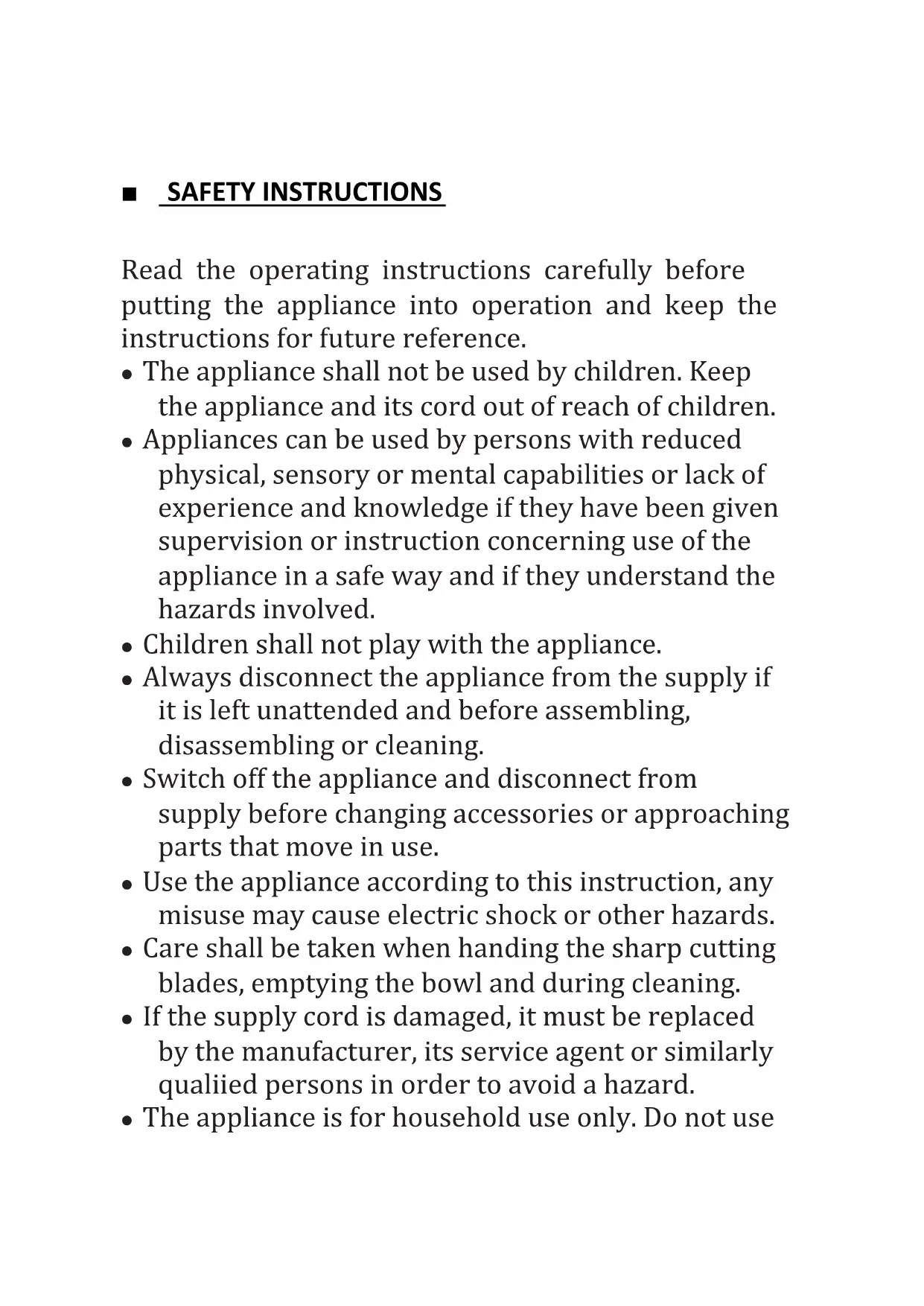

Manuel d’instructions - Instruction Manual■ SAFETY INSTRUCTIONS Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference. The appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. Use the appliance according to this instruction, any misuse may cause electric shock or other hazards. Care shall be taken when handing the sharp cutting blades, emptying the bowl and during cleaning. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The appliance is for household use only. Do not useoutdoors. Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Keep your finger away from moving parts and fitted tools. Never put your fingers etc in hinge mechanism. Use only original spare parts. In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Do not insert anything into the rotating hooks while the machine is working. Place the machine on a smooth, flat and stable working surface. Never pour the water more than the maximum water level. Wait until the moving parts stop running before you remove the lid of machine. Be careful if hot liquid is poured into machine as it can be ejected out of the appliance due to a sudden steaming. About how to clean surfaces in contact with food, please refer to the section “CLEANING”.■ BEFORE CONNECTING TO POWER Before connecting to the power, recheck the type of supply and the mains voltage match with the details given on the rating label on the appliance. Using for the first time, rip off all wrapping paper and plastic bags. Clean the fittings.

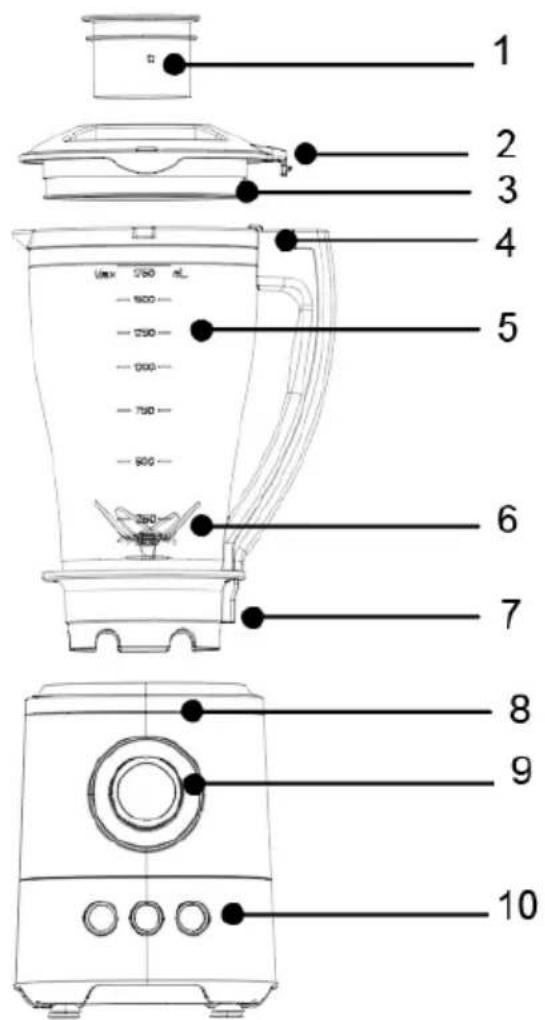

4. Safety lock hole of jar

7. Safety lock outlet of jar

This blender has “Mode”, “OFF”, “Stepless Speed” controls. Before plug in the appliance, please remember to switch to “OFF” position. Once plug in the appliance, “P” mode button will be in red light flashing, it means the machine is ready for use now.

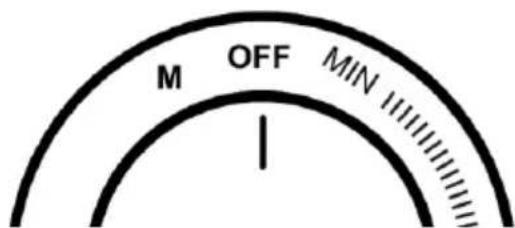

“OFF” SWITCH CONTROL

This control is to stop the blender or reset the blender.

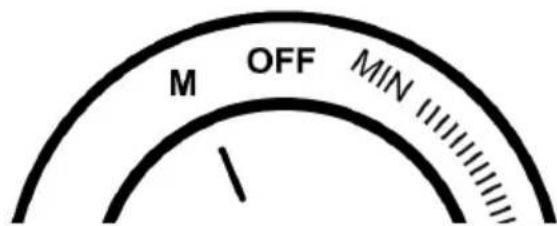

Switch the knob to “M” position, 3 mode control buttons will be illuminated. Choose one of them, others button light will be off. Press the same button again, this button function will be canceled and all 3 buttons will be illuminated again. Note: If there is no any operation 30 seconds after cancelling the function, the “P” mode button will be in red light flashing. If you want to continue using the mode function, you need to switch the knob back to “OFF” position, then select the “M” function again. “P” Mode – Pulse function Press for blending, remove to stop. “Crusher” Mode – Crusher function Blender under this mode will automatically work: few seconds ON and OFF, and repeat the process for several times. “Smoothies blending” Mode –Smoothies function Blender under this mode will automatically work: the speed will increase to max speed gradually, the blender will stop after 2 minutes working.

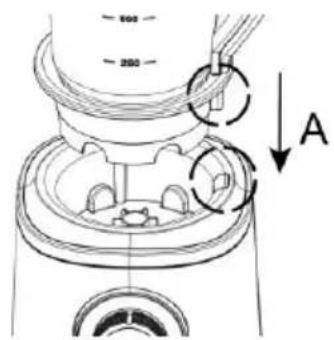

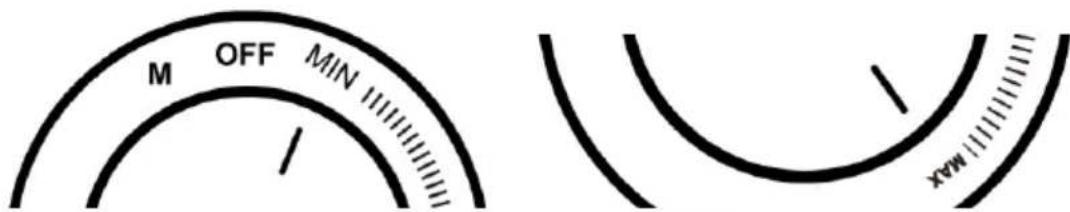

The slowest speed, turn the control knob to “MIN” position. The fastest speed, turn the control knob to “MAX” position. You can select the required speed between “MIN” and “MAX”.■ INSTRUCTIONS FOR USE Step 1 (as Picture A): Insert the jar into the motor unit, make sure the safety lock outlet of jar is well inserted into the body hole. Step 2: Wash fruit / vegetables and cut into small pieces – about 2x2cm. Place the fruit / vegetables into jar and add desired level of water or liquid mixture into the Jar. Pay attention that the water cannot more than the maximum water level. Step 3 (AS picture B): Turn the lid clockwise to screw and lock into the jar. Pay attention that Safety lock inserted pin of lid needs to insert into Safety lock hole of jar well. If not, the motor unit will not work. Step 4: Fit the measured cup into the lid. Plug the appliance in and choose the speed base on your food request. Run the blender no more than 2 min and then rest at least 1 min before the second operation. Never open the lid when the blade is still rotating. For extra caution, you can unplug the appliance before removing the lid. To add liquid ingredients during processing, remove the measured cup from the lid and pour liquid through the opening on the lid. If the blender result is not satisfactory, switch off the appliance and stir the ingredients with a spatula.■ CLEANING Before cleaning please remove the plug from the socket. Do not immerse the motor housing into water or any other liquid. Do not use any abrasive detergents. Please only use a damp to clean the outside of the housing. Components that have come into contact with food can be cleaned in soapy water. Allow the parts to dry thoroughly before reassembling the device.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
