USER MANUAL SoniCare AirFloss HX8231 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

Question? Contact Philips

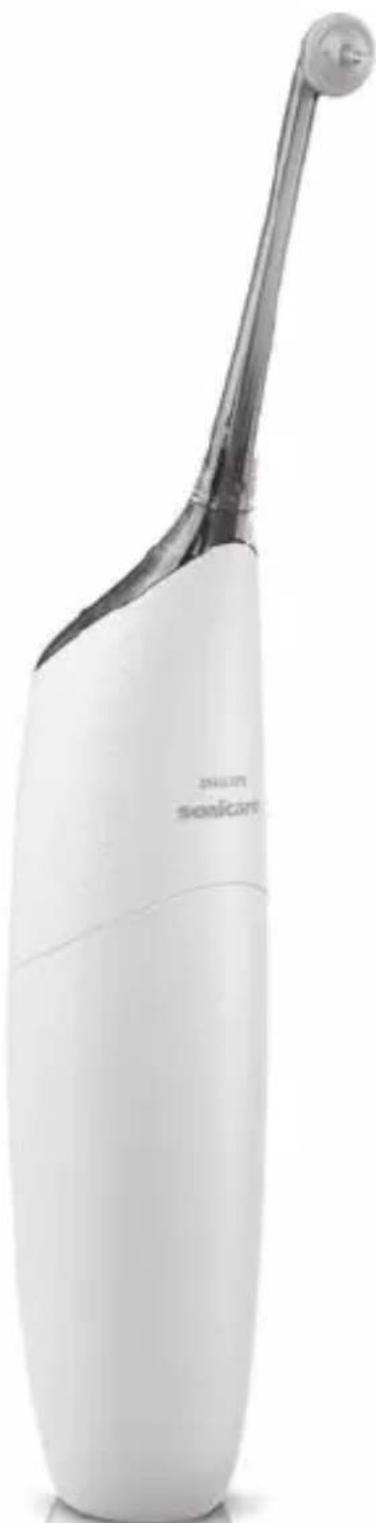

Philips Sonicare AirFloss

White electric toothbrush with metallic tip, no visible text or symbols on body

PHILIPS sonicare

Diagram of a handheld electric shaver with numbered parts labeled for identification.

ENGLISH 4

FRANÇAIS 15

INDONESIA 26

BAHASA MELAYU 37

PORTUGUÊS DO BRASIL 48

ภาษาไทย 59

TIÊNG VIÊT 67

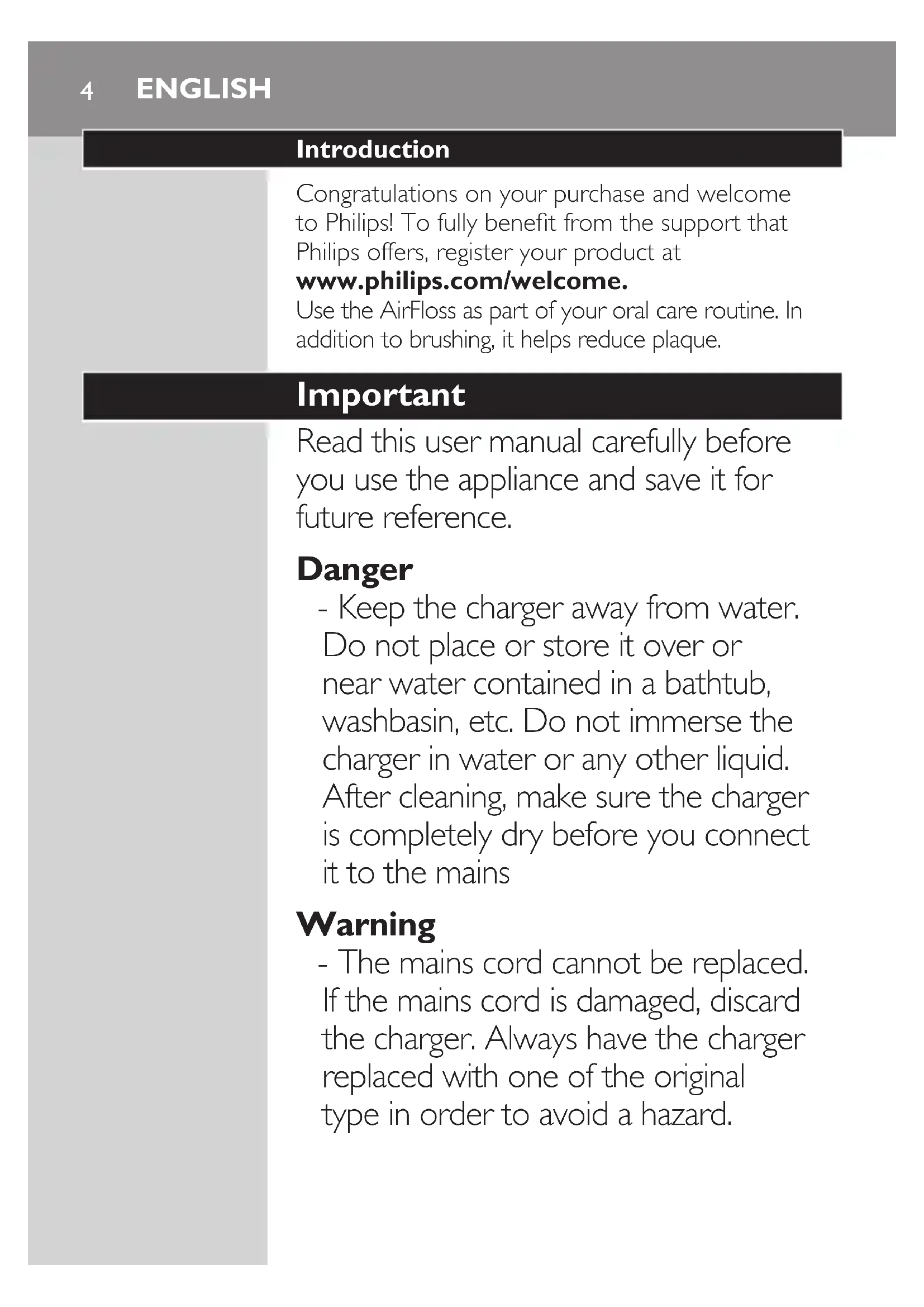

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Use the AirFloss as part of your oral care routine. In addition to brushing, it helps reduce plaque.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the charger away from water. Do not place or store it over or near water contained in a bathtub, washbasin, etc. Do not immerse the charger in water or any other liquid. After cleaning, make sure the charger is completely dry before you connect it to the mains

Warning

- The mains cord cannot be replaced. If the mains cord is damaged, discard the charger. Always have the charger replaced with one of the original type in order to avoid a hazard.

- If the appliance is damaged in any way (AirFloss nozzle, handle and/or charger), stop using it.

- This appliance contains no serviceable parts. If the appliance is damaged, contact the Consumer Care Centre in your country (see chapter ‘Guarantee and support’).

- Do not use the charger outdoors or near heated surfaces.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Children shall not play with the appliance.

Caution

- If you have had recent oral or gum surgery, suffer from an ongoing dental condition or had extensive dental work in the previous 2 months, consult your dentist before you use this appliance.

- Consult your dentist if excessive bleeding occurs after using this appliance or if bleeding continues to occur after 1 week of use.

- If you have medical concerns, consult your doctor before you use this appliance.

- This Philips appliance complies with the safety standards for electromagnetic devices.

If you have a pacemaker or other implanted device, contact your physician or the appliance manufacturer of the implanted appliance prior to use.

- Do not use attachments other than the ones recommended by the manufacturer.

- Do not exert excessive pressure on the guidance tip of the nozzle.

- To avoid physical injury, do not fill the reservoir with hot water. Do not put foreign objects in the reservoir.

• Only use the AirFloss for its intended purpose as described in this user manual.
• To avoid physical injury, do not direct the spray under the tongue or into the ear, nose, eye or other sensitive area.
• Do not clean the AirFloss nozzle, the handle, the charger, the water reservoir and its cover in the dishwasher or a microwave.
• To avoid an ingestion hazard, do not put isopropyl alcohol or other cleaning fluids in the reservoir.
• The AirFloss is a personal care device and is not intended for use on multiple patients in a dental practice or institution.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

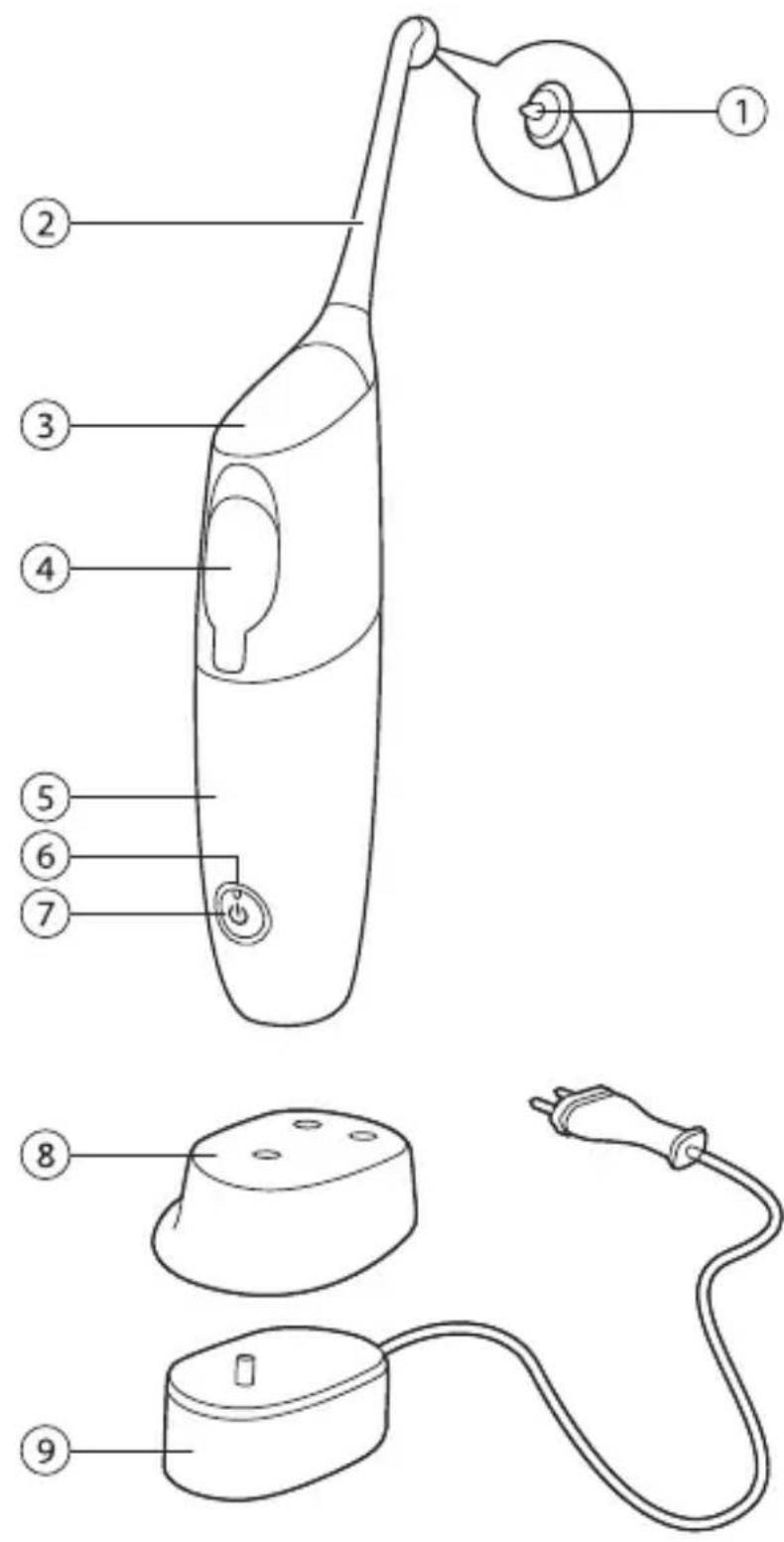

General description (Fig. 1)

1 Guidance tip
2 AirFloss nozzle
3 Activation button
4 Reservoir and cover
5 Handle
6 Charge indicator
7 Power on/off button
8 Removable nozzle holder (specific types only)
9 Charger

Note: The contents of the box may vary based on the model purchased.

Charging

Charge the AirFloss for 24 hours before first use.

Illustration of a plug inserted into an electrical socket, showing wiring and a close-up view (no text or symbols)

1 Put the plug of the charger in the wall socket.

Simple line drawing of a handheld device with a button and cable (no text or symbols)

2 Place the handle on the charger.

Simple line drawing of a cylindrical device with a star-shaped sensor on the top and base (no text or symbols)

The charge indicator flashes green to indicate that the appliance is charging.

Note: When it is fully charged, the AirFloss has an operating time of up to 2 weeks (or 14 uses).

Note: When the charge indicator flashes yellow, the battery is low and needs to be recharged (fewer than 3 uses left).

Preparing for use

Illustration of a hand holding a pen with a black arrow pointing to a tip, indicating a process or action (no text or symbols present)

1 Align the nozzle so the tip faces the front of the handle and press the nozzle down onto the handle ('click').

Note: Replace the nozzle every 6 months for optimal results. Also replace the nozzle if it becomes loose or no longer clicks onto the handle.

Illustration of a hand holding a circular object with a curved arrow indicating rotation (no text or symbols)

2 Open the cover of the reservoir ('click').

Line drawing of a pipette dispensing liquid into a container (no text or symbols)

3 Fill the reservoir with mouthwash or water.

Note: To operate effectively, the AirFloss has to contain either mouthwash or water.

Tip: For a fresher experience, use mouthwash instead of water.

Note: Do not use mouthwash that contains isopropyl myristate, as it may damage the appliance.

4 Close the cover of the reservoir ('click').

Illustration of a hand holding a tool interacting with a curved object, possibly a device or tool (no text or symbols visible)

5 Press the on/off button.

The green charge indicator lights up.

Diagram showing a hand pressing a button with an 'Power' icon, indicating action or activation.

Illustration of a hand holding a tool with an arrow indicating downward motion (no text or symbols)

6 Press and hold the activation button until spray comes out of the tip of the nozzle.

Using the appliance

Hand pressing a button with an arrow, symbolizing power or control (no text or symbols present)

1 Make sure the AirFloss is switched on.

Line drawing of a person applying lip product to their mouth (no text or symbols)

2 Place the tip between the teeth and apply gentle pressure. Slightly close your lips over the nozzle when it is in place, to avoid splashing.

Tip: Use your finger to press the activation button.

Note: The AirFloss is intended to be used on the front/outside surface of the teeth only.

Illustration of a person applying oral care to teeth with a downward arrow indicating pressure (no text or symbols present)

3 Press the activation button to deliver a single burst of air and micro-droplets of mouthwash or water between the teeth. Alternatively, hold the activation button to deliver continuous bursts of mouthwash or water approximately every 1 second.

Line drawing of a person applying lip product to their lips (no text or symbols)

4 Slide the guidance tip along the gum line until you feel it settle between the next two teeth.

5 Continue this procedure for all spaces including behind your back teeth.

6 To switch off the AirFloss, press the on/off button again.

Automatic shut-off function

The automatic shut-off function automatically switches off the AirFloss if it has not been used for 4 minutes.

Cleaning

Do not clean the nozzle, handle or charger in the dishwasher.

Do not use cleaning agents to clean the appliance.

Handle and nozzle

Hand holding a pen with an arrow indicating direction (no text or symbols)

1 Remove the nozzle from the handle. Rinse the nozzle after each use.

Hand holding a circular object with a curved arrow and sparkles, no text or symbols present

2 Open the reservoir and rinse it under the tap to eliminate residue.

Tip: You can also use a cotton bud to wipe the reservoir.

Note: Do not immerse the handle in water.

Line drawing of a hand holding a rock, no text or symbols present

3 Wipe the entire surface of the handle with a damp cloth.

Charger

Diagram showing a plug inserted into an electrical socket with a magnified view of the socket (no text or symbols)

1 Unplug the charger before you clean it.

Simple line drawing of a fish-like shape with fins and tail (no text or symbols)

2 Wipe the surface of the charger with a damp cloth.

Storage

If you are not going to use the AirFloss for an extended period of time, follow the steps below.

1 Open the cover of the reservoir and empty the reservoir.
2 Press the activation button until no more spray comes out of the nozzle.
3 Unplug the charger.
4 Clean the AirFloss nozzle, handle and charger.
5 Store the AirFloss in a cool, dry place away from direct sunlight.

Illustration of a plug inserted into an electrical socket, showing wiring and a magnified view (no text or symbols)

Environment

Symbol of a waste bin with no text or numbers, crossed by diagonal lines and a solid black rectangle below (no text or symbols present)

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

- The built-in rechargeable battery contains substances that may pollute the environment. Always remove the battery before you discard and hand in the appliance at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service center. The staff of this center will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable battery

Diagram showing hand gesture with arrows and symbols indicating correct and incorrect actions

Please note that this process is not reversible.

1 To deplete the battery, repeatedly press the activation button until the AirFloss no longer produces any bursts of air.

Illustration of two hands holding a mechanical component (no text or symbols visible)

2 Use a screwdriver to pry open the handle.

Illustration of scissors cutting a piece of wood or metal (no text or symbols visible)

3 Cut the wires and remove the battery from the appliance. Observe basic safety precautions.

Guarantee and support

If you need information or support, please visit www.philips.com/sonicare or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The terms of the international guarantee do not cover the following:

• AirFloss nozzle
• Damage caused by misuse, abuse, neglect, alterations or unauthorised repair
• Normal wear and tear, including chips, scratches, abrasions, discolouration or fading
