Z30171 - LED light decoration MELINERA - Free user manual and instructions

Brand	Melinera
Model	Z30171
Product type	LED light decoration (curtain light)
Use	Indoor (outdoor possible if socket is weatherproof)
Operating voltage (string lights)	30 V
Adapter input voltage	230-240 V~, 50 Hz
Adapter output voltage	30 V, 3.6 W
Power consumption	Approximately 1.64 W (with adapter)
Lamp type	Non-replaceable LED
Number of small lamps	30 (5 per cable)
Number of large lamps	6 (1 per cable, star-shaped)
Distance between cables	Approximately 16 cm
Number of cables	6
Attachment	Suction cups included
Power supply	Adapter unit THDQ-D-P300036 included
Protection rating	IP44
Warranty	3 years
Cleaning	Dry, lint-free cloth
Safety	Do not use if cable is damaged; do not replace LEDs; unplug before cleaning
Disposal	Do not dispose of with household waste, take to recycling center
Included accessories	Adapter unit, suction cups

Frequently Asked Questions - Z30171 MELINERA

Can I use this light string outdoors?

Yes, provided the socket is weatherproof. The adapter must be plugged into a location protected from water.

How do I replace a defective LED lamp?

The LED lamps are not replaceable. If a lamp is defective, the entire light string must be replaced or, under warranty, returned to the seller.

What should I do if the light string does not light up?

Check that the adapter is properly plugged in and the power socket works. Ensure the cable is not damaged. If the problem persists, contact customer service.

Can I cut or extend the light string cable?

No, never cut the cable. The outer cable cannot be replaced. If the cable is damaged, the product must be discarded.

How do I clean the light string?

First, unplug the adapter. Clean with a dry, lint-free cloth. Never use water, solvents, or chemicals.

Can I use a different adapter than the one provided?

No, use only the supplied adapter model THDQ-D-P300036. Using a different adapter voids the warranty and may be dangerous.

Is the light string compatible with a dimmer?

No, the light string is not designed to be used with a dimmer. This could damage the product.

Can I connect multiple light strings together?

No, do not plug this light string into another light string. This could cause overload or short circuit.

How do I recycle the light string at the end of its life?

Do not throw it in household waste. Dispose of it at a recycling center or collection point for electrical appliances in accordance with local regulations.

Is there a risk of excessive heating?

Yes, do not use the light string while it is in its packaging. After use, store it in its packaging to avoid damage and risk of overheating.

USER MANUAL Z30171 MELINERA

Operation and Safety Notes

SE

LED-LJUSGARDIN

GB / IE Operation and Safety Notes Page 4

FI Käyttö- ja turvallisuusohjeet Sivu 11
SE Bruksanvisning och säkerhetsanvisningar Sidan 18
DK Brugs- og sikkerhedsanvisninger Side 25
FR / BE Instructions d’utilisation et consignes de sécurité Page 32
NL/BE	Bedienings- en veiligheidsinstructies	Pagina	40
DE/AT/CH	Bedienungs- und Sicherheitshinweise	Seite	48

Proper use Page 5
Description of parts and features......Page 5
Technical data......Page 5
Safety Information......Page 6
Use Page 8
Cleaning and care......Page 9
Disposal Page 9
Warranty Page 10

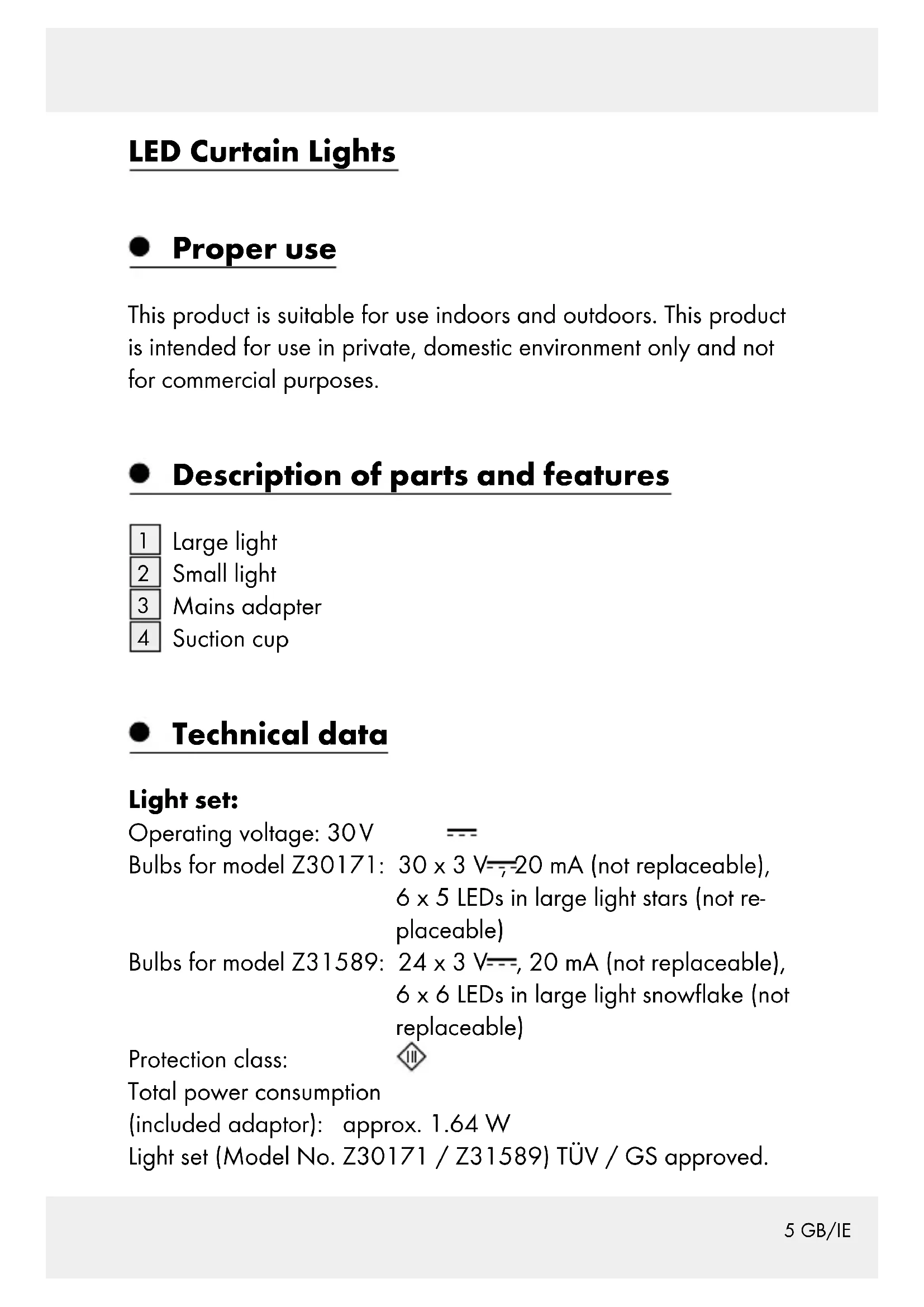

LED Curtain Lights

- Proper use

This product is suitable for use indoors and outdoors. This product is intended for use in private, domestic environment only and not for commercial purposes.

● Description of parts and features

1 Large light
2 Small light
3 Mains adapter
4 Suction cup

- Technical data

Light set:

Operating voltage: 30V

Bulbs for model Z30171: 30 x 3 V=20 mA (not replaceable), 6 x 5 LEDs in large light stars (not replaceable)

Bulbs for model Z31589: 24 x 3 V=, 20 mA (not replaceable), 6 x 6 LEDs in large light snowflake (not replaceable)

Protection class:

Total power consumption

(included adaptor): approx. 1.64 W

Light set (Model No. Z30171 / Z31589) TÜV / GS approved.

Mains adapter:

Nom. voltage input: 230–240 V \~, 50 Hz

Nom. voltage output: 30 V ——, 3.6 W

Protection class:

Mains adapter (Model No. THDQ-D-P300036) ITS / GS approved.

Safety Information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

DANGOR OF DEATH AND

ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This device is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this device.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Ensure that the product is installed by suitably experienced or qualified persons only.

CAUTION! RISK OF OVERHEATING! Do not operate the string lights inside the packaging.

■ After use, keep the string lights in the packaging to prevent unwanted damage.
- Do not pull the light chain cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of “normal flammability”.
- Do not attach any other objects to the product.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the device (230–240 V\~).
■ Before connecting the device to the mains you should always check the string lights and the mains lead for any damage.
■ Never use the light set if you discover that it is damaged in any way.
This light set's external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire light set.
■ The LED lamps are not replaceable.
Use the light set only with a mains adapter type THDQ-D-P300036. Failure to observe this advice will invalidate any claims under the warranty.
■ Never open any of the electrical parts or insert any kind of object into them.
- Protect the mains cable from sharp edges, mechanical loads and hot surfaces.

• Do not install with sharp fasteners or nails.
  ■ Always unplug the mains adapter 3 from the socket before installation, dismantling or cleaning.
  ■ Never touch the light chain plug or the light chain itself with wet hands.
• The string lights must not be electrically connected to another set of lights.
  The product is only suited for use with the included mains adapter (Model No. THDQ-D-P300036).
  Please note that the power adapter continues to draw a small amount of power even if the lamp is turned off as long as the power adapter is plugged into a power outlet. To switch the device off completely, unplug the power adapter from the socket.

Use

Note: The light set has 6 parallel wires, each with five small lights 2 and one large light 1. The distance between the wires is approx. 16 cm.

☐ Mount the small lights ☐ 2 on to the sockets of the bulbs.
☐ Use the supplied suction cups 4 to hang up the light set.
☐ Insert the plug on the end of the light set into the socket of the mains adapter 3. Secure the connection by pushing the clamping nut on the lead over the plug and screwing it on to the mains adapter.
☐ Insert the mains adapter 3 into the mains socket. The light set is now switched on.
☐ Pull the mains adapter ☐ 3 out of the mains socket to switch off the light set.

Note: The bulbs are connected in series. If one bulb is defective, then all the bulbs of one wire may not light up.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK! First remove the mains adapter 3 from the socket.
CAUTION! RISK OF ELECTRIC SHOCK! For reasons of electrical safety the device must never be cleaned with water or other liquids or immersed in water.

- Do not use any solvents, petrol or similar items. This would damage the device.

☐ Only a dry, lint-free cloth should be used for cleaning.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44

Mallin Z30171 lamput:

Mallin Z31589 lamput:

Model-No.: Z30171 / Z31589

Version: 06/2015
