USER MANUAL HG05418 MELINERA

Operation and Safety Notes

NL BE

3D-LICHTSLANGFIGUUR

List of pictograms used

Introduction

Intended use Page 12
Delivery scope.. Page 12
Description of parts.. 12
Technical data.. Page 12

Safety Instructions

Before use.. Page 15

Installation

Use

Timer function

Cleaning and care.. Page 15

Disposal

Warranty

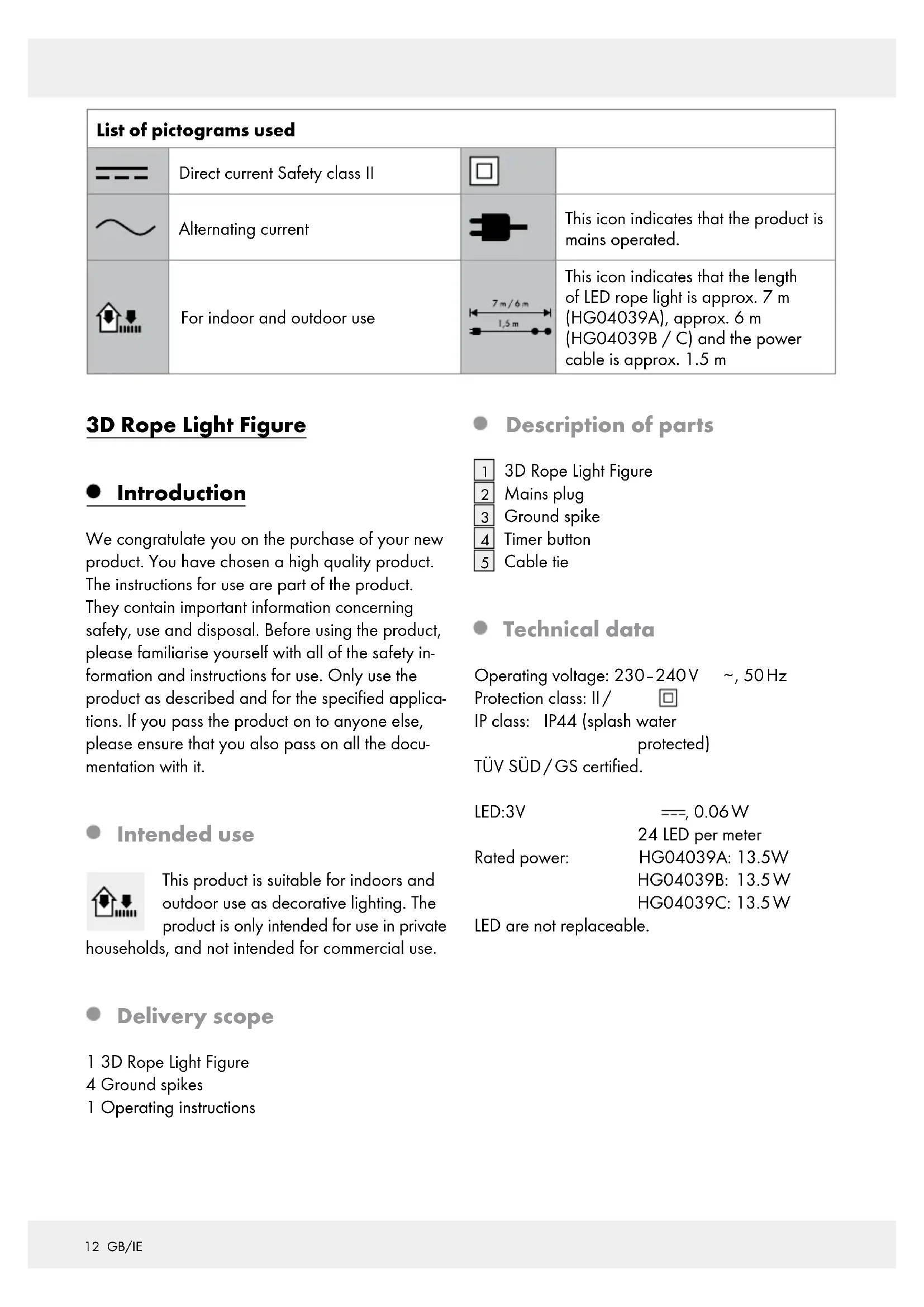

List of pictograms used
= = =	Direct current Safety class II
~ ~	Alternating current		This icon indicates that the product is mains operated.
	For indoor and outdoor use	7m/6m 1.5m	This icon indicates that the length of LED rope light is approx. 7 m (HG04039A), approx. 6 m (HG04039B / C) and the power cable is approx. 1.5 m

3D Rope Light Figure

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for indoors and outdoor use as decorative lighting. The product is only intended for use in private

households, and not intended for commercial use.

Delivery scope

1 3D Rope Light Figure
4 Ground spikes
1 Operating instructions

Description of parts

1 3D Rope Light Figure
2 Mains plug
3 Ground spike
4 Timer button
5 Cable tie

Technical data

Operating voltage: 230-240V , 50Hz

Protection class: II/

IP class: IP44 (splash water protected)

TÜV SÜD/GS certified.

LED:3V = =,0.06W

24 LED per meter

Rated power: HG04039A: 13.5W

HG04039B:13.5W

HG04039C:13.5W

LED are not replaceable.

Safety Instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

WARNING!

DANGER OF DEATH

AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a

safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (230-240 V~).
Before connecting to the mains, always check the product for any damage.
- Never use the product if you find damage of any kind.
The connecting cable cannot be repaired! If the cable is damaged, the product must be taken out of use and disposed of in the proper way.
This product does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be replaced.

• Never open any of the electrical parts or insert any kind of object into them.
  Do not open or cut the product.
• Protect the product from sharp edges, mechanical loads and hot surfaces.
• Do not install with sharp fasteners or nails.
  Always remove the mains plug from the socket before installing, dismantling or cleaning.
• Never touch the mains plug or the product with wet hands.

CAUTION! RISK OF OVER

HEATING! Do not cover the product with blankets, cushion or similar heat-insulating material. Do not operate the product whilst it is still in the packaging.

Use the product only with the parts described in these instructions.
If the product is not to be used for any length of time (e.g. holidays), disconnect it from the power supply.
- Keep the product away from ponds and other bodies of water. Install the product at least 2m from water containers. Avoid locations where flooding occurs after heavy rain.
Use the product outdoors only when connected to a mains socket protected by a residual- current

product (RCD) with a rated trip current of not more than 30mA .
Please note that the plug / power adapter continues to draw a small amount of power even if the product is turned off as long as the plug / power adapter is plugged into a power outlet. To switch the product off completely, unplug the plug / power adapter from the socket.
Do not recessed into a surface.
- Outdoor mains sockets must be suitable for use outdoors and should be at least 2.5m from the nearest water container or body of water.
The product is protected against splash water (IP44). This protection standard is only possible if the mains socket also fulfills requirements of at least the same protection class.
Ensure that the product is not laid out through areas in which lawn mowers, strimmers, shears or similar cutting tools are used.
Ensure that the product does not present a trip hazard.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.

Before use

Note: Remove all packaging materials from the product.

Installation

Place the 3D rope light figure on a stable substrate.
For outdoor installation, if possible fix the 3D rope light figure 1 in place with the ground spikes 3 and the cable ties 5 .
Check the stability of the 3D rope light figure 1.
For indoor installation, place the 3D rope light figure 1 on an even surface and fix it with the cable ties 5 if possible. Otherwise, the product may not stand stable.

Use

Plug the mains pl into the socket. The product is switched on.
To turn the lighting off, remove the mains p from the socket.

- Timer function

To switch on the timer function, press the timer button 4 after the product is connected to the socket of power supply. The timer button 4 will light up when the timer function is activated.
The product lights glow permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
To switch off the timer function, press the timer button again and the light of the timer button will be turned off.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK! First remove the mains plug 2 from the socket.
CAUTION! RISK OF ELECTRIC SHOCK! For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

Let the product cool before you clean it. Risk of injury!
Do not use any solvents, petrol or similar items. This would damage the product.
Only a dry, lint-free cloth should be used for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44
