USER MANUAL Z28957 MELINERA

Operation and Safety Notes

SE

LjUSSLaNG

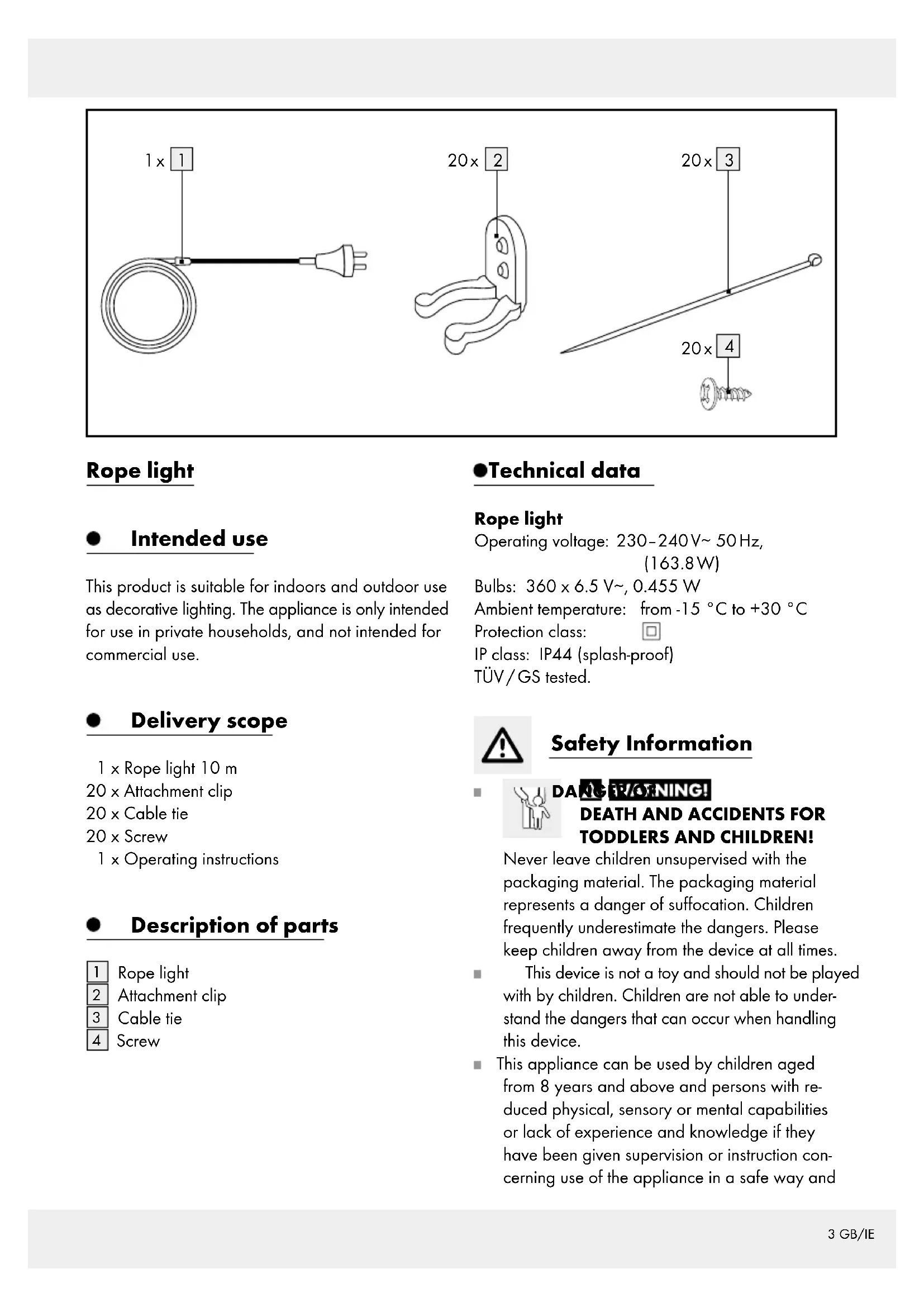

GB/IEOperation and Safety NotesPage 3

This product is suitable for indoors and outdoor use as decorative lighting. The appliance is only intended for use in private households, and not intended for commercial use.

Delivery scope

1 x Rope light 10 m

20 × Attachment clip

20 × Cable tie

20 × Screw

1 x Operating instructions

Description of parts

1 Rope light
2 Attachment clip
3 | Cable tie
4 Screw

-Technical data

Rope light

Operating voltage: 230 - 240V 50Hz, (163.8W)

Bulbs: 360 × 6.5 ~V 0.455 ~W

Ambient temperature: from -15 °C to +30 °C

Protection class:

IP class: IP44 (splash-proof)

TUV/GS tested.

Safety Information

DAI FR/OTNING! DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This device is not a toy and should not be played with by children. Children are not able to understand the dangers that can occur when handling this device.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the device (230 - 240V)
Before connecting to the mains, always check the product for any damage.
Never use the product if you find damage of any kind.
The connecting cable cannot be repaired! If the cable is damaged, the product must be taken out of use and disposed of in the proper way.
This article does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
Never open any of the electrical parts or insert any kind of object into them.
Protect the product from sharp edges, mechanical loads and hot surfaces.
Do not install with sharp fasteners or nails.
Always remove the mains plug from the socket before installing, dismantling or cleaning.
Never touch the mains plug or the rope light with wet hands.

CAUTION! RISK OF OVERHEATING! The

lamps in the fairy lights have a power input of 0.455 W each. This wattage not only produces light, but also heat.

Do not operate the LED rope light

1 in the packaging or when it is rolled up.

Ensure the rope light is mounted to provide adequate heat-circulation.
Do not cover the rope light with blankets, cushions, or similar heat insulating materials.
Use the lighting only with the parts described in these instructions.
If the rope light is not to be used for any length of time (e.g. holidays), disconnect it from the power supply.

After use, keep the rope light in the packaging to prevent unwanted damage.
Keep away from ponds and other water reservoirs. Install the rope light at least 2 metres away from water containers. Avoid place that might flood after heavy rainfall.
If using the rope light outdoors, make sure it is connected to a socket which is protected with a faulty voltage protection switch (FI or RCD) for a maximum faulty voltage up to 30mA .
The rope light is protected against splashes of water (IP44) as long as the socket meets the minimum protection standard.
Make sure the rope light is not laid down in areas where lawn mowers, trimmers, scissors or similar cutting tools are used.

Do not pull the light chain cable and make sure it is laid down properly so that no one walks or trips over it.
If in any doubt about the safe installation or use of this product, please consult a qualified electrician.

Installation safety instructions

Make sure that the product is only installed by competent persons.
The rope light can be installed on all normally inflammable surfaces with the enclosed mounting parts.

CAUTION! RISK OF ELECTRIC SHOCK!

Make sure that there are no power, gas or water lines located where you wish to drill. Check with a cable and pipe locator if necessary before you begin drilling.
Before installation, check whether the surface is suitable for the mounting parts and the weight of the rope light. If you are in any doubt, consult an electrical specialist for advice.
Do not use sharp and / or pointed objects such as wire, nails or fasteners to mount the rope light.
Do not attach any additional objects to the rope light.
Avoid excessive bending of the rope light. This can damage the insulation.

The bending radius of the rope must not fall below the following value: rope diameter between 10-14 mm:2 cm.
Avoid excessive heating of the rope light. A maximum of two sections of rope may cross or run parallel to each other.

Installation

Note: The rope light can be mounted on all surfaces officially classified as being of "normal flammability" by means of the supplied attachments. Ensure the rope light is mounted to provide adequate heat-circulation. Do not cover the rope light with blankets, cushions, or similar heat insulating materials.

Note: You will need a cross-head screwdriver in order to mount the attachment clips 2 and screws 4.

Use the supplied attachment cli and the cable ties 3 to install the product.

Use

Plug the mains plug into the socket.
The lighting is switched on.
To turn the lighting off, remove the mains plug from the socket.

- Cleaning and care

CAUTION! RISK OF ELECTRIC

SHOCK! First remove the mains plug from the socket.

Do not use any solvents, petrol or similar items. This would damage the device.
Only a dry, lint-free cloth should be used for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

C∈IP44
