USER MANUAL Dinamiko Duo G10138 G3 Ferrari

General instructions p. 12

Induction cooking.... p. 13

G10138....p. 13

Operating.... p. 13

Key lock.... p. 14

Safety device.... p. 14

Error message.... p. 14

Cleaning.... p. 14

Technical features.... p. 14

Waste of electric and electronic equipment (WEEE

Directive).... p. 29

PORTUGUES:....p. 15

FRANCAIS:....p. 21

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Yellow triangular warning sign with black exclamation mark symbol

Silhouette of seven kitchenware items including pots, ovens, and a stove (no text or symbols)

Diagram of a device with numbered parts labeled ①, ②, and ③, showing internal components and control buttons.

NOMENCLATURA G10138

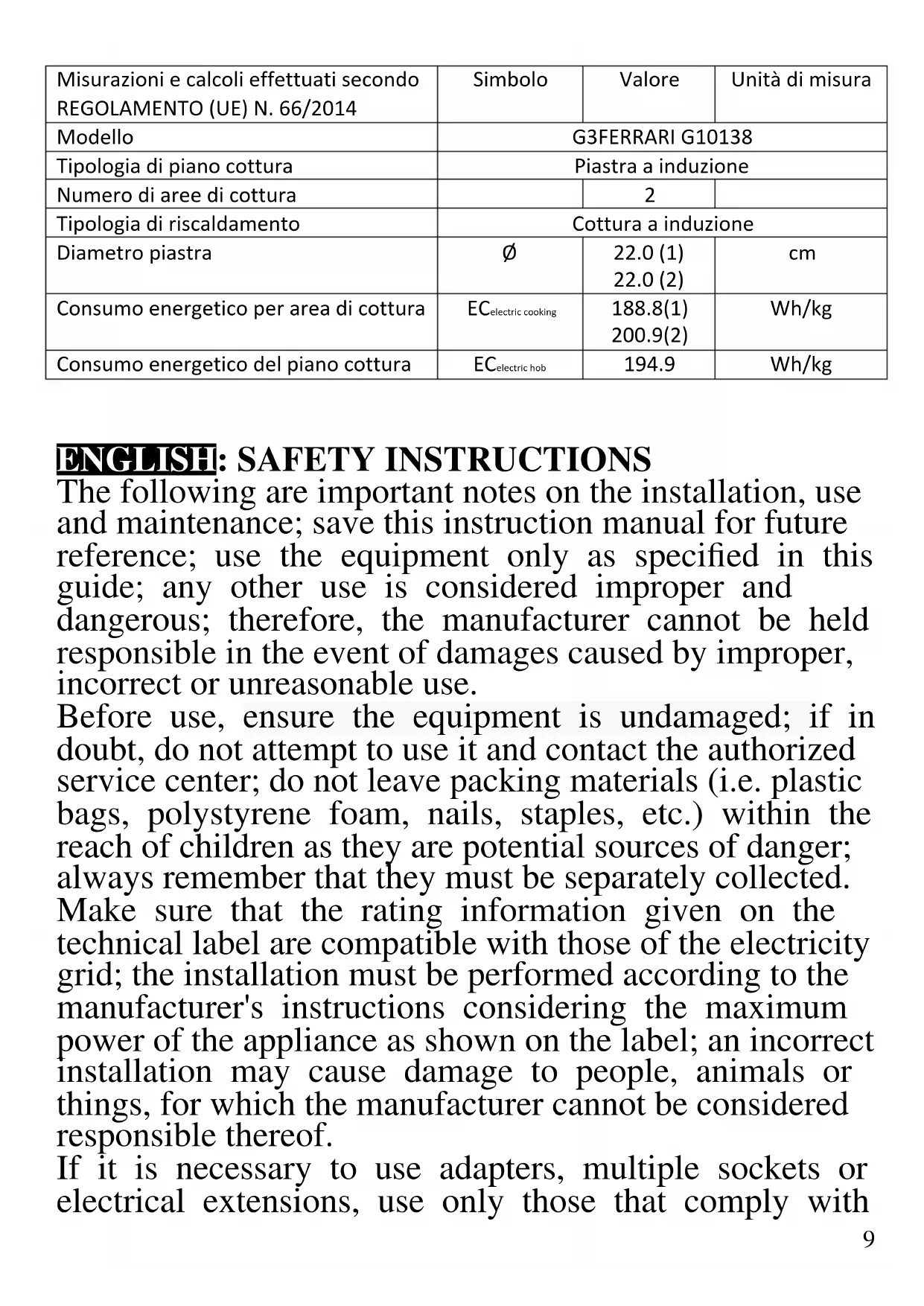

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with

current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- Children must not play with the appliance.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center

authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unrøll the power cord.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

CAUTION: DANGER OF FIRE

Do not use for any reason on:

Yellow triangular warning sign with black exclamation mark symbol

- tables or surfaces in metal - cooking stoves and hobs - fridges and freezers - other surfaces with metal inside

The induction functioning, while heats the pot, may heat also the metal surface on which the appliance is used, making the surface burning in some cases. Before use, also verify that no metal objects are under the appliance.

GENERAL INFORMATION

Do not operate with empty pots or pans. Do not overheat the pot or the pan ever.

Do not put aluminum foil, paper or flammable materials between the cooking plate and the pot / pan.

Do not move appliance during cooking or with hot items on it. Handle with care freshly-cooked food.

Use the product only for the purpose for which it was conceived; use only pots or containers suitable for induction cooking. Use cooking containers suitable to the size of cooking plate.

Once finished using the unit, unplug it and wait for the cooling of each part of the product before storing the product or cleaning. Cleaning must be carried out by using a soft sponge.

Place the cooking plate on a stable surface.

Do not use with implanted pacemaker.

Do not immerse the product in water or other liquids. Do not leave it under the jet of tap water. In any case, prevent water or other liquids to flow on the surfaces of cooking.

When using, leave enough space at both sides of the product (5 to 10cm). Do not obstruct the ventilation. Do not use as a storage shelf for objects.

Considering the high power of the unit, do not use multiple outlet adapter to connect it to the mains.

Place it away from equipment that are affected by the activity of electro-magnetic fields such as TV, radios, magnetic cards, etc..

Do not operate the unit if the cooking crystal surface is damaged. Do not touch the cooking surface during use, because it is heated by the cooking pot.

Turn the power off by using the ON / OFF button, do not turn it off by removing the cooking container.

INDUCTION COOKING

This electric cooking plate is suitable for cooking and heating many foods by using special pots and pans.

The induction cooker "induces" a magnetic field at the base of the cooking container, creating in the containers itself some electric currents which heat the food inside in them.

In this way, almost all the absorbed power is transferred to the container, minimizing the loss of heat. Moreover it is safe to use since the pot remains cold during the process.

Silhouette of seven different cooking pots and containers (no text or symbols)

SUITABLE FOR POTS, PANS AND VESSELS:

Polished, cast iron-made, iron-made, stainless steel with iron-made bottom, aluminum alloy with iron-made bottom. Moreover the cooking vessel base should be flat.

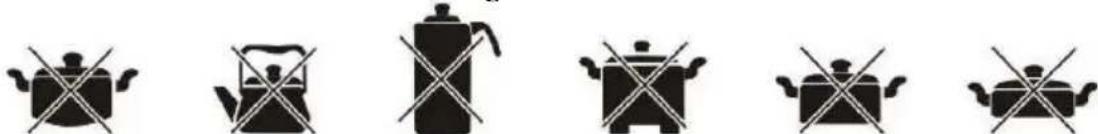

Six black-and-white pictograms of various pots with crossed-out x marks, no text or symbols present.

NOT SUITABLE FOR POTS, PANS AND VESSELS: Made of copper, glass, ceramic, aluminum, with a rounded base or with vessels with diameter less than 8 cm.

DESCRIPTION G10138

1. Cooking plate

2. Cooking area

3. Bottom: ventilation fan

4. Control panel

OPERATING

• Place the unit on a flat and stable surface, leaving enough space at the sides of the product.
• Place a suitable pan in the center of the cooking area (2) and put the food inside the vessel.
• Connect the plug to the power supply: the unit will beep.
• Push ON/OFF button on panel (4) under the hob you need to use: the display shows "ON".
• The left part is for the bigger hob, the right one is for the small hob.

1) Cooking with power regulation

• Touch one time the “Function” button that is below the hob you want to use. The unit turns on and the display shows “1600W” for left plate or “1200W” for the right plate.
• With keys “UP” and “DOWN” it is possible to change the power and thus the amount of heat transmitted. Power on big plate can be set on: 200, 350, 500, 650, 800, 1000, 1200, 1400, 1600, 1800W Power on small plate can be set on: 200, 350, 500, 650, 800, 900, 1000, 1100, 1200, 1300W.
• After cooking, push the ON / OFF button, to turn off the appliance. Display shows "OFF"

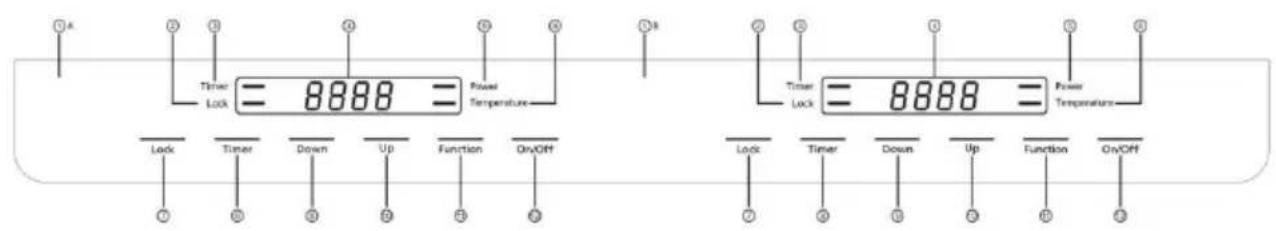

1A Timer Lock = 8888 = Power Temperature 2 Timer Lock = 8888 = Power Temperature 3 Timer Lock Down Up Function On/Off 4 Timer Down Up Function On/Off

Control panel (4)

1A) Timer after power regulation

• Press "Timer" during cooking. The display shows "0:00".
• With the keys "UP" and "DOWN" set the duration of cooking, up to 3 hours.
• Display will show for some seconds the time set.
• During cooking on the display will appear the power selected, and the time set.
• Cooking will stop automatically when time finishes.

2) Cooking with temperature regulation

• Press "Function" 2 times, until the red light "Temperature" switches on, and display shows "240".
• With the keys "UP" and "DOWN" select temperature. There are 10 selectable levels, from 60^ to 240^ .

2A) Timer after temperature regulation

• Press “Timer” during cooking. The display shows “0:00”.
• With the keys "UP" and "DOWN" set the duration of cooking, up to 3 hours.
• Display will show for some seconds the time set.
• During cooking on the display will appear the temperature selected, and the time set.
• Cooking will stop automatically when time finishes.

KEY LOCK To lock the keypad on the control panel (4) press the key “Lock” during use. On display the “Lock light” switches on to indicate the lock. To unlock press together the key “Lock” for 3 seconds.

SAFETY DEVICE

The unit turns off automatically if there is any pan placed on it, or it is removed, or it is made of such a material not suitable for induction cooking.

In this case, the unit will show E0 for a while, and then goes into stand-by mode.

Every time you turn off the appliance by pressing the ON / OFF button, the fan will continue to run until cooling down of any part of the unit. To turn off the product, always push the ON / OFF button, do not turn it off by removing the cooking container or by unplugging the unit.

ERROR MESSAGE

Error	Cause	Solution
E0	Not suitable vessel.Vessel is not placed inside the cooking area. No vessel.	Use only pans suitable with induction cooking.Place the vessel on the cooking area.
E1 / E2	Temperature sensor failure.	Refer to Authorized Service since thermostat can be defective
E3 / E4	High or low Voltage	Plug on a suitable electrical power outlet.
E5	Crystal plate is overheating.	Let the plate cool down for and remove what is overheating the glass. Restart operation only when the plate is cool.
E6	Internal overheating	Let the plate cool down and check the ventilation fan is not obstructed, refer to an Authorized Service since the thermostat could be defective.

CLEANING - Unplug the unit from the electrical power outlet and wait for the complete cooling down of every parts before starting cleaning.

Do not immerse in water and never leave the appliance under the jet of tap water. In any case, prevent water or other liquids to flow on the surfaces. Do not use abrasive or metal sponges for cleaning.

Clean the cooking plate with a damp sponge.

TECHNICAL FEATURES

• Power supply: AC 230V\~50/60Hz. Power 3100W (1800 + 1300)
• Temperature and power regulation
- 180 minutes timer - Key lock - Soft-touch buttons - Control lights

Measurements and calculations made according to REGULATION (EU) No. 66/2014	Symbol	Value	Unit
Model	G3FERRARI G10138
Tipologia di hob	Induction hob
Number of cooking areas		2
Heating technology	Induction cooking
Diameter of the cooking area	∅	22.0 (1)22.0 (2)	cm
Energy consumption per cooking area	EC_electric cooking	188.8(1)200.9(2)	Wh/kg
Energy consumption for the hob	EC_electric hob	194.9	Wh/kg

PORTUGUES: ADVERTÊNCIAS

Yellow triangular warning sign with black exclamation mark symbol

• mesas ou superfícies de metal
• placas ou fogões
• geladeiras e freezers para o cockpit
• outras superfícies com núcleo de metal

Silhouette of six different cooking pots and containers (no text or symbols)

UTILIZÁVEL COM CAÇAROLAS, FRIGIDEIRAS OU TACHOS:

Six black-and-white icons representing various cooking pots and containers, each with a cross symbol (no text or labels)

PARTES G10138

ATTENTION, RISQUE D'INCENDIE:

Row of black silhouette icons representing cooking pots and containers (no text or symbols)

A UTILISER AVEC POÊLES, CASSEROLES OU MOULES:

Six black-and-white icons of teapots with crossed x marks, arranged in two rows (no text or symbols)

TA Timer Lock = 8888 = Power Temperature T1S Timer Lock = 8888 = Power Temperature Lock Timer Down Up Function On/OFF T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation

and is therefore marked with the CE mark.
