Installation Manual

audio everywhere

SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION:

RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

ATTENTION: AFIN DE RÉDUIRE LES RISQUES D'INCENDIE OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CET APPAREIL À LA PLUIE OU.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION: AFIN DE RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE, NE PAS RETIRER LE CAPOT. AUCUNE PIÈCE À L'INTÉRIEUR. CONFIER L'ENTRETIEN DE PERSONNEL QUALIFIÉ.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety Instructions

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

1. Retain Instructions - The safety and operating instructions should be retained for future reference. Conservez les instructions - Les instructions de sécurité et devrait être conservé pour référence future.

2. Heed Warnings - All warnings on the appliance in the operating instructions should be adhered to. Tenez compte des avertissements - Tous les avertissements figurant sur l'appareil dans les instructions de fonctionnement doivent être respectées.

3. Follow Instructions - All operating and user instructions should be followed. Suivez les instructions - Toutes les instructions de fonctionnement et d'utilisation doivent être suivies.

4. Water and Moisture - The appliance should not be used near water; for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Do not touch the appliance with wet hands. Do not handle the appliance or power cord with wet or damp hands. If water or any other liquid enters the appliance cabinet, take it to qualified service personnel for inspection.

1. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. From time to time you should wipe off the front and side panels and the cabinet with a soft cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since this may damage the finish or remove the panel lettering.

1. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings, or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Place the unit in a well-ventilated location, leaving at least 2 inches (5 cm) of clearance on all sides, top and rear of unit for air flow. If ventilation is blocked, the unit may overheat and malfunction.

This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended.

This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Gain of antenna: 3.0dBi max.

Type of antenna: Omni-directional

Impedance of antenna: 50ohm

This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

Contains of FCC ID: XCO-HSDWAM83 and IC: 7756A-HSDWAM83.

CONFORMS TO ANSI/UL STD.60065 CERTIFIED TO CAN/CSA STD. C22.2 NO.60065
Intertek 4009041

TABLE OF CONTENTS

Product Operation 6-7

X1-TX8 Front, Back Panel 8

X1-RX2 Front, Back Panel....9

X1-RX220 Front, Back Panel....10

Connection Diagram....11

Installation Overview....12

Features ....13

Technical specifications ....13

PRODUCT OPERATION

Thank you for choosing the Russound XStream X1 family of products, the new performance standard in wireless audio.

The X1 products operate over three bands, 2.4GHz, 5.2GHz and 5.8GHz and feature Channel Hopping Mode or Fixed Channel Mode.

Although the X1 product uses bands that are in the Wi-Fi spectrum, the proprietary digital signal transmitted is not used in the Wi-Fi system. This provides a more reliable connection with very low latency between the original source signal and the output receiver, eliminating any echo effect.

The 2.4GHz operates better through walls than the higher frequency. However, this band is widely used in many systems including Wi-Fi. If the band is crowded interference may occur. The 5.2GHz and 5.8GHz bands do not go through walls at the same distance as the lower bands. However, they will have less interference.

Channel Hopping or Fixed Channel Mode

The channel hopping technology will combat crowded spaces by searching for the cleanest channel within the band. Determining the modes and band used is a question of application, distance requirements and may require some trial.

Depending on the amount of RF signals in your installation you may choose to select between Channel Hopping or Fixed Channel mode.

To select between these modes, press and hold the ID button on the front of the X1-TX8 while applying power, look for 2 LED's or 3 LED's illuminated on the front of the unit. 2 LED's represents Fixed Mode, 3 LED's represents hopping mode. To change the mode press the ID button on the X1-TX8 while applying power, verify the selection with the LED illumination

ID. Sets the channel and the Band

Channels are determined by the inputs 1-4 on the rear panel of the X1-TX8 and selecting the corresponding channel on the X1-RX2 or X1-RX220 receivers. Source input 1 on the X1-TX8 is Channel 1 on the receiver, source input 2 is Channel 2, etc.

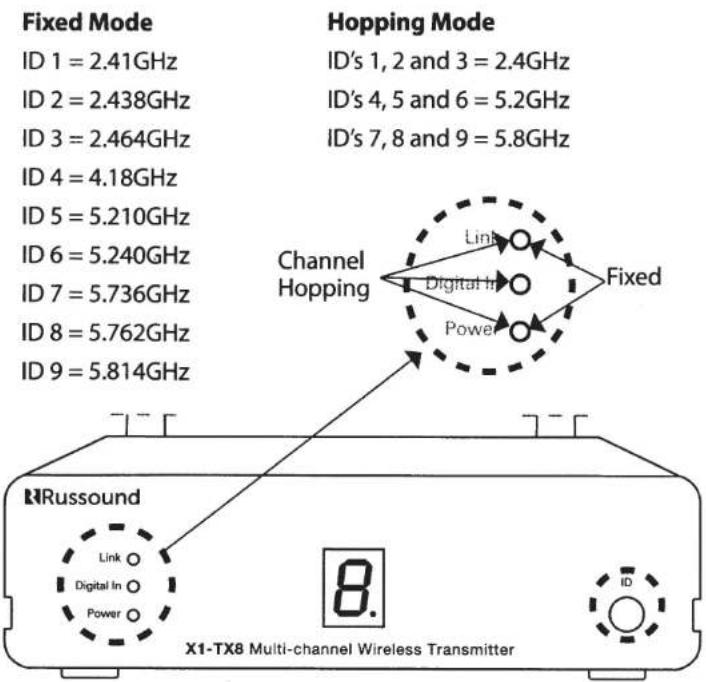

Fixed Mode ID 1 = 2.41GHz ID 2 = 2.438GHz ID 3 = 2.464GHz ID 4 = 4.18GHz ID 5 = 5.210GHz ID 6 = 5.240GHz ID 7 = 5.736GHz ID 8 = 5.762GHz ID 9 = 5.814GHz Hopping Mode ID's 1, 2 and 3 = 2.4GHz ID's 4, 5 and 6 = 5.2GHz ID's 7, 8 and 9 = 5.8GHz Channel Hopping Fixed Link Digital In Power Russound Link Digital In Power X1-TX8 Multi-channel Wireless Transmitter

Antenna placement

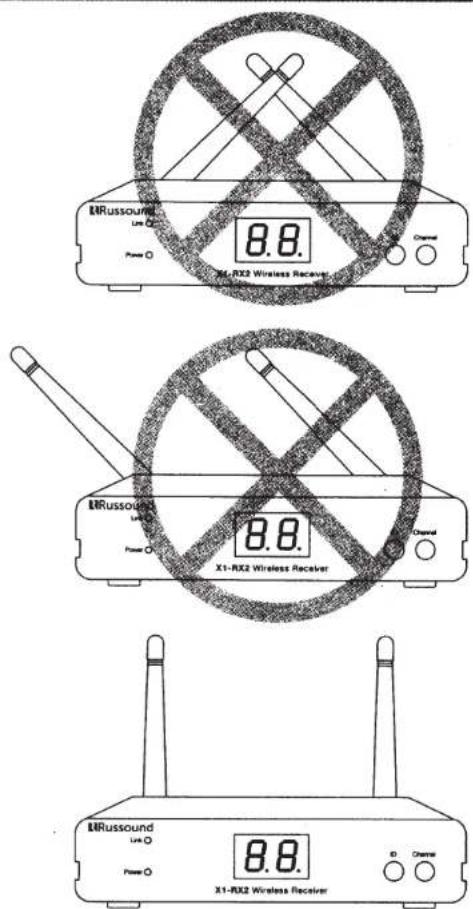

For best performance, locate the transmitter and receiver in an area that is not surrounded by metal or other equipment that may interfere with transmission. Placement should be carefully thought out. Transmitter and receiver antennas should be in vertical and parallel position for maximum performance - see illustration.

X1-RX2 Wireless Receiver 8.8. 8.8. X1-RX2 Wireless Receiver 8.8. 8.8. X1-RX2 Wireless Receiver 8.8. X1-RX2 Wireless Receiver

X1-TX8 FRONT, BACK PANEL

Front panel

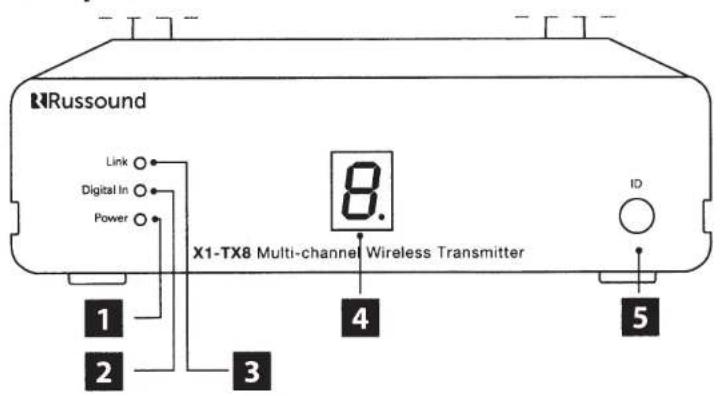

Russound Link Digital In Power X1-TX8 Multi-channel Wireless Transmitter 1 2 3 4 5 8.

1 Power
2 Digital In Confirms digital audio in
3 Link Confirms connection to receiver X1-RX2 or X1-RX220

4 8. ID Number

5 ID Sets ID to match receiver X1-RX2 or X1-RX220

Note:

Channels are the inputs 1-4 on the back of the X1-TX8

Back panel

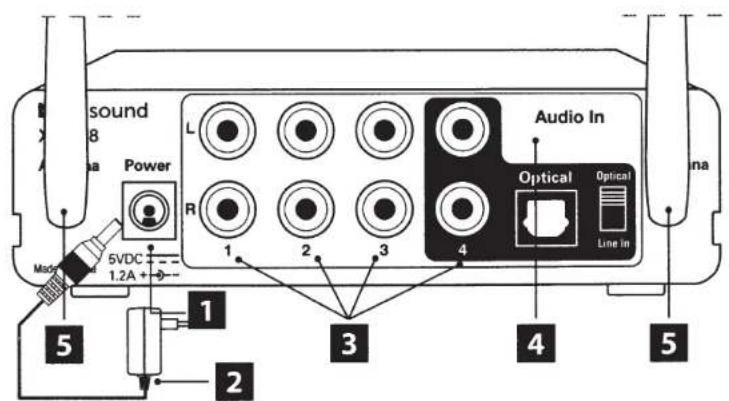

sound 8 Power 5VDC 1.2A Audio In Optical Optical Line In 1 2 3 4 5 Made 1 2 3 4 5

1 Power Plug Inlet
2 Power Supply 5VDC 1.2A
3 Channels 1 thru 4

4 Audio In Audio inputs: 1–3 Line level 4 Line in or optical

5 Antenna

Front panel

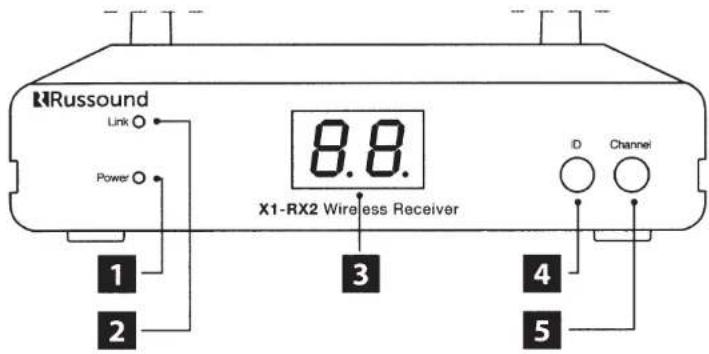

iRussound Link Power 1 2 X1-RX2 Wireless Receiver 8.8. 3 4 5 ID Channel

1 Power

2 Link Confirms connection to transmitter X1-TX8

3 8.8. ID Number

Displays specific band used/desired (see page 8)

4 ID

Sets ID to match transmitter X1-TX8

5 Channel

Sets Channel (inputs on the back of X1-TX8 (see page 8)

Back panel

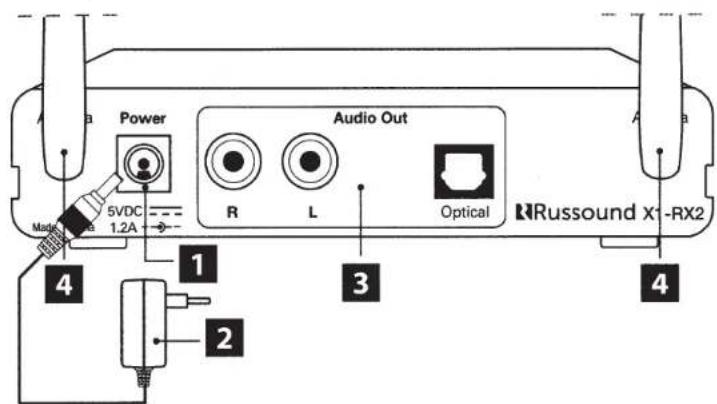

Power 5VDC 1.2A Made Audio Out R L Optical Russound X1-RX2 4 1 3 2 4

1 Power Plug Inlet

2 Power Supply 5VDC 1.2A

3 Audio Out

Audio output RCA and optical connectors

4 Antenna

X1-RX220 FRONT, BACK PANEL

Front panel

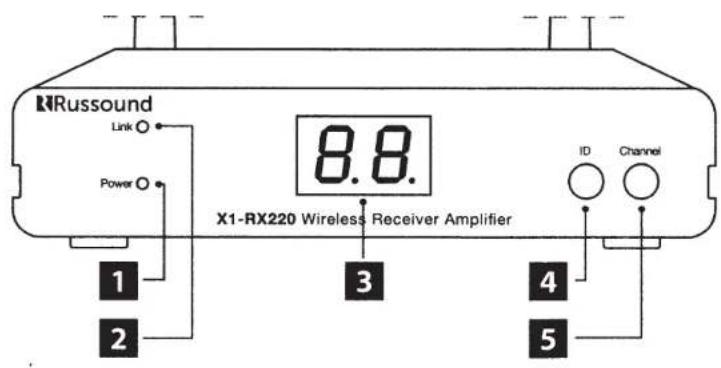

Russound Link Power 1 2 X1-RX220 Wireless Receiver Amplifier 8.8. 3 4 5 ID Channel

1 Power

2 Link

Confirms connection to transmitter X1-TX8

ID Number

Displays specific band used/desired (see page 8)

4 ID

Sets ID to match transmitter X1-TX8

5 Channel

Sets Channel (inputs on the back of X1-TX8 (see page 8)

Channel#

Displays input # on back of X1-TX8 (see page 8)

Back panel

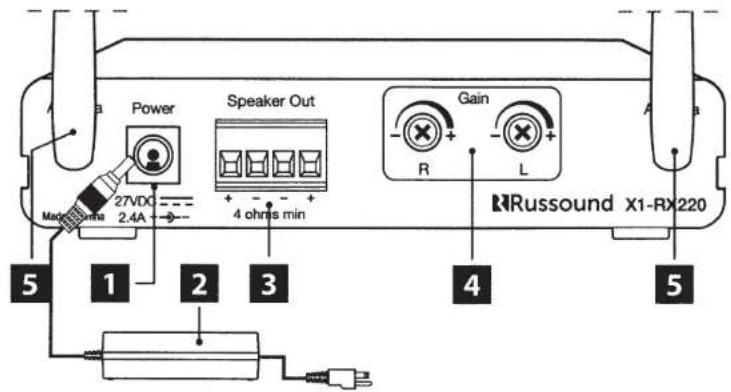

Power Speaker Out Gain Russound x1-Rx220 Mac min 27VDC 2.4A 4 ohms min 5 1 2 3 4 5

1 Power Plug Inlet

2 Power Supply 27VDC 2.4A

3 Speaker Out 4 ohm, screw down connector

4 Gain

Independently adjust the sound level for each channel when L or R gain is adjusted. Displayed on front panel.

5 Antenna

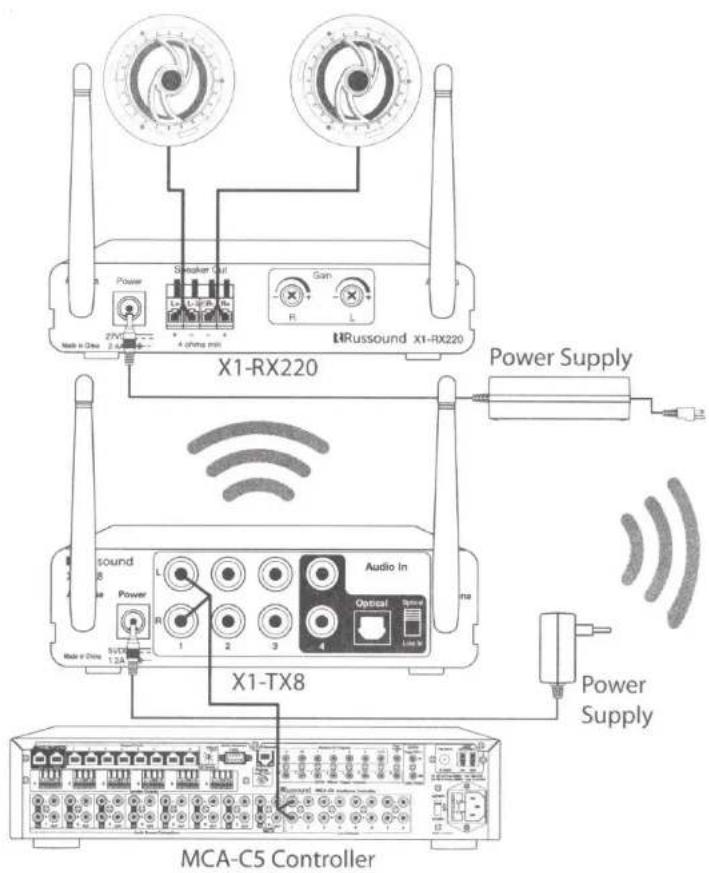

MCA-C5 Controller X1-RX220 Power Supply X1-TX8 MCRussound X1-RX220 Power Supply Audio In Optical Radio Radio 6 GHz Signal Out 4 GHz min State in China 2.4 27V 2.4 R L L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30 L31 L32 L33 L34 L35 L36 L37 L38 L39 L40 L41 L42 L43 L44 L45 L46 L47 L48 L49 L50 L51 L52 L53 L54 L55 L56 L57 L58 L59 L60

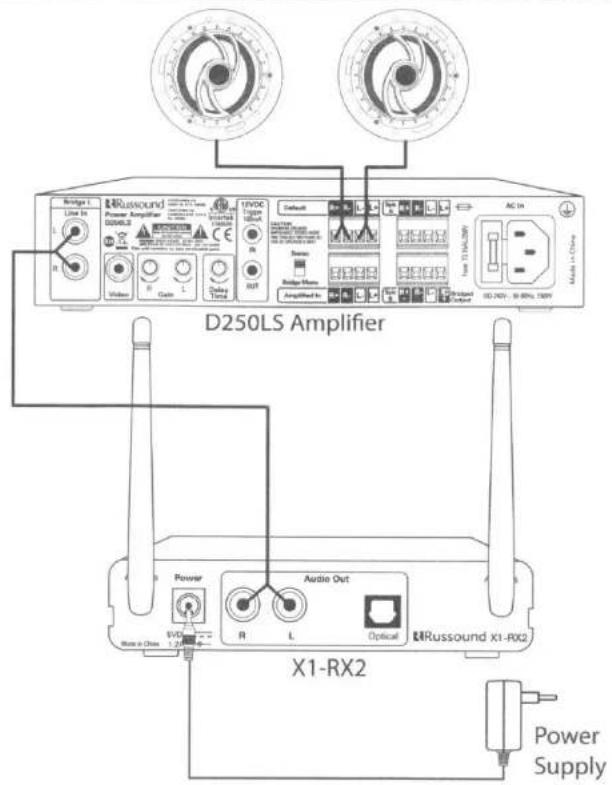

D250LS Amplifier Power Audio Out Power Supply X1-RX2 MHz in China R/Russound X1-RX2 AC 1A Time: 17:46:2897 VDD L L Optical R L R Ultrate Cathode Switch Signal Amplified In: MRSound X1-RX2

INSTALLATION OVERVIEW

The X1 products can be placed on any flat surface or securely mounted in place with the included bracket and screws.

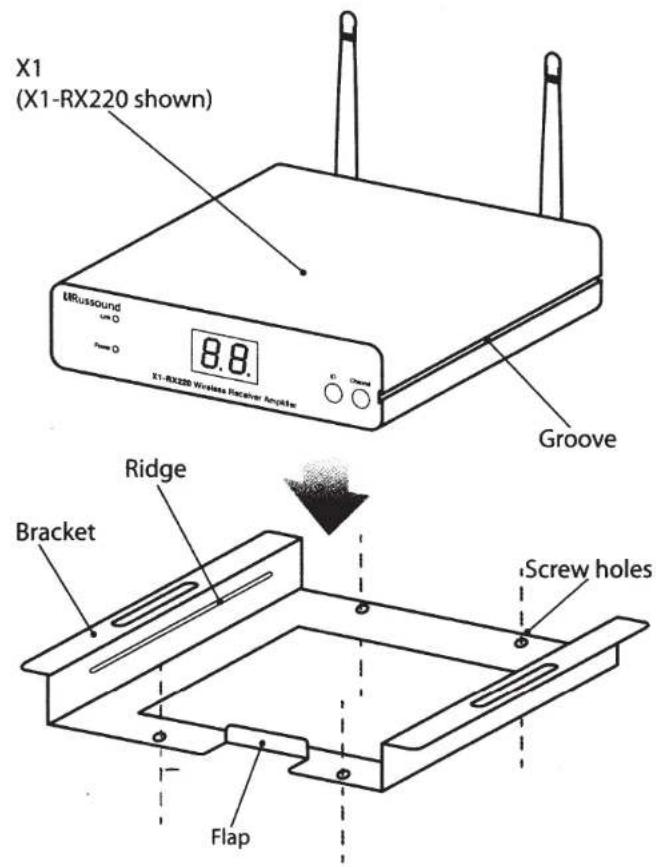

To mount, simply fasten the bracket to a desired location with the screws and snap the X1 into place with the front of the unit against the flap. Make sure the bracket ridge is in line with groove on the sides of the X1.

Note: For wall mount installations make sure that the bracket flap is oriented on the bottom to prevent the X1 from sliding downward.

X1 (X1-RX220 shown) 8.8. LRussound U=0 Power 0 X1-RX220 Wireless Receiver Amplitude G Control Groove Ridge Bracket Screw holes Flap

FEATURES

TECHNICAL SPECIFICATIONS

X1-TX8

• Simultaneously transmits 4 separate wireless audio zones, sources
• Wireless Signal Range 30M (100ft) via proprietary digital RF
  • Transmits signals to RX220 or RX2
  • Hides easily, small footprint

X1-RX2

• Receives audio signals from TX8 transmitter
• Outputs line level or optical audio signals from TX8
- Wireless Signal Range 30m (100ft) via proprietary digital RF
- Requires TX8 transmitter
• Hides easily, small footprint

X1-RX220

• Receives audio signals from TX8 transmitter
• Built in Amplifier 2 x 20 WRMS into 4 ohm
• Individual Gain Adjustments
- Wireless Signal Range 30M (100ft) from TX8 via proprietary digital RF
- Requires TX8 transmitter
• Hides easily, small footprint

X1-TX8

Digital Audio Inputs: RCA, Optical

Power Requirements: 5VDC 1.2A (must use supplied power supply)

Dimensions (without antennas): 3.625"W x 4.75"D x 1.5"H (92 x 121 x 38mm)

Weight: 0.62 lbs. (0.28 kg)

X1-RX2

Digital Audio Outputs: RCA, Optical

Power Requirements: 5VDC 1.2A (must use supplied power supply)

Dimensions (without antennas): 3.625"W x 4.75"D x 1.1875"H (92 x 121 x 30mm)

Weight: 0.64 lbs. (0.29 kg)

X1-RX220

Digital Audio Outputs: 20W x 2, 4 ohms min

Power Requirements: 27VDC 2.4A (must use supplied power supply)

Dimensions (without antennas): 5.125"W x 4.75"D x 1.1875"H (131 x 121 x 30mm)

Weight: 0.86 lbs. (0.39 kg)

Russound®

X1 Products

X1-TX8 Multi-channel Wireless Transmitter

X1-RX2 Wireless Receiver

X1-RX220 Wireless Receiver Amplifier

Installation Manual

©2013 Russound. All rights reserved.

All trademarks are the property of their respective owners.

Specifications are subject to change without notice.

Russound is not responsible for typographical errors or omissions.

Russound, Inc.

5 Forbes Road, Newmarket, NH 03857

tel [phone] · fax [phone]

email: [e-mail] www.russound.com

28-1383 12.05.13, Rev.3
