Product Type	Built-in microwave oven
Brand	Whirlpool
Model	MK2160AZ
Power supply	120 V, 60 Hz, AC only, 15 or 20 A
Microwave power	1000 W (estimated)
Interior capacity	1.2 cu ft (estimated)
Dimensions (W x H x D) with 27" trim kit	68.6 x 50.8 x 40.6 cm (estimated)
Net weight	Approximately 16 kg (35 lb)
Installation type	Built-in, compatible with 27" or 30" trim kit
Cooking functions	Microwave cooking, defrosting, timer, multiple power levels
Safety	Child lock (standard), auto shut-off, secure door
Care and cleaning	Clean interior and exterior with a damp cloth and mild detergent. Avoid abrasive products.
Spare parts and repairability	Contact Whirlpool customer service or an authorized technician for parts and repairs.
General information	UL listed for installation above a built-in oven. Follow local electrical codes.

Frequently Asked Questions - MK2160AZ WHIRLPOOL

What is the power of the MK2160AZ microwave oven?

The power is not explicitly stated in the installation instructions, but for a built-in model in this range, it is typically around 1000 W.

What are the required cutout dimensions?

Height: 17" to 17 1/8" (43.2 to 43.5 cm). Width: varies depending on trim kit (27" or 30") with tolerance of ±1/16" (2 mm). Minimum depth: 18" (45.7 cm) with flush receptacle, 21" (53.2 cm) with non-flush receptacle if within recommended zone.

Can I install the microwave above a built-in oven?

Yes, the MK2160AZ is UL listed for installation above all built-in electric or gas ovens up to 30" wide. A clearance of at least 3" (7.6 cm) is required between the top of the lower oven and the bottom of the microwave cutout.

What type of electrical outlet is needed?

A 3-prong grounded outlet, 120 V, 60 Hz, 15 or 20 amps. Do not use an adapter or extension cord.

Is the microwave oven delivered with a trim kit?

No, the trim kit (frame) is sold separately. The MK2160AZ model requires a 27" or 30" trim kit for built-in installation.

How to install the microwave oven in a cabinet?

Follow the instructions in the manual: prepare the cutout with the required dimensions, secure the bottom vent space, plug in the appliance, slide it into the cavity aligning the tabs with the rails, then screw on the trim kit frame.

What tools are needed for installation?

Tape measure, drill, pencil, 7/64" drill bit, Phillips screwdriver. Screws (short and long) are provided.

How to clean my Whirlpool MK2160AZ microwave?

Use a damp cloth with mild detergent. Avoid abrasive cleaners, scouring pads, and harsh chemical cleaners. Clean the interior regularly to prevent odors.

What to do in case of breakdown or malfunction?

First consult the complete user manual. If the problem persists, contact Whirlpool customer service or an authorized technician. Do not attempt to repair the appliance yourself (high voltage).

Does the microwave have a child lock?

Although not specifically mentioned, most Whirlpool built-in microwaves are equipped with a child lock function accessible via the control panel. Consult the user manual for exact instructions.

USER MANUAL MK2160AZ WHIRLPOOL

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Kit Models MK2167, MK2160

UL listed for use over any electric or gas built-in oven, up to 30" (76.2 cm) wide

INSTRUCTIONS D'INSTALLATION GARNITURE ENCASTRÉE POUR FOUR À MICRO-ONDES

INSTALLATION INSTRUCTIONS....2

Tools and Parts 2

Location Requirements....2

Required Cutout Dimensions....2

Trim Kit Frame Dimensions....3

Electrical Requirements 3

Prepare Microwave Oven....3

Prepare Cutout/Cabinet Opening....4

Install the Microwave Oven....5

Install Trim Kit Frame 6

SÉCURITÉ DU FOUR À MICRO-ONDES....7

INSTRUCTIONS D'INSTALLATION....7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

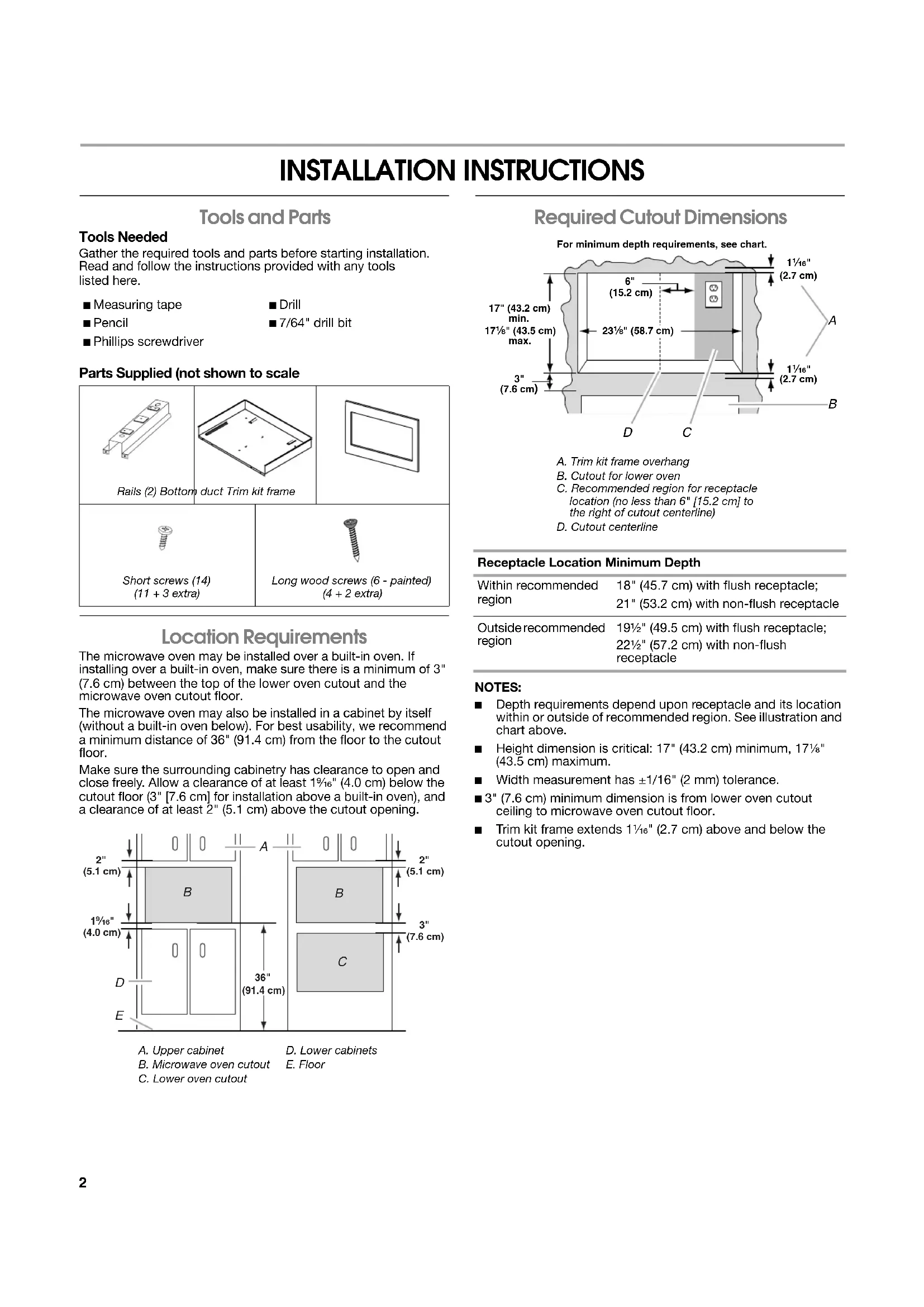

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

■ Measuring tape

Drill

■ Pencil

■ 7/64" drill bit

■ Phillips screwdriver

Parts Supplied (not shown to scale

Rails (2) Bottom duct Trim kit frame
[CSSX]Short screws (14)(11 + 3 extra)	[5GKY]Long wood screws (6 - painted)(4 + 2 extra)

Location Requirements

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3" (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36" (91.4 cm) from the floor to the cutout floor.

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1 ^9/16 " (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

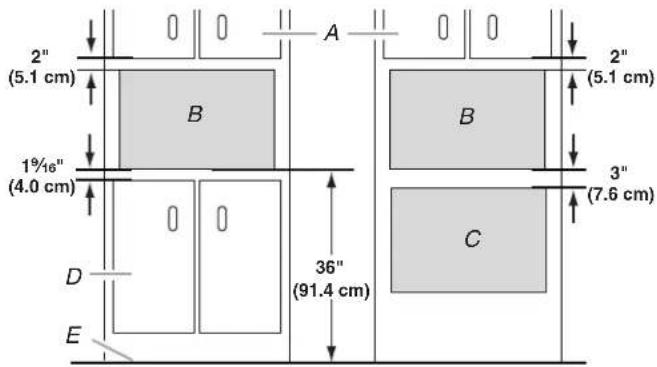

A. Upper cabinet

B. Microwave oven cutout

C. Lower oven cutout

D. Lower cabinets

E. Floor

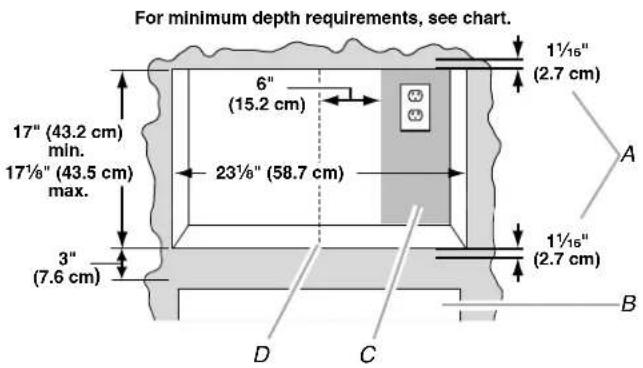

Required Cutout Dimensions

A. Trim kit frame overhang
B. Cutout for lower oven
C. Recommended region for receptacle location (no less than 6" [15.2 cm] to the right of cutout centerline)
D. Cutout centerline

Receptacle Location Minimum Depth

Within recommended region	18" (45.7 cm) with flush receptacle; 21" (53.2 cm) with non-flush receptacle
Outside recommended region	19 12 " (49.5 cm) with flush receptacle; 22 12 " (57.2 cm) with non-flush receptacle

NOTES:

■ Depth requirements depend upon receptacle and its location within or outside of recommended region. See illustration and chart above.
■ Height dimension is critical: 17" (43.2 cm) minimum, 17 ^1/8 " (43.5 cm) maximum.
■ Width measurement has ±1/16" (2 mm) tolerance.
■ 3" (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
- Trim kit frame extends 1 116 (2.7 cm) above and below the cutout opening.

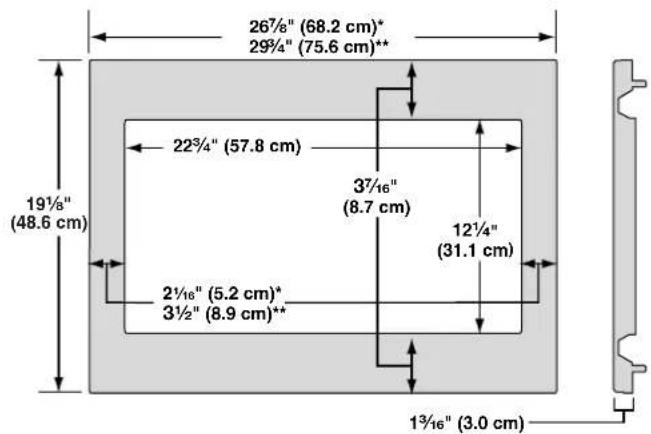

Trim Kit Frame Dimensions

*27" (68.6 cm) trim kit
**30" (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

■ A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

■ A time-delay fuse or time-delay circuit breaker.
■ A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

■ For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).

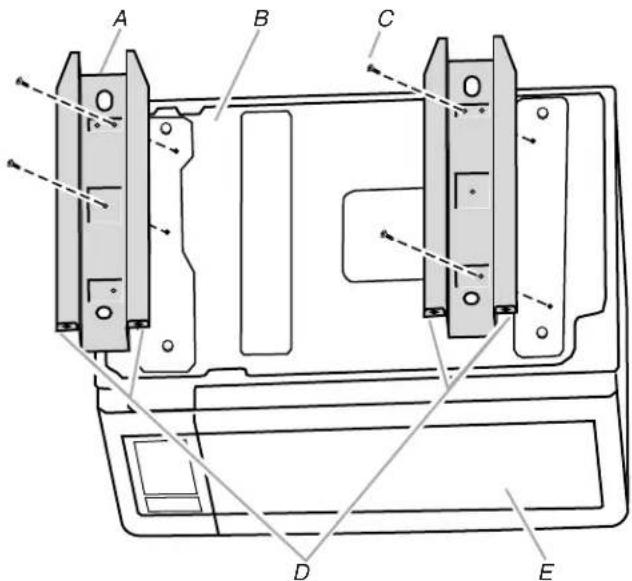

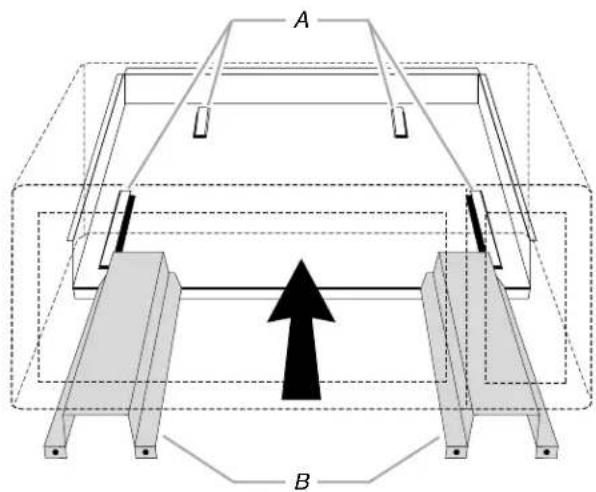

4. Align the two rails on the microwave oven bottom, as shown, making sure the flanges are forward and pointing up.

A. Rails (2)
B. Microwave oven bottom
C. Short screws (4)

D. Flanges

E. Door

1. Secure the rails to the microwave oven bottom using four short screws.

Prepare Cutout/Cabinet Opening

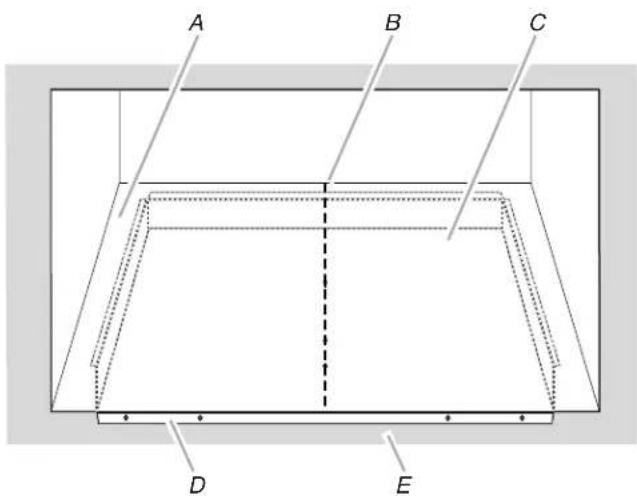

1. On the cutout floor, find and mark the centerline.
2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A. Cutout floor
B. Centerline
C. Bottom duct

D. Bottom duct flange
E. Front facing

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

Technical line drawing of a mechanical assembly with two circular components labeled A and B, no text or symbols present.

A. Bottom duct
B. Center arrows, aligned with centerline

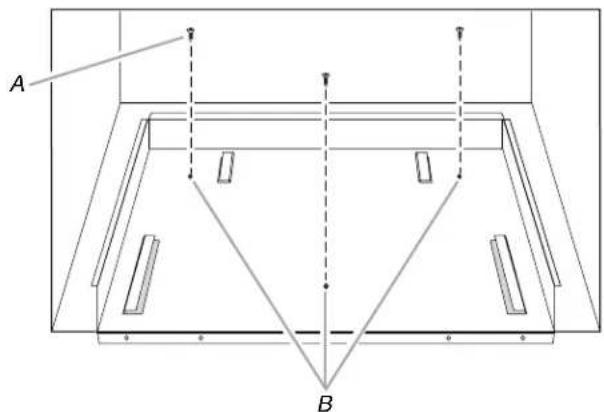

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

Technical line drawing of a mechanical assembly with labeled points A and B, showing internal components and alignment lines (no text or symbols beyond labels)

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

Pure geometric diagram of a truss structure with labeled points A and B, no text or symbols present

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Gently return microwave oven to its upright position.
2. Position microwave oven near cutout opening.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug in microwave oven.
2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B. Rails

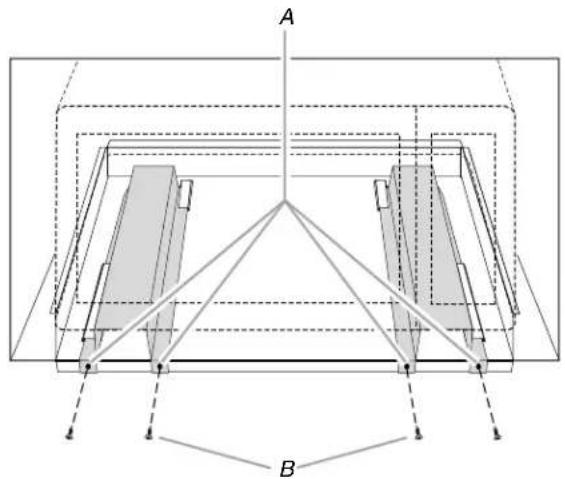

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.

2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the lower tabs rest on the cutout floor, as shown.

A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/cabinet floor

1. Holding the trim kit frame in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

■ The holes will be drilled downward from the top, and upward from the bottom at an angle of about 45^ .
■ To avoid damage to the trim kit frame, do not overtighten screws.

A. Trim kit frame
B. Mounting hole guide

C. Long wood screw (4 - painted)
D. Cutout ceiling

1. Secure trim kit frame to cutout/cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 2 above.

Simple line drawing of a rectangular box with a black square on the side (no text or symbols)

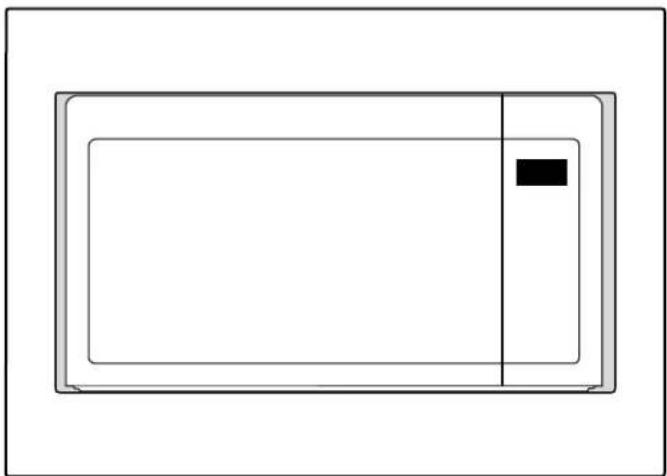

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.
