USER MANUAL AR4B01B ARDES

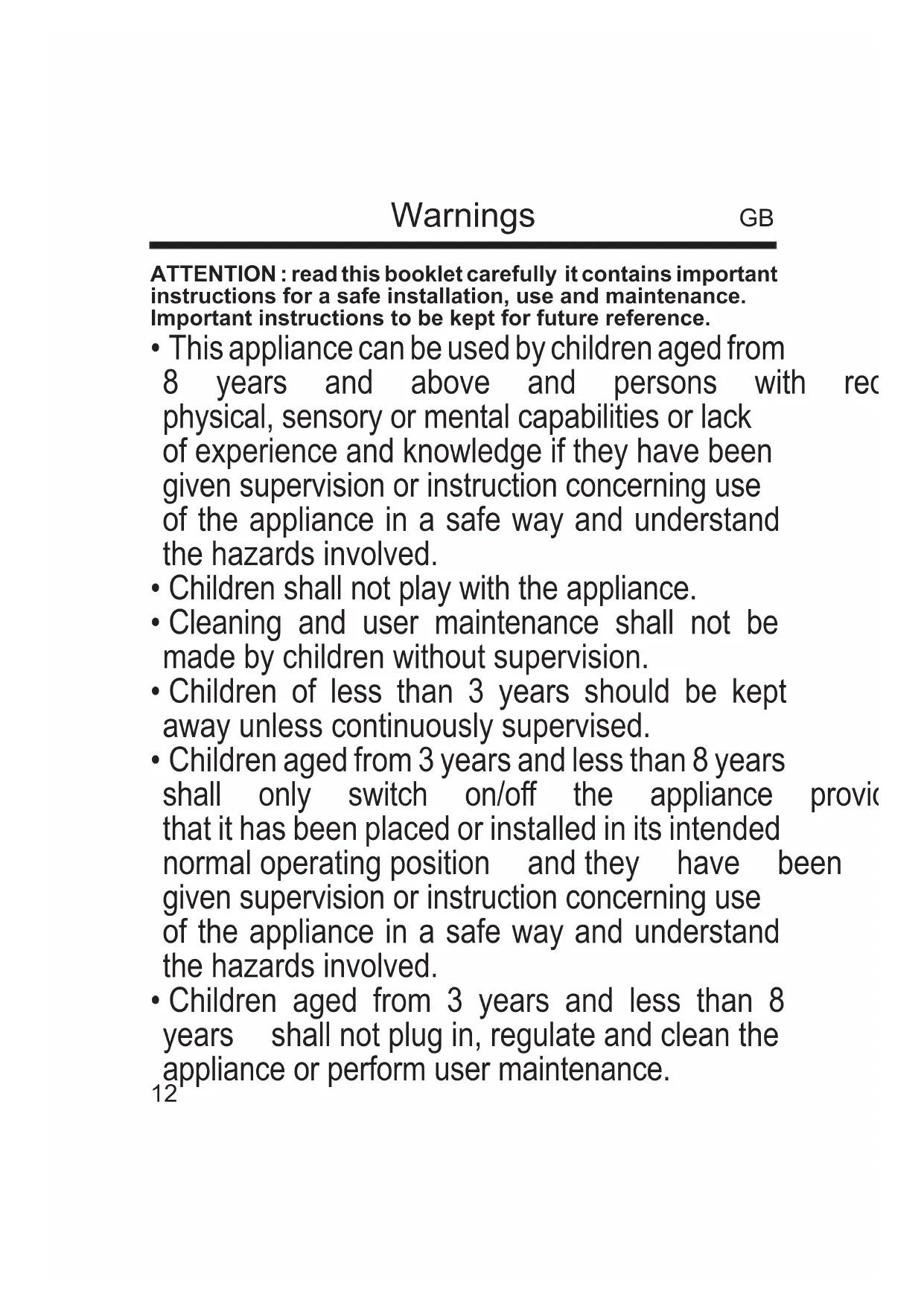

Contatti POLYPOOLS.p.A.-viaSottocorna21/B,24020Parre(BG)-Italy12 Warnings ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensoryormentalcapabilitiesorlack ofexperienceandknowledgeiftheyhavebeen givensupervisionorinstructionconcerninguse of the appliance in a safe way and understand thehazardsinvolved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be madebychildrenwithoutsupervision.

• Children of less than 3 years should be kept awayunlesscontinuouslysupervised.

• Children aged from 3 years and less than 8 years shall only switch on/o󰀨 the appliance provided that it has been placed or installed in its intended normaloperatingposition andthey have been givensupervisionorinstructionconcerninguse of the appliance in a safe way and understand thehazardsinvolved.

• Children aged from 3 years and less than 8 years shallnotplugin,regulateandcleanthe appliance or perform user maintenance. GB13

• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Do not place the appliance immediately below a socketoutlet.

• Do not use this heater in the immediate surroundingsofabath,ashoweroraswimming pool.

• Do not use this heater if it has been dropped.

• Donotuseiftherearevisiblesignsofdamage to the heater.

• Use this heater on a horizontal and stable surface.

• WARNING: Do not use this heater in small rooms when they are occupied by persons not capableofleavingtheroomontheirown,unless14 constantsupervisionisprovided.

• Don’t connect the appliance to the power supply and don’t use it unless it is completely assembled (see mounting instructions). Keephandytheguarantee,receiptofpaymentandtheseinstructionsfor future use and reference. After removing the packaging, check the appliance for any signs of damage. Incaseofvisibledamage,donotuseitandcontactaqualiedtechnician. Donotleavepartsofthepackagingwithinthereachofchildren.This applianceisnotachildren’stoy:itisanelectricaldeviceandmustbe treated with the necessary caution. Before connecting the appliance, make sure that the power supply voltagematchestheindicationonthedataplate. Iftheplugandsocketarenotcompatible,thesockethastobereplaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits. When you don’t use the appliance disconnect it from the power supply andassurethattheinterruptoriso󰀨. Donottugonthepowercableorontheapplianceitselftoremovethe plug from the socket. The use of any electrical appliance requires that a number of basic rulesareobserved,namely: -Nevertouchtheappliancewithwetorhumidhands. -Donotleavetheapplianceexposedtoweathering(rain,sunlight). - Do not subject it to rough handling.15 Incaseofabreakdownormalfunctioningoftheappliance,disconnect it at once. Donotattempttorepairit,buttakeittoaservicecentreapprovedbythe manufacturer. Ifyoudecideyoudonotwanttousethisapplianceanylonger,disable itbycuttingthepowercable-ofcourse,afterdisconnectingitfromthe socket. The power cable should be extended to its full lenght to avoid over heating. Forsafetyreasons,theapplianceshouldneverbeopened. The appliance has been designed and manufactured to operate in the home. Any other use is considered inappropriate and dangerous. Do not insert objects through the safety grill or the air inlets. Duringuse,resttheapplianceonaatsurface. Donot usethis heatingappliance withprogrammers, timers,separate remotecontrolsystems(di󰀨erenttotheonesprovidedwiththeappliance) oranyotherdevicethatautomaticallyturnsontheappliance,asthereisa riskofreintheeventtheapplianceiscoveredorpositionedincorrectly. Do not use the heater in presence of ammable substances (petrol, paints,etc.). Do not place the cord near sources of heat.

WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE

AIR INLETS TO AVOID OVERHEATING.16

Technical data indicated on the appliance. SUPPORT BASE ASSEMBLY. Before performing any assembly operation, make certain that the appliance is switched o󰀨 and disconnected from the power outlet. Assembletheheatingbodytothesupportbase,passingthecordthrough the appropriate slot. Turntheapplianceover,screwonthescrewswithplasticheadstoxthe heatingbodytothebase,tighteningthemcorrectly. USER INSTRUCTIONS. Toturnontheappliance,inserttheplugintothepoweroutlet. Turn the knob clockwise to select the power: 450W+oscillation / 900W+oscillation; turn underclockwise to select the desired power withoutoscillation.Theapplianceisequippedwithanautomaticturn-o󰀨 systemincaseitfallsoveraccidentally. Beforeconnectingordisconnectingtheappliance,makecertainthatall theswitchesareintheo󰀨position. Beforereplacingtheapplianceinitspackaging,checkthatithascooled su󰀩ciently.

Instructions for use

Maintenance Disconnect the plug from the socket and let the appliance cool down well before cleaning it. Inordertocleantheappliance,useasoftorslightdampcloth. Neveruseabrasivesorchemicalsolvents. Donotuseverywetsubstances,liquidsorclothstopreventwaterfrom entering into the appliance and irreparably damaging it. NEVER IMMERSE THE APPLIANCE INTO THE WATER.17 USER INFORMATION “Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electricalandelectronicequipment,aswellastowaste disposal. The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other wasteattheendofitsservicelife. The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste. Formoredetails,pleasecontacttheappropriatelocal authority. Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally- friendly disposal helps prevent damage to the environment and to human health, and encourages there-useand/orrecyclingofthematerialsthatmake up the equipment. Abusivedisposaloftheproductbytheusershallresult intheapplicationofadministrativenesinaccordance with the laws in force. USER INFORMATION PACKAGING Inordertorespecttheenvironment,packagingmaterialmustbedisposed of properly in accordance with separate collection. Check local regulations. GB18 GUARANTEE Terms and Conditions The guarantee is valid for 24 months. Thisguaranteeappliesonlyifithasbeendulylledinandissubmitted with the receipt showing the date of purchase. Theguaranteecoversthereplacementorrepairofpartsmakingupthe appliance which were faulty at source due to manufacturing faults. Aftertheguaranteehasexpired,theappliancewillberepairedagainst payment. The manufacturer declines any responsibility for damage to persons, animalsorpropertyduetomisuseoftheapplianceandfailuretoobserve the directions contained in the instructions. Limits All rights under this guarantee and any responsibility on our part will be voidediftheappliancehasbeen: - mishandled by unauthorized persons -improperlyused,storedortransported. Theguaranteedoesnotcoverdamagetotheoutwardappearanceorany otherthatdoesnotpreventregularoperation. If any faults should be found despite the care taken in selecting the materialsandincreatingtheproduct,orifanyinformationoradviceare required,pleasecontactyourlocaldealer. GB19 Information requirements for electric local space heaters Modelidentier(s): AR4B01/AR4B01B Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

min 0,5 kW Manual heat charge control with room and/oroutdoortemperaturefeedback N.A. Maximum continuous heat output

max,c 0,9 kW Electronic heat charge control with room and/oroutdoortemperaturefeedback N.A. Auxiliary electricity consuption Fan assisted heat output N.A. At nominal heat output

max N.A. kW Type of heat output/room temperature control (select one) At minimum heat output

min N.A. kW Single stage heat output and no room temperature control

N.A. kW Twoormoremanualstages,noroom temperature control Yes With mechanic thermostat room temperature control

With electronic room temperature control No Electronic room temperature control plus day timer

Electronic room temperature control plus week timer
