USER MANUAL MER4600LS MAYTAG

ELECTRIC FREESTANDING RANGE OWNER'S MANUAL

GUIDE D'UTILISATION DE LA CUISINIÈRE ÉLECTRIQUE AUTOPORTANTE

MANUAL DEL PROPIETARIO DE LA ESTUFA AUTÓNOMA ELÉCTRICA

Table of Contents/Table des matières/Índice

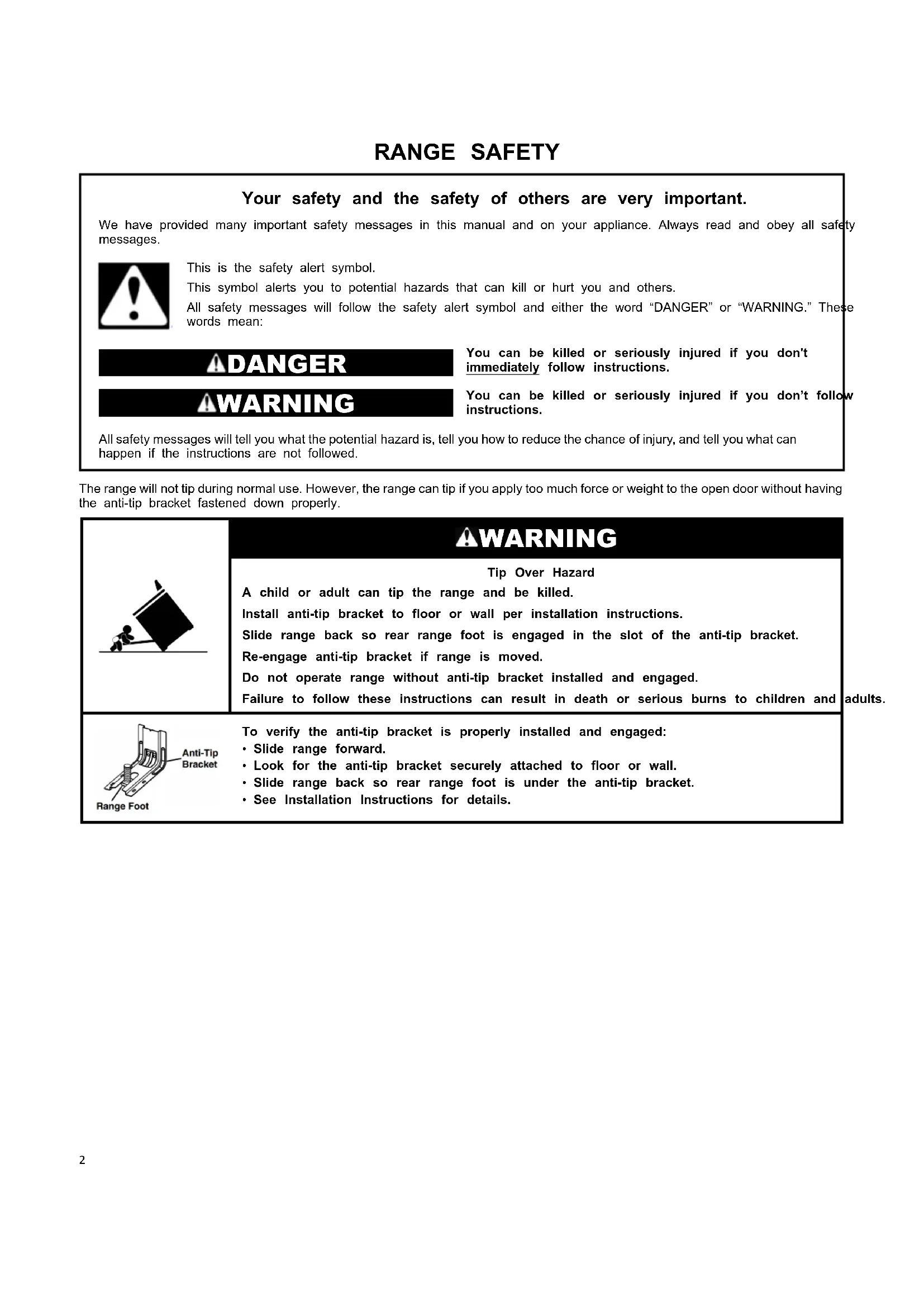

RANGE SAFETY 2

Range Safety....2

RANGE MAINTENANCE AND CARE....5

Self-Cleaning Cycle (on some models) 5

General Cleaning....5

INSTALLATION INSTRUCTIONS .....7

REQUIREMENTS......7

Tools and Parts 7

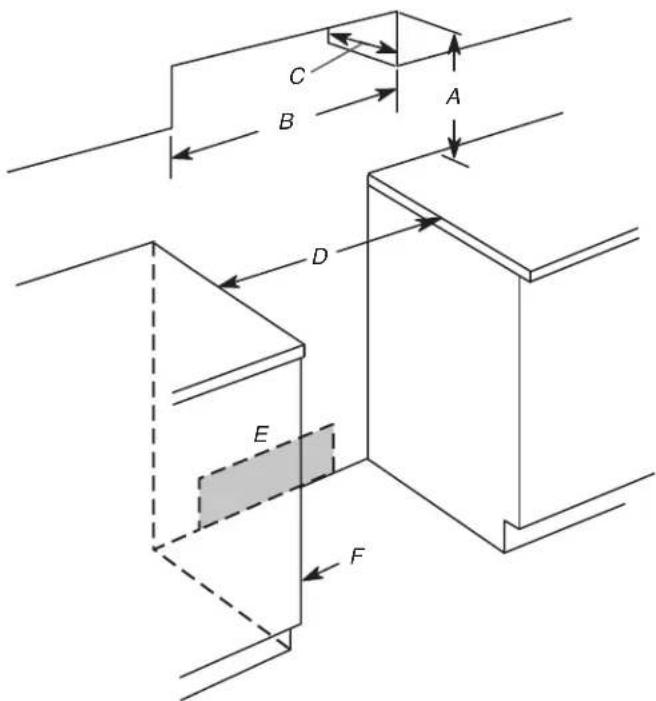

Location Requirements 7

Electrical Requirements - U.S.A.

Only....8

Electrical Requirements - Canada

Only.... 10

INSTALLATION 10

Unpack Range 10

Install Anti-Tip 11

Adjust Leveling Legs 12

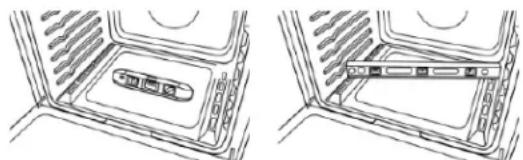

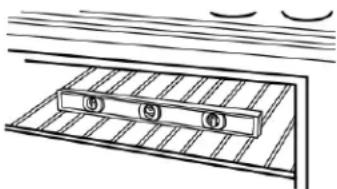

Level Range 12

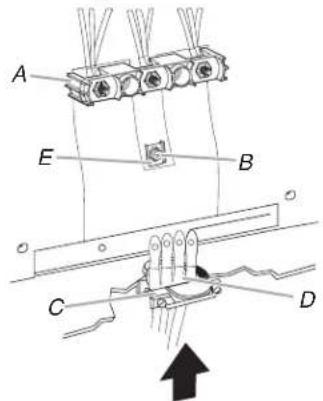

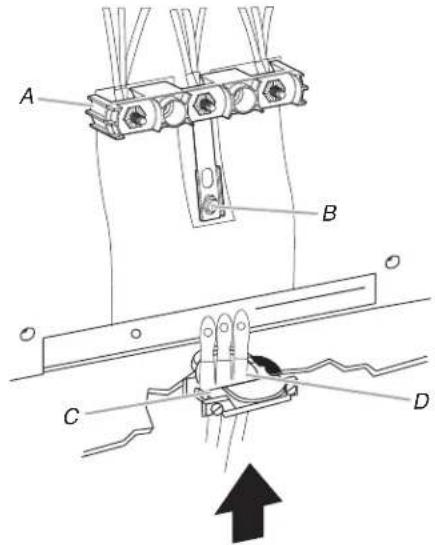

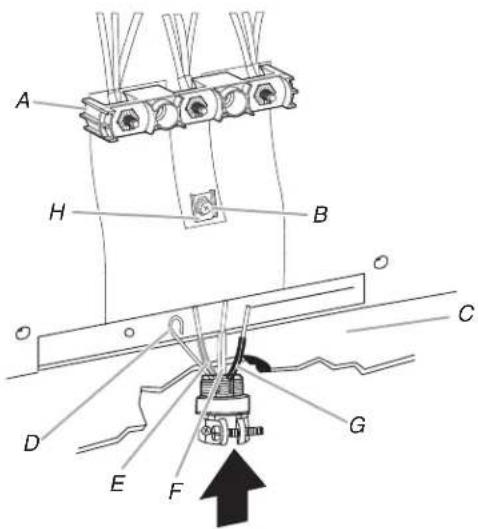

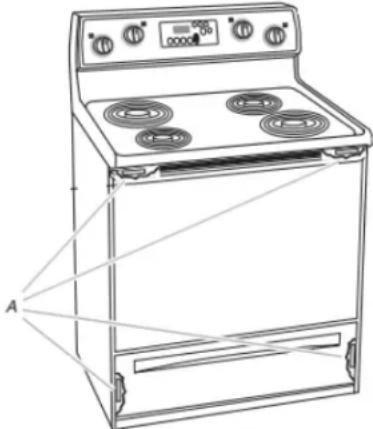

Electrical Connection USA Only..... 13

Verify Anti-Tip Bracket Is Installed

and Engaged 18

Warming Drawer or Premium

Storage Drawer (on some models) ...

Storage Drawer (on some models) ...

Oven Door 19

Complete Installation 20

Moving the Range.... 20

SÉCURITÉ DE LA CUISINIÈRE ..... 21SEGURIDAD DE LA ESTUFA..... 42

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without having the anti-tip bracket fastened down properly.

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

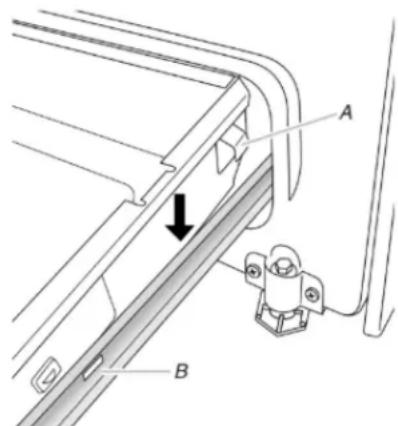

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and

adults.

Range Foot

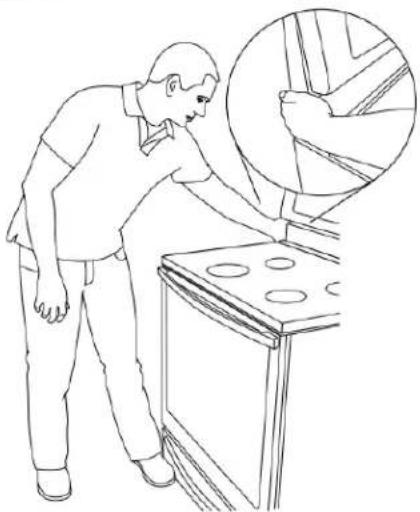

To verify the anti-tip bracket is properly installed and engaged:

• Slide range forward.
• Look for the anti-tip bracket securely attached to floor or wall.
• Slide range back so rear range foot is under the anti-tip bracket.
  • See Installation Instructions for details.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic precautions, including the following:

■ WARNING: TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.

■ WARNING: Danger of fire: Do not store items on the cooking surfaces. Never leave anything on the surface when unattended and not in use. Never place flammable plastic items on or near the surface.

■ CAUTION: Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance - children climbing on the appliance to reach items could be seriously injured.

■ Proper Installation - The appliance, when installed, must electrically grounded in accordance with local codes, or the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1-02. In Canada, the appliance must be electrically grounded in accordance with Canadian Electrical Code. Be sure your appliance is properly installed and grounded by a qualified technician.

■ Never Use Your Appliance for Warming or Heating the Room.

■ Do Not Leave Children Alone - Children should not be alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any the appliance.

■ Wear Proper Apparel – Loose-fitting or hanging garments should never be worn while using the appliance.

■ User Servicing – Do not repair or replace any part of appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

■ Storage in or on Appliance – Flammable materials should not be stored in an oven or near surface units.

■ This appliance is not intended for storage.

■ Do Not Use Water on Grease Fires – Smother fire or or use dry chemical or foam-type extinguisher.

■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

■ Use Only Dry Potholders – Moist or damp potholders on surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a to other bulky cloth.

■ DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not to or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient to cool. Among these areas are the coil elements, the cooktop, and surfaces facing the cooktop.

■ Use Proper Pan Size – This appliance is equipped with on or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.

■ Never Leave Surface Units Unattended at High Heat Settings – Boilover causes smoking and greasy spillovers that may ignite.

Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

- Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a beisk of electric shock, or fire.

In Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.

■ Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does left extend over adjacent surface units.

■ Do Not Soak Removable Heating Elements – Heating part of elements should never be immersed in water.

■ Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact the qualified technician immediately.

■ Clean Cooktop With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious cold fumes if applied to a hot surface.

■ Use Care When Opening Door – Let hot air or steam escape before removing or replacing food.

■flame Not Heat Unopened Food Containers – Build-up of pressure may cause container to burst and result in injury.

- Keep Oven Vent Ducts Unobstructed.

- Placement of Oven Racks – Always place oven racks in desired location while oven is cool. If rack must be moved on while oven is hot, do not let potholder contact hot heating element in oven.

WE DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN - Heating elements may be hot even though they are dark in color. Interior surfaces of an areoven become hot enough to cause burns. During and after not use, do not touch, or let clothing or other flammable touch materials contact heating elements or interior surfaces of faceoven until they have had sufficient time to cool. Other times of the appliance may become hot enough to cause burns - among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic precautions, including the following:

■ Care must be taken to prevent aluminum foil and meat ■ Before Self-Cleaning the Oven - Remove broiler pan and probes from contacting heating elements. other utensils.

For self-cleaning ranges -

■ CAUTION: DO NOT LEAVE FOOD OR COOKING UTENSILS, ETC., IN OVEN DURING THE PYROLYTIC SELF-CLEANING MODE OF OPERATION.

For units with ventilating hood -

■ Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate on hood or filter.
■ When flaming foods under the hood, turn the fan on.

■ Do Not Clean Door Gasket – The door gasket is essential for smart enabled ranges and ovens

for a good seal. Care should be taken not to rub, damage or move the gasket. ■ Remote operation – This appliance is configurable to allow remote operation at any time. Do not store any flammable materials or temperature sensitive items inside, on top or near surface units of the appliance. ■ Do Not Use Oven Cleaners – No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

■ Clean Only Parts Listed in Manual.

SAVE THESE INSTRUCTIONS

RANGE MAINTENANCE AND CARE

Self-Cleaning Cycle (on some models)

WARNING

Burn Hazard

Do not touch the oven during the Self-Cleaning cycle.

Keep children away from the oven during Self-Cleaning cycle.

Failure to follow these instructions can result in burns.

Once the oven has completely cooled, remove ash with a dam cloth. To avoid breaking the glass, do not apply a cool damp to the inner door glass before it has completely cooled.

To stop the Self-Cleaning cycle at any time, press CANCEL or OFF/CANCEL. If the temperature is too high, the oven door will remain locked and "cool" and "locked" will be displayed.

When 📄” shows in the display, the door of the oven cannot be opened. To avoid damage to the door, do not force the door when 📄” is displayed.

Before self-cleaning, make sure the door is completely closed of the door will not lock and the Self-Cleaning cycle will not begi

Once the cleaning temperature has been reached, the electronic control requires a 12 hour delay before another Self-Cleaning cycle can be started.

The oven light will not function during the Self-Cleaning cycle.

Electronic Oven Control with Adjustable Clean Time (on some models)

The Self-Cleaning cycle is time adjustable between 2 hours 30 minutes and 4 hours 30 minutes in 30 minute increments. Suggested clean times are 2 hours 30 minutes for light soil at 4 hours 30 minutes for heavy soil. The last 30 minutes of the is for cooldown.

IMPORTANT: The health of some birds is extremely sensitive

the fumes given off during the Self-Cleaning cycle. Exposure IMPORTANT: When cooktop is in use, the Self-Cleaning cycle will be found to the fumes may result in death to certain birds. Always move birds to another closed and well-ventilated room.

Keep the kitchen well-ventilated during the Self-Cleaning cycleToSelf-Clean:

help get rid of heat, odors, and smoke.

Do not block the oven vent(s) during the Self-Cleaning cycle, must be able to move freely. Depending on your model, see Vent" or "Oven Vents" section in your Quick Start Guide.

Oven vent

1. Press CLEAN or SELF CLEAN.
2. Press the Temp/Time “+” or “-”, or “up” or “down” keypad ee “Even the desired Self-Cleaning cycle time.
3. Press START.

The oven door will automatically lock. The Door Locked and Clean indicator lights will be displayed. The time remaining is also be displayed.

1. When the Self-Cleaning cycle is complete and the oven cool the Door Locked and Clean indicator lights will turn off.
2. When the oven is completely cooled, remove ash with a da cloth.

To exit the Self-Cleaning cycle before completed, press CANCEL or OFF/CANCEL. The door will unlock once the oven cools.

Do not clean, rub, damage, or move the oven door gasket.

Prepare Range:

■ Remove the broiler pan, grid, cookware and bakeware, all cooking utensils, oven racks, aluminum foil, and, on some models, the temperature probe from the oven.
■ Use a damp cloth to clean inside door edge ^1/2 and the 1 cleaning products.
cleaning products.

(3.8 cm) area around the inside oven cavity frame, being certain not to move or bend the gasket.

■ Wipe out any loose soil to reduce smoke and avoid dan At high temperatures, foods react with porcelain. Staining, etching, pitting, or faint white spots can result. This will affect cooking performance.
■ Remove plastic items from the cooktop because they may melt.
■ Remove all items from the storage drawer.

How the Cycle Works

IMPORTANT: The heating and cooling of porcelain on steel oven may result in discoloring, loss of gloss, hairline cracks, popping sounds.

The Self-Cleaning cycle uses very high temperatures, burning to a powdery ash.

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off an the oven and cooktop are cool. Always follow label instructions

Soap, water, and a soft cloth or sponge are suggested first, u otherwise noted.

image EXTERIOR PORCELAIN ENAMEL SURFACES (on some models)

Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire range is cool. These spills affect the finish.

Cleaning Method:

■ Glass cleaner, mild liquid cleaner, or nonabrasive scrubbing pad: Gently clean around the model/serial/rating plate because in scrubbing may remove numbers.
■ Airfresh ^®+ Kitchen and Appliance Cleaner Part Number W10355010 (not included):

g sibee the Quick Start Guide for contact information.

STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not use

soap-filled scouring pads, abrasive cleaners, Cooktop Cleaner, steel-wool pads, gritty washcloths, or abrasive paper towels.

Damage may occur to stainless steel surfaces, even with one-time or limited use.

Cleaning Method:

Rub in direction of grain to avoid damaging.

■ Affresh ^® Stainless Steel Cleaner Part Number W10355016 (not included):

See the Quick Start Guide for contact information.

METALLIC PAINT (on some models)

Do not use abrasive cleaners, cleaners with bleach, rust removers, ammonia, or sodium hydroxide (lye) because paint surface may stain.

CERAMIC GLASS COOKTOP CLEANING

Cleaning Method:

To avoid damaging the cooktop, do not use steel wool, abrasi powder cleansers, chlorine bleach, rust remover, or ammonia.

1. Remove food/residue with the Cooktop Scraper.

Pure line drawing of a curved mechanical component with a looped section (no text or symbols)

■ For best results, use the Cooktop Scraper while the

cooktop is still warm but not hot to the touch. It recommended to wear an oven mitt while scraping warm cooktop.

- Hold the Cooktop Scraper at approximately a 45° an against the glass surface and scrape the residue. It necessary to apply pressure in order to remove the residue.

Allow the cooktop to cool down completely before to Step 2.

1. Apply a few dime-sized drops of Cooktop Cleaner to the affected areas.

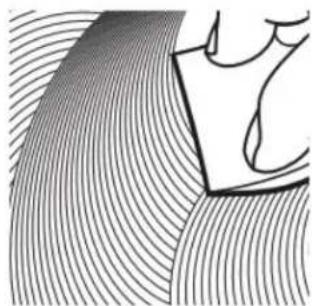

Abstract line drawing with curved and straight lines, no text or symbols present

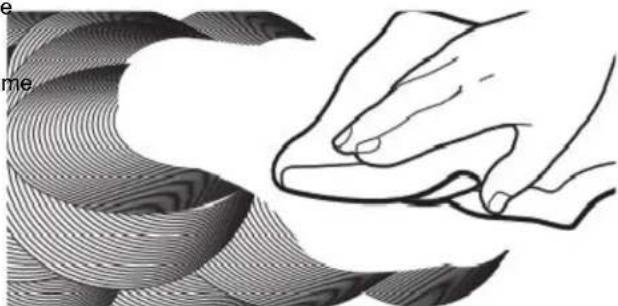

1. Polish with a clean, dry cloth or a clean, dry paper towel.

Illustration of a hand pressing down on a curved surface with wavy patterns (no text or symbols)

■ Repeat steps 1 through 3 as necessary for stubborn or burned-on stains.

The Complete Cooktop Cleaner Kit is available for order including the following:

■ Cooktop Scraper

■ Affresh ^® Cooktop Cleaner

■ Blue Cooktop Cleaning Pads

See the Quick Start Guide for ordering information.

COOKTOP CONTROLS

To avoid damage to the cooktop controls, do not use steel wo abrasive cleansers, or oven cleaner.

To avoid damage, do not soak knobs. When replacing knobs, make sure knobs are in the Off position.

On some models, do not remove seals under knobs.

Cleaning Method:

■ Soap and water: Pull knobs straight away from control panel remove.

CONTROL PANEL AND OVEN DOOR EXTERIOR

To avoid damage to the control panel, do not use abrasive cleaners, steel-wool pads, gritty washcloths, or abrasive paper towels.

@Cleaning Method:

Will be Glass cleaner and soft cloth or sponge: Apply glass cleaner soft cloth or sponge, not directly on panel.

■ Affresh® Kitchen and Appliance Cleaner Part Numbereding/10355010 (not included):

See the Quick Start Guide for contact information.

COIL ELEMENTS (on some models)

Cleaning Method:

■ Damp cloth: Make sure control knobs are OFF and elements are cool.

Do not clean or immerse in water. Soil will burn off when hot BURNER BOWLS (on some models)

Before removing or replacing coil elements and burner bowls, make sure they are cool and the control knobs are in the OF position.

Remove the coil element by pushing the edge of the coil elen toward the receptacle. Lift it enough to clear the burner bowl. the coil element straight away from the receptacle to remove.

■ Rub affres® Cleaner onto the cooktop surface with the out the burner bowl.

blue Cooktop Cleaning Pad. Some pressure is needed to remove stubborn stains.

■ Allow the cleaner to dry to a white haze before proceeding to Step 3. Wash frequently in warm, soapy water. (It is not recommended wash chrome bowls in a dishwasher.) A mild abrasive cleaner

Chrome burner bowls

washing frequently in warm, soapy water. (It is not recommended wash chrome bowls in a dishwasher.) A mild abrasive cleaner a plastic scrubber can be used to remove stubborn stains.

For heavily soiled bowls, place an ammonia-soaked paper towel on the stains and allow to soak for a short time, then gently with a plastic scrubber.

SURFACE UNDER COOKTOP (on some models)

The coil cooktop will lift up to provide easy access for cleaning beneath. Lift the cooktop by both front corners until the support locks into place.

Cleaning Method:

■ Glass cleaner, mild liquid cleaner or nonabrasive scrubbing pad.
■ Affresh® Kitchen and Appliance Cleaner Part Number W10355010 (not included):
See the Quick Start Guide for contact information.

To avoid damage to the range, do not remove the cooktop

OVEN RACKS

Cleaning Method:

■ Steel-wool pad
■ For racks that have discolored and are harder to slide, coating of vegetable oil applied to the rack guides will them slide.
■ Dishwasher (steam rack water reservoir only, not racks): Although the water reservoir is durable, it may lose its and/or discolor when washed in a dishwasher.

STORAGE DRAWER OR WARMING DRAWER (on some models)

Check that storage drawer or warming drawer is cool and before cleaning.

Cleaning Method:

■ Mild detergent

OVEN CAVITY

Do not use oven cleaners.

Food spills should be cleaned when oven cools. At high temperatures, foods react with porcelain. Staining, etching, or faint white spots can result.

Cleaning Method:

■ Clean cycle: See the "Self-Cleaning Cycle" section.

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Tape measure
■ Flat-blade screwdriver
■ Phillips screwdriver
Level
■ Hammer
■ Hand or electric drill
■ Wrench or pliers
■ Marker or pencil
■ Flashlight
■ Torque Wrench

■ Masking tape
■ 1/4" (6.4 mm) drive ratchet
■ 1/4" (6.4 mm) nut driver
■ 3/8" (9.5 mm) and 5/16" (8 mm) nut driver
■ 1/8" (3.2 mm) drill bit (for wood floors)
■ Tin snips or large wire cutters (for cutting ground-link strap if necessary)

Parts supplied

Check that all parts are included.

■ 3 - 10-32 hex nuts (attached to terminal block)
■ 3 - Terminal lugs

Technical line drawing of a mechanical bracket with labeled points A and B (no text or symbols beyond labels)

A. Anti-tip bracket

B. #12 x 18 " (41 mm) screws (2)

Anti-tip bracket must be securely mounted to floor or wall. Thickness of flooring may require longer screws to anchor bracket to floor.

Parts needed

If using a power supply cord kit:

A UL listed power supply cord kit marked for use with range The cord should be rated at 250 V minimum, 40 A or 50 is marked for use with nominal(315 cm) diameter connection opening and must end in ring terminals or open-end spade terminals with upturned ends.

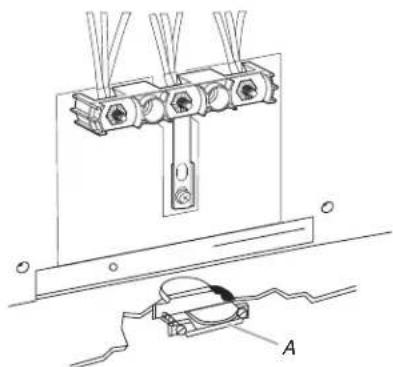

■ A UL listed strain relief.

Check local codes. Check existing electrical supply. See the appropriate "Electrical Requirements" section.

It is recommended that all electrical connections be made by a licensed, qualified electrical installer.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

■ To eliminate the risk of burns or fire by reaching over heat surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided the risk can be reduced by installing a range hood that pro horizontally a minimum of 5 inches beyond the bottom of the cabinets.
■ It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located on the frame behind a top-ted corner of the door or either side of the drawer.
■ The range should be located for convenient use in the kitchen
■ Recessed installations must provide complete enclosure of the sides and rear of the range.
■ All openings in the wall or floor where range is to be insta must be sealed.
■ Cabinet opening dimensions that are shown must be used. Given dimensions are minimum clearances.
■ The anti-tip bracket must be installed. To install the anti-tip bracket shipped with the range, see the "Install Anti-Tip Bracket" section.
■ Grounded electrical supply is required. See the appropriate "Electrical Requirements" section.
■ Contact a qualified floor covering installer to check that the floor covering can withstand at least 200°F (93°C).
■ Use an insulated pad or 1/4" (0.64 cm) plywood under range installing range over carpeting.

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194°F (90°C).

Mobile Home - Additional Installation Requirements

*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal

The installation of this range must conform to the Manufacturenet is covered by not less than 1/4" (0.64 cm) flame retard Home Construction and Safety Standard, Title 24 CFR, Part 280ard covered with not less than No. 28 MSG sheet steel, (formerly the Federal Standard for Mobile Home Construction 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or Safety, Title 24, HUD Part 280). When such standard is not 0.020" (0.5 mm) copper.

applicable, use the Standard for Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local codes. 30, (76.2 cm) minimum clearance between the top of the cook platform and the bottom of an uncovered wood or metal cabin In Canada, the installation of this range must conform with the

In Canada, the installation of this range must conform with current standards CAN/CSA-Z240.1-latest edition, or with local codes.

Electrical Requirements - U.S.A. Only

Mobile home installations require:

■ When this range is installed in a mobile home, it must secure according to the instructions in this document.

■ Four-wire power supply cord or cable must be used in home installation. The appliance wiring will need to be See "Electrical Connection - U.S.A. Only" section.

Cabinet Dimensions

Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36' (91.4 cm) countertop height.

IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or mic hood combination installation instructions for dimensional clearances above the cooktop surface.

A freestanding range may be installed next to combustible with zero clearance.

C B A D E F

A. For minimum clearance to top of cooktop, see NOTE*
B. 30" (76.2 cm) minimum opening width
C. 13" (33.0 cm) maximum upper cabinet depth
D. 30" (76.2 cm) minimum opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet, 7" (17.8 cm) maximum from floor.
F. Cabinet door or hinges should not extend into the cutout.

WARNING vised. Electrical Shock Hazard lowave Electrically ground appliance. Failure to do so could result in death, fire, or elect shock.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local codes.

Do not use an extension cord.

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code,

ANSI/NFPA 70-latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service technician if you are in doubt as whether the appliance is properly grounded. Do not modify the power supply cord plug. If it will not fit the outlet, have a pro outlet installed by a qualified electrician.

Electrical Connection

To properly install your range, you must determine the type of electrical connection you will be using and follow the instructions provided for it here. This range is manufactured with the ground connected to the neutral by a link. The ground must be revised so the green wire of the 4-wire power supply cord is connected to the cabin

■ Range must be connected to the proper electrical voltage. Send the "Electrical Connection - U.S.A. Only" section.

frequency as specified on the model/serial/rating plate. The model/serial/rating plate is located on the frame behind a top corner of the door or either side of the drawer. Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or an area where local codes prohibit grounding through the neutral conductor.

Line drawing of a simple electric stove with four burners and a digital display (no text or symbols)

A. The model/serial/rating plate is located on the frame behind a top corner of the door or either side of the drawer.

This range is manufactured with the neutral terminal connected to the cabinet. Use a 3-wire, UL listed, 40 or 4050 A circuit power supply cord (pigtail). See the following Range Rating No.-8 conductors chart. If local codes do not permit ground through the neutral, -10 white neutral use a 4-wire power supply cord rated at 250 V, 40 or 150 No-8 and green grounding investigated for use with ranges. If connecting to a 3-wire
4050 A circuit ing No.-8 conductors neutral,-10 white neutral 150 No-8 areen grounding

Range Rating* Specified Rating of
Power Supply Cord Kit and Circuit Protection

120/240 V 120/208 V Ampere
8.8-16.5 kW	7.8-12.5 kW	40 or 50**
16.6-22.5 kW	12.6-18.5 kW	50

*The NEC calculated load is less than the total connected load listed on the model/serial/rating plate.

**If connecting to a 50 A circuit, use a 50 A rated cord with kit. For 50 A rated cord kits, use kits that specify use with V_8 "a nominal 1 (34.9 mm) diameter connection opening.

■ A circuit breaker is recommended.

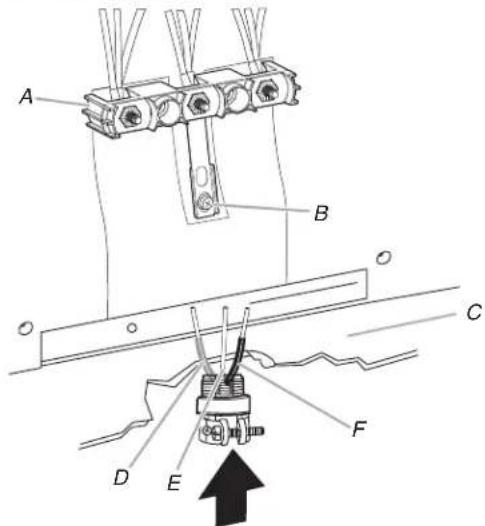

■ The range can be connected directly to the circuit breaker box (or fused disconnect) through flexible or nonmetallic sheathed, copper or aluminum cable. See the "Electrical Connection - U.S.A. Only" section.
- Allow 2 to 3 ft (61.0 cm to 91.4 cm) of slack in the line so that the range can be moved if servicing is ever necessary.

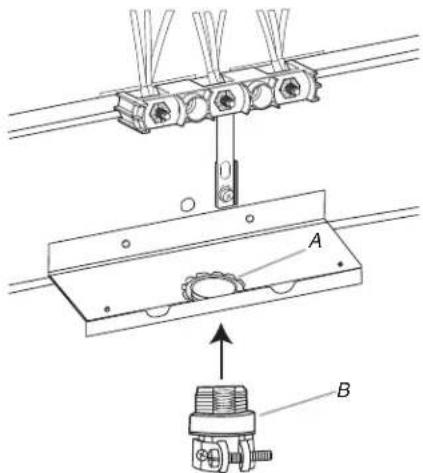

■ A UL listed conduit connector must be provided at each end of the power supply cable (at the range and at the junction box).
■ Wire sizes and connections must conform with the rating of the range.
■ The Tech Sheet is located on the back of the range inside a clear plastic bag.

If connecting to a 4-wire system:

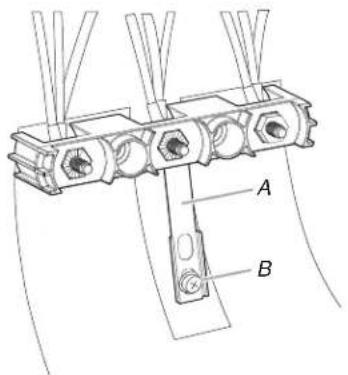

This range is manufactured with the ground connected to the neutral by a link. The ground must be revised so the green wire of the 4-wire power supply cord is connected to the cabin

e Seed the "Electrical Connection - U.S.A. Only" section.

Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or an area where local codes prohibit grounding through the neutral conductor.

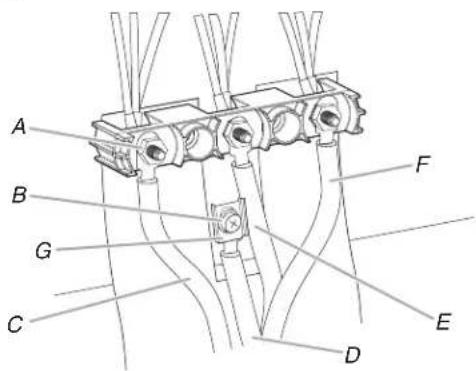

When a 4-wire receptacle of NEMA Type 14-50R is used, a matching UL listed, 4-wire, 250 V, 40 or 50 A, range power s cord (pigtail) must be used. This cord contains 4 copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 14-50P plug on supply end.

The fourth (grounding) conductor must be identified by a green green/yellow cover and the neutral conductor by a white cover. Cord should be Type SRD or SRDT with a UL listed strain re and be at least 4 ft (1.22 m) long.

4-wire receptacle (14-50R)

The minimum conductor sized for the copper 4-wire power cord are:

If connecting to a 3-wire system:

Local codes may permit the use of a UL listed, 3-wire, 250 \ 50 A range power supply cord (pigtail). This cord contains 3 copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 10-5 plug on the supply end. Connectors on the appliance end must be provided at the point the power supply cord enters the appliance. This uses a 3-wire receptacle of NEMA Type 10-50R.

3-wire receptacle (10-50R)

Electrical Requirements - Canada Only

WARNING

Electrical Shock Hazard

Electrically ground appliance.

Failure to do so could result in death, fire, or elect shock.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate and wire gauge are in accordance with local codes.

Be sure that the electrical connection and wire size are adequate and in conformance with CSA Standard C22.1, Canadian Electrical Code, Part 1 - latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

Canadian Standards Association

178 Rexdale Blvd.

Toronto, ON M9W 1R3 CANADA

■ Check with a qualified electrical installer if you are not range is properly grounded.

Range Rating* Specified Rating of Power Supply Cord Kit and Circuit Protection

120/240 V		120/208 V	Amps
8.8-16.5 kW		7.8-12.5 kW	40 or 50**
16.6-22.5 kW		12.6-18.5 kW	50

*The NEC calculated load is less than the total connected load listed on the model/serial/rating plate.

**If connecting to a 50 A circuit, use a 50 A rated cord with kit. For 50 A rated cord kits, use kits that specify use with a nominal 18 " (34.9 mm) diameter connection opening.

■ A time-delay fuse or circuit breaker is recommended.
This range is equipped with a CSA International Certified Power Cord intended to be plugged into a standard 14-50R wall receptacle. Be sure the wall receptacle is within reach of range's final location.

■ Do not use an extension cord.

INSTALLATION

Unpack Range

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. Remove shipping materials, tape and film from range.
2. Remove oven racks and parts package from inside oven.
3. Do not remove the shipping base at this time.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

A. Shipping base

4. On Ranges Equipped with a Storage Drawer:

Remove the storage drawer. See the "Storage Drawer" section. Use a 1/4" (6.4 mm) drive ratchet to lower the rea leveling legs one-half turn. Use a wrench or pliers to lower front leveling legs one half turn.

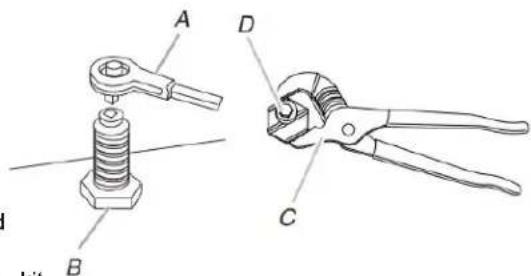

A B D C kit

A. 1/4" (6.4 mm) drive ratchet

C. Wrench or pliers D. Front leveling leg

B. Rear leveling leg

On Ranges Equipped with a Warming Drawer or Premium Storage Drawer:

On ranges equipped with a warming drawer or premium storage drawer, the rear legs cannot be accessed by removing the warming drawer or premium storage drawer. It will be from necessary to adjust the rear legs from outside the range. Use wrench or pliers to lower the front and rear leveling legs one half turn.

Determine and mark centerline of the cutout space. The mounting can be installed on either the left-side or right-side the cutout. Position mounting bracket against the wall in the cutout so that the V-notch of the bracket (\$1.12 cm) from centerline as shown.

A C B

A. Rear leveling leg
B. Wrench or pliers
C. Front leveling leg

Install Anti-Tip Bracket

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death serious burns to children and adults.

Technical diagram showing a mechanical bracket with labeled points A, B, and C, including an inset magnified view of a component.

A. 129/16" (31.9 cm)
B. Bracket V-notch
C. Centerline

1. Drill two 1/8" (3 mm) holes that correspond to the bracket holes of the determined mounting method. See the following illustrations.

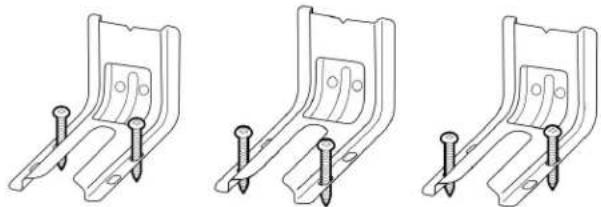

Floor Mounting

Three identical line drawings of a metal bracket with pins, shown from different angles (no text or symbols)

Rear Position Front Position Diagonal (2 options)

Wall Mounting

1. Using the Phillips screwdriver, mount anti-tip bracket to the wall or floor with the two 5#12 (4x1.3 mm) screws or provided.
2. Move range close enough to opening to allow for final electrical connections. Remove shipping base, cardboard or hardboard from under range.
3. Move range into its final location, making sure rear leveling slides into anti-tip bracket.

Technical line drawing of a mechanical bracket with a spring-like component (no text or symbols)

1. Move range forward onto shipping base, cardboard or hardboard to continue installing the range using the following installation instructions.

2. Remove the anti-tip bracket from where it is taped in storage drawer or warming drawer.

3. Determine which mounting method to use: floor or wall

If you have a stone or masonry floor, you can use the wall mounting method. If you are installing the range in a mobile home, you must secure the range to the floor.

Adjust Leveling Legs

1. If range height adjustment is necessary, use a wrench to loosen the four leveling legs.

This may be done with the range on its back or with supported on two legs after the range has been placed a standing position.

NOTE: To place range back up into a standing position, sheet of cardboard or hardboard in front of range. Using or more people, stand range back up onto the cardboard hardboard.

Level Range

Depilmente if you have Aqualithology or Steam Clean by referring to the "Range Maintenance and Care" section.

For Ranges with AquaLife technology or Steam Clean:

1. Place level on the oven bottom as indicated in one of the figures below depending on the size of the level. Check with the level: side to side and front to back.

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

Diagram showing two views of a device interior with internal components (no text or symbols)

1. If range is not level, pull range forward until rear leveling le removed from the anti-tip bracket.
2. Follow the directions in Style 1 or Style 2, depending on the style of drawer supplied with the range.

For Ranges without Aqual® technology or Steam Clean:

1. Place a standard flat rack in oven.
2. Place level on the rack and check levelness of the range, side to side; then front to back.

Simple line drawing of a metal grate with three circular components, no text or symbols present

1. Measure the distance from the top of the counter to the floor ^3 . It range is not level, pull range forward until rear leveling is removed from the anti-tip bracket.
2. Measure the distance from the top of the cooktop to the bottom of the leveling legs. This distance should be the same if it is not adjust the leveling legs to the correct height. The use of drawer supplied with the range.

leveling legs can be loosened to add up to a maximumStyle 1: Ranges Equipped with a Storage Drawer:

1" (2.5 cm). A minimum of 3/16" (5 mm) is needed to engage 1/4" (0.64 cm) drive ratchet, wrench or pliers to adjust the anti-tip bracket. Use leveling legs up or down until the range is level. Push range

NOTE: If height adjustment is made when range is standing, position. Check that rear leveling leg is engaged in the ar tilt the range back to adjust the front legs, and then til crackard

to adjust the rear legs.

1. When the range is at the correct height, check that the Premium Storage Drawer:

adequate clearance under the range for the anti-tip bracket. Before sliding range into its final location, check that the anti-tip bracket will slide under the range and onto the leveling leg prior to anti-tip bracket installation. Use a wrench or pliers to adjust leveling legs up or down unrange is level. Push range back into position. Check that rear leveling leg is engaged in the anti-tip bracket.

LEVELING leg prior to anti-up bracket installation. NOTE: Range must be level for satisfactory baking performance NOTE: If a Trim Kit will be used, the top of the cooktop should clean cleaning results using AquacTechnology and Steam be higher than the counter. See the Installation Instructions included with the Trim Kit for the correct height. Clean functions.

Electrical Connection - U.S.A. Only

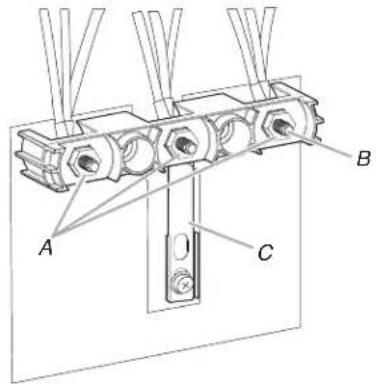

1. Remove the three 10-32 hex nuts from the terminal posts.

Power Supply Cord

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use a new 40 A power supply cord.

Plug into a grounded outlet.

Failure to follow these instructions can result in death, fire, or electrical shock.

Technical diagram of a mechanical assembly with labeled components A, B, and C

A. 10-32 hex nuts
B. Terminal Posts
C. Ground-link strap

1. Add strain relief.

Style 1: Power supply cord strain relief

1. Disconnect power.
2. Remove the terminal block cover screws located on the back. Remove the knockout for the power supply cord. of the range. Pull cover down and toward you to remove to assemble a UL listed strain relief in the opening. from range.

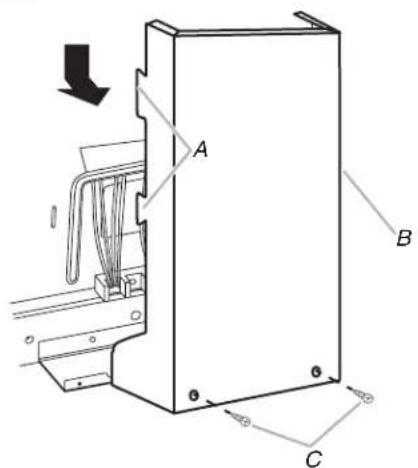

Technical diagram of a mechanical device with labeled components A, B, and C, showing internal structure and directional arrow.

A. Two mounting tabs each side
B. Terminal block cover
C. Hex-head screws

Technical line drawing of a mechanical assembly with three vertical components mounted on a base, plus a separate view labeled A (no text or symbols present)

A. UL listed strain relief

■ Tighten strain relief screw against the power supply cord.

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

Style 2: Direct wire strain relief

■ Remove the knockout as needed for the flexible conduit connection. If
■ Assemble a UL listed conduit connector in the opening.

Technical diagram showing mechanical assembly with labeled components A and B, including wires and a valve-like component.

A. Removable retaining nut
B. Conduit

■ Tighten strain relief screw against the flexible conduit.

1. Complete installation following instructions for your type of electrical connection:

4-wire (recommended)
3-wire (if 4-wire is not available)

Electrical Connection Options

If your home has: And you will be connecting to: Go to Section:

4-wire receptacle A UL Listed, 250 4-wire connection: (NEMA type 14-50R) minimum, 40 A, Power supply cord range power supply cord

4-wire direct

A. 3/8" (1 cm)
B. 5" (12 cm)

3-wire receptacle A UL Listed, 250 3wire connection: (NEMA type 10-50R)minimum, 40 A. Power supply cord

range power supply cord

3-wire direct

A. 3/8" (1 cm)
B. 3" (7.6 cm)

A circuit breaker 3-wire connection: box or fused Direct wire disconnect

4-Wire Connection: Power Supply Cord

Use this method for:

■ New branch-circuit installations (1996 NEC)
■ Mobile homes
■ Recreational vehicles
■ In an area where local codes prohibit grounding through the neutral

1. Part of Ground-link strap must be cut out and removed.

A B

A. Ground-link strap
B. Ground-link screw

1. Use a Phillips screwdriver to remove the ground-link screw. 3-Wire Connection: Power Supply Cord from the back of the range. Save the ground-link screw. Used this method only if local codes permit connecting chassis the end of the ground link under the screw. ground conductor to neutral wire of power supply cord.

2. Feed the power supply cord through the strain relief on the cord/conduit plate on bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

A E B C D

A. Terminal block

C. UL listed strain relief

B. Ground-link screw

D. Power supply cord wires

E. Ground-link strap end piece

1. Use Phillips screwdriver to connect the green ground wire from the power supply cord to the range with the ground-link screw. Insert the ground-link screw through the ground-link strap end piece and the green ground wire. The ground wire must be attached first.

2. Use 3/8" (9.5 mm) nut driver to connect the neutral (white) wire to the center terminal block post with one of the 20-hex nuts.

A B C D

A. Terminal block

C. UL listed strain relief

B. Ground-link screw

D. Power supply cord wires - large opening

A B G C D E F

A. 10-32 hex nut

D. Green ground wire

B. Ground-link screw

E. Neutral (center) wire

C. Line 2 (red)

F. Line 1 (black)

G. Ground-Link strap end piece

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.

2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).

NOTE: For power supply cord replacement, use only a cord rated at 250 V minimum, 40 A or 50 A that is use with nominal/8"1 (3.5 cm) diameter connection opening with ring terminals and marked for use with ranges.

1. Tighten strain relief screws.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

2. Reconnect power.

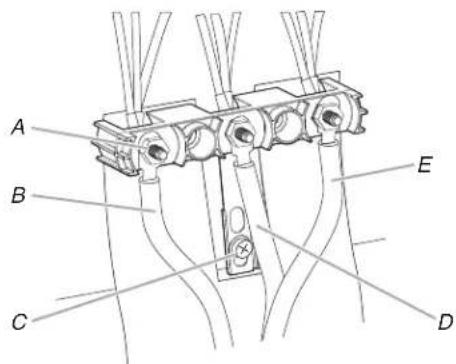

A B C D E

A. 10-32 hex nut

D. Neutral (white) wire

B. Line 2 (red)

E. Line 1 (black)

C. Ground-link screw

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.

2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).

NOTE: For power supply cord replacement, only use a power cord rated at 250 V minimum, 40 A or 50 A that is marked to use with nominal/8"1 (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.

1. Tighten strain relief screws.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

2. Reconnect power.

Direct Wire

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use 8 gauge copper or 6 gauge aluminum wire.

Electrically ground range.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Part of Ground-link strap must be cut out and removed.

Technical diagram of a mechanical assembly with labeled parts A and B

A. Ground-link strap

B. Ground-link screw

Direct Wire Installation: Copper or Aluminum Wire ^2

This range may be connected directly to the fuse disconnect circuit breaker box. Depending on your electrical supply, make required 3-wire or 4-wire connection.

1. Strip outer covering back 3" (7.6 cm) to expose wires. Stripblock, the insulation back 1" (2.5 cm) from the end of each wire.

Use a Phillips screwdriver to remove the ground-link screw from the back of the range. Save the ground-link screw and the end of the ground link under the screw.

Pull the wires through the strain relief on bottom of range. Allow enough slack to easily attach wiring to the terminal

A. 3/8" (1 cm)

B. 3" (7.6 cm)

1. Allow enough slack in the wire to easily attach the wiring terminal block.

2. Complete electrical connection according to your type of electrical supply.

4-wire (recommended)

3-wire (if 4-wire is not available)

4-Wire Connection: Direct Wire

Use this method for:

■ New branch-circuit installations (1996 NEC)

■ Mobile homes

■ Recreational vehicles

■ In an area where local codes prohibit grounding through the neutral

A H B C D E F G

A. Terminal block

B. Ground-link screw

C. Cord/conduit plate

D. Bare (green) ground wire

E. Line 2 (red) wire

F. Neutral (white) wire G. Line 1 (black) wire

H. Ground-Link strap end piece

1. Attach terminal lugs to line 1 (black), neutral (white), and 3-Wire2 Connection: Direct Wire

(red) wires. Loosen (do not remove) the setscrew on the from this method only if local codes permit connecting ground of the terminal lug and insert exposed wire end through conductor to neutral supply wire.

bottom of terminal lugs. Securely tighten setscrew to torque as shown in the following Bare Wire Torque Specifications chart. Pull the wires through the conduit on cord/conduit plate on bottom of range. Allow enough slack to easily attach the w to the terminal block.

A B C D E

A. Terminal lug

D. Neutral (white) wire

B. Setscrew

E. Line 1 (black) wire

C. Line 2 (red) wire

Bare Wire Torque Specifications

Wire Awg Torque

8 gauge copper 25 lbs-in (2.8 N-m)

6 gauge aluminum 35 lbs-in (4.0 N-m)

1. Use a hex or Phillips screwdriver to connect the bare (green) ground wire to the range with the ground-link screw and ground-link section. Insert the ground-link screw through the ground-link strap end piece and the green ground wire. The ground wire must be attached first.

2. Use 3/8" (9.5 mm) nut driver to connect the neutral (white) wire to the center terminal block post with one of the 10-hex nuts.

A B C D E F

A. Terminal block

D. Line 2 (red) wire

B. Ground-link screw

E. Bare (green) ground wire

C. Cord/conduit plate

F. Line 1 (black) wire

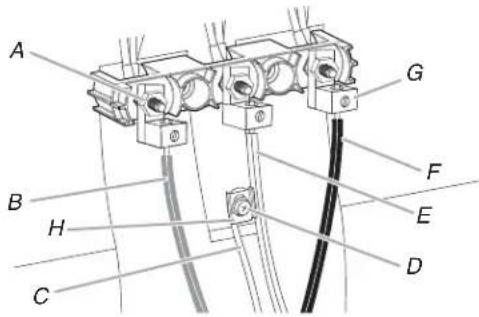

A B H C G F E D

A. 10-32 hex nut

E. Neutral (white) wire

B. Line 2 (red)

F. Line 1 (black)

C. Bare (green) ground wire

G. Terminal lug

D. Ground-link screw

H. Ground-Link strap end piece

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.

2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).

3. Securely tighten hex nuts.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

2. Reconnect power.

A B C D E

A. Terminal lug

D. Bare (green) ground wire

B. Setscrew

E. Line 1 (black) wire

C. Line 2 (red) wire

Bare Wire Torque Specifications

Wire Awg Torque

8 gauge copper 25 lbs-in (2.8 N-m)

6 gauge aluminum 35 lbs-in (4.0 N-m)

1. Use 3/8" (9.5 mm) nut driver to connect the bare (green On Ranges Equipped with a Warming Drawer or Premium ground wire to the center terminal block post with one Storage Drawer:

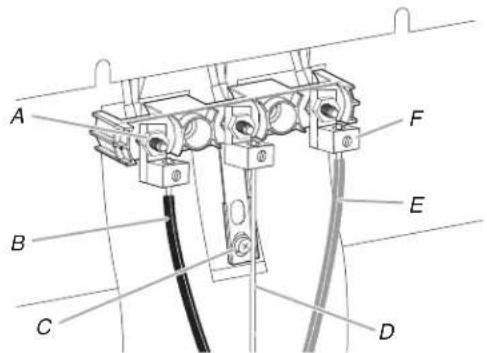

Technical diagram of a mechanical or electrical component with labeled parts A through F

A. 10-32 hex nut

D. Bare (green) ground wire

B. Line 2 (red)

E. Line 1 (black)

C. Ground-link

F. Terminal lug

screw

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.

2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).

3. Securely tighten hex nuts.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

2. Reconnect power.

Verify Anti-Tip Bracket Is Installed and Engaged

On Ranges Equipped with a Storage Drawer:

1. Remove the storage drawer. See "Storage Drawer" section.

2. Use a flashlight to look underneath the bottom of the rang

3. Visually check that the rear range foot is inserted into the of the anti-tip bracket.

4. Place the outside of your foot against the bottom front of the warming drawer or premium storage drawer, and grasp the lower right or left side of the control panel as shown.

NOTE: If your countertop is mounted with a backsplash, it may be necessary to grasp the range higher than is shown the illustration.

Line drawing of a person inspecting an oven with a magnified inset showing interior details (no text or symbols)

1. Slowly attempt to tilt the range forward.

If you encounter immediate resistance, the range foot is engaged in the anti-tip bracket.

1. If the rear of the range lifts more than 1/2" (1.3 cm) off t without resistance, stop tilting the range and lower it gently back to the floor. The range foot is not engaged in the a bracket.

n. IMPORTANT: If there is a snapping or popping sound when an angle lifting the range, the range may not be fully engaged in the bracket. Check to see if there are obstructions keeping the range from sliding to the wall or keeping the range foot from sliding into the bracket. Verify that the bracket is held secure in place by the mounting screws.

1. Slide the range forward, and verify that the anti-tip bracket securely attached to the floor or wall.

2. Slide range back so the rear range foot is inserted into the of the anti-tip bracket.

IMPORTANT: If the back of the range is more than 2" (5.) from the mounting wall, the rear range foot may not engage the bracket. Slide the range forward and determine if there an obstruction between the range and the mounting wall. If you need assistance or service, refer to the Quick Start Guide for contact information.

1. Repeat steps 1 and 2 to ensure that the range foot is eng in the anti-tip bracket.

If the rear of the range lifts more than 1/2" (1.3 cm) off without resistance, the anti-tip bracket may not be installed correctly. Do not operate the range without anti-tip bracket installed and engaged. Please refer to the Quick Start Guide for contact information.

Warming Drawer or Premium Storage Drawer (on some models)

Storage Drawer (on some models)

The storage drawer can be removed. Before removing, make st drawer is cool and empty.

Remove:

1. Pull the storage drawer straight back to the drawer stop.

Remove all items from inside the warming drawer or premium storage drawer, and allow the range to cool completely before attempting to remove the drawer.

To Remove:

1. Open the warming drawer or premium storage drawer to its fully open position.

2. Using a flat-blade screwdriver, gently loosen the warming drawer or premium storage drawer from the glide alignment notch and lift up the drawer alignment tab from the glide.

Technical diagram showing a mechanical assembly with labeled components A, B, and C, including an upward arrow indicating motion or force.

A. Flat-blade screwdriver
B. Drawer alignment tab
C. Drawer glide notch

1. Repeat Step 2 on the other side. The warming drawer or premium storage drawer is no longer attached to the drawer glides. Using both hands, pick up the warming drawer or premium storage drawer to complete the removal.

To Replace:

1. Align the forward drawer notches with the notches in the drawer glides on both sides. Place the rear alignment tabs into the drawer glides on both sides.

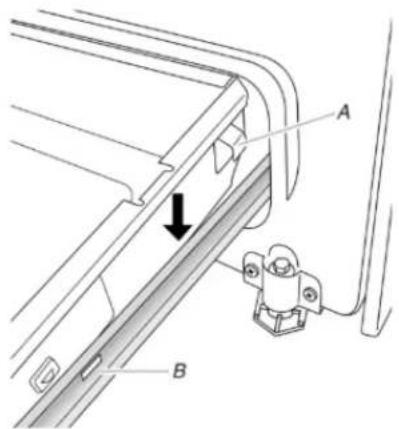

Technical diagram showing mechanical assembly with labeled parts A and B, including a downward arrow indicating direction of motion.

A. Drawer alignment tab
B. Drawer glide notch

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

A. Drawer stop notch

1. Lift up the front of the drawer and pull the drawer out.

To Replace:

1. Lift up the front of the drawer and place the rear of the inside the range so that the drawer stop notch is behind to drawer glide.
2. Lower the drawer so that the edge of the slide rail drops the slot in the drawer glide.
3. Slowly push the drawer into the range.

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

A. Engage drawer glide.

NOTE: When properly installed, the rear slides on the bottom of the drawer will engage the base rails and the drawer w tip when items are placed in the drawer.

Oven Door

For normal range use, it is not suggested to remove the oven door. However, if removal is necessary, make sure the oven is and cool. Then, follow these instructions. The oven door is head

To Remove:

1. Open oven door all the way.

2. Pinch the hinge latch between two fingers and pull forward. Repeat on other side of oven door.

3. Push the warming drawer or premium storage drawer in all the way.

4. Gently open and close the warming drawer or premium storage drawer to ensure it is seated properly on the glides on both sides.

Diagram of a mechanical clamp or lever mechanism with labeled point A, showing motion lines without any text or symbols.

A. Hinge latch

1. Close the oven door as far as it will shut.

2. Lift the oven door while holding both sides.

Continue to push the oven door closed and pull it away from the oven door frame.

Diagram showing a person using a tool to lift a wall-mounted device, with two arrows labeled 1 and 2 indicating direction of movement.

To Replace:

1. Insert both hanger arms into the door.

1. Open the oven door.

You should hear a "click" as the door is set into place.

1. Move the hinge levers back to the locked position. Check

the door is free to open and close. If it is not, repeat removal and installation procedures.

Complete Installation

1. Check that all parts are now installed. If there is an ex go back through the steps to see which step was skip
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Check that the range is level. See the "Level Range" se
5. Use a mild solution of liquid household cleaner and warm water to remove waxy residue caused by shipping mater Dry thoroughly with a soft cloth. For more information, s "Range Maintenance and Care" section.
6. Read the Quick Start Guide and online Control Guide.
7. Plug power cord into appropriate outlet. Turn power on.
8. Turn on surface burners and oven. See the Quick Start and online Control Guide for specific instructions on range operation.

If Range Does Not Operate, Check the Following:

■ Household fuse is intact and tight; or circuit breaker not tripped.
■ Range is plugged into a grounded outlet.
■ Electrical supply is connected.

IMPORTANT: If the range control displays an "F9" or 2:"F9" slide range forward.

E0" error code, the electrical outlet in the home may3.bComplete cleaning or maintenance.

miswired. Disconnect power and contact a qualified electrician to verify the electrical supply.

■ See the online Troubleshooting section.

When the range has been on for 5 minutes, check for heat. If the range is cold, turn off the range and contact a qualified electrician.

Moving the Range

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

When moving range, slide range onto cardboard or hardboard to avoid damaging the floor covering.

If removing the range is necessary for cleaning or maintenance:

^e For power supply cord-connected ranges:

ck that 1._Slide range forward.
2. "Unplug the power supply cord."
3. Complete cleaning or maintenance.
4. Plug in power supply cord.
5. Check that the anti-tip bracket is installed and engaged. See extra part, "Verify Anti-Tip Bracket Is Installed and Engaged" section 10. Check that range is level.

For direct-wired ranges:

WARNING

Guide

Electrical Shock Hazard

Disconnect power before servicing.

hasReplace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

2."Folide range forward.
3.b€complete cleaning or maintenance.
4. Check that the anti-tip bracket is installed and engaged. See the "Verify Anti-Tip Bracket Is Installed and Engaged" section
5. Check that range is level.
6. Reconnect power.

SÉCURITÉ DE LA CUISINIÈRE

Abstract line drawing with abstract shapes and curved lines, no text or symbols present

Illustration of a hand pressing down on a textured surface with wavy patterns (no text or symbols)

Technical line drawing of a mechanical bracket with labeled points A and B (no text or symbols beyond labels)

A. Bride antibasculement
B. Vis no 8 12 x ^5 / _6 po (41 mm) (2)

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Line drawing of a standard electric stove with four burners and a digital display (no text or symbols)

Toronto, ON M9W 1R3 CANADA

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Technical diagram showing two types of pipe crimping tools labeled A, B, C, and D with their respective parts.

Technical diagram showing a screw and a pliers with labeled parts A, B, and C

Technical diagram showing a mechanical bracket with labeled points A, B, and C, including an inset view of a component.

A. 12 ^9/16 po (31,9 cm)
B. Encoche en V de la bride
C. Axe central

Three identical line drawings of a metal bracket with pins, shown from different angles (no text or symbols)

Technical line drawing of a mechanical bracket or bracket with a threaded spring (no text or symbols)

Diagram of a microwave oven interior showing ventilation duct and tray (no text or labels)

Diagram of a computer tower with ventilation slots and an attached drive (no text or labels)

Simple line drawing of a ladder with three wheels and a wooden frame (no text or symbols)

Technical diagram of a mechanical device with labeled components A, B, and C, showing internal structure and directional arrow.

Technical diagram of a mechanical assembly with labeled components A, B, and C

Technical line drawing of a mechanical assembly with three vertical components mounted on a base, plus a separate view labeled A (no text or symbols present)

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

Technical diagram showing mechanical assembly with labeled components A and B, likely for industrial or electrical installation.

Technical diagram of a mechanical assembly with labeled parts A and B

A B G C D E F

Technical diagram of a mechanical assembly with labeled parts A and B

A H B C D E F G

A B H C G F E D

A. Écrou hexagonal 32

Line drawing of a person inspecting an oven with a magnified inset showing interior details (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts A, B, and C, including an upward arrow indicating motion or force.

Technical diagram showing mechanical assembly with labeled parts A and B, including a downward arrow indicating direction of motion.

Technical diagram showing mechanical assembly with labeled parts A and B, including a directional arrow indicating movement or force.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical clamp or lever mechanism with labeled point A, showing motion lines without any text or symbols.

Diagram showing a person holding a device with two arrows labeled 1 and 2 indicating direction or movement.

Remplacer :

Simple line drawing of a curved object with a rectangular block and looped edge, no text or symbols present

Abstract line drawing with abstract shapes and curved lines, no text or symbols present

Illustration of a hand pressing down on a textured surface with wavy patterns (no text or symbols)

Technical line drawing of a mechanical bracket with labeled points A and B (no text or symbols beyond labels)

A. Soporte antivuelco B. Tornillos n.° 12 x ^5 / _8 " (41 mm) (2)

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Line drawing of a simple electric stove with four burners and control panel (no text or symbols)

Toronto, ON M9W 1R3 CANADÁ

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Technical diagram showing a mechanical bracket with labeled points A, B, and C, including an inset view of a component.

Three identical line drawings of a metal bracket with pins, shown from different angles (no text or symbols)

Technical line drawing of a mechanical bracket with a spring-like component (no text or symbols)

Diagram showing two views of a computer chassis with internal components (no text or symbols)

Simple line drawing of a ladder with two blocks on one side, no text or symbols present

Technical diagram of a mechanical device with labeled components A, B, and C, showing internal structure and directional arrows.

Technical diagram of a mechanical assembly with labeled components A, B, and C

Technical line drawing of a mechanical assembly with mounting bracket and base component (no text or symbols)

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

Technical diagram showing installation of electrical connectors with labeled components A and B

A. 3/8" (1 cm)
B. 3" (7,6 cm)

Technical diagram of a mechanical assembly with labeled parts A and B

A B G C D E F

A. 3/8" (1 cm)
B. 3" (7,6 cm)

Technical diagram of a mechanical assembly with labeled parts A and B

A H B C D E F G

A B H C G F E D

A. Tuerca hexagonal 10-32

E. Hilo neutro (blanco)

B. Línea 2 (roja)

F. Línea 1 (negra)

Line drawing of a person inspecting or adjusting a cabinet with a magnified inset showing internal components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts A, B, and C, including a directional arrow indicating motion or force.

Technical diagram showing mechanical assembly with labeled parts A and B, including a downward arrow indicating direction of motion.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Mechanical diagram showing a clamp or lever mechanism with labeled point A (no text or symbols present)

A. Traba de la bisagra

Diagram showing a person holding a device with directional arrows labeled 1 and 2, indicating movement or force direction.

Para colocar:

©2023 All rights reserved. Used under license in Canada.
