USER MANUAL WVI51UC0LS WHIRLPOOL

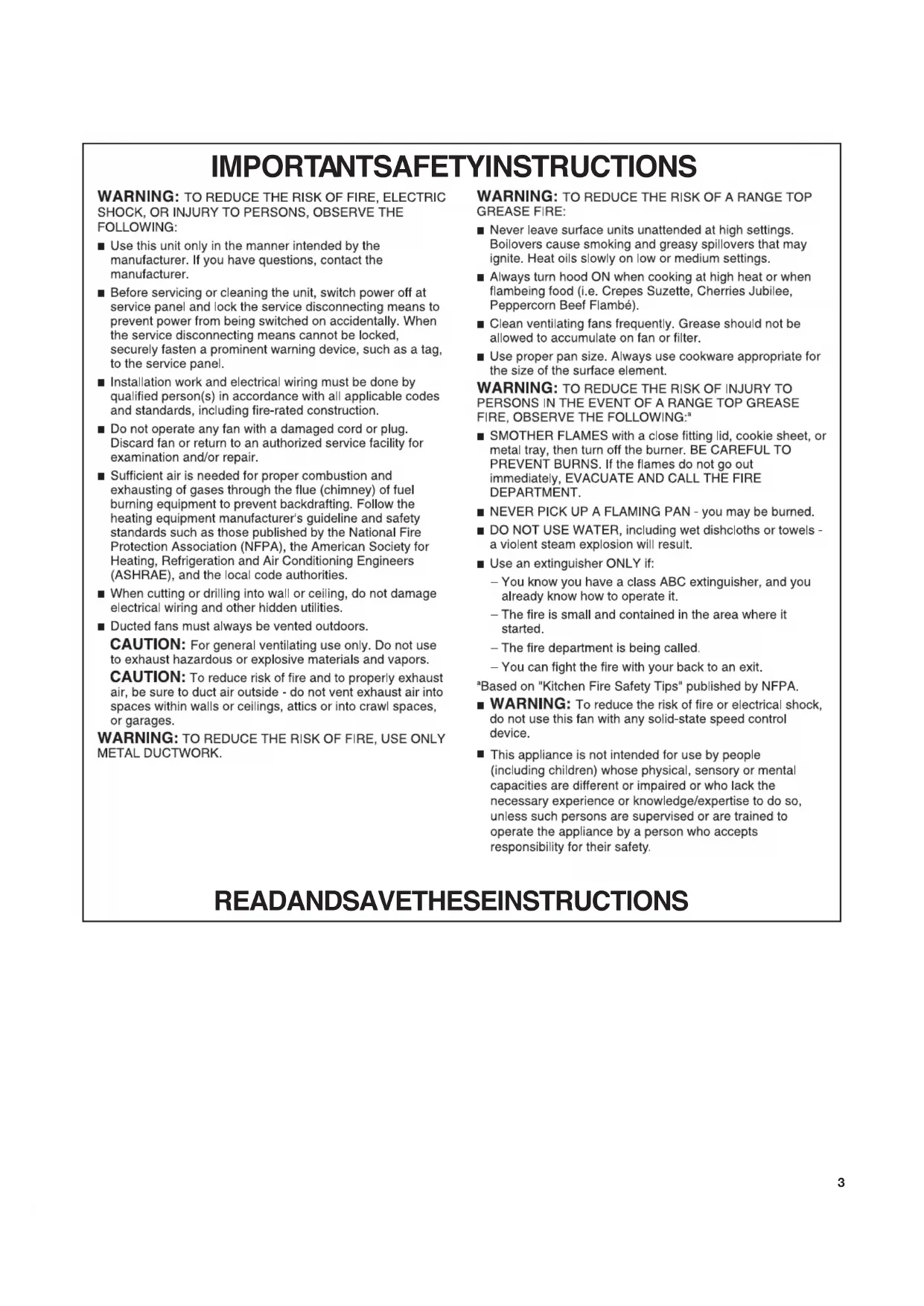

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don't follow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: follow instructions. instructions. DANGER WARNING State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

READ AND SAVE THESE INSTRUCTIONS4

INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation.Read and follow the instructions provided withanytools listed here. Tools Needed ■ Level ■ Drill with 1

"(2.75 mm)drillbits ■ Pilot hole drill bits (determined by chimney support attachment method) ■ Pencil ■ Wire stripper or utility knife ■ Tape measure or ruler ■ Pliers ■ Caulking gun and weatherproof caulking compound ■ Vent clamps ■ Jigsaw or keyhole saw ■ Flat-blade screwdriver ■ Metal snips ■ Phillips screwdriver ■ T20

adapter Parts Needed ■ Home power supply cable

" (12.7 mm) UL listed or CSA approved strain relief ■ 3 UL listed wire connectors For Vented Installations, You Will Also Need: ■ 1 wall or roof cap ■ Metal vent system For Non-Vented (Recirculating) Installations, YouWillAlsoNeed: ■ Recirculation Kit for non-vented (recirculating) installations only. See the “Assistance or Service” section to order. ■ 6" (15.2 cm) diameter round metal vent duct - lengthrequiredis determined by ceiling height. Parts Supplied Remove parts from packages. Check that all parts are included. ■ Hood ventilator assembly with canopy glass, retainer brackets, rubber seals, and LED lights installed ■ Metal grease lter ■ 60 - 4.2 x 8 mm screws ■ 4 - 3.5 x 6.5 mm screws ■ 4 - 5 x 45 mm screws ■ 2 - 2.9 x 3 mm screws ■ 2 - Leveling screws ■ 4 - Washer ■ 2 - Upper vent covers ■ 2 - Lower vent covers ■ 4 - Plastic vent clips ■ 2 - 3.5 x 9.5 mm mounting screws ■ Mounting template ■ 2 - Horizontal support brackets ■ 8 - Vertical supports ■ Vent transition with back draft damper installed Location Requirements IMPORTANT: Observe all governing codes and ordinances. Have a qualied technician install the range hood. It is the installer’s responsibility to comply with installation clearances specied on the model/serial/rating plate. The model/serial/ rating plate is located behind the left lter on the rear wall of the vent hood. Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents. Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Grounded electrical supply is required. See “Electrical Requirements” section. Because of the size and weight of this island hood, the chimney support must be securely attached to the ceiling. ■ For plaster or drywall ceilings, the chimney support must be attached to joists. If this is not possible, you must build a support structure behind the plaster or drywall. The support structure must be able to support 80 lbs (36.6 kg). This range hood is recommended for use with cooktops with a maximum total rating of 60,000 BTUs or less. The range hood is factory set for venting through the roof or wall. For non-vented (recirculating) Installation see “Non-vented (recirculating) Installation” in “Install Range Hood” section. Recirculation Kit is available from your dealer or an authorized parts distributor. See the “Assistance or Service” section to order. All openings in ceiling and wall where canopy hood will be installed must be sealed. For Mobile Home Installations The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or, whensuch standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, orlatest edition, or with local codes.

TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC.5 Product Dimensions A. 12

• For non-vented (recirculating) installations ** For vented installations Installation Dimensions

A. Countertop heightB. Hood height from ceiling to bottom of the range hood lter surface: D-A-C=BC. Hood height: 24" (61 cm) min. from electric cooking surface, 27" (68.6 cm) min. from gas cooking surface, suggested 36" (91.4 cm) max.D. Ceiling height

• For non-vented (recirculating) installations IMPORTANT: Minimum distance “C”: 24" (61 cm) fromelectriccookingsurface Minimum distance “C”: 27" (68.6 cm) fromgascookingsurface Suggested maximum distance “C”: 36" (91.4 cm) The chimneys can be adjusted for different ceiling heights. Seethe following chart. Vented Installations Min. ceiling height Max. ceiling height Electric cooking surface 7' 8" (2.34 m) 9' 10" (3 m) Gas cooking surface 7' 11" (2.41 m) 9' 10" (3 m) Non-Vented (Recirculating) Installations Min. ceiling height Max. ceiling height Electric cooking surface 7' 8" (2.34 m) 10' 3" (3.12 m) Gas cooking surface 7' 11" (2.41 m) 10' 3" (3.12 m) NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soft heights depending on the distance “C” between the bottom of the range hood and the cooking surface. For higher ceilings, a Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. See the “Assistance or Service” section to order. Venting Requirements (vented models only) ■ Vent system must terminate to the outdoors except for non-vented (recirculating) installations. ■ Do not terminate the vent system in an attic or other enclosed area. ■ Do not use 4" (10.2 cm) laundry-type wall cap. ■ Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended. ■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood. For the Most Efcient and Quiet Operation: ■ Use a straight run or as few elbows as possible. ■ Use no more than three 90° elbows. ■ Make sure there is a minimum of 24" (61 cm) of straight ventbetween the elbows if more than 1 elbow is used. ■ Do not install two elbows together. ■ Use vent clamps to seal all joints in the vent system. ■ Use caulking to seal exterior wall or roof opening aroundthecap. ■ The size of the vent should be uniform. Cold Weather Installations An additional back draft damper should be installed to minimize backward cold air ow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.6 Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specied CFM of air movement. The specied CFM varies from locale to locale. Consult your HVAC professional for specic requirements in yourarea. Venting Methods This island hood is factory set for venting through the roof. A 6" (15.2 cm) round vent system is needed for installation (notincluded). The hood exhaust opening is 6" (15.2 cm) round. NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduceperformance. Vent system can terminate through the roof. To vent through a wall, a 90° elbow is needed. For Non-Vented (Recirculating) Installations If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, tting a charcoal lter and the deector. Fumes and vapors are recycled through the top grille. To order, see the “Assistance or Service” section.

Non-Vented (Recirculating) Roof Venting A. Deector B. 6" (15.2 cm) round vent A. Roof cap B. 6" (15.2 cm) round vent Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system. Vent Piece 6" (15.2 cm) Round 45° elbow 2.5 ft (0.8 m) 90° elbow 5 ft (1.5 m) Maximum equivalent vent length is 35 ft (10.7 m). Example Vent System The following example falls within the maximum recommendedvent length of 35 ft (10.7 m).

8 ft (2.4 m) straight = 8 ft (2.4 m) Length of system = 13 ft (3.9 m) Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70(latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) andall local codes and ordinances. If codes permit and a separate ground wire is used, itisrecommended that a qualied electrician determine thattheground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575 ■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuitisrequired. ■ If the house has aluminum wiring, follow the procedurebelow: Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices. ■ Wire sizes and connections must conform with the rating of the appliance as specied on the model/serial/rating plate. The model/serial/rating plate is located behind the left lter on the rear wall of the range hood. ■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 andC22.2 No. 0-M91 (latest edition) and all local codes andordinances. 90 Elbo

6 ft (1.8 m) 2 ft (0.6 m) Wall cap7 INSTALLATION INSTRUCTIONS Prepare Location ■ Lay out the vent duct system before installing the range hood to determine the best routing for the vent duct. ■ It is recommended that the vent system be installed beforehood is installed. ■ Before making cutouts, make sure there is proper clearancewithin the ceiling or wall for exhaust vent. ■ Range hood is to be installed 24" (61 cm) min. for electric cooking surfaces, 27" (68.6 cm) min.for gas cooking surfaces, to a suggested maximum of 36" (91.4 cm) above the cooking surface. ■ Remove lm from metal surfaces as needed prior to assembly. ■ Check your ceiling height and the hood height maximumbefore you select your hood.

1. Disconnect power.

2. Determine which venting method to use: roof or non-vented.

3. Select a at surface for assembling the range hood. Place

covering over that surface. Place two 3" (7.6 cm) high spacers (not included) onto the covered surface. NOTE: Cover the spacers to avoid damage to the range hood surface.

4. Using two or more people, lift range hood onto

A. Covered spacersB. Glass canopyC. Ventilator assembly Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the ceiling where the

range hood will be installed, considering the requirements for ceiling support structures. See the “Location Requirements” section. Make sure the range hood is centered over the cooking surface.

2. Tape template in place on the ceiling at the marked

centerline. The line for the front of the range hood should be parallel to the front of the cooktop.

3. Use a pencil to mark the mounting screws, wire access and

duct hole locations on the ceiling. NOTE: Mounting hole locations should be into a ceiling support structure capable of holding 80 lbs (36.6 kg). Remove the template.

4. Drill 4 - 3/16" (4.8 mm) pilot holes for mounting the upper

1. Determine the required location for the home power supply

cable and drill a 1/2" (1.3 cm) diameter hole for wire access.

2. Run 1/2" (1.3 cm) conduit and wires or home power supply

cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 1/2" conduit and wires or home power supply cable from the fused disconnect (or circuit breaker) box to make the connection in the hood’s electrical terminal box. NOTE: Do not reconnect power until installation is complete.

3. For vented installations only: Using a jigsaw or keyhole saw,

cut a 61/2" (16.5 cm) diameter hole for the vent duct.

4. Attach the upper horizontal support bracket to the ceiling

with 4 - 5 x 45 mm #2 Phillips wood screws. NOTE: Upper horizontal support screws must be into a ceiling support structure capable of holding 80 lbs (36.6 kg).

A. Upper horizontal supportB. 5 x 45 mm screws (#2 Phillips drive) WARNING Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury.8 Install In-Line Smart Kit - Optional NOTE: Your range hood can work with either an internal or an inline (external) blower motor system. An optional In-Line Smart Kit (purchased separately) allows the blower motor that comes with this range hood to be installed in a location other than inside the range hood cavity. CAUTION: To reduce the risk of re and electric shock, install this range hood only with the In-Line Smart Kit manufactured by Whirlpool. See the “Assistance or Service” section to order. For installation see the In-Line Smart Kit installation instructions. See the “Assistance or Service” section to order. Assemble Range Hood

1. Install transition on top of hood (if removed for shipping) with

2 - 3.5 x 9.5 mm sheet metal screws.

A. Vent transitionB. 3.5 x 9.5 mm screw

2. Install the lower horizontal support to 4 lower vertical

supports with 8 - 4.2 x 8 mm screws.

A. Lower horizontal supportB. 8 - 4.2 x 8 mm screwsC. 4 Lower vertical supports

3. Install 4 upper vertical supports to the lower horizontal

support with 16 - 4.2 x 8 mm screws.

A. 4- Upper vertical supportsB. 16 - 4.2 x 8 mm screwsC. Lower horizontal support

4. Install the structure to the upper horizontal support with

16-4.2 x 8 mm screws. NOTE: Attach the structure to the previously installed upper horizontal support.

5. Using 2 or more people, lift the range hood assembly under

A. Lower vertical supports B. Range hood assembly

6. Attach the range hood assembly to the lower vertical

supports with 2 leveling screws and 2 nuts.

A. 2 - Leveling screws B. Lower vertical support C. Place leveling screws through the structure D. Nut

7. Install the 4 vertical supports with 16 - 4.2 x 8 mm screws.

Make sure all screws are securely tightened.

A. 4 - Lower vertical supports B. 16 - 4.2 x 8 mm screws Install Range Hood NonVented (recirculating) Installation

A. Deector B. Mounting screws

2. Measure the length of 6" (15.2 cm) duct needed to connect

the transition to the deector. NOTE: Vent should t up inside the deector 1" (2.5 cm) minimum.

3. Install vent between the transition and the deector.

NOTE: To make vent installation easier, temporarily remove the deector from the chimney support bracket and replace after vent section is in place.

4. Seal all connections with vent clamps.

2. Push duct over the exhaust outlet. Seal all connections with

3. Use caulk to seal all openings.10

Make Electrical Connection

1. Disconnect power.

2. Remove terminal box cover.

3. Remove the knockout in the terminal box and install

4. Run home power supply cable through strain relief

5. Use UL listed wire connectors and connect

blackwires(E)together.

6. Use UL listed wire connectors and connect

whitewires(C)together.

7. Connect green (or bare) ground wire from home power

supply to yellow-green ground wire (F) in terminal box usingUL listed wire connectors.

8. Tighten strain relief screw.

9. Install terminal box cover.

10. Check that all light bulbs are secure in their sockets.

11. Reconnect power.

A. Home power supply cable B. UL listed or CSA approvedstrain relief C. UL listed wire connectors D. White wires E. Black wires F. Green (or bare) and yellow-green ground wires G. Terminal box WARNING Electrical Shock Hazard Electrically ground blower. Connect ground wire to green and yellow ground wire in terminal box. Failure to do so can result in death or electrical shock. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.11 Install Duct Covers NOTE: Remove protective lm from the duct covers.

1. Assemble the upper duct covers together and install the

duct covers around the support frame. The larger hole in the anges of the upper duct cover must be outside the smaller hole in the mating ange of the other upper duct cover.

2. Secure the upper duct covers together with two 3.5 x 6.5

mm screws at the top and two 2.9 x 3 mm screws at the bottom. Install 1 screw on each side at the top and bottom of the assembled duct covers.

A. 3.5 x 6.5 mm screws (2) B. Assembly holes (larger hole outside of smaller hole on both sides) C. 2.9 x 3 mm screws (2) NOTE: For non-vented (recirculating) installation, the slotted holes in the upper duct covers will be visible when assembled. For vented installations, the slotted holes will be hidden down inside the lower duct covers.

A. Top toward ceiling B. Slots installed up for non-vented installations C. Slots installed down for vented installations

3. Slide the upper duct covers up the frame to the ceiling and

secure to the upper horizontal support with 2 - 3.5 x 6.5 mm screws.

A. 3.5 x 6.5 mm screw B. Slotted holes (2) C. Upper duct covers D. Ceiling

4. Place the long end of the plastic clips (2) into the bottom of

the front lower duct cover.

A. Lower duct cover - (front) B. Plastic clips (2) (long end for front placement)

5. Install the lower duct cover (front) to the range hood canopy.

Spread the lower duct cover opening slightly and position it over the upper duct cover. Set the lower duct cover in place. Position so the anges of the lower duct cover set into the anges of the upper duct covers.

A. Range hood canopy B. Plastic clips C. Lower duct covers D. Upper duct covers12

6. Install the lower duct cover (rear) to the range hood canopy.

Spread the lower duct cover opening slightly and position it over the upper duct cover. Set the lower duct cover in place. Position so the anges of the lower duct cover set into the anges of the upper duct cover. Make sure the front and rear lower duct covers mate properly. NOTE: When assembling the rear lower duct cover to the front lower duct cover, the ange (both sides) must be placed over the plastic clip to secure the lower duct covers together at the bottom.

A. Lower duct cover (rear) B. Plastic clips C. Lower duct covers D. Upper duct covers

7. Secure the lower duct covers together at the top using 2

plastic clips. Use one plastic clip on each side.

A. Plastic clips (2) B. Lower duct covers top clip area

8. Secure the lower duct cover to the range hood canopy using

4 - 4.2 x 8 mm screws.

Complete Installation

1. For non-vented (recirculating) installations only, install

charcoal lters over metal grease lter. See the “Range HoodCare” section.

2. Install metal lters. See the “Range Hood Care” section.

3. Check the operation of the range hood blower and light.

Seethe “Range Hood Use” section. If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. NOTE: To get the most efcient use from your new range hood, read the “Range Hood Use” section.13

The range hood is designed to remove smoke, cooking vapors,and odors from the cooktop area. For best results, startthe hood before cooking, and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. The hood controls are located on the front side of the canopy.

A. Louver holes (non-vented [recirculating] installations only) B. Duct covers C. Control panel D. LED lights E. Metal grease lters (located behind the perimetric cover) F. Glass canopy Range Hood Controls A. Light button B. Turn the blower on and off C. Blower speed medium button D. Blower speed maximum button A B C D Operating the light The button controls both lights. Press once forONand again for OFF. Operating the blower The ON/OFF button turn the blower on and set the blower minimumspeed and sound level for quiet operation. The speed can be changed anytime during fan operation by pressing the desired Blower Speed button. Press the blower ON/OFF button a second time to turn the blower off.14

Cleaning IMPORTANT: Clean the hood and grease lters frequently according to the following instructions. Replace grease ltersbefore operating hood. Exterior Surfaces To avoid damage to the exterior surface, do not use steel wool or soap-lled scouring pads. Always wipe dry to avoid water marks. Cleaning Method: ■ Liquid detergent soap and water or all-purpose cleanser ■ Wipe with damp soft cloth or nonabrasive sponge, andthenrinsewith clean water and wipe dry. Metal Grease Filter

1. Remove the lter by pulling the spring release handle

andthen pulling down the lter.

2. Wash metal lter as needed in dishwasher or hot

3. Reinstall the lter by making sure the spring release handles

are toward the front. Insert aluminum lter into upper track.

4. Push in spring release handle.

5. Push up on metal lter and release handle to latch into place.

Non-Vented (recirculating) Installation Filters The charcoal lter is not washable. It should last up to 6monthswith normal use. Replace with Charcoal Filter Kit. See the “Assistance or Service” section to order. To replace charcoal lter:

1. Remove metal grease lter from range hood.

See“MetalGrease Filter” in this section.

2. Bend spring clips away from metal grease lter.

3. Place charcoal lter into top side of metal lter.

4. Bend spring clips back into place to secure the

inthissection. Replacing a LED Lamp The LED lights are replaceable by a service technician only. Seethe “Warranty” section for service contact information.

If You Need Service Please refer to the warranty page in this manual. If You Need Replacement Parts If you need to order replacement parts, we recommend that you use only factory specied parts. Factory specied parts willt right and work right because they are made with the sameprecision used to build every new appliance. To locate factory specied replacement parts in your area, callthe following customer assistance telephone number oryournearest designated service center. In the U.S.A. Call the Whirlpool Customer eXperience Center toll-free: 1-800-253-1301 or visit our website at www.whirlpool.com. Our Consultants Provide Assistance With: ■ Scheduling of service. Whirlpool designated service technicians are trained to fulll the product warranty and provide after-warranty service anywhere in the United States. ■ Features and specications on our full line of appliances. ■ Referrals to local dealers. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearingimpaired, limited vision, etc.). For Further Assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Canada Customer eXperience Centre toll-free: 1-800-807-6777, or visit our website at www.whirlpool.ca. Our Consultants Provide Assistance With: ■ Scheduling of Service. Whirlpool designated service technicians are trained to fulll the product warranty andprovide after-warranty service anywhere in Canada. ■ Features and specications on our full line of appliances. ■ Referrals to local dealers. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. For Further Assistance If you need further assistance, you can write to Whirlpool Canada with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Centre
