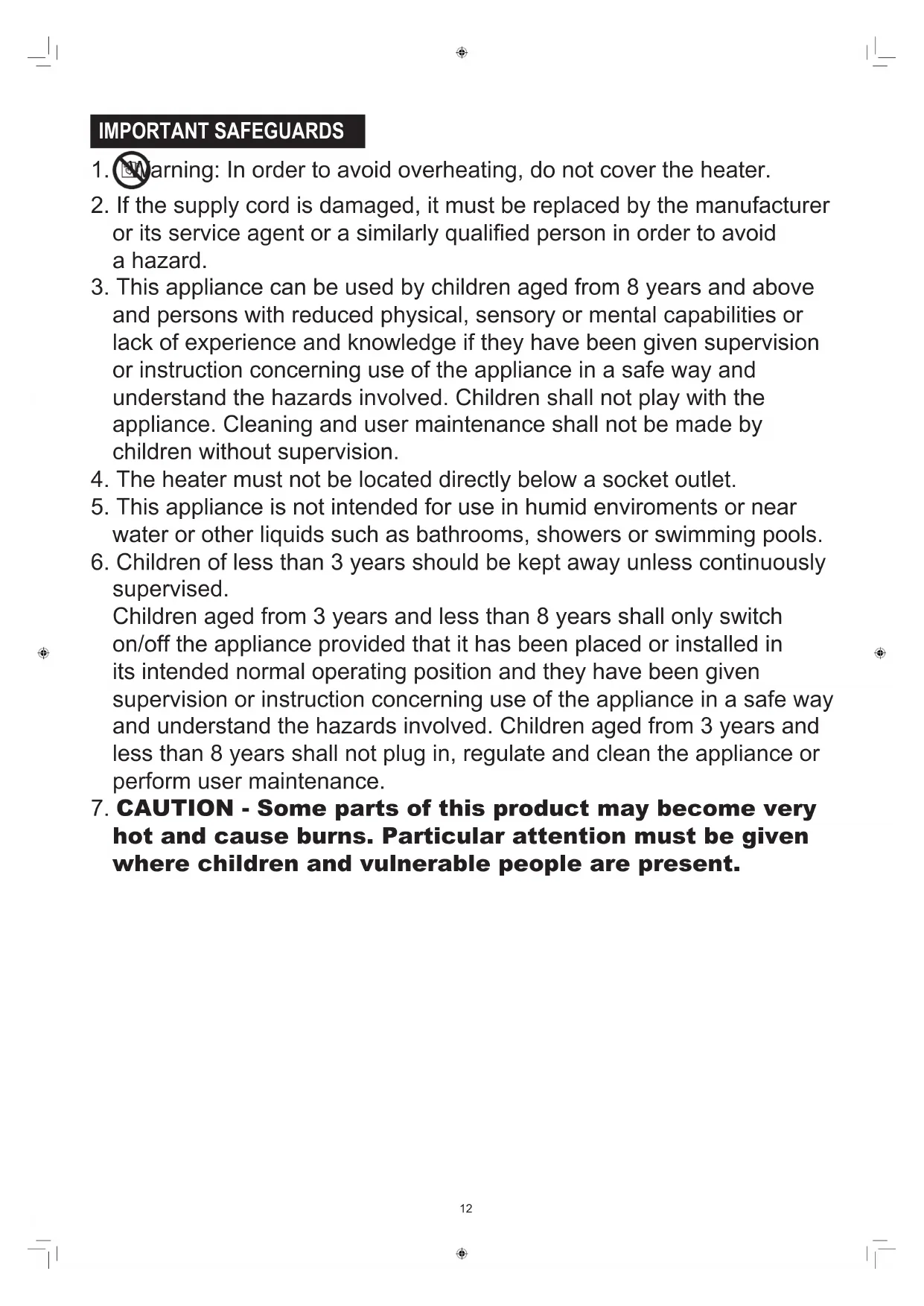

1. Warning: In order to avoid overheating, do not cover the heater.

2. If the supply cord is damaged, it must be replaced by the manufacturer

or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located directly below a socket outlet.

5. This appliance is not intended for use in humid enviroments or near

water or other liquids such as bathrooms, showers or swimming pools.

6. Children of less than 3 years should be kept away unless continuously

supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION - Some parts of this product may become very

hot and cause burns. Particular attention must be given where children and vulnerable people are present.13

Correct disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product back for environmental safe recycling.

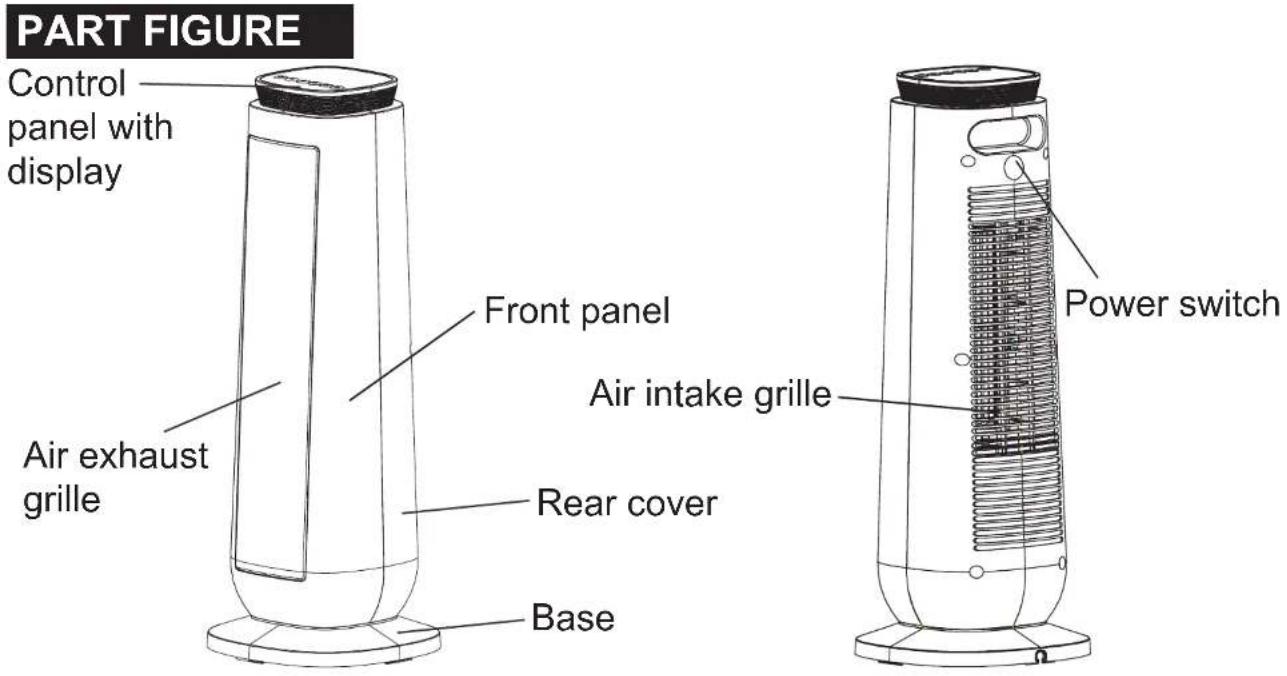

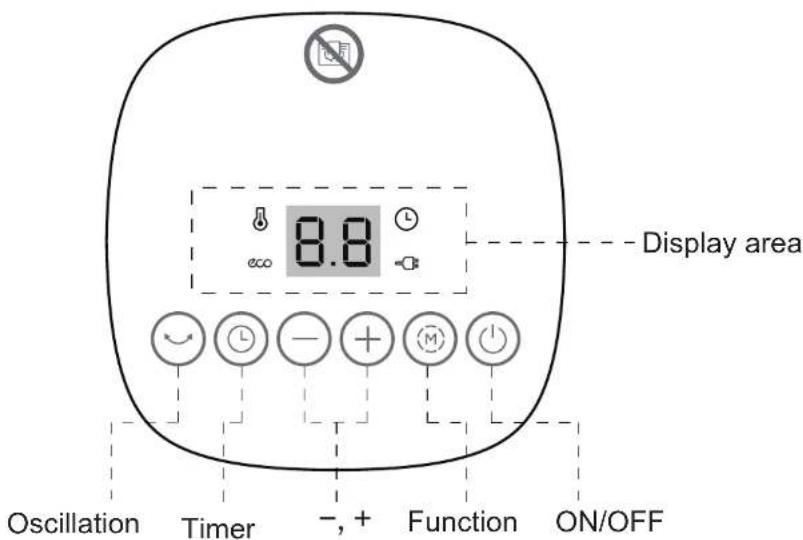

PART FIGURE Control panel with display Air exhaust grille Front panel Power switch Air intake grille Rear cover Base Display area ON/OFF Function Oscillation Timer Switching the appliance on/off Selecting the heating mode Programming the timer/a delayed start Increasing the temperature/timer Decreasing the temperature/timer Activating/deactivating oscillation The remote control works with 1 x CR2032 coin cell battery (included)15 OPERATING INSTRUCTIONS Check before turning on the device.

1. Check if the mains cable is in good condition.

2. The product adopts 220-240V AC power supply. Before use, confirm if the rated

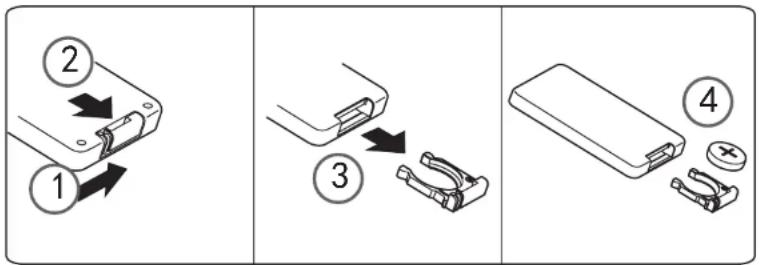

current of the power socket meets the local requirements with safe grounding device; otherwise, replace it with the qualified socket. REMOTE CONTROL Before using the appliance with the remote control, a coin cell battery (CR2032) must be placed in the remote control. Follow the instructions below.

The remote control has a range of 5 metres. the button functions are basically the same as on the operating panel. Starting the appliance Turn the power switch to “I” position, the power light turns on. Press the ON/OFF button (or the ON/OFF button on the remote controller) to start, the appliance supplies air at high power after start and the display shows ”HI”. Function setting Repeatedly press the Function button; the heater cycles through ”high - low - ECO mode - high”. Temperature setting In ECO mode, press the + or - button to set the temperature value in the range of

5 - 35°C. When the room temperature exceeds the set temperature by 2°C the device

stops working, and stays in standby mode. When the temperature is lower than the set temperature, the device starts heating again. Timer Off-timer During operation, press the TIMER button to enter the off-timer mode (0 - 8 hours), then press the + button to increase the off-timer or press the - button to decrease the off-timer. On-timer In standby mode, press the TIMER button to enter the on-timer mode (0 - 8 hours), then press the + button to increase the on-timer or press the - button to decrease the on-timer.16 Oscillation During operation, press the Swing button to enter swing mode. Press this button again to turn off the swing function. In stop mode, the oscillation also stops. Temperature sensor short circuit, open circuit protection function In any mode, temperature sensor short circuit protection, room temperature will display E1 or E2 and constantly flash; all buttons are invalid. The buzzer beeps 10 times. Safety protection During start with the room temperature TH above 50°C, all output is closed. The display shows “FF” and flashes 1 time per second for 75 seconds. All buttons are invalid except the ON/OFF button. Tip-over switch When the heater is tilted, the safety system will automatically cut off the power, and return to work status after the heater is placed upright. The display shows “E3”. All buttons are invalid except the ON/OFF button. ECO energy saving function Select the ECO energy saving function for the electric heater to work according to the ambient temperature and compare it to the temperature setting. Select the appropriate operation to achieve energy saving.17 SPECIFICATIONS Power supply: AC 220-240V ~ 50Hz Model Power regulation range (w) Low High

NTH20-18MRA 1200 2000

Troubleshooting If the product does not operate or does not operate properly, first check according to the following list. If the reason that the product does not operate or does not operate properly is not included in the following list, the product may have failed. In this case, return the product to the dealer for repair. Problem Possible Cause SolutionAfter the power is connected the machine does not work.The plug may not be connected properly to mains power.Check whether the plug is properly inserted into the receptacle.The heater suddenly stops heating.The temperature exceeds the threshold of the thermal cut-off.The system will automatically cut off the power supply.Let the device cool down before use.18 Table for information requirements for electric local space heaters P Model identifier(s): NTH20-18MRA Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric local space heaters only (select one) Nominal heat output Pnom 2,0 kW Manual heat control with room and/or outdoor temperature feedback [no] Minimum heat output (indicative) Pmin 1,2 kW Manual heat control with room and/or outdoor temperature feedback [no] Maximum continuous heat output Pmax 2,0 kW Electronic heat control with room and/or outdoor temperature feedback [no] Auxiliary electricity consumption Fan assisted heat output [no] At nominal heat output elmax N/A kW Type of heat output/room temperature control (select one) At minimum heat output elmin N/A kW Single stage heat output and no room temperature control [no] In standby mode elSB 0,30 W Two or more manual stages, no room temperature control [no] With mechanic thermostat room temperature control [no] With electronic room temperature control [no] Electronic room temperature control plus day timer [yes] Electronic room temperature control plus week timer [no] Other control options (multiple selections possible) Room temperature control, with presence detection [no] Room temperature control, with open window detection [no] With distance control option [no] With adaptive start control [no] With working time limitation [no] With black bulb sensor [no] Contact: Midea Europe GmbH Ludwig-Erhard-Stralse 14, 65760 Eschborn, Germany Remark: For electric local space heaters, the measured seasonal space heating energy efficiency ηS cannot be worse than the declared value at the nominal heat output of the unit. The seasonal space heating energy efficiency of all local space heaters except commercial local space heaters, η

CLEANING AND MAINTENANCE

1. Accumulated dust may be removed from the heater with a soft cloth.

Wipe the exterior surfaces of the heater occasionally with a cloth moistened (not dripping wet) with a solution of mild detergent and water. Dry the casing thoroughly with a soft dry cloth before operating the heater.

2. The fan motor is lubricated by the factory, and will require no further

3. No other user maintenance is required or recommended. If service is

required, send your heater to the nearest authorized service depot.

4. Store the heater in a clean and dry place when not in use. REMEMBER

– portable electric heaters are designed for spot heating, or as a supplementary heat source. They are not intended to be main sources of heat during the normal heating season. Note: There may be traces of smoke or odour when the unit is first operated. This is due to residue from the manufacturing process. It will quickly evaporate, and should not re-occur.

5. This heater cannot achieve accurate temperature control of the

• environment, and thus cannot be used for the storage of items, animals and plants.20 Warranty policy/service We congratulate you to your new device and are convinced that you will be satisfied and have your joy with this modern appliance. However, if you recognize a reason for a complaint, please contact us: Midea Europe GmbH Ludwig-Erhard-Str. 14 65760 Eschborn Phone: +49 6196-90 20 - 0 Fax: +49 6196-90 20 -120 Email: info-meg@midea.com Homepage: www.midea.com/de In case of service: Phone: +49 6196-90 20 - 0 Fax.: +49 6196-90 20 -120 Email: service-meg@midea.com In case of a technical fault, enter your exact address, telephone number, sales contract number and Device type (from the type plate of the device). A precise fault description saves you time and money. For special questions, please contact the customer service center. Before calling for service: Please check whether there is an operating error or a cause that has nothing to do with the function of your device. Please observe the note in the user manual and check whether: - The power plug is connected - The power plug may be damaged - Electricity is available Warranty terms This device has been manufactured and tested according to the most modern methods. The seller war- rants for faultless material and proper manufacture for a period of 36 months from the date of sale to the end user. The unit is not suitable for commercial use. The claim under guarantee lapses in the event of intervention by the Buyer or by a third party. Damage caused as a result of improper handling or operation, incorrect installation or storage, improper connection or installation as well as an act [
• ] of God or other external factors shall not be covered by this warranty. When claims are submitted, the manufacturer reserves the right to make improvements to defective parts or to replace or exchange the device. Only if it is not possible to achieve the intended use of the device by repairing or replacing the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract within 6 months from the date of purchase. Claims for damages, including consequential damages, are excluded unless they are based on intent or gross negligence. The guarantee claim exists only with submission of the product and the purchase receipt. This warranty is valid within Germany. Importer by: Midea Europe GmbH Ludwig-Erhard-Str. 14 65760 Eschborn Germany21 ■ MESURES DE SÉCURITÉ IMPORTANTES p. 22
