USER MANUAL W800BT EDIFIER

Abstract gray brushstroke pattern on white background (no text or symbols)

EDIFIER

W800BT

Bluetooth® Stereo Headphones

www.edifier.com

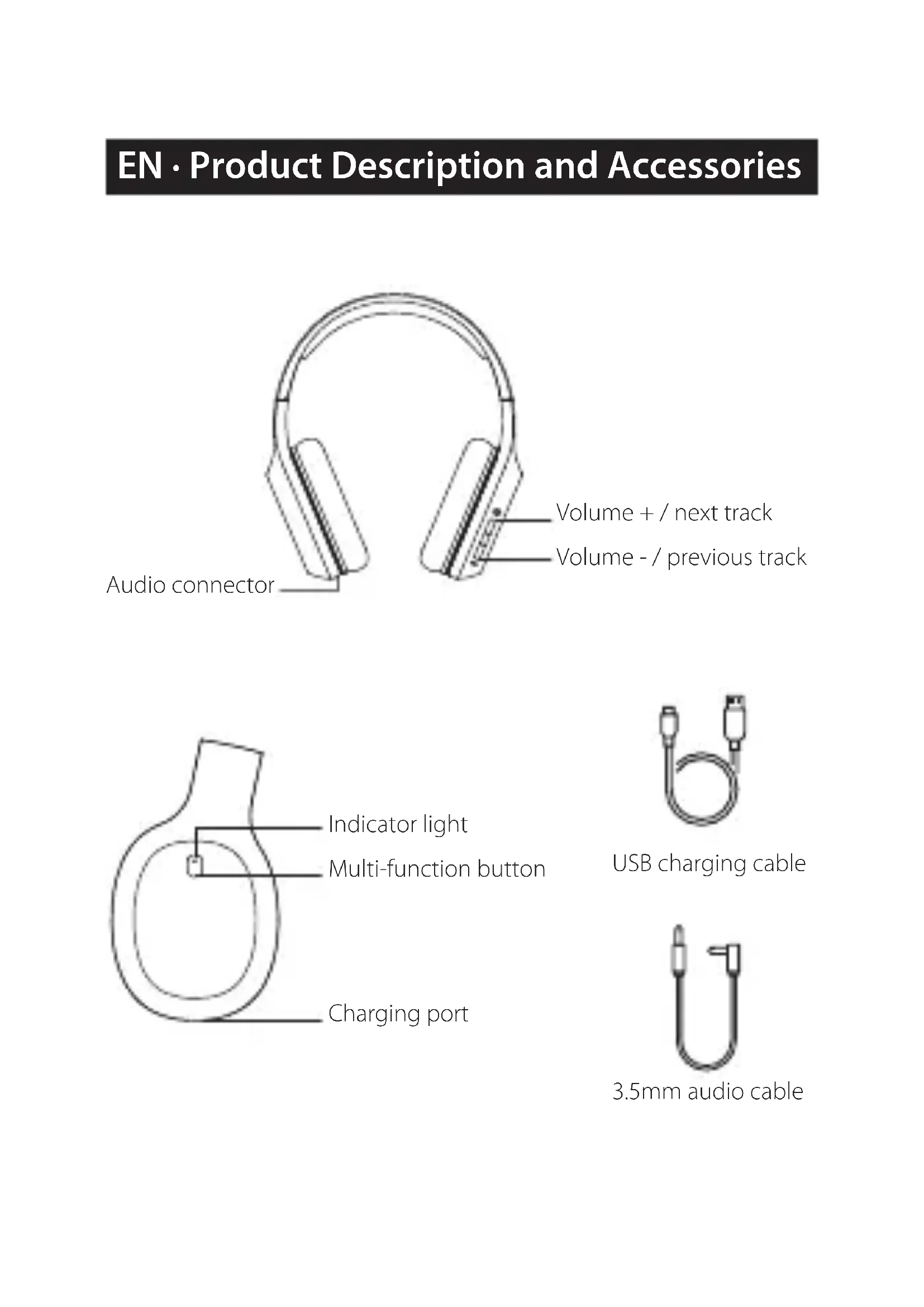

EN · Product Description and Accessories

Line drawing of a pair of headphones with ear brackets and front panel (no text or symbols)

Audio connector

Volume + / next track

Volume - / previous track

Pure technical line drawing of a mechanical part with no text or symbols

Indicator light

Multi-function button

Charging port

Simple line drawing of a USB cable with two connectors (no text or symbols)

USB charging cable

Simple line drawing of a U-shaped pipe fitting (no text or symbols)

3.5mm audio cable

■ Operational Guide

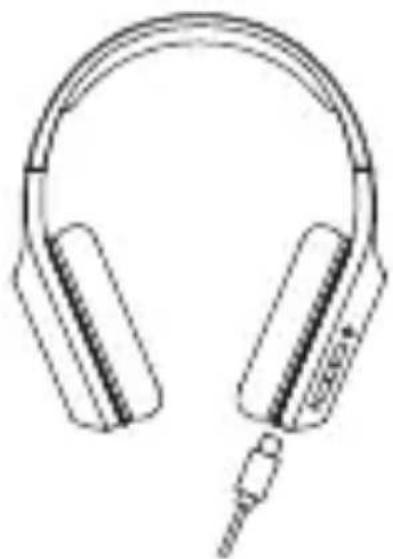

- Charge

During using, if only red light flashes, it indicates the headphones are at low battery level, please use them after fully charged.

Red light steady lit = charging Red light off = fully charged

Rated input: 5V = 500mA

Line drawing of a pair of headphones with earbuds and cable (no text or symbols)

Warning: The rechargeable batteries that provide power for this product must be disposed properly for recycling. Do not dispose of batteries in fire to prevent an explosion.

If the product with lithium battery has not been used for long periods of time, please charge it at least once per 3 months.

- Power ON/OFF

Simple line drawing of a stylized object resembling a flask or container with a handle, no text or symbols present.

Power on: press and hold for 3 seconds Power off: press and hold for 3 seconds

- Bluetooth Connection

1. When powered on and not connected, press and hold the multi-function button for 2 seconds until the red and blue light flashes alternately, then the headphones enter pairing state.
2. When powered off, press and hold the multi-function button for approx. 5 seconds until the red and blue light flashes alternately, then the headphones enter pairing state;
3. Set your mobile phone to search for and connect to "EDIFIER W800BT", after pairing is successful, the blue light will flash slowly.

- Connect to Two Bluetooth Devices Simultaneously

1. Pair the headphones with the first device;
2. Restart the headphones: press and hold the multi-function button for 5 seconds to enter pairing state and pair with the second device;
3. Operate the first device to pair with the headphones again, then they are successfully connected to two devices simultaneously.

■ Functional Operation Instructions

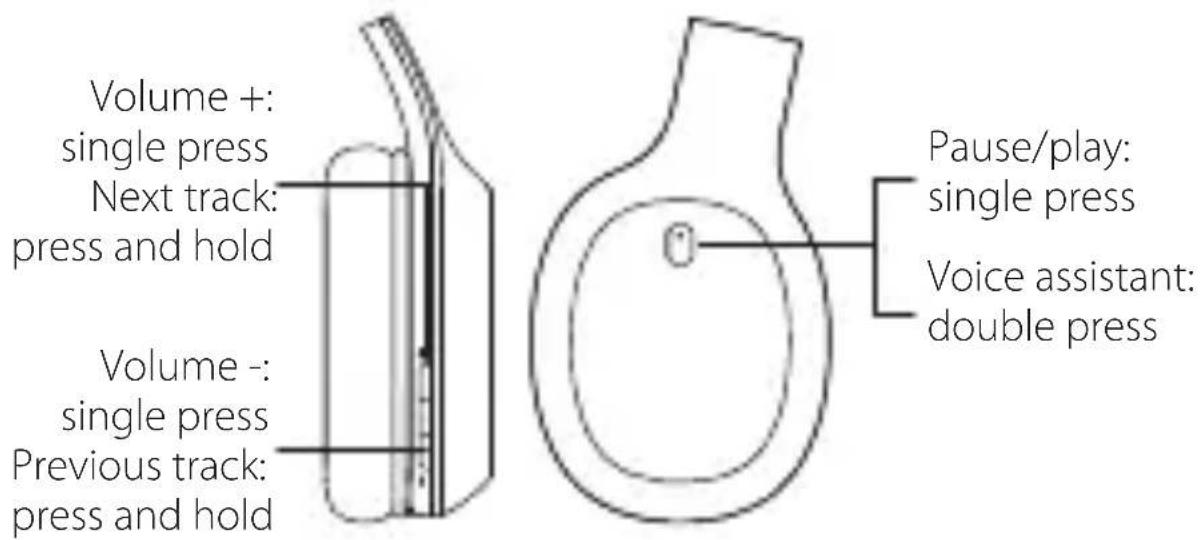

- Music Playback

Volume +: single press Next track: press and hold Volume -: single press Previous track: press and hold Pause/play: single press Voice assistant: double press

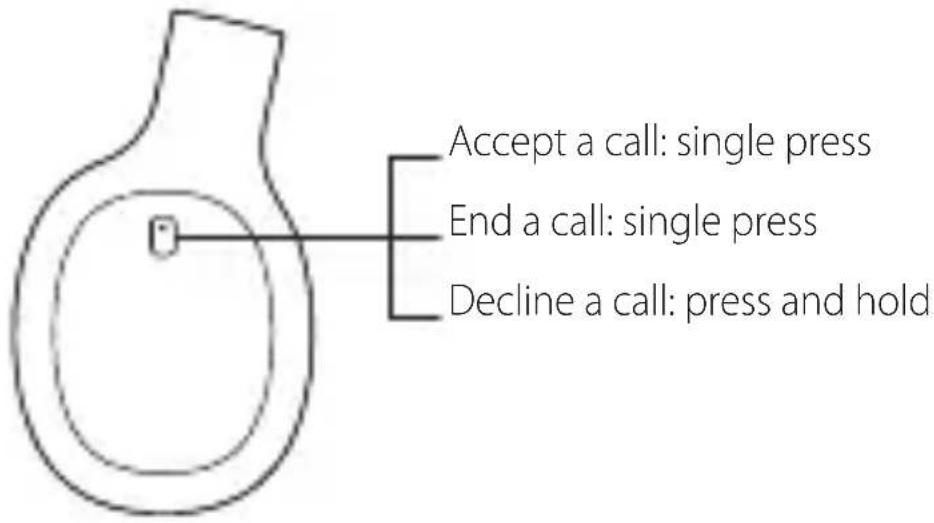

- Call

Accept a call: single press End a call: single press Decline a call: press and hold

- Clear pairing records: when powered on and not connected, press and hold the "+" and "-" buttons simultaneously for 5 seconds, wait until the blue light flashes rapidly, then the pairing records have been cleared.

FAQs

Red light instead of blue light flashes.

- The headphones are at low battery level, please recharge the headphones.

Red light is off during charging.

- Ensure the charging device is correctly connected with the headphones.

- When the headphones have not been used for long periods of time, the battery will enter sleep state, it needs to charge about 30 minutes and then the red light will be lit.

No sound

• Check if the headphones are operating.
• Check if the headphones volume is at an appropriate level.
• Check if the headphones are correctly connected with mobile phone.
• Check if the headphones are operating within a normal working range.

Call quality of the headphones are not good.

• Check if mobile phone is in an area with strong signal.
• Please ensure the headphones are within effective distance (10m) and no obstacle between the headphones and mobile phone.

When playing music, cannot control pause/play/previous track/next track via headphones.

- Please ensure the paired device support AVRCP (Audio/Video Remote Control Profile) profile.

Maintenance

During using, please read the following suggestions carefully.

• Keep the product away from humid places to avoid affecting internal circuit. Do not use the product during intense exercise or with much sweat to prevent sweat from dropping into the product to make damage.
• Do not put the product in places exposed to sun or with high temperature. High temperature will shorten service life of electronic components, damage battery and deform plastic components.
• Do not put the product in cold places to avoid damaging internal circuit board.
• Do not dismantle the product. Non-professional personnel may damage the product.
• Do not drop, strongly vibrate, strike the product with hard object to avoid damaging internal circuit.
• Do not use drastic chemicals or cleaner to clean the product.
• Do not use sharp objects to scratch product surface to avoid damaging shell and affecting looking.

If the product cannot operate properly, please send it to your qualified maintenance agency.

EDIFIER International Limited

www.edifier.com

©2019 Edifier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications.

Pictures and illustrations shown on this manual may be slightly different from actual product.

Picture for reference only, actual product prevails.
