USER MANUAL MRU17F6AWW MIDEA

• Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. Power supply: 115 V Frequency: 60Hz Capacity: 17 cu. ft. www.midea.comDear user THANK YOU and CONGRATULATIONS on your purchase of this high-quality Midea product. Your Midea freezer is designed for reliable, trouble-free performance. Please take a moment to register your new freezer. Register your new freezer at www.midea.com under the Support tab. For future reference, record your product model and serial numbers located on the back of the freezer above the compressor compartment. Model Number________________________________________ Serial Number_________________________________________ FREEZER SAFETY p. 3
• OPERATION REQUIREMENTS p. 6
• Location Requirements p. 6
• Electrical Requirements p. 7

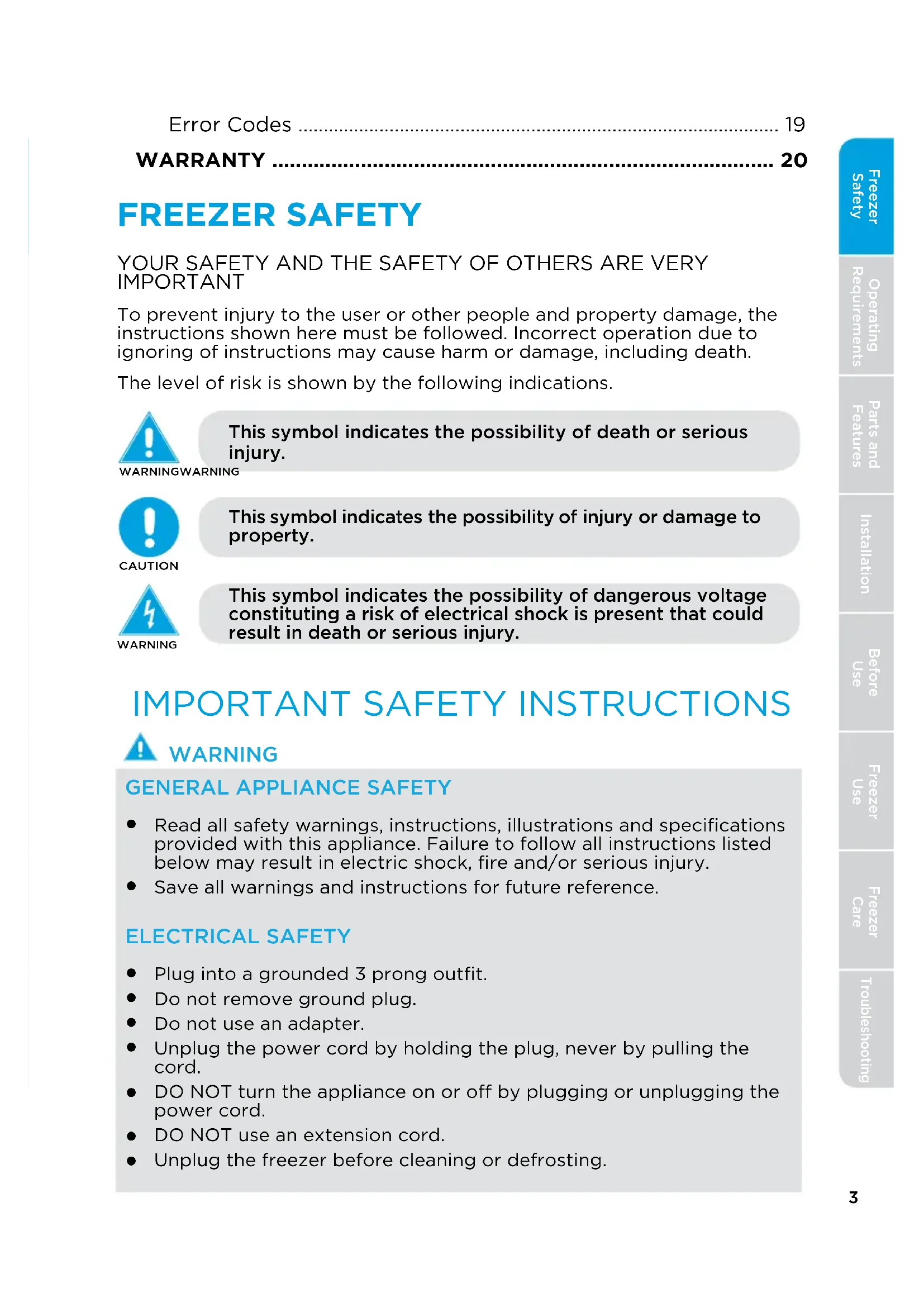

GENERAL APPLIANCE SAFETY

Read all safety warnings, instructions, illustrations and specifications provided with this appliance. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. ELECTRICAL SAFETY

Plug into a grounded 3 prong outfit.

Do not remove ground plug.

Do not use an adapter.

Unplug the power cord by holding the plug, never by pulling the cord.

DO NOT turn the appliance on or off by plugging or unplugging the power cord.

Unplug the freezer before cleaning or defrosting.4 Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use Grounding requirement

This freezer must be grounded. This freezer is equipped with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded.

Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood or if doubt exists as to whether the freezer is properly grounded. LOCATION SAFETY

This freezer is intended to be used in household and similar environments.

Install in accordance with the manufacturer’s instructions.

This freezer should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only. WARNING - Keep ventilation openings, in the freezer, clear of obstruction.

DO NOT install near any heat sources, such as radiators, heat registers, stoves, other cooking appliances or in direct sunlight.

DO NOT store or use gasoline or any flammable liquids inside or in the vicinity of this freezer.

Flammable refrigerant used. Follow handling instructions carefully. Risk of fire or explosion due to puncture of refrigerant tubing.

Flammable refrigerant used. Do not use mechanical devices to defrost freezer. Do not puncture refrigerant tubing.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Keep key away from children.

Children should be supervised to ensure that they DO NOT play with the appliance.

DO NOT touch the interior of the freezer with wet hands. This could result in frostbite.

Clean only with a damp cloth. Use nonflammable cleaner. SERVICE SAFETY

Disconnect power before servicing.

Flammable refrigerant used. To be repaired only by trained service personnel. Do NOT puncture refrigerant tubing.5 Freezer SafetyOperating RequirementsParts and FeaturesInstallationFreezer Use Freezer Care TroubleshootingBefore Use

Refer all servicing to qualified service personnel. Do not repair or replace any part of this appliance unless specifically recommended in this manual. Servicing is required when the appliance has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person, in order to avoid a hazard.

If component part is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Replace all parts and panels before operating.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive Harm

Remove the door or lid so that children cannot hide or get trapped inside your old appliance.

Leave any shelves in place so that children may not easily climb inside.

Failure to follow these instructions can result in death or brain damage. IMPORTANT: Flammable gas and refrigerant used. It is the consumer’s responsibility to comply with Federal and Local regulations when disposing of this product. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.6 Freezer SafetyOperating RequirementsParts and FeaturesInstallationFreezer Use Freezer Care TroubleshootingBefore Use OPERATION REQUIREMENTS LOCATION REQUIREMENTS WARNING Explosion and Fire Hazard Keep flammable materials and vapors, such as gasoline, away from appliance. Failure to do so, can result in death, explosion or fire. This freezer is designed to be freestanding only, and should not be recessed or built-in. Place your freezer on a floor that is level and strong enough to support the freezer when it is fully loaded. Place your freezer where there is access to the required electrical connection. See “Electrical Requirements.” Locate the freezer away from direct sunlight and sources of heat, such as a stove, heater or radiator. NOTES:– Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. – Extremely cold temperatures may also prevent the freezer from performing properly. Avoid locating the freezer in areas with high humidity. Adequate air circulation is required for efficient operation. Maintain the recommended clearance to ensure adequate air circulation. RECOMMENDED CLEARANCE

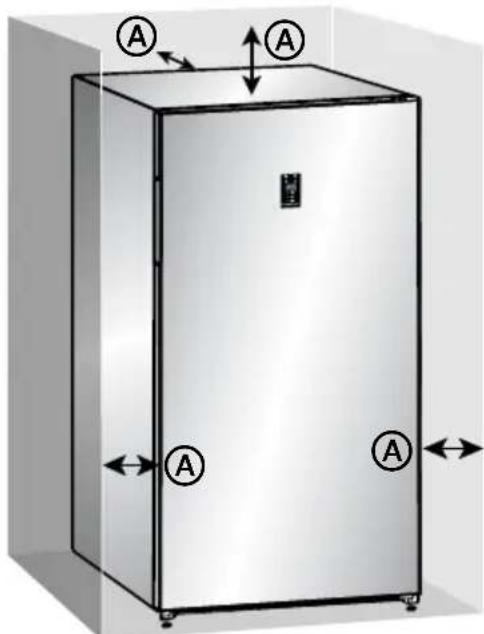

a 3" (7.6 cm) Clearance at the top, back and both sides of the freezerNOTE: If you place the freezer next to a fixed wall, allow sufficient space on the hinge-side for the door to swing open.7 Freezer SafetyOperating RequirementsParts and FeaturesInstallationFreezer Use Freezer Care TroubleshootingBefore Use ELECTRICAL REQUIREMENTS WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong from the power cord plug. Do not use an adapter. Do not use an extension cord. Failure to do so can result in death, fire or electrical shock. IMPORTANT: A 115 Volt, 60 Hz., AC only, 15-amp fused, grounded electrical supply is required. Use an electrical outlet that accepts the grounding prong. NOTE: The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) electrical outlet. We recommend that the freezer be plugged into an electrical circuit serving ONLY this appliance. Use an electrical outlet that cannot be turned off with a switch or pull-chain. DO NOT use an extension cord.

Do not puncture refrigerant tubing.

Follow handling instructions carefully.

Failure to do so can result in death, explosion or fire. IMPORTANT: Remove ALL exterior and interior packing materials including the foam packing between the exterior condenser and the freezer cabinet.

Do not puncture refrigerant tubing.

Follow handling instructions carefully.

Failure to do so can result in death, explosion or fire. IMPORTANT:

If the freezer has been in a horizontal position for any period of time, wait 24 hours to allow the refrigerant to settle before plugging in the freezer.

When moving the freezer, DO NOT tilt it beyond 45° from upright. NOTE: Tilting the freezer more than 45° could damage the compressor and the sealed system.10 Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use LEVEL FREEZER IMPORTANT: Level the freezer for proper operation and to avoid cooling, frost and moisture problems that can occur when the door does not close properly.

1. Move the freezer to its final location. See “Move to Final Location.”

2. Place a carpenter's level on the top of the freezer cabinet.

3. Adjust the two leveling feet, (one foot located at each of the two front

corners of the freezer cabinet) until the freezer is level. NOTE: The leveling feet are easier to adjust if you have someone push against the top front of the freezer to take some weight off the feet. To Raise - Turn the leveling feet clockwise To Lower - Turn the leveling feet counterclockwise. BEFORE USE WAITING PERIOD

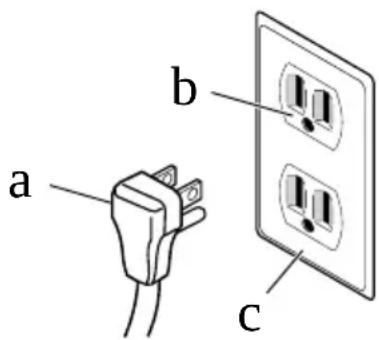

Before plugging the freezer into a grounded 3-prong electrical outlet, allow it to stand upright for approximately 2 hours. NOTE: This reduces the possibility of a malfunction in the cooling system from improper handling during transportation. CLEANING

1. Wash the freezer interior using a soft cloth dampened with a baking

soda solution (2 tablespoons baking soda mixed with 1 quart of warm water).

2. Using a soft cloth, thoroughly dry all surfaces.11

The storage life of frozen foods varies and the recommended storage time should not be exceeded.

Pre-packed, commercially frozen food should be stored in accordance with the frozen food manufacturer’s instructions for a three-star frozen food storage compartment or home freezer.

DO NOT put bottled food or drinks in the freezer. WARNING Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong from the power cord plug.

Do not use an adapter.

Do not use an extension cord.

Failure to do so can result in death, fire or electrical shock.

1. Plug in your freezer. Wait for 30 minutes, and then open the freezer

door to determine if the freezer is working properly.

2. Unlock the control panel by pressing and holding for 3 seconds.

3. Set the freezer temperature by pressing the

or on the control panel. A beep sounds when the MAX or MIN temperature is reached.

4. Place frozen food into the freezer as quickly as possible after purchase.

If there are instructions on the package, carefully follow these instructions regarding storage times.

FREEZER LOCK AND KEY

IMPORTANT: Store the freezer key in a location away from the freezer and not easily accessible to children. The freezer lock is spring loaded, so that the key cannot be left in the lock. To Lock/Unlock the Freezer: Insert the key into the lock, and then push inward while turning the key.

Allow hot foods to cool to room temperature before placing them in the freezer. Foods that freeze too slowly may lose quality or spoil.

Overloading the freezer forces the compressor to run longer.

Wrap foods properly and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer.12 Freezer SafetyOperating RequirementsParts and FeaturesInstallationFreezer Use Freezer Care TroubleshootingBefore Use

Do not line freezer storage shelves with aluminum foil, wax paper or paper toweling. Liners interfere with cold air circulation, making the freezer less efficient. Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and then close the door as soon as possible. Do NOT add a large amount of unfrozen food to the freezer at one time. This will lower the cooling efficiency of the freezer. CONTROLS IMPORTANT: The control panel automatically locks after 30 seconds of inactivity to prevent accidental activation. Unlock the control panel for use.

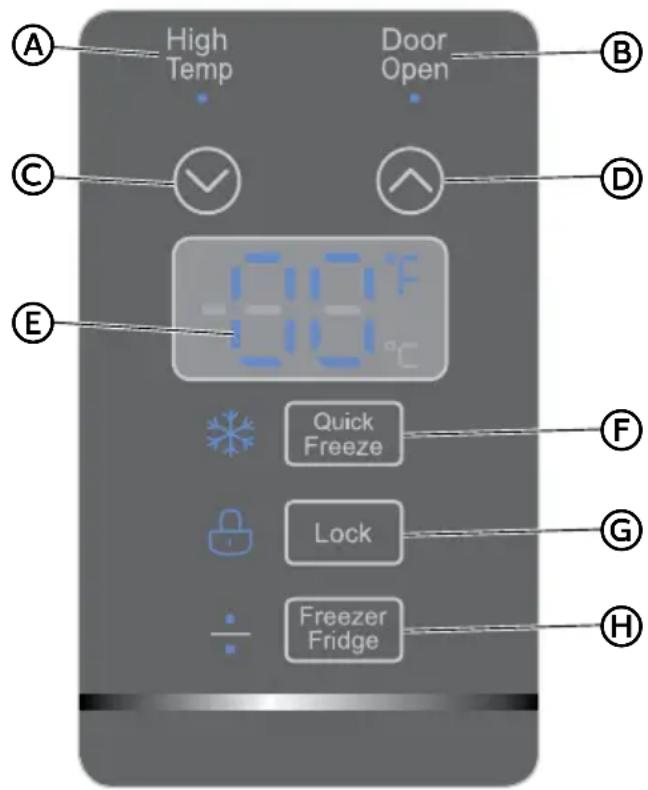

a High temperature indicator/alert b Door open indicator/ alert c Decrease temperature button d Increase temperature button e Temperature display f Quick freeze button g Control panel lock/ unlock button h Freezer/Fridge mode button SET TEMPERATURE This freezer can be used as either a freezer or refrigerator (fridge) for your food storage needs; however the default temperature setting is 0 °F (-18 °C). Freezer mode temperature range: 10 °F ~ -11 °F (-12 °C ~ -24 °C). Fridge mode temperature range: 35 °F ~ 46 °F (2 °C ~ 8 °C).NOTES: If the freezer is unplugged or loses power, you must wait 3 to 5 minutes before restarting it. The freezer will not start if you attempt to restart it sooner. If you choose to adjust the temperature setting, allow several hours for the temperature to stabilize between adjustments.13 Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use LOCK To manually lock or unlock the control panel for use: Press and hold for 3 seconds. NOTE: Depending on the state of the Control Panel (locked or unlocked), the Lock icon will either illuminate (locked) or turn off and a beep will sound.

REFRIGERATOR/FREEZER MODE

This freezer has an advanced design feature that lets you change it from a freezer to a refrigerator. You can switch from Freezer mode to Refrigerator mode only by using the control panel. The Freezer / Fridge light on the control panel indicates the current mode.

for 3 seconds to unlock the control panel.

for 3 seconds to change modes. The panel beeps and the indicator light changes to the mode selected. QUICK FREEZE The Quick Freeze feature lowers the temperature below the normal operating temperature to quickly freeze foods.

for 3 seconds to unlock the control panel.

1. Press and hold for 3 seconds to unlock the control panel.

or for 3 seconds to switch between Fahrenheit and Celsius.

RETURN TO FACTORY DEFAULT SETTINGS

1. Press and hold for 3 seconds to unlock the control panel.

and buttons at the same time for 3 seconds to reset the freezer controls to the factory default settings. NOTE: The control panel will beep and all indicators will illuminate for 3 seconds. If the compressor is running, it will pause for 5 minutes, and then restart.14 Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use ADDITIONAL FEATURES

HIGH TEMPERATURE ALERT

If the freezer is having trouble maintaining a cold temperature, the LED on the control panel will illuminate and a beep will sound.

FREEZER MODE: The interior temperature is over 18 °F (-8 °C) for 36 hours.

FRIDGE MODE: If the interior temperature is over 59 °F (15 °C) for 36 hours.

If the temperature returns to within normal range, the alert turns off automatically.

Press any button on the control panel to turn off the alert. Possible Causes:

The room is too warm e. g. the freezer is in a garage in the summer next to a car with a hot engine.

The freezer ventilation openings are blocked or dusty.

There are door seal gaps.

If the door is open for longer than 5 minutes, the Door Open alert is activated; the LED on the control panel will illuminate and a buzzer will sound intermittently. To turn off the Door Open alert, close the freezer door.

Make sure that no items are blocking the door open to prevent it from closing completely.

Make sure the freezer is level. The door may not close properly if the freezer is not level. See, “Leveling.” TEMP OUT OF RANGE ALERT (e.g. POWER FAILURE) If there is a difference of at least 12.6 °F (7 °C) between the set temperature and the interior temperature 42 hours after you shut the door, an alert will sound.

If the temperature returns to within normal range, the alert will turn off automatically.

Press any button on the control panel to turn off the alert. Possible Causes for the Temperature to be Out of Range:

The room is too warm or cold.

The freezer ventilation openings are blocked or dusty.

There are door seal gaps.15 Freezer SafetyOperating RequirementsParts and FeaturesInstallationFreezer Use Freezer Care TroubleshootingBefore Use FREEZER CARE Your freezer is designed for year-round use and requires minimal cleaning and maintenance. To keep your freezer running efficiently and odor free, we recommend that you clean the freezer regularly. CLEANING WARNING Electrical Shock Hazard

Unplug your appliance or disconnect power before cleaning.

Failure to do so can result in death, electric shock or personal injury. WARNING Explosion Hazard

Failure to do so can result in death, explosion or fire. IMPORTANT: To prevent damage to the finish, DO NOT use gasoline, benzine, thinner or other solvents, and DO NOT use abrasive cleaners.

1. Unplug the freezer from the electrical outlet.

3. Remove and wash the shelves with a mild detergent solution.

4. Wash the freezer interior using a soft cloth dampened with a baking

soda solution (2 tablespoons baking soda mixed with 1 quart of warm water).

5. Clean the gasket around the door. Gently wipe the gasket using a soft

cloth dampened with a mild detergent solution. NOTE: Gaskets must be kept clean and pliable to assure a proper seal.

6. Using a soft cloth, thoroughly dry all surfaces.

7. Plug in or reconnect power.

MOVING IMPORTANT: When moving your freezer, DO NOT tilt it beyond 45° from upright.

1. Unplug your freezer from the wall outlet.

3. Securely tape down all loose items inside your freezer.

4. Tape the door shut.16

Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use STORAGE IMPORTANT: Do not store freezer in a location that is accessible to children.

1. Unplug your freezer from the electrical outlet.

3. Clean the freezer.

4. Leave the door open slightly to avoid possible formation of

condensation, mold or odor. TROUBLESHOOTING IMPORTANT: DO NOT try to repair your freezer yourself. Doing so invalidates the warranty. GENERAL

PROBLEM POSSIBLE CAUSE SOLUTION

The freezer does not operate The freezer is unplugged. Make sure that the freezer power cord is fully plugged into the electrical outlet. The fuse on the circuit is blown or the circuit breaker is tripped. Check the house fuse / circuit breaker box and replace the fuse or reset the circuit breaker. Power failure. If a power failure occurs, the freezer turns off. Wait until the power is restored. The freezer door does not close completely Food packages are interfering with the door. Move or remove some food items. The door gaskets are dirty. Clean the door gaskets. The freezer may not be level. Level the freezer.17 Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use

PROBLEM POSSIBLE CAUSE SOLUTION

Food in the freezer is not cold The door has been opened too often or was not closed properly. Make sure that the door is closed properly. A large amount of food was recently added. Allow time for the recently added food to cool, and then check again. The door is not closed completely. Check the door gasket and food distribution, and make sure that the door closes completely. The freezer has been disconnected for a period of time. Allow 4 hours for the freezer to cool completely before adding food. The temperature control is set too warm. Set the temperature control to a colder setting. The freezer makes unusual noises or vibrations The freezer may not be level. Adjust the leveling feet located on the front corners of the freezer until the freezer is level. The freezer cabinet is touching a wall. Move the freezer away from the wall. Metal parts undergo expansion and contraction. This is normal. Refrigerant is circulating throughout the system. This is normal. Moisture is building up in the interior of the freezer The door has been opened too often or was not closed properly. Make sure that the door is closed properly. The freezer is located in a humid area. Move the freezer to a drier location. The weather is hot and humid. This is normal. The freezer door does not close completely Food packages are interfering with the door closure. Move or remove some food items. The door gaskets are dirty. Clean the door gaskets. The freezer is not level. Adjust the leveling feet located on the front corners of the freezer until the freezer is level.18 Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use

PROBLEM POSSIBLE CAUSE SOLUTION

The compressor turns on and off frequently. The room temperature is hotter than normal. This is normal. A large amount of food was recently added. Allow time for the recently added food to cool, and then check again. The door is not closed completely or was opened too often. Check the door gasket and food distribution to make sure the door will close completely. The freezer has been disconnected for a period of time. Allow 4 hours for the freezer to cool completely before adding food. The temperature control was not set correctly. Set the temperature control to the correct setting. Freezer has an odor Freezer needs cleaning. Clean the freezer. See, “Cleaning.” Improperly wrapped food is giving off an odor. Wrap food tightly or seal before storing it in the freezer. CONTROL PANEL

PROBLEM CAUSE CORRECTION

The control panel is unresponsive The control panel is locked. Press and hold the Lock button for 3 seconds to unlock the control panel. Door open alert The door is open. Close the door. Check that items are not blocking the door open and make sure that the freezer is level. Temperature is out of range Warm food may have recently been added to the freezer. Wait for the food to cool. The temperature control is set too high or too low. Adjust the temperature. The area where the freezer is located is too warm. Wait for the room temperature to lower.19 Freezer Safety Operating Requirements Parts and Features Installation Freezer Use Freezer Care Troubleshooting Before Use ERROR CODES Code Meanings Cause Solution

Temperature sensor fault Temperature sensor failure. Call for service.

Defrost sensor fault Defrost sensor failure. Call for service.

Ambient Temperature sensor fault Ambient temperature sensor failure. Call for service. High Temp and Door Open alerts See “Additional Features.”20 MIDEA FREEZER LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. Please have the following information available when you call the Customer Service Center: ■ Name, address and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair.

Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or visit http://us.Midea.com/support

2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the

U.S. and Canada. Midea Customer Service In the U.S.A. or Canada, call 1-866-646-4332. If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies. 1 YEAR PARTS AND LABOR, 10 YEAR COMPRESSOR PARTS

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR) Midea will repair or replace, without charge, any defects due to faulty materials or workmanship for one full year from the date of purchase. For further detail of warranty coverage and warranty repair information, visit www.midea.com or call 1-866-646-4332. TEN YEAR WARRANTY COMPRESSOR ONLY - LABOR NOT INCLUDED In the second through tenth years from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea will pay for factory parts to replace the compressor if it fails and prevents an essential function of this major appliance that existed when this major appliance was purchased. This is a 10-year warranty on the parts only and does not include repair labor. Consumer will be responsible for: ■ Diagnostics, removal, transportation and reinstallation cost required because of service. ■ Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. Proper use of the appliance in accordance with the instructions provided with the product.

2. Routine maintenance and cleaning necessary to keep the good working condition.

3. Proper installation by an authorized service professional in accordance with instructions provided

with the appliance and in accordance with all local plumbing, electrical and / or gas codes.

4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown

fuses, repair of loosened connections or defects in house wiring.

5. Expenses for making the appliance accessible for servicing.

6. Damages to finish after installation.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.21

1. Failure caused by damage to the unit while in your possession (other than damage caused

by defect or malfunction), by its improper installation, or by unreasonable use of the product, including without limitation, failure to provide reasonable and necessary maintenance or to follow the written Installation and Instruction Manual.

2. Products purchased “as-is” or refurbished are not covered by this warranty.

3. Food loss caused by refrigerator or freezer failure.

4. Service calls to repair or replace consumables such as water filters, light bulbs airfilters etc., or

handles, knobs and other cosmetic parts.

5. Product that has been transferred from its original owner.

6. Interior or exterior rust on the unit.

7. Damages caused by services performed by persons other than authorized Midea servicers; use

of parts other than Midea replacement parts; obtained from persons other than such Midea customer service; or external causes such as abuse, misuse, inadequate power supply or acts of God.

8. Service calls resulting from improper installation of your product.

9. Service calls to instruct you on the use of your product.

10. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls,

ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

11. If the unit is put to commercial, business, rental, or other use or application other than for

consumer use, we make no warranties, express or implied, including but not limited to, any implied warranty of merchantablility or fitness for particular use or purpose.

12. Product that has been removed outside the USA or Canada.

13. Products without original serial numbers or products that have serial numbers which have been

altered or cannot be readily determined. NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages. So this limitation or exclusion may not apply to you. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. 05/19Congélateur Vertical version A - 5 - 2019 MODÈLE NUMÉRO MRU17F6AWW

MISE AU REBUT APPROPRIÉE

PROBLÈME CAUSE POSSIBLE SOLUTION

Le congélateur ne fonctionne pas Le congélateur est débranché. Assurez-vous que le cordon d’alimentation soit bien inséré dans la prise électrique. Le fusible dans le circuit est brûlé ou le disjoncteur est déclenché. Vérifiez la boîte à fusible/ le disjoncteur et remplacez le fusible ou rétablissez le disjoncteur. Panne électrique. Lors d’une panne électrique, le congélateur se désactive. Attendez le retour du courant. La porte du congélateur ne se referme pas complètement. Des emballages obstruent la fermeture de la porte. Déplacez ou retirez des aliments. Les joints d’étanchéité de la porte sont souillés. Nettoyez les joints d’étanchéité de la porte. Le congélateur n’est peut-être pas de niveau. Mettez le congélateur de niveau. Les aliments dans le congélateur ne sont pas froids La porte a été ouverte trop souvent ou est mal fermée. Assurez-vous que la porte soit fermée de façon appropriée. Une grande quantité d’aliments vient d’être ajoutée au congélateur. Allouez assez de temps pour permettre à ces nouveaux aliments de se refroidir, puis vérifiez de nouveau. La porte n’est pas fermée complètement. Vérifiez le joint d’étanchéité de la porte et la disposition des aliments, et assurez- vous que la porte se referme correctement. Le congélateur a été débranché sur une période prolongée. Allouez 4 heures avant d’ajouter des aliments pour permettre au congélateur de se refroidir.19 Sécurité de congélateur Exigences en Matière de Fonctionnement Pièces et Caractéristiques Installation Utilisation du congélateur Entretien du congélateur Dépannage Avant l’utilisation

PROBLÈME CAUSE POSSIBLE SOLUTION

PROBLÈME CAUSE POSSIBLE SOLUTION
