Welcome to Your THERMADOR Under-Counter Appliance

Important Safety Instructions 4

• Definition
• Before you switch ON the appliance
• Technical safety
• Important information when using the appliance
• Children in the household
• General regulations

Information concerning disposal .5

• Disposal of packaging
• Disposal of your old appliance

Installing the appliance 5

-Transporting
- Installation location

Ventilation 5

Getting to know your appliance .6

Getting started with your appliance .7

• Touch control
• Switching the appliance on
• Setting the temperature. 8
• Controlling the cabinet lighting. 9

Toe-Kick 9

Cleaning the appliance 9

• Proceed as follows:
• Cleaning behind the Toe-kick. 10

Odors 10

Light (LED) 10

Tips for saving energy 10

Operating noises 10

• Normal noises
• Preventing noises

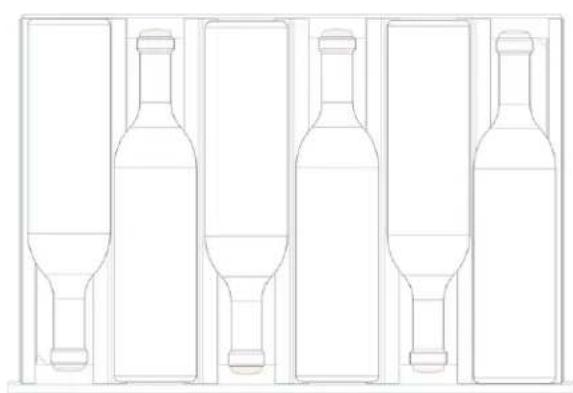

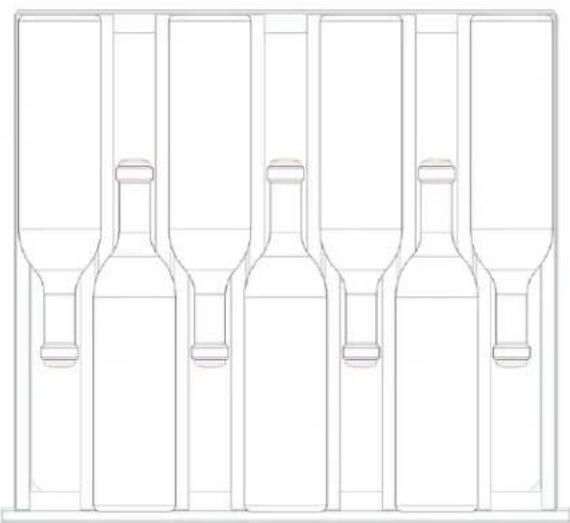

Bottle arrangement. 11

Troubleshooting 11

BSH Home Appliances Corporation 1901 Main Street, Irvine, CA.

Questions?

1-800-735-4328

www.thermador.com

We look forward to hearing from you!

Welcome

To Your Thermador® Under-counter Appliance

Thank you and congratulations on your recent THERMADOR purchase! Whether you are a dedicated chef or simply a connoisseur of the art of cooking, owning a THERMADOR kitchen is the ultimate expression of personal style, good taste, and an appreciation for the complete culinary experience. Our award-winning products have been empowering culinary enthusiasts for more than eleven decades.

Before you begin using your new THERMADOR product, please take a moment to review the Use and Care Guide. You will find the answers to all of your questions as well as some very important safety information. Pay special attention to the Important Safety Instructions located at the beginning of this guide. Your THERMADOR product is ready and waiting to be used for your next gourmet creation!

Our products are handcrafted with the highest quality authentic materials to ensure reliable service. In the unlikely event that you have a service question, please have your model and serial numbers of your product available when calling for technical service. You can find this information in the name plate of the appliance located inside the cabinet, opposite the hinge.

We realize that you have made a considerable investment in your kitchen and thank you again for choosing THERMADOR. Please feel free to share your kitchen photos and remodeling stories with us. Follow us on Twitter or post your kitchen photos to Facebook. We would love to hear from you!

Important Safety Instructions

READ AND SAVE THESE INSTRUCTIONS!

Definition

WARNING:

This indicates that death or serious injury may result due to non-observance of this warning.

CAUTION:

This indicates that minor or moderately severe injury may result due to non-observation of this warning.

NOTE:

This is used to draw the user's attention to something in particular.

WARNING: To reduce the risk of fire, electric shock, or injury when using your appliance, follow these 5 precautions:

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance. Retain all documents for subsequent use or for the next owner.

Technical safety

If the power cord of this appliance is damaged, it must be replaced by an authorized servicer. Improper installation and repairs may put the user at considerable risk. Repairs must be performed by an authorized servicer, to minimize the risk of ignition due to incorrect parts or improper service.

Only original parts supplied by the manufacturer should be used. Only original parts satisfy safety requirements.

The appliance comes with a UL registered 3-wire power cord. Never sever or remove the third (ground) conductor from the power cord.

The appliance requires a 3-pole socket. The socket should be connected by an electrician only. Where there is a 2-pole standard wall socket, it is the responsibility of the customer to have this socket replaced with a correctly grounded 3-pole wall socket. Do not use any adapter plugs. Do not use an extension cord.

Important information when using the appliance

• Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Risk of explosion!
• Never use a steam cleaner to defrost or clean the appliance! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
• Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage sensitive internal components, including the refrigerant tubes. Leaking refrigerant may ignite or cause eye injuries.
• Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!
• Do not stand on or lean heavily against the base of appliance, door, shelves etc.
• Switch the appliance off prior to cleaning.
• Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position.
• Keep plastic parts and the refrigerator seal free of oil and grease. Otherwise, parts and the refrigerator seal will become porous.
• Never cover or block the ventilation openings for the appliance.

Children in the household

• Keep children away from packaging and its parts. Danger of suffocation from folding cartons and cling wrap!
• Do not allow children to play with the appliance!
  Children should not be allowed to use the appliance unless supervised by an adult.

General regulations

The appliance is designed exclusively for the storage of wine.

This appliance is intended for use in the home and the home environment.

The refrigeration circuit has been checked for leaks.

State of California Proposition 65Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING: / AVENTISSEMENT ISSUE DE LA PROPOSITION 65 DE L'ETAT DE LA CALIFORNIE:

WARNING / AVERTISSEMENT

Cancer and Reproductive Harm / Cancer et dommages à la reproduction - www.P65Warnings.ca.gov.

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilized materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner. Please ask your dealer or your local authority about current means of disposal.

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

WARNING:

1. Pull out the power plug.
2. Cut off the power cord and discard with the power plug.
3. Remove the door from the appliance.
4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!
5. Leave the shelves in place so that children may not easily climb inside.

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be recycled by professionals. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Installing the appliance

For detailed installation instructions, please refer to the Installation Guide provided with the appliance.

Have a qualified technician install and connect the appliance according to the enclosed installation instructions.

NOTE: For detailed installation instructions, relevant measurements and information, please, see the Installation Guide provided with this appliance.

WARNING:

-Outdoor
- In an environment with dripping water
-In rooms where there is a risk of frost

It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

Transporting

The appliance is heavy and must be handled with caution during transportation and installation. Because of the weight and dimensions of the appliance, at least two persons are necessary to move the appliance into position securely and avoid injuries to people or damage to the appliance.

WARNING:

While handling or moving the appliance avoid any damaging to the tubing, risk of refrigerant leakage.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc.

If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distance from the heat source:

To electric or gas oven/range 114 (3 cm).
To an oil or coal-fired cooker 11^13 / 16 (30cm).

The floor of the installation location must not give way; if required, reinforce floor. The appliance must be upright and level to function correctly.

If the appliance seems unsteady there are 4 leveling legs that can be adjusted to your preference.

Ventilation

The refrigeration unit is ventilated only at the Toe- Kick in the base. Never cover that area or place anything in front of it. Otherwise the refrigeration cooling performance will be affected and the unit must work harder increasing power consumption.

Getting to know your appliance

THERMADOR under-counter Wine Reserve units can be freestanding or built-in and are available in a number of configurations.

These operating instructions are general for all models; the diagrams may differ.

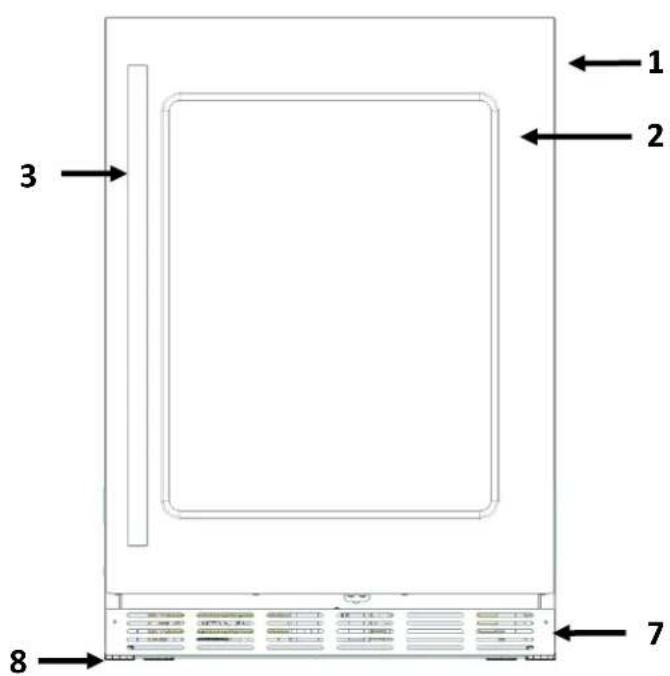

1. Cabinet
2. Stainless Steel Door with window
3. Handle (Pro Style or Master Style)
4. Full depth cantilever shelves (5 shelves; 7 bottles each shelve)
5. Separator and touch controls
6. Bottom shelf (1 shelf; 6 bottles)
7. Toe-kick
8. Leveling legs (x4)

NOTE: Overlay model does not include the stainless door nor the handle.

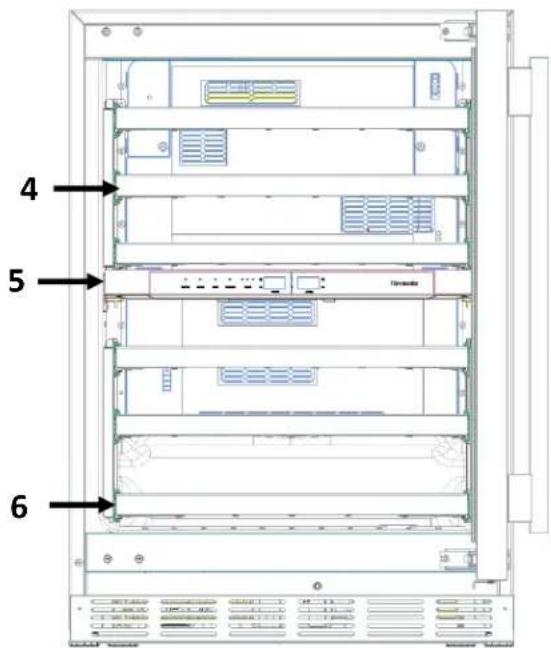

WARNING

To avoid the appliance tilting due to unbalanced overweight do not pull out all the Wine Racks at the same time. Always push the Wine Rack into the cabinet before pull out another Wine Rack.

Getting started with your appliance

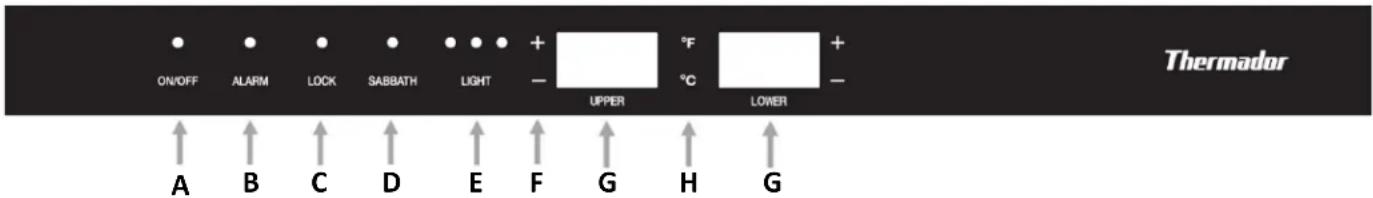

Touch control

A. ON/OFF

The first time the appliance is plugged, it will automatically start and all functions will be enabled.

• Press and hold the ON/OFF for 3 seconds to enter off mode, which will disable the functions and stop all operations from the appliance.
• Press and hold the ON/OFF for 3 seconds to enable the functions and start the normal operation of the appliance.

B. ALARM

When the door has been left open for 2 minutes or longer, an audible alarm sound is triggered in addition to a flashing blue LED indicator light above the ALARM button. Press the button once to temporarily disengage the ALARM or close the open door.

• Press and hold the ALARM button for 3 seconds to disengage permanently the door-open ALARM function. The key-press will sound once, confirming the ALARM function has been disengaged.
• Press and hold ALARM for 3 seconds to reengage the door-open ALARM function.

NOTE: The ALARM function will not operate when the unit is in Sabbath mode. See the Sabbath Mode section in this same page.

C. LOCK

• Press and hold the LOCK button for 3 seconds, LOCK LED will light up and all buttons will be blocked. To disengage, press and hold the LOCK button for 3 seconds or until LOCK LED light goes off.

D. SABBATH

The Sabbath Mode is designed for those users whose religious observances requires the turning off of lights or for travelers who will be absent from home.

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

When Sabbath mode is activated:

The display panel will indicate the unit is in Sabbath mode.
- All other interior and exterior lights deactivate and cannot be engaged.
- All control buttons become inactive except the ON/OFF button.
- All audible and visual alarms become inactive.

Activating:

1. Press and hold Sabbath for 3 seconds to start the Sabbath mode.
2. The key-press will sound once and the Sabbath light will turn on and the display will show SAB for a few seconds.

The light will not turn off even if the door is closed as long as the unit remains in Sabbath mode.

Deactivating:

1. Press and hold Sabbath for 3 seconds.
2. All buttons, displays, lights and alarms will again become functional.

E. LIGHT

Light location is hidden/recessed in ceiling and under mullion. There are 4 adjustable light settings: no light (no LED light on control), low (1 LED lite on control), medium (2 LED lite) and high (3 LED lite on control).

When the door is open, the interior lights automatically adjust to the maximum intensity (high); lights return to the selected intensity when the door is closed. When the lights are already set on high, there will not be a difference of intensity when the door is open.

F. TEMPERATURE SELECTION

The temperature setting is adjusted using the selection buttons, see chapter "Setting the temperature" for details.

• Press (-) to lower the set temperature.
• Press (+) to raise the set temperature.

G. DISPLAY PANELS

The temperatures are shown in the display panel. The upper level is for white wines and the lower level is for red wines. By default, the temperatures sets 46^ for the upper compartment and 58^ for the lower compartment.

H. 0 F / ^ C

• Press and hold the ^ F / ^ C button to switch between the degrees Fahrenheit and degrees Celsius for the temperature on the display.

The factory setting is degrees Fahrenheit. When changing to degrees Celsius (^) the display will show ^ C until switched back. When switching back to degrees Fahrenheit (^) the display will show ^ F .

Switching the appliance on

The appliance begins to cool when plugged in.

WARNING:

Follow the instructions and recommendations in the "Connecting the appliance" section in the Installation Guide for a correct and safe use of your Wine Reserve.

CAUTION:

Keep hands and fingers away from front and rear openings of the Wine Reserve door when closing. Risk of injury to hands or fingers may occur. Never allow children to climb on or play with the Wine Reserve door.

Setting the temperature

By default, the temperature set in your Wine Reserve is 46^ for the upper compartment and 58^ for the lower compartment; these are the temperatures recommended but you can adjust the temperature as you like.

To set a new temperature press the Selection Buttons (-) or (+).

The temperatures can be adjusted individually for each section of the appliance, using the left-side temperature selection buttons will change the temperature for the upper compartment and using the right-side buttons changes the lower compartment temperature.

The temperature can be displayed in degrees Celsius (^) or degrees Fahrenheit (^) . The factory setting is degrees Fahrenheit (^) .

Temperature Ranges

Wine Reserve upper: 40^ to 54^ Wine Reserve lower: 40^ to 64^ * Suggested upper temp.: 46^ * Suggested lower temp.: 58^

The correct serving temperature is crucial for the taste and therefore your enjoyment of the wine.

We recommend serving wine at the following drinking temperature.

Type of Wine	Categories	Temp.
Rich, intense, spicy warm Reds	Bordeaux, Shiraz,Rhone wines	64°F
	Cabernet Sauvignon,Burgundy	63°F
Medium to Lighter bodied Reds	Rioja, Pinot Noir	62°F
	Chianti, Zinfandel	59°F
	Madeira, Chinon	57°F
Juicy, fruity Reds	Young Spanish,Portuguese wines	54°F
Full-bodied/oaked Whites	White Burgundy	52°F
Medium to lighter bodied Whites	Chardonnay, Australian Semillon	50°F
	Chablis, Sauvignon Blanc	48°F
Sweet and Sparkling wines	Sauternes,Muscat/Moscato	47°F
	Champagne, Cava, Asti	43°F

Controlling the cabinet lighting

The interior cabinet light settings can be controlled using the LIGHT button on the CONTROL PANEL. The luminosity level will increase by one unit (displayed as one LED light over the LIGHT button) every time the button is pressed. When the level is already in "High" (3 LED lite), the next press will reset the level to "None" and no LED light will be displayed. When the door is opened, the interior light will automatically illuminate to its maximum intensity (High level) independently of the setting on the control.

When the door is closed, the interior light will adjust back to the setting indicated above the LIGHT button as per following table:

LIGHT setting	Closed-Door Cabinet Light Level
LIGHT	None
LIGHT	Low
LIGHT	Medium
LIGHT	High (same level as when door is opened)

If the LIGHT preset is "None", the interior lights will turn on only when the door is open and will dim off again when the door is closed. These light level settings can be used to conveniently display the contents of the Wine Reserve even when the door is closed.

The factory default for closed-door light level setting is "High".

• Press the LIGHT button repeatedly to cycle between The level settings.
• The interior lighting will temporarily adjust to the selected setting for a few seconds. This provides a visual sample of the selected level, before returning to the open-door (maximum) lighting level.

Toe-Kick

The Toe-Kick itself can be removed for service or cleaning (see "Cleaning behind the Toe-Kick" in the next section).

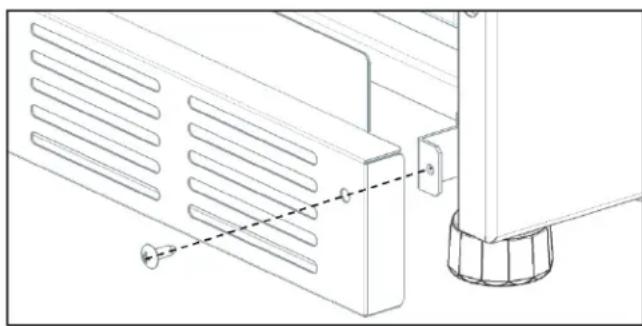

1. Remove the stainless steel Toe-Kick by unscrewing and removing the two front screws with a Philips screwdriver.

Front screws

1. You can remove the Toe-Kick by simply pulling it out.

1. To reattach the Toe-Kick, align the holes with the support tab and screw the frontal screws in the same position with a Philips screwdriver.

NOTE: Removal of the kickplate is not encouraged, but if necessary, it is recommended to be done by an authorized service personnel.

Cleaning the appliance

WARNING:

Never clean the appliance with a steam cleaner!

CAUTION:

• Do not use abrasive or acidic cleaning agents and solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces could corrode.

Proceed as follows:

1. Before cleaning: switch the appliance off. For instructions, see "On/Off" section on the "Touch Control" page.
2. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral detergent.

CAUTION:

When rinsing the cabinet, water must not enter the interior light recess located on the upper side of the interior cabinet or spill out from the bottom of the cabinet.

1. Wipe the door seal with clear water only and then wipe dry thoroughly.
2. After cleaning switch the appliance back on.

Cleaning behind the Toe-Kick

1. Before cleaning: switch the appliance off.
2. Remove the Toe-Kick. See "Toe-Kick" section on the previous page.
3. Use a vacuum cleaner with an extended attachment to clean the accessible areas when they are dusty or dirty.
4. Replace the Toe-Kick.
5. Switch the appliance on.

Odors

If you experience unpleasant odors:

1. Switch the appliance off.
2. Take all wine out of the appliance.
3. Clean the interior. See "Cleaning the appliance".
4. Clean all bottles.
5. Switch the appliance on again.
6. Check whether the formation of odors is still occurring after 24 hours.

Light (LED)

Your appliance features a maintenance-free LED light located at the top of the interior cabinet and under the mullion. This light must be repaired by authorized technicians only.

Tips for saving energy

• Install the appliance in a dry, well ventilated room. The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). If required, use an insulating plate.
• Do not block the ventilation openings in the appliance.
• Open the appliance door as briefly as possible.

Operating noises

Normal noises

Droning: Motors are running (e.g. refrigeration units, fan).

Bubbling, humming or gurgling noises: Refrigerant is flowing through the tubing.

Clicking: Motor, switches or solenoid valves are switching On/Off.

Preventing noises

Be sure the appliance is leveled

Please align the appliance with a spirit level. Use the height-adjustable feet.

Be sure Bottles or containers are not touching each other

Move the bottles or containers slightly away from each other.

Bottle arrangement

Your Wine Reserve is capable of holding 41 standard wine bottles. To maximize the storage space of your wine reserve unit, the bottles should be positioned as shown in the next images.

(5) Top Racks

(1)Bottom Rack

Troubleshooting

Be sure to check these items first:

Is there a power outage in the area?
Is the household fuse blown or the circuit breaker tripped?
Is the appliance properly connected to the electrical supply?

Many problems can be resolved without the need for a service call. See the following list as a reference of possible solutions of simple problems.

Symptom	Possible Cause	Potential Remedy
Appliance is not cooling.	Appliance has been switched off.	Check display to make sure the unit is not switched off. If display reads “OFF”, Press and hold for 3 seconds the ON/OFF Button
The compressor is constantly running or running too much.	Appliance opened frequently.	Do not open the appliance unnecessarily.
	The ventilation openings have been covered.	Remove obstacles at the ventilation openings located at the base of the unit and in the refrigerator interiors.
	A large amount of product, or warm product was placed into the appliance.	The compressor will run more than normal until the product cools. The more that is added, the longer the motor will run.
	Excessively warm environment.	Avoid placing the unit in direct sunlight, or near a heat source. If the appliance is in an unusually warm environment, the compressor will run more.
	Door gasket is not sealing.	Inspect the condition of the gasket. If damaged, cold air can escape the cabinet and cause the compressor to run more than normal.
Products and beverages in the unit are too cold.	Temperature has been set too low.	Increase the temperature. See "Setting the temperature".
	Product placed too close to ventilation holes.	Rearrange the bottles, so that nothing obstructs the interior ventilation holes.
The interior light (LED) does not work.	The unit is set to Sabbath mode.	Disengage Sabbath mode. See "Getting to know your appliance" section.
There are unpleasant odors coming from the appliance.	Some bottles may not be correctly closed or the content of some bottle may be spilled.	Clean the appliance. Be sure all the bottles are correctly closed. (See chapter "Odors").
Hi-alarm is activated (due to high temperature inside the appliance), HI is shown on the display LED.	Appliance opened frequently.	Do not open the appliance unnecessarily. Press alarm once to deactivate.
	The ventilation openings have been covered.	Remove obstacles at the ventilation openings located at the base of the unit and in the refrigerator interiors. Press alarm once to deactivate.
	A large amount of product, or warm product was placed into the appliance.	Wait until the products cool off or remove the warm products from the appliance, then press alarm once to deactivate.
	Excessively warm environment.	Avoid placing the unit in direct sunlight, or near a heat source. Press alarm once to deactivate
	Door gasket is not sealing.	Inspect the condition of the gasket. If damaged, cold air can escape the cabinet and cause the temperature to rise. Press alarm once to deactivate.

Data Rating Label

The data rating label shows the model and serial number of your appliance. It is located in the interior of the cabinet, at the opposite side of the hinge.

Service Information

For handy reference, copy the information in the form below from the data rating label located in the interior of the cabinet, at the opposite side of the hinge. Keep your invoice for Warranty validation.

Model Number

Serial Number

Date of Purchase

Dealer's Name

Dealer's Phone Number

Service Center's Name

Service Center's Phone Number

Índice

BSH Home Appliances Corporation 1901 Main Street, Irvine, CA.

Tiene

preguntas?

1-800-735-4328

www.thermador.com

BSH Home Appliances Corporation 1901 Main Street, Irvine, CA.

You've asked des questions?

1-800-735-4328

www.thermador.com

BSH Home Appliances Corporation, 1906 Main Street, Suite 600, Irvine CA 92614

1-800-735-4328//www.thermador.com
