USER MANUAL DS 74170 N Orbegozo

Exterior view of a white kitchen air conditioner unit (no text or symbols visible)

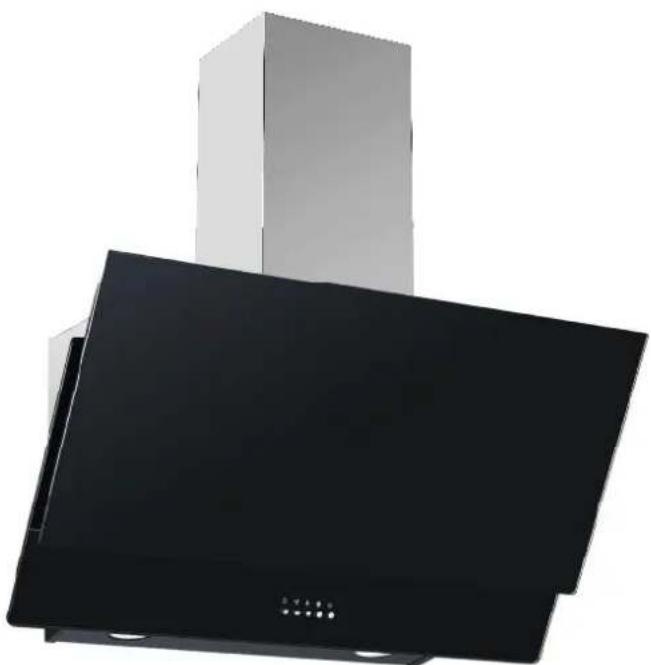

Exterior view of a modern kitchen air conditioner unit with a black top and white chimney (no text or symbols visible)

DS 74160.70 BL/N

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

4*40mm 4*30mm

Technical line drawing showing a cylindrical component being inserted into a housing, with no visible text or symbols.

4mm*40mm 4*8mm 4*8mm

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Open Close

Technical diagram of a microwave oven with labeled components and directional arrows indicating motion or movement.

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

UTILIZACIÓN

Diagram showing a device with labeled ports and three steps of cable installation, including a magnified view of the cable being inserted.

MANTENIMIENTO

Technical diagram of a microwave oven with labeled components and directional arrows indicating assembly steps

PROBLEM AS Y SOLUCIONES

L N E MOTOR High speed Mid speed Low speed Control switch Light

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Please ask the technical person to do the assembling.

16. The cooker hood and its filter mesh should be clean regularly in order to keep in good working order.
17. Do not attempt to check the filters while the hood is in operation.
18. Do not obstruct the ventilation slots for discharging the air.
19. The manufacturer will not be held liable for damages caused by failure to follow the foregoing instructions.
20. Ventilation should be provided convenient to the room if used simultaneously a sucker for kitchen and appliances powered by gas or other fuel.
21. Risk of fire if the cleaning is not carried out according to instructions.
22. Do not flambé under the hood.

23. CAUTION: Accessible parts may become hot when used with cooking appliances.

24. Exhaust air should not be sent by conductors used to evacuate fumes from equipment powered by gas or other fuel.

25. The minimum distance between elements of cooking and the bottom of the hood must be at least 65cm if the hood is installed on a gas cooking element. If the instructions for installation of gas cooking element to indicate a greater distance, should be taken into account. The distance of 65cm cannot be reduced.
26. The regulations regarding air evacuation must be respected.

NOTICE

1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and competent fitter.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.

The cooker hood is used on 220-240V\~50Hz.

FEATURE

1. The cooker hood uses high quality materials, and is made with a streamlined design.
2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.
3. Special wind tunnel construction and oil collector design, free dirt will be absorbed in a second.

INSTALLATION

Outside vent

If you have an outlet to the outside, your cooker hood can be connected as below picture by an extraction duct.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the mains.
2. The cooker hood should be place at a distance of 65-75cm above the cooking surface for best effect.

65cm 75cm

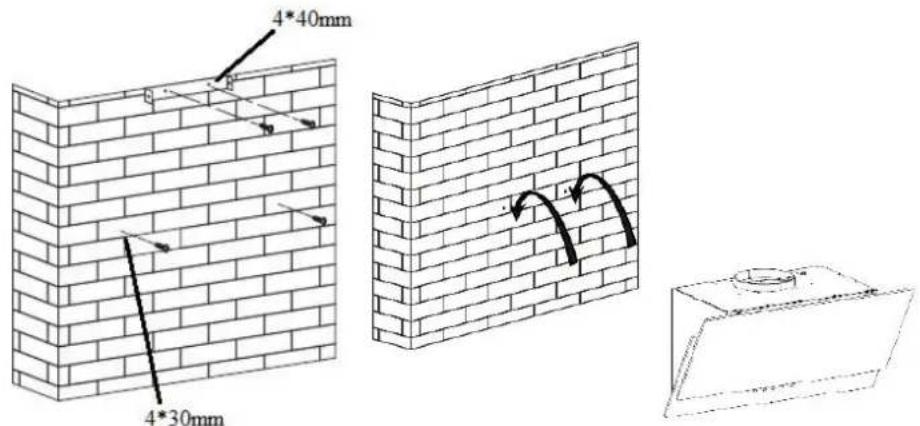

1. After decide the cooker hood height, measure the position of the holes for hanging hood and inner chimney bracket. Drill 4 holes, 2 for inner chimney bracket and 2 for hanging the hood. Place the wall plugs and screw the screw to hang the hood not to the bottom. Hang the hood and screw the screws until the bottom. Screw the inner chimney bracket in its position.

4*40mm 4*30mm

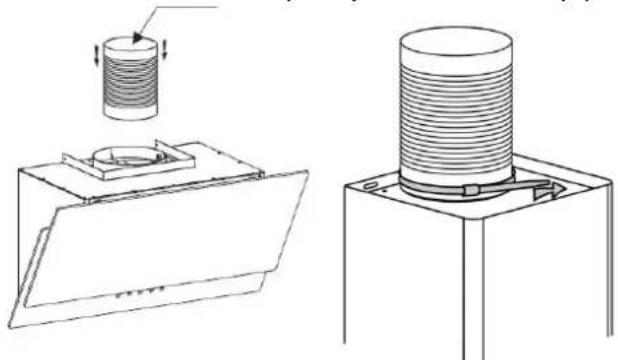

1. Place the exhaust pipe in air outlet of the hood, on the top. Adjust the exhaust pipe with a flange.

Technical line drawing of a mechanical assembly with two views: top shows a cylindrical component, bottom shows a threaded cylindrical component (no text or symbols)

1. For better assemble of the hood, you can fix to the wall with 2 inner screws. Remove the filter and mark the screw's position on the wall. Take down the hood and drill the holes, place the wall plugs and hang the hood again. Screw the hood to the wall with these security holes.

4*30mm

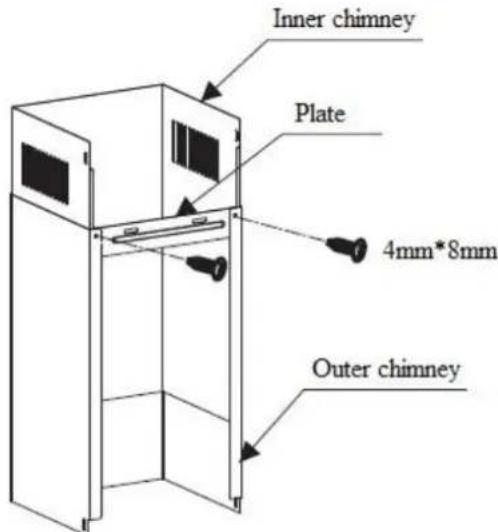

1. Place the inner chimney inside the outer chimney. Screw the outer chimney bracket to the chimney. Drill two holes on the wall to place outer chimney bracket.

Inner chimney Plate 4mm*8mm Outer chimney

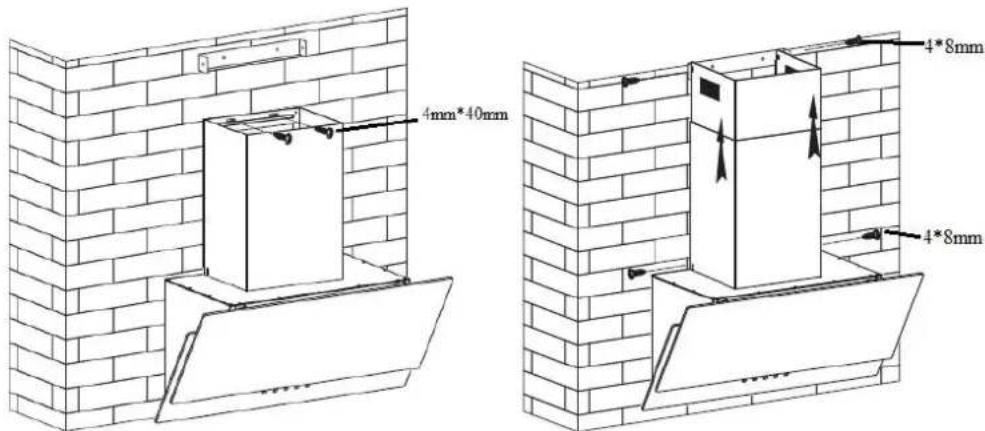

1. Place the assembled chimney on the hood. Fix outer chimney bracket to the wall with screws. Conect the exhaust pipe to the exhausting hole. Move up the inner chimney to inner chimney bracket nad screw them.

4mm*40mm 4*8mm 4*8mm

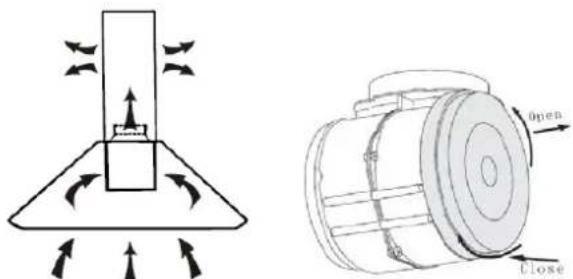

Vent inside

If you do not have an outlet to the outside, the exhaust pipe is not required and the installation is similar to the one shown in the “INSTALLATION (VENT OUTSIDE)” section but you have to install carbon filter (not included) in the motor.

Technical diagram showing a mechanical assembly with directional arrows and labeled components like 'Open' and 'Close'

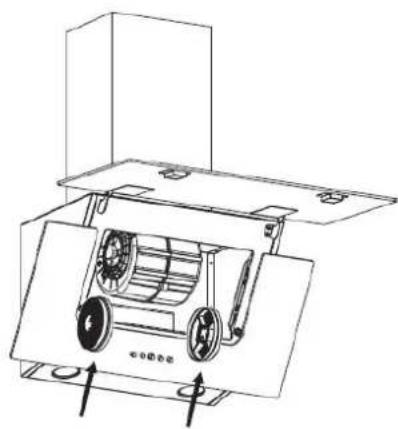

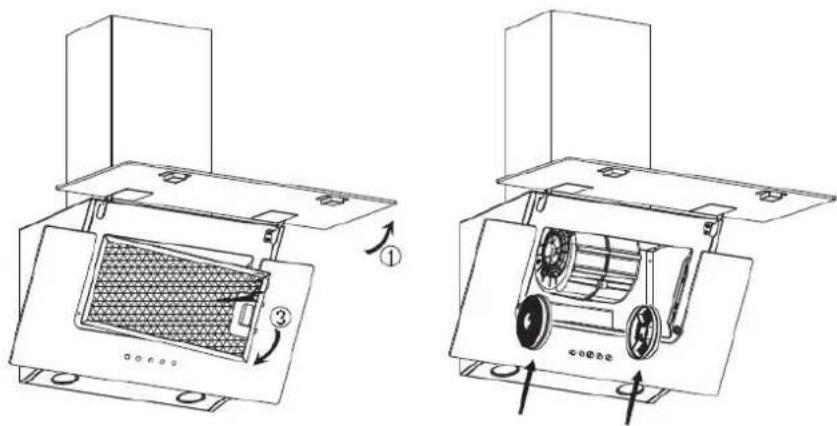

To put the carbon filter, place on the side of motor and turn until fit it. In order to install the activated carbon filter, the filter should be detached first. When activated carbon filters are attached, the suction power will be lowered.

Technical diagram showing two views of a device with labeled components and directional arrows indicating motion or assembly.

OPERATION

How to use the control panel

• 0 button, press this button to switch off the hood.
- button, press this button to select low power.
- button, press this button to select medium power.
- button, press this button to select high power.
- button, press this button to turn on the light. Press it again to turn off.

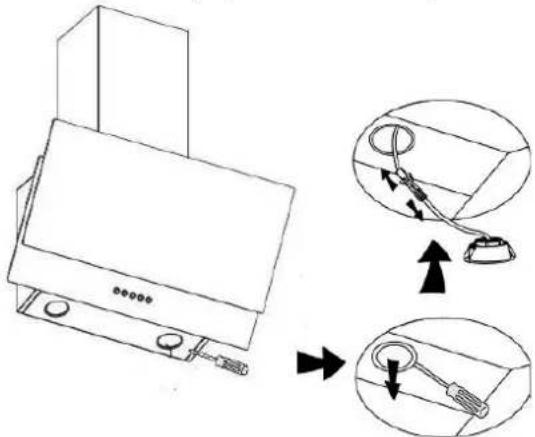

Bulb replacement

1. Switch the unit off and pull out the plug first.
2. Take out the filter and use the screw driver to take out the frame as the below pic showed.
3. Replace with same type of bulb (LED 2W)

Note: Light replacement should be carried out by qualified service personnel only.

Diagram showing a device with labeled ports and three steps of cable connection, including a magnified view of the cable being inserted.

MAINTENANCE

Proper maintenance of the cooker Hood will assure proper performance of the unit. Before cleaning, switch the unit off and unplug the appliance.

1. Regular cleaning. Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

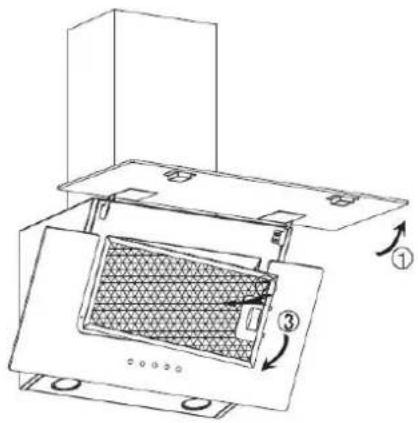

2. Cleaning for metallic anti-grease filters. Clean filters regularly, every two weeks, depending of usage, to prevent any risk of fire. The filters collect grease, smoke and dust, so the filters are directly affecting the

efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filters. Clean it with household cleaning detergent and warm water.

Technical diagram showing a device with labeled components and directional arrows indicating movement or assembly.

PROBLEMS AND SOLUTIONS

Problem	Cause		Solution
Light on but motor does not work	The leaf blocked		Get rid of the blocking
	The capacitor damaged		Replace capacitor
	The motor jammed bearing damaged		Replace the motor
Light does not work, motor does not work	Beside the above mentioned, check the following:
	Light damaged	Replace lights
	Power cord looses	Connect the wires as per the electric diagram
Oil leakage	One way valve and the air ventilation entrance are not tightly sealed	Take down the one way valve and seal with glue
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal with soap or Paint
Shake of the body	The leaf damage and causes shaking	Replace the leaf
	The motor is not tightly hanged	Lock the motor tightly
	The body is not tightly hanged	Fixed the body tightly
Insufficient suction	The distance between the body and the gas top too long	Readjust the distance
	Too much ventilation from open doors or windows	Choose a new place and resemble the machine
The Hood inclines	The fixing screws are not tight enough	Tighten the hanging screw and make it horizontal
	The hanging screw is not tight enough	Tighten the hanging screw and make it horizontal

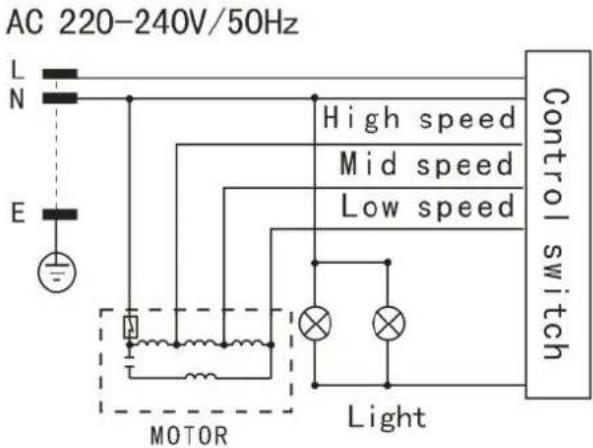

ELECTRICAL DIAGRAM.

AC 220-240V/50Hz L N E MOTOR High speed Mid speed Low speed Control switch Light

MAIN PARAMETERS

Rated Input	220V-240V, 50Hz
Rated Power	105W
Lighting Power	2WX2
Motor Power	109W
Drive Mode	Single Motor
Speed	Speed I Speed II Speed III
Air tube diameter	150MM
Air output	≥378m3/h
Air pressure	≥181Pa
Noise	≤69dB(A)

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
