DH 305 - Dehumidifier Orbegozo - Free user manual and instructions

Product type	Thermoelectric dehumidifier (without compressor)
Brand	Orbegozo
Model	DH 305
Dimensions (W x H x D)	153 x 240 x 153 mm
Weight	Approximately 1.2 kg (estimated)
Power supply	AC/DC adapter: DC 9V - 2.5A
Power consumption	23 W
Extraction capacity	Approximately 300 ml per day (at 30°C, 80% RH)
Tank capacity	1 L (auto shut-off when full, orange indicator)
Technology	Without compressor (quiet and lightweight)
Main functions	ON/OFF button, auto shut-off when tank full, indicator light
Operating environment	Temperature above 5°C, relative humidity above 5%
Recommended use	Small enclosed rooms (closets, cabinets, pantries, bedrooms)
Maintenance and cleaning	Unplug before cleaning; soft cloth for surface, brush for ventilation grilles
Safety	Do not open the device (risk of electric shock); repair by professional only; keep out of reach of children under 8 years
Included accessories	AC/DC adapter, removable water tank
Repairability	No user-serviceable components; contact authorized service
Standards	Compliant with Low Voltage Directive 2014/35/EU and EMC 2014/30/EU

Frequently Asked Questions - DH 305 Orbegozo

How to turn the DH 305 dehumidifier on and off?

Press the ON/OFF button on the top panel to turn the device on or off. The device starts operating immediately after switching on.

When should I empty the water tank?

The tank should be emptied when the device stops automatically and an orange light flashes. This indicates the tank is full (capacity approximately 1 liter).

How to empty the water tank?

First turn off the device by pressing ON/OFF. Remove the removable tank, empty its contents, then replace it in its position. Press ON/OFF again to restart.

Is the dehumidifier noisy?

Thanks to its compressorless technology, the DH 305 is lightweight and quiet, suitable for use in rooms like bedrooms.

Can this device be used in a large room?

This model is designed for small closed rooms (closets, cabinets, pantries). For larger spaces, a more powerful dehumidifier would be necessary.

How to clean the dehumidifier?

Always unplug the device before cleaning. Use a soft cloth for the outer surface and a brush to remove dust from the air intake and outlet grilles.

What to do if the device does not turn on?

Check that the AC/DC adapter is properly plugged into the power outlet and the DC input of the device. Make sure the tank is properly in place and the device is on a stable surface.

Can the device be left on continuously?

Yes, it can operate continuously, but it will turn off automatically if the tank is full. It is advisable to monitor it and empty the tank regularly.

What is the power consumption of the DH 305?

The consumption is 23 W, making it energy efficient. It operates with a supplied mains adapter (DC 9V - 2.5A).

How do I know if the tank is full?

An orange light starts flashing on the device when it is full. Additionally, the device shuts off automatically to prevent overflow.

USER MANUAL DH 305 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

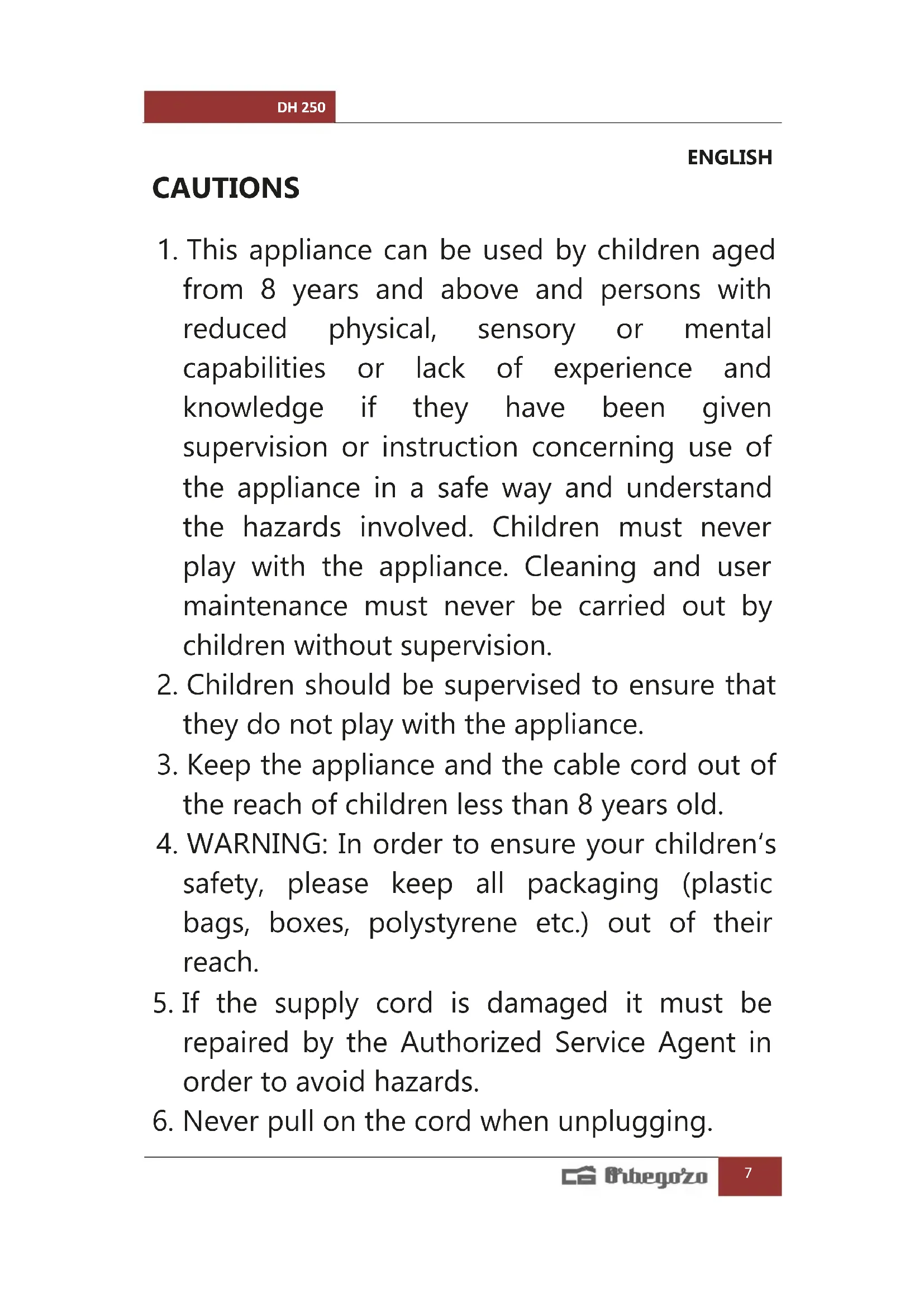

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

15. After having finished using the Midi dehumidifier, the user should switch the unit off by pressing the On/Off button to Off position.

16. Keep the front inlet grill and the side outlets free from air blocking materials such as clothing, plastic bag or paper.

17. Always keep the unit at an up-right position to avoid water leakage.

18. This appliance must be installed following the national regulations for electrical installations.

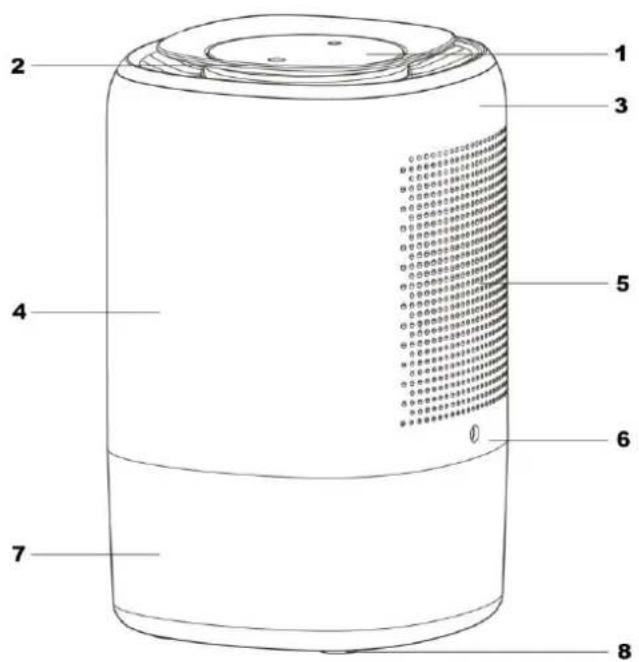

NAMES AND FUCTIONS PARTS

FEATURES

This midi Dehumidier uses Peltier technology (no compresor) which makes it light and quiet. It is perfect for small rooms. Poor ventilation causes musty odour and damp in wardrobe, walk-in closet, larders, cabinet or store room, etc. The midi Dehumidifier eliminates this problem by keeping them free of unwanted moisture.

(1) Top panel. ON/OFF button and lighting ON/OFF button
(2) Dry air outlet
(3) Back case
(4) Front case
(5) Air inlet
(6) DC power supply
(7) Removable water tank
(8) Rubber feet

• To avoid electric shock. Do not open. There are no user servicable parts inside..
• Any repair work must be done by qualified technician appointed by our distributors.

SPECIFICATIONS

Moisture removal: Approximately 300 ml per day at 30^, 80% RH

Cooling Element: Thermo-electric Peltier module.

A.C./ D.C. power supply: DC9V-2.5A

Power consumption: 23 W

Water tank capacity: 1 L.

Water level Detector: Automatic switch off with intermittent 'Orange' LED indicator when water tank is full.

Product dimension: 153mm (W)x240mm(H)x153mm(D)

Working environment: Over 5^ C, over 5% RH.

CONNECTION

1. After removing the packaging materials, there should be 2 items:
   a. Midi dehumidifier.
   b. AC/DC Power adaptor.
2. Place the body of the dehumidifier on the water tank on a firm and solid surface.
3. Plug the DC connector into the DC power input (6), then connect the AC plug to the corresponding power socket.
4. Press the ON/OFF button (1), the midi dehumidifier will begin to operate. You will now be able to hear and feel the air coming out through the upper outlet.
5. To turn off the appliance, press the ON/OFF button (1) and the dehumidifier will turn off.

REMOVABLE WATER TANK

When the water tank is full, with approximately 1.5 litre of water collected, the unit will be switched off automatically and an orange light will begin to flash in the tank area.

To remove the water tank, first switch off the Midi dehumidifier, press 'On/Off' button to the 'Off' position. Then, remove the water tank from the unit and pour the water out to the toilet or bathroom. Put the water tank back into the unit. To continue dehumidifying, press the 'On/Off' button to 'On' position again.

CLEANING

Before cleaning the unit, turn off the Midi Dehudifier and unplug the AC plug from the main socket first. Use a piece of soft cloth to clean the surface of the product or use a bruch to wipe the dust off the grills of the air inlet (5) and air outlet (2).

Disposal of old electrical appliances.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on

human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC 2014/30/EU.

PRECAUTIONS

(1) Top panel. ON/OFF button and lighting ON/OFF button
(2) Dry air outlet
(3) Back case
(4) Front case
(5) Air inlet
(6) DC power supply
(7) Removable water tank
(8) Rubber feet
