Product type	Electric simulator (TV simulator)
Brand	SilverCrest
Model	STS 12 A1
Power supply	Power adapter GDJ-090-020-EU: input 100-240 V~, 50-60 Hz, output 9 V / 0.2 A
Power consumption	0.2 A
Functions	4 modes: ON (continuously on), DUSK+4HRS (4 hours after dusk), DUSK+7HRS (7 hours), OFF (off)
Sensor	Built-in dusk sensor
Luminous surface	Multicolored LEDs simulating TV flicker
Mounting	Tabletop or wall-mounted (mounting hardware included)
Included accessories	Simulator, power adapter, mounting hardware (2 screws, 2 wall plugs, adhesive strips), instruction manual
Safety	Do not stare at LEDs; risk of epilepsy; do not use near flames or moisture; indoor use only
Cleaning	Unplug before cleaning; use a soft dry cloth
Storage	Clean and dry place, protected from sunlight
Disposal	Do not dispose of with household waste; recycle via WEEE
Warranty	3 years (proof of purchase required)
Customer service France	0800 919270 (toll-free)
Customer service Switzerland	0842 665566 (CHF 0.08/min)
Importer	Kompernass GmbH, Burgstrasse 21, 44867 Bochum, Germany
Intended use	TV brightness simulation for burglary deterrence; household use only

Frequently Asked Questions - STS 12 A1 SILVERCREST

How to install the SilverCrest STS 12 A1 simulator?

Place the device on a flat surface or mount it on the wall. Plug in the included power adapter. Orient the luminous surface so that the flicker is visible from outside. Refer to the instruction manual for details.

What are the different operating modes?

The switch offers 4 positions: ON (continuously on), DUSK+4HRS (activates at dusk then turns off after 4 hours), DUSK+7HRS (activates at dusk then turns off after 7 hours), and OFF (off).

How to mount the device on the wall?

Remove the stand by spreading the legs. Drill two holes 45 mm apart, insert the supplied wall plugs, then screw on the stand. Reattach the simulator onto the stand by engaging the notches. Be careful not to drill into electrical cables.

What to do if the dusk sensor does not work correctly?

Make sure the sensor receives enough daylight. Avoid placing the device too close to a wall or near a window where external lights (headlights, street lamps) could interfere.

Can I use the device outdoors?

No, the device is designed for indoor use only. Do not expose it to rain or moisture.

How to clean the STS 12 A1 simulator?

Always unplug the power adapter before cleaning. Use a soft dry cloth. For stubborn stains, a slightly damp cloth with a little mild detergent is suitable. Dry completely before reconnecting.

What to do if the device no longer turns on?

First check that the power adapter is properly plugged in and that the outlet works. If the device remains off, contact customer service at 0800 919270 (France) or 0842 665566 (Switzerland).

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. The warranty covers defects in materials and workmanship, but not damage from transport or improper use.

Can I use a different power adapter?

No, use only the supplied power adapter (type GDJ-090-020-EU, output 9 V / 0.2 A). Using a different adapter could damage the device.

Does this device actually prevent burglaries?

No simulator can guarantee absolute protection. However, by simulating the presence of a person watching TV, it can deter burglars. It is recommended to combine this device with other security measures (locks, alarms).

USER MANUAL STS 12 A1 SILVERCREST

Operating instructions

IAN 78527

i

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Close-up of a transparent display panel with grid pattern and mounting base (no visible text or symbols)

6 7 8

SILVERCREST® STS 12 AI TV Simulator INPUT: 9V = 200mA WEEE: SILVERCREST® CE manufactured: 08/2012 IAN : 78527 - S.N. KOMPERNASS GMBH BURGSTRASSE 2! D-44867 BOCHUM www.kompernais.com

5
4

Close-up of a black-and-white photo of a connected power strip with cable, labeled with number 2 (no text or symbols on the device itself)

1

Black-and-white photo of a connected electrical plug with a coiled cable and terminal connector (no text or symbols visible)

3

Inhaltsverzeichnis

Einleitung 2

Urheberrecht 2

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Scope of delivery and transport inspection ..... 49

Unpacking 49

Disposal of the packaging .....50

Operating elements 50

Technical data 50

Safety instructions....51

Functions 53

Setup 53

Wall mounting 54

Operation 57

Cleaning 58

Storage 58

Disposal of the appliance 59

Appendix 59

Notes on the EC Declaration of Conformity ..... 59

Warranty 59

Service 60

Importer 60

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a high-quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this appliance only as described and only for the specified areas of application. In addition, pass these operating instructions on to whoever might acquire the appliance at a future date.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This appliance is used to simulate light proportions similar to those created by a TV set. This appliance is intended exclusively for indoor use in private households. Do not use it for commercial applications!

WARNING

Risks from unintended use!

Risks can be engendered if the appliance is used for unintended purposes and/or other types of use.

▶ Use the appliance exclusively for its intended purposes.
▶ Observe the procedures described in these operating instructions.

Claims of any kind for damage resulting from unintended use, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted. The user alone bears the risk.

Scope of delivery and transport inspection

WARNING

▶ Packaging materials should not be used as a plaything. There is a risk of suffocation.

This appliance is supplied with the following components as standard:

• TV Simulator
- Power adapter
● Assembly material (2 screws, 2 plugs, adhesive strips)
- Operating instructions

NOTE

▶ Check the contents to ensure that everything is available and for signs of visible damage.
▶ If the contents are not complete, or are damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Unpacking

◆ Remove all appliance parts and these operating instructions from the carton.
◆ Remove all packaging materials from the appliance.

Disposal of the packaging

The packaging protects the appliance against transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

Operating elements

① Light surface

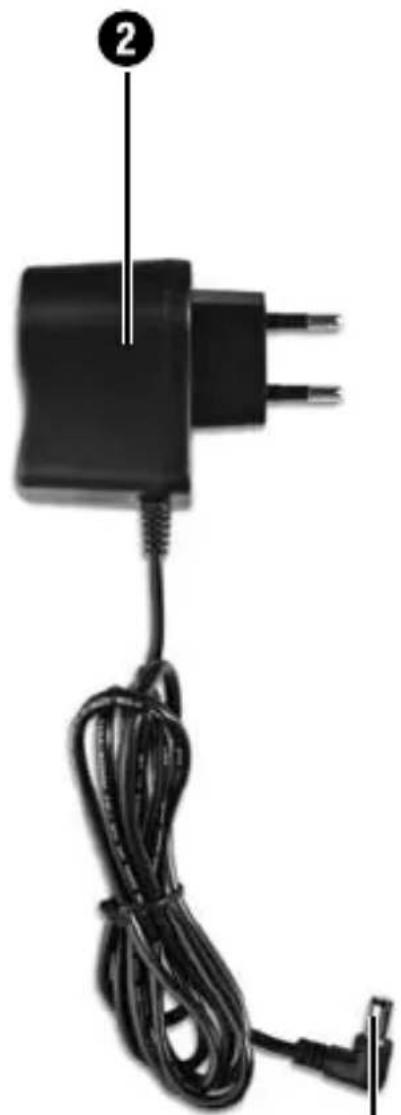

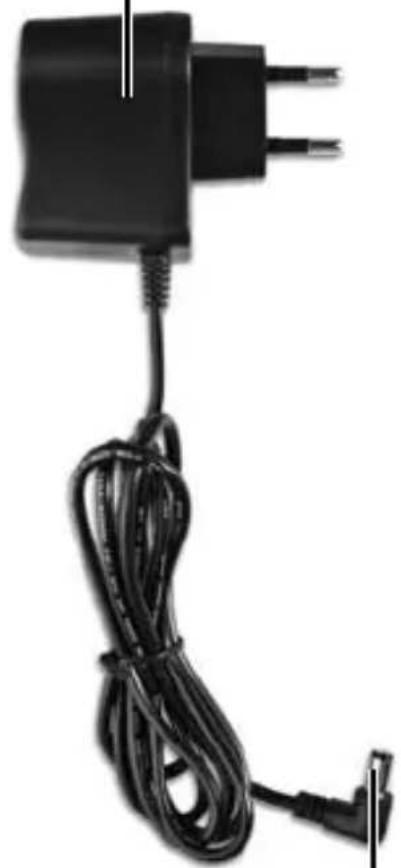

② Power adapter
③ Barrel connector
4 Plug socket
5 Stand
6 Switch
⑦ Holes for wall mounting
8 Twilight sensor

Technical data

Power adapter Type GDJ-090-020-EU
Input voltage 100 - 240 V	~, 50 - 60 Hz
Current consumption 0.3 A
Output voltage 9 V	==
Output current 0.2 A
Protection class
Polarity
Appliance
Input voltage 9 V	==
Current consumption 0.2 A
Polarity

Safety instructions

RISK OF ELECTRIC SHOCK!

▶ Use the appliance only indoors. Do not use the appliance outdoors.
▶ Do not use the appliance if the power adapter or the power cable are damaged.
▶ Ensure that water or moisture cannot penetrate the appliance.

WARNING - RISK OF INJURY!

This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive instructions from this person in how the appliance is to be used.

▶ Children should be supervised to ensure that they do not play with the appliance.

WARNING - RISK OF INJURY!

▶ Do not use the appliance if people suffering from epilepsy are in the room. The changes in light levels can cause epileptic seizures in people susceptible to them.
Before use, check the appliance for visible external damage. Do not operate a damaged appliance or one that has been dropped. There is also a risk of personal injury!
▶ Never look directly into the LEDs! They are very bright and can cause injury to the eyes!
▶ Repairs must only be carried out by authorised specialist companies or by the Customer Service. Incompetent repairs may result in risks for the user. In addition, warranty claims become void.
Place the power cable such that no one can stumble over it.

CAUTION - PROPERTY DAMAGE

Do not operate the appliance close to open flames (e.g. candles). The appliance could be irreparably damaged!
- Avoid direct sunlight. The appliance could be irreparably damaged!
This appliance must not be exposed to rain. Protect the appliance against moisture and the penetration of liquids and objects into the housing. Never submerge the appliance in water and do not place objects filled with liquids (such as vases) on the appliance. The appliance could be irreparably damaged!
▶ Operate the appliance only with the supplied power adapter.

Functions

With this TV simulator you can simulate the flicker patterns of a switched-on television and so feign your presence to potential burglars.

For this purpose 4 different settings are available:

ON: the LEDs light up in different colours and combinations.

DUSK+4HRS: the LEDs switch on automatically at dusk and then light up for 4 hours.

DUSK+7HRS: the LEDs switch on automatically at dusk and then light up for 7 hours.

OFF: the appliance is switched off.

Setup

Select a suitable location for setting up the appliance. This location must fulfil the following criteria:

— The TV Simulator may not be directly visible from outdoors.

- The flickering generated by the TV simulator must be visible on the walls and/or ceiling from outdoors.

— A power socket must be easily accessible.

- The TV Simulator must be installed such that it can be influenced by the twilight. This means that the fall of light from outside must be given! It should also be borne in mind that, the closer the appliance is to a wall, the less light the twilight sensor ⑧ will have fallen on it.

- The TV Simulator may not be located near a window which could be well lit from outdoors, such as on a busy street or next to street lights.

- There should be no additional time-controlled light source in the room, e.g. a night light.

Place the appliance on a firm and fl at surface so that it is stable and secure. To help prevent it from tipping over, you can secure the stand ⑤ with the adhesive strips.

CAUTION - PROPERTY DAMAGE

▶ Do not use the adhesive strips to hang the appliance on a wall! The appliance may fall down and be irreparably damaged!
♦ Align the light surface ① so that the flicker is visible on the walls and/or ceiling
Connect the power adapter ② with the appliance by inserting the barrel connector ③ into the plug socket ④ at the rear side of the appliance.
Connect the power adapter ② into a power socket.

NOTE

It is best to check the location and alignment of the appliance in the dark from outdoors and through the window. Only in this way can you assess whether the appliance is aligned so that it appears as if someone is watching television inside. If necessary, realign the appliance.

Wall mounting

RISK OF ELECTRIC SHOCK!

Ensure that there are no power cables or other conduits or pipes in the wall at the location where you intend to bore the holes for the wall holder. It would be a potentially fatal risk to bore into a current carrying electric cable!

Select a suitable mounting location for the appliance:

— The TV Simulator may not be directly visible from outdoors.

- The flickering generated by the TV simulator must be visible on the walls and/or ceiling from outdoors.

— A power socket must be easily accessible.

- The TV Simulator must be installed such that it can be influenced by the twilight. This means that the fall of light from outside must be given! Take note that when wall mounted, the twilight sensor ⑧ is very close to the wall which affects the fall of light.

- The TV Simulator may not be located near a window which could be well lit from outdoors, such as on a busy street or next to street lights.

- There should be no additional time-controlled light source in the room, e.g. a night light.

Remove the stand ⑤ by bending it slightly apart and then pull the restraints out of the mountings.

- Drill two holes with a spacing of about 45 mm. Use the stand to mark the holes: the spacing will thus be measured correctly. The boreholes must be suitable for 8 mm wall plugs.

Insert the supplied plugs into the holes and screw the stand ⑤ firmly down through the holes for wall mounting ⑦ using the supplied screws.

♦ Push the TV Simulator back onto the stand ⑤. Ensure that the two cross-shaped restraints engage correctly with the mountings.

CAUTION - PROPERTY DAMAGE

Before you connect the appliance to the power supply, check to ensure that the required input voltage as given on the type plate tallies with that for the intended power source.
▶ Check to ensure that the cable for the power adapter ② is not damaged and that it does not lead over hot surfaces and/or sharp edges, otherwise it could be damaged.
▶ Ensure that the cable for the power adapter ② is not over-taut or kinked.

Connect the power adapter ② with the appliance by inserting the barrel connector ③ into the plug socket ④ at the rear side of the appliance.
♦ Align the light surface ① so that the flicker is visible on the walls and/or ceiling.
Connect the power adapter ② into a power socket.

NOTE

It is best to check the location and alignment of the appliance in the dark from outdoors and through the window. Only in this way can you assess whether the appliance is aligned so that it appears as if someone is watching television inside. If necessary, realign the appliance.

Operation

When it gets dark early, in the winter months, for example, set switch ⑥ to "DUSK+7HRS". 2 blue LEDs light up immediately. The appliance becomes active at twilight and, for 7 hours, simulates the fl ickering of a television. After 7 hours the appliance switches itself off, except for the 2 blue LEDs.

As soon as it is twilight again, the appliance switches back on for 7 hours.

To switch your appliance off again, you need to slide switch ⑥ to the position "OFF".

NOTE

In case of light fall (> ca. 30 lux) the TV Simulator also switches off before the 7 hours have lapsed.

When it gets dark late, in the summer months, for example, set switch ⑥ to "DUSK+4HRS". A red LED lights up immediately. The appliance becomes active at twilight and, for 4 hours, simulates the fl ickering of a television. After 4 hours the appliance switches itself off, except for the red LED.

As soon as it is twilight again, the appliance switches back on for 4 hours.

To switch your appliance off again, you need to slide switch ⑥ to the position "OFF".

NOTE

In case of light fall (> ca. 30 lux) the TV Simulator also switches off before the 4 hours have lapsed.

Place switch ⑥ at "ON" to have the appliance permanently switched on. To switch your appliance off, you need to slide switch ⑥ to the position "OFF".

NOTE

Neither this TV Simulator, nor any other simulation systems, can guarantee that you will not be burgled. However, the TV Simulator conveys to potential burglars that someone is at home and watching TV.
In every case, we recommend good door locks and anti-burglar aids, such as security doors and windows, as well as an alarm system, to deter burglars from breaking into your home.

GB

Cleaning

CAUTION - PROPERTY DAMAGE

▶ Ensure that, when cleaning it, no moisture can penetrate into the appliance, so as to avoid irreparable damage to it.
▶ Ensure that you remove the power adapter ② from the power socket before cleaning the appliance.

Clean the surfaces of the appliance and the power adapter with a soft, dry cloth.
◆ For stubborn soiling, use a damp cloth and possibly add a mild detergent to it.
◆ Ensure that the appliance and the power adapter ② are completely dry before using them again.

Storage

Should you decide not use the appliance for an extended period, disconnect it from the power supply and store it in a clean and dry location away from direct sunlight. If the appliance is mounted to the wall, disconnect it from the power socket.

Disposal of the appliance

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Please

observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

GB

Appendix

Notes on the EC Declaration of Conformity

This appliance, with regard to conformity with essential requirements and other relevant provisions, complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC, the Directive for Low Voltage Appliances 2006/95/EC, the RoHS Directive 2011/65/EU and the ERP Directive 2009/125/EC. The complete original declaration of conformity can be obtained from the importer.

CE

Warranty

The warranty for this appliance is for 3 years from the date of purchase. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact our Customer Service department by telephone. Only in this way can a post-free despatch for your goods be assured.

NOTE

The warranty applies to material or manufacturing faults only, not for transport damage, parts subject to wear and tear or for damage to fragile parts.

This appliance is intended solely for private domestic use, not for commercial applications. If this product has been subjected to improper or inappropriate handling, abuse, or modifications not carried out by one of our authorised service centres, the warranty will be considered void.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 78527

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

KOMPERNASS GMBH

Burgstraße 21

D-44867 Bochum

www.kompernass.com
