SWKC 3000 D3 - Kettle SILVERCREST - Free user manual and instructions
Find the device manual for free SWKC 3000 D3 SILVERCREST in PDF.
| Product type | Electric kettle |
| Brand | SilverCrest |
| Model | SWKC 3000 D3 |
| Capacity | 0.5 L (min) to 1.7 L (max) |
| Power consumption | 2000-2400 W |
| Supply voltage | 220-240 V ~, 50/60 Hz |
| Dimensions (L x h x d) | 225 x 153 x 255 mm |
| Total weight | 1050 g |
| Cable length | 75 cm |
| Material | Plastic and stainless steel (body and filter) |
| Main functions | Automatic shut-off at boiling, 360° rotating base, water level indicator, operation light, removable anti-limescale filter, integrated cord storage |
| Safety | Overheat protection, automatic shut-off, lockable lid, insulated handle |
| Maintenance and cleaning | Regular descaling recommended, cleaning of anti-limescale filter, exterior cleaning with a damp cloth |
| Warranty | 3 years |
| Included accessories | Base, instruction manual |
| Protection class | I |
| Standards | Compliant with EC directives |
Frequently Asked Questions - SWKC 3000 D3 SILVERCREST
User questions about SWKC 3000 D3 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual SWKC 3000 D3 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SWKC 3000 D3 by SILVERCREST.
USER MANUAL SWKC 3000 D3 SILVERCREST
Operating instructions and safety instructions
(N) (BE)
WATERKOKER
English....20
Français....37
Nederlands 58
Polski....76
Česky 94
Slovenčina 111
Inhaltsverzeichnis
Close-up of a mechanical component with a lid and internal structure, labeled with number 9 (no text or symbols on the object itself)natural_image
Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)https://www.targa.gmbh/downloads/conformity/331548_1907.pdf
- Intended use.... 21
- Package contents 22
- Technical data 23
- Safety instructions.... 23
- Copyright 28
- Before initial use.... 29
- Initial use.... 29
7.1 Boiling the water 29 - Maintenance/cleaning.... 31
8.1 Descaling the kettle (8)....32
8.2 Cleaning the limescale filter (9) 32
8.3 Storing the device when not in use 32 - Troubleshooting 33
- Environmental and waste disposal information.... 34
- Marks of conformity 34
- Warranty information 35

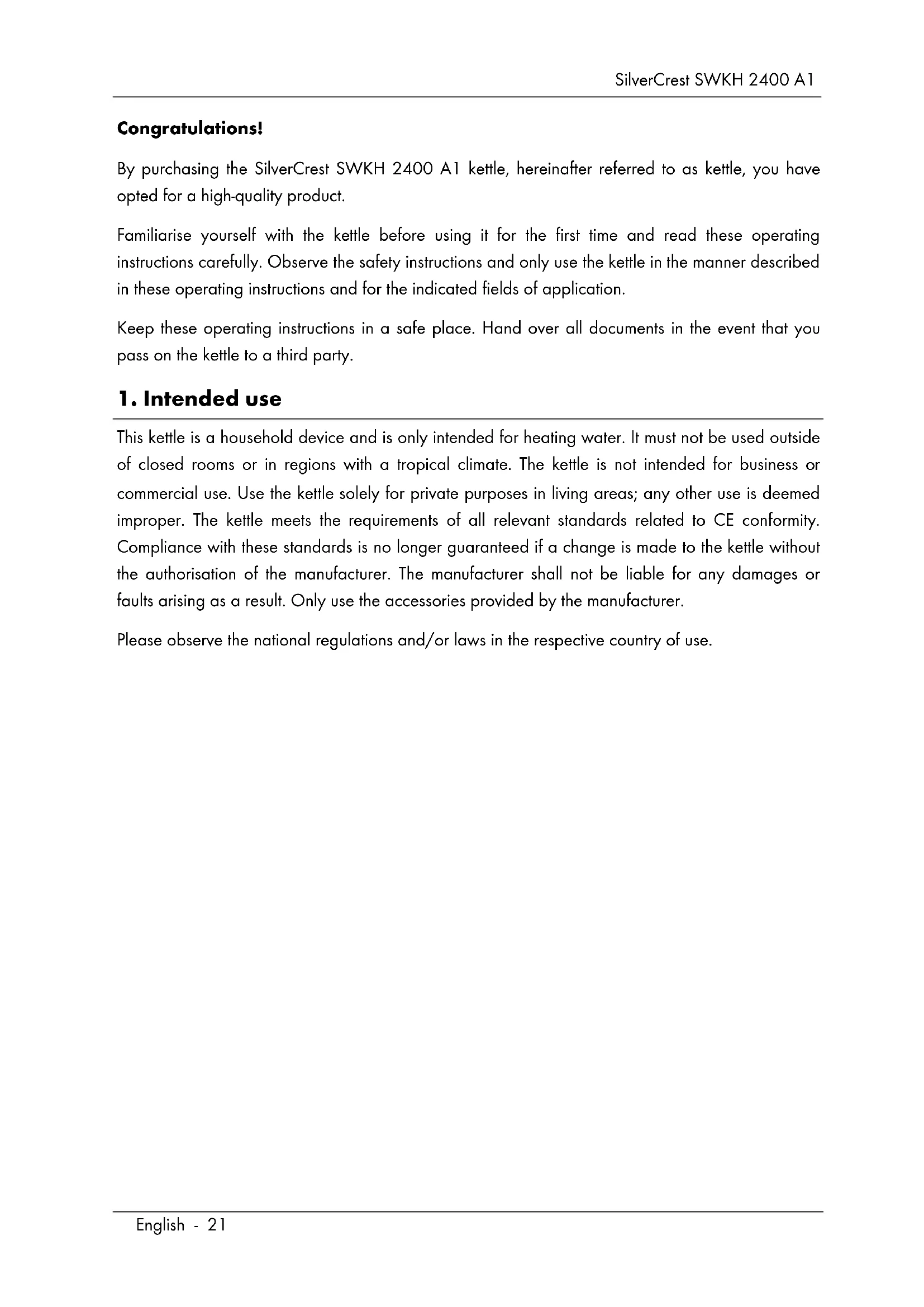

Congratulations!
By purchasing the SilverCrest SWKH 2400 A1 kettle, hereinafter referred to as kettle, you have opted for a high-quality product.
Familiarise yourself with the kettle before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the kettle in the manner described in these operating instructions and for the indicated fields of application.
Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the kettle to a third party.
1. Intended use
This kettle is a household device and is only intended for heating water. It must not be used outside of closed rooms or in regions with a tropical climate. The kettle is not intended for business or commercial use. Use the kettle solely for private purposes in living areas; any other use is deemed improper. The kettle meets the requirements of all relevant standards related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the kettle without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories provided by the manufacturer.
Please observe the national regulations and/or laws in the respective country of use.
2. Package contents
Unpack the kettle (8) and all accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.
• SilverCrest SWKH 2400 A1 kettle
- Base
• These operating instructions
These operating instructions also have a cover that can be unfolded. The inside of the cover provides a numbered schematic of the SilverCrest SWKH 2400 A1 kettle and all controls. This cover page can remain unfolded while you read other sections of the operating instructions. This provides you with a reference to the controls at all times. The numbers identify the following parts/functions:
| 1 | Lid |
| 2 Lid release button | |
| 3 | Handle |
| 4 Water level gauge | |
| 5 | ON/OFF switch |
| 6 | Power cable |
| 7 Base (with integrated cable rewind) | |
| 8 | Kettle |
| 9 | Limescale filter |
3. Technical data
| Manufacturer TARGA GmbH | |
| Designation SilverCrest SWK | H 2400 A1 |
| Power supply | 220-240 V~, 50/60 Hz |
| Power consumption 2,000-2,400 W | |
| Length of power cable (6) 75 cm | |
| Capacity 0.5 (minimum) to 1.7 (maximum) litres | |
| Display indicators | Status display in ON/OFF switch (5) when the kettle (8) is switched on |
| Protection class | I |
| Dimensions (H x W x D) approx. 225 x 153 x 255 mm (overall) | |
| Weight approx. 1,050 g (overall) | |
The specifications and design are subject to change without notice.
4. Safety instructions
Before using the device for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic and household devices. Keep these operating instructions in a safe place for future reference. If you give the device away or sell it, please ensure that you also pass on this manual. They are part of the device.
Explanation of symbols used
DANGER! This icon, together with the word 'Danger', indicates an impending dangerous situation that, if not prevented, can lead to serious injuries or even death.
WARNING! This icon indicates important information for the safe operation of the kettle and user safety.
DANGER! This icon indicates impending danger to health due to an electric shock, which may result in a risk of death and/or damage to property.
DANGER! This icon indicates health hazards due to burns.
This icon indicates that under no circumstances may the kettle (8) and the base (7) be immersed in water.
A high-quality controller from the company Otter is installed in this kettle.
This icon indicates products that have been tested in relation to their physical and chemical composition and that in accordance with EC 1935/2004 have been regarded as harmless to health in terms of contact with foodstuffs.
This icon indicates that further information on the topic is available.
Foreseeable misuse
- Only heat the kettle (8) with the base (7) developed for this purpose. Do not under any circumstances place it on a hob to heat it and do not use the base of any other kettle.
- Do not use the kettle (8) for other liquids; only use it for drinking water.
- Always use fresh drinking water. Do not drink water that has been in the kettle (8) for longer than an hour. Do not reheat water that has cooled down. Always pour away old water. Otherwise germs may form.
The kettle should not be operated with an external timer or a separate remote control system.
Personal safety
- This device may be used by children aged eight and over and by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, provided that they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.
• Children must not play with the device.
- Cleaning and maintenance by the user may not be performed by children, unless they are over eight years of age and supervised.
- Children under eight years of age are to be kept away from the device and the power cable (6).
DANGER! The packaging material is not a toy. Children must not play with the plastic bags. There is a risk of suffocation.
Store the appliance out of reach of children.
General safety instructions
Risk of injury
- Only use the kettle as intended. Misuse of the device can lead to injuries.
DANGER of burn injuries
- Never touch the housing of the kettle (8) during and immediately after operation. Only use the handle (3) to hold or carry the kettle (8). - Hot steam is released when the water boils. Make sure not to burn yourself. Wear an oven glove, if necessary. Turn kettle (8) so that the steam is directed away from you.
- Only clean the kettle (8) once it has cooled down completely.
- Fill the kettle (8) with a maximum of 1.7 litres of water. Refer to the water level gauge (4). If you pour in too much water, it can boil over and cause burn injuries and damage to property.
- Only boil the water with the lid (1) closed. Otherwise water can escape and cause burn injuries and damage to property.
- Do not open the lid (1) while the water is being heated.
- The surface of the heating element is still hot after use.
WARNING of damage to property
- Only use the kettle (8) with the corresponding base (7).
- Do not put any objects on the base (7).
- Only operate the kettle on a flat, stable and fire-proof surface. If the kettle is not placed on a level surface, it can tip over due to the movement of the boiling water and cause damage to property and under certain circumstances may also cause burn injuries.
- Never leave the kettle unattended when in use.
- Unplug the plug from the socket when the kettle is unattended.
DANGER of electric shock
- If the connecting cable of this device is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to prevent any hazards.
- Never open the housing of the base (7), as this does not contain any parts to be maintained. If the housing is open, there is a risk of electric shock.
- If you notice any smoke, unusual noises or smells, switch off the kettle immediately and remove the plug from the socket. If this happens, you must stop using the kettle until it has been checked by a specialist. Do not inhale smoke possibly caused by a burning device. If you have inhaled smoke, consult a physician. Inhaling smoke can be harmful to your health.
- Ensure that the power cable (6) cannot be damaged by sharp edges or hot surfaces. Always wrap the power cable (6) around the cable rewind under the base (7) after use.
- Ensure that the power cable (6) is not jammed or squashed.
- The device must always be disconnected from the mains if left unattended, prior to assembly and disassembly or cleaning.
- Never remove the plug from the socket by pulling the power cable (6); only ever pull the plug.
- If you find visible damage on the kettle or the power cable (6), switch off the kettle immediately, remove the plug from the socket and contact the service department (see 'Warranty information' section).
- Only plug the base (7) into a power socket that is properly installed and easily accessible and whose mains voltage corresponds with the rating plate specifications. Following connection, the power socket must continue to be easily accessible so that the plug can be quickly removed in an emergency.
- Do not spill liquid onto the device plug connection.
- Never immerse the base (7) in water or any other liquid. If liquid enters into the base (7), remove the plug from socket and contact the service department (see 'Warranty information' section).
DANGER of fire
- Fill the kettle (8) with a minimum of 0.5 litres of water. If you do not pour in enough water, there is a risk of fire overheating.
- Keep the kettle at least 50 cm away from flammable and combustible materials. There is a risk of fire.
5. Copyright
All contents of these operating instructions are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.
6. Before initial use
Remove the SWKH 2400 A1 kettle and all accessories from the packaging and check the completeness of the delivery. Remove the protective film. Keep the packaging material away from children and dispose of it in an environmentally-friendly manner.
7. Initial use
Before you prepare water for consumption for the first time, you must first clean the kettle (8) in order to remove dust and any remnants of the packaging material. Proceed as follows to clean the kettle:
- Open the lid (1) by pressing the lid release button (2) and rinse the kettle (8) with clear water.
- Fill the kettle (8) with drinking water up to the '1.7 | MAX' mark.
- Close the lid (1) by pressing it down until it snaps into place. Boil the water once (see 'Boiling the water' section below) and pour it out.
Repeat steps 1-3. The kettle (8) is now clean and disinfected. You can now use the kettle (8).
7.1 Boiling the water
Keep the base (7) away from water. There is danger of electric shock.
WARNING
Boil the water and pour it away twice before you use the kettle for the first time (see the previous section on 'Initial use').
WARNING
Always use fresh drinking water. Do not drink water that has been in the kettle (8) for longer than an hour. Do not reheat water that has cooled down. Always pour away old water. Otherwise germs may form.

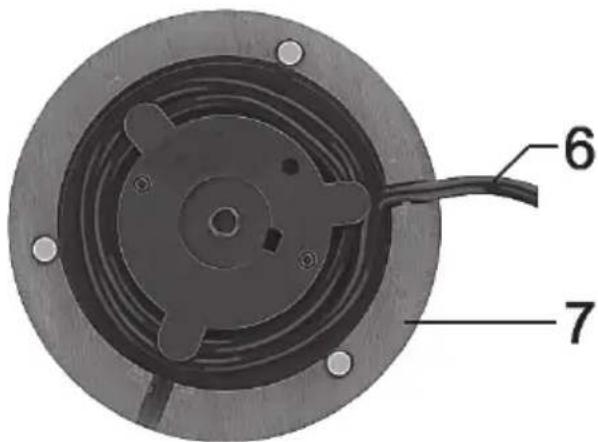

Cable rewind
An integrated cable rewind is located on the underside of the base (7). You can adapt the length of the power cable (6) to the conditions at the location in which you are using the kettle.
You can minimise the length of the cable when you are not using the kettle.
- Place the base (7) on a flat, non-slip and dry surface. Make sure that the power cable (6) passes through one of the openings on the underside of the base (7). This is to ensure that the kettle is positioned securely.
WARNING
If the power cable (6) does not pass through one of the openings on the underside of the base (7), the base (7) and kettle (8) are not positioned securely. The movement of the boiling water can make the kettle tip over and cause serious damage to property and cause injuries!
- Open the lid (1) by pressing the lid release button (2).

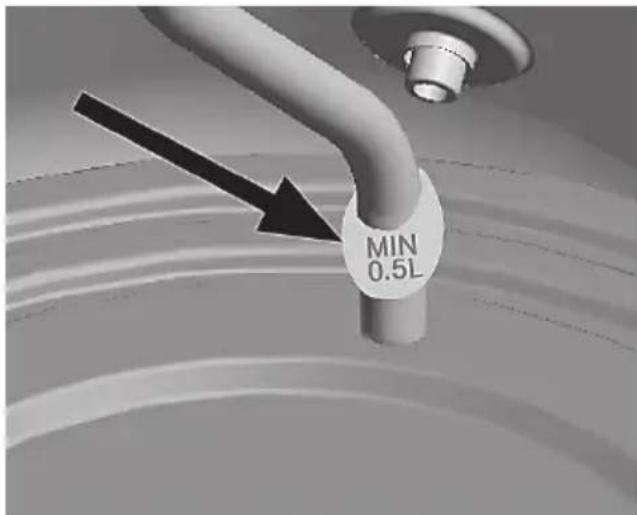

'Minimum filling' display
The minimum amount of water to be filled is 0.5 l. This small amount can not be displayed on the external water level gauge (4).
For this reason, there is a special mark inside the kettle (8) that precisely displays the minimum filling amount when you are filling in water. This mark can be seen inside the kettle (8) when the lid (1) is open.
You can freely rotate the kettle (8) by 360^ around its vertical axis when you place it on the base (7). The kettle does not need to be locked into a particular position. This way, you can turn the kettle (8) so that the water level gauge (4) is easy to see or to direct the steam from the kettle (8) away from you.
- Plug the connector into a power socket, which is always easily accessible.
- Place the kettle (8) on the base (7) and press the ON/OFF switch (5) down in order to switch on the kettle (8). The status display in the ON/OFF switch (5) lights up. The kettle (8) makes noise during the heating process. This is not due to a malfunction.
DANGER of burn injuries
Turn the kettle (8) so that the steam is directed away from you. Otherwise you could burn yourself.
Only boil water with the closed lid (1) on. Otherwise the kettle (8) can tip over and cause burn injuries and damage to property.
- As soon as the water boils, the kettle (8) switches off. The ON/OFF switch (5) automatically returns to the upper position and the status display in the ON/OFF switch (5) goes out.
- Pull out the power cable (6) plug from the socket, remove the kettle (8) from the base (7) and pour out the water.
DANGER of burn injuries
Never touch the housing of the kettle (8) during and immediately after operation. Only use the handle (3) to hold or carry the kettle (8).
Hot steam is released when the water boils. Make sure not to burn yourself. Wear an oven glove, if necessary. Turn the kettle (8) so that the steam is directed away from you.
DANGER of burn injuries
Always make sure that the lid (1) is shut when pouring out the water. Hot water could otherwise flow out of the opening at the top used to fill the kettle (8).
8. Maintenance/cleaning
DANGER of burn injuries
Wait until the kettle (8) has cooled down completely before cleaning it. Otherwise you could burn yourself.
DANGER of electric shock
Always remove the plug from the power socket before cleaning commences. Otherwise, there is a risk of electric shock.
Do not pour or spray any liquids onto the base (7) or immerse it into water or any other liquids. Otherwise, there is a risk of electric shock and a fire hazard due to short circuits.
WARNING of damage to property
Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scourer) for cleaning purposes. Otherwise the kettle (8) may be damaged.
- Rinse the inside of the kettle (8) with clear water.
- Clean the outer surfaces of the kettle (8) or base (7) with a slightly damp cloth. Use some washing up-liquid on the damp cloth for stubborn stains. Make sure to remove any detergent residue from the kettle (8) and base (7) before using the kettle (8) again. Dry the kettle (8) and base (7) thoroughly before the next use.
You can use a cleaning or bottle brush with a long handle to remove stubborn stains from inside the kettle (8).
8.1 Descaling the kettle (8)
Limescale may build up in the kettle (8) over time. This can lead to loss of energy and shorten the kettles's (8) service life. You should therefore remove the limescale as soon as it becomes visible.
- Use a descaling agent that is used for coffee machines and other household devices. Proceed as described in the instructions for the descaling agent.
- Rinse the kettle (8) with plenty of clear water several times after descaling it.

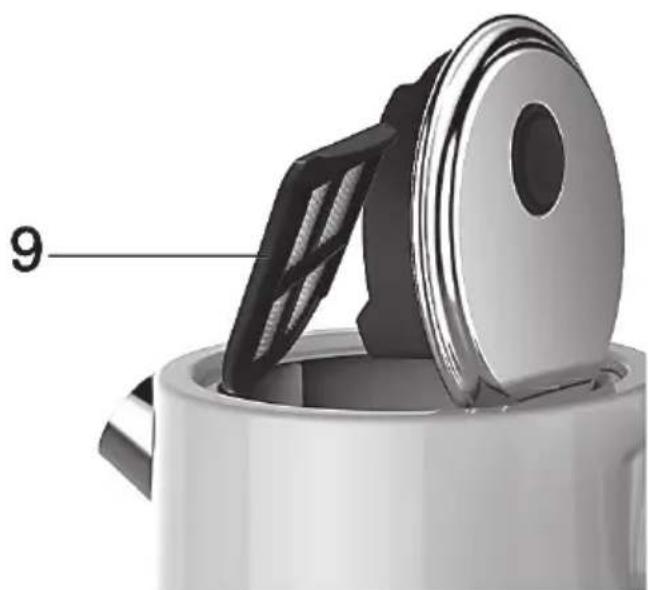

8.2 Cleaning the limescale filter (9)
A limescale filter (9) is installed in the kettle (8). You should clean the limescale filter from time to time. Proceed as follows to clean the limescale filter (9):
- Remove the cooled down kettle (8) from the base (7).
-
Open the lid (1) by pressing the lid release button (2).
-
Reach carefully into the kettle (8) with your hand, grasp the upper end of the limescale filter (9), and pull it up and out of the holder. Please note that the holder can not be removed.
- Place the limescale filter (9) in a warm descaling solution for household appliances (such as for coffee machines) for several hours and then rinse it thoroughly with clear water.
- Replace the limescale filter (9) by sliding it from above into the side guides of the holder.
- Close the lid (1) by pressing it down until it snaps into place.
If the kettle will not be used for a longer period of time, store it in a clean and dry place.
- Let the kettle (8) cool down fully before you store it.
- Wrap the power cable (6) around the cable rewind under the base (7) and store the kettle in a safe, dust-free place.
9. Troubleshooting
If your kettle does not work as usual, use the following instructions to try and solve the problem. If working through the following tips does not eliminate the fault, please contact our hotline (see the 'Warranty information' section).
The kettle is not working
• The plug is not inserted. Insert the plug into the power socket.
- The power socket is faulty. Try the appliance in another power socket which definitely works.
- The kettle (8) is not switched on. Press the ON/OFF switch (5) down in order to switch on the kettle (8).
- The kettle (8) has overheated and the overheating protection is preventing the device from switching on. Wait until the kettle (8) has cooled down completely. Fill the kettle (8) with at least 0.5 litres of drinking water up to '0.5 I MIN' mark.
The ON/OFF switch (5) does not engage when switched on
- The kettle (8) is not properly placed on the base (7). Place the kettle (8) properly onto the base (7).
10. Environmental and waste disposal information
Make sure the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally-friendly manner.
Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following:
1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.
11. Marks of conformity
The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.
This product fulfils the requirements specified in the applicable national policies for the Republic of Serbia.
The complete EU Declaration of Conformity is available for download from this link: https://www.targa.gmbh/downloads/conformity/331548_1907.pdf
12. Warranty information
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
Service
Phone: 0800 404 7657
E-Mail: targa@lidl.co.uk
Phone: 1890 930 034
E-Mail: targa@lidl.ie
Phone: 800 62230
E-Mail: targa@lidl.com.mt
Phone: 8009 4409
E-Mail: targa@lidl.com.cy
IAN: 331548_1907
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA
GmbH
Coesterweg 45
59494 Soest
GERMANY
Table des matières
Symbol of a trash bin crossed with no visible text or labelshttps://www.targa.gmbh/downloads/conformity/331548_1907.pdf
12. Informations concernant la garantie
Garantie de TARGA GmbH
Cher client, chère cliente,
Cher client, chère cliente,
Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)https://www.targa.gmbh/downloads/conformity/331548_1907.pdf
12. Garantiebepalingen
3D rendering of a mechanical component with a numbered label '9' pointing to a slot (no text or symbols on the object itself)natural_image
Symbol of a trash bin crossed with no visible text or labelshttps://www.targa.gmbh/downloads/conformity/331548_1907.pdf
12. Gwarancja
Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)https://www.targa.gmbh/downloads/conformity/331548_1907.pdf

