USER MANUAL Adora WHDVH626FGG GE
Operating Instructions
Control Panels 4-6
Control Settings 7
Fabric Care Labels 13
Features. 8-10
Loading and Using the Washer .11, 12
Installation Instructions 14-19

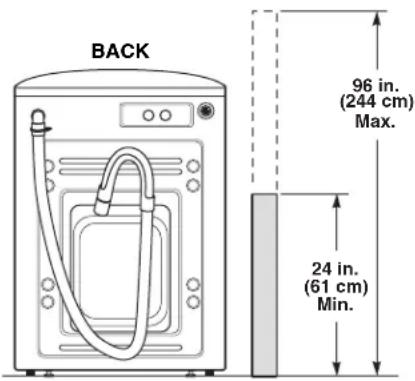

Drain Requirements 17
Electrical Requirements. 17
Installing the Washer 18, 19
Location of Your Washer 15
Preparing to Install Your Washer .14
Replacement Parts 19

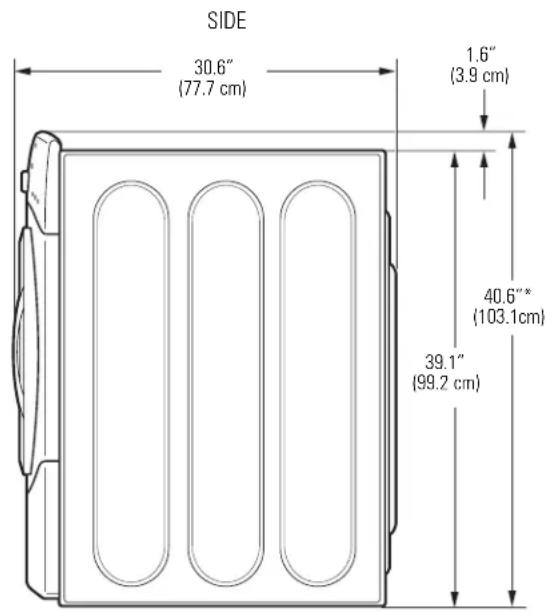

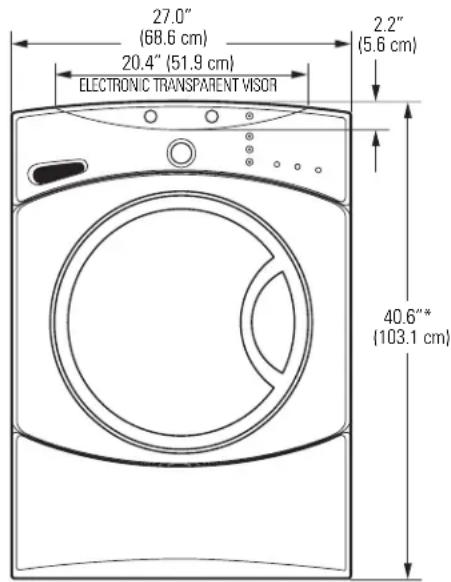

Rough-In Dimensions. 15
Unpacking Your Washer 16
Water Supply Requirements 17
Troubleshooting Tips 20-22
Consumer Support
Service Telephone Numbers . Back Cover
Warranty (Canada) 24
Warranty (U.S.) 23
As an ENERGY STAR® partner,
GE has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
Write the model and serial
numbers here:
Model#
Serial#
You can find them on a label on the side of the washer.
Owner's Manual & Installation Instructions
GBVH5140 WCVH6260
GCVH6260 WCVH6600
GCVH6600 WHDVH626
GHDVH626 WHDVH660
GHDVH670 WCVH6400
WBVH5100 WBVH5200
WBVH6240
Laveuses
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.
The instructions in this manual and all other literature included with this washer are not meant to cover every possible condition and situation that may occur. Good, safe practices and caution MUST be applied when installing, operating and maintaining any appliance.
WATER HEATER SAFETY
Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.
PROPER INSTALLATION
This washer must be properly installed and located in accordance with the Installation Instructions before it is used.
Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty.
Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.
YOUR LAUNDRY AREA
-
Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags and chemicals.
Do not leave the washer door open. An open door could entice children to hang on the door or crawl inside the washer.
-
Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.
Use this appliance only for its intended purpose as described in this Owner's Manual.
WHEN USING THE WASHER
- Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the door.
- Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.
-
Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.
To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the building's distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing the power button does NOT disconnect the appliance from the power supply.
-
Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
■Do not slam the washer door closed. Do not try to force the door open when locked (LOCKED indicator ON). This could result in damage to the washer.
The washer is equipped with an electrical overload protector. The motor will stop if it becomes overheated. The washer will automatically restart after a cool-down period of up to 2 hours, if the washer has not been manually turned off during this time.
WHEN NOT IN USE
Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they should be replaced every 5 years.
Before discarding a washer, or removing it from service, remove the washer door to prevent children from hiding inside.
■Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.
■Do not tamper with controls.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

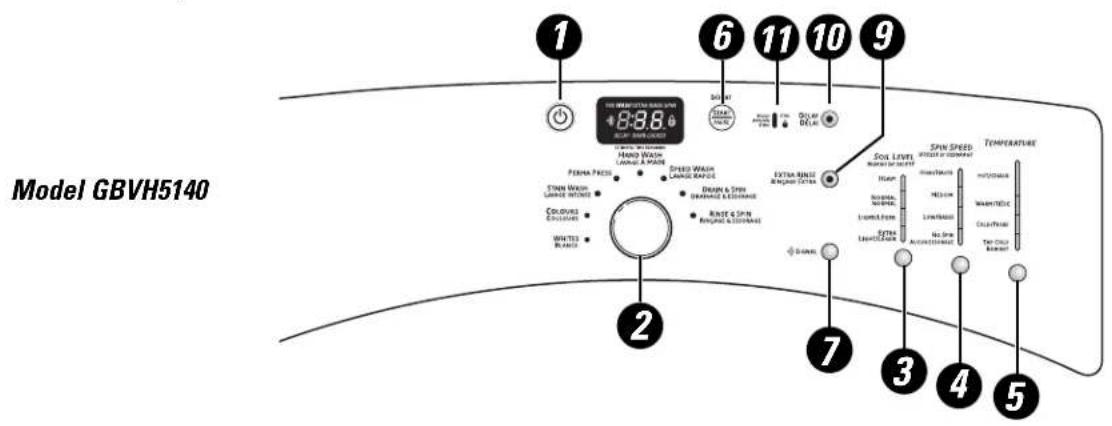

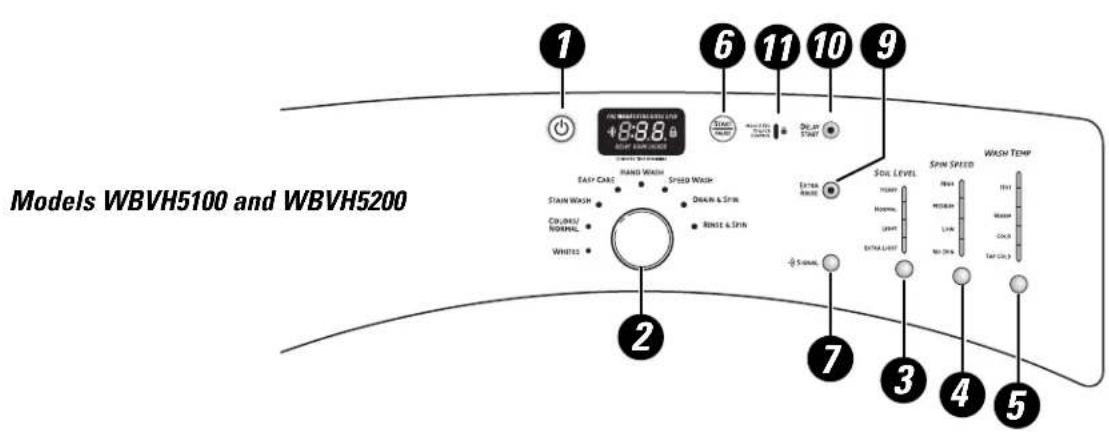

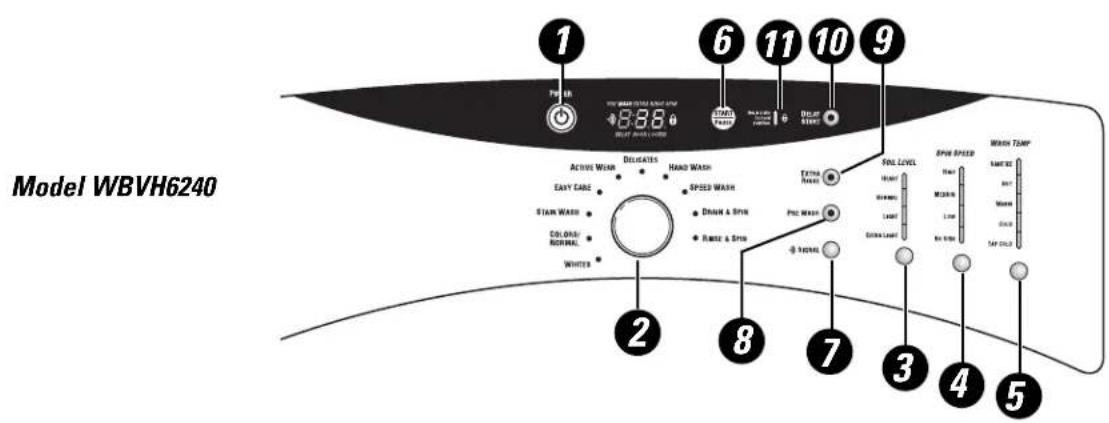

About the washer control panel.
You can locate your model number on a label on the side of the washer.
Power
Press to "wake up" the display. If the display is active, press to put the washer into standby mode.
NOTE: Pressing POWER does not disconnect the appliance from the power supply.
Power
Press to "wake up" the display. If the display is active, press to put the washer into standby mode.
NOTE: Pressing POWER does not disconnect the appliance from the power supply.

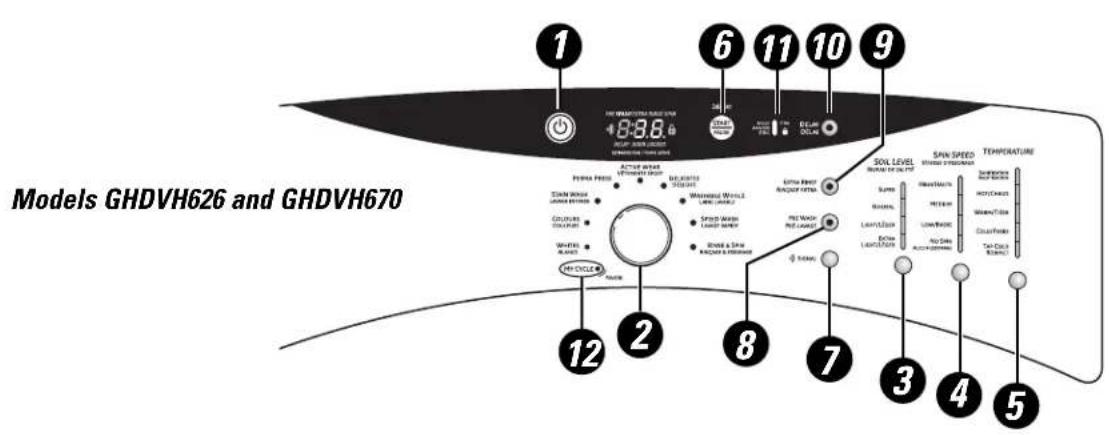

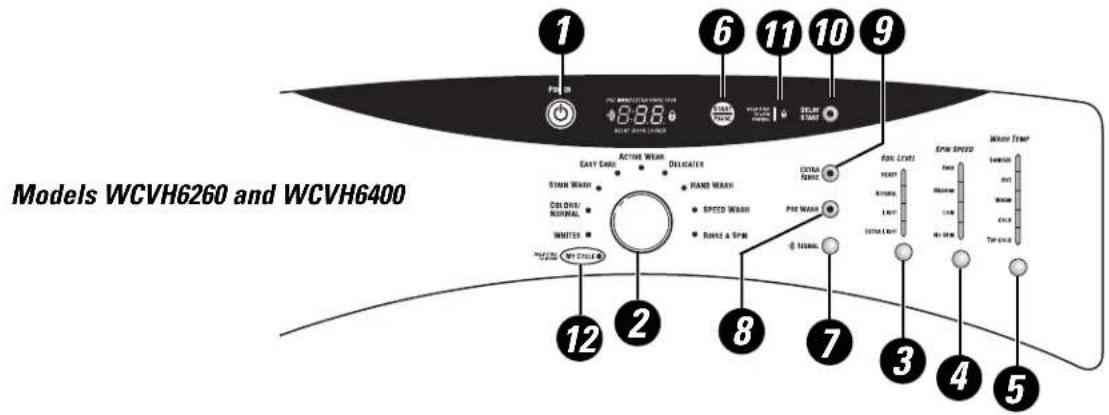

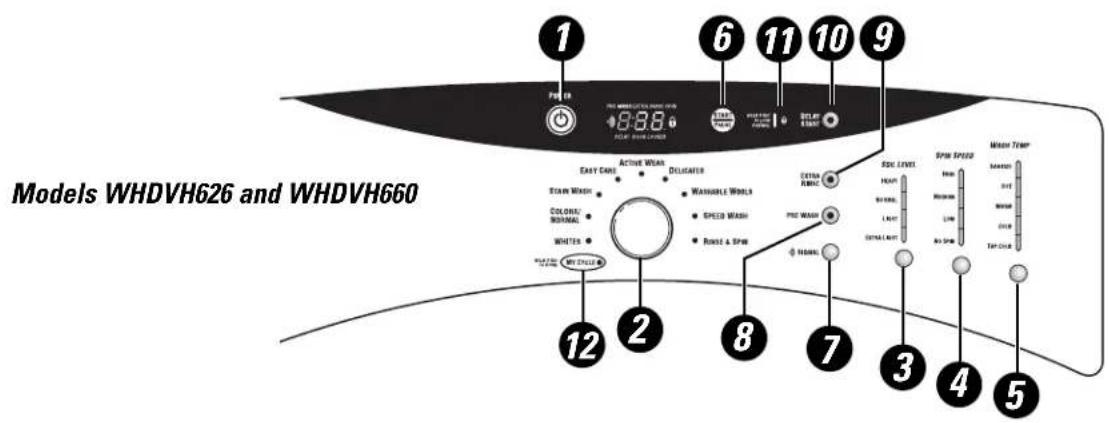

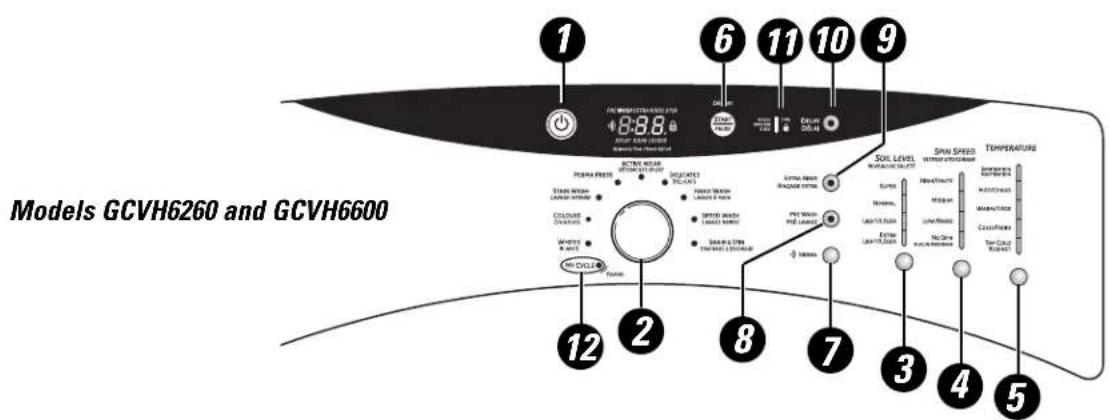

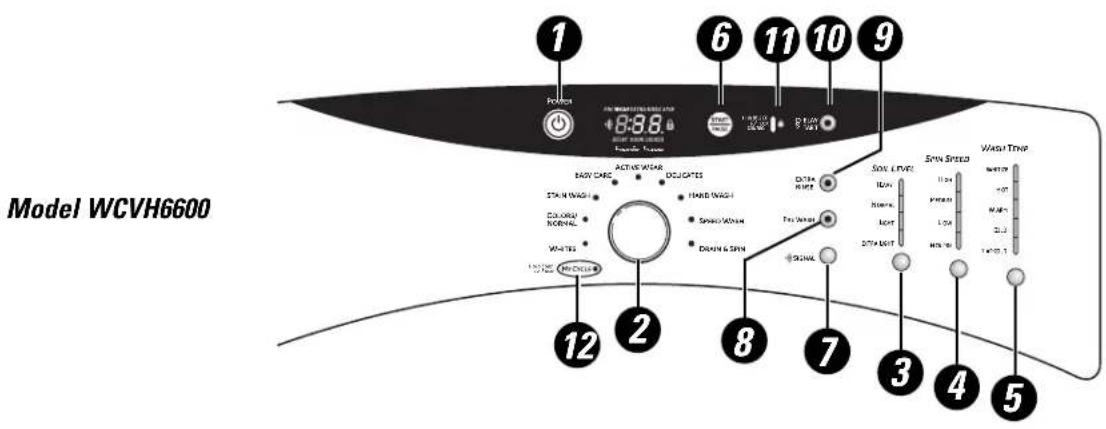

About the washer control panel.
You can locate your model number on a label on the side of the washer.
Power
Press to "wake up" the display. If the display is active, press to put the washer into standby mode.
NOTE: Pressing POWER does not disconnect the appliance from the power supply.
2 Wash Cycles The wash cycle
The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting with the loads. The GentleClean lifters lightly tumble the clothes into the water and detergent solution to clean the load.
| WHITES | For heavily to lightly soiled white cottons, household linens, work and play clothes. |
| COLORS/NORMAL | For heavy to lightly soiled colorfast cottons, household linens, work and play clothes. |
| STAIN WASH | For heavy soiled colorfast cottons, household linens, work and play clothes. |
| EASY CARE (PERMA PRESS) | For wrinkle-free and permanent press items. |
| ACTIVE WEAR | For active sports, exercise and some casual wear clothes. Fabrics include modern technology finishes and fibers such as spandex, stretch and micro-fibers. |
| DELICATES | For lingerie and special-care fabrics with light to normal soil. Provides gentle tumbling and soak during wash and rinse. |
| HANDWASH | For items labeled hand-washable with light soils. Provides gentle rocking to mimic the handwashing action. |
| WASHABLE WOOLS | For the washing of machine washable wool products, provided that they are washed according to the instructions on the garment label. When selecting this cycle, you must use a detergent suitable for washing wool. |
| MY CYCLE | Press to use, create or modify custom wash cycles. |
| SPEED WASH | For lightly soiled items that are needed in a hurry. Cycle time is approximately 30 minutes, depending on selected options. |
| DRAIN & SPIN | Drain and spin at any time. |
| RINSE & SPIN | To quickly rinse out any items at any time. |
Soil Level
Changing the SOIL LEVEL increases or decreases the wash time to remove different amounts of soil. To change the SOIL LEVEL, press the SOIL LEVEL button until you have reached the desired setting. You can choose between Extra Light, Light, Normal or Heavy soil.
4 Spin Speed
Changing the SPIN SPEED changes the final spin speed of the cycles. Always follow the fabric manufacturer's care label when changing the SPIN SPEED.
To change the SPIN SPEED, press the SPIN SPEED button until you have reached the desired setting. Higher spin speeds are not available on certain cycles, such as Delicates.
Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the possibility of setting wrinkles on some fabrics.
5 Wash Temp Adjust to sele
Adjust to select the proper water temperature for the wash cycle. The prewash and rinse water is always cold to help reduce energy usage and reduce setting of stains and wrinkles.
Follow the fabric manufacturer's care label when selecting the wash temperature.
To change the wash temperature, press the WASH TEMP button until you have reached the desired setting. The Sanitized wash temperature is not available on certain cycles, such as Delicates.
When selecting the Sanitize wash temperature, the washer increases the water temperature to sanitize and kill more than 99% of many common bacteria found in home laundry. The sanitize wash temperature is only available on Stain Wash and Whites Wash cycles. For best results, select the heavy soil setting when using the Sanitize wash temperature setting.
NOTE: The first 10 seconds of the wash fill is always cold. This feature assists in conditioning the fabric and preventing stains from setting on garments.
START/PAUSE
Press to start a wash cycle. If the washer is running, pressing it once will pause the washer and unlock the door. Press again to restart the wash cycle.
NOTE: If the washer is paused and the cycle is not restarted within 2 hours, the current wash cycle will be cancelled.
NOTE: The washer performs automatic system checks after pressing the START button. Water will flow in 45 seconds or less. You may hear the door lock and unlock before water flows; this is normal.
About the washer features.
NOTE: Features may not be available on all washer models.
| 7 | Cycles Signal
Signal | Use the SIGNAL button to change the volume of the end of cycle signal. | Press the button until you reach the desired volume. |
| 8 | Prewash (on some models)
PRE WASH | Prewash is an extra wash before the main wash. Use it for heavily soiled clothes or for clothes with a care label that recommends prewashing before washing. Be sure to add high-efficiency detergent, or the proper wash additive to the prewash dispenser. | NOTE: When selecting prewash, it is recommended to use powder detergent in the main wash (detergent) compartment. |
| 9 | Extra Rinse
RINSE | Extra Rinse
Use an extra rinse when additional rinsing is desired to remove excess dirt and detergent from soiled loads. | |
| 10 | Delay Start
DELAY START | You can delay the start of a wash cycle for up to 18 hours on models GHDVH626, GCVI16260, WCVI16260, WBVII16240, WHDVH1626, WCVI16600, WHDVH1660, GCVH6600 and GHDVH670, and for up to 10 hours on models WBVH5100 and GBVH5140. Press the DELAY START button to choose the number of hours you want to delay the start of the cycle, then press the START button. The | machine will count down and start automatically at the correct time.
NOTE: If you forget to fully close the door, a reminder signal will beep reminding you to do so.
NOTE: If you open the door when the delay is counting down, the machine will enter the pause state. You must close the door and press START again in order to restart the countdown. |
| 11 | Lock
HOLD 3 SEC TO LOCK CONTROL | You can lock the controls to prevent any selections from being made. Or you can lock the controls after you have started a cycle.
Children cannot accidentally start the washer by touching pads with this option selected. | To lock the washer, press and hold the lock button for 3 seconds. To unlock the washer controls, press and hold the lock button for 3 seconds.
The control lock icon on the display will light up when it is on.
NOTE: The POWER button can still be used when the machine is locked. |
| 12 | MY CYCLE (on some models)
HOLD 3 SEC TO STORE MY CYCLE | To save a favorite cycle, set the desired settings for wash cycle, soil level, spin speed and wash temp settings and hold down the MY CYCLE button for 3 seconds. A beep will sound to indicate the cycle has been saved.
To use your custom cycle, press the MY CYCLE button before washing a load. | NOTE: When using MY CYCLE, wash options cannot be modified after the cycle has been started.
NOTE: If you change wash options with MY CYCLE before starting the cycle, the MY CYCLE light will turn off and you will be returned to the base cycle. |
| 8 | To change the saved cycle, set the desired settings and hold down the MY CYCLE button for 3 seconds. | | |
The Dispenser Printer
Slowly open the dispenser drawer by pulling it out until it stops.
After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent.
You may see water in the bleach and fabric softener compartments at the end of the cycle. This is a result of the flushing/siphoning action and is part of the normal operation of the washer.
The Prewash Compartment
Only use the Prewash Compartment if you are selecting the Prewash cycle for heavily soiled clothes. Add measured detergent or prewash additive to the back left prewash compartment of the dispenser drawer.
Detergent or prewash additive is flushed from the dispenser in the prewash cycle (if selected).
NOTE: Liquid detergent will drain into the washer drum as it is added.
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to over suding and detergent residue being left on the clothes.
The Detergent Compartment
High efficiency detergent is required for this washer. Use the detergent manufacturer's recommended amount.
The detergent selection insert must be placed in the detergent compartment in a specific position according to what type of detergent you are using.
Move the insert by pulling it up and replace it by sliding it down between either the rear or front detergent compartment molded rails, as desired, for powder or liquid detergent.
Powder Detergent- Place the insert in the rear position. The Powder Icons must line up on center when the insert is in the powder position.
Add measured detergent to the front left detergent compartment of the dispenser drawer.
Liquid Detergent- Place the insert in the forward position. The Liquid Icons must line up on center when the insert is in the liquid position.
Detergent is flushed from the dispenser at the beginning of the wash cycle. Either powdered or liquid detergent can be used.
Insert in rear position for powder detergent
Insert in forward position for liquid detergent
The Liquid Bleach Compartment
If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml) and pour into the center compartment labeled "LIQUID BLEACH" marked with this symbol
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to oversudsing and detergent residue being left on the clothes.
The Fabric Softener Compartment
If desired, pour the recommended amount of liquid fabric softener into the compartment labeled "FABRIC SOFTENER."
Use only liquid fabric softener in the dispenser.
Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.
NOTE: Do not use powdered bleach in the dispenser.
Dilute with water to the maximum fill line.
Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash load.
About the washer features.
For models WBVH5100, WBVH5200 and GBVH5140
The Dispenser Printer
Slowly open the dispenser drawer by pulling it out until it stops.
After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent.
You may see water in the bleach and fabric softener compartments at the end of the cycle. This is a result of the flushing/siphoning action and is part of the normal operation of the washer.
Insert in rear position for powder detergent
Insert in forward position for liquid detergent
The Detergent Compartment
High efficiency detergent is required for this washer. Use the detergent manufacturer's recommended amount.
The detergent selection insert must be placed in the detergent compartment in a specific position according to what type of detergent you are using.
Powder Detergent- Place the insert in the rear position. The Powder Icons must line up on center when the insert is in the powder position.
Liquid Detergent- Place the insert in the forward position. The Liquid Icons must line up on center when the insert is in the liquid position.
Move the insert by pulling it up and replace it by sliding it down between either the rear or front detergent compartment molded rails, as desired, for powder or liquid detergent.
Add measured detergent to the front left detergent compartment of the dispenser drawer.
Detergent is flushed from the dispenser at the beginning of the wash cycle. Either powdered or liquid detergent can be used.
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to oversudsing and detergent residue being left on the clothes.
The Liquid Bleach Compartment
If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml) and pour into the compartment labeled "LIQUID BLEACH" marked with this symbol.
Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.
NOTE: Do not use powdered bleach in the dispenser.
The Fabric Softener Compartment
If desired, pour the recommended amount of liquid fabric softener into the compartment labeled "FABRIC SOFTENER."
Use only liquid fabric softener in the dispenser.
Dilute with water to the maximum fill line.
Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash load.
Loading and using the washer.
Always follow fabric manufacturer's care label when laundering. ge.com
Sorting Wash Loads
Sort laundry into loads that can be washed together.
| Colors | Soil | Fabric | Lint |
| Whites | Heavy | Delicates | Lint Producers |
| Lights | Normal | Easy Care | Lint Collectors |
| Darks | Light | Sturdy Cottons | |
Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.
Washing single items is not recommended. This may cause an out-of-balance load. Add one or two similar items.
■ Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load.
Loading the Washer
Wash drum may be fully loaded with loosely added items. Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
To add items after washer has started, press START/PAUSE and wait until the door is unlatched. The washer may take up to 30 seconds to unlock the door after pressing START/PAUSE depending on the machine conditions. Do not try to force open the door when it is locked. After the door unlocks, open gently. Add items, close the door and press START/PAUSE to restart.
Care and Cleaning
Exterior: Immediately wipe off any spills. Wipe with damp cloth. Do not hit surface with sharp objects.
Interior: Dry around the washer door opening, flexible gasket (including attached hoses) and door glass. These areas should always be clean to ensure a water tight seal.
It is recommended to rinse the washer at least once per year with 1/3 cup of bleach (no clothes), using any of the wash cycles.
Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by using the shipping bolts removed during installation. See Installation Instructions in this book. If these parts are not available, they can be ordered by visiting our Website at ge.com or by calling 800.GE.CARES.
Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.
Loading and using the washer.
Always follow fabric manufacturer's care label when laundering.

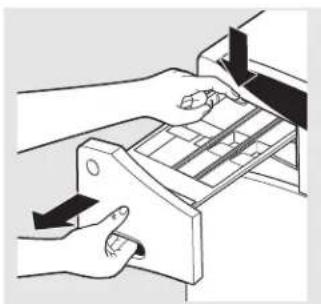

Lock tab is visible only after drawer has been pulled out
Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

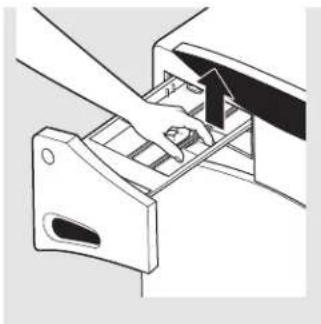

■Remove the drawer by first pulling it out until it stops. Then reach back into the left rear corner of the drawer cavity and press down firmly on the lock tab, pulling out the drawer.
■Remove the inserts from the bleach and fabric softener compartments and the detergent insert. Rinse the inserts and the drawer with hot water to remove traces of accumulated laundry products.
To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.
■Return inserts to the proper compartments. Replace the dispenser drawer.
Fabric Care Labels
Below are fabric care label "symbols" that affect the clothing you will be laundering.
WASH LABELS
Machine wash cycle
Normal
Permanent Press/ wrinkle resistant
Gentle/ delicate
Hand wash
Do not wash Do not wring
Cold/cool 30^ / 85^
Water temperature
Hot (50°C/120°F)
Warm (40°C/105°F)
Cold/cool 30^ / 85^
BLEACH LABELS
Bleach symbols
Any bleach (when needed)
Only non-chlorine bleach (when needed)
Do not bleach
Installation Instructions
Washer
Models
GBVH5140
GCVH6260
GCVH6600
GHDVH626
GHDVH670
WBVH5100
WBVH5200
WBVH6240
WCVH6260
WCVH6400
WCVH6600
WHDVH626
WHDVH660
If you have any questions, call 800.GE.CARES (800.432.2737) or visit our Website at: ge.com In Canada, call 1.800.561.3344 or visit geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
- IMPORTANT - Save these instructions for local inspector's use.
- IMPORTANT - Observe all governing codes and ordinances.
Note to Installer - Be sure to leave these instructions with the Consumer.
- Note to Consumer - Keep these instructions for future reference.
- Skill level - Installation of this appliance requires basic mechanical and electrical skills.
Completion time - 1-3 hours
- Proper installation is the responsibility of the installer.
- Product failure due to improper installation is not covered under the Warranty.
FOR YOUR SAFETY:
WARNING
- This appliance must be properly grounded and installed as described in these Installation Instructions.
- Do not install or store appliance in an area where it will be exposed to water/weather. See Location of Your Washersection.
- NOTE: This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70.
1/4" nut driver
3 / 8'' socket with ratchet
3/8" open-end wrench
Adjustable wrench or 7 / 16^ socket with ratchet
Adjustable wrench or 9 / 16^ open-end wrench
□ Channel-lock adjustable pliers
Carpenter's level
PARTS SUPPLIED
Water Hoses (2)
Cable Tie
Hose Guide
Do Not Install the Washer:
- In an area exposed to dripping water or outside weather conditions. The ambient temperature should never be below 60^ (15.6^) for proper washer operation.
- In an area where it will come in contact with curtains or drapes.
- On carpet. The floor MUST be a hard surface with a maximum slope of 1 / 2'' per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor.
NOTE: If floor is in poor condition, use 3/4'' impregnated plywood sheet solidly attached to existing floor covering.
IMPORTANT:
Minimum Installation Clearances
- When installed in alcove: Sides, Rear, Top = 0" (0 cm)
- When installed in closet: Sides, Rear, Top = 0" (0 cm), Front = 1" (2.54 cm)
- Closet door ventilation openings required: 2 louveres each 60 square in. (387~cm^2) , located 3'' (7.6~cm) from top and bottom of door
ROUGH-IN DIMENSIONS
FRONT
*NOTE: With pedestal, 52.6" Stacked, 84"
UNPACKING THE WASHER
WARNING: Recycle or destroy the carton and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.
- Cut and remove the top and bottom packaging straps.
- While it is in the carton, carefully lay the washer on its side. DO NOT lay the washer on its front or back.
- Turn down the bottom flaps—remove all base packaging, including the cardboard, styrofoam base and styrofoam tub support (inserted in center of base).
NOTE: If you are installing a pedestal, proceed to the installation instructions that come with the pedestal.
- Carefully return the washer to an upright position and remove the carton.
- Carefully move the washer to within 4 feet (122cm) of the final location.
- Remove the following from the back side of the washer: 4 bolts
4 plastic spacers (including rubber grommets)
4 power cord retainers
NOTE: Failure to remove the shipping braces can cause the washer to become severely unbalanced.
Save all bolts for future use.
NOTE: If you must transport the washer at a later date, you must reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.
ELECTRICAL REQUIREMENTS
Read these instructions completely and carefully.
WARNING TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK AND PERSONAL INJURY:
- DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
Washer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.
CIRCUIT - Individual, properly polarized and grounded 15-amp branch circuit fused with 15-amp time-delay fuse or circuit breaker.
POWER SUPPLY - 2-wire, with ground, 120-volt, single-phase, 60-Hz , Alternating Current.
OUTLET RECEPTACLE -
Properly grounded 3-prong receptacle to be located so the power supply cord is accessible when the washer is in an installed position.
GROUNDING REQUIREMENTS
WARNING: Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.
- The washer MUST be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.
- Since your washer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug MUST be plugged into an appropriate, copper-wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances or in the absence of local codes, with the National Electrical Codes, ANSI/NFPA 70 (latest edition). If in doubt, call a licensed electrician. DO NOT cut off or alter the grounding prong on the power supply cord. In situations where a two-slot receptacle is present, it is the owner's responsibility to have a licensed electrician replace it with a properly grounded three-prong grounding-type receptacle.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installed within 42 inches (107~cm) of your washer's water inlet. The faucets MUST be 3 / 4'' (1.9cm) garden hose-type so inlet hoses can be connected. Water pressure MUST be between 10 and 120 pounds per square inch. Your water department can advise you of your water pressure. The hot water temperature should be set to deliver water at 120^ to 140^ (48^ - 60^)
DRAIN REQUIREMENTS
- Drain capable of eliminating 17 gals (64.3 L) per minute.
- A standpipe diameter of 1~l / 4^ (3.18 cm) minimum.
- The standpipe height above the floor should be:
Minimum height: 24^ (61cm)
Maximum height: 96^ (244cm)
NOTE: The drain hose attached to the washer can reach a 58^ (147cm) high standpipe. For a higher standpipe, contact an authorized parts distributor.
INSTALLING THE WASHER
- Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog up the water valve screens.
-
Remove the inlet hoses from the plastic bag.
-
(90^ elbow end) Carefully connect the inlet hose marked IHT to the outside "H"outlet of the water valve.Tighten by hand, then tighten another 2 / 3 turn with pliers. Carefully connect the other inlet hose to the inside C outlet of the water valve.
Tighten by hand; then tighten another 2/3 turn with pliers. Do not cross thread or over-tighten these connections.
- Connect the inlet hose ends to the HOT and COLD water faucets tightly by hand, then tighten another 2/3 turn with pliers. Turn the water on and check for leaks.
- Carefully move the washer to its final location. Gently rock the washer into position. It is important not to damage the rubber leveling legs when moving your washer to its final location. Damaged legs can increase washer vibration. It may be helpful to spray window cleaner on the floor to help move your washer into its final position. NOTE: To reduce vibration, ensure that all four rubber leveling legs are firmly touching the floor. Push and pull on the back right and then back left of your washer.
NOTE: Do not use the dispenser drawer or door to lift the washer.
NOTE: If you are installing into a drain pan, you can use a 24-inch long 2 × 4 to lever the washer into place.
- With the washer in its final position, place a level on top of the washer (if the washer is installed under a counter, the washer should not be able to rock). Adjust the fron
leveling legs up or down to ensure the washer is resting solid. Turn the lock nuts on each leg up towards the base of the washer and snug with a wrench.
NOTE: Keep the leg extension at a minimum to prevent excessive vibration. The farther out the legs are extended, the more the washer will vibrate.
If the floor is not level or is damaged, you may have to extend the rear leveling legs.
INSTALLING THE WASHER (cont.)

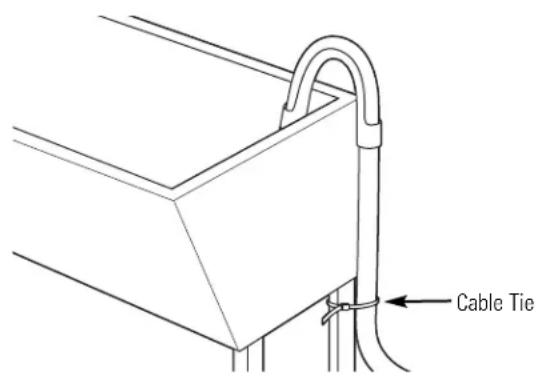

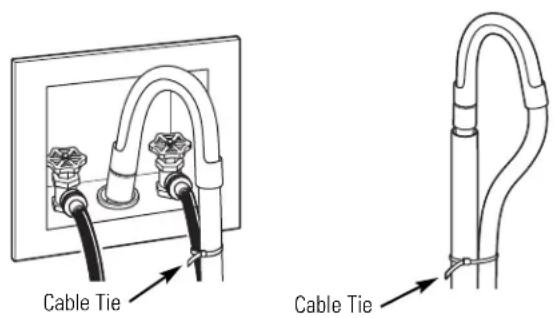

- Attach U-shaped hose guide to the end of the drain hose. Place the hose in a laundry tub or standpipe and secure it with the cable tie provided in the enclosure package.
NOTE: If the drain hose is placed in a standpipe without forming a U shape, a siphoning action could occur. There must be an air gap around the drain hose. A snug hose fit can also cause a siphoning action.
- Plug the power cord into a grounded outlet.
NOTE: Check to be sure the power is off at a circuit breaker/fuse box before plugging the power cord into an outlet.
- Turn on the power at a circuit breaker/fuse box.
- Read the rest of this Owner's Manual. It contains valuable and helpful information that will save you time and money.
- Before starting the washer, check to make sure:
Main power is turned on.
The washer is plugged in.
The water faucets are turned on.
The unit is level and all four leveling legs are firmly on the floor.
The shipping support hardware is removed and saved.
The drain hose is properly tied up.
There are no leaks at the faucet, drain line or washer.
-
Run the washer through a complete cycle. Check for water leaks and proper operation.
-
If your washer does not operate, please review the Before You Call For Service section before calling for service.
- Place these instructions in a location near the washer for future reference.
REPLACEMENT PARTS
If replacement parts are needed for your washer, they can be ordered in the United States by visiting our Website at ge.com or by calling 800.GE.CARES.
Before you call for service...
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Cause What To Do
| Not spinning or agitating | Drain hose is kinked or improperly connected sitting on it. | • Straighten drain hose and make sure washer is not improperly connected sitting on it. |
| Household drain may be clogged a plumber. | • Check household plumbing. You may need to call |
| Drain hose siphoning; drain hose pushed too far down the drain | • Ensure there is an air gap between hose and drain. |
| Washer pump filter may • Have your pump filter cleaned. be clogged | |
| Load is out of balance | • Redistribute clothes and run drain & spin or rinse & spin. • Increase load size if washing small load containing heavy and light items. |
| Leaking water | Door gasket is damaged | • Check to see if gasket is seated and not torn. Objects left in pockets may cause damage to the washer (nails, screws, pens, pencils). |
| Door gasket not damaged | • Water may drip from the door when the door is opened. This is a normal operation. |
| Check back left of washer for water | • If this area is wet, you have oversudsing condition. Use less detergent. |
| Fill hoses or drain hose is improperly connected faucets and make sure end of drain hose is correctly inserted in and secured to drain facility. | • Make sure hose connections are tight at washer and make sure end of drain hose is correctly inserted in and secured to drain facility. |
| Household drain may be clogged a plumber. | • Check household plumbing. You may need to call |
| Not draining | Drain hose is kinked or improperly connected sitting on it. | • Straighten drain hose and make sure washer is not |
| Household drain may be clogged a plumber. | • Check household plumbing. You may need to call |
| Drain hose siphoning; drain hose pushed too far down the drain | • Ensure there is an air gap between hose and drain. |
| Washer pump filter may • Have your pump filter cleaned. be clogged | |
| Not spinning | Drain hose is kinked or improperly connected sitting on it. | • Straighten drain hose and make sure washer is not |
| Household drain may be clogged a plumber. | • Check household plumbing. You may need to call |
| Drain hose siphoning; drain hose pushed too far down the drain | • Ensure there is an air gap between hose and drain. |
| Washer pump filter may • Have your pump filter cleaned be clogged | |
| Load is out of balance | • Redistribute clothes and run drain & spin or rinse & spin. • Increase load size if washing small load containing heavy and light items. |
| Motor is overheated | • Washer motor will stop if it becomes overheated. It will automatically restart after a cool down period of up to 30 minutes (if washer has not been manually turned off). |
| Door is open | • Make sure door is closed. |
| Problem Possible Cause What To Do |
| Incomplete cycle or timer not advancing | Drain hose is kinked or improperly connected sitting on it. | • Straighten drain hose and make sure washer is not |
| Household drain may be clogged a plumber. | • Check household plumbing. You may need to call |
| Drain hose siphoning; drain hose pushed too far down the drain | • Ensure there is an air gap between hose and drain. |
| Washer pump filter may • Have your pump filter cleaned. be clogged | |
| Automatic load redistribution | • Timer stops at 1 minute, machine has redistributed the load once or twice. This is normal operation. Do nothing; the machine will finish the wash cycle. |
| Loud or unusual noise; vibration or shaking | Cabinet moving | • Washer is designed to move 1/4" to reduce forces transmitted to the floor. This movement is normal. |
| All rubber leveling legs are not firmly touching the floor | • Push and pull on the back right and then back left of your washer to check if it is level. If the washer is uneven, adjust the rubber leveling legs so they are all firmly touching the floor. Your installer should correct this problem. |
| Unbalanced load | • Open door and manually redistribute load. To check machine, run rinse and spin with no load. If normal, unbalance was caused by load. |
| Clothes too wet | Drain hose is kinked or improperly connected sitting on it. | • Straighten drain hose and make sure washer is not |
| Household drain may be clogged a plumber. | • Check household plumbing. You may need to call |
| Drain hose siphoning; drain hose pushed too far down the drain | • Ensure there is an air gap between hose and drain. |
| Washer pump filter may • Have your pump filter cleaned be clogged | |
| Load is out of balance | • Redistribute clothes and run drain & spin or rinse & spin.
• Increase load size if washing small load containing heavy and light items. |
| No power/washer not working or dead | Drain hose is kinked or improperly connected sitting on it. | • Straighten drain hose and make sure washer is not |
| Household drain may be clogged a plumber. | • Check household plumbing. You may need to call |
| Drain hose pushed too far down the drain | • Ensure there is an air gap between hose and drain. |
| Washer pump filter may • Have your pump filter cleaned. be clogged | |
| Washer is unplugged | • Make sure cord is plugged securely into a working outlet. |
| Water supply is turned off | • Turn both hot and cold faucets fully on. |
| Circuit breaker/fuse is tripped/blown | • Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet. |
| Controls are not set properly | • Hold START/PAUSE button to start cycle. |
| Automatic self system checks | • First time the washer is plugged in, automatic checks occur. It may take up to 20 seconds before you can use your washer. This is normal operation. |
Before you call for service...
| Problem Possible Cause What To Do |
| Water does not enter washer or enters slowly | Automatic self system checks | After START is pressed, the washer does several system checks. Water will flow several seconds after START is pressed. |
| Water supply is turned off | Turn on both hot and cold faucets fully. |
| Water valve screens are stopped up | Turn off the water source and remove the water connection hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on. |
| Snags, holes, tears, rips or excessive wear | Pens, pencils, nails, screws or other objects left in pockets | Remove loose items from pockets. |
| Pins, snaps, hooks, sharp buttons, belt buckles, zippers and sharp objects left in pockets | Fasten snaps, hooks, buttons and zippers. |
| Wrinkling | Improper sorting | Avoid mixing heavy items (like work clothes) with light items (like blouses). |
| Overloading • Load your washer so clothes have enough room to move freely. |
| Incorrect wash cycle | Match Cycle selection to the type of fabric you are washing (especially for easy carc loads). |
| Repeated washing in water that is too hot | Wash in warm or cold water. |
| Grayed or yellowed clothes | Not enough detergent | Use correct amount of detergent. |
| Not using HE (high efficiency) detergent | Use HE detergent. |
| Hard water | Use hottest water safe for fabric.
Use a water conditioner like Calgon brand or install a water softener. |
| Water is not hot enough | Make sure water heater is delivering water at 120°-140°F (48°-60°C). |
| Detergent is not dissolving | Try a liquid detergent. |
| Dye transfer | Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated. |
| Colored spots | Incorrect use of fabric softener | Check fabric softener package for instructions and follow directions for using dispenser. |
| Dye transfer | Sort whites or lightly colored items from dark colors.
Promptly remove wash load from washer. |
| Water temperature is incorrect | Water supply is improperly connected | Make sure hoses are connected to correct faucets. |
| House water heater is not set properly | Make sure house water heater is delivering water at 120°-140°F (48°-60°C). |
GE Washer Warranty. (For customers in the United States)
All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service, on-line, 24 hours a day, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
For The Period Of: We Will Replace:
One Year Any part
From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service original purchase costs to replace the defective part.
What Is Not Covered (in the United States):
■Service trips to your home to teach you how to use the product.
■Improper installation, delivery or maintenance.
■Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Damage after delivery.
■Replacement of house fuses or resetting of circuit breakers.
- Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
GE Washer Warranty. (For customers in Canada)
All warranty service provided by our Factory Service Centers or an authorized technician.
For service, call 1.800.561.3344.
Please have serial number and model number available when calling for service.
For The Period Of: We Will Replace:
One Year Any part
From the date of the original purchase
of the washer which fails due to a defect in materials or workmanship. During this
d one-year warranty, GE will also provide, free of charge, all labor and related service costs to replace the defective part.
What Is Not Covered (in Canada):
■Service trips to your home to teach you how to use the product.
■Improper installation, delivery or maintenance.
■Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■Damage after delivery.
■Replacement of house fuses or resetting of circuit breakers.
■Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
Warrantor: MABE CANADA INC.
Power (alimentation)
Power (alimentation)
Garante: General Electric Company. Louisville, KY 40225
Pagina Web de GE Appliances
ge.com
General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225
Registre su electrodoméstico ge.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.geappliances.ca
Schedule Service
In the U.S.: ge.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.561.3344
Real Life Design Studio
In the U.S.: ge.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Extended Warranties
In the U.S.: ge.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133
Parts and Accessories
In the U.S.: ge.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.
In the U.S.: ge.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.geappliances.ca, or write to:
Director, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance
In the U.S.: ge.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca
