USER MANUAL Explore 7 E7TB16FGM ELECTROLUX

154 www.electrolux.com Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy accessories and consumables for your appliance: www.electrolux.com/shop CONTENTS ENGLISH 6 FRANÇAIS 11

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be be assured that you will get great results every time Welcome to Electrolux.

CUSTOMER CARE AND SERVICE

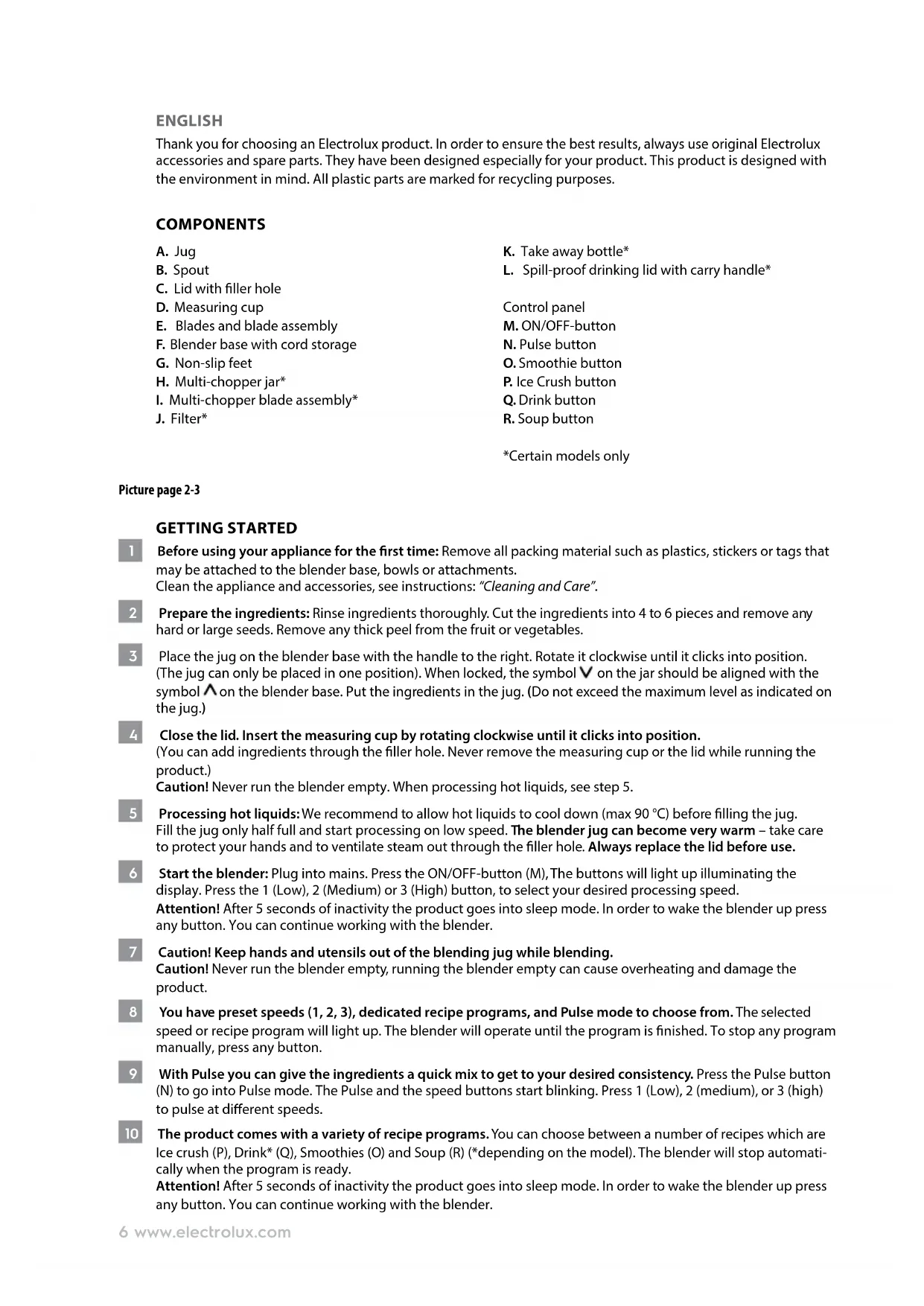

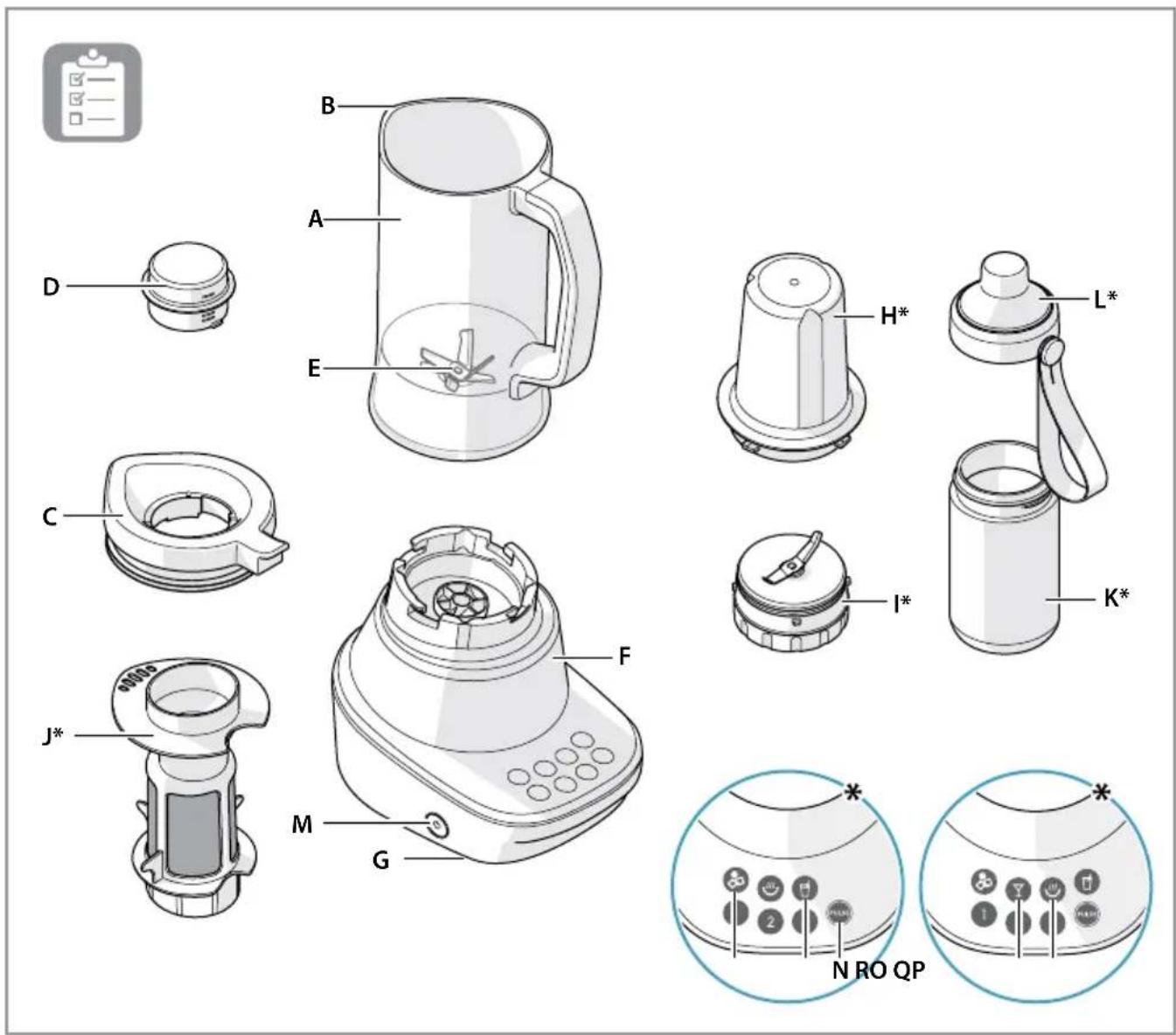

When contacting Service, ensure that you have the following data available: - Model number - PNC number - Serial number The information can be found on the rating plate. 3483 E E7TB1-XXX 02 02 05185www.electrolux.com6 www.electrolux.com ENGLISH Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes. COMPONENTS A. Jug B. Spout C. Lid with ller hole D. Measuring cup E. Blades and blade assembly F. Blender base with cord storage G. Non-slip feet H. Multi-chopper jar*

I. Multi-chopper blade assembly*

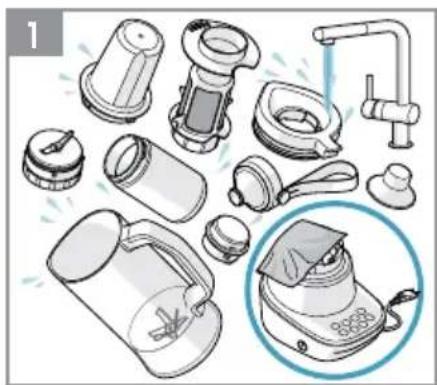

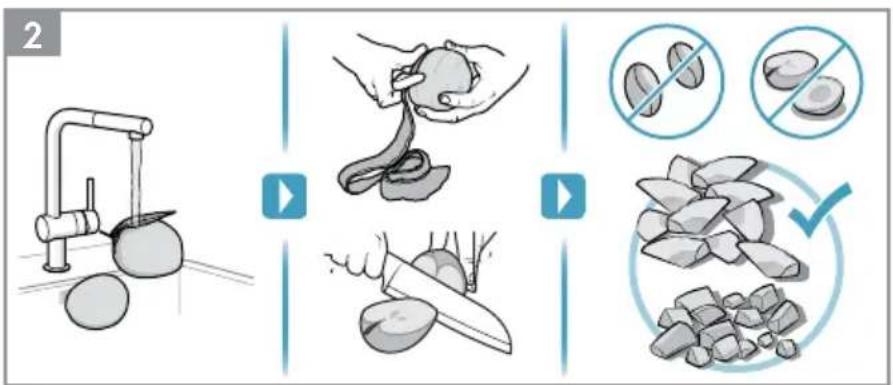

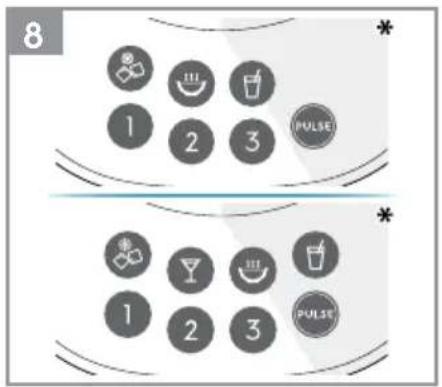

J. Filter* K. Take away bottle* L. Spill-proof drinking lid with carry handle* Control panel M. ON/OFF-button N. Pulse button O. Smoothie button P. Ice Crush button Q. Drink button R. Soup button *Certain models only Picture page 2-3 GETTING STARTED 1 Before using your appliance for the rst time: Remove all packing material such as plastics, stickers or tags that may be attached to the blender base, bowls or attachments. Clean the appliance and accessories, see instructions: “Cleaning and Care”. 2 Prepare the ingredients: Rinse ingredients thoroughly. Cut the ingredients into 4 to 6 pieces and remove any hard or large seeds. Remove any thick peel from the fruit or vegetables. 3 Place the jug on the blender base with the handle to the right. Rotate it clockwise until it clicks into position. (The jug can only be placed in one position). When locked, the symbol on the jar should be aligned with the symbol on the blender base. Put the ingredients in the jug. (Do not exceed the maximum level as indicated on the jug.) 4 Close the lid. Insert the measuring cup by rotating clockwise until it clicks into position. (You can add ingredients through the ller hole. Never remove the measuring cup or the lid while running the product.) Caution! Never run the blender empty. When processing hot liquids, see step 5. 5 Processing hot liquids: We recommend to allow hot liquids to cool down (max 90 °C) before lling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm – take care to protect your hands and to ventilate steam out through the ller hole. Always replace the lid before use. 6 Start the blender: Plug into mains. Press the ON/OFF-button (M), The buttons will light up illuminating the display. Press the 1 (Low), 2 (Medium) or 3 (High) button, to select your desired processing speed. Attention! After 5 seconds of inactivity the product goes into sleep mode. In order to wake the blender up press any button. You can continue working with the blender. 7 Caution! Keep hands and utensils out of the blending jug while blending. Caution! Never run the blender empty, running the blender empty can cause overheating and damage the product. 8 You have preset speeds (1, 2, 3), dedicated recipe programs, and Pulse mode to choose from. The selected speed or recipe program will light up. The blender will operate until the program is nished. To stop any program manually, press any button. 9 With Pulse you can give the ingredients a quick mix to get to your desired consistency. Press the Pulse button (N) to go into Pulse mode. The Pulse and the speed buttons start blinking. Press 1 (Low), 2 (medium), or 3 (high) to pulse at dierent speeds. 10 The product comes with a variety of recipe programs. You can choose between a number of recipes which are Ice crush (P), Drink* (Q), Smoothies (O) and Soup (R) (*depending on the model). The blender will stop automati- cally when the program is ready. Attention! After 5 seconds of inactivity the product goes into sleep mode. In order to wake the blender up press any button. You can continue working with the blender.7www.electrolux.com

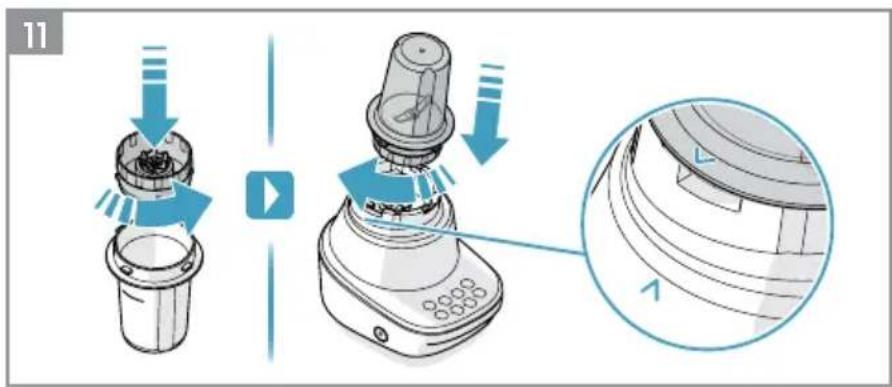

11 Fill the ingredients in the multi-chopper jar (H). Fasten the multi-chopper blade assembly (I) on the open end of the bottle by turning it counter-clockwise. Turn the multi-chopper jar upside down. Push down the multi-chopper jar into the blender base (F) and rotate it clockwise to lock. Note: When locked, the symbol on the grinder blade assembly should be aligned with the symbol on the blender base. Caution! The blades are very sharp!

USING THE FILTER* * CERTAIN MODELS ONLY

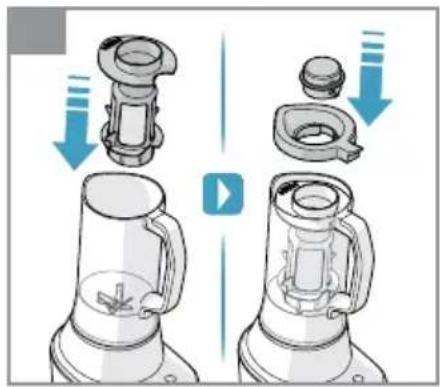

12 To make juice: Insert the lter (J) into the jug. Place the lter in the jug with the wide part facing up. Align the ridge inside the blender jar with the cutout at the bottom of the lter to t the lter correctly. Add fruits in the lter (do not use the blender to mash large seeds such as those in plums or avocados). Fasten the lid with the measuring cup and start juicing.

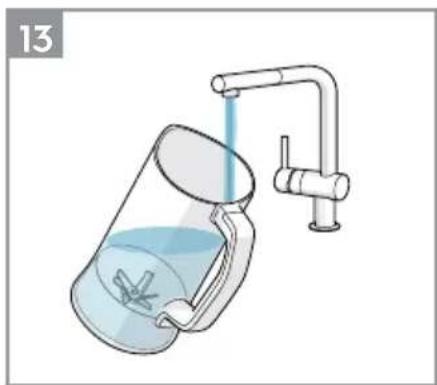

13 Quick cleaning: Pour warm water into the jug, add a few drops of detergent. Mix water and detergent by pressing the Pulse button then 3 a couple of times. Finally, rinse the jug under running water. Note: To avoid crazing of the jar, always rinse the jar with clean water directly after using in order to prevent the plastic material being impacted by acids or essential oils. Always rinse the jar clean even before placing it into the dishwashwer. 14 Thorough cleaning of the blender base and interface: Turn the blender o and unplug the power cord. Wipe the blender base with a damp cloth. Warning! Never immerse the housing, plug, or cord in water or any other uid. 15 Thorough cleaning of the jug: Note! The Blade assembly is not removable. Remove the lid and measuring cup. Rinse the blade assembly in water and detergent. Caution! Handle carefully, the blades are very sharp! All parts, except for the blender base are dishwasher safe. Enjoy your new Electrolux product!8 www.electrolux.com SAFETY ADVICE Read the following instruction carefully before using the appliance for the rst time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The appliance may only be connected to a power supply whose voltage and frequency comply with the specications on the rating plate!

• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied person, in order to avoid hazard.

• Always place the appliance on a at, level surface.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.

• The blades and inserts are very sharp! Danger of injury!

Do not immerse the appliance in water or any other liquid.

• Do not exceed the maximum lling volume as indicated on the appliances.

• Never process boiling liquids (max 90 °C).

• Do not use this appliance to stir paint. Danger, could result in an explosion!

• Never operate appliance without lid.

• Do not let the power cord touch hot surfaces or hang over edge of table or counter.

• Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.

• Do not grind hard or dry substances in the jug.

• Keep hands and utensils out of the blender during operation to reduce the risk of severe injury to persons or damage to the blender.

• Ensure that the blender is switched o before removing it from the stand.

• Do not attempt to remove the blade assembly.

• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

• Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.

• Switch o the appliance and disconnect from supply before approaching parts that move in use.9www.electrolux.com

• If the product is left on without using any speed or programs, it will automatically turn o after 5 minutes.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.

• DO NOT OPERATE WITHOUT THE COVER IN PLACE. RECIPES When using the multi-chopper to chop ingredients like onions and shallots, cut the ingredients into cubes no bigger than 2.5 cm to get the best result. Ingredients with tough textures such as carrot and celery are not recommended for chopping.

PROBLEM POSSIBLE CAUSE SOLUTION

The blender does not switch on. Jug/base are not xed properly. Check if all the components are in correct position. Note! the jug can only be placed on the base with handle towards the user interface. The ON/OFF-button is not pressed. Make sure the display is illuminated. If not, press the ON/OFF-button to turn the blender on. The motor has overheated. The display is blinking. Wait until the product has cooled down and all the buttons are lit. The plug is not properly connected to the power outlet. Check the connection of the plug to the outlet or try another outlet. Power outage. Wait until power outage is over. Functional problem. Contact authorized service. The motor stalls during operation If the motor stalls, turn the blender o immediately, unplug the appliance and let it cool for at least 10 minutes. Ingredients are too large. Cut all rm fruits and vegetables into pieces no larger than 1.8 cm² to 2.5 cm². Wrong ingredients. The appliance intended use is production of beverages. Add fruits, vegetables or similiar. Never mix ingredients such as dough, mashed potatoes, meat or similar . DISPOSAL This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste. This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an ocial collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country’s rules for the separate collection of electrical products and rechargeable batteries. Electrolux reserves the right to change products, information and specications without notice.11www.electrolux.com
