USER MANUAL GFC535N GE

SAFETY INFORMATION .... 3

USING THE DISPOSER

Continuous Feed Models .... 5

Batch Feed Models .... 5

CARE AND CLEANING 6

INSTALLATION INSTRUCTIONS

Preparation....7

Components and Installation 8

Installation of Sink Flange 8

Dishwasher Connection 9

Attach the Discharge Elbow ..... 9

Connect Disposer to Sink Flange .....10

Dimensions 11

Some Typical Installations .... 11

TROUBLESHOOTING....12

LIMITED WARRANTY....15

CONSUMER SUPPORT ....16

OWNER'S MANUAL AND INSTALLATION INSTRUCTIONS

GFC320N

GFC325N

GFC520N

GFC525N

GFC530N

GFC535N

GFC720N

GFB760N

GFC1020N

ENGLISH/FRANÇAIS/ ESPAÑOL

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on a label on the bottom of the disposer.

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner's Manual. You may also mail in the pre-printed registration card included in the packing material.

GE APPLIANCES

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, and to prevent property damage, personal injury, or death.

WARNING

WHEN USING YOUR ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING:

• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Read all the instructions before using the appliance.
  ■ To reduce the risk of injury, close supervision is required when a disposer is used near children.
  ■ Do not put fingers or hands into a waste disposer.
  ■ Turn the power switch to the OFF position before attempting to clear a jam or remove an object from the disposer.
  ■ When attempting to loosen a jam in a waste disposer, use a long wooden object such as a wooden spoon or the wooden handle of a broom or mop.
  ■ When attempting to remove objects from a waste disposer, use long-handled tongs or pliers. If the disposer is magnetically actuated, use only nonmagnetic tools.

■ To reduce the risk of injury by materials that may be expelled by a waste disposer, do not put the following into a disposer:
a. Clam or oyster shells
b. Caustic drain cleaners or similar products
c. Glass, china or plastic
d. Large whole bones
e. Metal, such as bottle caps, tin cans, utensils or aluminum foil
f. Hot grease or other hot liquids
g. Whole corn husks
■ When not operating a disposer, leave the drain stopper in place to reduce the risk of objects falling into the disposer.
■ For proper grounding instructions, see the CONNECTING ELECTRICITY portion of this manual.

CONNECTING ELECTRICITY

If you are not familiar with electrical power and procedures, call a qualified electrician.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance if it will not fit the outlet; have a proper outlet installed by a qualified electrician.

For Models Equipped with a Grounded Cord:

GROUNDING INSTRUCTIONS: This disposer must be grounded to reduce the risk of electric shock in the event of a malfunction or breakdown. Grounding provides a path of least resistance for electric current. This disposer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

CONNECTING ELECTRICITY (Cont)

If you are not familiar with electrical power and procedures, call a qualified electrician.

The power cord and/or connections must comply with the National Electrical Code, Section 422 and/or local codes and ordinances.

For Models Not Equipped with a Cord:

If your disposer does not come equipped with a cord, you can connect it in two ways:

1. Attach a power cord, minimum 18" in length and not to exceed 36" in length. Use GEA Part Number PM3X215.

or

1. Wire the disposer directly into the house current.

To Attach a Power Cord:

GROUNDING INSTRUCTIONS: This disposer must be grounded to reduce the risk of electric shock in the event of a malfunction or breakdown. Grounding provides a path of least resistance for electric current. This disposer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

NOTE: Disconnect electric power to disposer circuit before installation. Turn the circuit breaker to the OFF position or remove the fuse.

A. Connect the disposer to 110-120 Volt, 60 Hz AC current only.

B. If a plug-in cord is used, use a three prong plug. Ground wire should be attached to the ground screw in the bottom of the disposer (end bell).

Trace lead connected to this blade and attach that lead to white wire on disposer Ribbed Side

NOTE: When viewing face of electrical plug with grounding pin at top, the larger left blade is connected to the identified wire.

C. Use a cable clamp strain relief connector where power cord enters the disposer.

Heyco Box Connectors Part No. 3043 Strain Relief Nut

To Wire Your Disposer Directly into the House Current:

GROUNDING INSTRUCTIONS: This disposer must be connected to a grounded, metal, permanent wiring system; or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

A. If you use BX cable:

1. These products are designed for household use.
2. Connect white wire to white lead of disposer with a wire nut. Connect black wire to black lead of disposer with a wire nut. Connect bare ground wire to the ground screw. The ground wire should be clamped and held by a strain relief.
3. Do not use a rigid conduit for the wiring connection.
4. A dedicated acceptable motor switch, with the off position marked, shall be provided for this disposer at the time of installation. The switch shall be mounted in sight of the disposer or the

sink opening for the disposer.

If BX cable is not used, provide a separate ground wire to nearest reliable ground, using the screw in the end bell for the ground wire.

B. If your power supply does not

include a ground wire, you must provide one unless metal cable is used. Attach a copper wire securely to disposer ground screw and attach other end of wire to a reliable ground. Use only UL approved ground clamp. If plastic pipe is used in your home, a qualified electrician should install a proper ground.

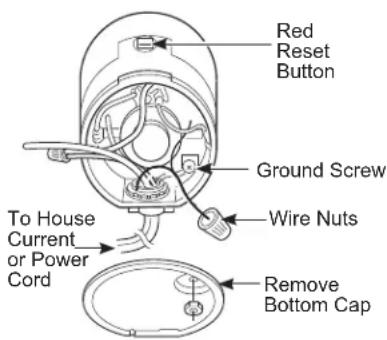

Red Reset Button Ground Screw Wire Nuts To House Current or Power Cord Remove Bottom Cap

Bottom of the Disposer (end bell)

READ AND SAVE THESE INSTRUCTIONS

READ ALL SAFETY INSTRUCTIONS ON PAGES 3 AND 4 BEFORE USING THIS DISPOSER.

This disposer uses anti-jam swivel impellers that make a clicking sound as they swing into place. This indicates normal operation.

Continuous Feed Models

A. Remove the sink stopper and turn on a medium flow of cold water.
B. Turn the switch to ON.
C. Scrape in food waste. To speed up food waste disposal, cut or break up large bones, rinds and cobs. Large bones and fibrous husks require considerable grinding time and are more easily thrown away with other trash. Do not be alarmed that the disposer slows down while grinding. The disposer is actually increasing torque (grinding power) and is operating under normal conditions.

D. Before turning the disposer off, let the water and the disposer run for approximately 25 seconds after shredding stops. This assures that all waste is thoroughly flushed through the trap and drain.
E. Do not use hot water while running the disposer. Cold water will keep food waste and fats solid so they can be flushed down the drain.

Batch Feed Models

A. Remove the sink stopper and turn on a medium flow of cold water.
B. Scrape in food waste.
C. Inset the stopper to start the disposer. One of the 2 small slots in the stopper base must line up with the switch plunger inside the neck of the disposer.

NOTE: The oval shaped handle aligns with the 2 small slots in the stopper.

Push down firmly to start.

D. Run the disposer for 25 seconds after shredding stops. This assures that all waste is thoroughly flushed through the trap and drain.

Line drawing of a hand holding a bowl over a kitchen sink (no text or symbols)

Oval Handle Small

Lift the stopper to shut the disposer off.

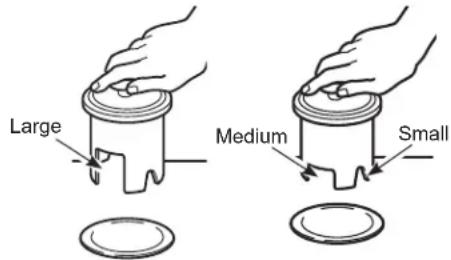

E. To fill the sink, insert the stopper so that the largest slot lines up with the switch plunger. The stopper can now be pushed down to seal the sink without starting the disposer. When the medium-sized slot in the stopper base is lined up with the switch plunger, water can drain, but tableware, etc., cannot be accidentally dropped into the disposer.

Large Medium Small

⚠ WARNING Do not tamper with stopper or use anything other than the supplied stopper to move the plunger that actuates the on/off switch inside the neck of the disposer.

Helpful Hints

A. Be sure the disposer is empty before using the dishwasher so it can drain properly.
B. You may want to leave the stopper in the drain when not in use to prevent utensils and foreign objects from falling into the disposer.
C. The disposer is ruggedly built to give you years and years of trouble-free service. It will handle all normal food wastes - BUT it will not grind and dispose such items as tin cans, bottles and bottle caps, glass, china, leather, cloth, crockery, rubber, string, feathers, or clam or oyster shells. These are waste materials and belong in the trash can or trash compactor.

D. TO SPEED UP FOOD WASTE DISPOSAL: Cut or break up large bones, melon rinds, grapefruit skins and corn cobs. Items such as large bones, fibrous husks like lima bean pods and corn husks, require considerable cutting time. For this reason, you may prefer to place them in the trash can or trash compactor.

Care and Cleaning

THE MOTOR IS PERMANENTLY LUBRICATED FOR LIFE. DO NOT ATTEMPT TO LUBRICATE YOUR DISPOSER. The disposer is self cleaning and scours itself with each use.

■ NEVER put lye or chemical cleaners into the disposer, as they cause serious corrosion of metal parts.
- Your disposer, except for the Batch Feed model, is equipped with a removable splash guard for ease of cleaning or replacement. Remove the splash guard by pulling it out from the top. To replace, insert into the sink flange and push down until it is properly seated.

If an odor develops, run orange or lemon rinds through the disposer. A dozen ice cubes sprinkled with a little household scouring powder will also work.

Installation Instructions

Disposer

Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

IMPORTANT – Observe all governing codes and ordinances.

• Save these instructions for local inspector's use.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
  • Completion time—1 hour
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

WARNING

• FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or adapter plug with this appliance.
• FOR PERSONAL SAFETY: While performing installations described in this booklet, gloves and eye protection (safety glasses or equivalent) should be worn.
• FOR PERSONAL SAFETY: Do not position your head or body under disposer; unit could fall during removal or installation.
• The improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt that the appliance is properly grounded.
• If house wiring is not 2-wire with ground, a ground must be provided by the installer. When house wiring is aluminum, be sure to use UL-Listed anti-oxidant compound and aluminum-to-copper connectors.

PREPARATION

1. Disconnect electrical power supply to disposer.
2. Remove old disposer or sink flange assembly.
3. Inspect drain line. If it is heavily coated with hardened grease and accumulations, rout out with a plumber's snake.
4. Remove old sealing materials and gasketing from sink opening, both top and bottom.

NOTE: Top and bottom of sink surfaces must be free of any materials to prevent leaks.

WHAT YOU WILL NEED

- Phillips and flat blade screwdriver

- Hammer

- Channel lock pliers, slip joint

- Nut Driver

ADDITIONAL MATERIALS YOU MAY NEED

• Steel punch or wooden dowel
• Petroleum jelly or liquid soap
• Hose clamp
• Dishwasher drain connector
• Adjustable pipe wrench
• Plumber's putty (for cast sinks)
• Stepped rubber drain adapter
• Wire nuts
• Cable connector
• Flexible drain pipe
• Power cord kit (Part No. PM3X215)

COMPONENTS AND INSTALLATION

COMPONENTS

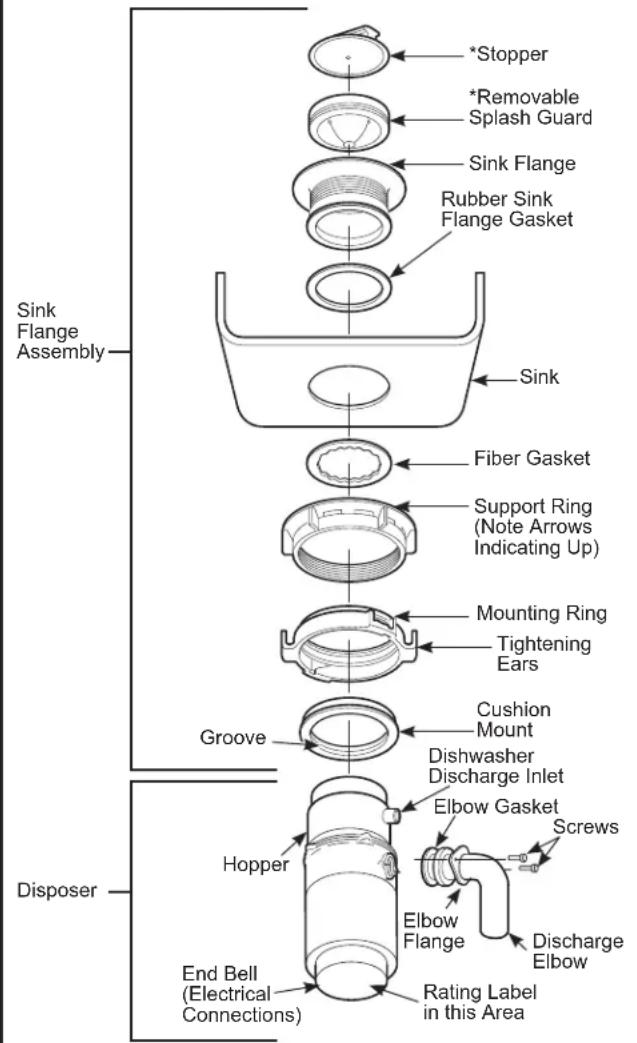

Sink Flange Assembly *Stopper *Removable Splash Guard Sink Flange Rubber Sink Flange Gasket Sink Fiber Gasket Support Ring (Note Arrows Indicating Up) Mounting Ring Tightening Ears Cushion Mount Dishwasher Discharge Inlet Elbow Gasket Screws Groove Disposer Hopper End Bell (Electrical Connections) Elbow Flange Discharge Elbow Rating Label in this Area

*Not used with batch feed model

INSTALLATION OF SINK FLANGE

(Read completely before starting.)

Correctly Installed Sink Flange

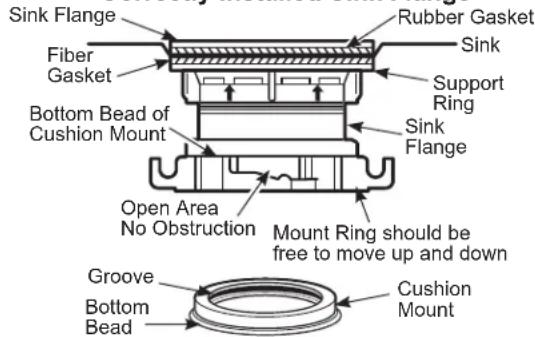

Sink Flange Fiber Gasket Bottom Bead of Cushion Mount Rubber Gasket Sink Support Ring Sink Flange Open Area No Obstruction Mount Ring should be free to move up and down Groove Bottom Bead Cushion Mount

(shown for proper orientation)

NOTE: Pay close attention to the order of the sink flange parts, as they have been correctly assembled by the factory.

A. Disassemble the sink flange assembly from the disposer by turning the mount ring to the left (clockwise) and removing it.
B. Raise the mount ring toward the top of the sink flange. Remove the cushion mount and the mount ring. You may want to practice installing the cushion mount at this point before you are under the sink.
C. Unscrew the support ring from the sink flange and remove the fiber gasket. You are now left with the sink flange and the rubber gasket.
D. The rubber gasket is used instead of plumbers putty with stainless steel sinks. Some cast iron sinks will require putty.
E. If no putty is used, insert the sink flange through the rubber gasket into the sink opening. Do not turn the flange once it is seated.
F. If you use putty instead of the gasket, form a ring around the underside of the sink flange. Insert the flange into the sink opening, press down hard to squeeze out excess putty. For under the sink, trim off excess putty flush with the bottom edge of the sink opening.

G. From underneath the sink, slip the fiber gasket onto the exposed sink flange. With arrows pointing up, screw the support ring onto the sink flange and hand-tighten until the sink flange will not move.

Hand-tighten sink flange

At this point you may want to insert the stopper in the sink and fill with water to check the sink flange seal and insure there are no leaks.

H. Place the mount ring over the sink flange and hold in place while installing the cushion mount (large side down). Make sure the groove on the inside of the cushion mount fits over the lip on the sink flange, similar to putting the lid on a plastic container. Run your fingers around the entire cushion mount with slight pressure. Do not press too hard. When the cushion mount is properly seated, the mount ring can be over the cushion mount and w

Line drawing of hands holding a cylindrical object with a pointer (no text or symbols)

Cushion Mount Detail

TopGroove Bottom Bead

DISHWASHER CONNECTION (IF REQUIRED)

If you are connecting to a dishwasher, complete the following step. If a dishwasher is not to be connected, go to "Attaching the Discharge Elbow" below.

1 KNOCK OUT PLUG

Using a blunt instrument (steel punch or wooden dowel), knock out the entire plug. Do not use a screwdriver or sharp instrument. When knockout plug falls into disposer, you may remove it or simply grind it up when the disposer is used. This will not damage the disposer in any way, but may take some time to grind, over the course of several uses.

Knock out plug

2 CONNECT HOSE

Connect the dishwasher hose using a hose clamp. If the hose size is different, you will need a stepped rubber adapter.

Hose Clamp

Stepped Rubber Adapter

ATTACH THE DISCHARGE ELBOW

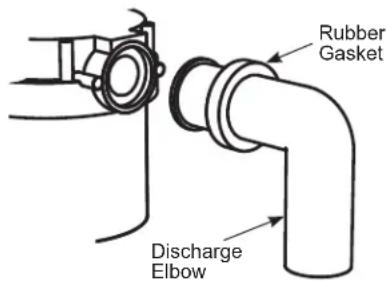

Slide rubber gasket over drain pipe.

Rubber Gasket Discharge Elbow

2 CONNECT DISCHARGE ELBOW\*

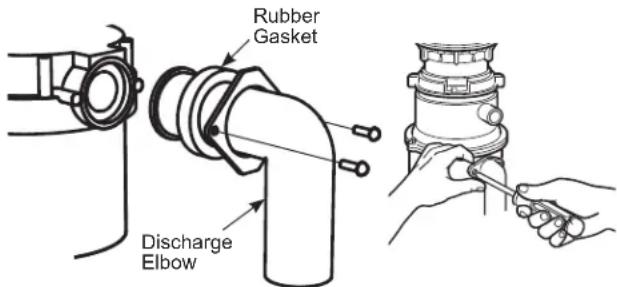

Slide bracket over discharge elbow and connect to the disposer.** Make sure all plumbing connections are tight.

Rubber Gasket Discharge Elbow

*Discharge elbow must be installed by a professional
** Some installations (see page 11 for example) may require the use of a flexible drain pipe.

CONNECT DISPOSER TO SINK FLANGE

1 ATTACH TO SINK FLANGE

Line up the disposer under the sink flange. Guide the hopper projections into the mount ring slots. Turn the mount ring about 1/4" to the right so that the disposer is temporarily supported.

Mount Ring Slot Hopper Projection

2 LINE UP WITH OUTLET PIPE

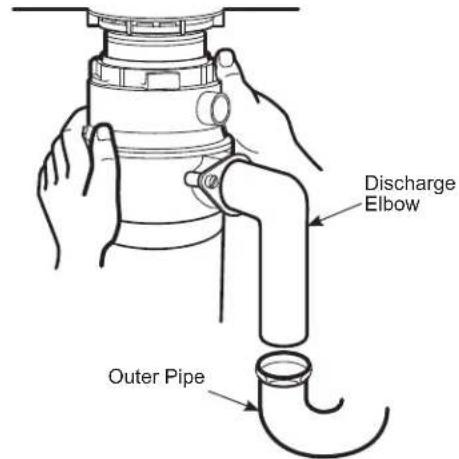

Turn the mount ring and the disposer until the disposer discharge elbow lines up with the outlet pipe (see page 11).

Discharge Elbow Outer Pipe

3 LOCK MOUNT RING

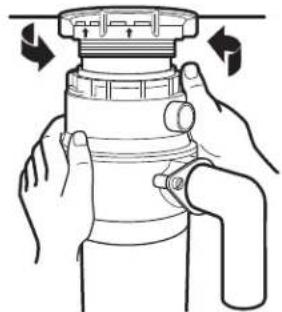

Turn the mount ring to the right until it locks up tight. Hopper projections must be to the extreme left of the mounting slots. If the mount ring is hard to turn, you may add a small amount of petroleum jelly or liquid soap to the hopper projection. Run water and check for leaks.

Illustration of hands holding a valve with directional arrows indicating flow or movement (no text or symbols)

Locking Detail

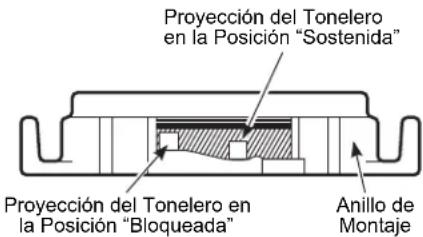

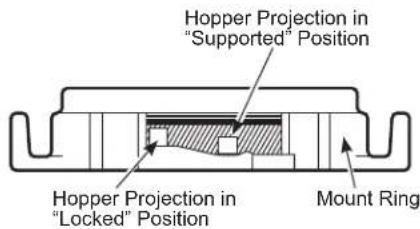

Hopper Projection in "Supported" Position Hopper Projection in "Locked" Position Mount Ring

4 CHECK FOR LEAKS

Check the unit for leaks 24 hours after installation and first operation.

DIMENSIONS

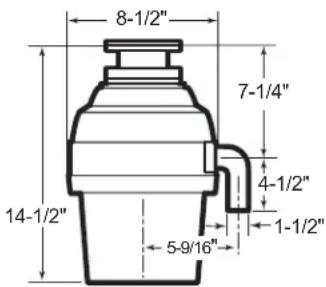

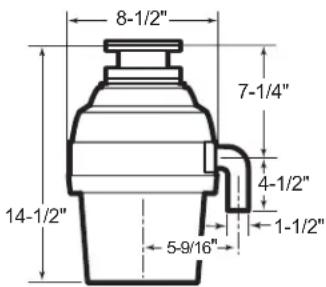

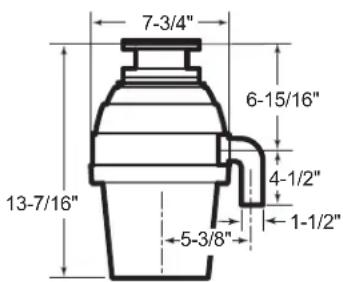

5-3/16" 6-3/16" 12-11/16" 5-3/8" 4-1/2" 1-1/2"

GFC320N GFC325N

5-1/16" 6-1/8" 12-11/16" 5-3/8" 4-1/2" 1-1/2"

GFC520N GFC525N

7-3/4" 6-15/16" 13-7/16" 4-1/2" 5-3/8" 1-1/2"

GFC530N GFC535N

8-1/2" 7-1/4" 14-1/2" 5-9/16" 4-1/2" 1-1/2"

GFC720N

8-1/2" 9-3/8" 4-1/2" 16-5/8" 5-9/16"

GFB760N Batch Feed Operation

8-1/2" 7-1/4" 4-1/2" 16-1/6" 5-9/16"

GFC1020N

SOME TYPICAL INSTALLATIONS

NOTE: It is essential for the proper operation of the disposer that this dimension be 9"-12", depending upon the models listed above, to avoid standing water in disposer motor housing.

**Flexible drain pipe may be necessary for application.

SINGLE BOWL for this *Approx.

DOUBLE BOWL CENTER OUTLET**

*Approx.

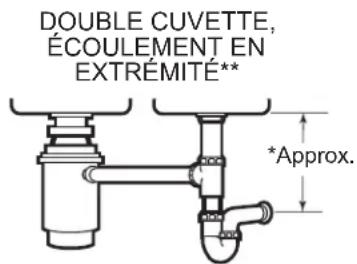

DOUBLE BOWL END OUTLET** *Approx.

Troubleshooting Tips... Before you call for service

Save time and money! Review the charts below first and you may not need to call for service.

SAFETY NOTE: Before investigating, you must disconnect the power supply.

WARNING

Before resetting, disconnect the power supply-please see SAFETY NOTE above. The overload control prevents the motor from operating should overloading occur. This feature protects your house wiring and your disposer. When overloaded, the motor will stop automatically.

Problem Possible Cause What To Do
Loud noises (other than those during grinding of bones and fruit pits)	Silverware, bottle cap or other foreign object has fallen into the disposer	Remove the splash guard* and remove the object with long-handled tongs. Replace the splash guard*.
Disposer does not start	Reset button has been tripped With the splash guard* removed, check to see if the turntable will move freely using a broom handle. If the turntable moves freely, replace the splash guard* and check the reset button to see if it has been tripped. The reset button is red and located opposite the discharge elbow, near the bottom of the disposer. Push the button in until it clicks and remains depressed. If the reset button has not been tripped, check for a shorted or broken wire connecting to the disposer. Check the electrical power switch, fuse box or circuit breaker. If wiring and electrical components are intact, the unit may have internal problems that require service or replacement.
	Turntable cannot rotate. If the turntable does not turn freely, check for an object lodged between the turntable and the grind ring. Dislodge the object by moving the turntable with a broom handle. Then remove the object. If no foreign object is present, there may be internal problems.
Disposer leaks If the leak is at the top, it may be caused by:1. Improper seating of sink flange (gasket choice, putty, or tightening.2. Support ring not tightened properly.3. Defective cushion mount.If the leak is at the discharge elbow, leak may be caused by improper tightening of elbow flange screws.

* Batch Feed does not include splash guard.

GE Appliances Disposer Limited Warranty

GEAppliances.com

All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, visit us at geappliances.com/service_and_support/, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service.

For the period of GE Appliances will replace
One YearFrom the date of the original purchase	The entire disposer if there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this limited one-year warranty, GE Appliances will also provide, free of charge, all labor charges related to replacing the original disposer along with the replacement disposer within the first year.
Additional One YearFrom the date of the original purchase	Models GFC520N, GFC525N: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During the one-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement disposer.
Additional Two YearsFrom the date of the original purchase	Models GFC530N, GFC535N: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this two-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement disposer.
Additional Four Years from the date of the original purchase	Models GFC720N, GFB760N: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this four-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement disposer.
Additional Six Years From the date of the original purchase	Model GFC1020N: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this six-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement disposer.

What GE Appliances will not cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation or maintenance.
■ Failure of the product if it is abused, misused or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.

■ Damage to the product caused by accident, fire, floods, or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience. In the US: GEAppliances.com

In Canada: GEAppliances.ca

Register Your Appliance

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: GEAppliances.com/register

In Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

Schedule Service

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year. In the US: GEAppliances.com/service or call 800.432.2737 during normal business hours.

In Canada: GEAppliances.ca/en/support/service-request or call 800.561.3344.

Extended Warranties

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires. In the US: GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.

In Canada: GEAppliances.ca/en/support/purchase-extended-warranty or call 866.277.9842.

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.

In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.

In Canada: GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225 GEAppliances.com/contact

In Canada: Director, Consumer Relations, MC COMMERCIAL INC. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 GEAppliances.ca/en/contact-us

CONSIGNES DE SÉCURITÉ ..... 3

UTILISATION DU BROYEUR DE DÉCHETS

Line drawing of a hand holding a bowl over a kitchen sink (no text or symbols)

Line drawing of hands holding a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows ring and cap, bottom shows cylindrical housing (no text or symbols)

Illustration of hands adjusting a pipe fitting with directional arrows indicating rotation (no text or symbols)

Détails

Cross-sectional diagram of a mechanical component with internal hatched area and directional arrows (no text or labels)

DOUBLE CUVETTE, ÉCOULEMENT AU CENTRE** *Approx.

DOUBLE CUVETTE, ÉCOULEMENT EN EXTRÉMITÉ** *Approx.

Garant : MC Commercial Inc., Burlington, ON, L7R 5B6

Au Canada : Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

Illustration of hands adjusting a mechanical component with directional arrows indicating rotation (no text or symbols)

Detalle del Bloqueo

5-3/16" 6-3/16" 12-11/16" 5-3/8" 4-1/2" 1-1/2"

GFC320N GFC325N

5-1/16" 6-1/8" 12-11/16" 5-3/8" 4-1/2" 1-1/2"

GFC520N GFC525N

7-3/4" 6-15/16" 13-7/16" 4-1/2" 5-3/8" 1-1/2"

GFC530N GFC535N

8-1/2" 7-1/4" 14-1/2" 5-9/16" 4-1/2" 1-1/2"

GFC720N

8-1/2" 9-3/8" 4-1/2" 16-5/8" 5-9/16"

GFB760N

8-1/2" 7-1/4" 4-1/2" 16-1/6" 5-9/16"

Louisville, KY 40225

GEAppliances.com/service

GEAppliances.com/extended-warranty

General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact
