USER MANUAL GCG1700 GE

Safety Instructions....2-3

Operating Instructions

Compacting....6

Features....4

Loading 5

Removing a Full Trash Bag ....6

Trash Bag Installation ....5

Using the Trash Compactor .....5-6

Care and Cleaning

Cleaning the Unit....7

Troubleshooting Tips ....8

Consumer Support

Consumer Support 12

Product Registration

for Customers in Canada ..... 9, 10

Warranty 11

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on the label on the front of the frame.

Owner's Manual

GCG1500

GCG1580

GCG1700

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

▲ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or death.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

This compactor is for household use only. Use this appliance only for its intended purpose as described in this Owner's Manual.
■ Close supervision is necessary when any appliance is operated near children. Do not allow the compactor to be used as a toy, or to run unattended at any time.
■ CHILD LOCK-OUT INSTRUCTIONS: Turn the knob to OFF and remove it when not compacting trash. This will help prevent anyone from tampering with the compactor or children from operating it.
■ Do not push trash into the drawer with hands or feet. Trash might contain broken glass, sharp pieces of metal, or other sharp objects that might cause injury.
■ When removing or carrying the trash bag, keep the bag away from your body. Sharp objects may have pierced it.
■ Be careful when cleaning the inside of the cabinet or trash drawer. Glass fragments may be stuck to the ram, imbedded in the drawer surface or lying in the bottom of the cabinet.
■ Do not install or store compactor where it will be exposed to outside conditions.
■ Make sure the compactor is properly installed and leveled on a floor that can support its weight.
■ Do not touch moving parts.
■ Do not compact food waste such as raw meat and fish, rinds, personal hygiene items and disposable diapers. These items create very strong odors and should not go into the compactor.
- Do not use as a freestanding unit. Use only as a built-in unit.

PRECAUTIONS AGAINST UNREASONABLE USE OF YOUR COMPACTOR:

■ Never compact shotgun shells, cartridges for firearms, fireworks, etc., which are highly explosive.
■ Never compact flammable materials such as paint, oil- or gasoline-saturated rags, engine starting fluid cans, paint thinner cans, etc.—spontaneous combustion or explosive vapor concentrations could occur.
■ Never compact containers of toxic chemicals such as strong insecticides or other poisonous materials—compaction could release hazardous fumes.
■ Never compact aerosol cans containing explosive or highly toxic chemicals. (If you are sure the aerosol cans contain non-hazardous materials such as shaving cream, cheese spread and whipped cream, they may be compacted.)
■ Do not compact lit cigarettes, cigars, or other hot or burning items.
■ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
■ Do not overload your appliance.
■ Handle a loaded trash bag with care. Sharp objects can pierce the bag and cause injury. Do not overload trash bag with heavy material such as glass.

ELECTRICAL SAFETY

When using electrical appliances, basic safety precautions should be followed, including the following:

■ To prevent hazard of electrical shock, this compactor must be properly installed and grounded in accordance with the Installation Instructions before it is used.
■ Do not operate with a damaged cord set, plug, motor, or after damage in any manner. Have the appliance examined, repaired, or adjusted by an authorized service technician.
■ Do not take apart this appliance. Incorrect reassembly can cause electric shock when subsequently used.
■ Unplug the compactor before making any repairs. NOTE: We strongly recommend that any servicing be performed by a qualified person.
■ Do not use an adapter plug or an extension cord with this appliance.
■ Follow National Electric Codes or prevailing local codes and ordinances. This appliance must be supplied with 120V, 60Hz and connected to an individual, properly grounded branch circuit protected by a 15 or 20 amp circuit breaker or time delay fuse.
■ If the electric supply provided does not meet the above requirements, call a licensed electrician.
■ We recommend that a separate circuit

serving only this appliance be provided.

■ Do not, under any circumstances, cut or remove the third grounding prong from the power cord.
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.

⚠ WARNING: Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.

■ Do not modify the plug with this appliance. If it will not fit the outlet installed, have a proper outlet installed by a qualified electrician.

PROPER INSTALLATION AND MAINTENANCE

This compactor must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instruction Manual, you can receive one by visiting GEAppliances.com, or by calling 800.GE.CARES (800.432.2737) in the United States. In Canada, visit www.GEAppliances.ca or call 1.800.561.3344.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

About the trash compactor.

1 2 3 4 5 6 7 8 9 Paplo INVESTMENT INFORMATION INVESTMENT INFORMATION PAPLO PAPLO PAPLO PAPLO PAPLO PAPLO PAPLO PAPLO

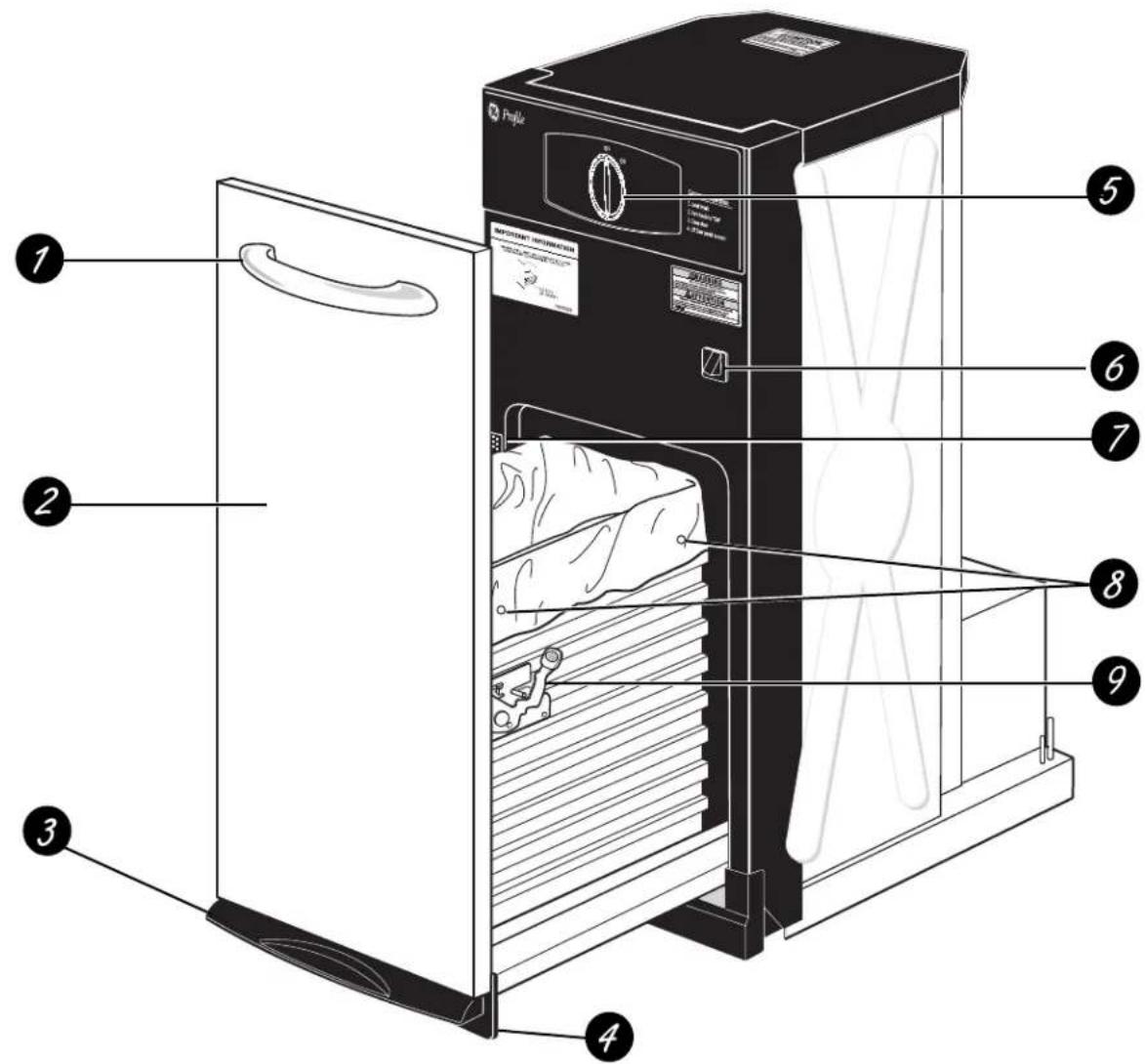

Features

1 DRAWER HANDLE
2 DOOR PANEL
3 FOOT PEDAL DRAWER OPENER AND COMPACTOR ACTIVATION
4 TOE KICK
5 ON/OFF KNOB

6 DRAWER SAFETY SWITCH
7 MODEL AND SERIAL NUMBER LABEL
8 BAG RETAINER BUTTONS
9 MOVEABLE SIDE DOOR LATCH

What It Does and How It Works

Your compactor reduces household trash to as little as one-fourth of its original volume.

It compacts most refuse, including paper, cans, bottles, jars, plastic containers, wrappings, sweepings and some food wastes.

Drop trash into the disposable bag (designed for compactor use) that lines the compactor trash drawer and close the drawer. When you start the compactor, an electrically-operated ram moves down into the drawer, compacts trash, moves back up again—and the compactor shuts off automatically.

NOTE: The trash drawer must be at least 1/2 full before you will notice compaction because the ram does not travel all the way down into the drawer. By adding trash, compaction is transferred to the items below until all trash is compacted.

ON/OFF Knob

The removable knob is provided for your protection as a safety measure. When the knob switch is in the OFF position, the compactor will not operate.

Child Lockout Instructions:

Lock the compactor when it is not in use, by removing the knob. This will keep children from operating the compactor and prevent anyone from tampering with it.

Drawer Safety Switch

The compactor has two safety switches to ensure that the drawer is in its fully closed position for operation. The compactor will not cycle without the drawer being fully closed.

Trash Bag Installation

Before installing a new bag, be sure that:

The drawer side is securely locked.

2 The container is clean and free of sharp debris that may puncture the bag.

Reinforced plastic bags came with your compactor and are ready to be installed.

You must use the specially designed heavy-duty trash bags included with your compactor. These bags are available from your dealer or Factory Service Center. Ask for catalog number WC60X10005.

To order bags, call toll-free:

National Parts Center 800.626.2002 (U.S.) 800.661.1616 (Canada)

GEAppliances.com (U.S.)

www.GEAppliances.ca (Canada)

To install a new bag:

1 Place the bag into the drawer. Open the bag and pull the top edges over the drawer top.

2 Lock the bag in place by pulling the four prepunched holes over the bag retainer buttons. Holes will expand over the buttons without harming the bag.

3 Press inside of bag against the drawer bottom, sides and corners for a smooth fit.

Illustration of a hand holding a small object next to a device labeled 'p_m', with no visible text or symbols on the device itself.

Illustration of a human foot pressing down on a vertical surface with horizontal lines (no text or symbols)

Loading

Slightly lift and pull the compactor door handle or press the foot pedal and pull the drawer out.

Remember:

■ To help keep the ram clean when compacting messy food waste, place a couple of folded sheets of newspaper on top of the load to be compacted.

■ Items too bulky to go into the drawer can be folded to fit. If it cannot be folded to fit into the drawer, do not attempt to force it.

■ Folded newspaper is also helpful when compacting a large glass bottle, or several bottles or jars, or any other items that might shatter.

Although it is not necessary to compact until the drawer is full or nearly full, we suggest that, for maximum compaction, you start the compactor each time a significant amount of trash is added.

Using the trash compactor.

Compacting

To start the compactor:

Turn the knob to ON.

Make sure the drawer is fully closed.

Lift the foot pedal up to start cycle.

The ram travels downward into the drawer, compacting the trash. At the bottom of the stroke, the ram automatically reverses direction, retracts out of the drawer, returns to its starting position, and the compactor shuts off automatically.

The cycle takes less than 30 seconds. As the trash drawer fills with trash, cycle time gets progressively shorter.

NOTES:

■ You will not see compacting of trash the first few times you load. The compactor drawer should be about 1/2 full before the compactor can begin to compress the load.

■ Glass bottles can make a loud noise when they break during compaction. This is normal. Also, bottles in the trash drawer will not always break during the first cycle. Breaking glass and associated noise may occur several cycles later, depending on the type and volume of the trash.

■ When bottles and cans are compacted, small tears in the bag may occur. This is normal and in no way affects the

performance of the compactor. Keep the bag away from your body to prevent injury from sharp objects that may have pierced the bag.

CAUTION:

■ Do not apply too much force when turning the knob. The knob should always rotate easily. Forcing may break the knob and damage the switch.
■ When emptying waste baskets into the trash drawer, some items may spill into the compactor behind the drawer. Items behind the drawer could prevent it from closing completely and prevent the compactor from operating. To remove such items from behind the drawer, open the drawer and remove it to clean them out. See the Care and Cleaning section.

To stop the compactor:

The compactor may be stopped at any time.

Attempting to open the drawer while the ram is moving will stop the ram. The safety switch will activate.

Close the drawer completely and the ram will travel back to the UP position.

Open the drawer fully and turn the knob to OFF.

Removing a Full Trash Bag

Pull the drawer completely open.

Remove the top of the bag from the bag retainer buttons. Pull up all four bag cuffs.

Illustration of a person pressing down on a wooden plank (no text or symbols)

Push the side-lock latch down and tilt the drawer side open.

Illustration of a person lying on a stretcher with an inset showing a magnified view of the chest area (no text or symbols present)

Lift the bag out.

Simple line drawing of a hand holding a cloth over a box, with no text or symbols present.

As is true of most appliances, proper care is needed to give you continued satisfaction. Before cleaning the compactor, turn the knob to the OFF position and remove it. If you will be away for more than a couple of days, remove the compactor bag. Lock the compactor by removing the knob and store it in a safe place.

Cleaning the Unit

To clean the outside:

Wipe with a clean damp cloth.

Painted panels:

Apply a coat of kitchen/appliance wax when the compactor is new, and then several times a year.

Stainless steel panels:

Stainless steel panels can be cleaned with Cerama Bryte ^® or a similar product using a clean, soft cloth.

Cerama Bryte is available from GE Parts by calling 800.626.2002 (U.S.) or 800.661.1616 (Canada).

To clean the drawer interior:

Remove the bag. See page 6.

2 Wear protective gloves. There may be bits of glass in the drawer. Press the side door latch down.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

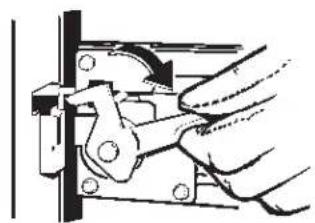

3 Hold the side door latch and tilt the side of the drawer until the latch clears the drawer front. The drawer side can be removed by tilting and sliding it out.

Hand placing a rectangular object into a container (no text or symbols visible)

4 Wash with a damp cloth using warm, soapy water. Rinse and then dry with a soft cloth.
5 If the drawer side was removed, slide it back into the tilted position.
6 Press the side door latch down while pressing the side to the upright position. Lock the side door latch.

To clean the cabinet interior:

1 Pull the drawer out until it stops. Note the tracks in which the drawer rollers move.
2 Lift the front to clear the drawer stops. Grab the drawer on both sides. Pull it out the rest of the way and set it aside.

Line drawing of a refrigerator with a hand pointing to the door (no text or symbols)

3 Vacuum inside of the cabinet. Liquid spills or wet trash should be cleaned up by hand, or use a vacuum designed to pick up liquid.

Line drawing of a hand using a tool to cut or press a piece into a vise (no text or symbols)

4 Wash, rinse and dry the inside.

Before you call for service...

Troubleshooting Tips

Problem Possible Causes What To Do

Compactor won't operate working outlet.	Compactor is unplugged	• Make sure the cord is plugged securely into a
	Circuit breaker/fuse is tripped/blown fuses or reset breaker.	• Check house circuit breakers /fuses. Replace
	Knob switch may not be in the ON position	• Make sure the switch is in the ON position.
	Foot pedal may not be lifted up long enough to start cycle starts.	• Lift foot pedal up momentarily until compaction cycle
	Drawer may not be closed	• Check to make sure the drawer is firmly closed.
	Compactor has an automatic thermal motor reset	• If you have just compacted repeatedly, this protector may have opened the motor circuit. Wait a few minutes and the motor reset will reclose automatically.
Drawer is hard to close	Trash may have fallen behind the drawer	• Remove any trash.
Drawer will not open way up	The ram is not all the complete a cycle.	• Lift up on the foot pedal and release to allow ram to
Little or no apparent compaction	Drawer is not full enough	• The drawer must be at least 1/2 full of trash before you will see any amount of compacting. The ram does not travel all the way to the bottom. Trash in the bottom of the drawer will be crushed during later cycles.
	Trash is stuck between ram and basket	• Remove any trash.

Please place in envelope and mail to:

For Canadian Customers

CUT ALONG THIS LINE AND RETURN CARD—THANKS

OWNERSHIP REGISTRATION CERTIFICATE - FICHE D'INSCRIPTION DU PROPRIÉTAIRE
Please register your product to enable us to contact you in the remote event a safety notice is issued for this product and to allow for efficient communication under the terms of your warranty, should the need arise.			Veuillez enregistrer votre produit afin de nous permettre de communiquer avec vous si jamais un avis de sécurité concernant ce produit était émis et de communiquer facilement avec vous en vertu de votre garantie, si le besoin s'en fait sentir.
REGISTER ON-LINE: www.geappliances.ca ENREGISTREMENT SUR INTERNET À: www.electromenagersge.ca			MAIL TO: P.O. BOX 1780, MISSISSAUGA POSTER À: ONTARIO, L4Y 4G1
□ MR./M □ MRS./MME. □ MISS/MLLE. □ MS.	FIRST NAME/PRÉNOM		LAST NAME/NOM
STREET NO/N° RUE	STREET NAME/RUE				APT. NO / APP. / RR#
CITY/VILLE				PROVINCE	POSTAL CODE/POSTAL
AREA CODE/IND. RÉG.	TELEPHONE	E-MAIL
DID YOU PURCHASE A SERVICE CONTRACT FOR THIS APPLIANCE? YES/OUI □ IF YES/SI OUI : EXPIRATION AVEZ-VOUS ACHETÉ UN CONTRAT DE SERVICE POUR CET APPAREIL ? NO/NON □ Y/A M D/J
NAME OF SELLING DEALER/NOM DU MARCHAND				MODEL/MODÈLE
INSTALLATION DATE/DATE D'INSTALLATION Y/A M D/J		CORRESPONDENCE □ ENGLISH CORRESPONDANCE □ FRANÇAIS		SERIAL/SÉRIE
□ I do not wish to receive any promotional offers regarding this product. □ Je ne désire pas recevoir d'offres promotionnelles concernant ce produit.

Trash Compactor Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737) in the United States. In Canada, call 1.800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year Any part of the compactor which fails due to a defect in materials or workmanship.

From the date of the ____ During this limited one-year warranty, GE will also provide, free of charge, all labor original purchase and in-home service to replace the defective part.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.

■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA or Canada. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor (USA): General Electric Company. Louisville, KY 40225

Warrantor (Canada): Mabe Canada Inc., Suite 310, 1 Factory Lane, Moncton, N.B. E1C 9M3

GE Appliances Website

In the U.S.A. GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.GEAppliances.ca

Schedule Service In the U.S.A. GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.561.3344

Real Life Design Studio In the U.S.A. GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Extended Warranties In the U.S.A. GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories In the U.S.A. GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

Contact Us In the U.S.A. GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Register Your Appliance In the U.S.A. GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca

Illustration of a hand interacting with a device, showing a curved object and a label (no text or symbols present)

Illustration of a human foot pressing down on a vertical surface with horizontal lines (no text or symbols)

Chargement

Illustration of a person's foot pressing down on a wooden pallet (no text or symbols visible)

Illustration of a person lying on a chair with an inset showing a magnified view of the chest area (no text or symbols present)

Simple line drawing of a hand holding a cloth over a box, with no text or symbols present.

Hand operating a mechanical clamp or bracket (no text or symbols visible)

Hand placing a rectangular object into a cabinet (no text or symbols visible)

Line drawing of a hand opening a rack-mounted refrigerator (no text or symbols)

Illustration of a hand using a tool to cut or press a small object into a frame (no text or symbols)

Please place in envelope and mail to:

For Canadian Customers

CUT ALONG THIS LINE AND RETURN CARD—THANKS

OWNERSHIP REGISTRATION CERTIFICATE - FICHE D'INSCRIPTION DU PROPRIÉTAIRE
Please register your product to enable us to contact you in the remote event a safety notice is issued for this product and to allow for efficient communication under the terms of your warranty, should the need arise.			Veuillez enregistrer votre produit afin de nous permettre de communiquer avec vous si jamais un avis de sécurité concernant ce produit était émis et de communiquer facilement avec vous en vertu de votre garantie, si le besoin s'en fait sentir.
REGISTER ON-LINE: www.geappliances.ca ENREGISTREMENT SUR INTERNET À: www.electromenagersge.ca			MAIL TO: P.O. BOX 1780, MISSISSAUGA POSTER À: ONTARIO, L4Y 4G1
□ MR./M □ MRS./MME. □ MISS/MLLE. □ MS.	FIRST NAME/PRÉNOM		LAST NAME/NOM
STREET NO/N° RUE	STREET NAME/RUE				APT. NO / APP. / RR#
CITY/VILLE				PROVINCE	POSTAL CODE/POSTAL
AREA CODE/IND. RÉG.	TELEPHONE	E-MAIL
DID YOU PURCHASE A SERVICE CONTRACT FOR THIS APPLIANCE? YES/OUI □ IF YES/SI OUI : EXPIRATION AVEZ-VOUS ACHETÉ UN CONTRAT DE SERVICE POUR CET APPAREIL ? NO/NON □ Y/A M D/J
NAME OF SELLING DEALER/NOM DU MARCHAND				MODEL/MODÈLE
INSTALLATION DATE/DATE D'INSTALLATION Y/A M D/J		CORRESPONDENCE □ ENGLISH CORRESPONDANCE □ FRANÇAIS		SERIAL/SÉRIE
□ I do not wish to receive any promotional offers regarding this product. □ Je ne désire pas recevoir d'offres promotionnelles concernant ce produit.
