USER MANUAL 282020PS MILWAUKEE

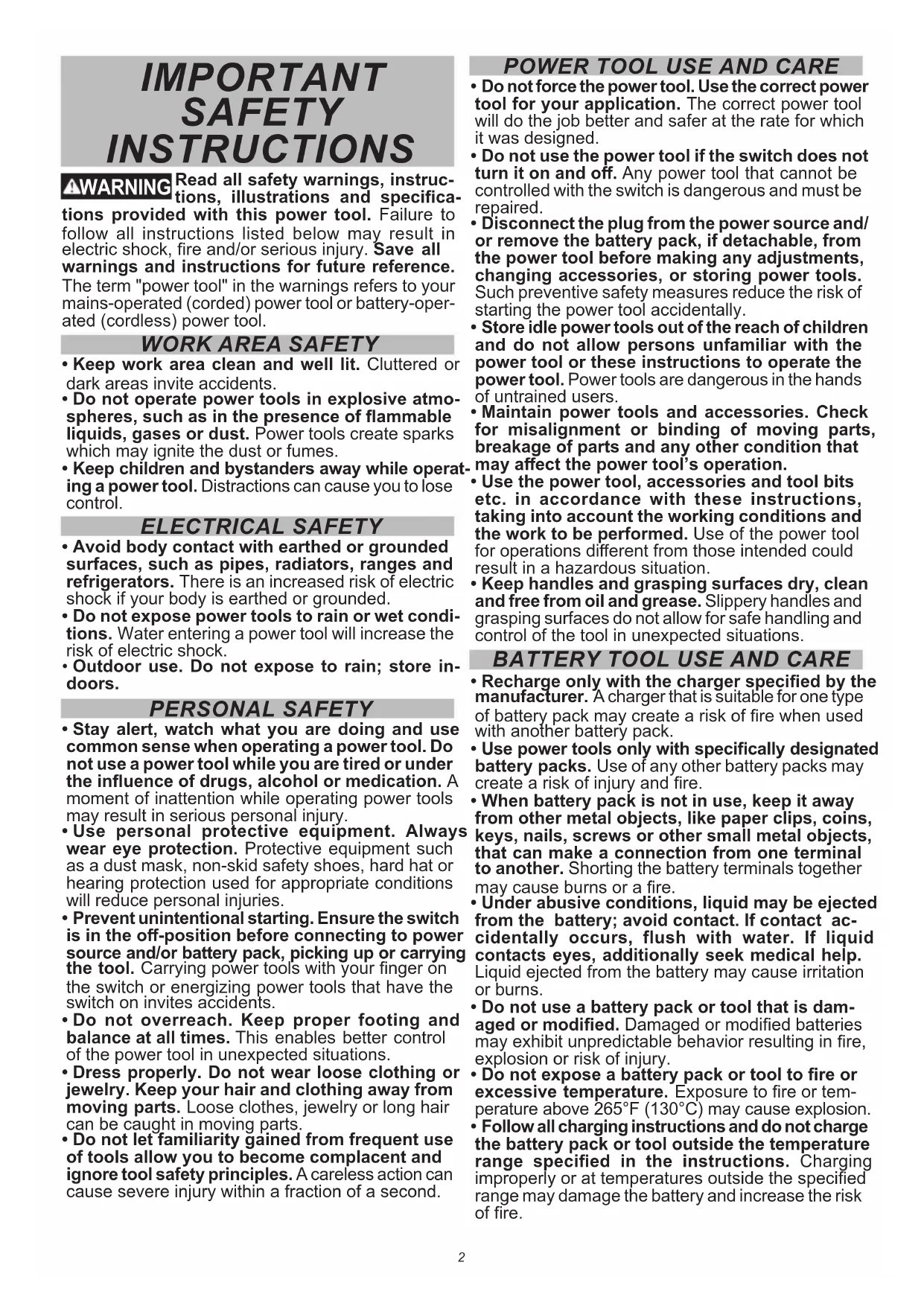

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operat- ing a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock.

• Outdoor use. Do not expose to rain; store in- doors. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool’s operation.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is dam- aged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or tem- perature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.3 SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

WARNING Risk of re or explosion. Do not spray ammable liquids such as gasoline, solvents, or gas producing chemicals. Do not use tool around spark, ame, or smoke. Chemical may ignite.

• Use the correct tank for your application. These products are suitable for pesticide applications (such as insecticides, fungicides, or herbicides), fertilizers, concrete applications (such as non- ammable sealants, curing compounds and form oil), and water supply applications, when used in accordance with these instructions and those supplied with the chemicals.

• Do not use bleach, caustic (alkali) self-heating or corrosive (acid) liquids in this sprayer. Do not pour hot or boiling liquids into the tank. These can corrode metal parts or weaken the tank and hose.

• To reduce the risk of re, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in uid or allow a uid to ow inside them. Do not place or store tool where it can fall or be pulled into a tub or sink. Corrosive or conductive uids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause a short circuit.

• Electric shock hazard. Never spray toward electrical outlets.

• Spray area must be well ventilated to avoid hazardous fumes build-up.

• Avoid spraying on windy days. Spray can be blown onto people, plants, or objects that should not be sprayed.

• Do not store chemicals in the tank. Chemicals can degrade seals and hoses. Drain and clean after each use.

• Remove gloves before handling battery packs. Chemicals are harmful to plastics.

• Maintain your power tool. Thoroughly inspect inside and outside and examine all compo- nents before each use. Check for cracked and deteriorated hoses, leaks, clogged nozzles, and missing or damaged parts. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance, storing, or draining the tool. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.

• Do not eat or smoke while handling or operating the tool. After use, wash with hot, soapy water to help reduce the risk of health hazards due to exposure to chemicals.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Do not use the battery compartment for storage.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. SAVE THESE INSTRUCTIONS SYMBOLOGY Volts Direct Current Read operator's manual PPE Wear personal protective equipment (PPE) according to the chemical manufacturer's instructions. Wear eye protection Wear gloves Do not spray ammable liquids

UL Listing for Canada and U.S.4 SPECIFICATIONS Cat. No. ..................................................... 2820-20 Volts.............................................................. 18 DC Battery Type .................................................M18™ Charger Type................................................M18™ Tank Capacity ..................................... 4 Gal. (15 L) Flow Rate ................................... 0.10 to 1.13 GPM Full Weight .....................................................55 lbs Recommended Ambient Operating Temperature ....................32°F to 125°F Tank Only (Pesticide)........................... 49-16-28PS Tank Only (Concrete)........................... 49-16-28CS Tank Only (Water) ............................... 49-16-28WS ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator’s manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always remove battery pack before changing or removing accessories. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. Connecting the Spray Wand to the Trigger Handle (Cat. No. 49-16-28PS, 49-16-28CS)

1. Insert the spray wand into the trigger

handle (1) until rmly seated.

2. Slide the nut onto the threaded cou-

pling and hand tighten securely (2).

3. Pull on the spray wand to be certain

it is properly secured.

4. Place the assembled trigger handle

and wand into one of the wand storage locations. Connecting the Nozzles (Cat. No. 49-16-28PS, 49-16-28CS) Select and screw on nozzle by job type. When using the adjustable nozzle, adjust spray pattern as desired by tightening/loosening the nozzle. Connecting Water Supply or Nozzle (Cat. No. 49-16-28WS) To attach water supply hose to the tool or

nozzle, push the quick connect tting and tool/nozzle together (1). Pull on the con- nection to be certain it is properly secured. To remove, pull the collar back to release (2). When using the nozzle, adjust spray pattern as desired by tightening/loosen- ing the nozzle. FUNCTIONAL DESCRIPTION Cat. No. 49-16-28WS

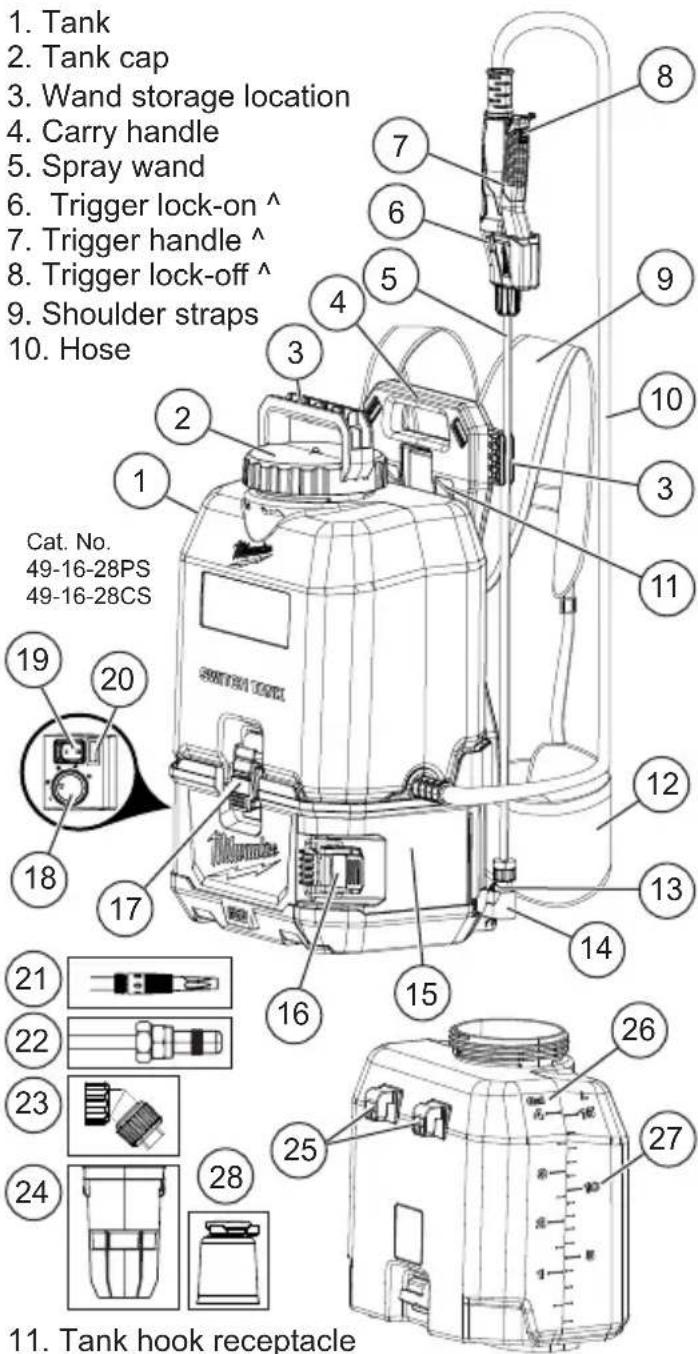

15. Battery compartment

16. Battery compartment latch

3. Wand storage location

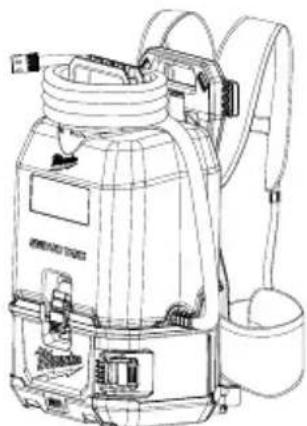

Cat. No. 49-16-28PS 49-16-28CS

Filling the Tank WARNING Before lling the tank, remove the tank from the base. Ensure battery door is closed and latched when- ever chemicals are present. Mix chemicals per manufacturer's instructions. Failure to follow instructions may cause harsh chemicals to injure user or damage tool. A removable strainer prevents debris that can clog or damage the pump from entering thetank. Label tank contents accordingly during each use. Only put recommended liquids in tank. Only use water in water supply tank.

1. Ensure the battery door is closed securely.

2. Remove the tank from the base and

set on a level surface away from the base to prevent exposing the base to harsh chemicals.

3. Unscrew and remove the tank cap;

ensure strainer is in place.

4. Fill the tank (up to 4 gallons; do not

overll). Use the gallon markings on the side of the tank as a guide.

5. Reinstall the tank cap.

1. Ensure the battery door is closed securely.

2. Slide tank hooks into base and seat tank into tank

reservoir in the base.

3. Secure tank to base with front and rear tank

latches; ensuring the tank is level, rmly seated, and all seals are aligned. WARNING When filled, the sprayer will be heavy, take care when putting on the backpack to avoid strain. Putting on the Backpack

1. Ensure tank is securely attached to base with front

and rear tank latches, tank cap is installed, and battery door is latched.

2. Pick up the backpack by one of the shoulder

straps, slide your arms through each shoulder strap.

3. With the sprayer on your back, tighten the shoulder

and waist straps until they t snugly and securely, high on your back. Connect chest strap.

4. Be sure the shoulder, chest, and waist straps are

tight but comfortable; if they are too loose, the sprayer may slide around on your back, making it uncomfortable to wear.

5. Be aware tank contents may shift during use and

movement, such as twisting or bending over. OPERATION Adjusting the Flow Rate Select the desired ow rate from Low (1) to High (5), depending on the job and the chemical manu- facturer's instructions. Flow Rate 2820-20PS (Stream Nozzle) 2820-20CS (Stream Nozzle) 2820-20WS (Open Flow) 1 0.10 GPM 0.14 GPM 0.16 GPM2 0.17 GPM 0.21 GPM 0.22 GPM3 0.24 GPM 0.33 GPM 0.35 GPM4 0.35 GPM 0.44 GPM 0.53 GPM5 0.51 GPM 0.82 GPM 1.13 GPM WARNING To reduce the risk of injury, always wear personal protective equip- ment (PPE) according to the chemical manufac- turer's instructions. Always wear eye protection. Always ensure battery compartment latch is securely closed before use. Ensure trigger handle lock-on is not engaged before turning ON tool. Turning the Sprayer ON/OFF

1. Install the battery pack. Close and latch the battery

2. To turn the sprayer ON, press the ON/OFF switch to "I".

The Power LED will light green.

3. To start the ow of liquid at the spray wand, pull

4. To stop the ow of liquid at the spray wand, re-

to "O". NOTE: Be aware some spray material may remain inside the spray wand and drip out. To drain, turn o󰀨 the tool, then pull the trigger and point the tool down until dripping stops. Trigger Lock-On (Cat. No. 49-16-28PS, 49-16-28CS) Use trigger lock-on when spraying for an extended period of time or when covering a large area.

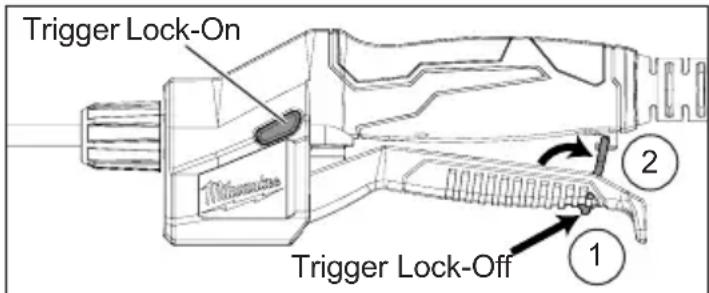

1. To lock-on, pull the trigger and push in the lock-on

2. To release the lock-on, pull and release the trigger.

NOTE: Ensure the trigger is not locked on before turning the sprayer o󰀨 to avoid accidental spraying when the sprayer is restarted.

Trigger Lock-On Trigger Lock-O󰀨 Trigger Lock-O󰀨 (Cat. No. 49-16-28PS, 49-16-28CS) To avoid accidental spraying, lock-o󰀨 the trigger.

1. Press the lock-o󰀨 toggle at the end of the trigger

2. Hook the lock-o󰀨 tab onto the hook under the

3. To release, push the tab back into the trigger.6

MAINTENANCE Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may a󰀨ect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop- erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. WARNING To reduce the risk of personal in- jury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Do not use bleach as a cleaning agent. Cleaning Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia. Never use ammable or combustible solvents around tools. Cleaning Electrical Contacts Keep electrical contact posts between bottom of tank and base clean. WARNING! Remove battery pack from tool before cleaning electrical contacts. Clean contacts with a dry, clean cloth only. Tank Contacts Base APPLICATIONS WARNING Before using any chemicals and/ or solutions, read and follow all original manufacturer instructions. Read all Safety Data Sheets (SDS) and container labels provided with the chemical. Chemicals can cause serious bodily injury, property damage, and/or damage the tool. Wear personal protective equip- ment (PPE) according to the chemical manufac- turer's instructions. Always wear eye protection. Spraying (Cat. No. 49-16-28PS, 49-16-28CS)

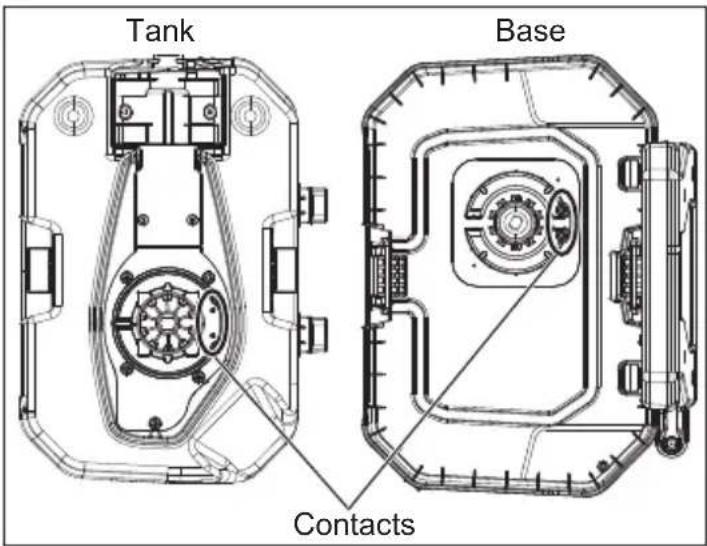

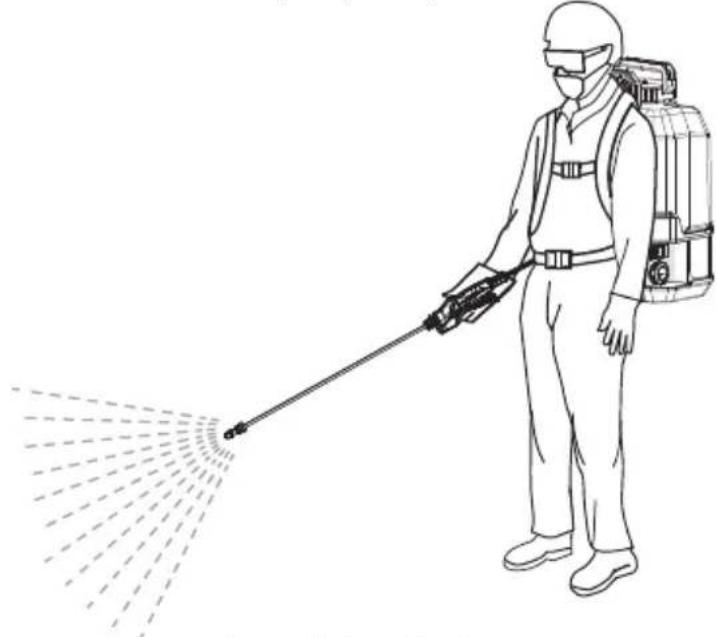

1. Fill the tank and then install onto the base.

2. Put on the backpack and properly adjust the straps.

3. Turn on the tool.

4. Pull the trigger and begin sweeping the nozzle from

side to side, coating the desired surface evenly in accordance with chemical manufacturer's instruc- tions.

5. If desired, lock-on the trigger for extended use.

6. When done, release the trigger, turn o󰀨 the tool,

remove the backpack, drain, and clean the tank. Supplying Water (Cat. No. 49-16-28WS)

1. Fill the tank with clean water and then install onto

2. Place tool near the job within range of water supply

3. Attach water supply hose with the quick connect

tting. Pull on the connection to be certain it is properly secured.

3. To start water ow, turn on the tool.

4. Monitor water level in tank. When empty, turn o󰀨

tool, disconnect the hose, and rell tank. Don't run tool when tank is empty.

5. When done, turn o󰀨 the tool, disconnect hose,

drain, and clean the tank.7 WARNING To reduce the risk of injury, always wear personal protective equip- ment (PPE) according to the chemical manufac- turer's instructions. Always wear eye protection. Draining and Cleaning the Tank, Hose, and Spray Wand If there is any liquid left in the tank after spraying, the tank should be drained before cleaning. Do not store chemicals in the tank. Tank must be cleaned before using another liquid. Do not mix liquids. Follow the chemical manufacturer’s instructions for proper cleaning, storage and/or disposal of excess liquid. To Drain:

1. Ensure the battery door is closed securely.

2. Remove the tank from the base.

3. Empty the tank into a suitable container through

the ll area. WARNING! Always wear personal protective equipment (PPE) according to the chemical manufacturer's instructions. Always wear eye protection. To Clean:

1. Ensure the battery door is closed securely.

2. Remove the tank from the base and set on a level

surface away from the base to prevent exposing the base to harsh chemicals.

3. Remove the tank and ll it about one-third full with

clean water. A small amount of mild household detergent may be added. Replace the cap and gently slosh the water around the tank.

4. Install the tank and spray the water until the tank

has been emptied. Make sure to direct the spray toward an area that will not be damaged by residue chemicals in the tank.

5. Repeat the procedure with clean water until the

tank is thoroughly clean. Wash outside of nozzles and dry with cloth.

6. Wipe the outside of the tank with a clean, dry cloth.

7. Allow all pieces to completely dry before reinstall-

ing parts and storing the unit. Always reinsert strainer before replacing tank cap. Storage Store indoors. Store spray wand securely in wand storage area. Store the sprayer in a secure, well- ventilated indoor space with the tank empty. Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor. WIRELESS COMMUNICATION For products provided with wireless communication features, including ONE-KEY™: Pursuant to part 15.21 of the FCC Rules, do not modify this product. Modication could void your authority to operate the product. This device complies with part 15 of the FCC Rules and ISED-Canada's license exempt RSS standards. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.
